WIRELESS THERMO-HYGROMETER
Instruction Manual
Cat. No. 30.3044.IT
Thank you for choosing this wireless thermo-
hygrometer from TFA.
BE ORE YOU USE IT
Please be sure to read the instruction
manual carefully.
This information will help you to familiarise
yourself with your new device, learn all of its
functions and parts, find out important details
about its first use and how to operate it, and get
advice in the event of faults.
Following the instruction manual for use will
prevent damage to the device and loss of your
statutory rights arising from defects due to
incorrect use.
We shall not be liable for any damage
occurring as a result of not following these
instructions.
Please take particular note of the safety
advice!
Please look after this manual for future
reference.
SCOPE O SUPPLY:
• Thermo- ygrometer (basic unit)
• Outdoor transmitter
• Instruction manual

28
IELD O OPERATION AND ALL O THE
BENE ITS O YOUR NEW THERMO-
HYGROMETER AT A GLANCE
• DCF Radio controlled time with manual
setting option
• Time reception ON/OFF (user selectable)
• Time zone option ±12 hours
• Calendar display (year only in setting
mode)
• Display 8 moon phases
• Indoor and outdoor temperature display
with MIN/MAX records
• Temperature display in ºC
• Indoor and outdoor humidity display
• umidity data display as R %
• Low battery indicator
• Table standing or wall mounting
OR YOUR SA ETY:
• The product is exclusively intended for the
field of application described above. The
product should only be used as described
within these instructions.
• Unauthorised repairs, modifications or
changes to the product are prohibited.
• The product is not to be used for medical
purpose or for public information, but is
intended solely for home use.
Caution!
Risk of injury:
• Keep this instrument and the batteries out
of reach of children.

29
• Batteries must not be thrown into the fire,
short-circuited, taken apart or recharged.
Risk of explosion!
• Batteries contain harmful acids. Low
batteries should be changed as soon as
possible to prevent damage caused by a
leaking battery. Never use a combination
of old and new batteries together or
batteries of different types. Wear
chemical-resistant protective gloves and
glasses when handling leaked batteries.
! Important information on product safety!
• Do not expose the instrument to extreme
temperatures, vibration or shock.
• The outdoor transmitter is protected
against splash water, but is not watertight.
Choose a shady and dry position for the
transmitter.

30

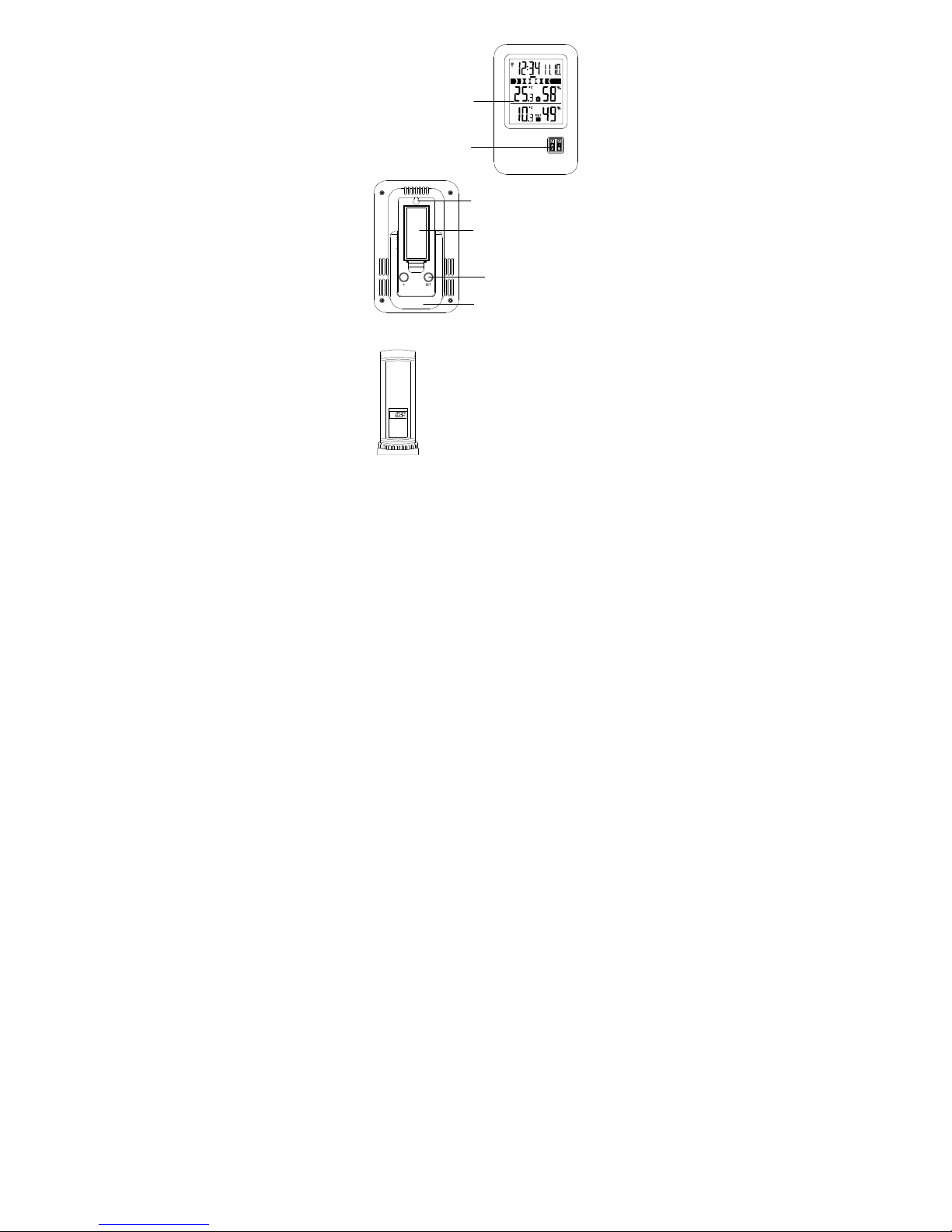

Stand
LCD
Display
Function key
Function keys

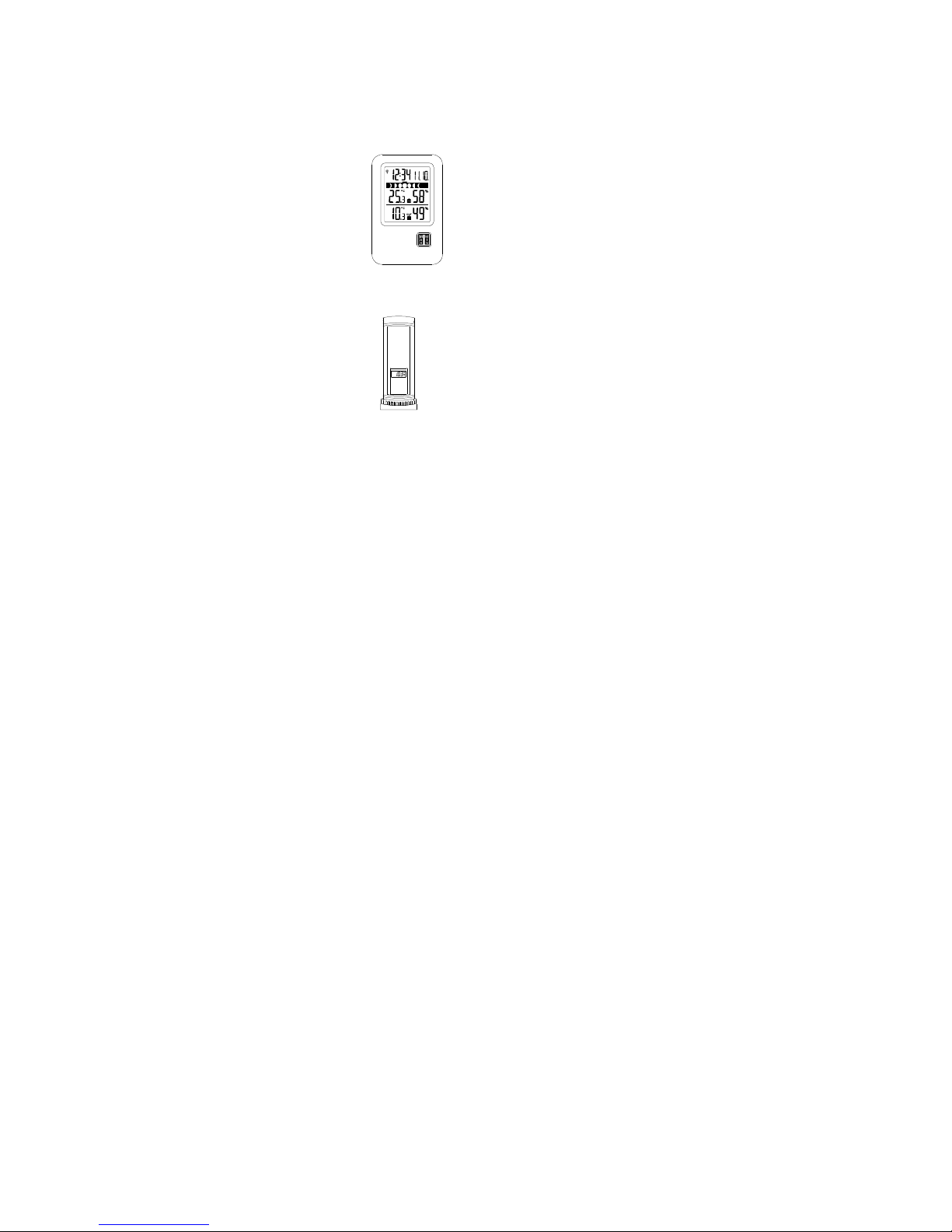

ELEMENTS
Thermo-Hygrometer
Thermo-Hygro Transmitter
• Remote transmission of
outdoor temperature and
humidity to thermo-
hygrometer by 868M z
• Alternately display the
outdoor temperature and
humidity readings on LCD
• Wall mounting case
Battery
compartment
anging
hole

31
• Mounting at a sheltered place. Avoid
direct rain and sunshine
TO INSTALL AND REPLACE BATTERIES
IN THE THERMO-HYGRO TRANSMITTER
The outdoor thermo-hygro transmitter uses 2 x
AAA, IEC LR3, 1.5 V batteries. To install and
replace the batteries, please follow the steps
below:
1. Remove the battery cover by
pushing the battery cover
upwards with your thumb.
2. Insert the batteries,
observing the correct polarity
(see battery compartment
marking).
3. Replace the battery cover on
the unit.
TO INSTALL AND REPLACE BATTERIES
IN THE THERMO-HYGROMETER
The thermo-hygrometer uses 2 x AAA, IEC LR3,
1.5 V batteries. To install and replace the
batteries, please follow the steps below:
1. Insert finger or
other solid
object in the
space at the
bottom center
of the battery
compartment
and lift up to

32
remove the cover.
2. Insert batteries observing the correct
polarity (see marking).
3. Replace compartment cover.
Battery replacement
• Replace the batteries when the battery
symbol of the thermo-hygrometer appears
on the upper display.
• When the batteries of the transmitter are
used up, the low battery icon appears next
to the outdoor temperature display.
Note:
In the event of changing batteries in any of the
units, all units need to be reset by following the
setting up procedures. This is due to a random
security code assigned by the transmitter at
start-up. This code must be received and stored
by the thermo-hygrometer in the first 3 minutes
of power being supplied to the transmitter.
SETTING UP
1. First, insert the batteries in the transmitter
(see “To install and replace batteries in
the thermo-hygro transmitter” above).
2. Within 2 minutes of powering up the
transmitter, insert the batteries in the
thermo-hygrometer (see “To install and
replace batteries in the thermo-
hygrometer” above). Once the batteries
are in place, all segments of the LCD will
light up briefly. Following the indoor
temperature/humidity and the time as
00:00 will be displayed. If this information

33
is not displayed on the LCD after 60
seconds, remove the batteries and wait
for at least 60 seconds before reinserting
them. Once the indoor data is displayed
user may proceed to the next step.
3. After the batteries are inserted, the
thermo-hygrometer will start receiving
data signal from the transmitter. The
outdoor temperature and humidity data
should then be displayed on the thermo-
hygrometer. If this does not happen after
2 minutes, the batteries will need to be
removed from both units and reset from
step 1.
4. In order to ensure sufficient 868 M z
transmission however, the distance
between the thermo-hygrometer and the
transmitter should not be more than 100
meters (see notes on “Positioning” and
“868 MHz Reception”).
Note:
In the event of changing batteries of the
units, ensure the batteries do not spring
free from the contacts. Always wait at
least 1 minute after removing the batteries
before reinserting, otherwise start up and
transmission problems may occur.
5. Once the outdoor data reception test
period is completed, the DCF tower icon
in the clock display will start flashing in the
upper left corner. This indicates that the
clock has detected that there is a radio
signal present and is trying to receive it.

34
When the time code is received, the DCF
tower becomes permanently lit and the
time will be displayed.
DC RADIO CONTROLLED TIME
The time base for the radio controlled time is a
Cesium Atomic Clock operated by the
Physikalisch Technische Bundesanstalt
Braunschweig which has a time deviation of less
than one second in one million years. The time
is coded and transmitted from Mainflingen near
Frankfurt via frequency signal DCF-77 (77.5
k z) and has a transmitting range of
approximately 1,500 km. Your radio-controlled
thermo-hygrometer receives this signal and
converts it to show the precise time in summer
or wintertime.
The quality of the reception depends greatly on
the geographic location. In normal cases, there
should be no reception problems within a 1,500
km radius of Frankfurt.
DCF reception is done twice daily at 02:00 and
03:00 am. If the reception is not successful at
03:00 am, then the next reception takes place
the next hour and so on until 06:00 am, or until
the reception is successful. If the reception is not
successful at 06:00 am, then the next attempt
will take place the next day at 02:00 am.
If the tower icon flashes, but does not set the
time or the DCF tower does not appear at all,
then please take note of the following:

35
+ key
MIN/MAX key
SET key
• Recommended distance to any interfering
sources like computer monitors or TV sets
is a minimum of 1.5 - 2 meters.
• Within ferro-concrete rooms (basements,
superstructures), the received signal is
naturally weakened. In extreme cases,
please place the unit close to a window
and/ or point its front or back towards the
Frankfurt transmitter.
• During nighttime, the atmospheric
disturbances are usually less severe and
reception is possible in most cases. A
single daily reception is adequate to keep
the accuracy deviation below 1 second.
UNCTION KEYS:
Thermo-hygrometer:
The thermo-hygrometer has 3 easy to use
function keys: 1 key on the front, and 2 keys on
the back.

36
Moon
phase
icon
Calendar
Indoor
relative
humidity
in R %
Time reception icon
(for DCF time)
Indoor
temperature
in ºC
Outdoor data signal
reception indicator*
Outdoor
temperature
in ºC
Outdoor relative
humidity in R %
Time
SET key
• Press and hold the key to enter manual
setting modes: time zone, manual time
setting, calendar, time reception ON/OFF
+ key
• Increase, change, toggle all values in
manual set mode
MIN/MAX key
• Press shortly to toggle between indoor
and outdoor MAX/MIN temperature and
current temperature
LCD SCREEN
The LCD screen is split into 4 sections
displaying the information for time/calendar,
moon phase, indoor data, and outdoor data.
Low battery
indicator
( thermo
-
hygrometer
)
Low battery
indicator
(transmitter)

37
* When the signal is successfully received by the
thermo-hygrometer, the outdoor transmission
icon will be switched on. (If not successful, the
icon will not be shown on LCD). The user can
then easily see whether the last reception was
successful (icon on) or not (icon off).
MANUAL SETTINGS:
The following manual settings can be changed
by pressing and holding the SET key:
• Time zone setting
• Manual time setting
• Calendar setting
• Time reception ON/OFF setting
TIME ZONE SETTING:
The time zone default of the thermo-hygrometer
is “0”. To set a different time zone:
1. The current time zone value starts
flashing.
2. Use the + key to set the time zone. The
range runs from 0 to -12 and then runs
from +12 back to 0 in consecutive 1-hour
intervals.
3. Confirm with the SET key and enter the
Manual Time Setting.
MANUAL TIME SETTING:
In case the thermo-hygrometer cannot detect
the DCF-signal (for example due to
Flashing

38
disturbances, transmitting distance, etc.), the
time can be manually set. The clock will then
work as a normal quartz clock.
1. The hour digit will start flashing.
2. Use the + key to set the hour.
3. Press again the SET key to set the
minutes. The minute digits start flashing.
4. Use the + key to set the minutes.
5. Confirm with the SET key and enter the
Calendar setting.
Note:
The unit will still try and receive the signal
despite it being manually set. When it does
receive the signal, it will change the manually
set time into the received time. During reception
attempts the DCF tower icon will flash. If
reception has been unsuccessful, then the DCF
tower icon will not appear but reception will still
be attempted the following day.

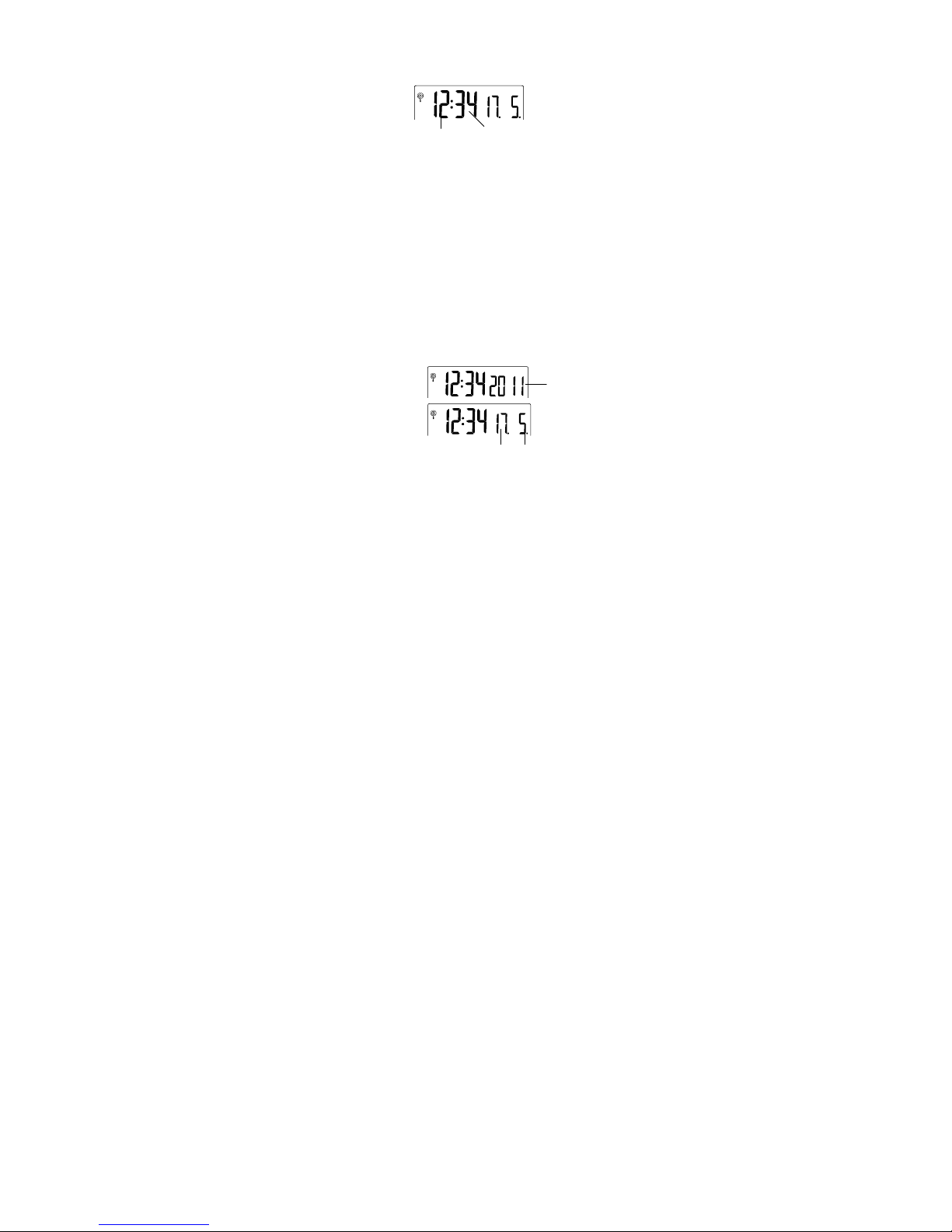

CALENDAR SETTING:
our flashing
Minutes flashing
Year
Date and month

39
The date default of the thermo-hygrometer
is 1. 1. 2011. Once the radio-controlled time
signals are received, the date is automatically
updated. owever, if the signals are not
received, the date can also be set manually.
1. The year starts flashing.
2. Use the + key to set the year (between
year 2011-2039).
3. Press the SET key again to confirm and to
enter the month setting. The month starts
flashing.
4. Use the + key to set the month.
5. Press the SET key again to confirm and to
enter the date setting mode. The date
starts flashing.
6. Use the + key to set the date.
7. Confirm all calendar settings with the SET
key and enter the Time reception
ON/O setting.
TIME RECEPTION ON/O SETTING:
In areas where reception of the DCF time is not
possible, the DCF time reception function can be
turned OFF. The clock will then work as a
normal quartz clock. (Default setting is ON).

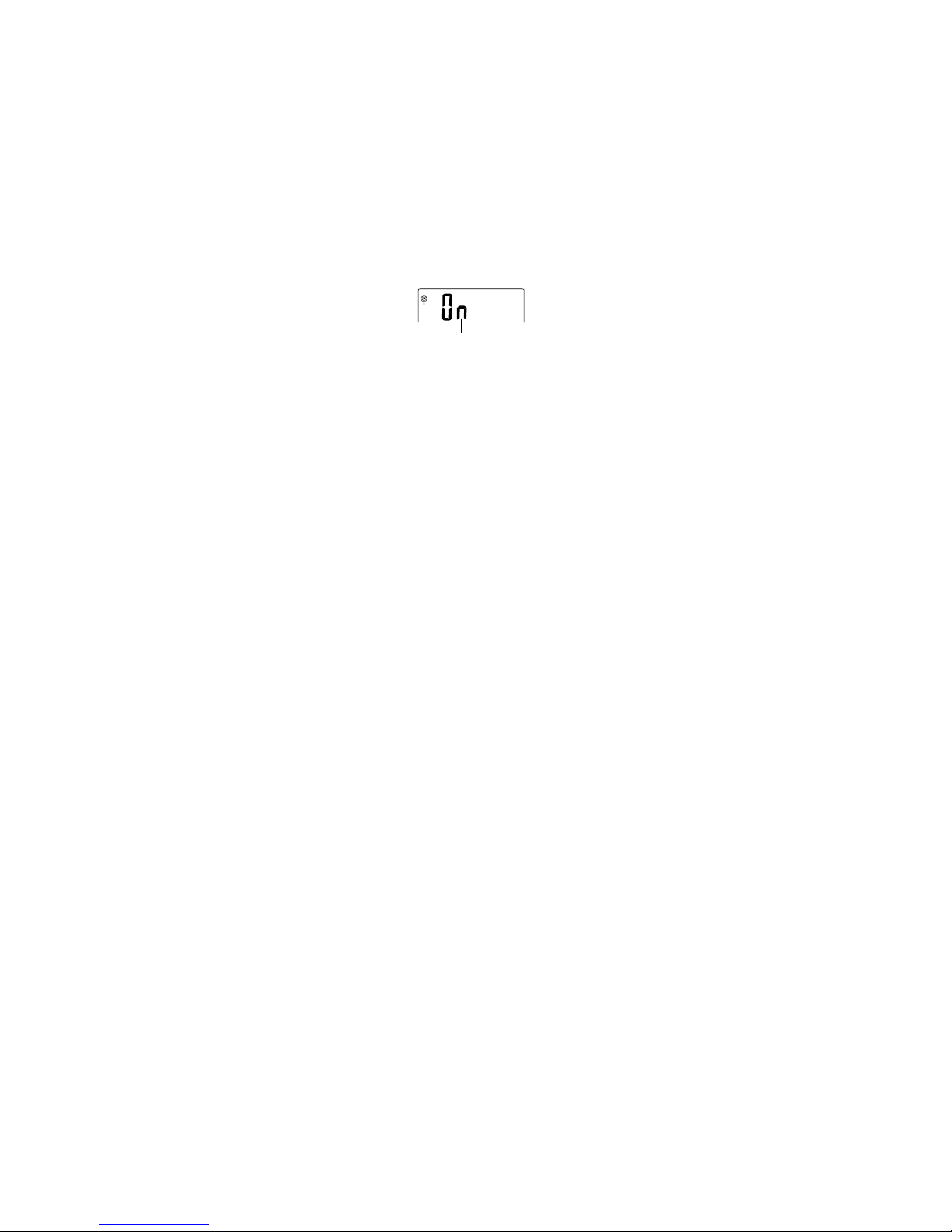

1. The digit “ON” will start flashing on the
LCD.
Flashing

40
2. Use the + key to turn OFF the time
reception function.
3. Confirm with the SET key and exit the
manual setting.
Note:
If the Time Reception function is turned O
manually, the clock will not attempt any
reception of the DC time as long as the
Time Reception O function is activated.
The time reception icon “ “ will not be
displayed on the LCD.
TO EXIT THE MANUAL SETTING MODE
To exit the manual setting mode anytime during
the manual setting, wait for automatic timeout.
The mode will return to normal time display.
MOON PHASES SYMBOL
The moon icon of the thermo-hygrometer will
also display all 8 moon phases throughout the
year according to the set calendar. A bar
segment above the moon phase will indicate the
current moon phase.
Bar segment (moon phase
indicator)
New
Moon
Waning
Crescent
First
Quarter
Waxing Gibbous
Waxing
Crescent
Last Quarter
Full
Moon
Waning
Gibbous

41
Indoor
relative
humidity
in R %
Indoor
temperature
in ºC
Outdoor data signal
reception indicator
Outdoor
temperature
in ºC
Outdoor
relative
humidity
in R %
INDOOR TEMPERATURE/HUMIDITY DATA
The indoor temperature and humidity data are
automatically updated and displayed on the third
section of the LCD.
OUTDOOR TEMPERATURE/HUMIDITY
DATA
The last LCD section shows the outdoor
temperature and humidity, and the reception
indicator.
TOGGLING AND RESETTING THE
MIN/MAX DATA
TO VIEW THE MIN/MAX DATA
Press the MIN/MAX key several times to view
the MIN/MAX indoor temperature, and MIN/MAX
outdoor temperature sequentially.
Low battery indicator
(transmitter)

42
TO RESET THE MIN/MAX DATA
Press and hold MIN/MAX key for 3 seconds
to reset all the indoor and outdoor
temperature to current temperatures.
ABOUT THE THERMO-HYGRO
TRANSMITTER
The range of the thermo-hygro transmitter may
be affected by the temperature. At cold
temperatures the transmitting distance may be
decreased. Please bear this in mind when
positioning the transmitters. Also the batteries
may be reduced in power for the thermo-hygro
transmitter.
CHECKING OR 868MHz RECEPTION
If the outdoor temperature and humidity data are
not being received within three minutes after
setting up (or outdoor display always show “- -.-”
in the outdoor section of the thermo-hygrometer
during normal operation), please check the
following points:
1. The distance of the thermo-hygrometer or
transmitters should be at least 2 meters
away from any interfering sources such as
computer monitors or TV sets.
2. Avoid placing the transmitters onto or in
the immediate proximity of metal window
frames.
3. Using other electrical products such as
headphones or speakers operating on the
868M z-signal frequency may prevent
correct signal transmission or reception.
Neighbors using electrical devices

43
operating on the 868M z-signal
frequency can also cause interference.
Note:
When the 868M z signal is received correctly,
do not re-open the battery cover of either the
transmitter or thermo-hygrometer, as the
batteries may spring free from the contacts and
force a false reset. Should this happen
accidentally then reset all units (see “Setting
up” above) otherwise transmission problems
may occur.
The transmission range is around 100 meters
from the thermo-hygro transmitter to the thermo-
hygrometer (in open space). owever, this
depends on the surrounding environment and
interference levels. If no reception is possible
despite the observation of these factors, all
system units have to be reset (see “Setting up”
above).
POSITIONING THE THERMO-
HYGROMETER
The thermo-hygrometer provides the option of
table standing or wall mounting the unit. Before
wall mounting, please check that the outdoor
data can be received from the desired locations.
To wall mount:
1. Fix a screw (not
supplied) into the
desired wall, leaving
the head extended out
by about 5mm.

44
2. Place the thermo-
hygrometer onto the
screw, using the
hanging hole on the
backside. Gently pull
the thermo-hygrometer
down to lock the screw
into place.
oldout table stand:
The foldout table stand leg
is located on the backside.
Pull the stand out from the
bottom center edge of the
thermo-hygrometer, below
the battery compartment.
Once the foldout table stand
is extended, place the
thermo-hygrometer in an
appropriate location.
POSITIONING THE THERMO-HYGRO
TRANSMITTER
Mounting at a sheltered place.
Avoid direct rain and sunshine.
The thermo-hygro transmitter can
be placed onto any flat surface or
wall mount using the bracket
which doubles as a stand or wall
mount base.

45
To wall mount:
1. Secure the bracket onto a
desired wall using the screws
and plastic anchors.
2. Clip the transmitter onto the
bracket.
Note:
Before permanently fixing the thermo-hygro
transmitter to the wall base, place all units in the
desired locations to check that the outdoor
temperature and humidity readings are
receivable. In event that the signal is not
received, relocate the thermo-hygro transmitter
or the thermo-hygrometer slightly as this may
help the signal reception.
CARE AND MAINTENANCE
• Clean the basic unit and the transmitter
with a soft damp cloth. Do not use
solvents or scouring agents. Protect from
moisture.
• Remove the batteries if you do not use the
product for a lengthy period.
MAL UNCTION
Problems Troubleshooting
No indication on
the thermo-
hygrometer
• Ensure batteries
polarity are correct
• Change batteries
No transmitter
reception
• Check batteries of
external transmitter

46
Display "---" (do not use
rechargeable
batteries!)
• Restart the
transmitter and
thermo-hygrometer
as per the manual
• Choose another
place for the
transmitter and/or the
thermo-hygrometer
• Reduce the distance
between the
transmitter and the
thermo-hygrometer
• Check if there is any
source of
interference
No DCF
reception
• Time reception
setting “ON”
• Choose another
place for the thermo-
hygrometer
• Manual time setting
• Wait for attempted
reception during the
night
Incorrect display • Change batteries
WASTE DISPOSAL
This product has been manufactured using high-
grade materials and components which can be
recycled and reused.
