Toro T7 Series User manual

u
To adjust the right stop, insert tool blade into cap. Turn blade left to decrease arc; right to increase arc.
uTo adjust the spray arc:
T7 Series Rotor User’s Guide
T7 Series Rotor User’s Guide
u
The fixed left stop is indicated by the arrow on the sprinkler cap. Align the fixed stop to the left border by turning the
sprinkler body. The right stop is adjustable from 40º–360º.
uTo position the left stop:
Left stop adjusted to
the left watering border.
Spray arc can be decreased down to 40º. Spray arc can be increased up to 360º.
180
Left Stop
Indicator
Left Stop
Indicator
Right stop increased to match the right watering border.
225

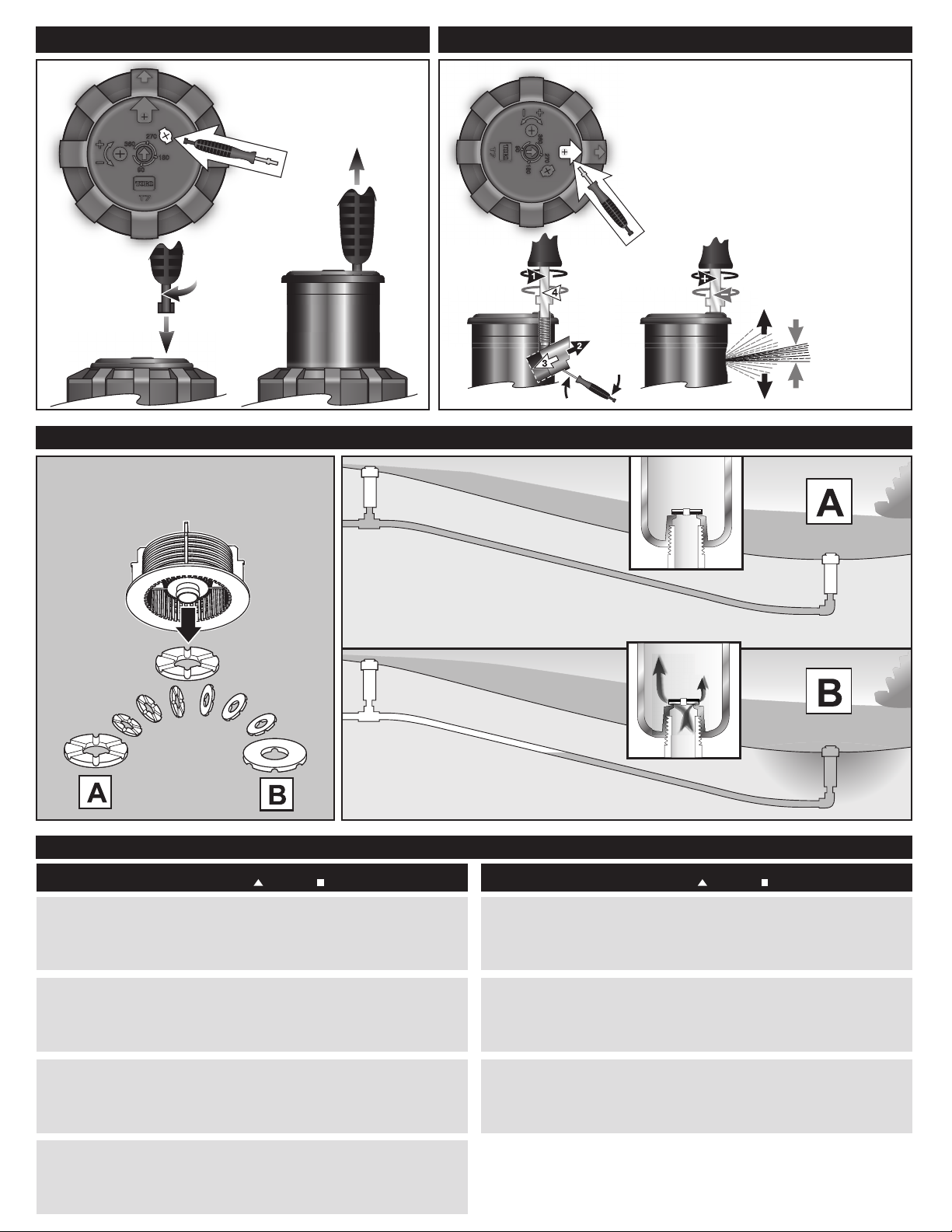

uTo pull the nozzle riser up:
u
Insert tool blade into
cap, twist blade 1/4 turn.
u
Pull nozzle riser up.
uTo change the nozzle/diffuse spray:
u
Insert tool blade into cap.
u
Retract nozzle screw to release nozzle.
u
Insert tool blade between nozzle lip
and turret to slide nozzle out.
u
Insert new nozzle, and return nozzle
screw to its original depth.
u
To shorten and diffuse spray, increase
nozzle screw depth into stream.
uT7 Nozzle Performance
uTo install the check valve:
The T7 is equipped with a two-way check
valve. To eliminate check valve function,
install the check valve disk in position B.
The check valve is factory installed in position A.
Nozzle Pressure Radius Flow Precip. Precip. Pressure Flow +/-10%
PSI ft. GPM in/h in/h Bar L/M
7 50 48 7.4 0.32 0.36 3,4 28,01
60 49 8.1 0.33 0.38 4,1 30,66
70 51 8.8 0.33 0.38 4,8 33,31
80 52 9.6 0.34 0.39 5,5 36,34
90 53 10.2 0.35 0.40 6,2 38,61
100 54 10.7 0.35 0.41 6,9 40,50
9 50 51 8.4 0.31 0.36 3,4 31,80
60 52 8.6 0.31 0.35 4,1 32,55
70 53 9.6 0.34 0.39 4,8 36,34
80 54 10.3 0.34 0.39 5,5 38,99
90 55 10.9 0.35 0.40 6,2 41,26
100 56 11.5 0.35 0.41 6,9 43,53
12 50 56 10.5 0.32 0.37 3,4 39,75
60 58 11.4 0.33 0.38 4,1 43,15
70 60 12.4 0.33 0.38 4,8 46,94
80 61 13.4 0.35 0.40 5,5 50,72
90 62 14.2 0.36 0.41 6,2 53,75
100 63 15.1 0.37 0.42 6,9 57,16
16 50 59 14.7 0.41 0.47 3,4 55,65
60 61 15.7 0.41 0.47 4,1 59,43
70 63 17.0 0.41 0.48 4,8 64,35
80 65 18.2 0.41 0.48 5,5 68,89
90 66 19.4 0.43 0.50 6,2 73,44
100 68 20.5 0.43 0.49 6,9 77,60
Nozzle Pressure Radius Flow Precip. Precip. Pressure Flow +/-10%
PSI ft. GPM in/h in/h Bar L/M
20 50 59 18.5 0.51 0.59 3,4 70,03
60 61 19.7 0.51 0.59 4,1 74,57
70 65 21.0 0.48 0.55 4,8 79,49
80 68 22.5 0.47 0.54 5,5 85,17
90 69 24.0 0.48 0.56 6,2 90,95
100 71 25.3 0.48 0.56 6,9 95,77
24 50 59 17.9 0.50 0.58 3,4 67,76
60 62 19.8 0.50 0.58 4,1 74,95
70 65 21.6 0.49 0.57 4,8 81,76
80 68 23.2 0.48 0.56 5,5 87,82
90 69 25.0 0.50 0.58 6,2 94,64
100 71 26.4 0.50 0.58 6,9 99,93
27 50 64 21.3 0.50 0.58 3,4 80,63
60 70 23.7 0.46 0.54 4,1 89,71
70 75 25.5 0.44 0.50 4,8 96,53
80 77 27.1 0.44 0.51 5,5 102,58
90 82 28.9 0.41 0.48 6,2 109,40
100 83 30.5 0.43 0.49 6,9 115,46
©2011 The Toro Company, Irrigation Division • www.toro.com
Form Number 373-0559 Rev. B
