Toshiba APOGEE FLN APG001Z User manual

E6581541②
TOSVERT VF-PS1 series
APOGEE®FLN option unit Instruction Manual
APG001Z
NOTICE
1. Make sure that this instruction manual is delivered to the end user of
APOGEE®FLN option unit.
2. Read this manual before installing or operating the APOGEE®FLN option unit.
Keep it in a safe place for reference.
3. All information contained in this manual are subject to change without notice.
Please confirm the latest information on our web site “www.inverter.co.jp”.

E6581541②
- 1 -
Safety precautions
On the inverter and in its instruction manual, important information is contained for preventing
injuries to users, damages to assets, and for proper use of the device.
Read the instruction manual attached to the inverter along with this instruction manual to
completely understand the safety precautions, the symbols and indications shown below. Please
adhere to the contents of these manuals at all times.
Explanation of markings
Marking Meaning of marking
Warning Indicates that errors in operation may lead to death or serious injury.
Caution
Indicates that errors in operation may lead to injury (*1) to people or that these errors may
cause damage to physical property. (*2)
(*1) Such things as injury, burns or shock that will not require hospitalization or long periods of
outpatient treatment.
(*2) Physical property damage refers to wide-ranging damage to assets and materials.
Meanings of symbols
Marking Meaning of marking
Indicates prohibition (Do not do it).
What is prohibited will be described in or near the symbol in either text or picture
form.
Indicates something mandatory (must be done).
What is mandatory will be described in or near the symbol in either text or picture form.
Indicates danger or warning.
What is dangerous, or what the warning should be applied to will be described in or
near the symbol in either text or picture form.
- 1/14 -

E6581541②
- 2 -
Limitation of use
Safety precaution
Never use this unit with any device other than TOSVERT VF-PS1 series inverters. Doing so may
cause an accident.
Handling in general
Warning
Never
Disassemble
Never disassemble, modify or repair the product.
Disassembling the product may cause electric shocks, fire or injuries.
For repairs, call your sales/repair agency.
Prohibited
Do not open the front cover on the inverter while the inverter power is on.
It may lead to electric shocks.
Do not remove this option from VF-PS1 while the power is on.
It may lead to electric shocks.
Do not put or insert foreign objects such as waste cable, bars or wires into the product.
It may lead to electric shocks or fire.
Do not splash water over the product, and do not wipe the body with a wet cloth.
It may lead to electric shocks or fire.
Mandatory
Turn off the power immediately in case of any abnormalities such as smoke, smell or
abnormal noise.
Neglect of these conditions may lead to fire.
For repairs, call your sales/repair agency.
Do not touch the sharp portions (such as leads of parts on the board, the corner of
board, or etc.) on this option.
It may lead to injuries.
Caution
Mandatory
This option is an electrostatic discharge sensitive device. Handle it, where the
environment is protected against electrostatic electricity.
Otherwise, permanent damage to device will result.
Transportation and installation
Warning
Prohibited
Do not apply a dropping shock or other physical shocks.
Otherwise, damage or malfunction will result.
Do not install or operate the inverter if it is damaged or any part of it is missing.
Operating a defective inverter may lead to electric shocks or fire.
For repairs, call your sales/repair agency.
Do not put any flammable material near the product.
It may catch fire due to the product sparking in the case of a malfunction.
Mandatory
Use this product under the environmental conditions prescribed in the instruction
manual.
Usage it under any other conditions may result in malfunction.
An emergency stop device must be installed that fits with system specifications
(e.g. shut off input power then engage mechanical brake).
Operation cannot be stopped immediately by the inverter or this unit alone, thus risking
an accident or injuries.

E6581541②
- 3 -
Wiring
Caution
Mandatory
Electrical construction work must be done by a qualified expert.
Connection of input power by someone who does not have expert knowledge may
result in electric shocks or fire.
Turn off input power before wiring.
Wait at least 15 minutes and make sure that the charge lamp (on the inverter unit) is no
longer lit. Otherwise, it may lead to electric shocks.
Tighten the screws on the terminal blocks to the specified torque when connecting
cables to terminal blocks.
Otherwise, it may lead to fire.
Operations
Warning
Prohibited
Do not pull on the cable and connector.
It may cause damage or malfunctions.
Mandatory
Use this option under the environment specified in the instruction manual.
Usage under the environment other than them may cause damages or malfunctions or
an accident.
Use an additional safety device with your inverter or system to prevent a serious
accident due to the unit malfunctions.
Usage without an additional safety device may cause an accident.
Caution
Mandatory
Set up “Communication error trip function (see below)” to stop the inverter when the
option unit is deactivated by an unusual event such as an operating error, power
outage, failure, etc.
- Network time-out (f832)
(See the VF-PS1 APOGEE®FLN Communication Function Manual for details.)
Deactivated option unit may cause an accident, if the “Communication error trip
function” is not properly set up.
Make sure that the operation signals are STOP before resetting inverter’s fault. The
motor may suddenly start and that may result in injuries.
Disposal
Caution
Mandatory
If you dispose off this unit, have it done by a specialist in industrial waste disposal*.
Improper disposal may result in explosion of capacitors or produce noxious gases,
resulting in injuries.
(*) Persons who specialize in the processing of waste and known as “Industrial Waste
Product Collectors and Transporters” or “Industrial Waste Disposal Persons.” If the
collection, transport and disposal of industrial waste is done by someone who is not
licensed for that job, it is a punishable violation of the law (Laws in regard to cleaning
and processing of waste materials).
Notes on operation
Notes
Avoid installing in a place where ambient temperature or/and humidity change sharply.
Keep the transmission cable separate from the power cable of the inverter to prevent the
inverter from malfunctioning due to electromagnetic noise.
Ground of SCR terminal on this option at the grounding terminal separated from those of
inverters and motors. It may cause malfunction due to noise.

E6581541②
- 4 -
Preface
Thank you for purchasing the “APOGEE®FLN option (APG001Z)” for TOSVERT VF-PS1 inverter.
By Installing this board into the VF-PS1, data communication can be made with a host computer or
other device via APOGEE®FLN network.
Before using this unit, carefully read this instruction manual in order to completely and correctly
utilize excellent performance of this unit. Besides this instruction manual, the “APOGEE®FLN
option Function Manual” which includes the contents to install into APOGEE®FLN network is
prepared. If it is required, please contact with our branch offices, sales offices or web site
“www.inverter.co.jp”.
(“APOGEE®FLN option Function Manual”: E6581542)
After reading this instruction manual, please keep it handy for future reference.
* APOGEE®FLN is a registered trademark of Siemens Building Technologies, Inc.
- Part numbering
APG 001 Z –0
Revision number
Cable length ( “Z” means “without cable” )
Model number of APOGEE®FLN option
Symbol of APOGEE®FLN option
- Accessory check list
APOGEE®FLN communication option is shipped together with the following accessories. On
opening the packing case, check to see if the following accessories are contained or not.
(1) APOGEE®FLN option (APG001Z)....... 1 board
Connector: MSTB2.5/4-STF-5.08
Manufactured by PHOENIX CONTACT
(3) Instruction manual for the VF-PS1 APOGEE®FLN option .....1 copy
English: E6581541
(This manual)
(4) LED name label 1 sheet
Manual

E6581541②
- 5 -
Table of Contents
1. Overview ···································································································································6
2. Names and functions·················································································································6
2.1. Outline·······························································································································6
2.2. APOGEE®FLN Connector································································································6
2.3. LED indicator·····················································································································7
3. Installing the APG001Z ·············································································································8
3.1. Case of installing two options····························································································9
3.2. Network cable connection ·································································································9
3.3. Network configuration······································································································10
4. Parameters······························································································································11
4.1. Communication parameters ····························································································11
5. Command & Setpoint selection (Local/Remote)······································································12
6. Specifications ··························································································································14
7. Warranty··································································································································14

E6581541②
- 6 -
1. Overview
The APOGEE®FLN interface (APG001Z) allows the VF-PS1 inverter to be connected into a
APOGEE®FLN network.
APG001Z is applicable for VF-PS1 software version V620 or later.
2. Names and functions

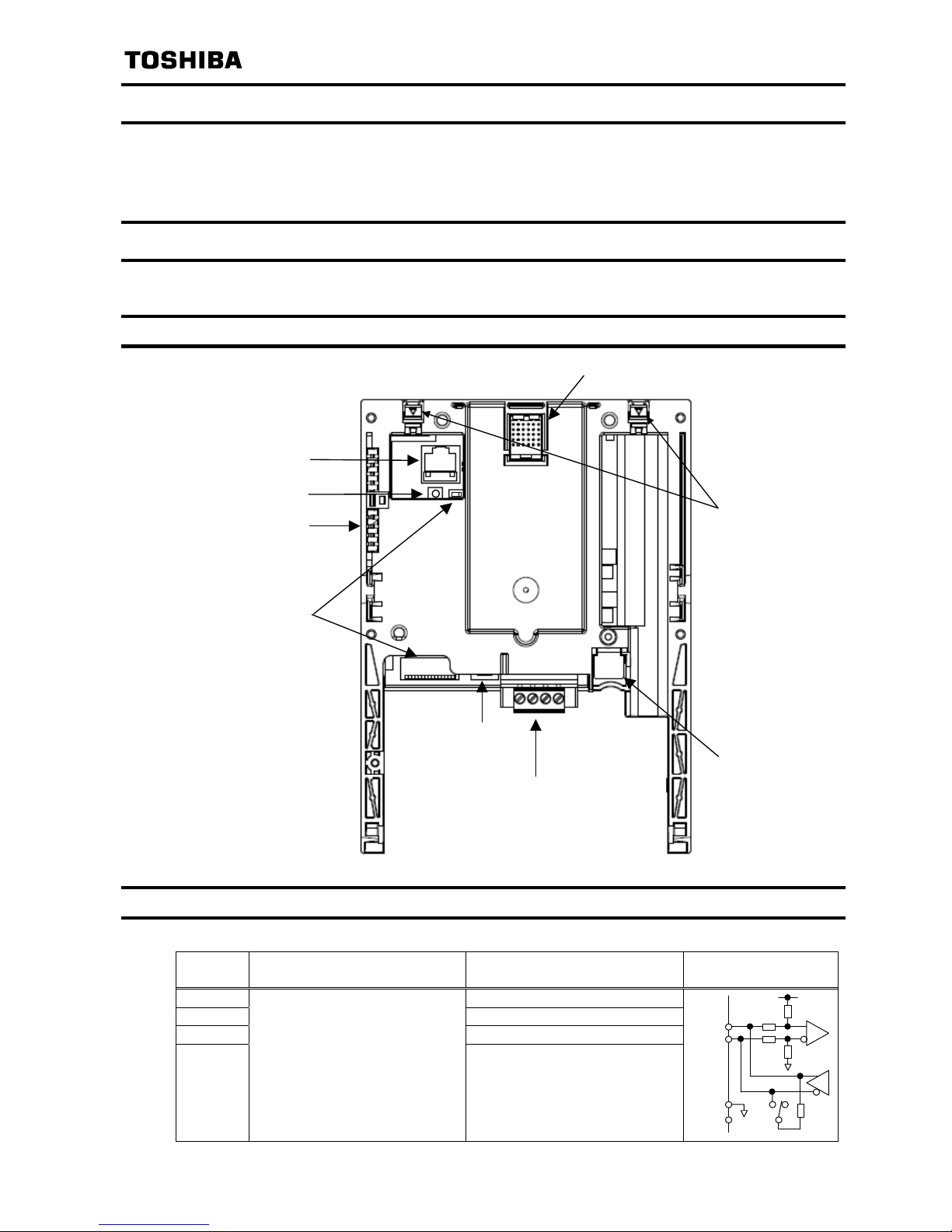

The drawing below shows names and functions of main parts.
2.1. Outline
2.2. APOGEE®FLN Connector
Terminal
symbol Function Electrical specifications Internal circuits
B Communication signal (+)
A Communication signal (-)
GND Signal common
SCR
APOGEE®FLN
communication signal
EIA-485 Shield terminal.
B
A
GND
SCR
47k
47k
4.7k
4.7k
120
SW102
TERM
Don’t use this connecter
Connector to the inverter
Don’t use these switches
Don’t use this switch
APOGEE Connector（See 2.2）
APOGEE LED indicator
（See 2.3）
Termination
resistor SW(SW102)
Panel mounting tabs
Earth Plate
(Terminal connector : MSTB 2,5/4-STF-5.08)
: PHOENIX CONTACT

E6581541②
- 7 -
2.3. LED indicator
The LED shows the present status of the network and error.

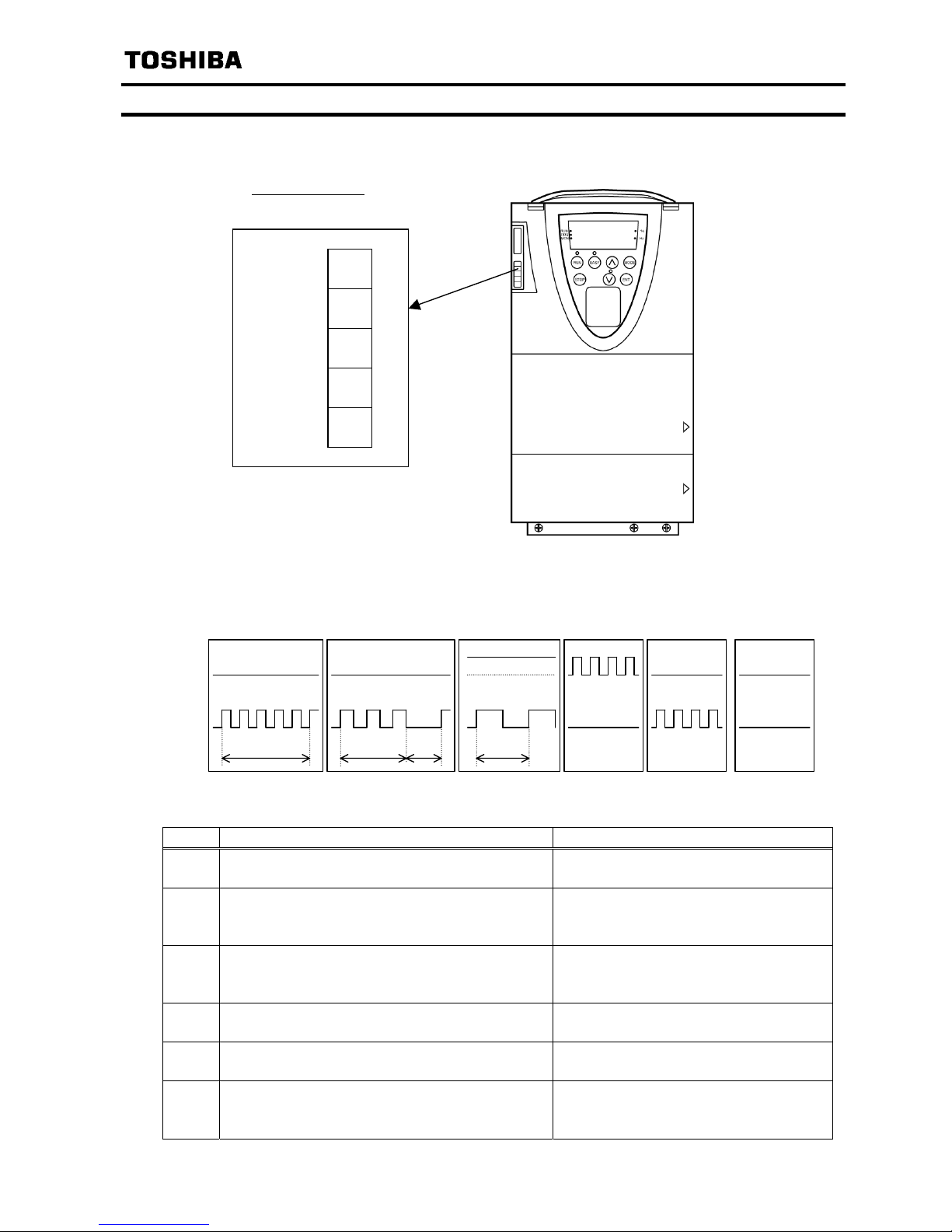

■Layout of LED
The option has two LEDs. Those function are below table.
State LEDs Comment
A COM LED: OFF
ERR LED: Flashing 5 times in 1 second APG001Z failure.
B COM LED: OFF
ERR LED: 3 times in 2 seconds, OFF for 1 second
Communication loss was detected.
Confirm the network condition and
connection of the cable.
C COM LED: ON
ERR LED: OFF 0.5s, ON 0.5s
Invalid configuration was detected.
(Note)When inverter occurred in e-23
or e-24, the LED becomes this state.
D COM LED: Flashing
ERR LED: -
Valid message was received for this
node
E COM LED: -
ERR LED: Flashing
Invalid message was received (any
node)
ＦCOM LED: OFF
ERR LED: OFF
No communication
Confirm the network condition and
connection of the cable.
COM
(Green)
ERR
(Red)
2s
OFF
1s
B D
OFF
E
OFF
1s
ON
C
1s
OFF
A F
OFF
OFF
2.2
2.3
2.4
2.5
2.1
COM
ERR

E6581541②
- 8 -
3. Installing the APG001Z
Install the APOGEE®FLN option to VF-PS1 as follows.
Mandatory
Turn off the input power of VF-PS1 and wait for at least 15 minutes and then check
that the CHARGE lamp on VF-PS1 is no longer lit.
(1) Turn off input power of VF-PS1 and wait for at least 15 minutes and then check
that the CHARGE lamp on VF-PS1 is no longer lit.

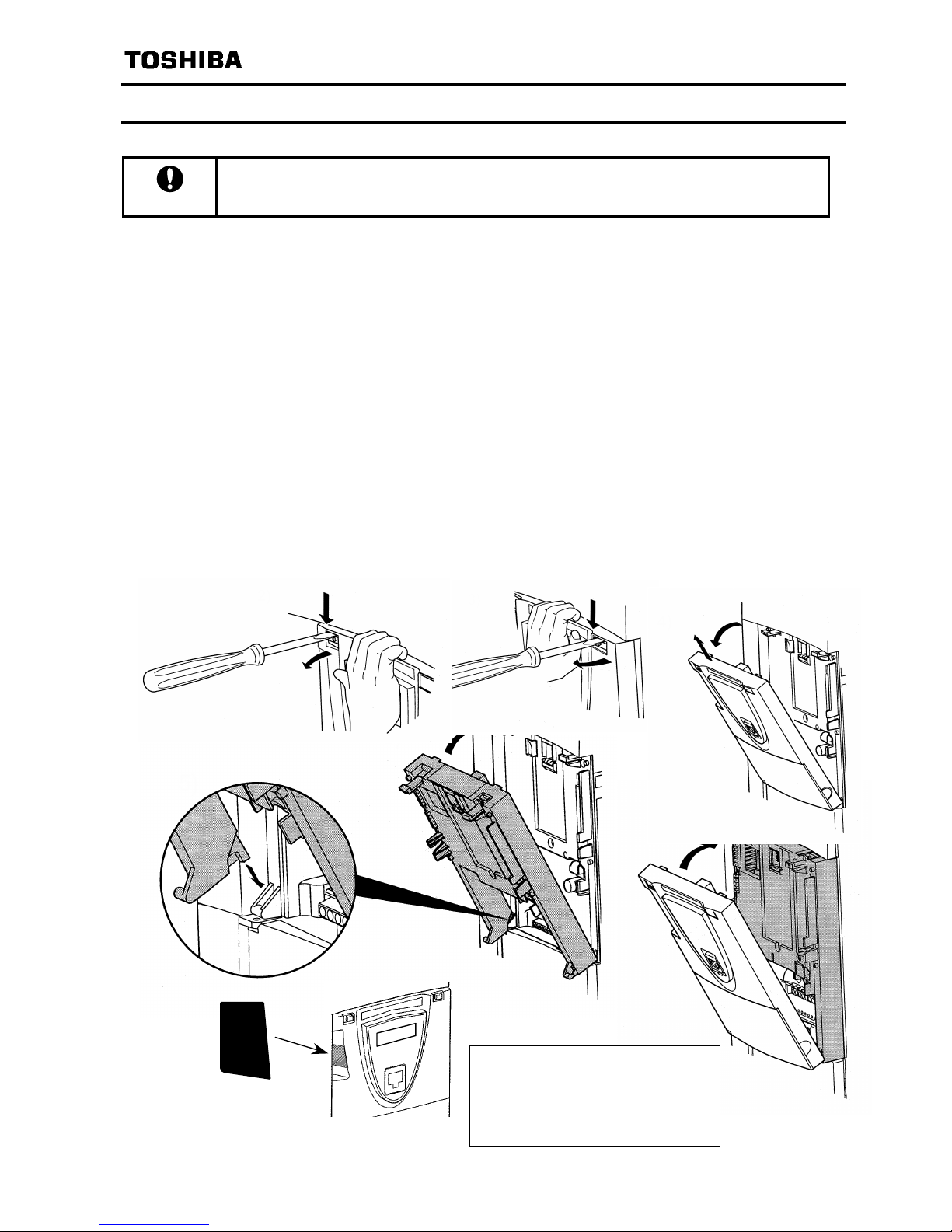

(2) Securing the option to the inverter
a) Insert a flat-blade screwdriver in each of the two holes at the upper part of the
front panel, release the panel mounting tab by pushing the screwdriver down and
remove the front panel cover.
b) Install the option in the inverter by fitting the tabs on the lower side the option into
the slots at the lower part of the inverter front panel.
c) Make sure the option is securely attached to the inverter. Then check whether the
plastic bosses on the inverter case have fitted in the holes at the upper and lower
parts of the option.
d) Insert the tabs at the lower part of the front cover into the slots at the lower part of
the inverter to attach the front cover to the inverter.
e) Stuck the enclosed "LED name label" in the option LED display part of a front
cover.
b)
c)
a)
e)
d)
COM
ERR
LED name label
Remove a standard equipped option
case, in case of below type of inverter.
VF-PS1 200V 55KW –90KW
400V 90 KW –630KW

E6581541②
- 9 -
3.1. Case of installing two options
Please install this option (APG001Z) on the top of options when you install two options.
Do not install under the another option.
3.2. Network cable connection
Connect the APOGEE®FLN network cable to communication option as follows.
Title Description
Wire type Shielded twisted cable
Characteristic impedance Between 100 and 130 ohm
Distributed impedance between
conductors Less than 100pF per meter
Distributed impedance between
conductors and shield
Less than 200pF per meter
Foil or braided shield are acceptable.
Length of a segment 1200 meters with AWG18 (0.8mm2)
Cable sheath should be peeled off by about 7mm.
For wiring work, use a flat blade screwdriver with a 0.6mm thick and
3.5mm width blade.
Tightening torque for the terminal block is 0.5Nm.
* Fix a cable so that a communication connector may be not taken the weight of wire.
7mm

E6581541②
- 10 -
3.3. Network configuration
Make up the network as follows.
- Transmission/reception signals (A, B)
Make up the communication path by connecting all transmission/reception data cables.
- Signal common (GND)
GND is the signal common.
- Grounding the shield of cable (SCR)
Connect the all shield lines of network cable. The shield shall be grounded at one end only
prevent currents from being created.
- Termination resistor
A termination resistance of 120 ohms plus or minus 5% shall be connected at each of the two
ends of the segment medium. This option has a termination resistor, so if use, set up the
termination resistor SW. (Refer to 2.1 Outline)
* It is recommended that the Siemens Building Automation FLN Trunk Terminator (PN: 538-664)
be used and that the network termination switch on the APG001Z, SW102, be set to OFF.
At least one set, and no more than two sets, of network bias resistors shall exist for each segment.
This option has local bias resistors.
Termination B
A
GND
+5
510
510
Node with network
bias resistors
120
B
A
GND
Node without
bias resistors
B
A
GND
+5
47k
Node with local bias resistors
This option board
47k
4.7k 4.7k
Termination
120
SCR
Communication
cable
Communication
cable
SCRSCR
SW102 TERM
N.B.:Do not connect the SCR terminal to the power ground of inverters or other units.
Keep the network cables 20cm or more separate from the power cables to prevent from
malfunctioning due to electromagnetic noise.

E6581541②
- 11 -
4. Parameters
4.1. Communication parameters
Set up the inverter parameters as follows. To update, reset of inverter. If these parameters are not
set to correct value, this unit can not work normally.
Title
Commu
nication
No.
Function Description
Factory
setting
f8310831 Network Baudrate (*1)
0: 9600bps,1: 4800bps,2: 9600bps
3: 19200bps,4: 38400bps,
5: 57600bps,6: 76800bps
Over 7 is 9600bps.
0000
f8320832 Network Time-Out (*1)
0: No action
Unit 0.1 sec, Setting range: 1 – 1000
Over 1000 is 100.0s.
0000
f8330833 Factory setting (*1) Except ACh：Reset to factory setting
ACh：Finished with reset to factory setting
0000
(ACh)
f8340834 Station address 1-99
The range outside is converted into 99 0000
f851 0851
Operation
at communication error
by disconnection
0: Inverter stop, communication command,
frequency mode open (by cmod, fmod)
1: None (continued operation)
2: Deceleration stop
3: Coast stop
4: Network error (err8 trip)
5: Preset speed operation (by f852 setting)
0
f852 0852 Preset speed operation
selection
0:None
1~15:Preset speed operation (by parameter
setting)
0
f853 0853
Communication option
station address monitor
(Read Only)
Real station address monitor
If a value of f834 is out of a range, the
value of f853 becomes 99.
－
f899 0899 Network option reset
setting
0:None
1:Reset option circuit board and inverter 0
－ FE66 Add-on option 1 CPU
version(Under side option) －
－ FE67 Add-on option 2 CPU
version(Panel side)
High byte is version Low byte is revision.
For example, When version number 1, and
revision number 2 is, panel indication
becomes with 1.02.
The version of the option with it has equipped
can be checked by using the function of
f710 to f718 (standard monitor display
selection).
*For details, refer to the inverter instruction
manual.
－
* When fmod or cmod is set to “Communication option input”, VF-PS1 drives without
FLN LOC REF (LDO point #69) or FLN LOC CTL (LDO point #68) at each Objects.
(*1): This parameter is effective by reset. Please reset (power supply reset or f899=1)
after changing a set point.

E6581541②
- 12 -
5. Command & Setpoint selection (Local/Remote)
Indication to display Local/Remote mode is on the inverter unit (Refer to the inverter
instruction manual for details). APOGEE®FLN option command and setpoint are
activated on Remote mode.
Inverters have some switches to select the command and setpoint location. Following
figure shows the diagram. Refer to the inverter instruction manual for the parameter in
detail.
Command
Setpoint
Operation Panel
EASY key (f750=2)
(Local/Remote key)
Logic input = 48 (SC/LC)
Network cancel switch
Network (APOGEE
®
FLN)
Network (APOGEE
®
FLN)
LDO point #68 *1
LDO point #69 *1
0
1
ON
OFF
0
1
Operation Panel
ON
OFF
Control Terminal (VI)
Control Terminal (RR)
:
Operation Panel
:
Network (APOGEE®FLN)
:
fmod
1
2
:
4
:
7
Control Terminal
Operation Panel
:
Network (APOGEE®FLN)
cmod
0
1
:
4
Remote
Loccal
Remote
Loccal
*1 Be careful that cmod command and fmod setpoint are activated for a short
time just after the inverter power turned on. Set cmod and fmod to “network”
to prevent this problem.

E6581541②
- 13 -
<Example>
The example below shows how to configure the VF-PS1 for local/remote operation.
F terminal..................... Operating command
R terminal .................... The APOGEE®FLN local/remote (Terminal in this example) switching
RR/S4 terminal.......... Operation frequency command
<Wiring>
VF-PS1
F
R
CC
PP
RR/S4
Variable resistor for adjustmen
t
10k ohm
The APOGEE
®
FLN /local Switch
Operation command
SINK
SW1
SOURCE
CCA
<Parameter setting>
cmod(Command mode selection) = 0 (Terminal board)
fmod(Frequency setting mode selection 1) = 2 (RR/S4)
f112(Input terminal selection 2 (R)) = 48 (Remote/Local control)
<Operation>
R-CC terminal open: VF-PS1 is controlled as a slave device of The APOGEE®FLN.
R-CC terminal closed:
F-CC terminal short to RUN
F-CC terminal open to STOP
Output frequency is set up by the RR/S4 signal input.
(Note)
When the local(HAND) / remote key (f750=2) is chosen as EASY key selection
and the EASY key lamp of an inverter front panel is on, priority is most given to
operation by a panel. (Refer to the inverter instruction manual for details).
Note that the HAND mode of the panel has priority over FLN local control.

E6581541②
- 14E -
6. Specifications
< Environmental specification >
Item Specification
Model number APG001Z
Service environment Conforms to VF-PS1
Ambient temperature Conforms to VF-PS1
Storage temperature Conforms to VF-PS1
Relative humidity Conforms to VF-PS1
Vibration Conforms to VF-PS1
Power supply 24VDC supplied from the inverter
<APG001Z network specification >
Item Specification
Station type Remote device station
Number of occupied
stations 1 station occupied by 1 unit
Maximum FLN device 32 FLN devices to each FLN port of the Field Cabinet.
Communication baud rate 4800, 9600, 19200, 38400, 57600, 76800bps
Bias resistor and termination Local bias resistors are mounted.
Termination resistor (120 ohm) can be select by SW.
Terminal block
Detachable terminal block 4-pole (5.08mm pitch)
Manufacturer: PHOENIX CONTACT
Type-Form : MSTB 2,5/4-STF-5.08
7. Warranty
Any part of APOGEE®FLN communication option that is proved to be defective will be repaired
free of charge under the following conditions:
1. This product will be repaired free of charge, if problem/fault occurs under normal handling
within one year of delivery and is caused obviously by a design or manufacturing defect.
2. The warranty applies only to the delivered product.
3. For the following kinds of failure or damage, the repair cost shall be borne by the customer
even within the warranty period.
i) Failure or damage caused by improper or incorrect use or handling, or unauthorized repair
or modification of the inverter.
ii) Failure or damage caused by the unit falling or an accident during transportation after the
purchase.
iii) Failure or damage caused by fire, salty water or wind, corrosive gas, earthquake, storm or
flood, lightning, abnormal voltage supply, or other natural disasters.
iv) Damage due to the use of APOGEE®FLN communication option for non-intended
purposes.
4. If an additional warranty is provided then those conditions will also apply.
