Trotec TDS 10 M User manual

OPERATING MANUAL
CERAMIC HEATER
TDS 10 M
EN
TRT-BA-TDS10M-TC-001-EN

EN Operating Manual – Ceramic Heater TDS 10 M 1
Symbols
Hazardous electric current!
Warns about hazards from electric current which can
lead to injuries or even death.
Danger!
Warns of a hazard which can lead to personal injury.
Caution!
Warns of a hazard which can lead to damage to
property.
Legal notice
This release replaces all previous versions. No part of this
publication may be reproduced without written permission from
Trotec. The same applies for electronically processing,
duplicating or spreading the publication. Subject to technical
changes. All rights reserved. Trademarks are used without
guarantee that they may be used freely and primarily following
the spelling of the manufacturer. Product names are registered.
Changes to construction in the interests of constant
improvements to the product, as well as changes to the shape
and colour are reserved.
The scope of delivery may vary from product images. This
document was created with all due care. Trotec accepts no
liability whatsoever for possible mistakes or omissions.
© Trotec
Table of contents
Notes regarding the operating manual .................................... 1
Safety ..................................................................................... 2
Information about the device................................................... 3
Technical data ........................................................................ 3
Transport and storage............................................................. 4
Operation................................................................................ 4
Maintenance and repair .......................................................... 4
Errors and faults ..................................................................... 4
Disposal.................................................................................. 6
Declaration of conformity ........................................................ 6
Notes regarding the operating manual
The current version of the operating manual can be
found at:
http://download.troec.com/?sku=1410000050&id=1

2Operating Manual – Ceramic Heater TDS 10 M EN
Carefully read the operating manual before using the device
and keep it within reach!
Danger!
Improper use of the heating device can result in
severe injuries due to burns, fire hazard or electric
shocks.
• Ensure a minimum distance of 50 cm to combustible
substances. Do not use the device in rooms where fuel,
solvents, varnishes or other easily inflammable vapours are
stored. Do not use the device in immediate proximity to
curtains.
• Keep away from children and animals.
• Do not leave the device unattended during operation.
• Only connect the device to the mains, if voltage and
frequency correspond to the values given on the nameplate.
• Only use extension cables with an adequate cross-section for
this capacity. Extension cables must always be reeled off
completely.
• Disconnect the device from the mains, if it is not in use.
• Unplug the device from the mains before starting with
maintenance, service or repair work.
• Never cover the device with anything, otherwise it could
overheat. Fire hazard.
• Always keep air inlet and outlet free.
Intended use
Only use the device TDS 10 M to heat enclosed spaces such as
storage facilities, salesrooms, flats as well as to heat construction
areas and containers whilst adhering to the technical data.
Improper use
Do not place the device TDS 10 M on wet or flooded ground. Do
not use the device outdoors. Do not place any objects on the
device for drying. Do not use this device in immediate proximity
to sinks, bathtubs, showers or swimming pools.
Using the device in any other way than described as intended use
is considered improper.
Personnel qualifications
People who use this device must:
• be aware of the dangers that occur when working with
electric devices in damp areas.
• have read and understood the operating manual, especially
the Safety chapter.
Residual risks
Hazardous electric voltage!
Work on the electrical components must only be carried
out by an authorised specialist company!
Hazardous electric voltage!
Before any work on the device, remove the mains plug
from the mains socket!
Danger!
The device is not a toy and does not belong in the hands
of children.
Danger!
Improper handling entails a risk of burning and electric
shock. Only use the device as intended!
Danger!
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Caution!
In order to avoid overheating, the heating unit must not
be covered!
Behaviour in the event of an emergency
1. Disconnect the device from the mains power in an
emergency.
2. Do not reconnect a defective device to the mains power.
Safety

EN Operating Manual – Ceramic Heater TDS 10 M 3

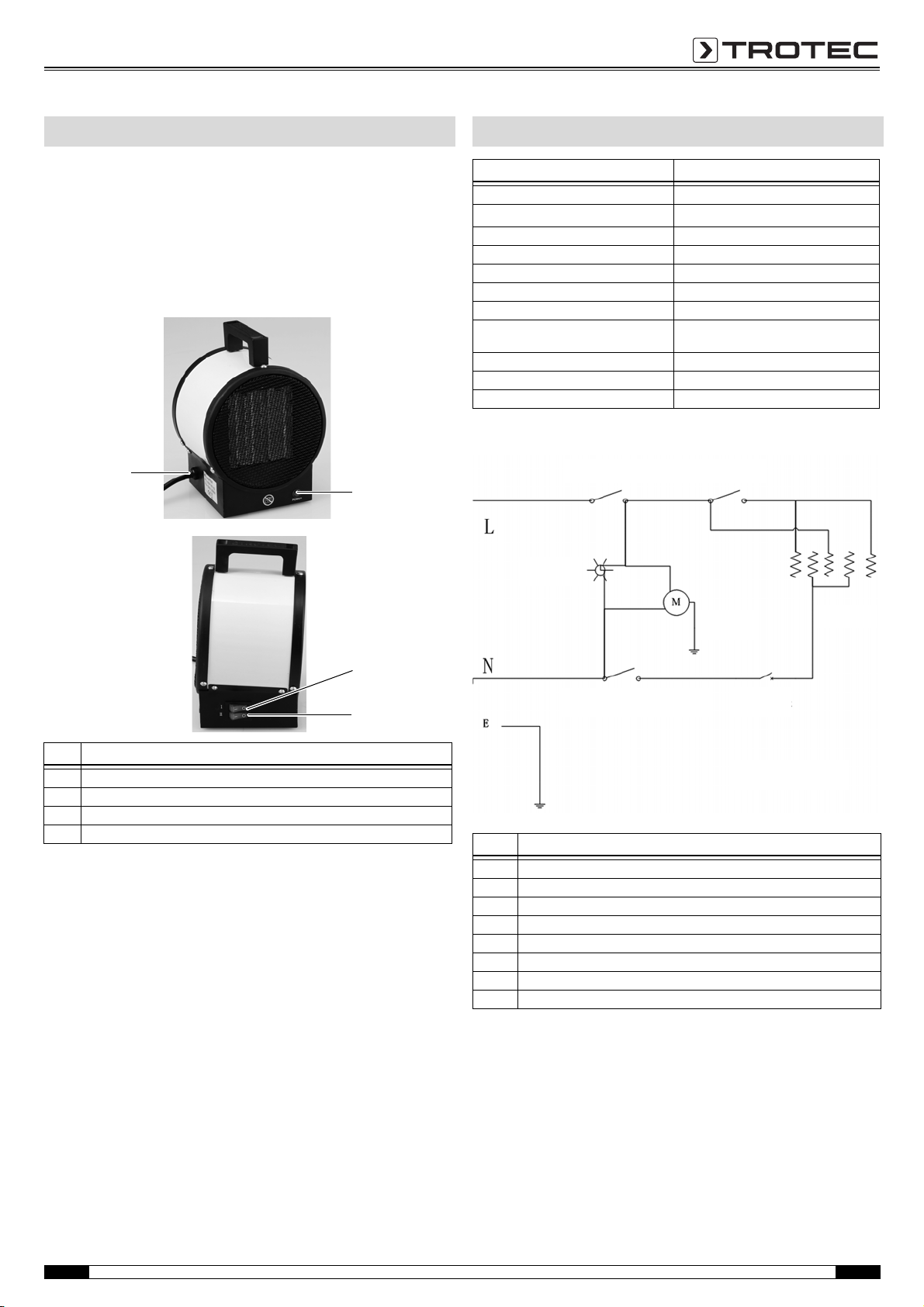

Description of the device
The electrical fan heater serves to generate and distribute warm
air, e.g. in interior spaces.
The device generates heat by means of a heating element. The air
surrounding the heating element is heated. The heated air is
blown into the room by a fan.
Device depiction
Circuit diagram
Information about the device
No. Designation
1LEDpower
2switchI
3switchII
4powercable
1
4
2
3
Technical data
Parameter Value
Model: TDS 10 M
Air flow rate, max.: 100 m3/h
Heating capacity: 2000 W
Mains voltage: 220 to 240 V / 50 Hz
Mains connection: Schuko plug CEE 7/7
Operating temperature: -15 °C to +30 °C
Humidity for operation: max. 80 % RH
Storage conditions: -10 °C to +40 °C
with 20 % to 80 % RH
Dimensions (height x width x depth): 225 x 165 x 130 (mm)
Weight: 1.45 kg
Sound pressure level: 45 dB(A)
No. Designation
5Switch1
6Switch2
7PTC
8 Fusing silk
9Heating
10 Motor
11 Self resetting thermostat
12 The power indicator light
56
7
8
9
10
11
12

4Operating Manual – Ceramic Heater TDS 10 M EN
• Remove all packing materials which serve to protect the
device during transport.
• Should the heating device be damaged, please contact the
responsible dealer, where the purchase was made.
Storage
• If you have do not use the device for extended periods of time,
thoroughly clean it before putting it away.
• Store it in a dry location and protect it against dust.
• Before restarting the device, check the condition of the power
cable. If there are doubts as to the sound condition, contact
the customer service.
Warning!
Read and observe the warnings and instructions in
the Safety chapter. Abide by it to ensure a safe
operation of this heating device.
Check whether the power cable is intact. If the power cable is
damaged, it must be replaced by the manufacturer, his customer
service or similarly qualified personnel. Make sure that the
electrical properties of the socket correspond to the values
specified in the operating manual or on the nameplate. Place the
device on dry, even ground. Make sure that the device cannot
come into contact with moisture or water at this installation site.
Switch-on
1. Connect the power cable with the Schuko plug to the socket.
2. Switch on switch I (2).
– The LED (1) is illuminated.
– The fan switches on.
– Heating level I is active (1,000 W).
– If you want to operate the device at maximum heating
capacity, additionally switch on switch II (3; heating level II
2,000 W).
Switch-off
1. First switch off switch II (3), if applicable.
2. Switch off switch I (2).
3. Disconnect the power cable from the mains.
4. Allow the device to cool down for approx. 3 minutes before
storing it.
Overheating protection
The device is provided with a safety thermostat, which is
activated by overheating of the device. In such an event the
device switches off automatically.
If the overheating protection is tripped, allow the device to cool
down. Only then start to look for a cause of the overheating.
Should the problem continue to exist, please contact the
customer service.
For maintenance or repair work which requires the
housing to be opened, contact the Trotec customer
service. Devices which have been opened
unlawfully are void of any warranty and warranty
claims.
Activities required before starting maintenance
• Do not touch the mains plug with wet or damp hands.
• Before any work, detach the mains plug!
Cleaning the housing
Clean the device with a soft, damp and lint-free cloth. Ensure that
no moisture enters the housing. Do not use any sprays, solvents,
alcohol-based cleaning agents or abrasive cleaners, but only
clean water to moisten the cloth.
Transport and storage
Operation
Errors and faults
Fault Cause Remedy
The device is switched
on, the fan is operating,
the heating is not.
The heating resistor has
blown.
Have it replaced.
The device does not
switch on.
Motor is defective. Have it replaced.
Mains voltage
interrupted.
Unplug and check mains
connection.
The air current is
reduced.
Air inlet is blocked. Clean air inlet and
remove obstruction.
Fan motor is defective. Have it replaced.
Maintenance and repair

EN Operating Manual – Ceramic Heater TDS 10 M 5
Overview and list of spare parts
No. Spare part No. Spare part No. Spare part
1 Front grill 6 Air flue 11 Back grill
2 Before the fixed ring 7 Motor 12 Power cord
3 Metal hot bartender 8 Fan 13 Foundation
4 Thermostat 9 Handle 14 Dual switch
5 PTC 10 Out casing 15 Indicator light
Note!
The position numbers of the spare parts differ from those describing the positions
of other parts mentioned in this operating manual.

6Operating Manual – Ceramic Heater TDS 10 M EN
In the European Union, electronic equipment must not
be treated as domestic waste, but must be disposed of
professionally in accordance with Directive
2002/96/EC of the European Parliament and Council of 27th
January 2003 concerning old electrical and electronic equipment.
At the end of its life, please dispose of this device according to the
valid legal requirements.
in accordance with the EC Low Voltage Directive 2006/95/EC and
the EC Directive 2004/108/EC about electromagnetic
compatibility.
Herewith, we declare that the electrical fan heater TDS 10 M was
developed, constructed and produced in compliance with the
named EC directives.
Applied harmonised standards:
EN 60335-1:2012
EN 60335-2-30:2009/A11:2012
EN 62233:2008
EN 55014-1:2006/A1:2009 and A2:2011
EN 55014-2:1997/A1:2001 and A2:2008
EN 61000-3-2:2006/A1:2009 and A2:2009
EN 61000-3-3:2013
Further applied standards:
EN 62321:2009
The marking is found on the rear of the device.
Manufacturer:
Trotec GmbH & Co. KG
Grebbener Straße 7
D-52525 Heinsberg
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Heinsberg, 31 March 2014
Managing Director: Detlef von der Lieck
Disposal Declaration of conformity

Trotec GmbH & Co. KG
Grebbener Str. 7
D-52525 Heinsberg
[phone]
[phone]
[e-mail]
