Tyger Guard TG-GD6C60047 User manual

1/5
TYGER GUARD
Passenger/right Side
Frame Bracket
Driver/left Side
Frame Bracket
(2) Double Bolt Plates
(2) Single Bolt Plates
TG-GD6C60047
Parts List
Tyger Guard
Driver/left Frame Bracket
Passenger/Right Frame Bracket
12-1.75mm Nylon Lock Nuts
12mm x 24mm OD x 2.5mm Flat Washers
12mm x 30mm Double Bolt Plates
12mm x 35mm Single Bolt Plates
10-1.5mm x 35mm Hex Bolts
10mm x 27mm OD x 2 mm Flat Washers
10-1.5mm Nylon Lock Nuts
4mm Wrench
6-1.0mm x 20mm Combo Bolts
(license plate)
x1
x1
x1
x6
x6
x2
x2
x4
x8
x4
x1
x2
NOTE: Cutting may be required. Installation may
interfere with front mounted sensors.
Customer Support: www.TygerAuto.com/Contact V200728
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. REMOVE
CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. FAILURE TO
IDENTIFY DAMAGE BEFORE INSTALLATION COULD LEAD TO A REJECTION OF
ANY CLAIM. IF MISSING PARTS OR ANY DAMAGE FOUND, PLEASE TAKE A
PICTURE FOR THE CLAIM PURPOSE. TO FILE YOUR CLAIM, PLAESE VISIT:
WWW.TYGERAUTO.COM/CONTACT
TORQUE VALUES
6mm
8mm
10mm
12mm
6-7
15-16
31-32
54-55
6-7
22-23
44-45
78-79
14mm 87-88 125-126
Class 10.9 Torque (ft-lbs)
Class 8.8 Torque (ft-lbs)
Fastener Size

2/5
Start installation from under the front of the vehicle. Determine if
the vehicle is equipped with tow hooks. IMPORTANT: Tow hooks
cannot be reinstalled with the Tyger Guard.
Tow Hook equipped vehicles:
Remove the factory tow hook from the end of each frame chan-
nel, (Fig 1). Skip to Step 2 if tow hooks were accessible and have
been removed. NOTE: Tow hooks on 2014-on models may be
difficult to remove and assistance is highly recommended on
these models. The following info only applies to the 2014-on
models.
a. On models with factory fog lights, unplug both lights. Move
all wiring harnesses away from bumper.
b. Open the hood and remove the cover between the top of the
radiator and the grille. Remove the bolts attaching the bottom
of the grille if attached to the cross member. Remove the
grille.
c. On 2014-15 models, from behind the bumper, release the
clips and hardware to remove the plastic body panel, (facia),
on top of the bumper between the bottom of the grille and the
top of the bumper, (Fig 2).
d. Remove the outer bumper supports on each side of the
frame.
e. Place blocks or jack stands under the front bumper to
support it during mounting bolt removal. Once the bumper has
been safely supported, remove the factory bumper bolts
attaching the bumper to the inner bumper bracket bolted to
the end of the frame, (Figs 2-3).
WARNING! Assistance is required to hold the bumper in place
during bolt removal to prevent the bumper from falling.
Carefully slide the bumper assembly with brackets off of the
ends of the frame.
f. Once bumper has been removed, remove both tow hooks.
g. Reattach the bumper, facia panel if equipped and grille
after both tow hooks have been removed and the openings
have been checked for Bracket clearance. Trim around
openings as required for Bracket clearance.
h. Tighten all factory bumper hardware at this time.
i. Proceed to Step 2.
STEP 1

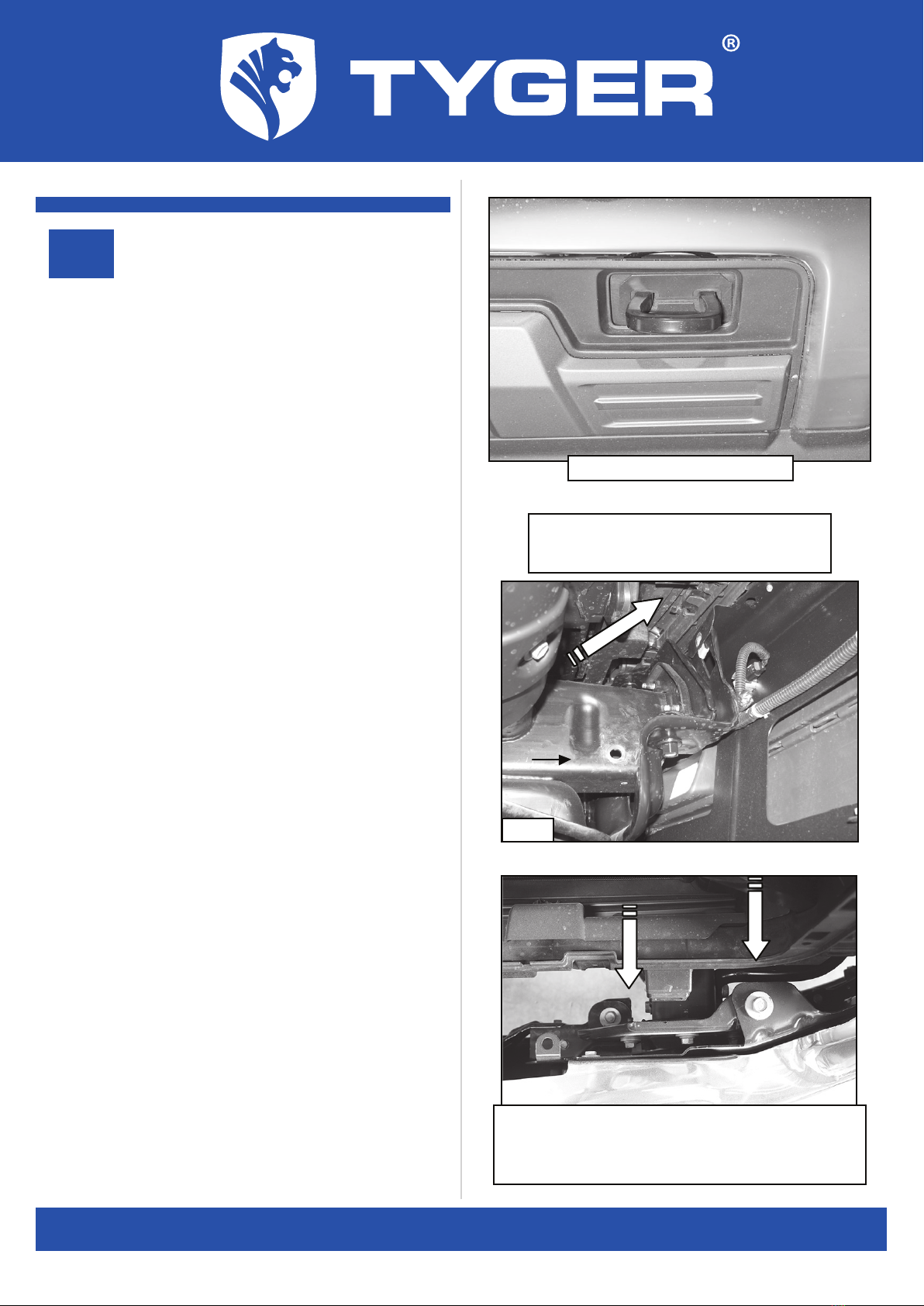

(Fig 1) Example of Tow hook
Front
2014-15 models, from behind the
bumper, remove the clips securing the
facia to the top of the bumper
Fig 2
(Fig 3) 2016 model to show bumper bolt
locations from above (arrows) with grille
removed. 2014-15 models also remove plastic
facia panel to access bumper bolts as necessary
Customer Support: www.TygerAuto.com/Contact

3/5
Select the driver side Mounting Bracket. Insert the Bracket
through the opening in the bumper, (Fig 5). Trim the plastic as
required to clear the Brackets.
STEP 2
Line up the holes in the Bracket with the holes in the end of the
frame channel for the tow hook, (Fig 6). Select (1) 12mm Double
Bolt Plate, (Fig 7). Insert the Bolt Plate into the end of the frame,
through the (2) holes in the side of the frame and out through the
Bracket, (Figs 8-9). Secure the Bracket to the Bolt Plate with (2)
12mm Flat Washers and (2) 12mm Nylon Lock Nuts. Snug but do
not fully tighten hardware at this time.
STEP 3
Vehicles without Tow Hooks:
a. Cut out the indented area on both sides of the plastic
bumper insert to clear the Brackets as pictured, (Figs 4-5).
IMPORTANT: Make several small cuts for best fit. Do not cut
through the top edge of the panel. NOTE: On 2014-15 models,
the plastic panel is held in place with several small screws.
The screws at the top corners are difficult to impossible to
reach and remove without damaging the cover with the
bumper in place. If you prefer to remove the panel to cut out
the openings, it will be easier to remove the bumper assembly
with the plastic panel attached.
b. Reattach the bumper assembly, (if removed), facia and
grille once openings have been cut out and checked for
clearance. Tighten all factory bumper hardware at this time.
(Fig 4) Example of "no tow hook" model
(Fig 5) Driver side cut out
illustrated for reference only
Fig 7
(Fig 6) Driver side pictured without plastic
panel for instruction purposes only
Mounting holes in end
of frame for tow hook
Customer Support: www.TygerAuto.com/Contact

4/5
Repeat Step 3 to install the 12mm Single Bolt Plate, (Fig 10), into
the remaining hole in the other side of the frame channel and
Bracket, (Figs 8 & 11).
STEP 4
IMPORTANT:
The Brackets are designed with (2) mounting positions to fit
multiple years. Most Silverado/Sierra models will use the “back”
mounting position with the Brackets pushed in to install the Tyger
Guard closer to the bumper, (Fig 8). Some years may require the
forward mounting position to move the Tyger Guard forward or to
provide more clearance for accessory lights, (Fig 12).
STEP 5
(1) 12mm Double Bolt Plate
(2) 12mm Flat Washers
(2) 12mm Nylon Lock Nuts
(1) 12mm Single Bolt Plate
(1) 12mm Flat Washer
(1) 12mm Nylon Lock Nut
Fig 8
Front
(Fig 9) Inner driver side Bracket
with Double Bolt Plate
(1) 12mm Double Bolt Plate
(2) 12mm Flat Washers
(2) 12mm Nylon Lock Nuts
Fig 10
Front
(Fig 11) Outer driver side
Bracket with Single Bolt Plate
(1) 12mm Single Bolt Plate
(1) 12mm Flat Washer
(1) 12mm Nylon Lock Nut
(Fig 12) Forward
mounting position
Customer Support: www.TygerAuto.com/Contact

Repeat Steps 2-5 to install the passenger side Mounting Bracket.
STEP 6
5/5
With assistance, hold the Tyger Guard up in position on the
outside of the Mounting Brackets. Bolt the Tyger Guard to the
Brackets with (4) 10mm Hex Bolts, (8) 10mm Flat Washers and
(4) 10mm Nylon Lock Nuts, (Figs 13-14). Do not tighten hardware
at this time.
STEP 7
Check the Tyger Guard alignment with the vehicle and for clear-
ance between the Tyger Guard and the bumper. If Tyger Guard is
too close to or touching bumper, remove the Tyger Guard and
reinstall the Brackets in the “forward” position away from the
bumper (Fig 12). Adjust as required then fully tighten all hardware
at this time.
STEP 8
Do periodic inspections to the installation to make sure that all
hardware is secure and tight.
STEP 9
Complete
Installation
Fig 13
(2) 10mm Hex Bolts
(4) 10mm Flat Washers
(2) 10mm Nylon Lock Nuts
Front
(Fig 14) driver/right side
complete installation
(Fig 12) Forward
mounting position
