1
GENERAL INFORMATION
Congratulations on your new sauna heater! Follow this user guide
to get the most from your purchase.
Wet and dry saunas are forms of bathing which originate way
back in history. These hot sauna baths are best at temperatures
between 70-90°C.
BEFORE USE
The first time you use the heater
Fill the stone compartment
!
CAUTION! Always use dolerite stones (Tylö Sauna
Stones). “Ordinary” stones can damage the heater.
Do not use ceramic stones. Ceramic stones can
damage the heater. The heater guarantee does not
cover damage caused by ceramic stones.
Fill the stone compartment around the heating elements from the
bottom to the top, to approx. 50 mm above the front top edge.
Do not press the stones into place. Capacity: Approx. 20 kg of
stones.
Place the stones loosely to allow optimum air circulation. The tu-
bular heating elements must not be squeezed together or against
the side.
Sauna stones must:
• tolerate extreme heat and fluctuations caused by water being
poured on them.
• be cleaned before use.
• have an uneven surface, so that the water “clings” to the
stone surface and evaporates efficiently.
• be between 30-50 mm in size to allow air circulation in the
stone compartment. This will increase the life of the tubular
elements.
!
CAUTION! Never place stones on top of the side air
chambers. Covering the vents will obstruct air circu-
lation, the unit will overheat and the cut-out switch
will activate.
1
2

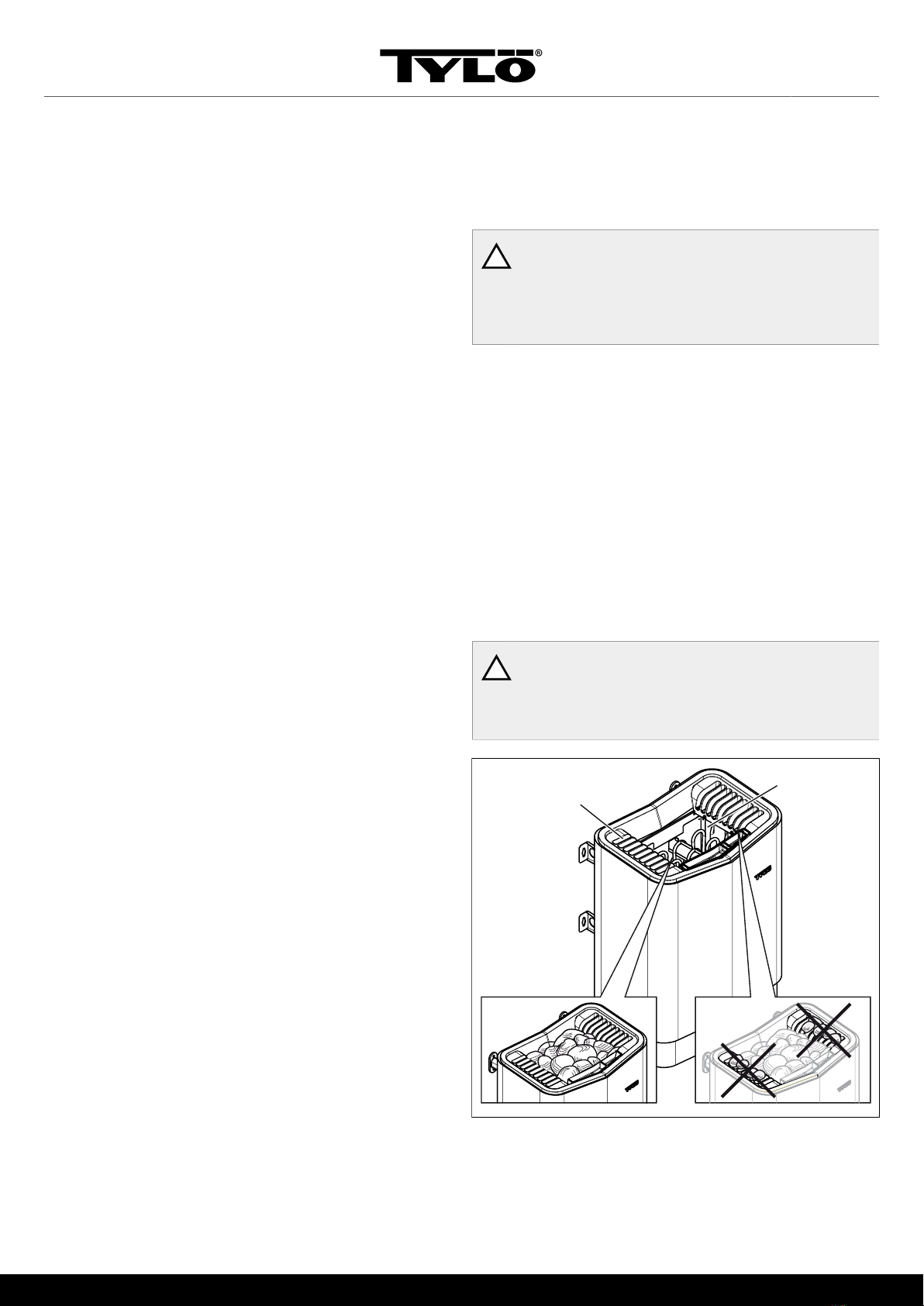

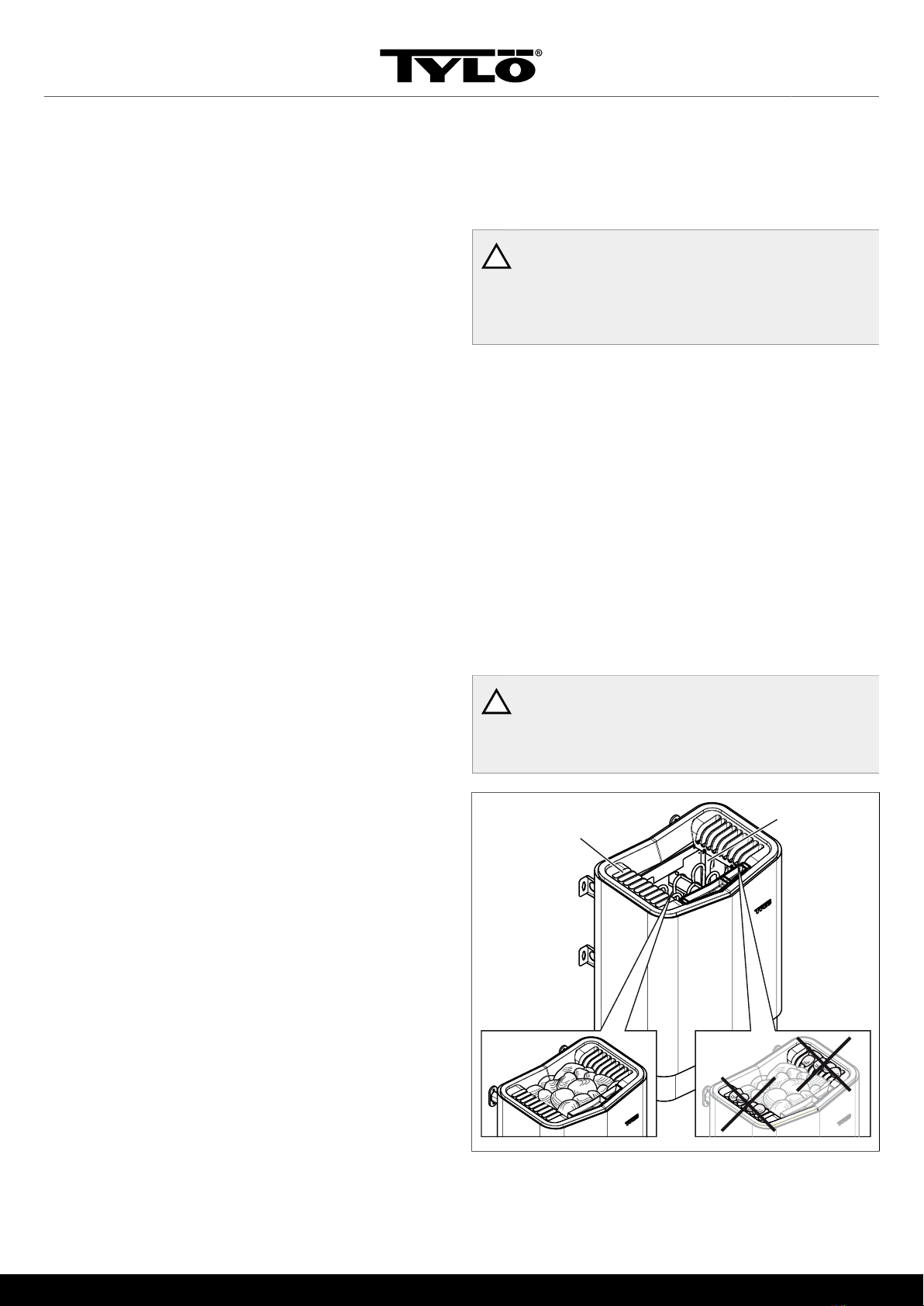

Figure 1: Filling the stone compartment
1. Stone compartment
2. Side chambers

2
Switch on the heater to remove any new paint odours
To remove “new paint odour” from the heater:
Heat to approx. 90°C for about one hour.
A little smoke may appear.
Read the User Guide for the control panel for operation of the
controls and heater.
Before each use
Check the following
Check that:
• there are no foreign objects in the sauna cabin, on or in the
heater.
• the door and any windows to the sauna cabin are closed.
• that the sauna door opens outwards with a little pressure.
NB:
!
DANGER! Anyone with a mental or physical disabil-
ity or little experience of or knowledge of how to use
the equipment (e.g. children) must be instructed or
supervised by someone responsible for their safety.
!
DANGER! Do not touch the upper parts of the heat-
er - risk of burns! Tylö recommends that the heater
screen is always used.
!
DANGER! Never allow children to play near the
heater!
!
DANGER! Saunas are not recommended for people
in poor health. Please consult a doctor.
!
DANGER! Fragrant essences and similar products
can ignite if poured directly onto the stones.
!
DANGER! Covering the heater can cause fire.
!
CAUTION! Never use a hose in the sauna.
NOTE! Do not use the sauna cabin for any purpose
other than taking saunas.
Turn on the main power switch
The main power switch is at the bottom of the heater.
Turn on the main power switch if not already on (see Figure 2,
Page 2).
1

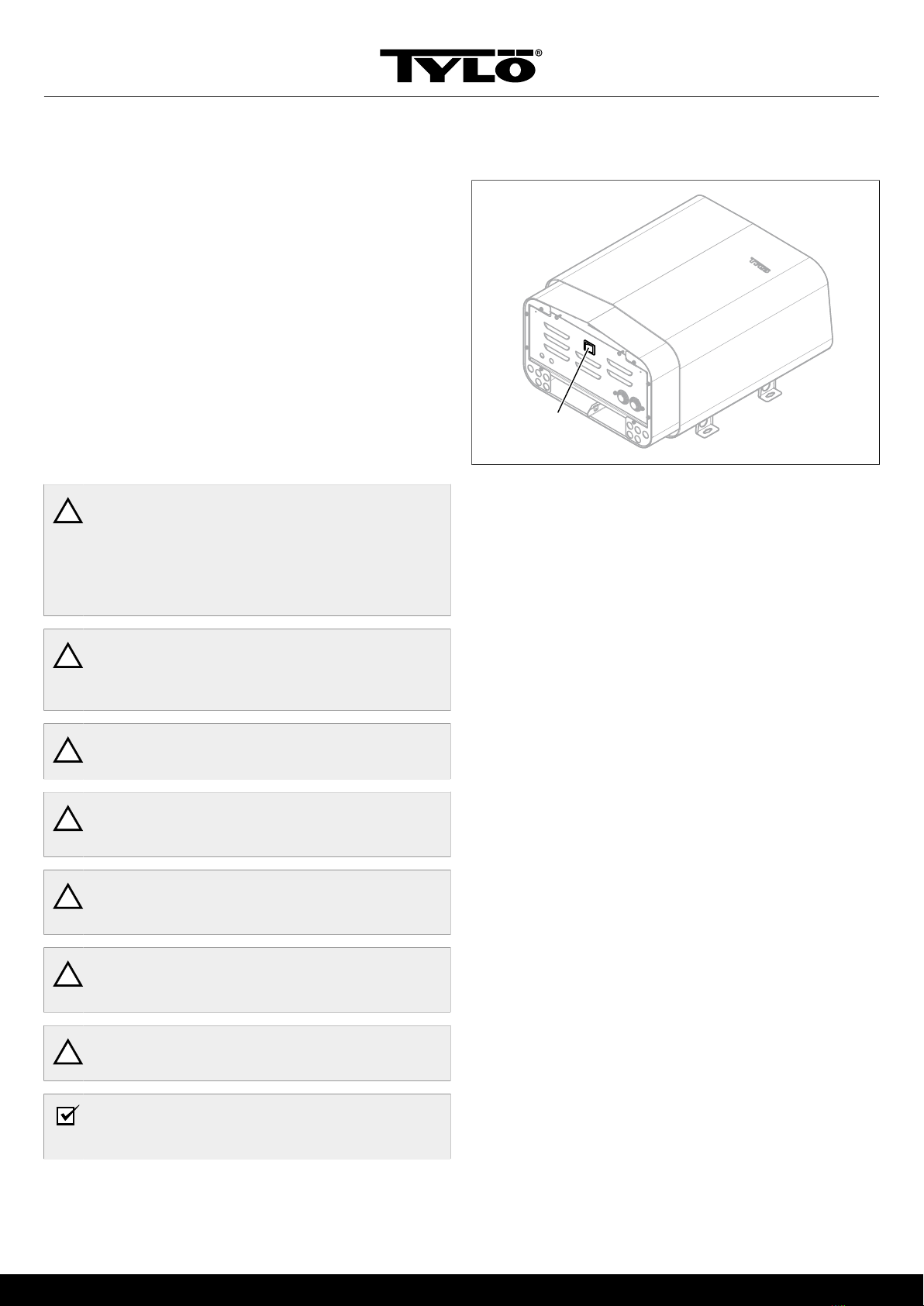

Figure 2: Location of main power switch
1. Main power switch

3
USE
Functions
Fragrance holder
!
DANGER! Fragrant essences etc. may ignite if
poured directly onto the stones.
To create a pleasant fragrance in the sauna, pour a few drops of
Tylö Sauna Fragrance into the water in the fragrance holder.
You can also mix a few drops of the sauna fragrance with water in
a sauna bucket and pour the water on fully heated stones. Use a
sauna ladle for pouring water on the hot stones.
Tylö Sauna Fragrance comes in six fragrances:
• eucalyptus,
• mint,
• menthol,
• pine,
• lemon
• and birch.
1
2
Figure 3: Other functions
1. Fragrance holder
2. Air humidifier
Air humidifier
!
DANGER! Do not pour water into the fragrance
holder once it has been heated up, as this can cause
boiling water to splash on the sauna occupants. Do
not stand or sit in front of the heater while water is
being poured into the fragrance holder, as hot water
can spray out suddenly.
To maintain a pleasant basic humidity in the sauna, fill the built-
in air humidifier (see Figure 3, Page 3) with water before
switching on the sauna.
TIP! Pour a few drops of diluted sauna fragrance into
the built-in air humidifier.
AFTER USE
Switch off main power switch
The main power switch is at the bottom of the heater.
Switch off here when the heater is not to be used for an extended
period (e.g. several weeks).
1

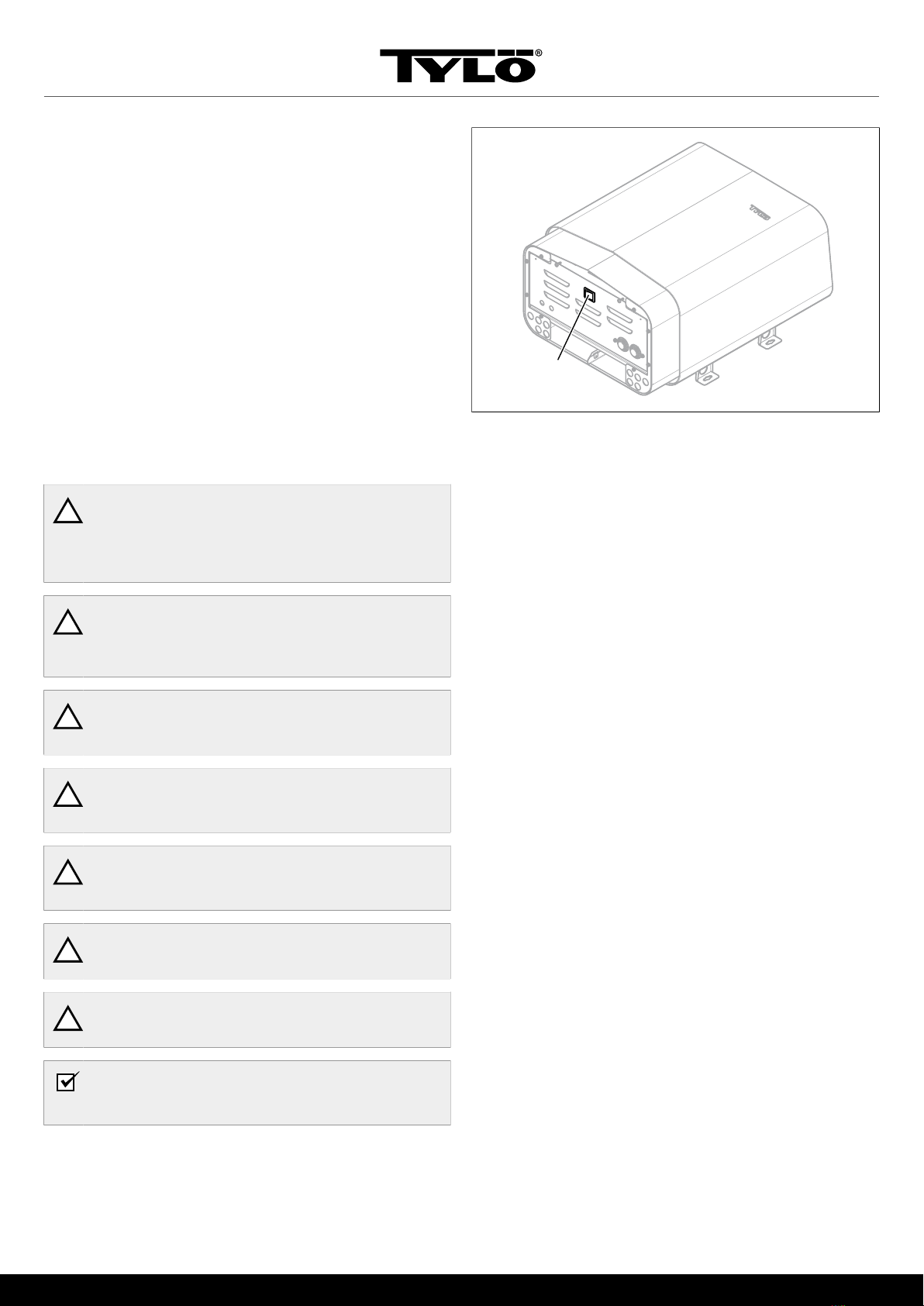

Figure 4: Location of main power switch

4
MAINTENANCE
Cleaning the fragrance holder and air humidifier
Clean the fragrance holder and air humidifier as required.
To clean the fragrance holder and air humidifier:
Remove the fragrance holder/air humidifier and rinse them under
running water.
Figure 5: Cleaning the fragrance holder and air humidifier
Check the stone compartment
Check the stone compartment once annually.
How to check the stone compartment:
1. Pull off the panel holding the tubular elements in place (se
Figure 6, Page 4).
Figure 6: Remove the panel holding the tubular elements in
place
2. Tilt the tubular elements to help remove the stones see Fig-
ure 7, Page 4.
Figure 7: Angle the tubular elements
3. Remove all the stones from the compartment.
4. Remove any small stones, gravel and limescale from the com-
partment.
5. Replace the panel that holds the tubular elements in place.
6.
!
WARNING! The panel securing the tubular ele-
ments must be in place before putting the stones
in.
Put whole, undamaged stones back. Replace damaged
stones with new ones as required (see The section called Fill
the stone compartment, Page 1).

5
TROUBLESHOOTING
Troubleshooting the sauna heater
Table 1: Troubleshooting the sauna heater
Symptom Possible cause Remedy
Heater is not work-
ing.
Main power switch
is off.
Switch on.
Heater is not work-
ing.
Fuse blown/tripped Replace/reset fuse.
Heater is not work-
ing.
Temperature cut-out
has been activated.
For more informa-
tion, see The sec-
tion called Temper-
ature cutfunction,
Page 5.
Check and remedy
the cause of tem-
perature cut-out ac-
tivation.
If you are unsure
why the temperat-
ure cut-out was ac-
tivated, contact an
electrician.
Temperature cutfunction
The sensor's temperature cut-out has the purpose of protecting
the components, tubular elements and woodwork in the sauna
from overheating. If the temperature cut-out is activated, the elec-
tricity supply to the control panel will be cut off. When the temper-
ature in the sauna cools down, it can be reset. The cause of the
overheating must be established before resetting the temperature
cut-out. To reset it, press the spring-loaded button with a small
implement such as a paper clip (see Figure 8, Page 5).
Figure 8: Resetting the sensor temperature cut-out
SPARE PARTS LIST
1
2
3
4
5
6
Figure 9: Spare parts
1. 9600 0177 / 8 kW, 9600 0178 / 6 kW Tubular element
2. 9600 0728 Stone compartment
3. 9600 0091 Circuit board
4. 9600 0723 Terminal block
5. 9600 0041 Relay 3-pole
6. 9600 0554 Strain relief connector

6
ROHS (RESTRICTION OF HAZARDOUS
SUBSTANCES)
Instructions for environmental protection.
Do not dispose of this product with the domestic refuse when no
longer in use. Take it to a recycling station for electrical and elec-
tronic equipment.
For further information, see the symbol on the product, manual or
packaging.
Figure 10: Symbol
The different materials can be recycled as specified by their la-
belling. You can help protect the environment by recycling or re-
using the spent appliances or the materials in them. Take the
product to a recycling centre without the sauna stones or the
soapstone jacket (if fitted).
Contact your local authorities for details of your nearest recycling
centre.
