U-Line UHDE215 Installation manual

USER GUIDE & SERVICE MANUAL
Dispensers ●UHDE215 ● 15” Solid Door Cold Coee Dispenser

USER GUIDE & SERVICE MANUAL
u-line.com
Table of Contents
Intro
Safety
Safety and Warning
Disposal And Recycling
Installation
Environmental Requirements
Electrical
Cutout & Product Dimensions
Anti-Tip Bracket
General Installation
Grille Installation
Door Swing
Door Adjust
Maintenance
Cleaning
Cleaning Condenser
Extended Non-Use
Operating Instructions
First Use
Control Operation
Airflow and Product Loading
Service
Troubleshooting
Wire Diagram
Product Liability
Warranty Claims
Parts
Ordering Replacement Parts
R600a Specifications
System Diagnosis Guide
Compressor Specifications
Troubleshooting Extended
Control Operation - Service
Thermistor
Defrost
Remove Fan and Cover
Warranty

USER GUIDE u-line.com
Introduction
WELCOME TO U-LINE
Congratulations on your U-Line purchase. Your product comes from a company with over ve decades of premium modular ice
making, refrigeration, and wine preservation experience. U-Line creates products focused on functionality, style, and inspired
innovations — paying close attention to even the smallest details. Applications include residential, outdoor, ADA height
compliant, marine, and commercial. Complete product categories include Beverage Centers, Wine Refrigerators, Ice Machines,
Refrigerators, Freezers, and Dispensers.
Our advanced refrigeration systems, large and exible capacities, and Built-In to Stand Out®clean integrated look allow you
to preserve the right product, in the right place, at the right temperature. Since 2014, U-Line has been part of the Middleby
family of brands. All products are designed, engineered, and assembled in Milwaukee, Wisconsin, USA, and select products
are available worldwide.
PRODUCT INFORMATION
Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance Documentation,
and Product Warranty information are all available for reference and download at u-line.com.
PROPERTY DAMAGE / INJURY CONCERNS
In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following
steps:
1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.
2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been
altered or repaired in the eld without prior written approval from U-Line, claims will not be eligible.
GENERAL INQUIRIES
U-Line Corporation
8900 N. 55th Street
Milwaukee, Wisconsin 53223 USA
Monday - Friday 8:00 am to 4:30 pm CST
T: +1.414.354.0300
Email: [e-mail]
u-line.com
CONNECT WITH US
SERVICE & PARTS ASSISTANCE
Monday - Friday 8:00 am to 4:30 pm CST
T: +1.414.354.0300
Service Email: [e-mail]
Parts Email: [e-mail]
Designed, engineered and assembled in WI, USA
3

USER GUIDE u-line.com
Safety and Warning
Safety and Warning
NOTICE
Please read all instructions before installing,
operating, or servicing the appliance.
Use this appliance for its intended purpose only and follow
these general precautions with those listed throughout this
guide:
SAFETY ALERT DEFINITIONS
Throughout this guide are safety items labeled with a
Danger, Warning, or Caution based on the risk type:
Danger means that failure to follow this safety
statement will result in severe personal injury or
death.
Warning means that failure to follow this safety
statement could result in serious personal injury
or death.
Caution means that failure to follow this safety
statement may result in minor or moderate
personal injury, property, or equipment damage.
This unit contains R600a (Isobutane) which is a
ammable hydrocarbon. It is safe for regular
use. Do not use sharp objects to expedite
defrosting. Do not service without consulting the
“R600a specications” section included in the
User Guide. Do not damage the refrigerant
circuit.
Service must be done by factory authorized
service personnel. Any parts shall be replaced
with like components. Failure to comply could
increase the risk of possible ignition due to
incorrect parts or improper service.
CALIFORNIA PROPOSITION 65
This product contains chemicals known to the
state of California to cause cancer and birth
defects or other reproductive harm.
www.P65warnings.CA.gov
This equipment is to be installed with adequate
backow protection to comply with applicable
federal, state and local codes.
DANGER
!
DANGER
!
WARNING
!
CAUTION
!
CAUTION
!
WARNING
!
4

USER GUIDE u-line.com
Disposal and Recycling
Disposal and Recycling
RISK OF CHILD ENTRAPMENT. Before you throw
away your old refrigerator or freezer, take o
the doors and leave shelves in place so children
may not easily climb inside.
If the unit is being removed from service for disposal,
check and obey all federal, state, and local regulations
regarding the disposal and recycling of refrigeration
appliances, and follow these steps completely:
1. Remove all consumable contents from the unit.
2. Unplug the electrical cord from its socket.
3. Remove the door(s)/drawer(s).
DANGER
!
5

USER GUIDE
Environmental Requirements
u-line.com
Environmental Requirements
This model is intended for indoor/interior applications only
and is not to be used in installations that are open/
exposed to natural elements.
This unit is designed to operate between 50°F (10°C) and
100°F (38°C). Higher ambient temperatures may reduce
the unit’s ability to reach low temperatures and/or reduce
ice production on applicable models.
For best performance, keep the unit out of direct sunlight
and away from heat generating equipment.
In climates where high humidity and dew points are
present, condensation may appear on outside surfaces.
This is considered normal. The condensation will
evaporate when the humidity drops.
CAUTION
!
Damages caused by ambient temperatures of
40°F (4°C) or below are not covered by the
warranty.
6

USER GUIDE
Electrical
u-line.com
Electrical
WARNING
!
SHOCK HAZARD — Electrical Grounding
Required. Never attempt to repair or perform
maintenance on the unit until the electricity has
been disconnected.
Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.
Altering, cutting or removing power cord,
removing power plug, or direct wiring can cause
serious injury, fire, loss of property and/or life,
and will void the warranty.
Never use an extension cord to connect power to
the unit.
Always keep your working area dry.
NOTICE
Electrical installation must observe all state and
local codes. This unit requires connection to a
grounded (three-prong), polarized receptacle
that has been placed by a qualified electrician.
The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A power supply (normal household current). An
individual, properly grounded branch circuit or circuit
breaker is recommended. A GFCI (ground fault circuit
interrupter) is usually not required for fixed location
appliances and is not recommended for your unit because
it could be prone to nuisance tripping. However, be sure
to consult your local codes.
See CUTOUT & PRODUCT DIMENSIONS for recommended
receptacle location.
7

USER GUIDE u-line.com
Cutout & Product Dimensions
Cutout & Product Dimensions
PREPARE SITE
Your U-Line product has been designed for either free-
standing or built-in installation. When built-in, your unit
does not require additional air space for top, sides, or
rear. However, the front grille must NOT be obstructed,
and clearance is required for an electrical connection in
the rear.
CAUTION
!
Unit can NOT be installed behind a closed cabinet
door.
CUTOUT DIMENSIONS
PRODUCT DIMENSIONS
REAR
FRONT
TOP
SIDE
19 ⁄”
(507 mm)
25 ½”
(648 mm)
25 ⁄”
(660 mm)
27 ⁄”
(708 mm)
1 “ (25 mm)
2”
(51 mm)
Power
Cord
4"
(102 mm)
7"
(178 mm)
28"
(712 mm)
2 3/4”
(57 mm)
15 1⁄4"
(388 mm)
34 3⁄4"
(883 mm)
to
35 3⁄4"
(909 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
5⁄8"
(16 mm)
2 ¾”
(70 mm)
Power Cord
7 ⁄”
(189 mm)
15”
(381 mm)
3 ⁄”
(95 mm)
28”
(711 mm) 34 ½”
(876 mm)
to
35 ½”
(902 mm)
45 ⁄”
(1,165 mm)
50 ⁄”
(1,272 mm)
1 ⁄”
(48 mm)
11”
(279 mm)
7 ½”
(191 mm)
15 ⁄”
(396 mm)
24 ¼”
(616 mm)
14 ¼”
(362 mm)
8

USER GUIDE u-line.com
Anti-Tip Bracket
Anti-Tip Bracket
1. Slide unit out so screws on top of unit are easily
accessible.
2. Remove the two screws from the opposite side of the
hinge assembly using a T-25 Torx driver (see below).
3. Place bracket over holes and attach to unit with two
screws removed in step 2 using a T-25 Torx driver.
Tighten screws fully.
4. Gently push unit into position. Be careful not to
entangle the electrical cord or water line, if applicable.
5. Check to be sure the unit is level from front to back
and side to side. Make any necessary adjustments.
The unit’s top surface should be approximately 1⁄8”
(3 mm) below the countertop.
6. Secure bracket into adjoining surface.
9

USER GUIDE u-line.com
General Installation

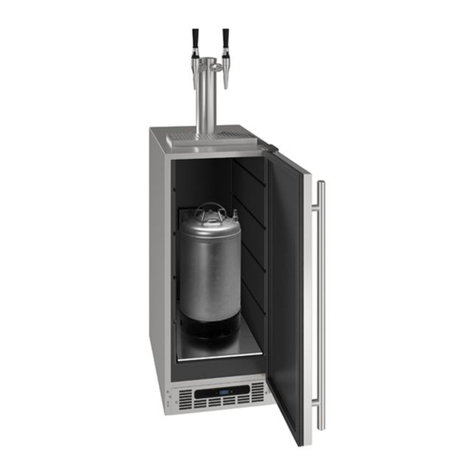

The following components are shipped inside the unit:
1. Double Tower (faucets, handles, gaskets, & hardware)
2. Nitrogen regulator (hose and valve)
3. Infuser regulator (hoses & hardware)
4. Liquid jumper line (with in-line lter) and gas jumper line
5. 2.5-gallon ball tap keg (you may use 3-gallon or 5-gallon keg)
6. Drip tray
7. Cleaning solution (2-ounce packet)
(Additional cleaner, ULACOFFEECLEAN, is available at u-line.com)
Safety and Warning
Keep nitrogen tank in an upright position and
handle
with care.
Never exceed 60 PSI.
Ventilate area after nitrogen leak.
1
2
3
4
5
6
7
Required (not included):
1. Nitrogen tank with food grade nitrogen - available at
your local gas supplier. 22 cubic feet aluminum empty
tank available (ULANITROTANK) at u-line.com.
2. Your favorite cold coee or tea.
General Installation
WARNING
!
10

USER GUIDE u-line.com
General Installation
Install Tower on Free-Standing Refrigerator
If your refrigerator is new out of the box, do not remove all
the protective lm on the stainless exterior until the tower
is installed.
1. Remove four Phillips screws (secured with nuts on
the inside of the refrigerator) and lift o cap to reveal
tower mounting hole. Peel back enough lm for tower
to clear.
2. Position gasket over mounting hole and install tower
using four Phillips screws and nuts.
3. Screw the handles onto the faucets and continue to
assemble and connect regulator to Nitrogen tank.
Gasket
11

USER GUIDE u-line.com
General Installation
Install Tower on Countertop
(See template on next page)
Note: These instructions are designed for a standard 36" countertop application.
Note: For a customized t, it may be necessary to acquire screws that are sized to
the thickness of your countertop.
1. Position keg refrigerator under countertop to determine the desired depth.
2. Use the dimensions from Diagram A to determine the center point of the tower
mounting hole.
3. Remove keg refrigerator from under countertop.
4. Use template to drill 4 mounting holes and drill 3-1⁄8" diameter hole through countertop.
5. Connect keg and infuser hoses to tower.
6. Pull down insulation inside tower far enough to extend into refrigerator - Diagram B.
7. Secure tower to countertop.
8. Remove 2 hole covers from top of refrigerator and inside ceiling of refrigerator.
9. Carefully slide refrigerator under countertop, taking care to insert hoses and insullation
as you go.
Front Face
of Unit
3 ⁄”
(79 mm)
Hole Diameter
Power Cord
2”
(51 mm)
15”
(381 mm)
Rear Wall
24 ¼”
(616 mm)
11 ⁄”
(297 mm)
10 ⁄”
(257 mm)
1 ⁄”
(43 mm)
7 ½”
(19 1 mm)
Rear Wall
Countertop
Insulation
10-1/8”
Front edge of hole
to front face of
refrigerator
Diagram A Diagram B
Insulation
6
12

USER GUIDE u-line.com
General Installation
14 - 1⁄4”
To front face
of unit
7 - 1⁄2“
To side of unit
1⁄4” HOLE
2-3⁄4” HOLE
Template for Countertop Installation
Note: Verify template has printed true to scale - double check hole dimensions and placement.
1 Inch
13

USER GUIDE u-line.com
General Installation
Assemble and Connect Regulator
to Nitrogen Tank
1. Attach ball valve to tank regulator. Tighten with
an adjustable wrench. Make sure valve is in the o
position - turned clockwise as far as it can go.
2. Attach regulator to nitrogen tank. Hand tighten the
coupling nut and then use an adjustable wrench for an
additional quarter turn. DO NOT OVER TIGHTEN
1. Attach black nitrogen coupler of the liquid jumper line
to keg. With your thumb on top of the coupler, pull
up on collar and press coupler down rmly onto out
valve. Release collar - listen for a click. Pull up on the
coupler to ensure it is locked down.
2. Attach other end of beverage hose to "Y" connection
within dispenser tower - line up and press in rmly.
3. Attach hose to elbow connector on infuser regulator.
Out Valve
Connect Keg to Dispenser Tower
Other end is
connected to keg
Elbow
Connector
Other end is
connected to
Tower
14

USER GUIDE u-line.com
General Installation
1. Attach nitrogen line to ball valve on tank regulator.
Make sure valve is in the o position - turned
clockwise as far as it can go. Tighten hose clamp.
2. Attach other end of nitrogen line to T connector on
infuser regulator - line up and press in rmly.
Other end is
connected
to Infuser
Regulator
Connect Nitrogen Tank to Keg
3. Attach gray coupler of the gas jumper line to keg.
With your thumb on top of the coupler, pull up on
collar and press coupler down rmly onto in valve.
Release collar - listen for a click. Pull up on the
coupler to ensure it is locked down.
4. Attach other end of gas jumper line to T connector on
infuser regulator - line up and press in rmly.
4. Attach other end of hose to the single connection
within the beverage tower.
In Valve
T-Connector
T-Connector
15

USER GUIDE u-line.com
General Installation
Connections
When complete, the connections should look like this:
Nitrogen Tank
LEVELING INFORMATION
1. Use a level to conrm the
unit is level. Level should
be placed along top edge
and side edge as shown.
2. If the unit is not level,
adjust the legs on the
corners of the unit as
necessary.
Keg
Infuser
Regulator
Tank
Regulator
Filter
Assembly
Turn to Adjust
3. Conrm the unit is level after each adjustment
and repeat the previous steps until the unit is
level.
When ready to use, see FIRST USE section in
this manual.
16

USER GUIDE u-line.com
Grille Installation
Grille Installation
REMOVING AND INSTALLING GRILLE
Disconnect electric power to the unit before
removing the grille.
When using the unit, the grille must be installed.
Removing the grille
Note: Grille and display are attached. The length
of the display wire is sucient to allow access to
the front base components.
1. Disconnect power to the unit.
2. Loosen the two screws (1).
3. Remove grille (2) from unit.
Installing the grille
1. Align cabinet and grille holes and secure, but do not
over tighten grille screws (1).
2. Reconnect power to the unit.
WARNING
!
1
2
17

USER GUIDE
Door Swing
u-line.com
Door Swing
Units have a zero clearance for the door to open 90°,
when installed adjacent to cabinets.
Stainless Steel models require 2-1/8" (54 mm) door
clearance to accommodate the handle if installed next to a
wall.
Wall
90°
Door Swing
2-1/8" Min.
(54 mm)
18

USER GUIDE u-line.com
Door Adjustments
Door Adjustments
HINGE COVER
Hinge cover included with the literature bag is optional.
To install hinge cover:
1. Press hinge cover squarely over hinge.
DOOR ALIGNMENT AND ADJUSTMENT
Align and adjust the door if it is not level or is not sealing
properly. If the door is not sealed, the unit may not cool
properly, or excessive frost may form in the interior.
NOTICE
Properly aligned, the door’s gasket should be
rmly in contact with the cabinet all the way
around the door (no gaps). Carefully examine the
door’s gasket to ensure that it is rmly in contact
with the cabinet. Also make sure the door gasket
is not pinched on the hinge side of the door.
To align and adjust the door:
1. Gently pry o hinge cover from top of unit.
2. Loosen (do not remove) top and bottom hinge screws
using a Philips screwdriver on the top and a 1/4”
socket on the bottom.
3. Align door squarely with cabinet.
4. Make sure gasket is rmly in contact with cabinet all
the way around the door (no gaps).
5. Tighten bottom hinge screws.
6. Tighten top hinge screws and replace hinge cover.
REVERSING THE DOOR
Location of the unit may make it desirable to mount the
door on the opposite side of the cabinet.
The hinge hardware will be removed and reinstalled on the
opposite side of the cabinet.
TO REVERSE THE DOOR
Remove grille:
Remove the grille (see GRILLE INSTALLATION section of
this guide).
Remove arrow clips:
1. With a puddy knife or other at tool, gently pry each
arrow clip from hinge mounting holes.
2. Set aside arrow clips to be reused on the opposite
side.
Remove top hinge and door:
1. Remove hinge cover from top of unit
2. Hold door to keep it from falling.
3. Remove top hinge from cabinet using a Philips
screwdriver to remove three screws.
Hinge Cover
19

USER GUIDE u-line.com
Door Adjustments
4. Remove door by tilting forward and lifting door o
bottom hinge. Retain shoulder washers; they will be
reused.
5. Use a Philips screwdriver to remove hinge pin and
reinstall on the opposite surface of the hinge.
6. Install arrow clips in holes.
Remove bottom hinge:
1. Remove bottom hinge from cabinet using a 1/4”
socket.
2. Remove corresponding screws on opposite side of
cabinet. On some models there may be a nut behind
one or both screws on either side.
Install bottom hinge:
Install two or three screws, depending on model. Replace
nuts if used.
Install top hinge and door:
1. Rotate door 180o and lift the door on to the bottom
hinge.
2. Install hinge that was used on the opposite side of the
unit.
3. Align edge of the hinge with the outer edge of the unit
while inserting hinge pin into top of door.
4. Tighten three screws and replace hinge cover.
Align and adjust the door:
Align and adjust the door (see DOOR ALIGNMENT AND
ADJUSTMENT)
Install grille
20
