Ubiquiti UAP-Outdoor-5 User manual

5 GHz 802.11n Outdoor
Access Point
Model: UAP-Outdoor-5

Introduction
Thank you for purchasing the Ubiquiti Networks® UniFi®AP.
This Quick Start Guide is designed to guide you through
installation and includes warranty terms.
Package Contents
UniFi AP Outdoor 5 Antennas (Qty. 2) Wall Mount Bracket
Metal Strap Screws
(Qty. 3)
Screw Anchors
(Qty. 3)
5 GHz 802.11n Outdoor
Access Point
Model: UAP-Outdoor-5
PoE Adapter (24V, 1A)
with Mount Bracket
Power Cord Quick Start
Guide
TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet
cable and earth grounding must be used as conditions of product warranty. TOUGHCable™ is
designed for outdoor installations. It is the professional installer’s responsibility to follow local
country regulations, including operation within legal frequency channels, output power, and
Dynamic Frequency Selection (DFS) requirements.

Installation Requirements
• Pole-mounting: 7 mm socket wrench or screwdriver
• Wall-mounting: Drill and 6 mm drill bit
• Phillips screwdriver
• Shielded Category 5 (or above) cabling should be used
for all outdoor wired Ethernet connections and should be
grounded through the AC ground of the PoE.
We recommend that you protect your networks from
harmful outdoor environments and destructive ESD events
with industrial-grade, shielded Ethernet cable from Ubiquiti
Networks. For more details, visit:
www.ubnt.com/toughcable
System Requirements
• Linux, MacOSX, or Microsoft Windows 7/8/10
• Java Runtime Environment 1.8 or above recommended
• Web Browser: Google Chrome (Other browsers may have
limited functionality.)
• UniFi Controller software v5.x or newer, available at:
www.ubnt.com/download/unifi

Network Topology Requirements
• A DHCP-enabled network (for the UniFi device to obtain an IP
address as well as for the wireless clients after deployment)
• A UniFi Cloud Key or management station running the UniFi
Controller v5.x (or newer) software, located either on-site
and connected to the same Layer-2 network, or off-site in
the cloud or NOC
Internet
UAP-Outdoor-5
UniFi Switch
LAN
WAN
Wired UAP-PRO
Wireless
Uplinked
UAP/UAP-LR
UniFi Cloud Key
(UniFi Controller)
UniFi Security Gateway Pro
DOWNLOADTHROUGHPUT& LATENCY DEVICESON2.4 GHZ CHANNEL
DEVICESON5 GHZ CHANNEL
UPLOADTHROUGHPUT& LATENCY
LATENCY THROUGHPUT
SPEEDTEST
msec Mbps
7 0.94 1
2.33
25 22
597
0.9 116
200+0 700+0
0.01 413
2290.2
2 118
547
ACTIVEDEVICE
WAN
Inacve 0
Pending
0
Inacve 0
Pending 0
7
ACTIVEDEVICES
Inacve 0
Pending
0
118
ACTIVEDEVICES
LAN WLAN
DEEPPACKETINSPECTIONCLIENTSDEVICES
250
200
150
100
50
0
10
8
6
4
2
0
24HRS 12HRS NOW
Avg/MaxThroughput Latency
Latency[msec]
Throughput[Mbps]
100
80
60
40
20
0
10
8
6
4
2
0
24HRS 12HRS NOW
Latency[msec]
Throughput[Mbps]
NetworkProtocols
StreamingMedia
Web/Web 2.0
FileTransfer
SocialNetwork
Other
Motorola
Lenovo
SamsungE
Dell
Acer
Other
WLAN
LAN
WAN
118
7
1
582GB
23.3GB
22.7GB
8.47GB
3.6GB
5.46GB
258
241
220
213
130
110
126
DEVICES
645GB
TRAFFIC
1172
CLIENTS
1 2 3 4 5 6 7 8 9 10 11
36 40 44 48 52 56 60 64
100 104 108 112 116 120 124 128
132 136 140 144 149 153 157 161 165
CURRENTSITE
Default
USERNAME
admin
Remote Access to
UniFi Controller
Sample Network Diagram
All UniFi devices support off-site management controllers. For
setup details, see the User Guide on the website:
www.ubnt.com/download/unifi

Hardware Overview
LED
Status
LED
LED Color Status
Flashing Amber Initializing.
Steady Amber Factory default, waiting to be integrated.
Alternating
Amber/Green
Device is busy; do not touch or unplug it.
This usually indicates that a process such
as a firmware upgrade is taking place.
Quickly Flashing
Green
Used to locate and identify a UniFi device.
When the Locate feature is activated in
the UniFi Controller software, the Status
LED will flash green. It will also display the
location of the device on the map.
Steady Green
Indicates the device has been successfully
integrated into a network and is working
properly.
Steady Green
with Occasional
Flashing
Indicates the device is in an isolated state
(all WLANs are brought down until an
uplink is found).

Ports
Main
Secondary
Main
Ethernet Port
Reset
Button
Secondary
Ethernet Port
Secondary The Secondary Ethernet port is a 10/100 Ethernet
port used for bridging.
Reset The Reset button serves two functions for the UniFi AP:
• Restart Press and release the Reset button quickly.
• Restore to Factory Default Settings Press and hold the
Reset button for more than five seconds.
Main The Main Ethernet port is a 10/100 PoE port used to
connect the power and should be connected to the LAN and
DHCP server. Power can be provided by one of the following:
• PoE Adapter (included)
• Ubiquiti Networks UniFi Switch with PoE
• Ubiquiti Networks TOUGHSwitch™
*640-00006-04*
640-00006-04

Hardware Installation
The UniFi AP can be mounted to a wall or on a pole. Perform
the steps for the appropriate installation:
Wall Mount
To mount the UniFi AP on a wall, use the included Wall Mount
Bracket, Screws, and Screw Anchors.
1. Place the Wall Mount Bracket at the desired location on the
wall, with the one screw hole pointed towards the ground.
2. Use a pencil to mark the three holes on the wall.
3. Use a 6 mm drill bit to drill the holes in the wall.
4. Insert a Screw Anchor into each hole.
5. Secure the Wall Mount Bracket to the wall with the
self-tapping Screws.

6. Align the mounting tabs on the UniFi AP with the notches
on the Wall Mount Bracket, and slide the UniFi AP down
until it locks into place.
Pole Mount
To mount the UniFi AP on a pole, use the included Metal Strap:
1. Turn the screw on the Metal Strap counter-clockwise to
open the strap.

2. Straighten out the end of the Metal Strap and slide it
through the back of the UniFi AP.
3. Wrap the Metal Strap around the pole. Use a screwdriver
to turn the screw clockwise and securely fasten the strap
to the pole.

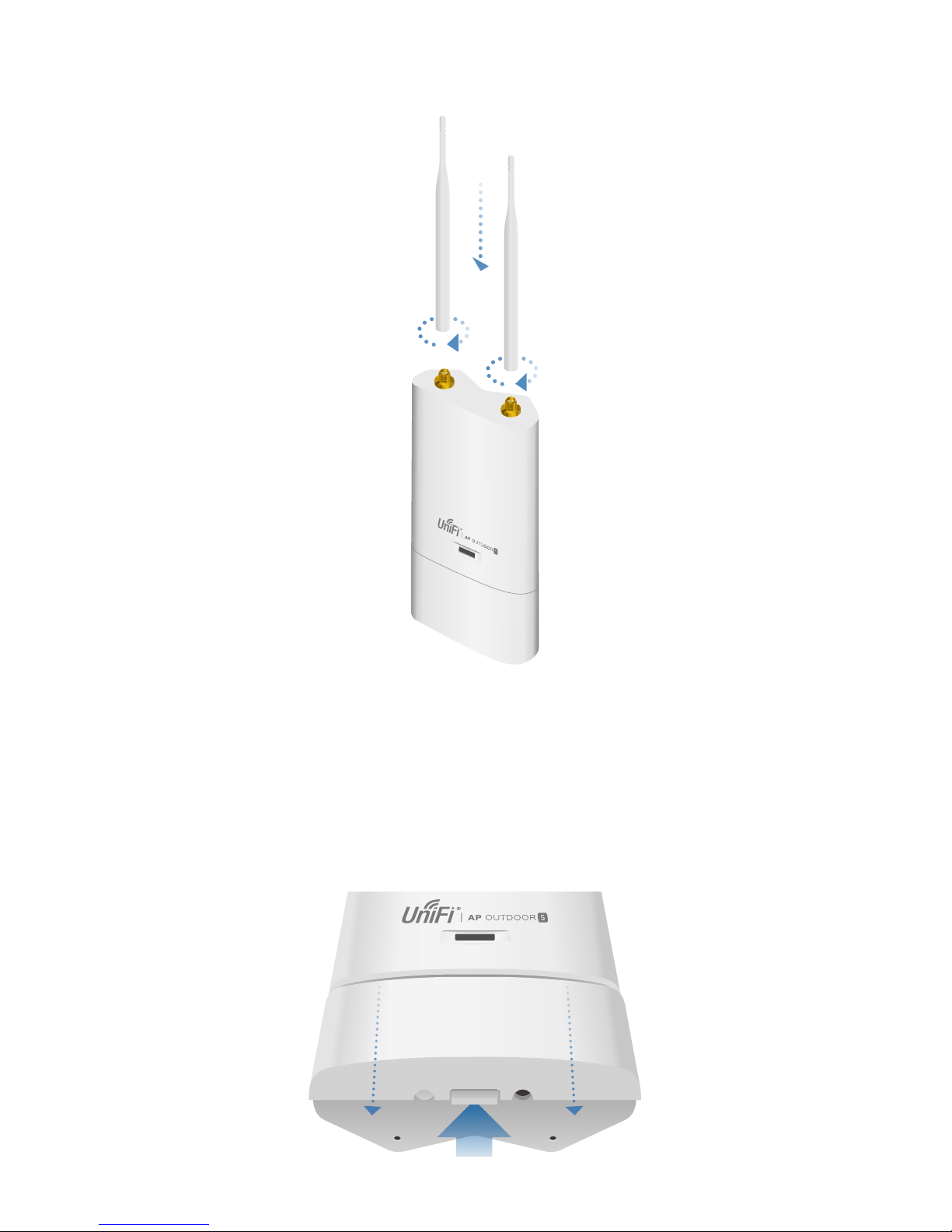

4. Connect the two Antennas to the RP-SMA connectors.
Powering the UniFi AP
The UniFi AP can be powered by the included PoE Adapter or a
PoE switch such as a TOUGHSwitch or UniFi Switch with PoE.
1. Lift the locking tab of the Port Cover and slide the cover
down to remove it.
Main
Secondary

2. Connect an Ethernet cable to the Main port.
Main
Secondary
Connecting to a PoE Adapter
1. Connect the Ethernet cable from the UniFi AP to the POE
port of the PoE Adapter.
2. Connect an Ethernet cable from your LAN to the LAN port
of the PoE Adapter.
3. Connect the Power Cord to the adapter, and then plug the
Power Cord into a power outlet.

Mounting the PoE Adapter (Optional)
1. Remove the PoE Mounting Bracket from the adapter, place
the bracket at the desired location, and mark the two holes.
2. Pre-drill the holes if necessary, and secure the bracket
using two fasteners (not included).
3. Align the slots on the adapter with the tabs of the PoE
Mounting Bracket, and then slide the adapter down.
Connecting to a PoE Switch
Connect the Ethernet cable from the UniFi AP directly to a
port on a TOUGHSwitch or a UniFi Switch with PoE. Manually
enable 24V PoE on the connected port.
1 3 5 7 9 11 13 15 17 19 21 22
2 4 6 8 10 12 14 16 18 20 22 24
SPF1
SPF2
Connected to UniFi Switch, Model US-24-250W

Software Installation
Download and install the latest version of the UniFi Controller
software. Launch it and follow the on-screen instructions. The
software and step-by-step instructions in the User Guide are
available at: www.ubnt.com/download/unifi
After you have installed the software and run the UniFi
Installation Wizard, a login screen will appear for the UniFi
Controller management interface. Enter the Admin Name and
Password that you created and click Log In.
You can manage your wireless network and view network
statistics using the UniFi Controller management interface.
For information on configuring and using the UniFi Controller
software, refer to the User Guide.
Mobile App Installation
Ubiquiti Networks also offers the UniFi mobile app, which
is available from the App Store (iOS) or Google Play™Store
(Android). You can use it to provision a UniFi AP for basic
functionality without configuring a UniFi Controller. It also
allows seamless provisioning of APs for remote controllers
(controllers not on the same Layer 2 network) and easy access
to local controllers and those monitored on unifi.ubnt.com

Specifications
UAP-Outdoor-5
Dimensions 170 x 80 x 30 mm
(6.69 x 3.15 x 1.18")
Weight 230 g (8.11 oz) without Antennas
294 g (9.67 oz) with Antennas
Networking Interface (2) 10/100 Ethernet Ports
Buttons Reset
Power Method 24V Passive Power over Ethernet
Power Supply 24V, 1A PoE Adapter (Included)
Supported Voltage Range 12VDC to 24VDC
Power Save Supported
Max. Power Consumption 6.5W
Max. TX Power 27 dBm
Operating Frequency 5 GHz
Antennas (2) External Omni Antennas
Antenna Gain 7 dBi
Wi-Fi Standards 802.11 a/n
Wireless Security WEP, WPA-PSK, WPA-TKIP,
WPA2 AES, 802.11i
BSSID Up to Four per Radio
Mounting Wall/Pole (Kits Included)
Operating Temperature -30 to 75° C (-22 to 167° F)
Operating Humidity 5 - 95% Noncondensing
Certications CE, FCC, IC

Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Do not use this product in location that can
be submerged by water.
WARNING: Avoid using this product during an electrical
storm. There may be a remote risk of electric shock from
lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a
different power source than those specified may result in improper
operation, damage to the equipment or pose a fire hazard if the
limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service
should be provided only by a qualified service technician.
3. This equipment is provided with a detachable power cord which has
an integral safety ground wire intended for connection to a grounded
safety outlet.
a. Do not substitute the power cord with one that is not the provided
approved type. Never use an adapter plug to connect to a 2-wire
outlet as this will defeat the continuity of the grounding wire.
b. The equipment requires the use of the ground wire as a part of the
safety certification, modification or misuse can provide a shock
hazard that can result in serious injury or death.
c. Contact a qualified electrician or the manufacturer if there
are questions about the installation prior to connecting the
equipment.
d. Protective earthing is provided by Listed AC adapter. Building
installation shall provide appropriate short-circuit backup
protection.
e. Protective bonding must be installed in accordance with local
national wiring rules and regulations.

Limited Warranty
UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) warrants that the
product(s) furnished hereunder (the “Product(s)”) shall be free from defects
in material and workmanship for a period of one (1) year from the date
of shipment by UBIQUITI NETWORKS under normal use and operation.
UBIQUITI NETWORKS’ sole and exclusive obligation and liability under
the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion,
to repair or replace any Product that fails to conform to the above
warranty during the above warranty period. The expense of removal and
reinstallation of any Product is not included in this warranty. The warranty
period of any repaired or replaced Product shall not extend beyond its
original term.
Warranty Conditions
The above warranty does not apply if the Product:
(I) has been modified and/or altered, or an addition made thereto,
except by Ubiquiti Networks, or Ubiquiti Networks’ authorized
representatives, or as approved by Ubiquiti Networks in writing;
(II) has been painted, rebranded or physically modified in any way;
(III) has been damaged due to errors or defects in cabling;
(IV) has been subjected to misuse, abuse, negligence, abnormal physical,
electromagnetic or electrical stress, including lightning strikes, or
accident;
(V) has been damaged or impaired as a result of using third party
firmware;
(VI) has no original Ubiquiti MAC label, or is missing any other original
Ubiquiti label(s); or
(VII) has not been received by Ubiquiti within 30 days of issuance of
the RMA.
In addition, the above warranty shall apply only if: the product has been
properly installed and used at all times in accordance, and in all material
respects, with the applicable Product documentation; all Ethernet cabling
runs use CAT5 (or above), and for outdoor installations, shielded Ethernet
cabling is used, and for indoor installations, indoor cabling requirements
are followed.
Returns
No Products will be accepted for replacement or repair without obtaining
a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS
during the warranty period, and the Products being received at UBIQUITI
NETWORKS’ facility freight prepaid in accordance with the RMA process of
UBIQUITI NETWORKS. Products returned without an RMA number will not
be processed and will be returned freight collect or subject to disposal.
Information on the RMA process and obtaining an RMA number can be
found at: www.ubnt.com/support/warranty

Disclaimer
EXCEPT FOR ANY EXPRESS WARRANTIES PROVIDED HEREIN, UBIQUITI
NETWORKS, ITS AFFILIATES, AND ITS AND THEIR THIRD PARTY DATA,
SERVICE, SOFTWARE AND HARDWARE PROVIDERS HEREBY DISCLAIM
AND MAKE NO OTHER REPRESENTATION OR WARRANTY OF ANY KIND,
EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO,
REPRESENTATIONS, GUARANTEES, OR WARRANTIES OF MERCHANTABILITY,
ACCURACY, QUALITY OF SERVICE OR RESULTS, AVAILABILITY,
SATISFACTORY QUALITY, LACK OF VIRUSES, QUIET ENJOYMENT, FITNESS
FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT AND ANY
WARRANTIES ARISING FROM ANY COURSE OF DEALING, USAGE OR
TRADE PRACTICE IN CONNECTION WITH SUCH PRODUCTS AND SERVICES.
BUYER ACKNOWLEDGES THAT NEITHER UBIQUITI NETWORKS NOR
ITS THIRD PARTY PROVIDERS CONTROL BUYER’S EQUIPMENT OR THE
TRANSFER OF DATA OVER COMMUNICATIONS FACILITIES, INCLUDING
THE INTERNET, AND THAT THE PRODUCTS AND SERVICES MAY BE
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS
AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS
FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD
PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS,
DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT
CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY
OF THE FOREGOING. In addition, UBIQUITI NETWORKS does not warrant
that the operation of the Products will be error-free or that operation will
be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible
for damages or claims of any nature or description relating to system
performance, including coverage, buyer’s selection of products (including
the Products) for buyer’s application and/or failure of products (including
the Products) to meet government or regulatory requirements.
Limitation of Liability
EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL
UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR
DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES
(INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING
OUT OF THE USE, INABILITY TO USE, OR THE RESULTS OF USE OF THE
PRODUCT, WHETHER BASED IN WARRANTY, CONTRACT, TORT OR OTHER
LEGAL THEORY, AND WHETHER OR NOT ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.

Note
Some countries, states and provinces do not allow exclusions of implied
warranties or conditions, so the above exclusion may not apply to you.
You may have other rights that vary from country to country, state to
state, or province to province. Some countries, states and provinces do not
allow the exclusion or limitation of liability for incidental or consequential
damages, so the above limitation may not apply to you. EXCEPT TO
THE EXTENT ALLOWED BY LOCAL LAW, THESE WARRANTY TERMS DO
NOT EXCLUDE, RESTRICT OR MODIFY, AND ARE IN ADDITION TO, THE
MANDATORY STATUTORY RIGHTS APPLICABLE TO THE LICENSE OF ANY
SOFTWARE (EMBEDDED IN THE PRODUCT) TO YOU. The United Nations
Convention on Contracts for the International Sale of Goods shall not apply
to any transactions regarding the sale of the Products.
Compliance
FCC
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions.
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operations of this
equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own
expense.
This radio transmitter FCC ID: SWX-M5 has been approved by FCC
to operate with the antenna types listed below with the maximum
permissible gain and required antenna impedance for each antenna type
indicated. Antenna types not included in this list, having a gain greater
than the maximum gain indicated for that type, are strictly prohibited for
use with this device.
Antenna Information: 2 Omnidirectional antennas, Gain: 7 dBi

ISED Canada
CAN ICES-3(A)/NMB-3(A)
This device complies with ISED Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that
may cause undesired operation of the device.
This radio transmitter (IC: 6545A-M5) has been approved by ISED Canada
to operate with the antenna types listed below with the maximum
permissible gain and required antenna impedance for each antenna type
indicated. Antenna types not included in this list, having a gain greater
than the maximum gain indicated for that type, are strictly prohibited for
use with this device.
Antenna Information: 2 Omnidirectional antennas, Gain: 7 dBi
CAN ICES-3(A)/NMB-3(A)
Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes :
1. l’appareil ne doit pas produire de brouillage;
2. l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
Le présent émetteur radio (IC : 6545A-M5) a été approuvé par ISDE Canada
pour l’exploitation avec l’antenne types énumérés ci-dessous avec le gain
maximal admissible et requis l’impédance de l’antenne pour chaque type
d’antenne indiqué. Types d’antenne non inclus dans cette liste, ayant un
gain supérieur au gain maximal indiqué pour ce type, sont strictement
interdits pour une utilisation avec cet appareil.
Informations d’antenne : 2 Antenne omnidirectionnelle, Gain : 7 dBi
RF Exposure Warning
The antennas used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be
located or operating in conjunction with any other antenna or transmitter.
Les antennes utilisées pour ce transmetteur doivent être installé en
considérant une distance de séparation de toute personnes d’au moins
20 cm et ne doivent pas être localisé ou utilisé en conflit avec tout autre
antenne ou transmetteur.

Australia and New Zealand
Warning: This is a Class A product. In a domestic environment this
product may cause radio interference in which case the user may
be required to take adequate measures.
CE Marking
CE marking on this product represents the product is in compliance with all
directives that are applicable to it.
Country List
AT BE BG CY CZ DE DK EE EL ES FI FR HR HU
IE IT LV LT LU MT NL PL PT RO SE SI SK UK
BFWA (Broadband Fixed Wireless Access) members noted in blue
Note: This device meets Max. TX power limit per ETSI regulations.
The following apply to products that operate in the 5 GHz frequency range:
Note: This device is restricted to indoor use only when operating
in the 5150 - 5350 MHz frequency range within all member states.
Note: All countries listed may operate at 30 dBm. BFWA member
states may operate at 36 dBm.
Note: Operation in the 5.8 GHz frequency band is prohibited in
BFWA member states. Other countries listed may use the 5.8 GHz
frequency band.
