Quick Start Guide
MSO/UPO3000E Series Oscilloscope

Quick Start Guide MSO/UPO3000E Series Oscilloscope
Instruments.uni-trend.com 2/ 17
Copyright Information
Uni-Trend Technology (China) Co., Ltd. All rights reserved.
Trademark Information
UNI-T is the registered trademark of Uni-Trend Technology (China) Co., Ltd.
Document Version
MSO/UPO300020221130-V1.00
Statement
UNI-T products are protected by patent rights in China and foreign countries, including issued and
pending patents.
UNI-T reserves the rights to any product specification and pricing changes.
UNI-T reserves all rights. Licensed software products are properties of Uni-Trend and its subsidiaries
or suppliers, which are protected by national copyright laws and international treaty provisions.
Information in this manual supersedes all previously published versions.

Quick Start Guide MSO/UPO3000E Series Oscilloscope
Instruments.uni-trend.com 3/ 17
1. Safety Requirements
This section contains information and warnings that must be followed to keep the instrument operating
under safety conditions. In addition, user should also follow the common safety procedures.
Safety Precautions
Warning
Please follow the following guidelines to avoid possible electric shock and risk
to personal safety.
Users must follow the following conventional safety precautions in operation,
service and maintenance of this device. UNI-T will not be liable for any
personal safety and property loss caused by the user’s failure to follow the
following safety precautions. This device is designed for professional users
and responsible organizations for measurement purposes.
Do not use this device in any way not specified by the manufacturer. This
device is only for indoor use unless otherwise specified in the product manual.
Safety Statement
Warning
“Warning” indicates the presence of a hazard. It reminds users to pay attention
to a certain operation process, operation method or similar. Personal injury or
death may occur if the rules in the “Warning” statement are not properly
executed or observed. Do not proceed to the next step until you fully understand
and meet the conditions stated in the “Warning” statement.
Caution
“Caution” indicates the presence of a hazard. It reminds users to pay attention
to a certain operation process, operation method or similar. Product damage or
loss of important data may occur if the rules in the “Caution” statement are not
properly executed or observed. Do not proceed to the next step until you fully
understand and meet the conditions stated in the “Caution” statement.
Note
“Note” indicates important information. It reminds users to pay attention to
procedures, methods and conditions, etc. The contents of the “Note” should be
highlighted if necessary.
Safety Sign
Danger
It indicates possible danger of electric shock, which may cause
personal injury or death.
Warning
It indicates that you should be careful to avoid personal injury or
product damage.
Caution
It indicates possible danger, which may cause damage to this
device or other equipment if you fail to follow a certain procedure
or condition. If the “Caution” sign is present, all conditions must be
met before you proceed to operation.
Note
It indicates potential problems, which may cause failure of this
device if you fail to follow a certain procedure or condition. If the

Quick Start Guide MSO/UPO3000E Series Oscilloscope
Instruments.uni-trend.com 4/ 17
“Note” sign is present, all conditions must be met before this
device will function properly.
AC
Alternating current of device. Please check the region’s voltage
range.
DC
Direct current device. Please check the region’s voltage range.
Groundin
g
Frame and chassis grounding terminal.
Groundin
g
Protective grounding terminal.
Groundin
g
Measure grounding terminal.
OFF
Main power off.
ON
Main power on.
Power
Supply
Standby power supply: when the power switch is turned off, this
device is not completely disconnected from the AC power supply.
CAT I
Secondary electrical circuit connected to wall sockets through transformers
or similar equipment, such as electronic instruments and electronic
equipment; electronic equipment with protective measures, and any high-
voltage and low-voltage circuits, such as the copier in the office
CAT II
CATII: Primary electrical circuit of the electrical equipment connected to the
indoor socket via the power cord, such as mobile tools, home appliances, etc.
Household appliances, portable tools (e.g. electric drill), household sockets,
sockets more than 10 meters away from CAT III circuit or sockets more than
20 meters away from CAT IV circuit
CAT III
Primary circuit of largeequipment directly connectedto the distribution board
and circuit between the distribution board and the socket (three-phase
distributor circuit includes a single commercial lighting circuit). Fixed
equipment, such as multi-phase motor and multi-phase fuse box; lighting
equipment and lines inside large buildings; machine tools and power
distribution boards at industrial sites (workshops)
CAT IV
Three-phase public power unit and outdoor power supply line equipment.
Equipment designed to “initial connection”, such as power distribution system
of power station, power instrument, front-end overload protection, and any
outdoor transmission line
Certification
CE indicates a registered trademark of EU.
Certification
UKCA indicates a registered trademark of UK.
Certification
Conforms to UL STD 61010-1, 61010-2-030, Certified to CSA STD C22.2 No.
61010-1, 61010-2-030.
Waste
Do not place equipment and its accessories in the trash. Items must be
properly disposed of in accordance with local regulations.

Quick Start Guide MSO/UPO3000E Series Oscilloscope
Instruments.uni-trend.com 5/ 17
EFUP
This environment-friendly use period (EFUP) mark indicates that dangerous or
toxic substances will not leak or cause damage within this indicated time
period. The environment-friendly use period of this product is 40 years, during
which it can be used safely. Upon expiration of this period, it should enter the
recycling system.
Safety Requirements
Warning
Preparation before use
Please connect this device to AC power supply with the power cable provided;
The AC input voltage of the line reaches the rated value of this device. See the
product manual for specific rated value.
The line voltage switch of this device matches the line voltage;
The line voltage of the line fuse of this device is correct;
It not used for measuring the main circuit.
Check all terminal rated
values
Please check all rated values and marking instructions on the product to avoid
fire and impact of excessive current. Please consult the product manual for
detailed rated values before connection.
Use the power cord
properly
You can only use the special power cord for the instrument approved by the
local and state standards. Please check whether the insulation layer of the
cord is damaged or the cord is exposed, and test whether the cord is
conductive. If the cord is damaged, please replace it before using the
instrument.
Instrument Grounding
To avoid electric shock, the grounding conductor must be connected to the
ground. This product is grounded through the grounding conductor of the
power supply. Please be sure to ground this product before it is powered on.
AC power supply
Please use the AC power supply specified for this device. Please use the
power cord approved by your country and confirm that the insulation layer is
not damaged.
Electrostatic prevention
This device may be damaged by static electricity, so it should be tested in the
anti-static area if possible. Before the power cable is connected to this
device, the internal and external conductors should be grounded briefly to
release static electricity. The protection grade of this device is 4 kV for
contact discharge and 8 kV for air discharge.
Measurement
accessories
Measurement accessories are of lower class, which are definitely not
applicable to main power supply measurement, CAT II, CAT III or CAT IV circuit
measurement.Probe subassemblies and accessories within the range of IEC
61010-031 and current sensor within the range of IEC 61010-2-032 can meet
its requirements.
Use the input / output
port of this device
properly
Please use the input / output ports provided by this device in a properly
manner. Do not load any input signal at the output port of this device. Do not
load any signal that does not reach the rated value at the input port of this
device. The probe or other connection accessories should be effectively
grounded to avoid product damage or abnormal function. Please refer to the
product manual for the rated value of the input / output port of this device.

Quick Start Guide MSO/UPO3000E Series Oscilloscope
Instruments.uni-trend.com 6/ 17
Power fuse
Please use power fuse of specified specification. If the fuse needs to be
replaced, it must be replaced by maintenance personnel authorized by UNI-T
to replace the fuse that meets the specified specifications.
Disassembly and
cleaning
There are no components available to operators inside. Do not remove the
protective cover.
Maintenance must be carried out by qualified personnel.
Service environment
This device should be used indoors in a clean and dry environment with
ambient temperature from 0 ℃to 40 ℃.
Do not use this device in explosive, dusty or humid air.
Do not operate in humid
environment
Do not use this device in a humid environment to avoid the risk of internal
short circuit or electric shock.
Do not operate in
flammable and explosive
environment
Do not use this device in a flammable and explosive environment to avoid
product damage or personal injury.
Caution
Abnormality
If this device may be faulty, please contact the authorized maintenance
personnel of UNI-T for testing. Any maintenance, adjustment or parts
replacement must be done by the relevant personnel of UNI-T.
Cooling
Do not block the ventilation holes at the side and back of this device;
Do not allow any external objects to enter this device via ventilation holes;
Please ensure adequate ventilation, and leave a gap of at least 15 cm on both
sides, front and back of this device.
Safe transportation
Please transport this device safely to prevent it from sliding, which may
damage the buttons, knobs or interfaces on the instrument panel.
Proper ventilation
Poor ventilation will cause the device temperature to rise, thus causing
damage to this device. Please keep proper ventilation during use, and
regularly check the vents and fans.
Keep clean and dry
Please take actions to avoid dust or moisture in the air affecting the
performance of this device. Please keep the product surface clean and dry.
Note
Calibration
The recommended calibration period is one year. Calibration should only be
carried out by qualified personnel.

Quick Start Guide MSO/UPO3000E Series Oscilloscope
Instruments.uni-trend.com 7/ 17
2. Introduction of MSO/UPO3000E Series
MSO/UPO3000E series digital phosphor oscilloscope includes ten models
Model
Analog Channel
Analog bandwidth
LA
AWG
UPO3354E
4
350MHz
○
×
UPO3352E
2
350MHz
○
×
UPO3504E
4
500MHz
○
×
UPO3502E
2
500MHz
○
×
MSO3354E
4
350MHz
●
×
MSO3352E
2
350MHz
●
×
MSO3504E
4
500MHz
●
×
MSO3502E
2
500MHz
●
×
MSO3354E-S
4
350MHz
●
●
MSO3504E-S
4
500MHz
●
●
●：Standard ○： Optional ×：Not support
3. Getting Started Guide
This chapter introduces on using the oscilloscope for the first time, the front and rear panels, the user
interface, as well as the built-in help system.
3.1 General Inspection
It is recommended to inspect the instrument follow the steps below before using the MSO/UPO3000E series
for the first time.
(1) Check for Damages caused by Transport
If the packaging carton or the foam plastic cushions are severely damaged, please contact the UNI-T
distributor of this product immediately.
(2) Check Attachment
Please check appendix for the list of accessories. If any of the accessories are missing or damaged, please

Quick Start Guide MSO/UPO3000E Series Oscilloscope
Instruments.uni-trend.com 8/ 17
contact UNI-T or local distributors of this product.
(3) Machine Inspection
If the instrument appears to be damaged, not working properly, or has failed the functionality test, please
contact UNI-T or local distributors of this product.
If the equipment is damaged due to shipping, please keep the packaging and notify both the transportation
department and UNI-T distributors, UNI-T will arrange maintenance or replacement.
3.2 Before Use
To perform a quick verification of the instrument's normal operations, please follow the steps below:
(1) Connect to the Power Supply
The power supply voltage range is from 100 VAC to 240 VAC, the frequency range is 50 Hz to 60 Hz. Connect
the oscilloscope to the power supply line that came with the oscilloscope or any power supply line that meets
the local country standards. If the power switch on the rear panel is not turned on, the indicator of power soft
button on the left corner on the front panel will be extinguished and no function. If the power switch
on the rear panel is turned on, the indicator of power soft button on the left corner on the front panel
will be on red, press this button to boot-up the instrument.
(2) Boot-up Check
Press the soft power button and the light should change to green. The oscilloscope will show a boot
animation, and then enter the normal interface.
(3) Connect Probe
Use probe’s BNC port connect to the channel 1 BNC port of the oscilloscope. Connect the probe to the
“Compensating signal port” and the ground clip is connected to the “Ground terminal” below the
compensating signal port as shown in Figure 1. The output of the compensating signal should be amplitude
3 Vpp, default frequency is 1 kHz

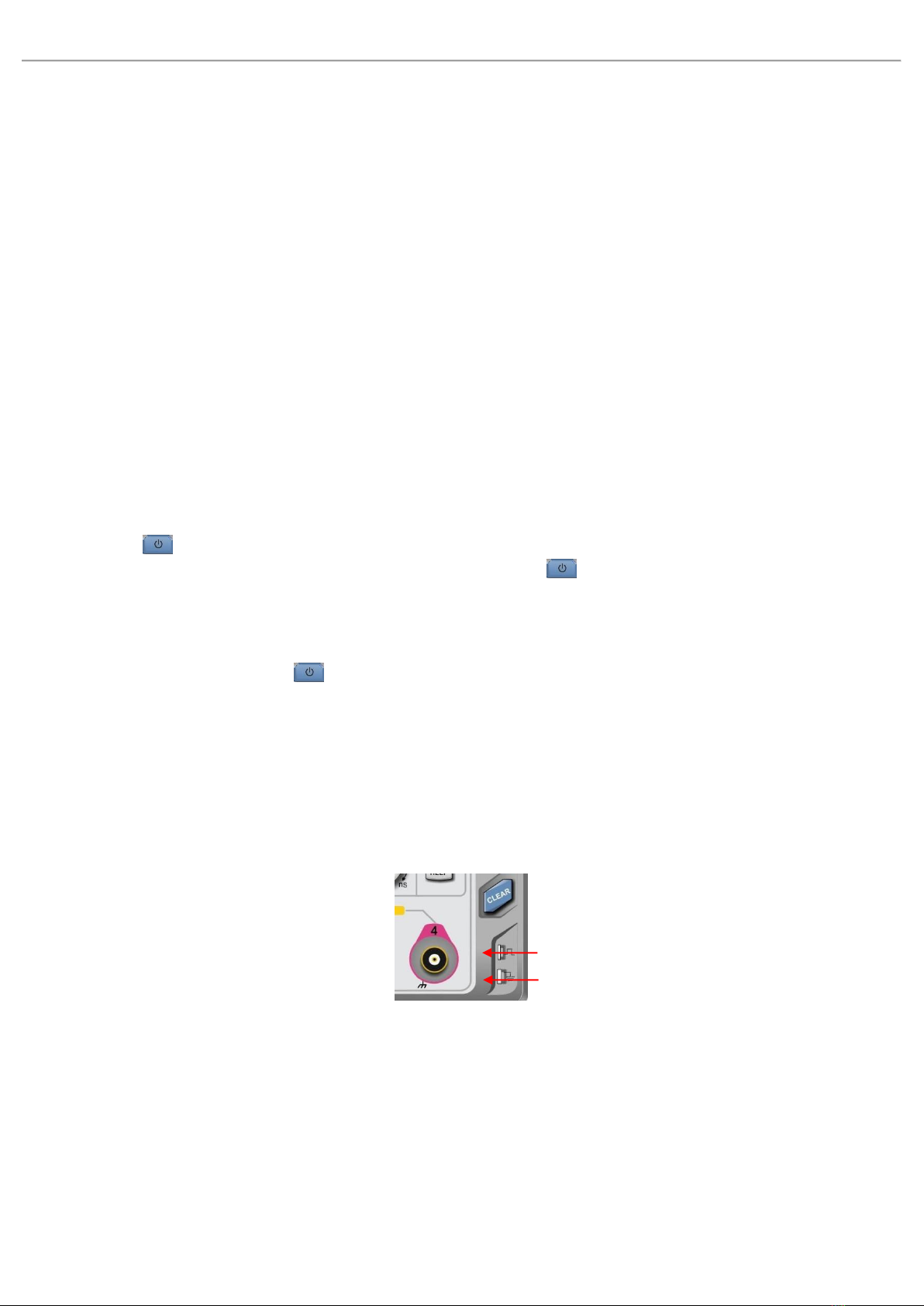

Figure 1 Compensating signal and Ground terminal
(4) Function Check
Press the AUTO key, a 3 Vpp 1 kHz square wave should appear. Repeat step 3 to check all channels.
(5) Probe Compensation
When the probe is connected to any input channel for the first time, this step might be adjusted in order to
Compensating signal terminal
Ground terminal

Quick Start Guide MSO/UPO3000E Series Oscilloscope
Instruments.uni-trend.com 9/ 17
match the probe and the input channel. Probes that are not compensated may lead to measurement errors
or mistake. If need to adjust the probe compensation, please follow the following steps:
Set the attenuation coefficient in the probe menu and the switch on the probe 10x, and connect the
probe to CH1. Make sure the probe’s connector is properly connected with the oscilloscope. Connect the
probe’s main clip and ground clip to the oscilloscope’s compensating signal and ground terminal
respectively. Open CH1 and press the AUTO button.
View the displayed waveform, as shown in Figure 2.
Excessive Compensation Correct Compensation Insufficient Compensation

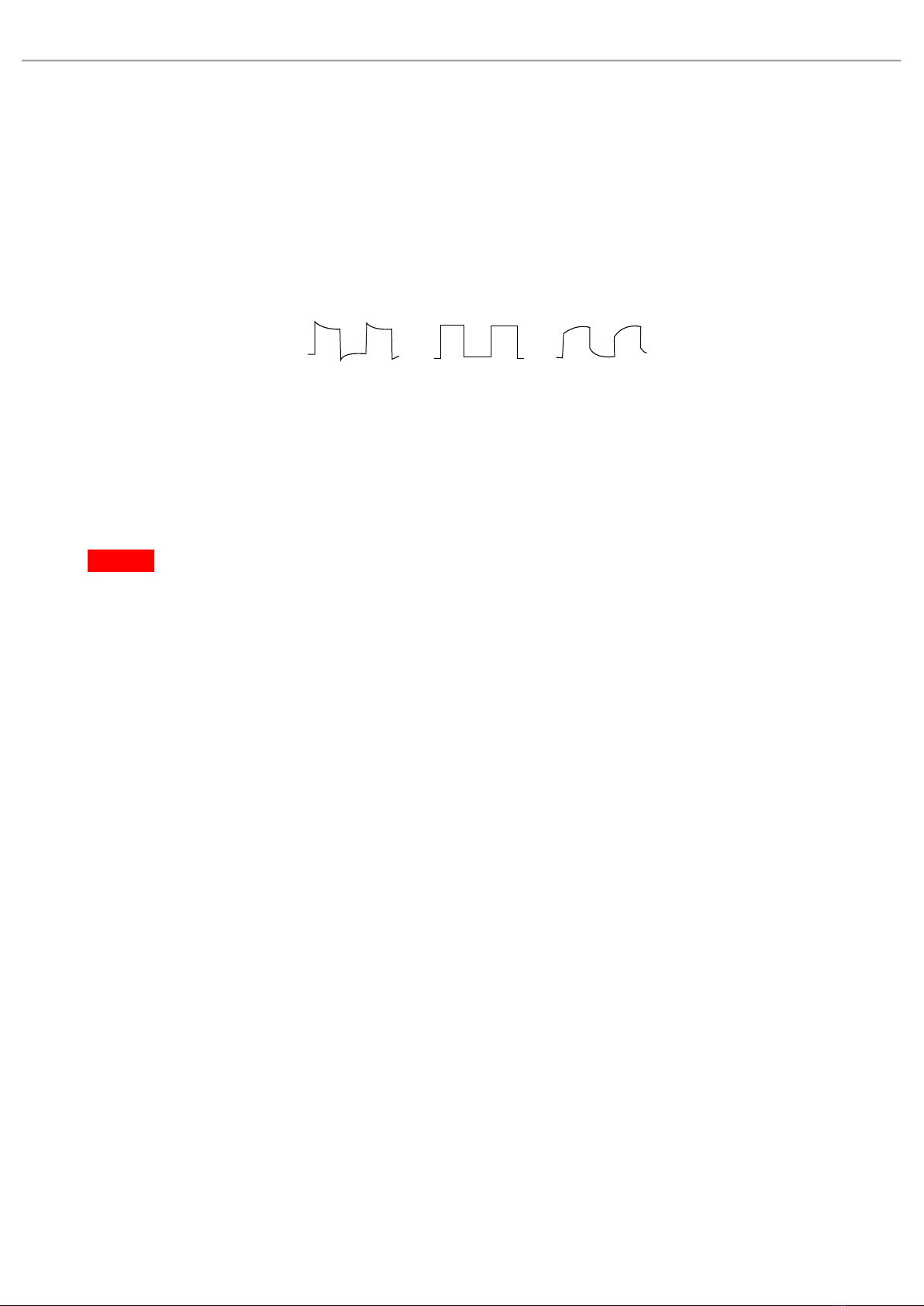

Figure 2 Compensating Calibration of Probe
If the displayed waveform is look like the above “Insufficient Compensation” or “Excessive
Compensation”, use a non-metallic screwdriver to adjust the probe’s variable capacitance until the
display matches the "Correct compensation" waveform.
Warning: To avoid electric shock when using the probe to measure high voltage, please ensure that the probe
insulation is in good condition and avoid physical contact with any metallic part of the probe.

Quick Start Guide MSO/UPO3000E Series Oscilloscope
Instruments.uni-trend.com 10 / 17
4. Front Panel
Figure 3 Front Panel
Table 1 Front Panel
No.
Description
No.
Description
1
Screen display area
12
Factory setting, LA, AWG,
protocol decoding
2
Multipurpose knob
13
Trigger control (TRIGGER)
3
Recording waveform
14
Horizontal control (HORIZONTAL)
4
Jog dial knob
15
Analog channel input port
5
Function menu
16
Vertical control (VERTICAL)
6
Numeric keypad
17
Menu control soft key
7
Automatic control key
18
USB HOST interface
8
Run/Stop control key
19
Power supply soft key
9
Single trigger control key
20
Digital channel input port
10
Clear all control key
21
HOME menu
11
Compensating signal connector
and ground terminal
