Uplift Desk V2-Commercial F600 C-Frame User manual

V2-Commercial 2-Leg
Standing Desk
F600 (C-Frame & T-Frame)
For assembly assistance,
visit upliftdesk.com/contact,
call 800-349-3839,
or email [email protected]
©2023 UPLIFT Desk®. All Rights Reserved
US patent no. 11,109,672 B2
Scan QR code for
product webpage
C-Frame shown

2
Safety and Warnings
Please read these instructions carefully. This desk is height adjustable to t the user’s height.
Inappropriate use of this desk can cause property damage and/or bodily injury. Under no circumstances
does the manufacturer accept warranty or liability claims for damages caused from improper use of this
desk. Please provide these instructions to any new user or owner of the desk.
WARNING: Read all instructions before assembly. Failure to assemble or operate the desk properly may result
in damage or personal injury. Retain this manual for future reference or owners.
WARNING: Keep ngers and body parts clear of the moving desk edges. Check the desk’s surroundings on all
sides before raising or lowering the desk to ensure there are no obstacles that can be damaged or damage the
desk.
WARNING: Ensure all desk and accessory cords have enough slack so they don’t pull as the desk moves up
and down.
WARNING: Keep children away from the desk unless supervised. Misuse of the desk can cause personal injury.
If children cannot be supervised at all times, use the desk’s safety lock feature or remove the power cord to
prevent its operation.
WARNING: The desk is designed for use in dry indoor environments only. Use of desk outdoors or in damp
locations will damage the desk and can cause risk of electric shock, re, or personal injury.
WARNING: Only plug the desk into a properly grounded 100-240V power outlet. Using a voltage converter is
considered improper use and can cause damage to the desk.
WARNING: Do not open or insert any object into any desk frame component such as the legs or control box.
Doing so may cause damage and can cause risk of electric shock.
WARNING: In case of spilled liquid on any electrical desk component, disconnect the desk from the power
outlet immediately. Clean up the spill with a dry cloth and plug the desk back into the power outlet. There is a
risk of desk failure or electric shock if desk components become wet.
WARNING: Never use the desk if the power cord or plug becomes damaged as this can cause a risk of re and
electric shock. Contact UPLIFT Desk for a replacement power cord if it is damaged in any way.
WARNING: Risk of serious injury or death. Adjusting the height of the desk can pinch or crush body parts
trapped between the desktop and stationary objects. Do not place feet or other body parts on any items located
under the desk other than on approved items such as foot rests and desk mats.
WARNING: Be sure there is a gap of at least 1” between the moving parts of the standing desk and objects
located next to it to avoid pinch and crush hazards. Move the desk through its full range of motion to ensure
the 1” gap is maintained above, below, and all around the desk.
WARNING: Persons with limited mental or physical capabilities who are unable to comprehend the safe
operation of the height adjustability feature must be supervised and must not operate the desk.
WARNING: Inspect the desk regularly and stop using immediately if you notice any damaged or loose parts.
Only replace damaged desk parts with authorized UPLIFT Desk parts.

3
© UPLIFT Desk • 800-349-3839 • [e-mail] • upliftdesk.com
Desk image is for reference only and may not match your desk model.
Max
Height
Min
Height

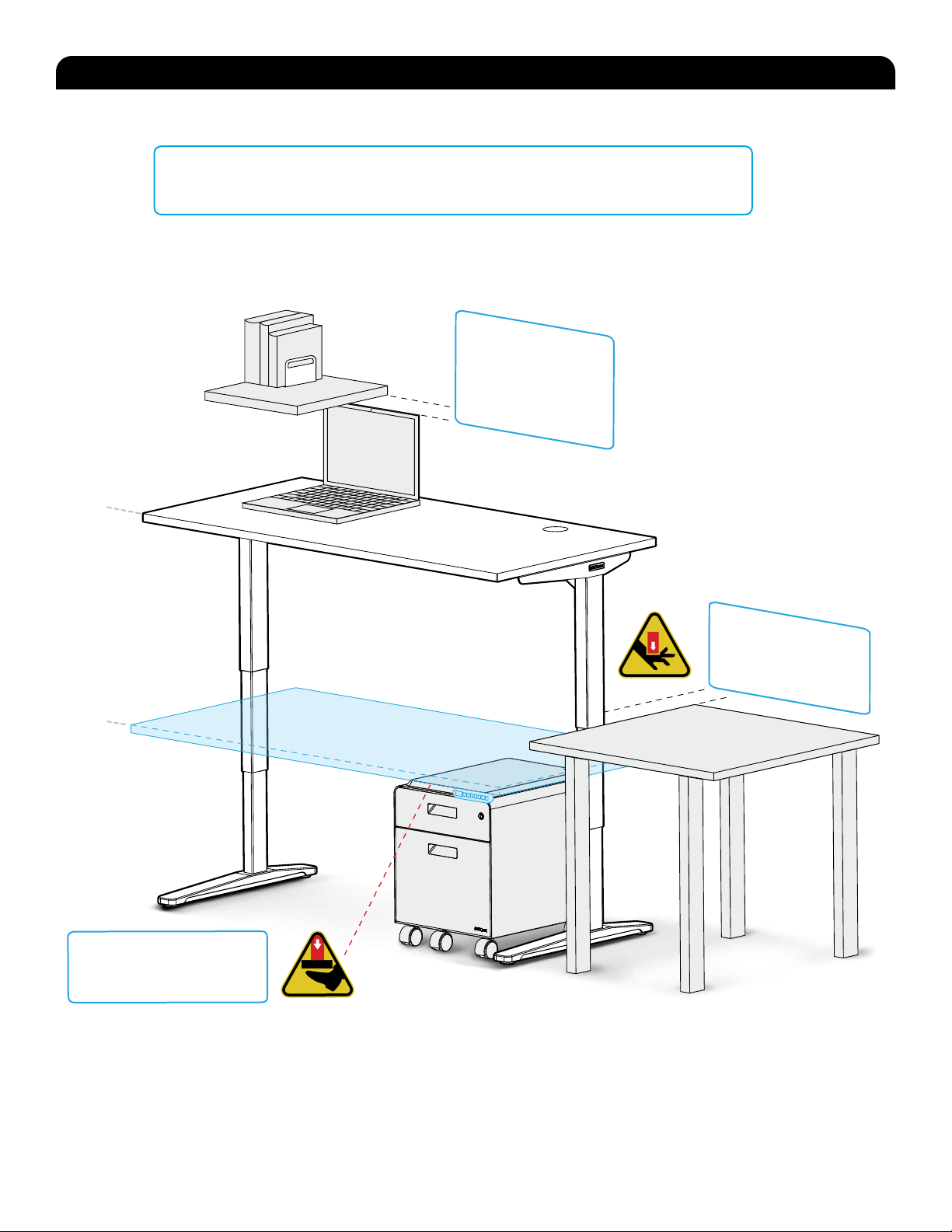

Keep a vertical gap
of greater than 1”
between items
on desk and any
obstructions above.
Keep a horizontal
gap of greater than 1”
from desk to wall and
other furniture.
Do not place feet on items
below the desk where they
can be injured.
Desk Spacing and Clearance Distances

4

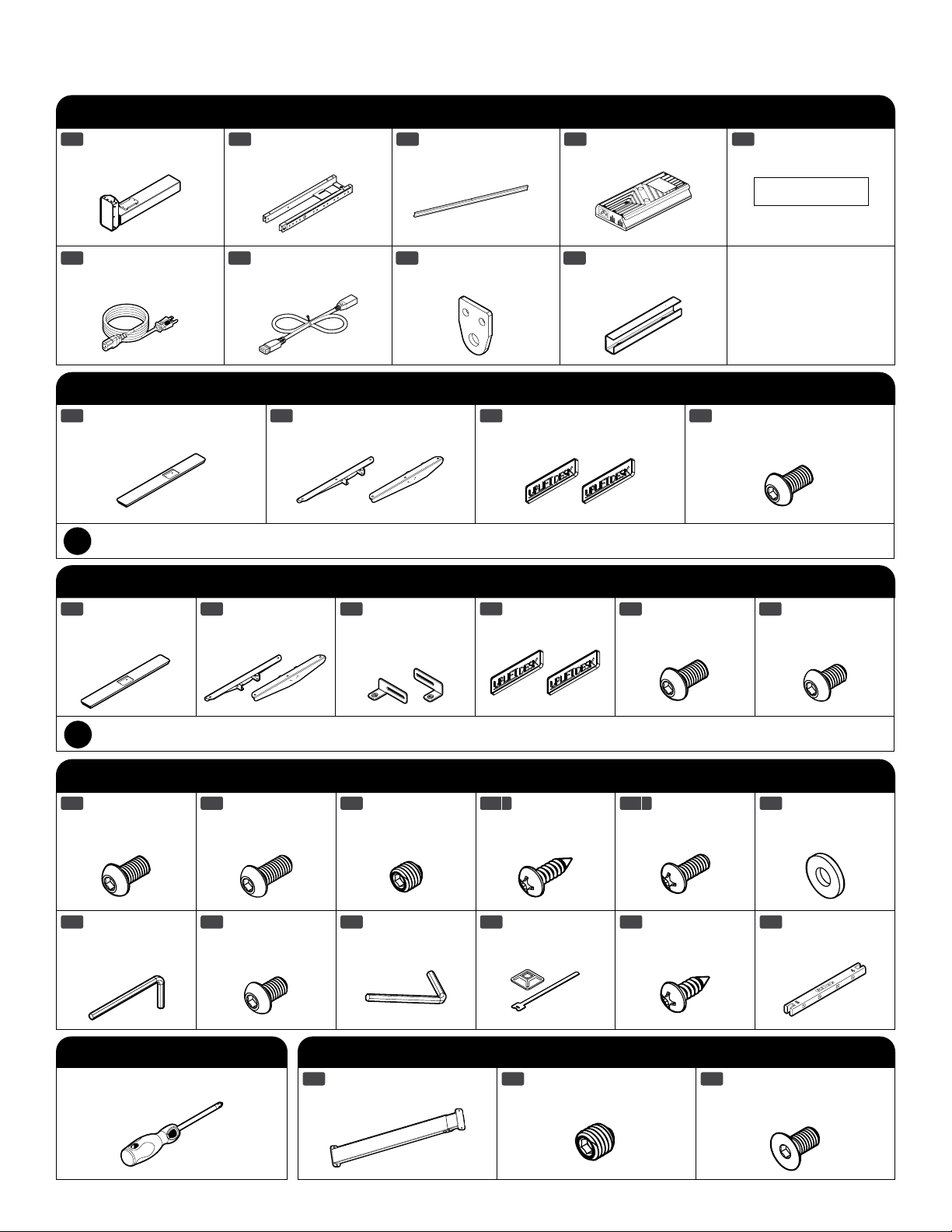

Package Contents
F600 T-Frame Feet & Side Brackets Box Components
Foot
Includes Leveling Glides,
qty 2
Side Bracket
qty 2
F600 C-Frame
F600 T-Frame
F600 C-Frame
F600 T-Frame
T-Frame
Crossbar End
Adapter
right and left qty 2
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
Logo Plate
qty 2 M6 x 10
Machine Screw
qty 4
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
M8 x 10
Machine Screw
qty 4
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
The assembly steps and components that are specific to the T-Frame type are noted by this “T” icon.
P1 P2 P3 P16 H1 H7
C
T
F600 C-Frame Feet & Side Brackets Box Components
Foot
Includes leveling glides, qty 2 Side Bracket qty 2
F600 C-Frame
F600 T-Frame
F600 C-Frame
F600 T-Frame
Logo Plate
qty 2 M6 x 10
Machine Screw
qty 4
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
The assembly steps and components that are specific to the C-Frame type are noted by this “C” icon.
P1 P2 P16 H1
left
left
right
right
C
T
F600 Crossbar Box Components
Crossbar M8 x 8 Set Screw
qty 2
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
M6 x 12 Flat
Head Screw
qty 4
P13 H3 H16
M6 x 10
Machine Screw
qty 16
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
M6 x 14
Machine Screw
qty 8
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
M8 x 8
Set Screw
qty 8
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
#10 x 3/4”
Wood Screw
qty 8
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
#10-24 x 3/4”
Machine Screw
qty 8
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
Washer
qty 8
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
4mm
Allen Wrench
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
M8 x 10
Machine Screw
qty 4
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
5mm
Allen Wrench
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
Cable Mount
qty 10 #10 x 5/8”
Wood Screw
qty 4
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
Allen
Wrench Handle
F600 Hardware Components
H7H6
H5H2 aH4H1 H3 H4 b
H8 H9 H15H14
Phillips Head Screwdriver
You’ll also need
Leg
qty 2 Crossbar End qty 2
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
Crossbar Rail
qty 2 Control Box Keypad
Type varies
Power Cable Leg
Extension Cable
Anchor Plate
qty 2
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
Wire
Management Tray
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
F600 Main Box Components
P11P9 P10 P12
P7 P8P6P4 P5

5
© UPLIFT Desk • 800-349-3839 • [e-mail] • upliftdesk.com
Parts Diagram
Foot
Leg
M6 x 14 Machine Screw
M6 x 12 Flathead Screw
Crossbar
Crossbar End
Side Bracket
M6 x 10 Machine Screw
M6 x 10 Machine Screw
M8 x 8 Set Screw
Crossbar Rail
Logo Plate
C-Frame shown

6
Assembly Instructions
Step 2 - Attach Crossbar Ends
A. Position a Crossbar End (P5) as shown.
B. Position a Leg (P4) so that the back of the Leg is ush
with the back of the Crossbar End.
C. Use the 4mm Allen Wrench (H6) to loosely start four M6 x
10 Machine Screws (H1) through the holes in the sides of
the Crossbar End and into the threaded holes in the sides
of the Leg, but do not tighten the screws yet.
Step 3 - Attach Side Brackets
A. Position a Side Bracket (P2) as shown and insert the tabs
into the openings at the back of the Crossbar End (P5).
Loosely start two M6 x 10 Machine Screws (H1) through
the holes in the top of the Crossbar End and into the
threaded holes in the top of the Side Bracket tabs, but do
not tighten the screws yet.

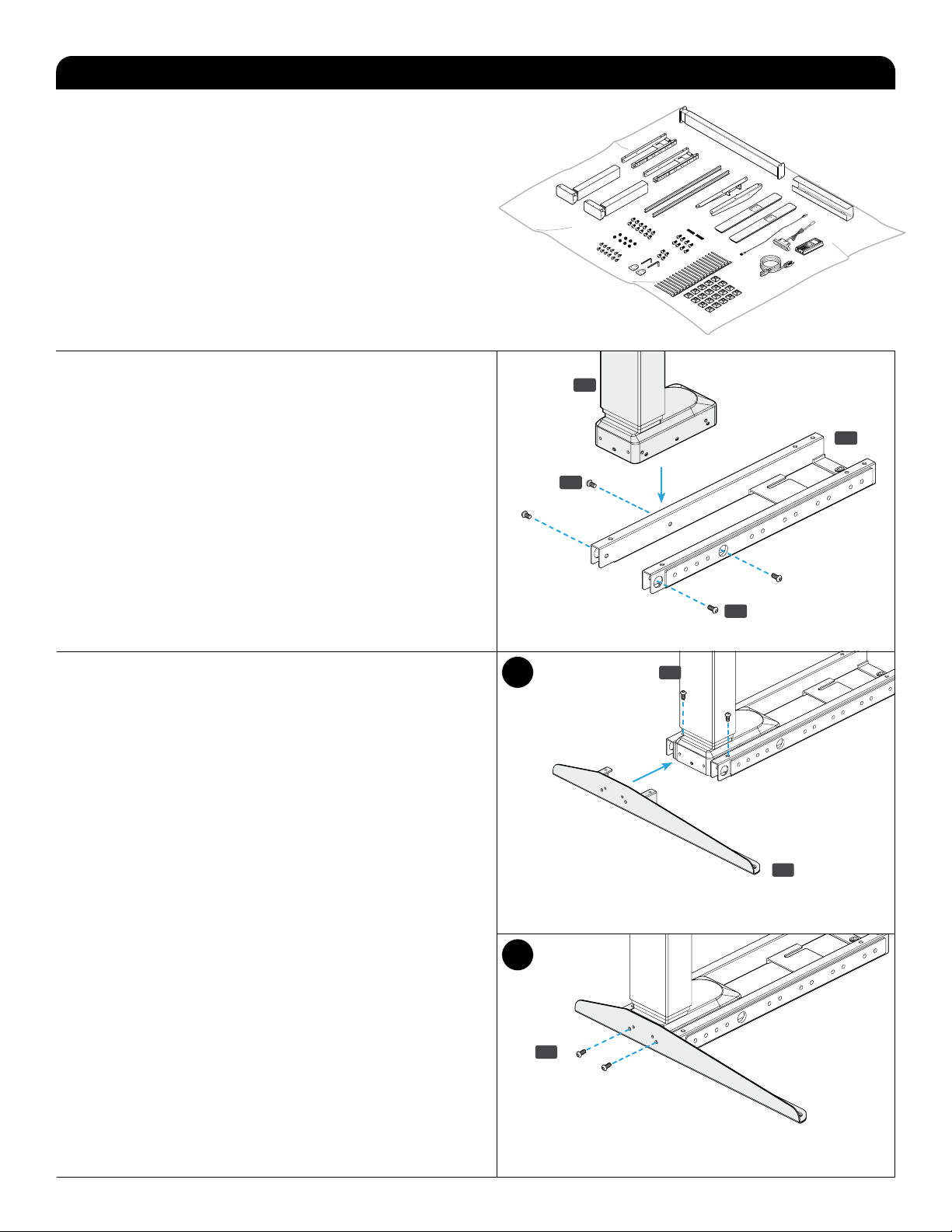

Step 1 - Inventory of Parts
A. To avoid damage to your oor or desktop, assemble the
desk on a clean carpet or blanket.
B. Lay out all parts from each box and ensure you have
everything listed in the package contents of this manual
before throwing away any packaging.
If a part is missing, please triple check that the part
isn’t in a box. Check boxes very thoroughly by removing
all packaging; check every nook and cranny. If the part
is still missing, call [phone] or email support@
upliftdesk.com before beginning assembly.
P5
H1
H1
P4
H1
P2 right
H1
C-Frame side bracket is shown; the steps
are the same if you have a T-Frame.
B. Loosely start two more M6 x 10 Machine Screws through
the two larger holes in the face of the Side Bracket and
into the threaded holes in the back of the Leg.
C. Tighten all eight screws from Steps 2 and 3 with the 4mm
Allen Wrench (H6).
D. Repeat Steps 2 and 3 to attach the second Crossbar End
and Side Bracket.
IMPORTANT: Ensure all screws are tight before
proceeding.
C-Frame side bracket is shown; the steps
are the same if you have a T-Frame.
C
T
C
T

7
© UPLIFT Desk • 800-349-3839 • [e-mail] • upliftdesk.com
Step 4 - Attach Logo Plates
A. Align the posts on the back of a Logo Plate (P16) with the
two smaller holes in the face of the Side Bracket. The Logo
Plate should be upside down at this point.
B. Firmly press the posts into the holes until Logo Plate
edges are ush with the face of the Side Bracket,
concealing the two screws.
C. Repeat the previous steps to attach the second Logo Plate.
Step 5 - Insert Crossbar Rails
A. For C-Frame assemblies, start with the Leg assembly
shown with Side Bracket on the left and the long end
pointing in the direction shown.
For T-Frames assemblies, start with either Leg assembly
since they are the same.
Insert a Crossbar Rail (P6) into each of the two openings
at the end of the Crossbar End (P5).
B. Slide the Crossbar Rails as far as they will go into the
Crossbar End.
Step 6 - Drill Frame Attachment Holes
(if needed). Most desktops do not require
any drilling.
If you have a desktop with pre-drilled holes and metal
threaded inserts in the bottom side as shown, skip to the
next step.
A. Lay your desktop down with the bottom side facing up
and place the Leg assembly from Step 5 on it as shown on
the following page.
B. Align the Leg assembly from Step 5 so the ends of the
Side Bracket are approximately centered between the
front and back edges of the desktop and approximately
1/2” in from the side edge.
C. Make a pencil mark in the center of each of the Side
Bracket holes.
• C-Frames have three holes in the Side Brackets
• T-Frames have two holes in the Side Brackets
D. Make a pencil mark in the center of the Crossbar End hole.
P16
P6
P5
Attach the Logo Plates upside down as shown so they
are right-side up when the desk is ipped over.
Crossbar Rails are universal in design
and can be inserted in any orientation.
Desktop with pre-drilled holes and threaded inserts:
C
T
C
T

8
Step 7 - Attach First Leg Assembly
C
T
C
T
C
T
C
T
X
0.5”
Tape
Machine screw: at end H4 b
Wood screw: pointy end H4 a
For desktops that have metal threaded inserts, use the #10-24 x ¾” Machine Screws (H4b) and Washers (H5) for the
following steps.
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
IMPORTANT: DRILL NO DEEPER THAN 1/2” to avoid drilling through your
desktop. To ensure this, wrap a piece of tape around your drill bit 1/2”
from the tip. Stop drilling just before the tape touches the desktop.
E. Move the Leg assembly out of the way and drill ½” deep pilot holes at
your pencil marks using a 1/8” drill bit.
F. Follow the previous steps to pre-drill holes for the second Leg
assembly at the other end of the desktop.
G. If you have any accessories that attach to the bottom of the desktop
and require drilled holes, use this same method for those holes.
H5
H5
For desktops that do not have metal threaded inserts, use the #10 x ¾” Wood Screws (H4a) and Washers (H5) for the
following steps.

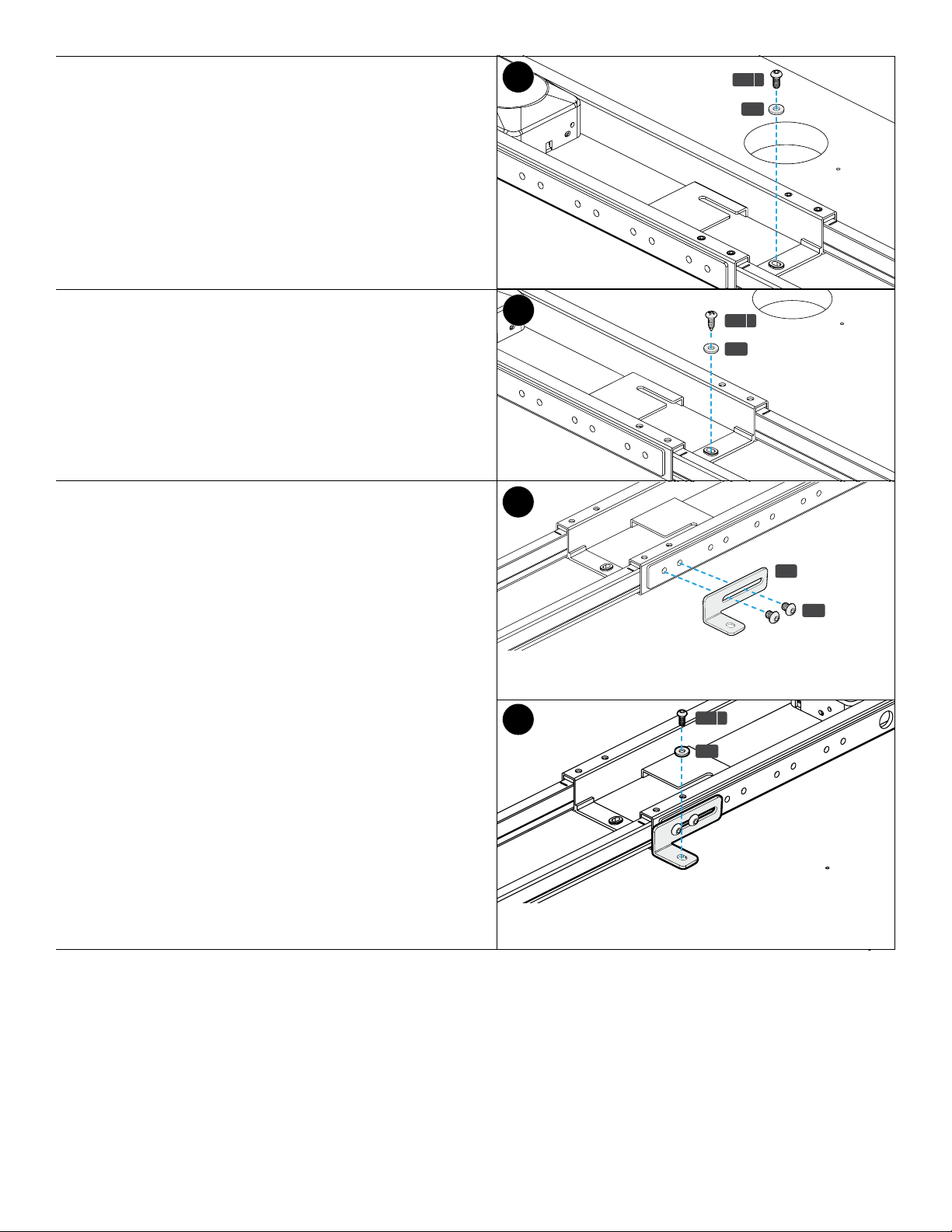

Attach Side Bracket
A. Place the Leg Assembly from Step 5 onto the left side
of the desktop (this will be the right side when the
desk is ipped over).
Lift the frame (do not slide it) to align the holes in the
Side Bracket with the holes in the desktop. Lifting the
frame prevents scratching the desktop and keeps the
rubber grommets in the frame from coming out.
If any rubber grommets
were dislodged, simply
reinsert them in the
orientation shown in the
image.
B. Use a Phillips Screwdriver to insert a Screw and
Washer (use appropriate machine screw OR wood
screw) through each hole in the Side Bracket and into
the pre-drilled holes or metal threaded inserts in the
desktop. Do not tighten the screws yet.
H4 b H4 aor
H4 b H4 aor

9
© UPLIFT Desk • 800-349-3839 • [e-mail] • upliftdesk.com
C
T
C
T
H4 a
H4 b
Attach Crossbar End (C-Frames)
Use a Phillips Screwdriver to insert a Screw and Washer
selected above through the hole in the Crossbar End and
into the predrilled hole or metal threaded insert in the
desktop. Do not tighten completely.
H5
H5
Attach Crossbar End (T-Frames on desktops with
holes pre-drilled in Step 6)
Use a Phillips Screwdriver to insert a Wood Screw through
a Washer and the hole in the Crossbar End and into the
pre-drilled hole in the desktop. Do not tighten completely.
C
T
C
T
Attach Crossbar End (T-Frame on desktops that
came with pre-drilled holes or metal threaded
inserts)
A. Position a Crossbar End Adapter (P3) in the orientation
shown. This will be on the side of the Crossbar End
facing the back of the desktop.
B. Loosely insert two M8 x 10 Machine Screws (H7)
through the Crossbar End Adapter and into the
threaded holes shown on the Crossbar End.
C. Use a Phillips Screwdriver to insert a Screw and
Washer selected above through the hole in the
Crossbar End Adapter and into the pre-drilled hole or
metal threaded insert in the desktop. Do not tighten
completely.
P3
H7
H5
Crossbar End Adapters attach to the Crossbar
Ends on the side facing the back of the desktop.
Crossbar End Adapters attach to the Crossbar Ends
on the side facing the back of the desktop.
H4 b

10
Step 8 - Attach Second Leg Assembly
A. Position the other Leg assembly as shown and slide the Crossbar End onto the ends of the Crossbar Rails (P6).
B. Repeat the steps from Step 7 to attach the Side Bracket and Crossbar End of second Leg assembly.
C. Once all screws have been started, tighten all the screws from Steps 7 and 8. Be careful not to overtighten the screws to
avoid stripping.
IMPORTANT: Ensure all screws are tight before proceeding.
Step 9 - Secure Crossbar Rails
A. Locate the center indicator mark on the narrow sides
of each Center Rail.
B. Slide each Crossbar Rail (P6) left or right until the
center indicator marks are approximately centered
between the two Crossbar Ends (P5).
C. Insert four M8 x 8 Set Screws (H3) into each Crossbar
End and tighten using the 4mm Allen Wrench (H6).
IMPORTANT: Ensure that all eight set screws are
making contact with the Crossbar Rails inside the
Crossbar Ends and are tight before proceeding.
C
T
C
T
C
T
C
T
P6
P6
P6
P6
H3
P5
Center indicator mark

11
© UPLIFT Desk • 800-349-3839 • [e-mail] • upliftdesk.com
Step 10 - Attach Keypad
If you are using an UPLIFT desktop, there are two sets of
Keypad mounting holes pre-drilled into the left and right
side on the bottom.
Choose which side of the desktop you’d like your Keypad
to be located. Remember that you are assembling your
desk upside down, so the Keypad will be on the opposite
side once the desk is ipped over.
If you are using a desktop that does not include pre-
drilled holes for attaching the Keypad, position the
Keypad where you would like it to be located and refer to
Step 6 to drill holes.
Top of desktop
Keypad left side
Keypad right side
Keypad right side
Keypad left side
Bottom of desktop
A. Align the mounting holes of the Keypad with the pre-
drilled holes in the desktop.
B. Use a Phillips Screwdriver to attach the Keypad to
the desktop with two #10 x 5/8” Wood Screws (H14).
Be careful not to overtighten the screws to avoid
stripping.
H14 H14
P8 P8
Basic Display Angled Keypad
shown for reference.
Advanced Comfort Angled
Keypad shown for reference.
Top view of desk (with desktop hidden) showing the
Control Box mounting hooks engaged with the Crossbar
End capture plate slots.
Step 11 - Attach Control Box
The Control Box (P7) must be attached to the desk frame
for the desk to function properly. We recommend placing
it on the same side as the Keypad. It should be attached
to the Crossbar End on either side of the desk frame.
A. Position the Control Box on the side of the desk you
would like to attach it to with the port labeled “AC”
facing the nearest Leg.
B. Slide the Control Box onto the Crossbar End so that
the mounting hooks on the bottom of the Control Box
interlock with the slots in the Crossbar End capture
plate.
Mounting Hooks
AC Port P7
P7

12
Step 12 - Connect Cables
A. Connect the Power Cable (P9) to the port on the
Control Box labeled “AC”.
B. Connect the cable from the Leg closest to the Control
Box directly into the port labeled “M1”.
C. Connect the Leg Extension Cable (P10) into the port
labeled “M2”, route the Leg Extension Cable back under
the cable channel along the side of the Control Box,
and connect it to the cable from the furthest Leg.
Step 13 - Attach Feet
If you are assembling a C-Frame, make sure the long ends
of the Feet are facing in the same direction as the long
ends of the Side Brackets, toward the front of the desk.
A. Place one of the Feet (P1) on top of a Leg and align the
four holes in the Foot with the four threaded holes in
the end of the Leg.
B. Loosely insert four M6 x 14 Machine Screws (H2)
through the holes in the Foot and into the threaded
holes in the Leg, but don’t tighten them until all four
screws have been started.
C. Tighten screws using the
4mm Allen Wrench (H6)
attached to the Allen
Wrench Handle (H15).
HS F DC
AC M1 M2
Leg Extension Cable
Channel
Attachment Tabs
HS F DC
AC M1 M2
Leg Extension Cable
Channel
Attachment Tabs
Leg Extension
Cable Channel
Front of desk
Long end of
C-frame Feet
AC M1 M2
HS F DC
D. Connect the Keypad cable into the Control Box port
labeled “HS”.
The Control Box port labeled “F” is used to connect the
Bluetooth Adapter (FRM125) for use with the UPLIFT
Desk App.
The Control Box port labeled “DC” is used to connect
low voltage accessories with compatible connectors.
H6
H15
H2
P1
Long ends of C-Frame Feet & Side Brackets point
towards the front of desk.
IMPORTANT: Tighten Foot screws very thoroughly to
ensure the stability of the desk.
D. Repeat the previous steps to attach the second Foot.
IMPORTANT: Retighten each screw again to ensure
that all screws are VERY tight before proceeding.

13
© UPLIFT Desk • 800-349-3839 • [e-mail] • upliftdesk.com

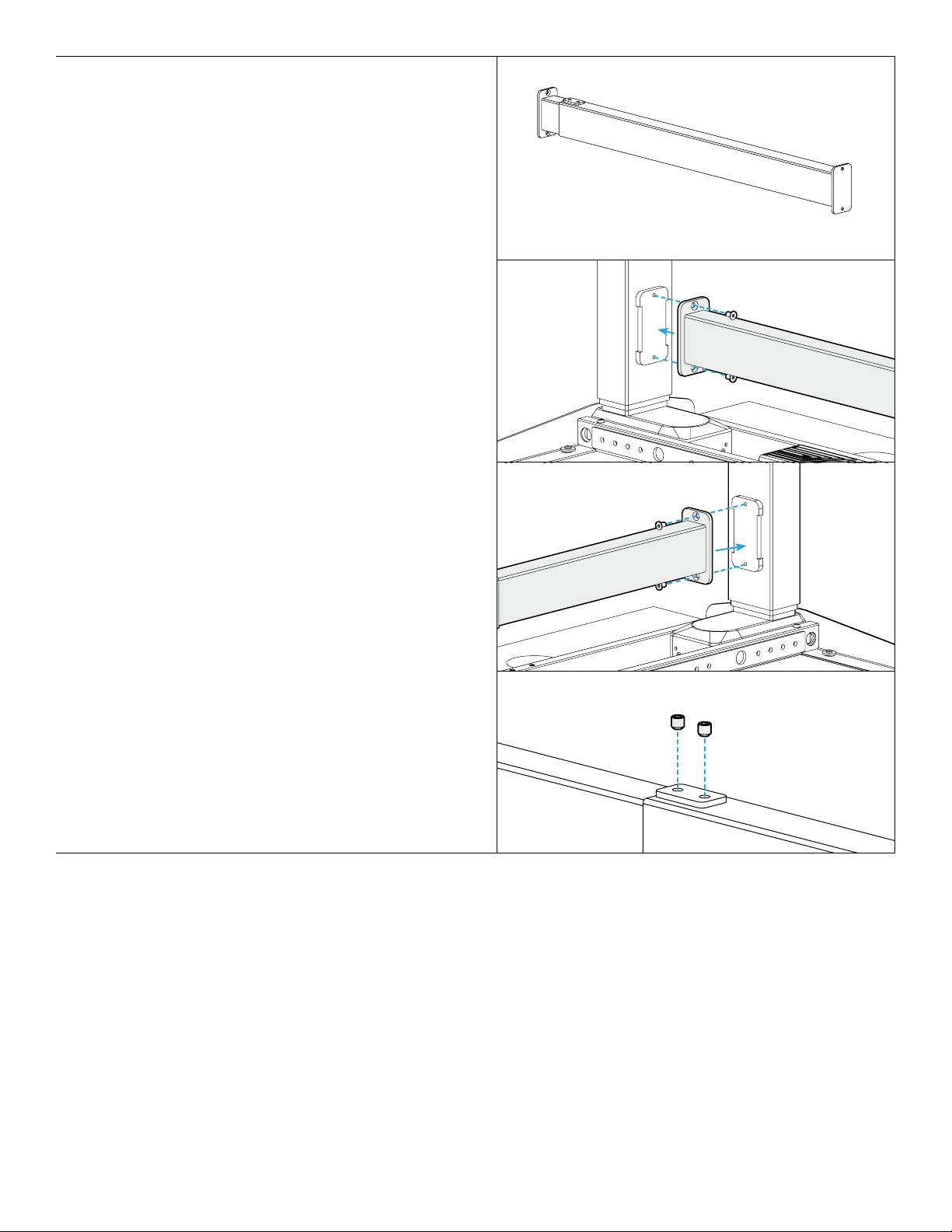

Step 14 - Attach Crossbar
A. Slide the two halves of the Crossbar (P13) together as
shown.
B. Orient the Crossbar so that the Set Screw holes on the
outer section are facing upwards as shown.
C. With another person holding the Crossbar, line up the
holes on one half of the Crossbar with the holes in the
Crossbar mounting plate on the Leg.
D. Loosely insert two M6 x 12 Flat Head Screws (H16)
through the holes in the Crossbar and into the
threaded holes in the Leg.
Either half of the Crossbar can be attached to either Leg.
E. Extend the other half of the Crossbar to the Crossbar
mounting plate on the opposite Leg, align the holes,
and insert the two remaining M6 x 12 Flat Head Screws.
F. Once all four screws are started, tighten them using
the 4mm Allen Wrench (H6).
G. Insert the two M8 x 8 Set Screws (H3) included with
the Crossbar into the two holes in the outer Crossbar
section where the two halves slide together and
tighten them using the 4mm Allen Wrench.
IMPORTANT: Ensure that all screws are tight before
proceeding!

14

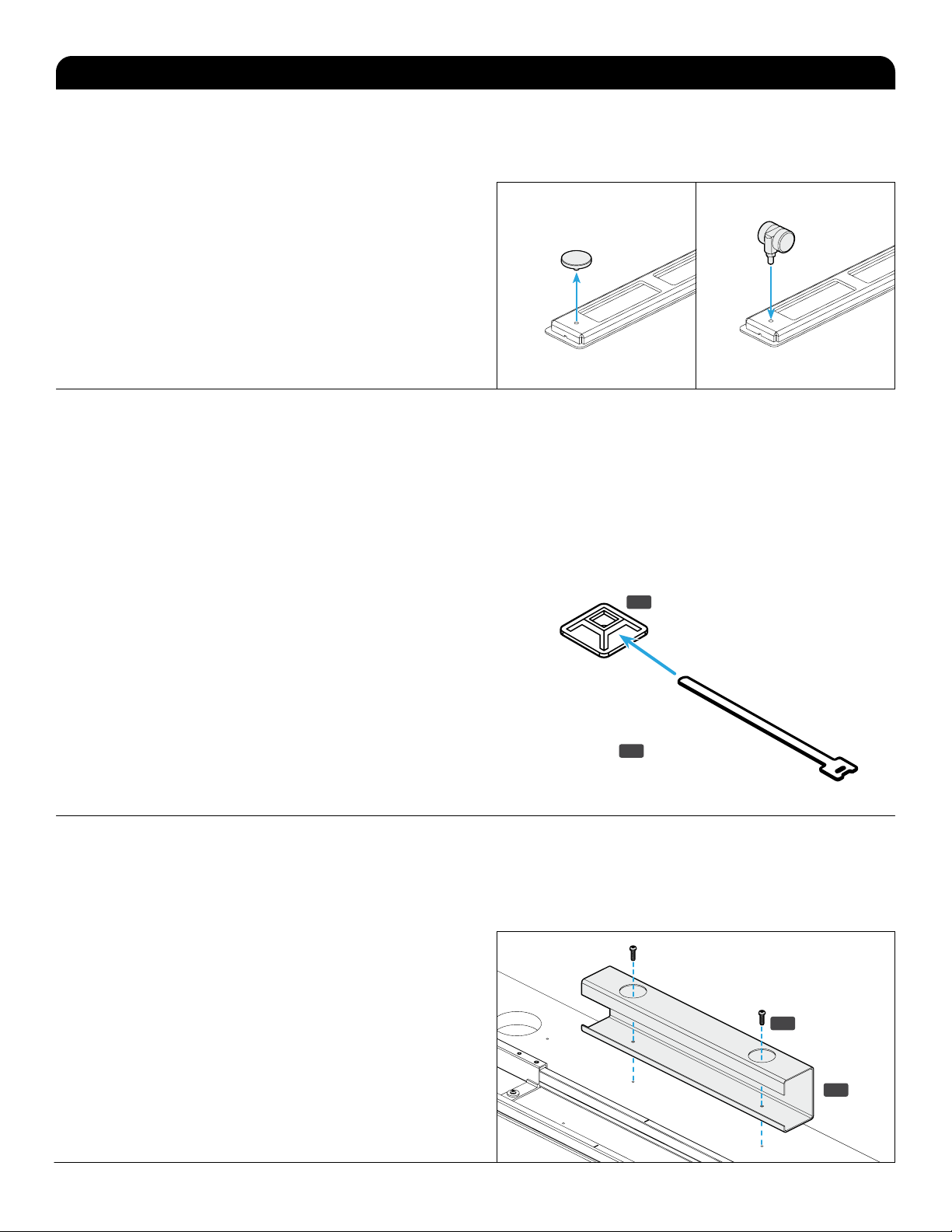

Attach Cable Mounts
Ten Cable Mounts (H9) are provided with your desk to attach under the desktop and organize cables. Organizing cables
improves the appearance of your desk and prevents cables from snagging on anything while the desk is moving up and
down.
Attach Wire Management Tray (optional)
UPLIFT desktops include two pre-drilled holes about 12” apart located near the back of the desktop for attaching the
included Wire Management Tray (P12). If your desktop includes grommet holes, the Wire Management Tray mounting
holes will be located between them.
Hook and loop strip
Plastic mount
A. If your desktop does not include pre-drilled holes for
attaching the Wire Management Tray or you choose to
place it in a different location, refer to Step 6 to create pre-
drilled holes for attaching the Tray.
B. Position the Wire Management Tray as shown and align
the small holes of the tray with the holes in the desktop.
The tray can be attached with the opening facing the front
(as shown) or back of the desktop. Position the opening
where it will be most convenient for you to access.
C. Use a Phillips Screwdriver to attach the Tray to your
desktop using two #10 x 5/8” Wood Screws (H14).
P12
H14
H9
H9
IMPORTANT: The adhesive backing on the Cable Mounts is very
strong, so carefully consider where you would like to locate them
before attaching to the bottom of the desktop or desk frame.
A. Peel the backing off the back of the plastic mount to expose the
adhesive pad.
B. Position the mount where you would like to attach it and press
rmly for 10 seconds.
C. Take one of the hook and loop strips and slide it through the
openings in the plastic mount.
D. Bundle cables and wrap the hook and loop strip around the
bundle to secure it in place.
Hook and loop strips can also be used without the plastic
mounts in places where they can be slid through the gap
between the underside of the desktop and the frame.
If you have purchased accessories that attach to your desk such as Casters, Wire Management, CPU Holders, Keyboard
Trays, or Desk Drawers, it is easiest to install them now before ipping the desk over.
For accessories purchased separately, refer to the instructions provided with those products.
Install Casters (optional)
A. Rotate the pre-installed Leveling Glides counterclockwise
to remove them from the threaded holes in the Feet.
B. Rotate the threaded stem of the Caster clockwise into the
threaded holes in the Feet to install the Casters.
C. If your Casters have a hex nut between the threaded stem
and wheels, you can use a 1⁄2” (12mm) or adjustable
wrench (not included) to assist with the Caster
installation process.
Accessory Installation

15
© UPLIFT Desk • 800-349-3839 • [e-mail] • upliftdesk.com
Flip Desk Over
When preparing to ip the desk over, be aware of any loose cables and attached accessories that could move during the
ipping process, like a Keyboard Tray or CPU Holder. Two people are recommended.
A. With one person located at each end of the desk, grasp the desk Leg with one hand and the desktop and Side Bracket
together with the other and carefully lift while rotating the desk so the Keypad is facing up.
B. Readjust your grip and continue to rotate the desk until it is rightside up.
Install Accessory Anchor Plates (optional)
Some UPLIFT Desk accessories are designed to attach to the
patented mounting points located on front and back of the
Crossbar Ends. Some of these accessories require the use
of the included Anchor Plates (P11). Refer to the instructions
provided with each accessory for specic mounting
instructions.
A. Align the two smaller holes in one of the Anchor Plates
with two of the threaded holes in the Crossbar End.
B. Loosely insert two of the M8 x 10 Machine Screws (H7)
through Anchor Plate holes and into the threaded holes in
the Crossbar End.
C. Tighten the screws using the 5mm Allen Wrench (H8) and
Allen Wrench Handle (H15).
P11
H7
Example locations for Anchor Plate attachment, refer to
accessory instructions for recommended mounting locations.

16
Position Desk
Position the desk where you would like it to be. Don’t lift the
desk by just the desktop, doing so may put undue stress on
the attachment screws and threaded inserts. Hold the frame
Side Brackets when lifting.
A. If your desk has Casters, moving is easy. If the Casters
include locks, unlock them then roll the desk to the
desired location. Once in place, relock the Casters to keep
the desk stationary and improve stability.
B. If your desk does not have Casters, it’s recommended to
use two people to lift the desk on each side-do not drag it.
Be sure to lift by placing your hands under the frame Side
Brackets where indicated by the arrows instead of lifting
by the desktop.
Prepare Desk & Surroundings
A. Check the desk’s surroundings to make sure there will
be no obstacles within the desk’s path while it is being
raised or lowered. Do not place any objects underneath
the desk that are taller than 21” and be aware of any
accessories mounted above or below your desk.
B. Adjust the Leveling Glides as needed to level the desk.
Each Leveling Glide provides up to ⅜” of leveling.
C. Ensure that the Power Cord and all accessory cords are
long enough to accommodate the raising and lowering
of your desk.
D. Plug your desk into a grounded, 100-240V power outlet.
If you have a Keypad with a display you should see it
light up conrming the desk is powered. If you have
a Keypad without a display, look at the Control Box
under the desk to see if the small LED indicator is
illuminated.
E. Perform the desk reset procedure below. Slowly lower
and raise the desk while watching all cables and
clearances to ensure there are no cable snags or
obstacles.
Power Indicator LED
Lift by placing hands here on frame Side Brackets.
Grommet Cover lid removed Grommet Cover aperture opened
B. Remove the Grommet Cover lid or rotate the
aperture cover to pass cables through the
Grommet Cover housing.
C. Replace the lid.
Insert Grommet Covers (optional)
Follow the steps below for installing Grommet Covers,
if a different grommet option was selected, follow the
instructions included with your grommet option.
A. Place the Grommet Covers over the grommet holes and
press down until the edges of the Grommet Covers are
ush with the desktop surface.

17
© UPLIFT Desk • 800-349-3839 • [e-mail] • upliftdesk.com
Perform Desk Reset Procedure
IMPORTANT: Before using your desk, perform the Desk Reset Procedure below to sync the Legs and Control Box.
1. Remove all items from under the desk to allow it to travel to its lowest height.
2. Press the down button once.
3. Hold the down button until the desk stops at its lowest position.
4. Hold the down button again for 30 seconds or until the display changes. Keypads with a display will show “ASr” when
ready to reset. Paddle Keypads will display “RESET.”
5. Hold the down button again until the desk lowers slightly, rises, and stops. If the desk didn’t move, try this step again.
6. Try operating the desk. If the desk is working properly, you’re done. If the desk is not working properly, continue with the
following steps.
7. Unplug the power cord from the electrical outlet.
8. Hold the down button for 10 seconds to discharge any stored power in the control box.
9. Plug the desk back in and restart the Desk Reset process steps a second time.
10. Try operating the desk again. If the desk is working properly, you’re done and the desk is ready to use.
If you have an Advanced Keypad, see the Programming section below for further information on how to use your Keypad.
These UPLIFT Desk programming instructions are compatible with all UPLIFT Advanced Keypads except the Advanced
Paddle Keypad.
For Advanced Paddle Keypad programming steps, refer to the instructions provided with that Keypad.
Programming (Advanced Keypads only)
Set & Use Memorized Heights
Save heights on the keypad:
1. Hold the up or down button to move the desk to the
desired height.
2. Tap the “M” button followed by a number button (1, 2, 3,
or 4) to assign the current height to that number.
3. Once the memory buttons are programmed, tap a
numbered button and the desk will automatically
move to the preset height.
If you would rather the button be pressed and held
instead of tapped to make height adjustments, see One-
Touch or Constant-Touch below.
Keypad Lock
Lock the keypad to prevent accidental adjustments:
1. Hold the “M” button until the display shows “LOC.”
2. To unlock your keypad, hold the “M” button until the
display shows the current numeric height setting.
In the event of a power outage, the keypad will return to
the unlocked setting.

18
Calibrate Desk Height
Compare the desk height to the displayed height:
1. Press and hold the “down” button until the desk
reaches its lowest position.
2. Use a tape measure to check the height from the oor
to the top surface of the desktop. If the measurement
matches the displayed height, the desk is already
calibrated and ready for use.
Max/Min Height Limits
Set the desk’s maximum height limits:
1. Hold the up or down button to move the desk to the
desired height.
2. Tap the “M” button once and “S-” will appear on the
display.
3. Tap the up button and the display will ash “S-.”
4. Hold the “M” button until the display shows “999” and
changes to the numeric height of the now set upper
limit.
Remove the maximum and minimum height limits:
1. Tap the “M” button once and the display will show “S-.”
2. Hold the “M” button until the display shows “555” and
changes to the current numeric height setting.
If the displayed height doesn’t match the desk’s actual
height, follow these steps:
1. Hold the down button until the display ashes “ASr.”
2. Hold the “M” button until the numeric display begins
ashing.
3. Tap the up or down button to adjust the displayed
height to match your desk’s measured height.
4. Wait for the display to change back to “ASr.”
5. Hold the “down” button until the desktop lowers and
rises slightly and the display changes back to the
numeric height setting.
Set the desk’s minimum height limits:
1. Hold the up or down button to move the desk to the
desired height.
2. Tap the “M” button once and “S-” will appear on the
display.
3. Tap the down button and the display will ash “S-.”
4. Hold the “M” button until the display shows “000” and
changes to the numeric value of the now set lower
limit.
One-Touch, Constant-Touch,
or Double-Tap
One-touch is the default setting of the control box and
requires only a single touch of a keypad button to move
the desktop to a saved height. Constant-touch requires
the continuous hold of a button or paddle to move the
desktop to a saved height. Double-tap requires pressing
the keypad button twice to move the desktop to a saved
height. This helps avoid accidental activation of the desk
if a keypad button is bumped.
Toggle between one-touch and constant-touch modes:
1. Hold the down button until the desk reaches its lowest
position.
2. Hold the down button again until the display ashes
“ASr.”
3. Hold the “1” button until the display shows “10.1”
(one-touch), “10.2” (constant-touch), or “10.8” (double-
tap), and then goes back to “ASr.” While the display is
ashing “ASr,” hold the “1” button to toggle between
the three settings.
4. Wait for the display to change back to “ASr.”
5. Hold the “down” button until the desktop lowers and
rises slightly and the display changes back to the
numeric height setting.
Units of Measurement
Switch between inches and centimeters on your display:
1. Hold the down button until the desk reaches its lowest
position.
2. Hold the down button again until the display ashes
“ASr.”
3. Hold the “2” button until the display shows “10.3”
(centimeters) or “10.4” (inches) and then goes back to
“ASr.” While the display is ashing “ASr,” hold the “2”
button to toggle between the two settings.
4. Wait for the display to change back to “ASr.”
5. Hold the “down” button until the desktop lowers and
rises slightly and the display changes back to the
numeric height setting.

19
© UPLIFT Desk • 800-349-3839 • [e-mail] • upliftdesk.com
Anti-Collision System Sensitivity Adjustment
Adjust the sensitivity on your desk’s advanced anti-collision system:
1. Hold the down button until the desk reaches the lowest position.
2. Hold the down button again until the display ashes “ASr.”
3. Hold the UP button until the display shows “10.5,” “10.6,” or “10.7”. This is your current anti-collision sensitivity setting.
10.5 = most sensitive setting (possible false positives)
10.6 = moderate sensitivity setting
10.7 = least sensitive setting
While “ASr” is ashing, press the up button to toggle between the three settings.
4. Wait for the display to change back to “ASr.”
5. Hold the “down” button until the desktop lowers and rises slightly and the display changes back to the numeric height
setting.
Troubleshooting
Starting & Stopping
If your desk is continuously starting and stopping as you try to raise or lower it, check to make sure the Control Box is
securely attached to the frame. The Control Box MUST be attached to your frame in order for your desk to function properly.
Error Code Description Troubleshooting Solution
H01 Overheated The desk motor has a 10% duty cycle to protect from overheating. For example, in a 20
minute period if your desk motor is activated for 2 minutes you will want to let it rest for 18
minutes. Otherwise you may see an H01 code on your keypad
E01-E06 Firmware or
connectivity issues Check all cables to ensure they’re all rmly plugged in, and perform Reset Procedure above
E07-E012 Legs are uneven Perform Reset procedure
Desk Reset Procedure
If your keypad display shows any of the error codes listed, perform the Desk Reset Procedure provided at the end of the
desk assembly steps to clear it. If the error message persists after performing the reset procedure or if there is a height
difference between the Legs of more than 1.5”, email us at [email protected] or call 800-349-3839.
Perform the desk reset procedure any time the desk is unplugged or loses power.

SAVE THIS MANUAL
Study this manual carefully. If this product is sold, please provide this
manual to the buyer, installers, or support personnel operating the product.
Work Better. Live Healthier
AI-F600-1.2
40034350B
Copyright Notice: This manual is a component of this UPLIFT Desk product. This manual is a
part of the scope of delivery, even if the item is resold. This manual is also available on the
UPLIFT Desk website: upliftdesk.com. This manual is subject to United States copyright law.
©
upliftdesk.com
[email protected]
800-349-3839
512-614-3152
