Valor Fires 829 Instructions for use

5120178/03
© Baxi Heating U.K. Limited 2008.
Model 829
Electric Heater
fitted with a
Chic, Envy,
Mirage, Serenity or
Twilight fascia.
This guide is intended to help you
install and care for your Valor Fires
electric heater. Please read carefully
before installing and using your
heater. However, if further information
is required, our
Valor Fires Technical Helpline
will be pleased to help.
Telephone [phone] (National
call rates apply in the United
Kingdom).
In the Republic of Ireland
Telephone [phone].
Important: Please keep your guide in a safe place for future reference
INSTALLER AND OWNER GUIDE

© Baxi Heating U.K. Limited 2008.
All rights reserved. No part of this publication may be reproduced in any material form
(including photocopying), stored in any medium by electronic means (including in any
retrieval system or database) or transmitted, in any form or by any means, whether
electronic, mechanical, recording or otherwise, without the prior written permission of
the copyright owner.
Applications for the copyright owner's permission to reproduce any part of this
publication should be made, giving details of the proposed use, to the following
address: The Company Secretary, Baxi Heating UK Limited, The Wyvern Business
Park, Stanier Way, Derby, DE21 6BF.
Warning: Any person who does any unauthorised act in relation to a copyright work
may be liable to criminal prosecution and civil claims for damages.
CUSTOMER CARE
Thank you for choosing Valor Fires
All Valor Fires heaters are designed to meet the most stringent quality, performance
and safety requirements to provide our customers with many years of trouble free
service. This guide aims to improve your understanding and appreciation of your new
heater, by providing simple and informative instructions to enable you to install it and
to ensure that you benefit from the excellent performance and features it has to offer.
If you require further assistance, the Valor Fires Technical Helpline will be pleased
to help.
Please telephone [phone] (local rates apply in the United Kingdom).
In the Republic of Ireland telephone [phone].
Valor Fires, Erdington, Birmingham B24 9QP
www.firesandstoves.co.uk
Because our policy is one of constant development and improvement, details may vary slightly from
those given in this publication
Page 2
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.

Safety First.
Valor Fires heaters are CE Approved and designed to meet the appropriate British
Standards and Safety Marks.
Quality and Excellence.
All Valor Fires heaters are manufactured to the highest standards of quality and
excellence and are manufactured under a BS EN ISO 9001 quality system accepted
by the British Standards Institute.
1. HANDLING AND UNPACKING
Before continuing any further with the installation of this heater please read the
following:
Important instructions.
The lifting weight (kg) of the heater is as below:
Model Heater Body Fascia Spacer Total
Chic 5.9 kg. 3 kg. 0.66 kg. 9.56kg.
Serenity 5.9 kg. 6.5 kg. 1.3 kg. 13.7 kg.
Twilight 5.9 kg. 8.0 kg. 0.9 kg. 14.8kg.
Envy 5.9 kg. 3.11 kg. 0.66 kg. 9.67kg.
Mirage 5.9 kg. 3.60 kg. 0.66 kg. 10.16kg.
Page 3
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.

One person should be sufficient to lift the heater. If for any reason this weight is
considered too heavy then obtain assistance.
When lifting always keep your back straight. Bend your legs and not your back.
Avoid twisting at the waist. It is better to reposition your feet.
Avoid upper body / top heavy bending. Always bend from the knees rather than
the waist. Do not lean forward or sideways whilst handling the heater.
Always grip with the palm of the hand. Do not use the tips of fingers for support.
Always keep the heater as close to the body as possible. This will minimise the
cantilever action.
Use gloves to provide additional grip.
Always use assistance if required.
2. SAFETY
Always
 Always install the heater in accordance with this guide. If in doubt obtain
expert advice.
 Always make sure the electrical socket is accessible and located adjacent to, but
not above or behind the heater.
 Always disconnect the heater from the electrical supply before carrying out
cleaning, maintenance or replacing the lamp.
 Always make sure the heater is firmly secured to prevent it from being tipped
over.
 Always use a fireguard when young children and infirm persons can come into
contact with the heater.
 Always use genuine Valor Fires spares.
Never
 Never leave children unsupervised in a room where the heater is ON and
unguarded.
 Never obstruct or cover the fan outlet or force items into heater openings.
 Never install or use the heater anywhere where water is in use, i.e.
Bathrooms, Kitchens, Shower Rooms, Swimming Pools etc.
 Never use aerosols or steam cleaners on or around the heater.
 Never route the electric cable under carpet etc.
 Never install the heater close to curtains or combustible materials.
 Never use the heater to dry clothes etc.
 Never sit or stand on the heater.
Page 4
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.

3. FITTING THE HEATER
The installation of this heater requires a reasonable level of DIY skills.
Please read this guide thoroughly before commencing installation and if in
doubt, seek help from a competent person.
Before continuing with the installation of this heater, please read and complete
the information on the last page of the guide.
Do I need any tools?
1. Depending upon the chosen method of installation you may need the following
screwdrivers: -
 1 off Pozidrive / Phillips / cross head. This should have a number 2 size tip.
 1 off Flat end.
2. If drilling into brickwork you will need a power drill (preferably with hammer action)
and appropriate size drill bit for the wall plugs supplied.
Where can I fit the heater?
There should be at least 50mm (2 inches) clearance between the top of the fascia
and anything such as a shelf, fireplace surround or mantel etc. This will allow the
fascia to be lifted off or removed during servicing. To check this gently place the
fascia against the surface to which it is to be fixed. Measure the distance from the top
of the fascia.
Chic, Envy, Mirage and Serenity models.
The heater can be fitted into fireplaces or surrounds where the following dimensions
are available.
Width 390mm - 450 mm (15.35 inches - 17.72 inches)
Height 555mm - 590 mm (21.9 inches - 23.2 inches)
Depth At least 75mm (At least 3 inches)
The heater can also be fitted against a flat wall. A spacer frame is supplied with the
heater.
Twilight model.
The heater cannot be fitted into fireplaces / fireplace openings. It is intended for
installation to a flat wall. A spacer frame is supplied with the heater.
Page 5
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.

Important Electrical Safety
The heater must not be located in front of or under an electrical socket, the socket
must always be accessible in order to disconnect the heater from the electrical supply
for maintenance and cleaning.
Important! This heater must be earthed.
 The heater is supplied with a 3 pin 13 Amp fused re-wireable plug with 1mm² 3
core cable.
 The wires in the cable are coloured in accordance with the following code: -
Live = Brown
Neutral = Blue
Earth = Green /Yellow
 The electric supply must be safely routed from
the heater to an electrical socket.

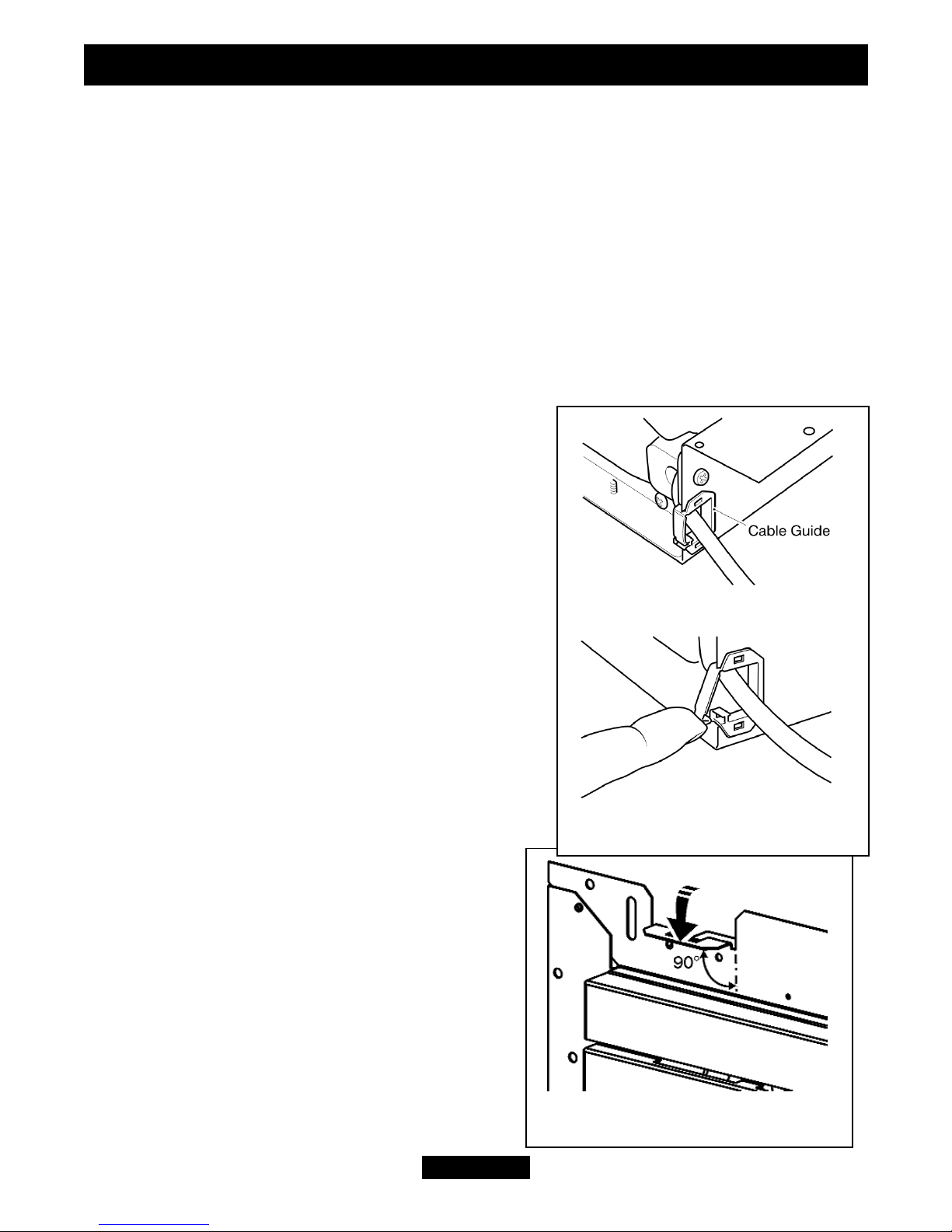

Moving the Cable
At the base of the heater you will find the electric
cable which runs through a rectangular plastic
cable guide. The cable can be moved to the
opposite side if required. To do this, please see
below:
1. To open the cable guides push and lift the tab on
the bottom of them and the cable guides will open
(See figure 1- Item 2).
2. Place the cable into the opposite guide and
close the bases.
If the electric cable is damaged, to avoid a hazard
it must be replaced by a Valor Fires authorised
service agent, or similarly qualified person.
All external wiring between the heater and the
electrical supply shall comply with current IEE
regulations. Extension leads should not be
used.
Fascia support brackets.
As supplied the fascia support brackets may be
flat against the heater body. Using a suitable
tool or gloved hand, bend the brackets as in
figure 2.
Page 6
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.

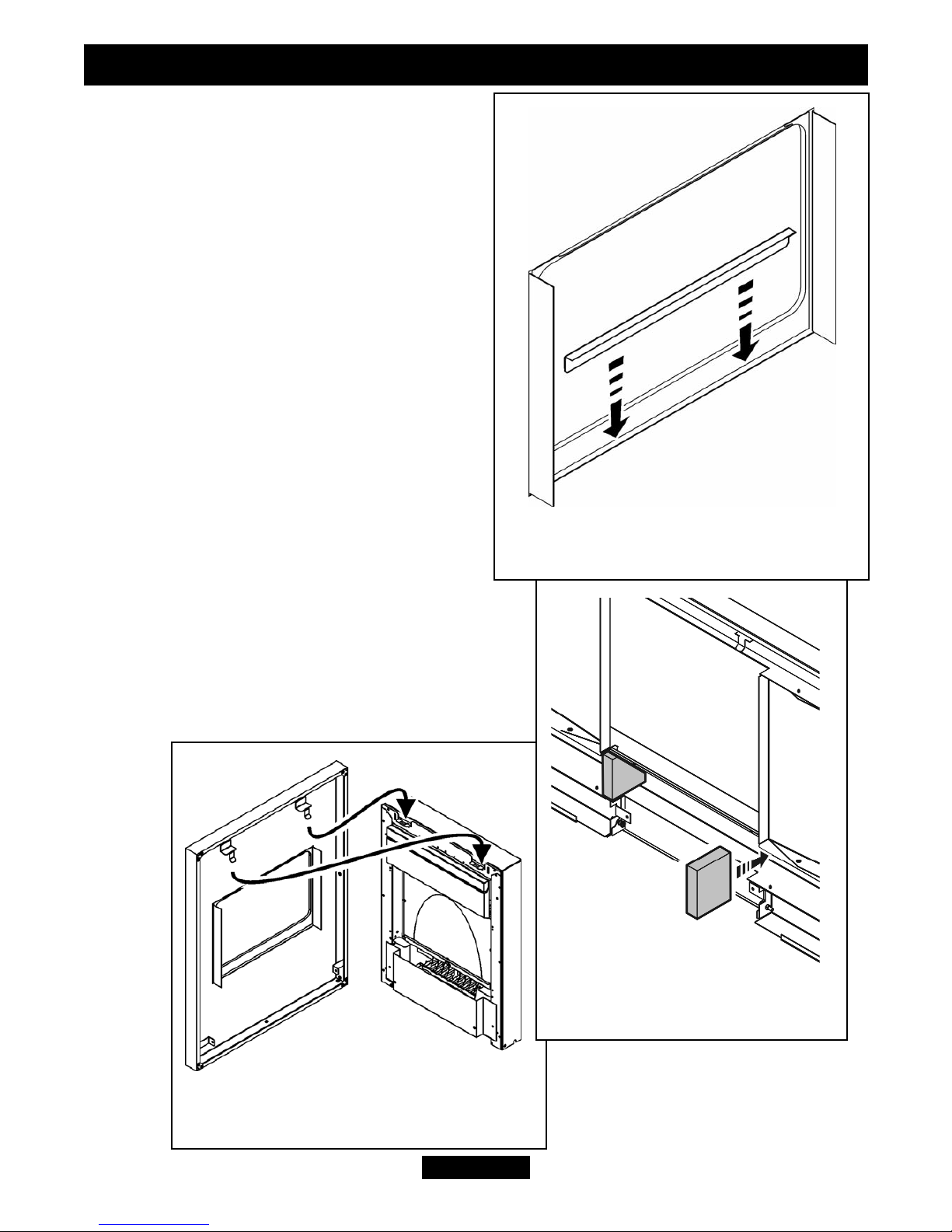

Figure 2. Fascia support brackets
Figure 1. Moving the cable.
Item 1
Item 2

Heater Fixing.
All of the fixings and loose parts supplied with the heater have been identified as in
figure 3.
Additional fixings may be required if fitting the heater to a plasterboard wall that has a
wooden frame behind it. In such cases we recommend the use of heavy duty cavity

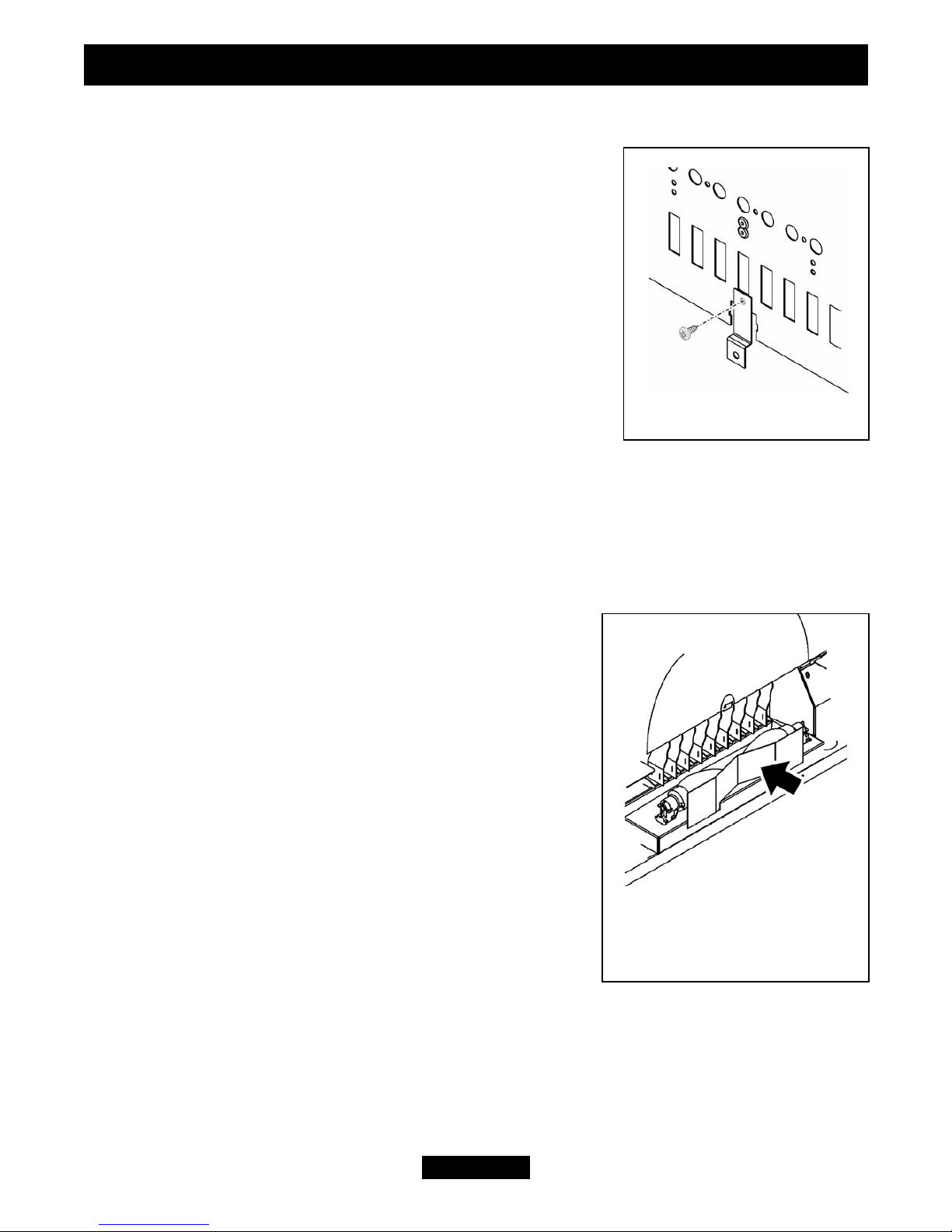

fixings. If fitting the heater in an elevated position (i.e. above hearth or finished floor
height) then the lower support bracket must be fitted (See figure 3).
The heater must always be fixed into position to prevent it from being tipped
over.
The following fixing options are available:
Chic, Envy, Serenity and Mirage models.
Screw Fixing  To a fireplace opening / surround
 To a flat wall with the use of the spacer frame
Wire Fixing  To a fireplace opening / surround
Twilight model.
Screw Fixing  To a flat wall with the use of the spacer frame
Page 7
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.

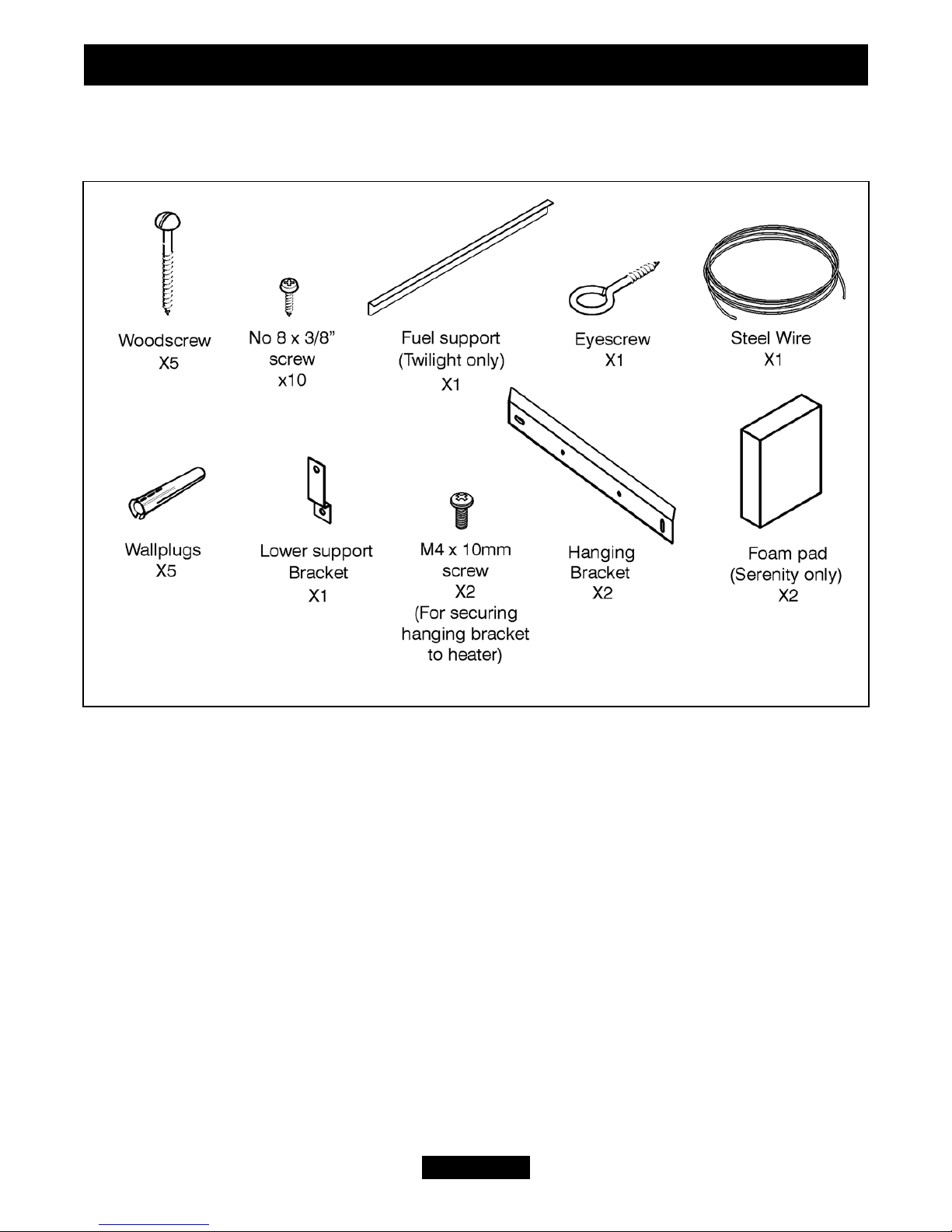

Figure 3. Loose parts identification (Items are not to scale)

If fitting the heater into a fireplace or surround opening, try the heater in the opening
to ensure that it will fit.
If fitting the heater onto a decorative hearth surface such as marble or tile it is
advisable to protect the hearth surface. Do not drag the heater across the surface of
the hearth as this may scratch the hearth surface.
Method A - Screw fixing to a fireplace opening.
Note - If fixing to marble it is recommended that Method B - ‘Wire fixing to a fireplace
opening’ is used. Drilling marble without the correct
tools and experience may result in the marble
cracking.
1. Place the heater into the fireplace or surround
opening. Make sure that the heater is in the middle
of the surround or fireplace.
2. There are two slotted holes in the top of the heater
(See figure 4). Mark through the slotted holes so that
their position is clear when the heater is removed.
3. Remove the heater.
4. Drill an appropriate size hole in each of the
marked positions. Insert wall plugs into the drilled
holes.
5. Place the heater so that the slotted holes are in
line with the wall plugs in the fixing surface.
6. Screw and secure the heater with two
woodscrews (See figure 3).
Method B - Wire Fixing to a fireplace opening.
This method of fixing is recommended when fixing the heater to a marble surround or
where the wall or brickwork is in poor condition.
1. The fixing kit supplied with the heater includes a steel wire, wall plug and eyescrew
(See figure 3). These can be used to secure the heater to the back of a fireplace
opening.
2. Mark the eyescrew position on the centre line at the back of the fireplace opening
and at a height of 533-560mm (21 inches - 22 inches) (See figure 5).
3. Drill an appropriate size hole in the marked position.
4. Insert a wall plug into the drilled hole.
5. Screw the eyescrew into the wall plug.
6. Position the heater in front of the fireplace opening.
7. At the top of the heater there are four small holes, two each side of the heater (See
figure 6- Item 1). From the front of the heater, thread about 50mm (2 inches) of the
steel wire into the inside small hole on the left side of the heater (See figure 6 - item
2).
Page 8
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.
Figure 4. Slots for screw
fixing.

8. Thread the other end of the wire through the
remaining small hole on the left hand side of the
heater. Continue to push the wire through this hole
until there is only a small loop of wire at the front
of the heater (See figure 6 - item 3).
9. At the back of the heater there will be a long
piece and a short piece of wire coming through the
two holes. Hold the short piece and give the long
piece a gentle tug. This will secure the steel wire.
Take the long piece and thread this through the
eyescrew in the back of the fireplace opening (See
figure 6 - item 4).
10. From the back of the heater thread
the long piece of steel wire through the
outer small hole on the right hand side
of the heater (See figure 6 - item 5).
11. Locate the heater in the fireplace
opening, then from the front of the
heater, gently pull the steel wire on the
right hand side to gather up the excess
until the heater is secure. Thread the
wire through the remaining small hole
to lock the wire and heater in place
(See figure 6 - item 6).
Method C - Screw fixing to a flat
wall.
If the heater is to be mounted on to a
plasterboard wall that has a wooden
frame behind it then the integrity and
ability of the wall to carry the weight of
the appliance must be confirmed. It is
important that any vapour control
barrier is not damaged, and that the
structural members of the house are
not damaged.
Page 9
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.
Figure 6. Steel wire fixing
Figure 5. Eyescrew position.

Preparing the heater for installation.
Twilight model - The spacer frame will need to be
fitted to the heater at this point using nine
No.8 x 3/8” screws provided (See figure 7).
Chic, Envy, Mirage and Serenity model - The
spacer frame is supplied with three magnets. Locate
one magnet centrally on the inside of each of the
three sides. Locate the spacer frame over the back
of the heater ensuring that the cut-outs for the cable
at the rear of the heater. Be careful not to damage
the cable.
The heater must be secured to the wall using the
hanging brackets supplied. Secure one of the
support brackets to the rear of the heater using two
M4 x 10mm screws provided.
Please note that when mounting to a plasterboard
wall that has a wooden frame behind it then suitable
wall fixings will be
required. Although
not supplied with
the heater we
recommend the use
of heavy duty cavity
fixings. For
conventional brick
walls plastic plugs
and woodscrews
are supplied.
The distance from
the centre of the
holes in the wall
hanging bracket to
the bottom of the
heater on Serenity,
Envy, Mirage and
Chic models or the
fascia on the Twilight model is shown in figure 8. This is important if wall mounting the
heater so that the bottom sits on a hearth or finished floor level.
Page 10
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.
Figure 8. Hanging bracket heights from finished floor / hearth
Figure 7. Fitting the spacer
frame to the Envy and Twilight
heater

Fitting the heater.
1. Decide the location of the heater.
2. If the heater is to be fixed in an elevated position (i.e.
above hearth or finished floor height) then secure the
lower support bracket to the rear bottom of the heater
using one No.8 x 3/8” screws provided (See figure 9).
3. Mark the positions of the hanging bracket holes on the
wall. If fitting to a conventional brick wall then use the
outer slotted holes in the hanging bracket. If fitting to a
plasterboard wall that has a wooden frame behind it then
use all four fixing holes in the bracket. This is required to
spread the load.
4. Drill the marked positions using a suitable sized drill bit
for the chosen fixings.
5. Insert the wall plugs / fixings and secure the bracket to the wall using suitable
screws.
6. Hang the heater body on the hanging bracket. There is a electric cable slot on both
sides of the spacer frame. If the heater is located on a hearth then pass the electric
cable through the required slot.
7. If the heater is to be fixed in an elevated position (i.e. above hearth or finished floor
height) then mark the position of the lower support
bracket hole on the wall. Remove the heater and drill
the marked positions using a suitable sized drill bit for
the chosen fixings. Insert the wall plugs / fixings. Hang
the heater on the hanging bracket and secure the lower
support brackets to the wall using a wood screw.
The Copper Reflector.
What is the Copper Reflector?
The Copper Reflector is the copper coloured plate that
sits in front of the lamps. It is not fitted to the heater but
supplied loose in the pack.
What is it for?
It enhances the appearance of the flame effect. It is
made removeable in order to access the lamps.
How do I fit it?
It simply drops into the shaped slot in front of the lamps (See figure 10). Remove any
protective film before use.
Page 11
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.
Figure 10. Copper reflector
location (Shown without
black cover plate for clarity)
Figure 9.

Fitting the fascia.
Twilight fascia only.
1. There is a fuel bed support supplied with
the Twilight heater. Slip this between the
glass and metal panel on the rear of the
fascia opening as shown in figure 11.
Serenity fascia only.
1. There are two foam pads supplied with
the heater. Locate the pads into the rear of
the fascia as in figure 12.
All models.
1. There are two hooked brackets on the top
rear of the fascia. Locate the hooks into the
brackets at the top of the heater (See figure
13).
2. The fascia is secured using the two
screws with bright metal finish. These are
located as in figure 14.
Page 12
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.
Figure 13. Fitting the fascia (Fascia
may differ from that shown).
Figure 12. Fitting the foam pads
on the Serenity model
Figure 11. Fitting the fuel support
bracket to the Twilight fascia.

Chic fascia only.
1. Supplied in the fascia
pack are two tubular trim
sets. The lower trim set
has a flat plate fitted to the
rear. Hang the upper and
lower trim sets as in figure
15.
2. The lower section of the
fascia is secured with
magnets. Locate it as in
figure 16.
Mirage
fascia only.
1. Supplied in the fascia pack is a three bar
trim. Hang this at the bottom of the fascia
(See figure 15).
2. The lower section of the fascia is secured
with magnets. Locate it as in figure 16.
3. Supplied in the fascia pack is a canopy
trim. Hang this at the top of the fascia (See
figure 17).
Page 13
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.

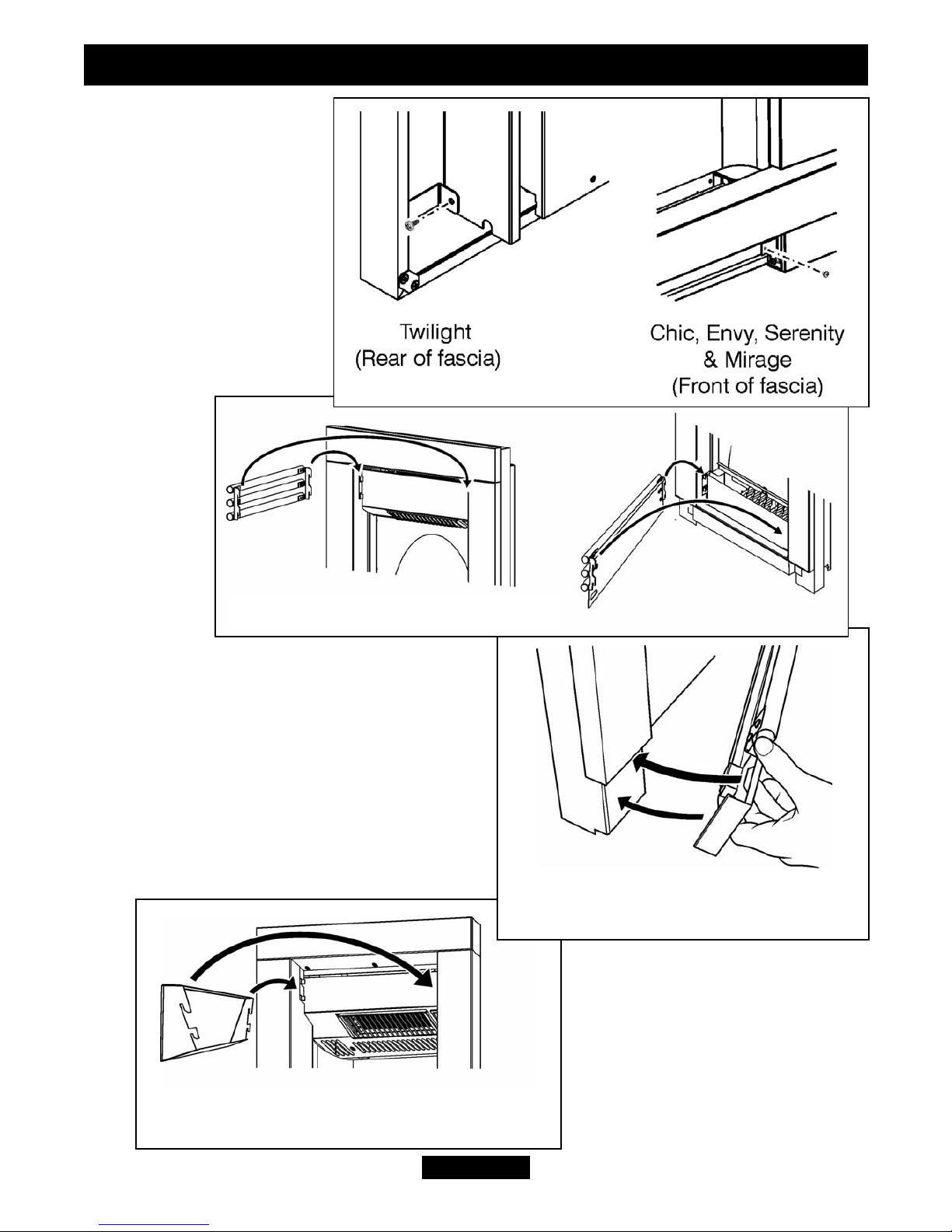

Figure 17. Fitting the canopy trim (Shown
with ‘Mirage’ fascia)
Figure 16. Fitting the lower section to
the ‘Chic’ and ‘Mirage’ fascia.
Figure 15. Fitting the hanging trims
Figure 14. Securing the fascia.

Envy fascia only.
1. The Envy fascia may be supplied
fitted with a transit bracket as in
figure 18. This must be removed and
discarded prior to fitting the fascia.
To do this, unscrew and remove the
two screws shown in figure 18.
2. Supplied in the fascia pack is a
canopy trim. Hang this at the top of
the fascia (See figure 17).
3. Hang the lower trim at the bottom
of the fascia (See figure 19).
Fitting the fuel support.
1. Locate the fuel support as in figure 20.
2. Place the loose pebbles onto the fuel support.
It is not necessary to use all the pebbles
supplied.
Important Note:
The pebbles are for decorative purposes
only. There is a choke risk to young children.
Make sure they cannot gain access to them.
Page 14
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.
Figure 20. Fuel support location
(Fascia not shown for clarity).
Figure 19. Fitting the ‘Envy’
lower trim.
Figure 18. Transit bracket removal

4. USING THE HEATER
Important Safety.
Never cover the heater or obstruct the openings at the base of the heater, this
could cause overheating and consequent risk of fire.
What are the three switches for?
The heater is operated by three switches located below the hood on the right hand
side of the heater.
Switch 1 = OMain On - Off
In the On position only the fuel effect operates
Switch 2 = I1kW fan heat setting and fuel effect
Switch 3 = II 2kW fan heat setting and fuel effect
The switches are mechanically interlocked, so when switch 1 is turned off, all
switches turn off.
5. CLEANING AND MAINTAINING THE HEATER
How do I Clean my heater?
The heater fascia, spacer frame and glass parts need only to be wiped clean with a
dry soft cloth, do not use polishes or abrasive materials.
I have a problem with my heater!
Important Safety
Before undertaking maintenance or replacing the lamp(s) always disconnect the
heater from the electricity supply by removing the 3 pin plug and allowing the
heater to cool.
1. My heater is on but there is no light or the light appears brighter on one
side of the heater.
This is possibly a lamp failure. Remove the lamp(s) as follows and check it / them in a
table lamp that is known to work. If it / they do not work in the table lamp then replace
as below.
The lamps fitted to this heater are standard clear 40W max. E14 candle lamps, but
due to the indeterminate life span and ease of replacement, they are specifically
excluded from the guarantee.
Page 15
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.

To replace the lamp(s).
1. To gain access to the lamp/s, remove
the loose coals / pebbles from the fuel
support and place them onto an old
newspaper or plastic bag. This will
prevent them from marking the surface.
2. Remove the firefront, On the Twilight
model it will be necessary to remove the
whole fascia. Remove the fascia in the
reverse order to that shown in the
‘Fitting the fascia’ section of this guide.
3. Remove the black cover plate. To do
this, remove the two screws from the
front of the cover plate.
4. Remove the copper reflector plate.
5. Replace the lamp/s with clear 40 Watt
(maximum) candle, Edison screw, SES
E14.
6. Refit the copper reflector plate. Refit the cover plate / fascia / firefront and coals /
pebbles.
2. My heater is on but there is no light or heat.
The first thing to do is check the wall socket. To do this, plug in a known working
appliance. If the appliance you have plugged in works then there is a good chance
that the problem lies with the Amp fuse in the heater plug. If either fuse or socket is
suspected, have them checked by an electrician.
3. My heater is on but there is no heat.
A cut out device is fitted to the heater to prevent damage due to over heating. If it
operates due to an obstruction in the airflow, the heater must be turned off and
allowed to cool for 15 minutes and the obstruction removed before restarting.
4. I Have a problem that is different to those in the previous examples 1- 3.
Following is a list of useful telephone numbers.
VALOR FIRES TECHNICAL HELPLINE 0844 8711 565.
CALLERS IN THE REPUBLIC OF IRELAND 0044 844 8711 565.
Page 16
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.

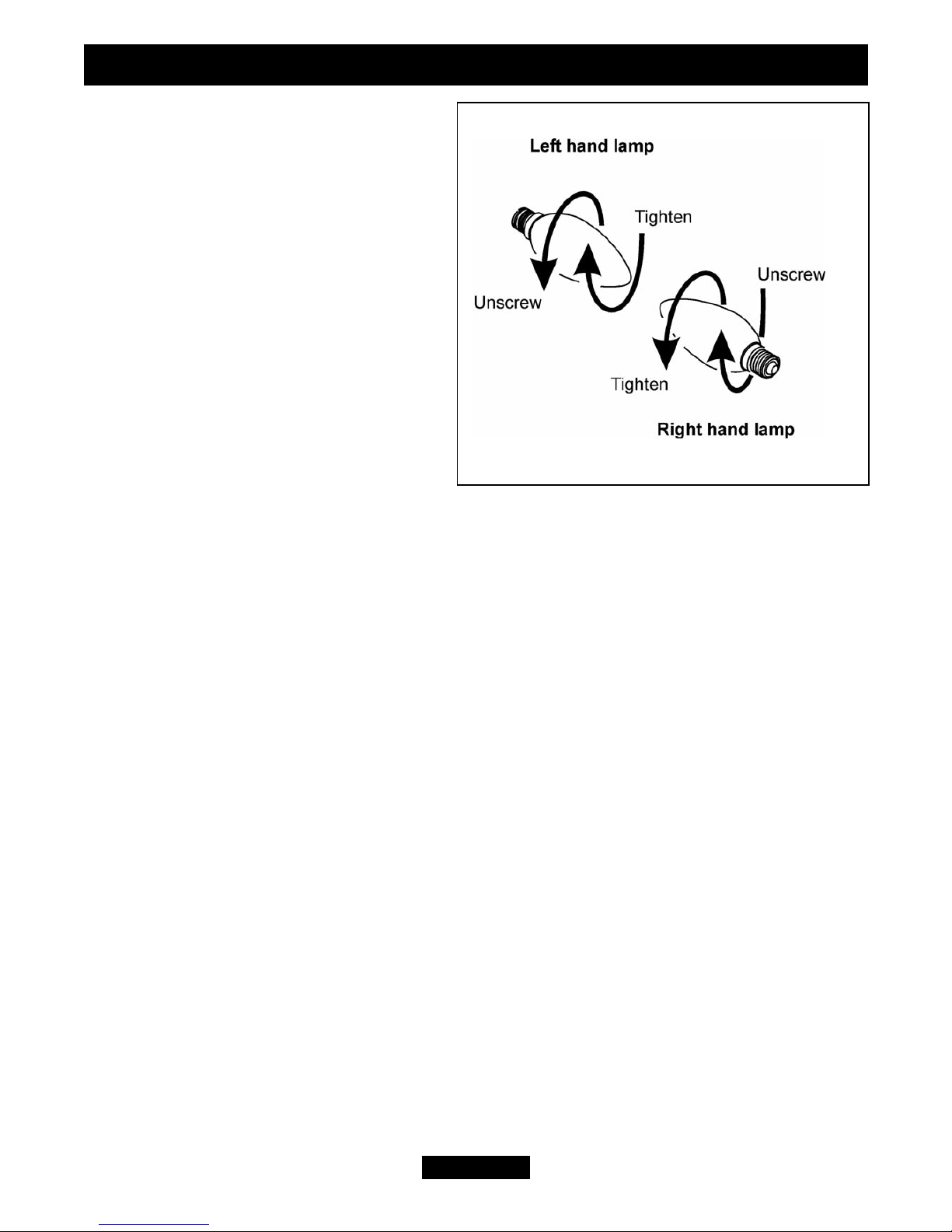

Figure 21. Lamp replacement

6. ENVIRONMENT
What should I do when I’m ready to dispose of my heater?
The plug should be removed from the mains cable and the mains cable cut from the
heater. These should be disposed of with the heater.
Environmental Protection.
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your local authority or
retailer for recycling advice.
7. WARRANTY AND SERVICE
Information for the customer
Standard Warranty Terms & Conditions
The warranty is for 12 months subject to contract.
In the United Kingdom servicing can be carried out either by a heateam service
engineer or a CORGI registered installer.
You must register your heater with heateam, the service division of Baxi Heating UK
Limited, either by completing and returning the registration card or calling our free
telephone registration line on 0800 032 72 44.
Our promise to you
If you experience a fault with your new heater, we aim to provide a safe and high
quality repair service supported by our dedicated national network of highly skilled
engineers. Nothing in this warranty will affect your statutory rights.
What you need to do if you experience a problem with the operation of the heater;
Read section 5 of this guide “Cleaning and maintaining the heater”. If the problem
cannot be resolved simply call our service division heateam on
08706 090 081 to book an engineer visit or for any general advice that you may need.
Our contact centre is open Monday to Friday 8am – 6pm, weekends and Bank
Holidays 8.30am – 2pm, excluding Christmas Day and New Years day.
Page 17
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.

When calling heateam, it would be helpful if you could have the following information
to hand:-
1. Heater serial number.
2. Heater brand and model number.
3. Date of installation.
4. Proof of purchase (If you do not have the heater serial number)
Note; details 1 – 3 can be found on the last page of this guide.
What this warranty covers
Free of charge repair or replacement of components found to be of faulty
manufacture.
Free of charge replacement of the complete unit providing
the failure is related to a manufacturing fault that cannot
be repaired or is uneconomic to repair.
What this warranty does not cover
Repairs to heaters which haven’t been installed properly
and as set out in this guide.
Faults caused by inadequate supply of electricity.
Reimbursement of any third party repair or replacement
costs that we haven’t been told about or agreed with you
in advance.
Compensation or consequential losses (e.g. loss of
earnings, business losses, stress and inconvenience)
arising from a production breakdown, including repair
delays caused by factors outside our reasonable control.
Page 18
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.

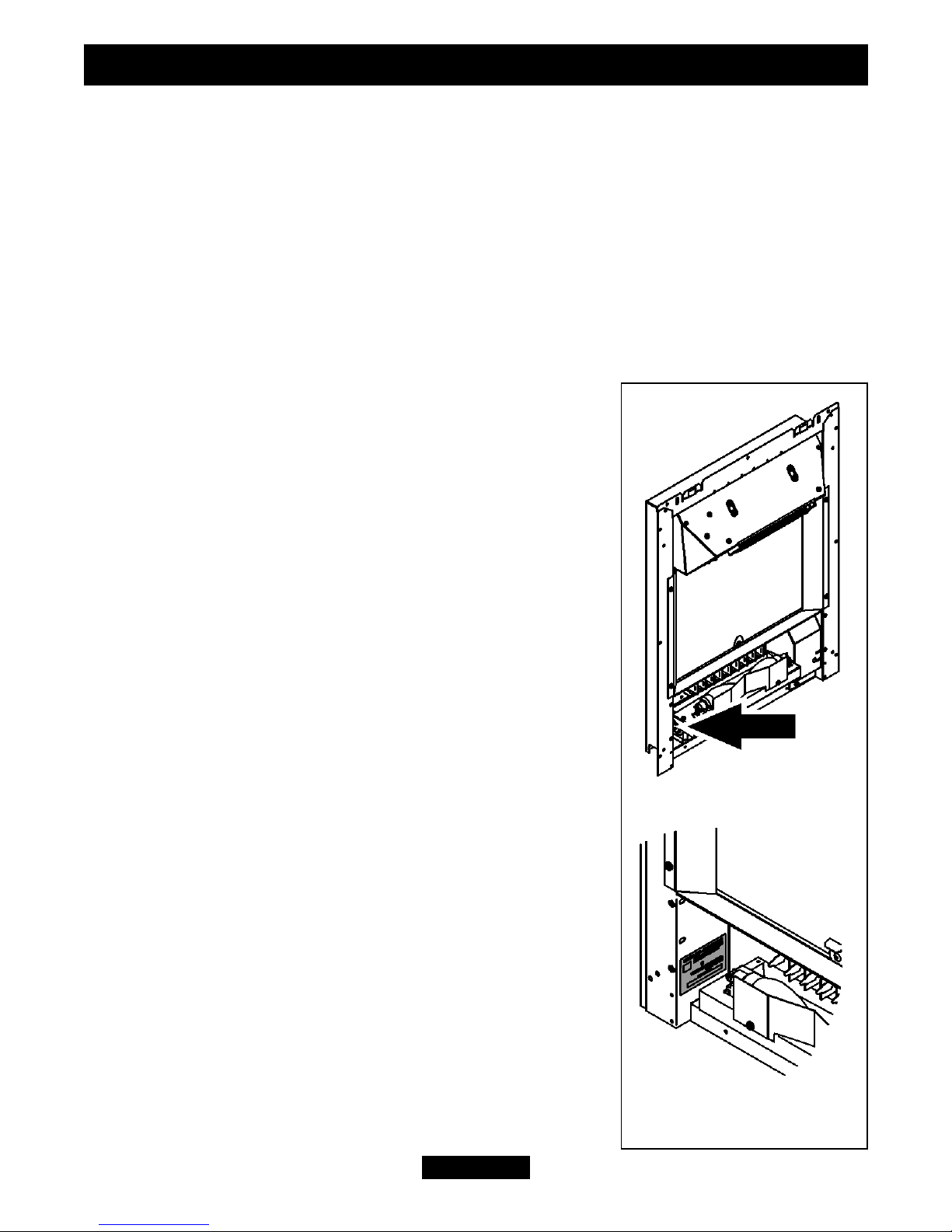

Figure 22. (Shown with
front cover removed)

Page 19
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.
Brand (Please tick)
Baxi
Valor
Wonderfire Other........................
D D M M Y Y
Date of Installation
Fascia name (Block Capitals)
Fascia code - Can be found close to the information label (Block Capitals)
Model
829
Serial number (Can be found on the information label - See figure 22)
A LABEL CONTAINING THE SERIAL NUMBER MAY HAVE
BEEN PLACED INSIDE THIS BOX.
A LABEL CONTAINING THE FASCIA
CODE MAY HAVE BEEN PLACED
INSIDE THIS BOX.

© Baxi Heating U.K. Limited 2008.
