Valor Fires 845 Instructions for use

5133751/ 01
© Baxi Heating U.K. Limited 2008.
Model 845
ELECTRIC HEATER
Fitted with a Lyricafascia.
(GC No. EF-032-38)
Important: Please keep your guide in a safe place for future reference.
INSTALLER AND OWNER GUIDE
This guide is intended to help you
install and care for your Valor Fires
electric heater. Please read carefully
before installing and using your
heater. However, if further
information is required, our
Valor Fires Technical Helpline will
be pleased to help.
Telephone [phone] (National
call rates apply in the United
Kingdom).
In the Republic of Ireland
Telephone [phone].

the nation’s favourite for
PLUMBING & HEATING SUPPLIES
SECURE PAYMENTS
shop online with confidence
FREE SHIPPING
on all orders over £100 to mainland UK
FINANCE AVAILABLE
spread the cost with low interest rates
PRICE MATCH
always get the best deals available
Boilers
Radiators
Heating controls

Cylinders
Fires
Renewable energy
Bathroom suites
Kitchen sinks & taps
Showers
Wet rooms
Towel warmers
Bathroom furniture
& much more
HUGE REDUCTIONS
we have
ON THOUSANDS OF ITEMS
0844 800 3460
CALL US ON
visit our website
plumbnation.co.uk

© Baxi Heating U.K. Limited 2008.
All rights reserved. No part of this publication may be reproduced in any material form
(including photocopying), stored in any medium by electronic means (including in any
retrieval system or database) or transmitted, in any form or by any means, whether
electronic, mechanical, recording or otherwise, without the prior written permission of
the copyright owner.
Applications for the copyright owner's permission to reproduce any part of this
publication should be made, giving details of the proposed use, to the following
address: The Company Secretary, Baxi Heating UK Limited, The Wyvern Business
Park, Stanier Way, Derby, DE21 6BF.
Warning: Any person who does any unauthorised act in relation to a copyright work
may be liable to criminal prosecution and civil claims for damages.
Valor Fires, Erdington, Birmingham B24 9QP.
www.firesandstoves.co.uk
Because our policy is one of constant development and improvement, details may vary slightly from
those given in this publication
Page 2
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.

Safety First.
Valor Fires heaters are CE Approved and designed to meet the appropriate British
Standards and Safety Marks.
Quality and Excellence.
All Valor Fires heaters are manufactured to the highest standards of quality and
excellence and are manufactured under a BS EN ISO 9001 quality system accepted
by the British Standards Institute.
CUSTOMER CARE
Thank you for choosing Valor Fires
All Valor Fires heaters are designed to meet the most stringent quality,
performance and safety requirements to provide our customers with many years of
trouble free service. This guide aims to improve your understanding and appreciation
of your new Valor Fires heater, by providing simple and informative instructions to
enable you to install it and to ensure that you benefit from the excellent performance
and features it has to offer.
If you require further assistance, the Valor Fires Technical Helpline will be
pleased to help.
Please telephone [phone] (local rates apply in the United Kingdom). In the
Republic of Ireland please telephone [phone].
Page 3
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.

1. HANDLING AND UNPACKING
Before continuing any further with the installation of this heater please read the
following:
Important instructions.
A carry handle is fitted to the top of the heater. We recommend that this is used
when moving the heater.
The approximate lifting weights (kg) of the heater parts are listed below:
Model Heat engine Fascia Firefront casting Spacer
Lyrica 8.0 1.5 3.54 1.0*
* Although the heater is supplied with a spacer frame, an optional spacer frame kit is
obtainable either from your heater supplier or direct from Valor Fires Sales. The kit is a
71mm spacer kit (Kit number 0584081). This spacer when added to the one supplied
with the heater enables the heater to be flat wall fixed.
One person should be sufficient to lift the heater. If for any reason this weight is
considered too heavy then obtain assistance.
When lifting always keep your back straight. Bend your legs and not your back.
Avoid twisting at the waist. It is better to reposition your feet.
Avoid upper body / top heavy bending. Always bend from the knees rather than
the waist. Do not lean forward or sideways whilst handling the heater.
Always grip with the palm of the hand. Do not use the tips of fingers for support.
Always keep the heater as close to the body as possible. This will minimise the
cantilever action.
Use gloves to provide additional grip.
Always use assistance if required.
2. SAFETY
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Always
Always install the heater in accordance with this guide. If in doubt obtain
expert advice.
Always make sure the electrical socket is accessible and located adjacent to, but
not above or behind the heater.
Page 4
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.

Always disconnect the heater from the electrical supply before carrying out
cleaning or maintenance.
Always use a fireguard when young children and infirm persons can come into
contact with the heater.
Always use genuine Valor Fires spares.
Never
Never leave children unsupervised in a room where the heater is ON and
unguarded.
Never obstruct or cover the fan outlet or force items into heater openings.
Never install or use the heater anywhere where water is in use, i.e.
Bathrooms, Kitchens, Shower Rooms and Swimming Pools etc.
Never use aerosols or steam cleaners on or around the heater.
Never route the electric cable under carpet etc.
Never install the heater close to curtains or combustible materials.
Never use the heater to dry clothes etc.
Never sit or stand on the heater.
Never use the heater with a timer switch or similar device.
Important Electrical Safety
The heater must not be located in front of or under an electrical socket, the socket
must always be accessible in order to disconnect the heater from the electrical supply
for maintenance and cleaning.
CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut out,
this appliance must not be supplied through an external switching device, such as a timer,
or connected to a circuit that is regularly switched on and off by the utility.
Important! This heater must be earthed.
The heater is supplied with a 3 pin 13 Amp fused re-wireable plug with 1mm²
3 core cable.
The wires in the cable are coloured in accordance with the following code:-
Live = Brown
Neutral = Blue
Earth = Green /Yellow
The electric supply must be safely routed from the heater to an electrical socket.
If the electric cable is damaged, to avoid a hazard it must be replaced by a Valor Fires
authorised service agent, or similarly qualified person. All external wiring between the
heater and the electrical supply shall comply with current IEE regulations. Extension
leads should not be used.
Page 5
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.

3. OPTIONAL KIT
The following kit is obtainable either from your heater supplier or direct from Valor Fires
Sales.
Spacer frame kit 0584081
4. FITTING THE HEATER
Important: Before continuing with the installation of this heater please ensure
that you have completed the information on the last page of this guide.
Please read this section thoroughly before positioning the heater.
Do I need any tools?
Depending upon the chosen method of installation you may need the following tools: -
For Spacer frame or screw fixed installations you will need A Pozidrive / Phillips /
cross head screwdriver. This should have a number 2 size tip.
If wire fixing and drilling into brickwork you will need a power drill (preferably with
hammer action) and appropriate size drill bit for the wall plugs supplied.
Where and how can you fit the heater?
Q Can the heater be installed into a ‘hole in the wall’ (elevated opening)?
A We do not recommend the heater for this type of installation.
Q Do you want to fit the heater into a surround or fireplace opening without
the spacer frame?
A The minimum rebate / depth required is 145mm.
Page 6
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.
Contents Quantity (Illustrations are not to scale)
Spacer frame 1
No 8 x 3/8 Self-
tapping screws 4

Q What opening size do you need in the surround or fireplace opening?
A This heater can be fitted into fireplaces or surrounds where the following
dimensions are available.
Width 395mm - 450 mm
Height 555mm - 590 mm
Depth At least 145mm
Q Do you want to fit the heater into a surround using the spacer frame
supplied with the heater?
A The minimum rebate required is 71mm.
Q Do you want to fit the heater against a flat wall with the base of the heater on
a hearth or similar surface?
A You will need to purchase the optional spacer frame kit (kit number 0584081). This
spacer when added to the one supplied with the heater enables the heater to be
flat wall fixed. The depth of the combined spacer frames is 145mm.
Q Do you want to wall mount the heater.
A There are no wall mounting options for this heater.
General notes to read before fitting your heater.
There should be at least 50mm clearance between the top of the fascia and anything
such as a shelf, fireplace surround or mantel etc. This will allow the fascia to be lifted
off or removed during servicing. To check the shelf clearance gently place the fascia
against the surface to which it is to be fixed and measure the distance from the top of
the fascia.
If fitting the heater onto a reflective or shiny surface such as a hearth we recommend
that this surface does not extend further than 300mm from the fixing plane (wall).
Reflective or shiny surfaces that project further than 300mm may reflect an image of
the internal light source.
Fitting the cable clamp.
If the mains cable is to be routed to the left hand
side of the heater there is a cable clamp supplied
with the heater to hold the cable in place. This
prevents the cable being trapped under the heater
during installation. Fit the cable clamp as in figure
1.
Page 7
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.
Figure 1. Fitting the cable clamp

Securing the heater.
The contents have been identified in figure 2 (Fascias are not included).
Page 8
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.
Contents Quantity (Illustrations are not to scale)
Heater 1
Spacer frame 1
No. 8 x 3/8 pan head
screw 5
Tension wire 1
Screweye 1
Woodscrew 5
Wall plug 5
Cable clamp 1

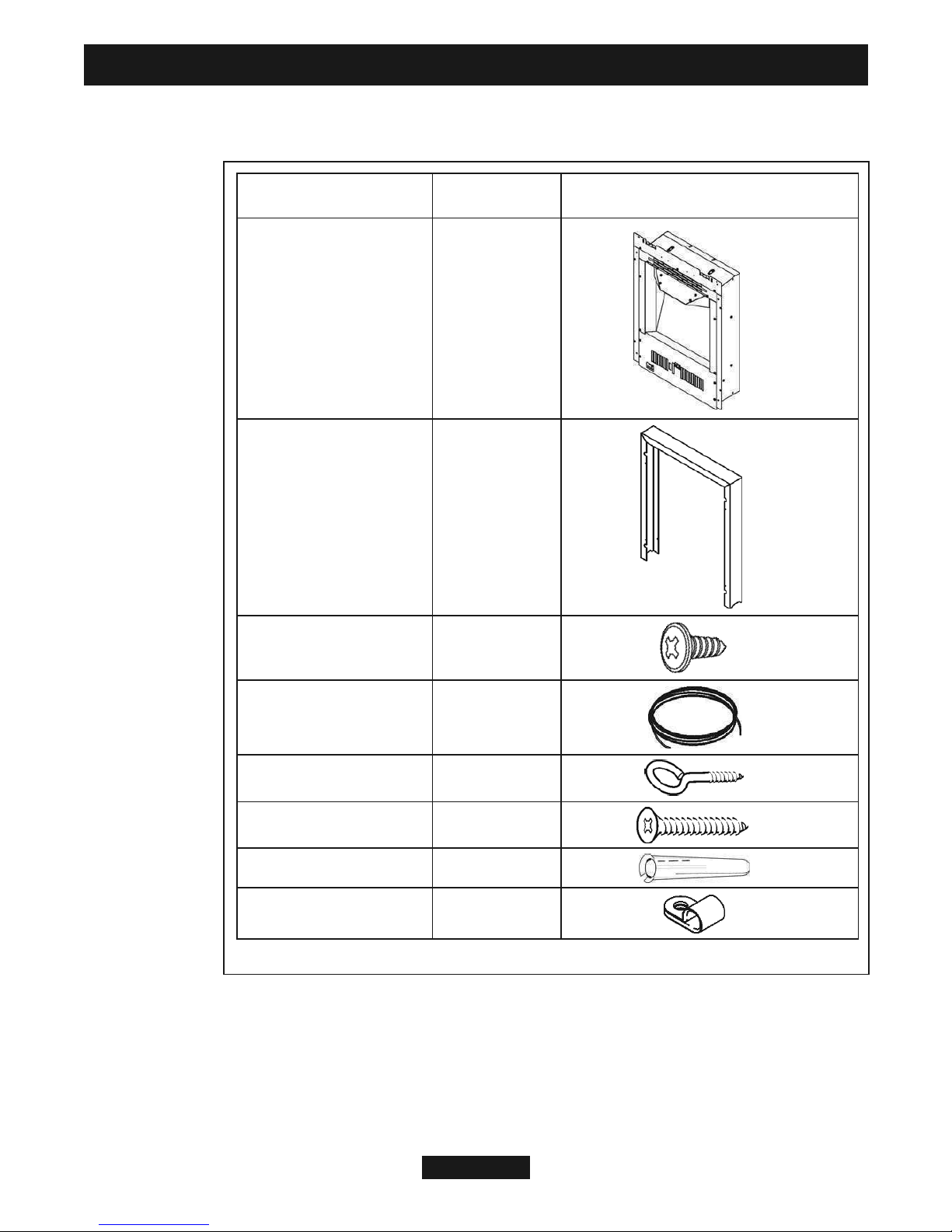

Figure 2. Contents (Fascia not shown)

The heater must be secured into position to prevent it from being tipped over.
The following securing options are available:
Method A - Securing the heater with Screws.
Method B - Securing the heater with Wire.
Method C - Securing the heater using the Spacer Frame supplied with the
heater.
Method D - Securing the heater using the Optional Spacer Frame (kit number
0584081).
If fitting the heater into a fireplace or surround opening, try the heater in the opening to
ensure that it will fit.
If fitting the heater onto a decorative hearth surface such as marble or tile it is
advisable to protect the hearth surface. Do not drag the heater as the surface finish
may be damaged.
Method A - Securing with screws.
Note - If fixing to marble it is recommended that
Method B - ‘Securing with wire’ is used. Drilling
marble without the correct tools and experience may
result in the marble cracking.
1. Place the heater into the fireplace or surround
opening. Make sure that the heater is in the middle of
the surround or fireplace.
2. There are two slotted holes in the top of the heater
and four holes in the side flanges (See figure 3). We
recommend the use of two upper holes and two lower
holes. Mark through the required holes so that their
position is clear when the heater is removed.
3. Remove the heater.
4. Drill an appropriate size hole in each of the marked
positions for the wall plugs supplied. Insert wall plugs
into the drilled holes.
5. Place the heater so that the holes are in line with
the wall plugs in the fixing surface.
6. Screw and secure the heater with four woodscrews - (See figure 2 and 3).
Page 9
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.
Figure 3. Screw location

Method B - Securing with wire.
This method of securing is recommended where the wall / brickwork is in poor
condition or where marble back panels / surrounds are used.
Although this section deals with fireplace openings without a spacer, this method of
securing the heater can also be used with the spacer frame supplied with the heater
(See point 7 and figure 7 of method C). It can also be used with the optional spacer
frame (See point 7 and figure 8 of method D).
1. The fixing kit supplied with the heater
includes a steel wire and eyescrew. These can
be used to secure the heater to the back of a
surround / fireplace opening.
2. Mark the eyescrew position on the centre
line at the back of the fireplace opening and at
a height of 565-575mm (See figure 4).
3. Drill an appropriate size hole in the marked
position.
4. Insert a wall plug into the drilled hole.
5. Screw the eyescrew into the wall plug.
6. Position the heater in front of the fireplace
opening.
7. At the top of the heater there are four small
holes, two each side of the
heater. From the front of the
heater, thread about 50mm of
the steel wire into the outside
small hole on the right side of
the heater (See point 1 - figure
5).
8. Thread the other end of the
wire through the remaining
small hole to the left. Continue
to push the wire through this
hole until there is only a small
loop of wire at the front of the
heater (See point 2 - figure 5).
9. At the back of the heater
there will be a long piece and a short piece of wire coming through the two holes. Hold
the short piece and give the long piece a gentle tug. This will secure the steel wire.
Take the long piece and thread this through the eyescrew in the back of the fireplace
opening (See figure 5).
10. From the back of the heater thread the long piece of steel wire through the inner
Page 10
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.
Figure 5. Wire fix
Figure 4. Eyescrew location

small hole on the left hand side of the heater (See figure 5).
11. Locate the heater in the fireplace opening, then from the front of the heater, gently
pull the steel wire on the right hand side to gather up the excess until the heater is
secure. Thread the wire through the remaining small hole to lock the wire and heater in
place (See point 4 - figure 5).
Method C - Securing with the Spacer Frame supplied with the heater.
The spacer frame is for use in installations where the chimney recess or rebate in the
surround / mantle is not deep enough to take the full depth of the heater. The minimum
rebate / depth required is 71mm.
For your safety the frame and heater must be securely fixed to the rear wall.
The rear of the spacer has two screw location
slots in the top flange. These should be to the
rear when fitting.
1. Position the spacer frame against the wall.
Ensure that the spacer frame is central to the
fireplace.
2. The top rear flange of the spacer frame has
two screw locations. Mark the positions of the
two screw locations on the rear wall (See figure
6).
3. Remove the spacer frame from the fireplace
and place away from the work area.
4. Drill the locations using a suitably sized
masonry drill bit for the wall plugs supplied.
5. Insert two wall plugs provided into the holes.
6. Insert a woodscrew into each hole (See
figure 2) and screw in until there is
approximately 6mm of screw protruding from
the wall.
7. Secure the spacer frame to the heater using
four No.8 x 3/8 screws supplied (See figures 7
and 2).
8. Carefully lift the heater and locate the slots
on the rear of the spacer frame onto the
screws in the wall. The screws can be adjusted
to ensure a tight fit. When mounting to
decorative surfaces such as wallpaper care
should be taken not to drag the heater down
the wall as this may damage the decorative
surface.
Page 11
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.
Figure 7. Fitting the spacer
frame to the heater
Figure 6. Location points

Method D - Securing with the optional spacer frame supplied in kit
0584081.
The optional spacer is for use where a flat wall
installation is required.
1. There are four screws supplied with the
optional spacer frame. The narrow flange of the
optional spacer should be placed against the
spacer supplied with the heater. Screw the
optional spacer frame to the one supplied with the
heater (See figure 8).
Note: The optional spacer is smaller than the one
supplied with the heater.
2. The top rear flange of the spacer frames has
two screw locations. Mark the positions of the two
screw locations on the rear wall (See figure 6-
This only shows one spacer).
3. Remove the spacer frames from the fireplace
and place away from the work area.
4. Drill the screw locations using a suitably sized
masonry drill bit for the wall plugs supplied.
5. Insert two wall plugs provided into the holes.
6. Insert a woodscrew into each hole (See figure
2) and screw in until there is approximately 6mm
of screw protruding from the wall.
7. Secure the spacer frames to the heater using
four No.8 x 3/8 screws supplied (See figures 8
and 2).
8. Carefully lift the heater and locate the slots on
the rear of the spacer frame onto the screws in
the wall. The screws can be adjusted to ensure a
tight fit. When mounting to decorative surfaces
such as wallpaper be careful not to drag the
heater down the wall as this may damage the
decorative surface.
Page 12
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.
Figure 8. Fitting the optional
spacer frame to the heater

5. FITTING THE FASCIA
Important: Before fitting the fascia ensure that you have completed the
information on the last page of this guide.
Fitting the fascia.
1. Remove the fascia from its packaging.
2. There are two magnets on the fascia
(See figure 9). Ensure that they are located
correctly before fitting the fascia.
3. Hold the fascia firmly and lift into place.
Keeping the magnets away from the body of
the heater, locate the fascia hanging
brackets into those on top of the heater
(See figure 9). Lower the fascia into place
and swing the bottom of the fascia towards
the heater to engage the magnets.
4. Place the firefront casting in place.
6. OPERATING THE HEATER
Important Safety
Never cover the heater or obstruct the openings at the base of the heater, this
could cause overheating and consequent risk of fire.
What are the three switches for?
The heater is operated by three switches located on the lower left hand side.
Switch 1 = Main On - Off. (In the ‘ON’ position, only the flame
effect operates)
Switch 2 = 1kW fan heat setting and flame effect. (Switch 1 needs to
be in the ‘ON’ position to enable switch 2 to operate).
Switch 3 = 2kW fan heat setting and flame effect. (Switches 1 and 2
need to be in the ‘ON’ position to enable switch 3 to
operate).
Page 13
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.
Figure 9. Fitting the fascia

7. CLEANING AND MAINTAINING THE HEATER
Important Safety.
Before undertaking maintenance always disconnect the heater from the electricity
supply by removing the 3 pin plug and allowing the heater to cool.
How do I Clean my heater?
The heater and plastic parts need only to be wiped clean with a dry soft cloth; do not
use polishes or abrasive materials. This is especially important when cleaning the
effects screen.
I have a problem with my heater!
1. My heater is switched on but there is no light or heat.
The first thing to do is check the wall socket. To do this plug in a known working
appliance. If the appliance you have plugged in works then there is a good chance
that the problem lies with the 13 Amp fuse in the heater plug. If either fuse or socket is
suspected, have them checked by an electrician.
2. My heater is on but there is no heat.
A cut out device is fitted to the heater to prevent damage due to over heating. If it
operates due to an obstruction in the airflow, the heater must be turned off and allowed
to cool for 15 minutes and the obstruction removed before restarting.
3. I have a problem that is different to those in the previous examples 1- 3.
For general advice about your heater, to report faults, arrange for your heater to be
serviced, or for sales and product information call 0844 8711 565. Callers in the
Republic of Ireland please telephone [phone].
For spares inquiries
Spare parts are available nationwide via the ‘interpart stockist network’. For your
local stockist consult Yellow pages under ‘Central Heating’.
When ordering spare parts please have the below information available. This will help
us to deal with your call quicker and avoid you having to make a second call.
Your Post Code
Type of Heater (Electric or gas)
The fault, problem or request.
Model, Name and serial number.
Note: This information can be found on a small label attached to the lower right of
the heater behind the firefront casting (See figure 10) and should also have been
recorded on the last page of this guide.
Page 14
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.

8. ENVIRONMENT
Environmental Protection.
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your local authority or retailer for recycling
advice.
What should I do when I’m ready to dispose of my heater?
The plug should be removed from the mains cable and the mains cable cut
from the heater. These should be disposed of with the heater.
9. WARRANTY AND SERVICE
Information for the customer
Standard Warranty Terms & Conditions
The warranty is for 12 months subject to contract.
In the United Kingdom servicing can be carried out either by a heateam service
engineer or a suitably qualified person.
You must register your heater with heateam, the service division of Baxi Heating UK
Limited, either by completing and returning the registration card or calling our free
telephone registration line on 0800 032 72 44.
Our promise to you
If you experience a fault with your new heater, we aim to provide a safe and high
quality repair service supported by our dedicated national network of highly skilled
engineers. Nothing in this warranty will affect your statutory rights.
What you need to do if you experience a problem with the operation of the heater;
Read section 7 of this guide “Cleaning and maintaining the heater”. If the problem
cannot be resolved simply call our service division heateam on 08706 090 081 to book
an engineer visit or for any general advice that you may need. Our contact centre is
open Monday to Friday 8am – 6pm, weekends and Bank Holidays 8.30am – 2pm,
excluding Christmas Day and New Years day.
Page 15
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.

When calling heateam, it would be helpful if you could have the following information
to hand:-
1. Heater serial number
2. Heater brand and model number
3. Date of installation
4. Proof of purchase (If you do not have the heater serial number)
Note: details 1 – 3 can be found on the last page of this guide.
What this warranty covers
Free of charge repair or replacement of components found to be of faulty manufacture.
Free of charge replacement of the complete unit providing the failure is related to a
manufacturing fault that cannot be repaired or is uneconomic to repair.
What this warranty does not cover
Repairs to heaters which haven’t been installed properly and as set out in this guide.
Faults caused by inadequate supply of electricity.
Reimbursement of any third party repair or replacement costs that we haven’t been
told about or agreed with you in advance.
Compensation or consequential losses (e.g. loss of earnings, business losses, stress
and inconvenience) arising from a production breakdown, including repair delays
caused by factors outside our reasonable control.
Page 16
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.

Page 17
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.

Page 18
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.

Page 19
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.
Brand (Please tick)
Baxi
Valor
Wonderfire Other........................
D D M M Y Y
Date of Installation
A LABEL CONTAINING THE FASCIA
CODE MAY HAVE BEEN PLACED
INSIDE THIS BOX.
Fascia name (Block Capitals)
Fascia code - Can be found close to the information label (Block Capitals)
Figure 10
A LABEL CONTAINING THE SERIAL NUMBER MAY HAVE
BEEN PLACED INSIDE THIS BOX.
Model
845
Serial number (Can be found on the information label - See figure 10)
To be completed by the customer:
