Valor Fires 833 Instructions for use

5131277/02
Model 833
ELECTRIC HEATER
Fitted with one of the following fascia.
Alaska, Fantasy, Manhattan,
Metropolis, Scenic or Visia.
(GC No. EF-032-23)
Important: Please keep your guide in a safe place for future reference.
INSTALLER AND OWNER GUIDE
This guide is intended to help you
install and care for your Valor Fires
electric heater. Please read carefully
before installing and using your
heater. However, if further
information is required, our
Valor Fires Technical Helpline will
be pleased to help.
Telephone [phone] (National
call rates apply in the United
Kingdom).
In the Republic of Ireland
Telephone [phone].
© Baxi Heating U.K. Limited 2008.

the nation’s favourite for
PLUMBING & HEATING SUPPLIES
SECURE PAYMENTS
shop online with confidence
FREE SHIPPING
on all orders over £100 to mainland UK
FINANCE AVAILABLE
spread the cost with low interest rates
PRICE MATCH
always get the best deals available
Boilers
Radiators
Heating controls

Cylinders
Fires
Renewable energy
Bathroom suites
Kitchen sinks & taps
Showers
Wet rooms
Towel warmers
Bathroom furniture
& much more
HUGE REDUCTIONS
we have
ON THOUSANDS OF ITEMS
0844 800 3460
CALL US ON
visit our website
plumbnation.co.uk

© Baxi Heating U.K. Limited 2008. Page 2
Baxi Heating U.K. Limited 2008.
All rights reserved. No part of this publication may be reproduced in any material form
(including photocopying), stored in any medium by electronic means (including in any
retrieval system or database) or transmitted, in any form or by any means, whether
electronic, mechanical, recording or otherwise, without the prior written permission of
the copyright owner.
Applications for the copyright owner's permission to reproduce any part of this
publication should be made, giving details of the proposed use, to the following
address: The Company Secretary, Baxi Heating UK Limited, The Wyvern Business
Park, Stanier Way, Derby, DE21 6BF.
Warning: Any person who does any unauthorised act in relation to a copyright work
may be liable to criminal prosecution and civil claims for damages.
CUSTOMER CARE
Thank you for choosing Valor Fires
All Valor Fires heaters are designed to meet the most stringent quality, performance
and safety requirements to provide our customers with many years of trouble free
service. This guide aims to improve your understanding and appreciation of your new
Valor Fires heater, by providing simple and informative instructions to enable you to
install it and to ensure that you benefit from the excellent performance and features it
has to offer.
If you require further assistance, the Valor Fires Technical Helpline will be pleased
to help.
Please telephone [phone] (local rates apply in the United Kingdom). In the
Republic of Ireland please telephone [phone].
Valor Fires, Erdington, Birmingham B24 9QP
www.firesandstoves.co.uk
Because our policy is one of constant development and improvement, details may vary slightly from
those given in this publication
INSTALLER AND OWNER GUIDE

© Baxi Heating U.K. Limited 2008. Page 3
Safety First.
Valor Fires heaters are CE Approved and designed to meet the appropriate British
Standards and Safety Marks.
Quality and Excellence.
All Valor Fires heaters are manufactured to the highest standards of quality and
excellence and are manufactured under a BS EN ISO 9001 quality system accepted
by the British Standards Institute.
1. HANDLING AND UNPACKING
Before continuing any further with the installation of this heater please read the
following:
Important instructions.
The approximate lifting weight of the heater is as below:
Model Heater Body (kg) Fascia (kg) Total (kg)
Alaska 8.5 10.85 19.35
Fantasy 8.5 10.85 19.35
Manhattan 8.5 10.85 19.35
Metropolis 8.5 11.42 19.92
Scenic 8.5 11.42 19.92
Visia 8.5 7.4 15.9
INSTALLER AND OWNER GUIDE

Page 4
One person should be sufficient to lift the heater. If for any reason this weight is
considered too heavy then obtain assistance.
When lifting always keep your back straight. Bend your legs and not your back.
Avoid twisting at the waist. It is better to reposition your feet.
Avoid upper body / top heavy bending. Always bend from the knees rather than
the waist. Do not lean forward or sideways whilst handling the heater.
Always grip with the palm of the hand. Do not use the tips of fingers for support.
Always keep the heater as close to the body as possible. This will minimise the
cantilever action.
Use gloves to provide additional grip.
Always use assistance if required.
2. SAFETY
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Always
 Always install the heater in accordance with this guide. If in doubt obtain
expert advice.
 Always make sure the electrical socket is accessible and located adjacent to, but
not above or behind the heater.
 Always disconnect the heater from the electrical supply before carrying out
cleaning, maintenance or replacing the lamps.
 Always make sure the heater is firmly secured to the wall.
 Always use a fireguard when young children, infirm persons and pet animals can
come into contact with the heater.
 Always use genuine Valor Fires spares.
Never
 Never leave children unsupervised in a room where the heater is ON and
unguarded.
 Never obstruct or cover the fan outlet or force items into heater openings.
 Never install or use the heater anywhere where water is in use, i.e.
Bathrooms, Kitchens, Shower Rooms, Swimming Pools etc.
 Never use aerosols or steam cleaners on or around the heater.
 Never route the electric cable under carpet etc.
 Never install the heater close to curtains or combustible materials.
 Never use the heater to dry clothes etc.
 Never sit or stand on the heater.
 Never fit a shelf or position soft furnishings such as curtains above the heater.
© Baxi Heating U.K. Limited 2008.
INSTALLER AND OWNER GUIDE

© Baxi Heating U.K. Limited 2008.
INSTALLER AND OWNER GUIDE
Page 5
3. FITTING THE HEATER
The installation of this heater requires a reasonable level of DIY skills.
Please read this guide thoroughly before commencing installation and if in
doubt, seek help from a competent person
Important: Before continuing with the installation of this heater please ensure
that you have completed the information on the last page of this guide.
Do I need any tools?
You will need the following tools: -
 Pozidrive / Phillips / cross head screwdriver. This should have a number 2
size tip.
 Power drill (Preferably with hammer action). This is only required if drilling into
brick work. An appropriate size drill bit will be required for the wall plugs supplied.
Where can I fit the heater?
This heater can be fitted onto a flat wall. Ideally fix the heater through to brick work,
block work or the internal wooden frame of a plaster board wall. If the wooden frame
behind the plasterboard is not accessible use a minimum of four heavy duty cavity
fixings.
We do not recommend that the heater be fitted to a wall covered in blown vinyl
wallpaper or polystyrene tiles etc.
It is important that the heater is never fitted under a shelf or soft furnishings such as
curtains.
If the heater is to be mounted on to a plasterboard wall that has a wooden frame
behind it then the integrity and ability of the wall to carry the weight of the appliance
must be confirmed. It is important that any vapour control barrier is not damaged, and
that the structural members of the house are not damaged. We recommend a
minimum 12mm thick plasterboard.
Model Alaska / Fantasy / Metropolis / Scenic Visia
Manhattan
Width (mm) 930 1000 930
Height (mm) 560 630 560
Depth (mm) 151 130 149

Important Electrical Safety
The heater must not be located in front of or under an electrical socket; the socket
must always be accessible in order to disconnect the heater from the electrical supply
for maintenance and cleaning.
Important! This heater must be earthed.
 The heater is supplied with a 3 pin 13 Amp fused re-wireable plug with 1mm² 3
core cable.
 The wires in the cable are coloured in accordance with the following code: -
Live = Brown
Neutral = Blue
Earth = Green /Yellow
 The electric supply must be safely routed from the heater to an electrical socket.
If the electric cable is damaged, to avoid a hazard it must be replaced by a Valor
Fires authorised service agent, or similarly qualified person (See page 9). All external
wiring between the heater and the electrical supply shall comply with current IEE
regulations. Extension leads should not be used.
Page 6
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.

Heater Fixing.
All of the fixings and loose parts supplied with the heater have been identified as in
figure 1.
Page 7
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.
Contents Quantity (Illustrations are not to scale)
Heater 1
Hanging bracket 1
Plasterboard fixings 6
Wall plug 6
Wood screw 6
Knurled screw 2
‘AAA’ Battery 2
Handset 1
Pack of pebbles 2
Fuel support 1
Figure 1. Contents. Fascia not shown (Items are not to scale)

Fitting the heater.
 Decide the location of the
heater. It is important that
the heater is never fitted
under a shelf or soft
furnishings such as curtains.
 If fitting to a conventional
brick wall then use the outer
slotted holes in the bracket.
If fitting to a plasterboard
wall that has a wooden
frame behind it then use all
five fixing holes in the
bracket. This is required to
spread the load. Mark the
positions of the hanging
bracket holes on the wall
(See figure 2). There is a
150mm clearance required
under the heater to screw and unscrew the fascia securing screws.
 Drill the marked positions using a suitable sized drill bit for the chosen fixings.
 Insert the wall plugs / fixings and secure the
bracket to the wall using suitable screws.
 Locate the heater onto the wall bracket.
 Mark the position of the lower support bracket
hole on the wall.
 Remove the heater from the wall bracket.
 Drill the marked position using a suitable
sized drill bit for the chosen fixings.
 Locate the heater onto the wall bracket and
secure the lower support bracket using a suitable
screw.
The lower support bracket must always be
used. This prevents the heater lifting from the
hanging bracket.
Fitting the fuel effect.
 The right hand side of the fuel support has a
longer lip than that of the left side. Locate the
right hand side of the fuel support into the slot in
the heater body and allow the fuel effect to rest
Page 8
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.
Figure 2. Hanging bracket heights from finished
floor / hearth
Figure 3. Fitting the fuel effect

on the fuel support bracket in the centre of the heater (See point 1 in figure 3).
 When seated, slide the fuel support to the left (See point 2 in figure 3).
 Place the loose pebbles onto the fuel support. It is not necessary to use all the
pebbles supplied.

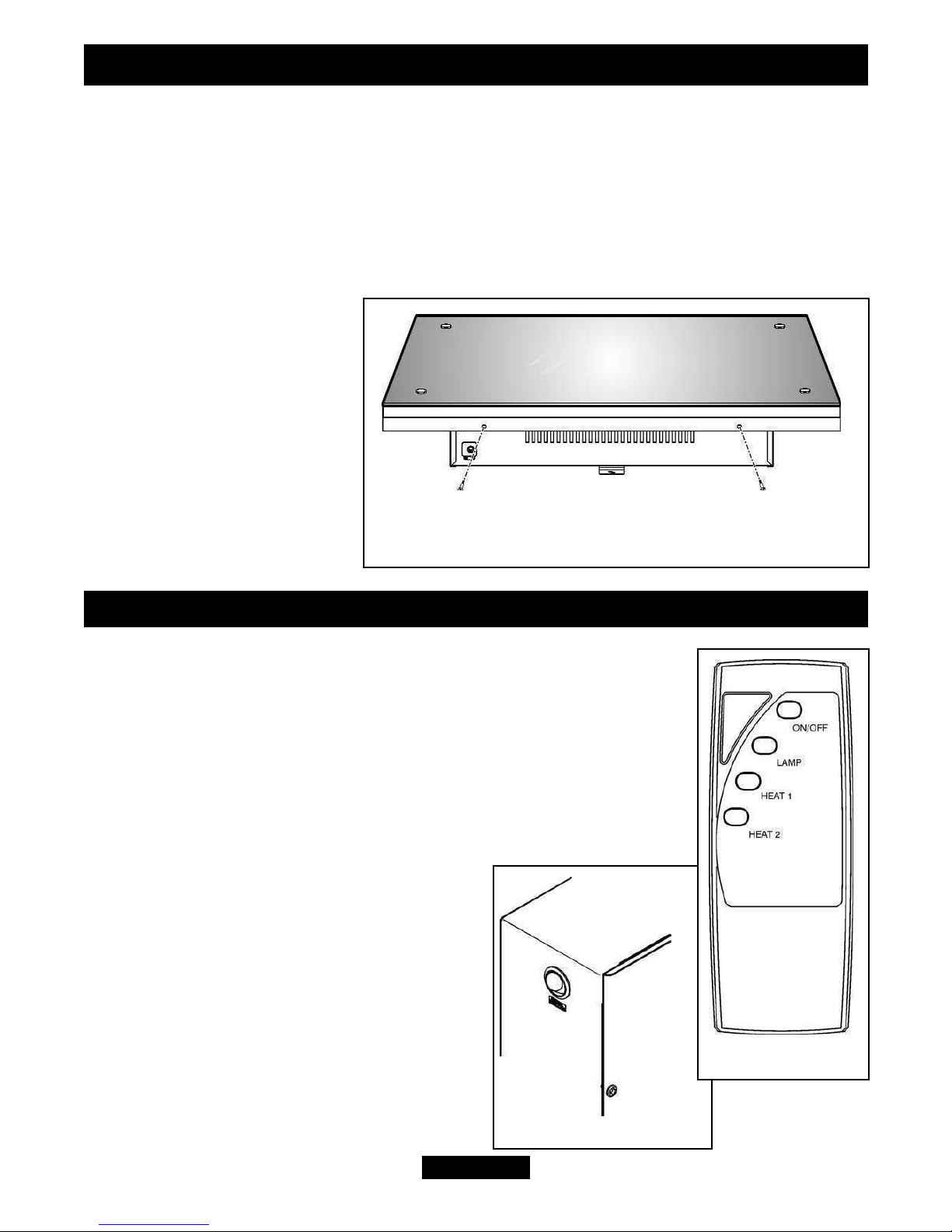

Fitting the fascia.
Important: Before fitting the fascia ensure that you have completed the
information on the last page of this guide.
 Locate the top of the
fascia behind the top flange of
the heater.
 The fascia is secured
using the two knurled screws.
These are located as in figure
4.
4. USING THE HEATER
The heater is supplied with a battery operated, infra red remote
control handset. It provides ‘On / Off’, ‘Lamp’, ‘Heat 1’ and ‘Heat 2’
functions (See figure 5).
The heater is fitted with an manual over-ride switch should the
handset be lost or the batteries fail (See figure 6).
Battery Installation
Having fully installed the heater in position it is necessary to fit two
AAA 1.5V batteries into the handset. For a longer battery life we
would always recommend the use of
alkaline batteries. To do this, remove the
battery compartment cover from the handset
by sliding the cover downward.
Insert the batteries, paying close attention to
the polarity. The rear of the battery
compartment shows the correct polarity.
Page 9
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.
Figure 4. Underside of heater (Shown with
Manhattan fascia)
Figure 6.
Figure 5.

© Baxi Heating U.K. Limited 2008.
INSTALLER AND OWNER GUIDE
Page 10
Remote Control Use
Point the handset in the direction of the heater. The Maximum operating distance is 3
metres.

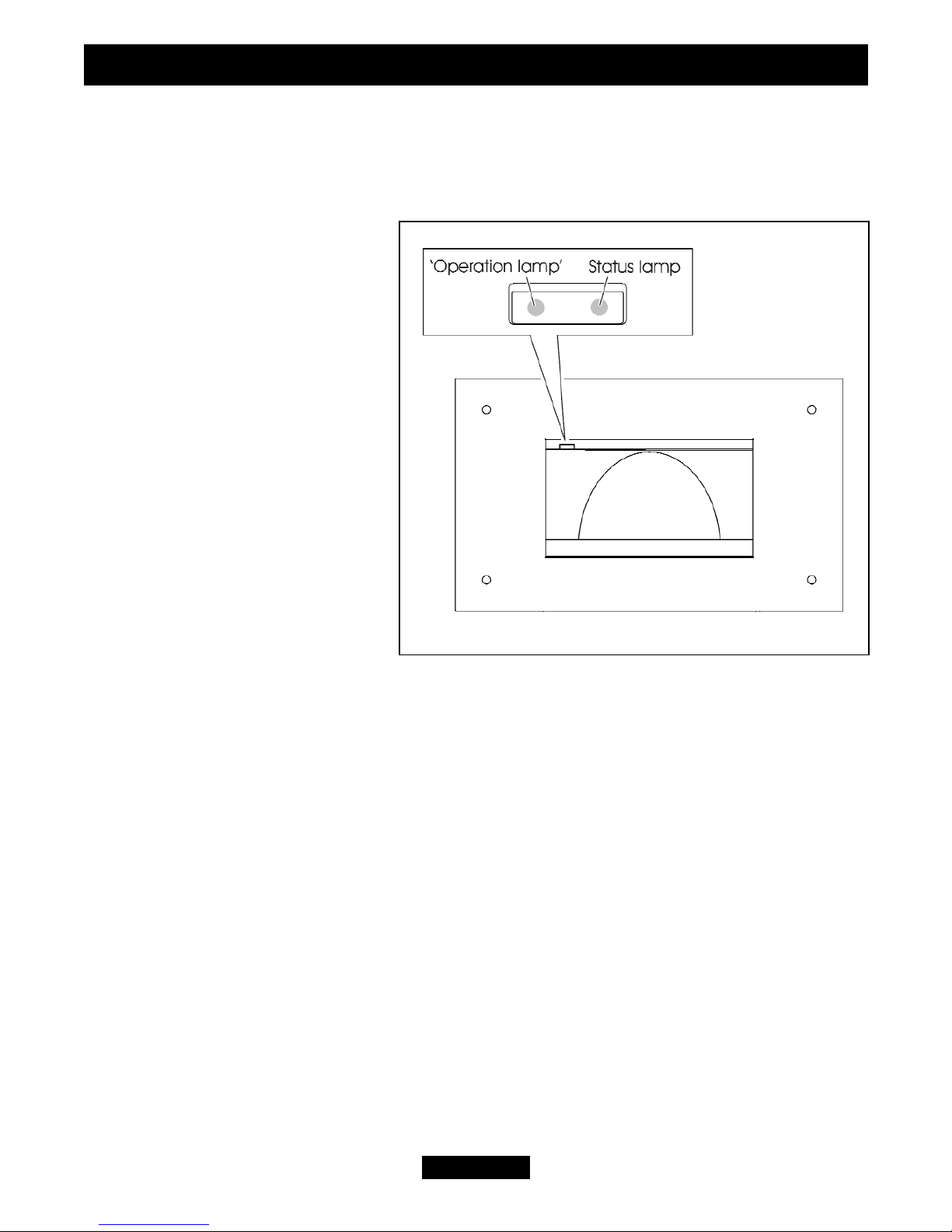

Press the red ‘On / Off’ button to initiate the handset, a red ‘Operation’ lamp on the
heater will illuminate to indicate that the handset is being used (See figure 7).
Select the required function:
Lamp = Flame effect alone,
Status lamp glows green.
Heat 1 = Low heat setting + flame effect,
Status lamp will glow orange.
Heat 2 = High heat setting + flame effect,
Status lamp will glow red.
On/Off = Will turn off all functions.
If necessary the heater can be operated by the switch positioned on the upper left
side of the heater. By pressing the button the function of the heater can be stepped
through the ‘Lamp’, ‘Heat 1’, ‘Heat 2’ functions and back to off (See figure 6).
Important Safety
Never cover the heater or obstruct the openings at the base or top of the
heater, this could cause overheating and consequent risk of fire.
Figure 7.

© Baxi Heating U.K. Limited 2008. Page 11
5. CLEANING AND MAINTAINING THE HEATER
How do I Clean my heater?
The heater fascia and glass parts need only to be wiped clean with a dry soft cloth,
do not use polishes or abrasive materials.
I have a problem with my heater!
Important Safety.
Before undertaking maintenance or replacing the lamp(s) always disconnect the
heater from the electricity supply by removing the 3 pin plug and allowing the
heater to cool.
1. My heater is on but there is no light / low light.
This is possibly a lamp failure. Remove the lamp as below and check it in a table
lamp that is known to work. If it does not work in the table lamp then replace it as
below.
The lamps fitted to this heater are 40 Watt E14, 230 Volt, SES (Small Edison screw)
fitting with a clear finish. Due to the indeterminate life span and ease of replacement,
they are specifically excluded from the guarantee.
To replace the lamp.
 Remove the fascia. To do this unscrew and remove the two knurled screws on the
underside of the fascia (See figure 4). Hold the sides of the fascia firmly, gently pull
the base of the fascia clear of the heater body, then lift upward to remove.
 Remove the loose decorative fuel effect pieces and place away from the work
area. As it is adviseable to protect the surface from scratches or staining we
recommend placing the fuel effect pieces onto an old newspaper or similar covering.
 Remove the fuel support by sliding it to the right and lifting it out of the heater.
 Unscrew the faulty lamp in a counter clockwise direction and replace with a
maximum 40 Watt E14, 230 Volt, SES (Small Edison screw) fitting with a clear finish.
 Replace the fuel support, the fuel effect pieces and fascia. Secure the fascia using
the two knurled screws removed previously.
2. My heater is on but there is no light or heat.
The first thing to do is check the wall socket. To do this, plug in a known working
appliance. If the appliance you have plugged in works then there is a good chance
that the problem lies with the 13 Amp fuse in the heater plug. If either fuse or socket
is suspected, have them checked by an electrician.
3. My heater is on but there is no heat.
A cut out device is fitted to the heater to prevent damage due to over heating. If it
operates due to an obstruction in the airflow, the heater must be turned off and
allowed to cool for 15 minutes and the obstruction removed before restarting.
INSTALLER AND OWNER GUIDE

© Baxi Heating U.K. Limited 2008. Page 12
4. I have a problem that is different to those in the previous examples
1- 3.
For general advice about your heater:
Valor Fires TECHNICAL HELPLINE 0844 8711 565.
CALLERS IN THE REPUBLIC OF IRELAND
Call 0044 844 8711 565
What should I do when I’m ready to dispose of my heater?
The plug should be removed from the mains cable and the mains cable cut from the
heater. These should be disposed of with the heater.
Environmental Protection.
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your local authority or
retailer for recycling advice.
6. WARRANTY AND SERVICE
Information for the customer
Standard Warranty Terms & Conditions
The warranty is for 12 months subject to contract.
In the United Kingdom servicing can be carried out either by a heateam service
engineer or a suitably qualified person.
You must register your heater with heateam, the service division of Baxi Heating UK
Limited, either by completing and returning the registration card or calling our free
telephone registration line on 0800 032 72 44.
Our promise to you
If you experience a fault with your new heater, we aim to provide a safe and high
quality repair service supported by our dedicated national network of highly skilled
engineers. Nothing in this warranty will affect your statutory rights.
INSTALLER AND OWNER GUIDE

© Baxi Heating U.K. Limited 2008. Page 13
What you need to do if you experience a problem with the operation of the heater;
Read section 5 of this guide “Cleaning and maintaining the heater”. If the problem
cannot be resolved simply call our service division heateam on
08706 090 081 to book an engineer visit or for any general advice that you may need.
Our contact centre is open Monday to Friday 8am – 6pm, weekends and Bank
Holidays 8.30am – 2pm, excluding Christmas Day and New Years day.
When calling heateam, it would be helpful if you could have the following information
to hand:-
1. Heater serial number.
2. Heater brand and model number.
3. Date of installation.
4. Proof of purchase (If you do not have the heater serial number)
Note; details 1 – 3 can be found on the last page of this guide.
What this warranty covers
Free of charge repair or replacement of components found to be of faulty
manufacture.
Free of charge replacement of the complete unit providing the failure is related to a
manufacturing fault that cannot be repaired or is uneconomic to repair.
What this warranty does not cover
Repairs to heaters which haven’t been installed properly and as set out in this guide.
Faults caused by inadequate supply of electricity.
Reimbursement of any third party repair or replacement costs that we haven’t been
told about or agreed with you in advance.
Compensation or consequential losses (e.g. loss of earnings, business losses, stress
and inconvenience) arising from a production breakdown, including repair delays
caused by factors outside our reasonable control.
Lamps - Unless the glass is broken upon receipt, due to the indeterminate life span
and ease of replacement, they are specifically excluded from the guarantee.
INSTALLER AND OWNER GUIDE

Page 14
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.

To be completed by the customer:
Page 15
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2008.
Brand (Please tick)
Baxi
Valor
Wonderfire Other.................
D D M M Y Y
Date of Installation
Fascia name (Block Capitals)
Fascia code - Can be found close to the information label (Block Capitals)
Figure 8
Model
8 3 3
Serial number (Can be found on the information label - See figure 8)
A LABEL CONTAINING THE FASCIA
CODE MAY HAVE BEEN PLACED
INSIDE THIS BOX.
A LABEL CONTAINING THE SERIAL NUMBER MAY HAVE
BEEN PLACED INSIDE THIS BOX.

© Baxi Heating U.K. Limited 2008.
