Van Der Stahl FAS-402-CH Series User manual

Printed April 2016
1st Edition 1.05E
MICROCOMPUTER CONTROLLED TABLETOP NOZZLE TYPE
C TYPE
VACUUM SEALE R
OPERATING INSTRUCTIONS
www.vanderstahl.com
FAS-602-CH
FAS-402-CH SERIES

2

Thank you for purchasing the FAS-402/ 602-CH series sealer!
FAS-402-CH, FAS-602-CH series is a table-top vacuum sealer controlled by the microcomputer, which makes it
possible to set up the various operation patterns that the customers require.
This manual explains the terms that is used when setting the seal conditions. Please read this manual thoroughly
before use for the better understanding on how to set up/operate the FAS-402-CH/FAS-602-CH series.
The setting range of heating/cooling temperature is indicated in both degrees Celsius and Fahrenheit. Please check
which unit your machine uses, and refer to the one that matches to your machine.
1.Set up the operation patterns
Two commonly-used operation patterns are pre-
installed to the machine at the time of factory
shipment.
Before starting the operation, please set up the
suitable operation patterns for your application.
Otherwise, you cannot operate the machine in the
way other than the pre-installed operation patterns.
You can set the operation patterns according to the
on-screen display of the control unit. Please refer to
this manual for the detail.
2.Seal test and optimum seal condition
There are many variations of package materials and
contents that the customers use. Please decide the
optimum seal conditions including heating
temperature, time, cooling temperature, as well as
the vacuum time (level) according to your needs
after properly performing the seal tests.
Please refer to the following table. It shows the
temperature of dissolution for each kind of film.
Please note that this value will be greatly affected
by the environment, thickness of package material
and other conditions.
Kind of packing
material
Temperature of
dissolution (OC)
HDPE 130-135
HPLDPE 105-120
LLDPE 120-130
PP 160
Kind of packing
material
Temperature of
dissolution (OF)
HDPE 266-275
HPLDPE 221-248
LLDPE 248-266
PP 320

3












































































Before using, always verify the voltage
specification of your particular unit and operate it at
the correct voltage.
Please note the following:
1) The voltage specification of your unit is
listed on the label (or in some cases an
aluminum plate) which displays the serial
number. This label can be found on the
machine body.
2) The explanations and illustrations in this
operators' manual utilize the following
standard plug configurations most common
in Japan. However, due to the various
configurations in use worldwide, these may
not necessarily correspond with the one
attached to your specific unit.
The International System of
Units (SI) is a consistent
system that ordinary people as
well as professionals can use.
This logical unit system is
used in every field from
science to industry to
education and even daily life.
As the SI unit system is gradually replacing the
standard pressure unit, this manual primarily uses
SI to indicate pressure. (As a reference, however,
we have also listed the previous notations.)
The following marks are used in this manual to
easily identify the conditions of risks, damages, or
some tips for the optimal use of your unit.
Caution Minor injuries or damages to the unit may
occur when the instruction is ignored.
Warning Severe injuries or fatal accidents may
occur when the instruction is ignored.
Danger Critical injuries or fatal accidents will
almost certainly occur when the
instruction is ignored.
Attention Important Notes and Restrictions - Read
the directions in order to avoid misuse of
the unit.
TIPS Great Tips and References when using
the unit - Highly recommend reading
through the information.
Please read all of the safety and operating instructions before operating this machine.
Periodic maintenance and proper operation are necessary to ensure safety when using this impulse sealer.
Keep this manual on hand when operating the sealer. Set the heating time according to the material and
thickness of the film.
As a result of research to further improve the FAS-402/602-CH series, some details in the operating
instructions may differ from your actual machine.
For operating problems or product information, please contact Van der Stahl Scientific.
Foreword
SI units
This manual is designed to
cover machines of various
voltages and plug
configurations
About the warning labels
Warning Voltages and plug configurations differ
according to various worldwide
specifications.
A verify those of your particular unit
before beginning operation. Connecting
the power cord to an outlet of a different
specification is extremely hazardous.

4

1 Package contents ………………………………………………………………………………………… 6

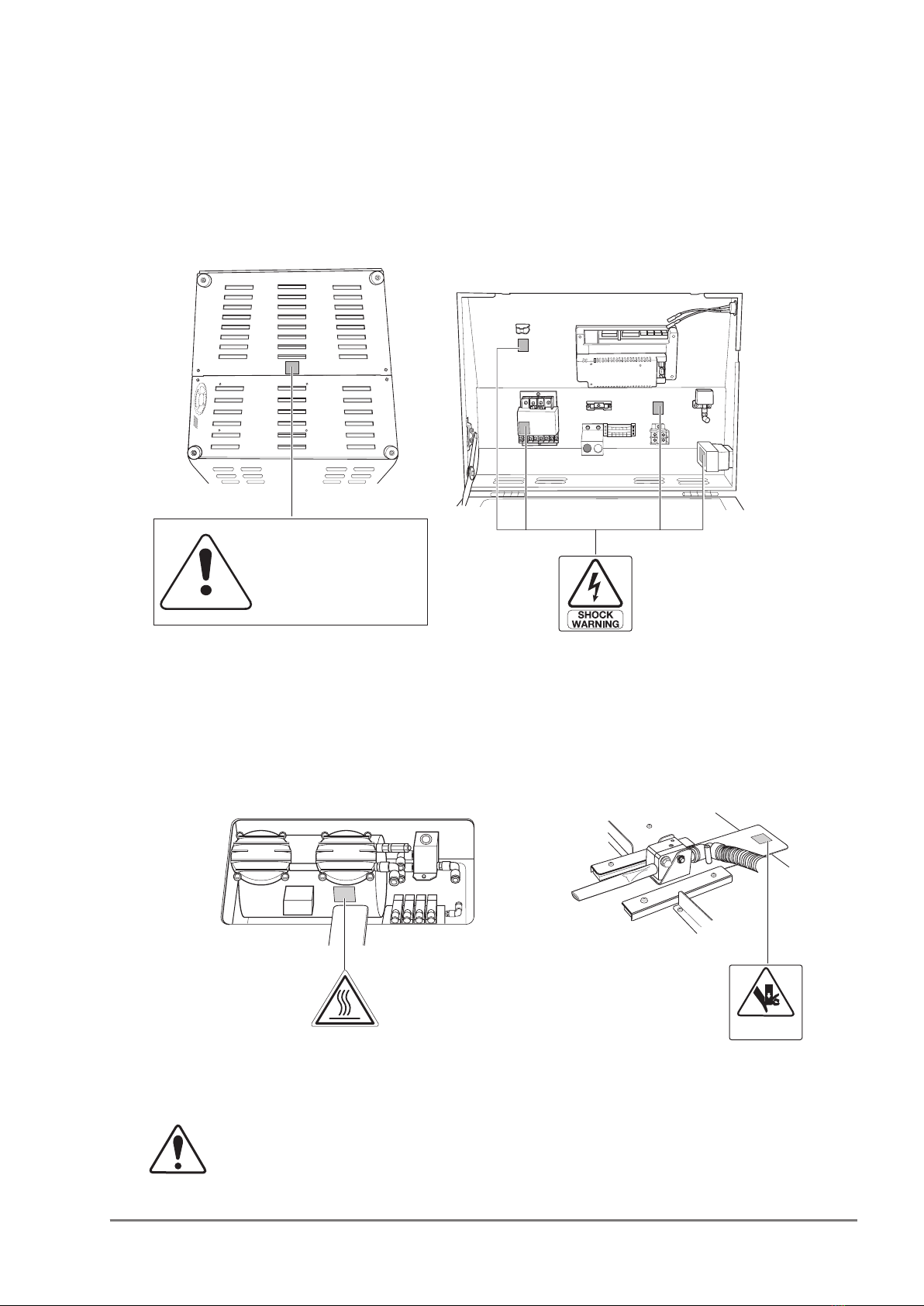

2 Warning-caution label location and content ………………………………………………………… 7
3 Operating precautions …………………………………………………………………………………… 9
For safety operating…………………………………………………………………………………………………………………………… 9
For smooth operation ……………………………………………………………………………………………………………………… 11
Other safeguards …………………………………………………………………………………………………………………………… 12
4 Outline of structure……………………………………………………………………………………… 13
5 Proper operating boundaries for the FAS-402/ 602-CH series ………………………………… 13

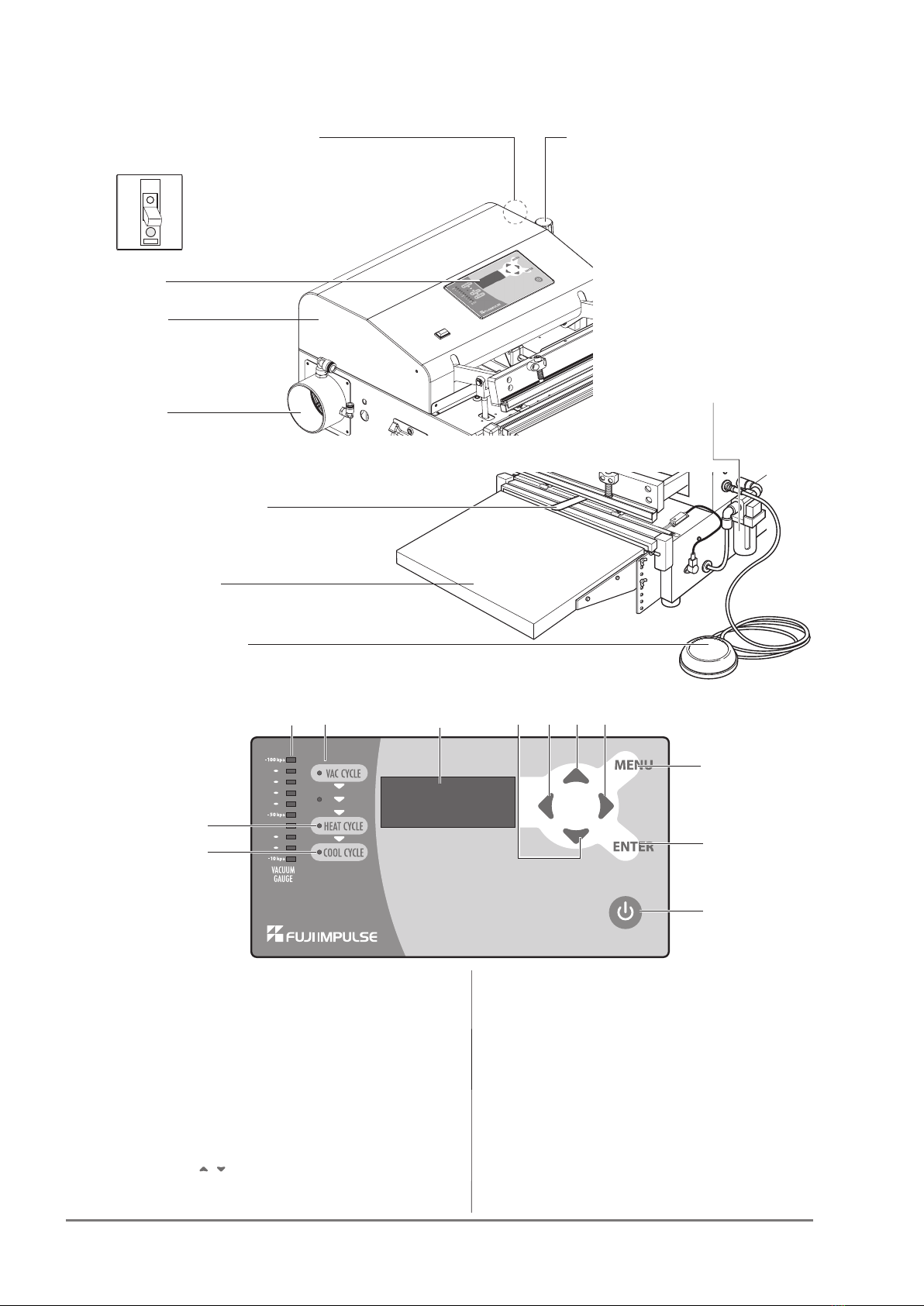

6 Major parts and function ……………………………………………………………………………… 14
7 Proper use of the sealer ……………………………………………………………………………… 15
7-1 Secure the work place ……………………………………………………………………………………………………………… 15

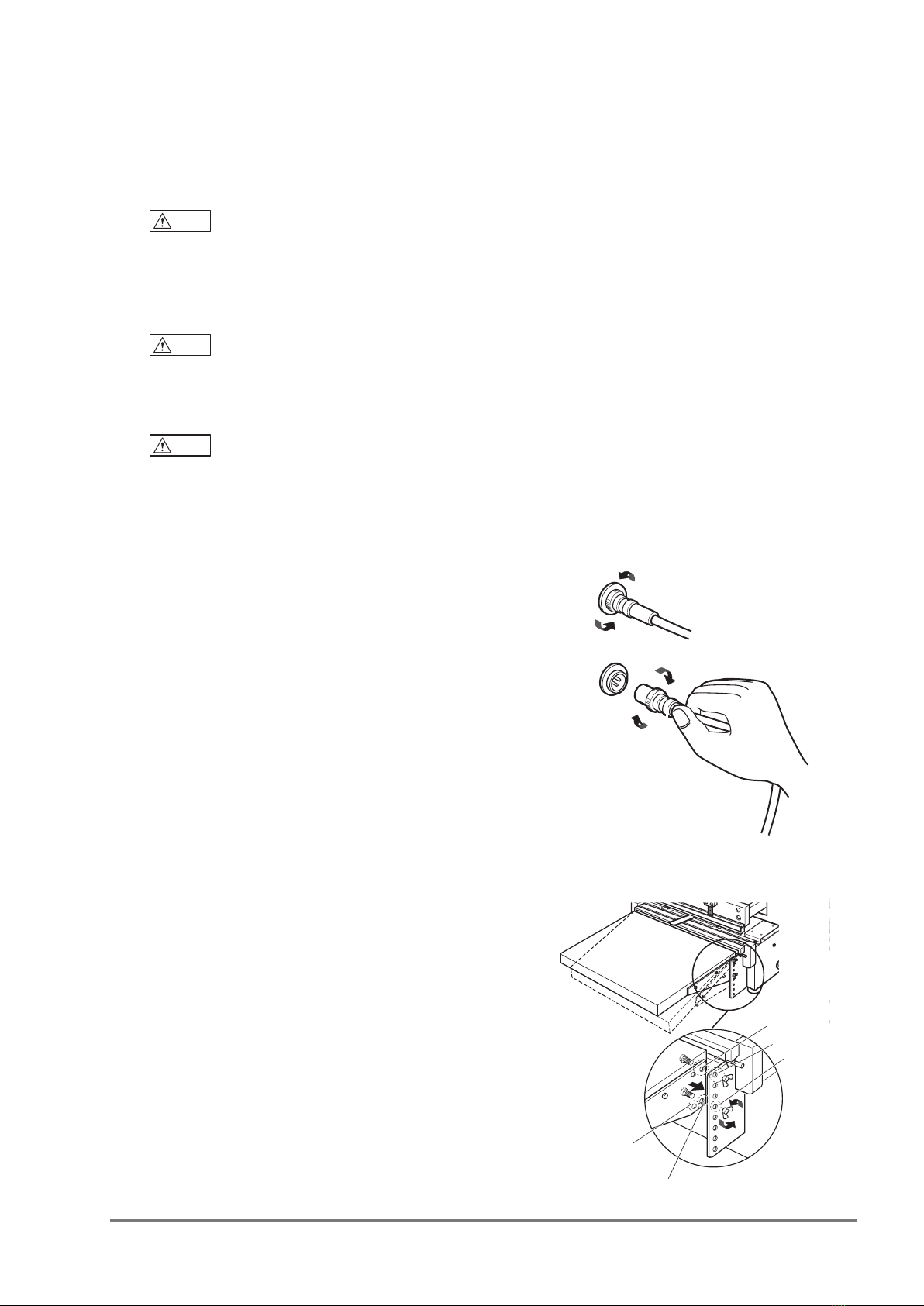

7-2 Install the foot switch ……………………………………………………………………………………………………………… 15
7-3 Adjust the table height and angle ………………………………………………………………………………………………… 15

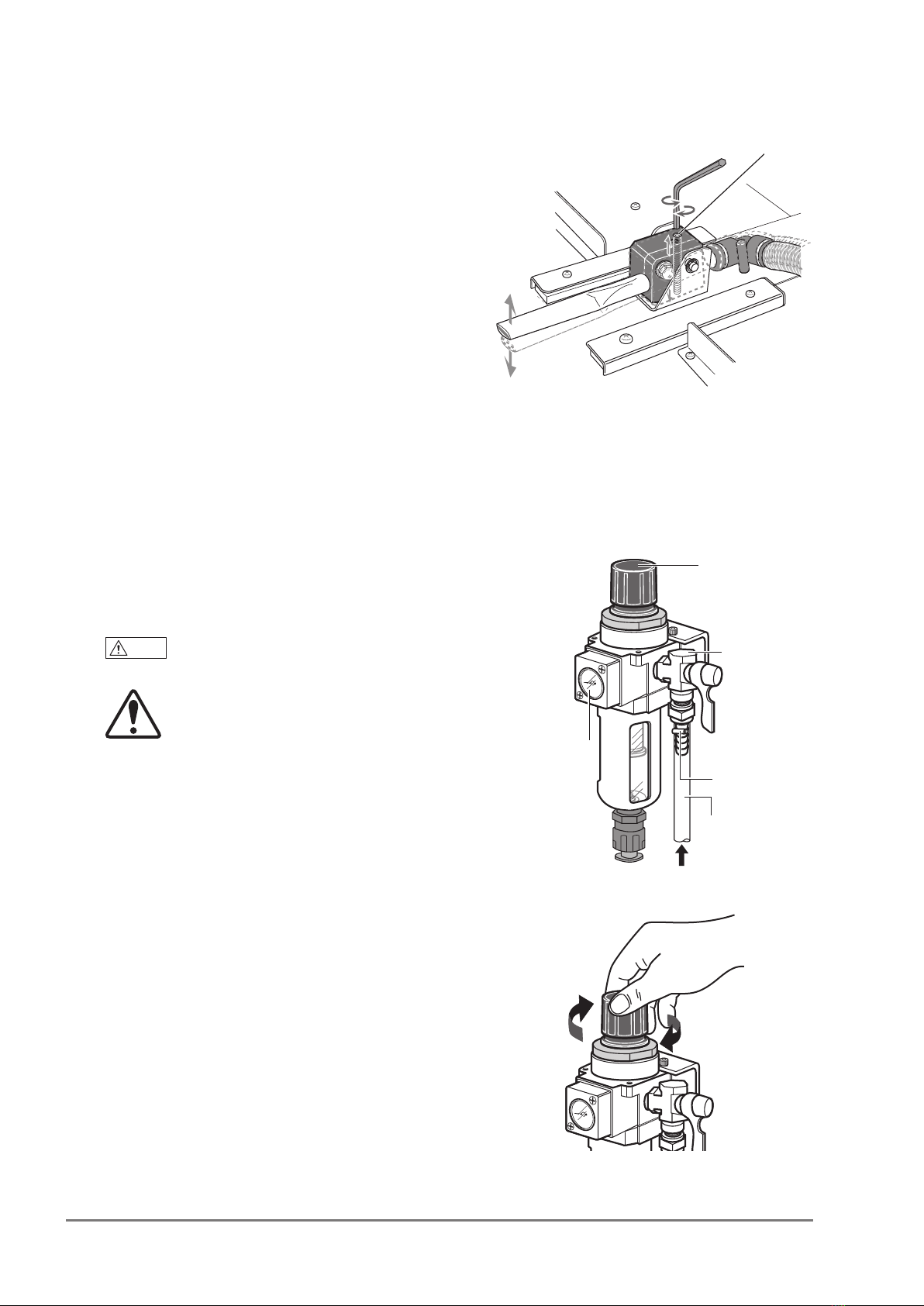

7-4 Adjust the nozzle height …………………………………………………………………………………………………………… 16
7-5 Set up the air source ……………………………………………………………………………………………………………… 16

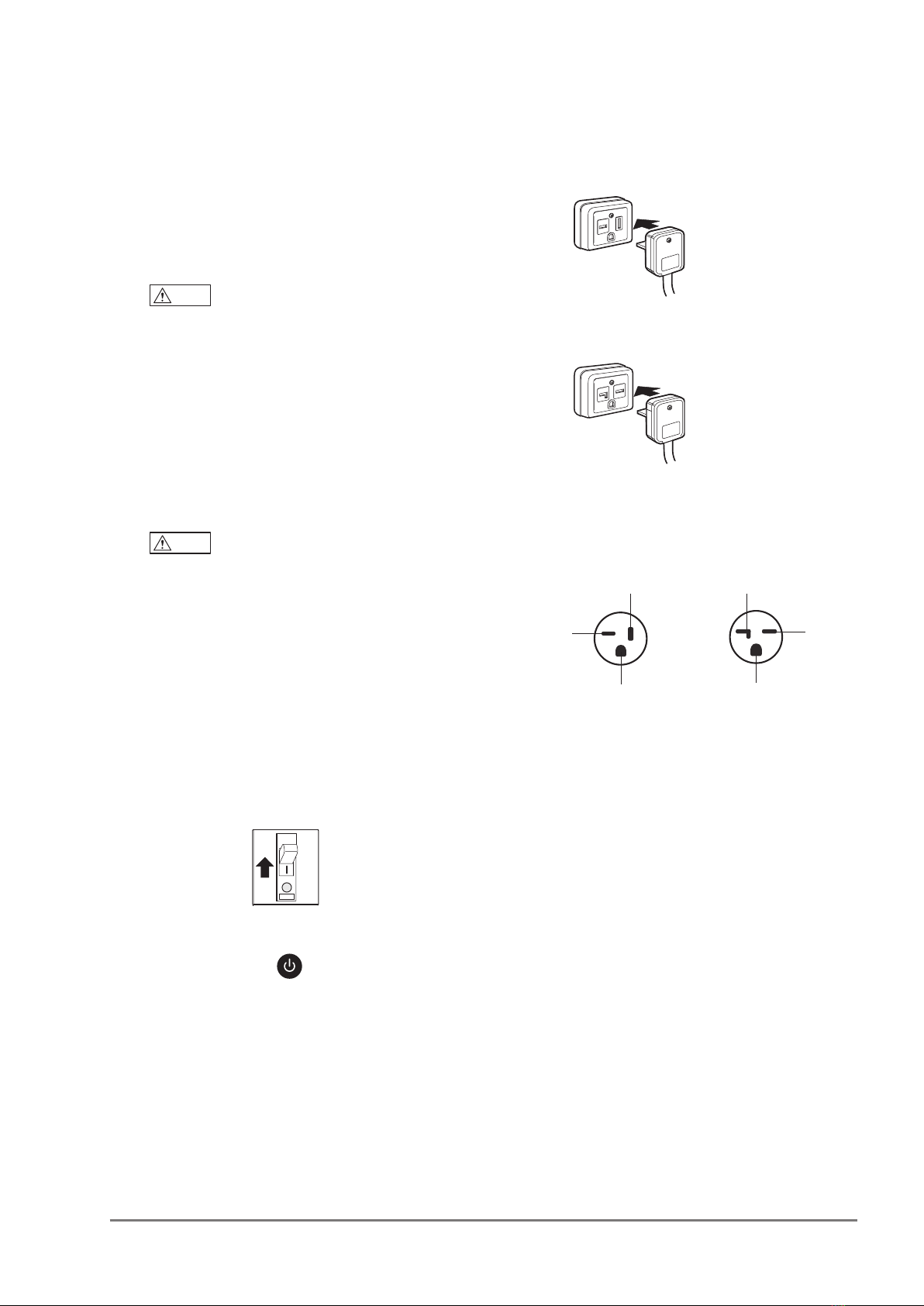

7-6 Plugging in the electrical power code …………………………………………………………………………………………… 17
7-7 Turn ON the circuit breaker and power switch…………………………………………………………………………………… 17
7-8 Set an operating condition with the control unit ………………………………………………………………………………… 17
7-9 Test sealing ………………………………………………………………………………………………………………………… 18
7-10 Finish sealing ……………………………………………………………………………………………………………………… 18
7-11 Turn OFF the circuit breaker and power switch ………………………………………………………………………………… 18
7-12 Inspection after operation ………………………………………………………………………………………………………… 18
8 Control unit setting and operation procedures …………………………………………………… 19
8-1 Operate the machine with a pre-installed operation pattern …………………………………………………………………… 20
8-1-1 Sample operating procedures : “seal only” operation …………………………………………………………………… 21
8-1-2 Sample operating procedures : “manual vacuum + sealing” operation ………………………………………………… 22
8-2 Register sample operation patterns ……………………………………………………………………………………………… 24
8-2-1 Sample case: how to register the “seal only” operation ………………………………………………………………… 25
8-2-2 Sample case: how to register the “vacuum (timer) + seal” operation …………………………………………………… 26
8-3 Explanation of the terms …………………………………………………………………………………………………………… 27
8-4 How to set the control unit ………………………………………………………………………………………………………… 28
8-4-1 Seal counter ………………………………………………………………………………………………………………… 29
8-4-2 Select a desired operation number ………………………………………………………………………………………… 29
8-4-3 Delete a registered operation pattern ……………………………………………………………………………………… 29
8-4-4 Select / Enter / Change the sealing method ……………………………………………………………………………… 30
8-4-5 Set the heating temperature ………………………………………………………………………………………………… 30
8-4-6 Set the heating time ………………………………………………………………………………………………………… 31
8-4-7 Set the cooling temperature ………………………………………………………………………………………………… 31
8-4-8 Select the vacuum pattern ………………………………………………………………………………………………… 32
8-4-9 Set the vacuum time ………………………………………………………………………………………………………… 32
8-4-10 Set the vacuum level ……………………………………………………………………………………………………… 33
8-4-11 Select the maintenance mode …………………………………………………………………………………………… 33
8-5 Operation procedures ……………………………………………………………………………………………………………… 34
8-5-1 Seal only ……………………………………………………………………………………………………………………… 34
8-5-2 Vacuum (manual) and sealing ……………………………………………………………………………………………… 36
8-5-3 Vacuum (timer) and sealing ………………………………………………………………………………………………… 38
8-5-4 Vacuum (gauge) and sealing………………………………………………………………………………………………… 40
Table of Contents

5

9 Replacing the routine maintenance parts ………………………………………………………… 42
9-1 Slide a lower fluoro glass sheet …………………………………………………………………………………………………… 43
9-2 Replace a fluoro glass sheet …………………………………………………………………………………………………………… 43
9-3 Replace center-dry tape (For double-side heating models) …………………………………………………………………… 44
9-4 Replace a heating element ………………………………………………………………………………………………………… 45
9-5 Replace glass tape (19mm: pressure lever/ 25mm: seal receiving plate) and Sarcon sheet ……………………………… 46
9-6 Replace a silicone rubber (For single-side heating models) ………………………………………………………………… 47
9-7 Replace silicone rubber (For double-side heating models) …………………………………………………………………… 47
9-8 Replace 50mm-width glass tape (For single-side heating models) ………………………………………………………… 48
9-9 Connect and remove tube ………………………………………………………………………………………………………… 49
9-10 Replace the microswitch ………………………………………………………………………………………………………… 49
9-11 Replace a vacuum nozzle ………………………………………………………………………………………………………… 50
9-12 Replace a temperature sensor for FAS-402-CH/ FAS-402-CH-10D ………………………………………………………… 51
9-13 Replace a temperature sensor for FAS-602-CH/ FAS-602-CH-10D ………………………………………………………… 52
10 Specification …………………………………………………………………………………………… 53
Safety measures …………………………………………………………………………………………………………………………… 53
Appearance dimensions drawing ………………………………………………………………………………………………………… 54
11 Specifications of accessories ………………………………………………………………………… 55
Air pump …………………………………………………………………………………………………………………………………… 55
Air parts ……………………………………………………………………………………………………………………………………… 55
Electric parts ………………………………………………………………………………………………………………………………… 55
12 Regular check and maintenance …………………………………………………………………… 56
12-1 Regular check ……………………………………………………………………………………………………………………… 56
12-2 Clean the air filter …………………………………………………………………………………………………………………… 57
12-3 Clean the air filter element ………………………………………………………………………………………………………… 57
13 Electric diagram ………………………………………………………………………………………… 58
13-1 FAS-402-CH (110V)………………………………………………………………………………………………………………… 58
13-2 FAS-402-CH (220V), FAS-402-CH-10D, FAS-602-CH, FAS-602-CH-10D ………………………………………………… 59
14 Piping diagram…………………………………………………………………………………………… 60
15 Common problems and solution …………………………………………………………………… 61
15-1 Error message 1 …………………………………………………………………………………………………………………… 63
15-2 Error message 2 …………………………………………………………………………………………………………………… 64
15-3 Error message 3 …………………………………………………………………………………………………………………… 64
About the maintenance mode …………………………………………………………………………………………………………… 65
16 Exploded view of the maintenance mode ………………………………………………………… 66
Sealing section ……………………………………………………………………………………………………………………………… 66
Inside of the frame cover ………………………………………………………………………………………………………………… 66
Nozzle unit section ………………………………………………………………………………………………………………………… 67
Air unit section ……………………………………………………………………………………………………………………………… 67
Inside of the bottom plate ………………………………………………………………………………………………………………… 67

66

110V 220V
Certificate of inspection, Vacuum pump instruction manual ---- one each.
If the items in package are not same with above list, please contact Van der Stahl Scientific.
Please check the following after opening the package:
- Is the machine model the same as you have ordered?
- Has any damage occurred during shipment?
Please to make sure that all of the accessories described below are included.
Model
Heating element width
5mm 10mm
FAS-402/ 602-CH 5 pcs 5 pcs
FAS-402/602-CH-10D
--- 10 pcs.
These illustrations are not reduced equally.
1 Machines body-----------1pc.
2 Foot switch-----------1pc.
3 Table-----------1pc.
4 Accessories
5 Others
1 Package contents
Before using , to verify that the circuit breaker is in the "OFF" position.
If not so, turn it to the "OFF" before plug in.
Phillips screwdriver -----1pc.
Hexagonal wrench (2.5 mm)
-----1pc.
10/13mm double head wrench
-----1pc.
Glass tape (5m roll, 19mm width)
-----1pc.
For FAS-402/FAS-602-CH-10D
Center dry tape -----1pc.
Power outlet-----1pc.
Heating element
(The accessories set will vary with according to the
machine type. Please refer to the below table.)
Hose band -----1pc. Tridon clamp -----1pc.

77

WARNING
Don't change the position of
the sensors, otherwise the
machine may not work properly
and be dangerous.
W2033-E
W2100
W2016-E
KEEP HANDS
AWAY
Warning - Caution labels are placed in locations where there is a danger of injury to a person or damage to the
machine. Label location details are illustrated below. Please check them before beginning operation. Labels not
readily apparent are indicated by dotted lines.
Bottom Inside the top cover
Nozzle unit
Air unit
2 Warning-caution label location and content
If Warning - Caution labels peel off or are lost, please purchase the proper labels and
place them in the appropriate location.

88

CAUTION NOZZLE
Pay attention to the
nozzle moving forward
or backward during
vacuum. Pinching may
occur.
W2031-E
During packaging, do not place
hand or fingers in the sealing
area. Burns or pinching may occur.
W2041-E
KEEP HANDS
AWAY
CAUTION
HOT
W2125
CAUTION
When the air cock is opened, the seal
part opens automatically. Do not
approach to avoid the danger.
W2035-E
CAUTION
When opening the cover for
maintenance checks,
unplug the machine from
the wall outlet or an
electric shock may occur.
W2072-E
Warning-Caution label location and content (Cont’d)
If Warning - Caution labels peel off or are lost, please purchase the proper labels and
place them in the appropriate location.

9

Warning In an emergency, unplug the power cord
immediately
This sealer incorporates a number of safety devices and is carefully
designed to prevent fires or other malfunctions. However, should all of
the safety devices fail simultaneously, there is a possibility of the fluoro
glass sheet catching fire due to a failure of the heating circuit's tripping
mechanism that results in the heating element overheating. Should
smoke or fire appear from the fluoro glass sheet, immediately turn OFF
the power or unplug the power cord from the outlet.
Warning Confirm proper electric power source
Insert the electric power plug fully into the wall outlet.
Make sure power source has the specified voltage and electric power as
explained in the operating instructions. DO NOT use an extension
cord, as the machine may malfunction or may result in fire. Machine
will malfunction if connected to anything other than the specified
voltage.
Warning Do not insert any metal objects into the sealing
area
Please do not place any metal objects into the sealing area during
operation. This could cause electrocution.
Warning Do not use for packaging liquids
Do not splash water on the machine or use machine for packaging
liquids since machine is not waterproof. There is a danger of
electrocution or malfunction of the machine.
Warning When replacing parts, unplug the power plug
Maintenance of the machine is important. Parts should be replaced in
accordance with the operating instructions. There is a risk of danger if
the parts are not replaced properly. Before replacing parts, unplug the
machine from the power source.
Warning Do not modify the machine
Modification of the sealer or the use of unspecified parts may not only
lead to damage of the machine, but there is also a risk of danger to the
operator. Please do not tamper with the machine. Accidents or damage
caused by modification by the customer is the sole responsibility of the
customer.
3 Operating precautions
For safety operating
110V
specification
220V
specification
110V
specification
220V
specification

10

Caution Do not place hands in the sealing area
With prolonged use, the sealing area will retain heat and become hot.
If you place your fingers in this area, there is a possibility of burns.
Pressing the foot switch will lower the seal lever and pressure is applied
to the seal area. Please be careful not to pinch your fingers to the
sealing area. When two or more operators are involved in the machine
operation, please pay extra attention to avoid accidents.
Warning Do not use parts other than those specified
When replacing parts, always use only specified parts sold through Van
der Stahl Scientific. We are not responsible for malfunctions caused by
the use of unspecified parts.
Warning If the circuit breaker automatically turns to the OFF
position
If the circuit breaker will automatically turn to the OFF position, there
is a possibility of malfunction of the machine such as short circuit.
Do not operate the machine until the cause of the shut down is
ascertained and the problem has been addressed.
Caution Be careful of the vacuum nozzle
A vacuum nozzle comes out automatically in a few seconds after
finishing the operation. Please be careful of the moving nozzle.
If you bring your face or hands close to the sealing area, you can get
hurt with the nozzle. Also if the sealed pouch is left in the sealing area,
the nozzle can heart the packaging content. Please make sure to remove
the pouch when the lever is open.
Caution Do not use in the following places
Do not operate the machine in the places with high humidity and/or
where the water/vapor can spill on the machine. The machine parts may
become rusted. There is a danger of electrocution and/or machine
malfunction due to the insulation failure.
The small particles can also cause the insulation failure, machine
malfunction as well as short circuit. Do not operate the machine in the
dusty locations or avoid packaging the powdery items.

11

Caution Use machine properly
Read the operating instructions carefully and operate sealer correctly.
Accidents or damage caused by misuse of the machine not in
accordance with the operating instructions are the sole responsibility of
the customer.
Caution Printer outlet
The printer outlet is located on the top of the machine frame cover.
It is to be used ONLY when mounting the optional printer (FEP-V-N2).
Do NOT attempt to plug any other electronic devices into this outlet.
Heating temperature should be set at a minimum
Set sealer so that an acceptable seal is completed at the lowest heating
temperature. Excessively high heating temperatures will damage the
fluoro glass sheet, glass tape and other consumables, as well as result in
heating element breakage. This will lead to decreased work productivity
and unnecessary power consumption.
Allow sufficient cooling
With an impulse type sealer, residual heat after the heating cycle has
been completed is dispersed through the pressure lever and machine
frame, allowing the film to set under pressure. Setting the cooling
temperature excessively low will reduce the work efficiency.
Be sure to allow sufficient cooling for each seal cycle.
For smooth operation

12

If there is a malfunction in the temperature sensor
The temperature sensor is designed to monitor and control heating
temperature by directly measuring the temperature of heating element.
Therefore, when the sensor tip is not positioned correctly or the sensor
is disconnected, the machine will show the error message "Poor
heating" and the lever returns to the initial position.
When replacing the consumable parts such as heating element or the
temperature sensor, please be sure to position the temperature sensor
correctly.
When the fluoro glass sheet, silicone rubber becomes
damaged
The fluoro glass sheet, silicone rubber will start to wear with use. Once
they are damaged, it will be difficult to achieve smooth and strong
seals. Thoroughly read how to replace the parts and be careful when
doing so.
Dust in the sealing area
Dust will prevent attainment of a smooth seal. It could also cause
damage to heating element and/or other routine maintenance parts.
Before using the machine, clean the sealing area.
The FAS-402-CH, FAS-602-CH series is an impulse sealer
Do not become alarmed if the sealing area does not become hot after
the power switch is turned to the ON position. The machine has not
malfunctioned.
The sealer uses an impulse method so the heating element will not
become hot just by plugging the unit in or turning the power switch to
the ON position. The heater will only become hot for an instant when
the heating process is in operation. However, after extended periods of
use, the sealing area may become hot.
Run test trials before beginning operation
Depending on the type of film being used, heating / cooling conditions
will differ. Run test trials to find the optimum sealing condition,
especially when trying to find the tightest seal possible.
Other safeguards

13

This sealer is an impulse sealer with sponges located on
the sealing section to secure the nozzle prior to air
removal. The air supplied by air pump drives the valve,
cylinder, and nozzle to complete the sealing.
In addition, the vacuum and air removal is done going
though nozzle suction port.
The selector switch on the panel allows the operator to
choose from three modes of operations: "sealing only"
and "manual vacuum and sealing" and "timer-based
vacuum and sealing".
The operation process is controlled by control panel
and performed just simply by pressing the foot switch.
1The impulse sealer is a machine which sends strong electric current quickly to the thin ribbon heater,
which presses against the film and instantly heat seals the package. Though this machine yields
superior quality sealing, it is not compatible with films thicker than that indicated in the diagram
below, sponge-like sheets, and materials which are not able to withstand high heat.
2Film thickness limits for the FAS-402-CH/FAS-602-CH series are described below. The machine
cannot seal bags which are thicker than that indicated.
The machine may malfunction if you try to exceed the limits of the machine.
Heating method Heater width )LOPWKLFNQHVVWRWDOWKLFNQHVVRISLOHG¿OP
Single-side heating 5mm Less than 0.3mm
Single-side heating 10mm Less than 0.4mm
Double-side heating 10mm Less than 0.5mm

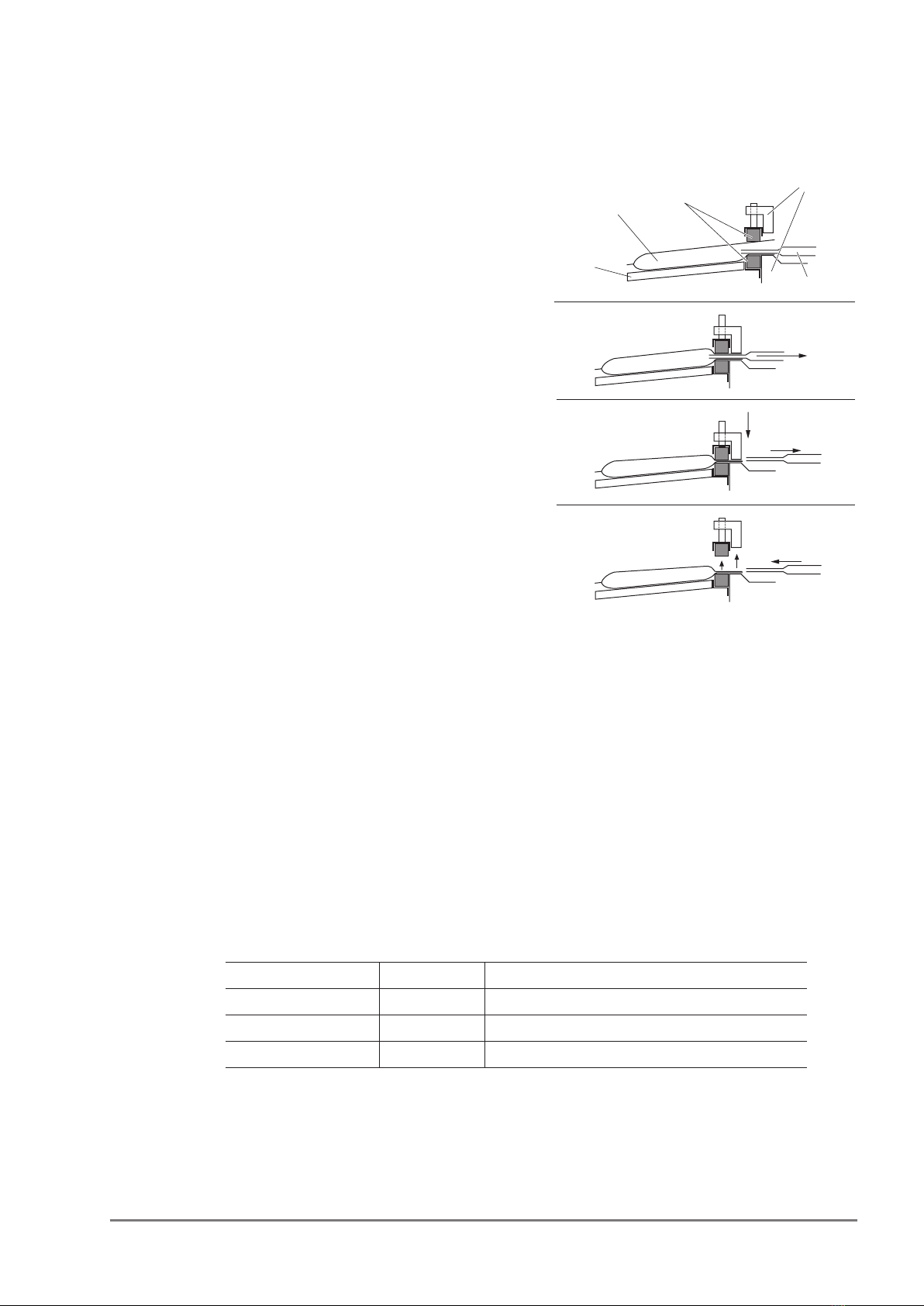

1 Place a pouch
2 Vacuum
3 Sealing
4 Finish
4 Outline of structure
5 Proper operating boundaries for the FAS-402/ 602-CH series
Bag
Sponges Sealing section
Nozzle forward
Table
Vacuum
Press
Nozzle backward
Nozzle forward
Pressure lever raise up

14

6'56
1Power button
3XVKWRWXUQWKHSRZHU21RU2)):KHQFLUFXLWEUHDNHULV21
2 ENT button
Push to select the setting.
3 MENU button.
Push to display the MENU mode.
4 5 6 7 Arrow button
Press to display the each setting display or increase/decrease
the numeric value.
If you hold the button in, the numeric value will increase
or decrease continuously. Use this method when making wide
range changes in settings.
8 Liquid crystal display
Each setting item is shown on the digital display.
Follow the on-screen instruction to complete the setting.
9 Vacuum gauge
Vacuum degree is shown by the level meter.
10 Vacuum lamp
Turns on during vacuuming cycle
11 Heating lamp
The heating lamp turns on during heating cycle
12 Cooling lamp
The cooling lamp turns on during cooling cycle
6 Major parts and function
Control (switch) panel
Frame cover
Vacuum nozzle
Table
Air filter
Foot switch
Circuit breaker (with overheat proof circuit)
Circuit breaker is located
behind the dry filter. For the
detailed location, refer to
“10-2 Appearance dimensions
drawing.”
Control unit
1
2
3
4 5 6789
11
10
Store any foreign
objects accidentally
taken in though the
nozzle in air filter cup.
Open the frame cover for the machine
maintenance.
The air inside the pouch is removed
through the vacuum nozzle.
The nozzle comes out at the
vacuuming process.
Angle of the table is
adjustable.
The circuit breaker automatically switches off
when the overheating or short-circuit occurs.
Press the foot switch to perform the
operation.
12
Regulator
Refer to "7 Proper use of the sealer"
for the detail.
Duct flange
Install the exhaust duct to the duct
flange.

15

a
e
d
c
b
For safety and efficient operation, please set the sealer
in the appropriate place as described below.
Insert the foot switch to the socket located on the side
of machine body. Turn and push the collar to lock it in
place.
The table height and angle can be adjusted by changing
the table mounting position to the angle bars that is
located in front of the machine as in the right
illustration.
1Overlap the holes “a” on the table side and “b”
on the angle bar side and fix the table using a
bolt. The position “b” can be any other holes on
the angle bar at the desired height.
2Choose the lower bolt position either “c” or “d”
on the table side, and fix to “e” on the angle bar
side using a bolt.
When fixed at the hole “c”, table has tilting
angle.
When fixed at the hole “d”, table is in the
horizontal position.
3Securely fix the table with bolts and wing nuts
after adjusting the height and angle.
7 Proper use of the sealer
7-1 Secure the work place
7-2 Install the foot switch
7-3 Adjust the table height and angle
Warning Installing the machine on an unstable or
inclined surface may cause the overturn of
the sealer. Be sure to install the machine
on a flat, horizontal surface and secure the
appropriate workbench.
Warning Do not use the sealer on a wet floor. Do
not expose the sealer to water drops or
vapor. This may cause a failure and/or a
short circuit of the machine.
Warning Using the machine in high humidity will
have the bad effect on machine’s
pneumatic parts. The condensation of
water from the built-in compressor will
increase, and it will shorten the life of the
dry filter.
Collar

16

The nozzle height that comes out from the seal area can
be finely adjusted to the optimum level for each
operation.
1Lift up the frame cover.
2Turn the hollow set screw on the top of the
nozzle supporter with the 2.5mm hexagonal
wrench.
To lower the height : Turn right (clockwise)
To raise the height : Turn left
(counterclockwise)
The separate air source is required to operate the FAS-
402-CH, FAS-602-CH series.
Compatible Compressor
Clean air: 0.75kW, 80L/min, 0.5MPa or greater
Air Piping
Use the air tube or hose.
Adjust the Air Pressure
Pull up an air pressure adjustment knob and turn it clockwise
to increase the air pressure. Push the knob at the optimum
position to set the air pressure, and lock it by fitting into the
grooves.
[Air pressure setting value: 0.35 MPa]
How to Decrease the Air Pressure
Pull up an air pressure adjustment knob and turn it
counterclockwise. At this point the air remaining inside the
piping will not be released and air pressure remains the same.
This residual air can be released by depressing a foot switch.
You will see the air pressure decreases.
Set air pressure to the desired air pressure by turning the knob
clockwise. Push the knob at the optimum position to set the
air pressure, and lock it by fitting into the grooves.
Air Cock
After connecting the air piping, open the air cock and adjust
the air pressure.
After the operation, please make sure to close the cock.
Filter Regulator
7-4 Adjust the nozzle height
7-5 Set up the air source
Please be careful as the pressure lever opens with
the air pressure by opening the air cock.
Caution Insert the air tube or hose fully to the air regulator
connector, and fix it using the hose band.
Hollow set screw
(silver)
Pressure gauge
Air cock
Hose band
Air hose
(not included)
Air pressure
adjustment knob
Air

17

6'56
Be sure to connect the power plug directly into the wall
outlet with adequate current carrying capacity as
described at “10 Specification.” Insert the electric
power plug fully into the wall outlet.
1Turn ON the circuit breaker.
2Turn ON the power switch.
Built-in compressor and cooling fan will run.
Please refer to “8 Control unit setting and operating
procedures” for the detail.
7-6 Plugging in the electrical power
code
7-7 Turn ON the circuit breaker and
power switch
7-8 Set an operating condition with the
control unit
Warning The power consumption varies depending
on each model. Check that the capacity of
the outlet is larger than the power
consumption of your machine, and plug it
directly to the outlet.
Using an outlet with a smaller capacity or
an extension cord will cause a drop in
voltage, resulting in malfunction and even
fire because of overheating of the cable
and outlet. Be sure to use an appropriate
outlet.
Warning When you have changed the standard plug
provided, check the connection.
The wires are connected as shown in the
figure. When the ground wire is not
connected to the correct terminal, a short
on the power source side or an electric
leakage is caused.
220V specification
110V specification
Black
Ground
110V specification 220V specification
White
Ground
White
Black
Green Green

18

6'56
After setting all the conditions at the control unit, hold
the bag by both hands and stretch it tight. Set the bag
between seal levers. (Insert the vacuum nozzle into the
bag if necessary.) Depress the foot switch to proceed the
operation. Please find the most suitable conditions as
you do test sealing.
1After finishing operation, always turn OFF the
power switch.
2Shut off the circuit breaker.
The machine will stop completely.
Compressor and cooling fan will stop running.
Unplug the power outlet in the case of not using the
machine for a while.
After use, please clean up the parts such as dry filter.
Please refer to “9 Replacing the routine maintenance
parts” for the detail.
After the vacuuming -if the vacuuming is set-, heating
and cooling cycle has finished, the pressure lever
returns to the initial position, and the sealing is
complete. If a sealing is not clean enough, adjust the
heating time or heating/cooling temperature. Also adjust
the vacuuming if necessary.
7-11 Turn OFF the circuit breaker and
power switch
7-12 Inspection after operation
7-9 Test sealing
7-10 Finish sealing

1919

6'56
FAS-402(English) Verx.x
(OC)
FAS-402(English) Verx.x
(OF)
8-1 Operate the machine with the pre-installed operation patterns
This chapter explains how to operate the FAS-402-CH, FAS-602-CH series with the pre-installed operation
patterns to give you the general idea of how to operate the machine properly. Please get used to the FAS-
402-CH, FAS-602-CH operation with the pre-installed operation patterns.
8-2 Register sample operation patterns
This chapter explains how to register a new operation patterns with 2 examples. Please try register a new
operation pattern after reading this chapter.
8-3 Explanation of the terms
This chapter explains the commonly used terms on the display or in this manual.
Please refer to the “Explanation of terms” if you are not sure about the particular terms such as “manual
operation” or “impulse sealer.”
8-4 How to set the control unit
This chapter explains about the control unit setting and machine preparation.
8-5 Operation procedures
Maximum 4 operation patterns can be combined to create an optimum sealing method for your application.
This chapter explains the general flow of each operation procedure.
1Turn the circuit breaker on.
2Turn the power switch on.
The below message is displayed for 3 seconds.
8 Control unit setting and operation procedures
This chapter is composed with the following sections:
TIPS Please perform the following steps before going into 8-1 and 8-2.

2020

[01 ]SEALING ONLY
Change(number)
Change(item)
COUNTER xxxxx TEMP
Two operation patterns are pre-installed to the FAS-402-CH, FAS-602-CH series at the time of factory shipment.
* Firstly, please operate the machine with a pre-installed operation pattern to get used to the FAS-402-CH, FAS-
602-CH series.
* The special terms are explained at “8-3 Explanation of terms.”
* For the detail of other operation patterns, please refer to “8-5 Operation procedures.”
8-1-1 Sample operating procedures : “seal only” operation
= Operation No. [01] SEALING ONLY
The seal parameters set at the time of factory shipment:
HT (Heating Temperature) :140ºC/ 280ºF, CT (Cooling Temperature) : 100ºC/200ºF
= Refer to “8-5 Operation procedures >>> 8-5-1 Seal only.”
8-1-2 Sample operating procedures : “manual vacuum + sealing” operation
= Operation No. [02] VAC & SEAL manual
The seal parameters set at the time of factory shipment:
HT (Heating Temperature) : 140ºC/ 280ºF, CT (Cooling Temperature) : 100ºC/200ºF
= Refer to “8-5 Operation procedures >>> 8-5-2 Manual vacuuming and sealing.”
By pushing the / buttons when the following is shown on the screen, you can choose the desired operation
number displayed on the screen.
8-1 Operate the machine with a pre-installed operation pattern
Attention The sealing parameters of the pre-installed operation patterns (heating temperature etc.) can be
changed depending on the customer application. Please refer to “8-4 Reference for control unit
setting and machine preparation” for how to change the seal parameters.
