Van Der Stahl OPL Series User manual

Printed JAN 2017
2nd Edition 2.02E
MICROCOMPUTER-CONTROLLED TEMPERATURE CONTROL
IMPULSE SEALER
OPL SERIES DOUBLE-SIDE
HEATING TYPE MANUAL
www.vanderstahl.com

OPL Double-Side Heating Type Maintenance Manual Ver. 2.02E
2
Thank you for purchasing the 9DQGHU6WDKO6FLHQWLILF,QF OPL series sealer.
Please read all of the instructions before performing the maintenance. Periodic maintenance and
proper operation are necessary to ensure safety when using this impulse sealer.
Keep this manual on hand when operating the sealer.
As a result of research to further improve the OPL series, some details in this manual may
differ from your actual machine. For operating problems or product information, please contact
9DQGHU6WDKO6FLHQWLILF,QF.
9DQGHU6WlKO6FLHQWLILF,QF.
32%R[6ROYDQJ&$86$
Tel:  Fax: 
Email: LQIR#YDQGHUVWDKOFRP
About the warning labels
Foreword
The following marks are used in this manual to easily identify the conditions of risks, damages,
or some tips for the optimal use of your unit.
Caution ・ ・ Minorinjuriesordamagestotheunitmayoccurwhentheinstructionis
ignored.
Warning ・ ・ Severeinjuriesorfatalaccidentsmayoccurwhentheinstructionis
ignored.
Danger ・ ・ Criticalinjuriesorfatalaccidentswillalmostcertainlyoccurwhenthe
instructionisignored.
Attention ・・ ImportantNotesandRestrictions-Readthedirectionsinordertoavoid
misuseoftheunit.
TIPS ・・ GreatTipsandReferenceswhenusingtheunit-Highlyrecommend
readingthroughtheinformation.

OPL Double-Side Heating Type Maintenance Manual Ver. 2.02E
3
Replacing the routine maintenance parts ………………………………………………………………… 4
1 Preparation for parts replacement …………………………………………………………………………………………………… 4
2 How to shift fluoro glass sheet ……………………………………………………………………………………………………… 5
3 Heating element replacement ……………………………………………………………………………………………………… 6
4 Glass tape and Sarcon sheet replacement ………………………………………………………………………………………… 8
5 Silicone rubber replacement ………………………………………………………………………………………………………… 9
Table of Contents

OPL Double-Side Heating Type Maintenance Manual Ver. 2.02E
4
Daily maintenance or replacement of parts at an early stage can prevent the machine from being damaged,
and keeps the machine at the optimum condition. Replace parts according to the following directions in
order to maintain your machine in optimum operating condition.

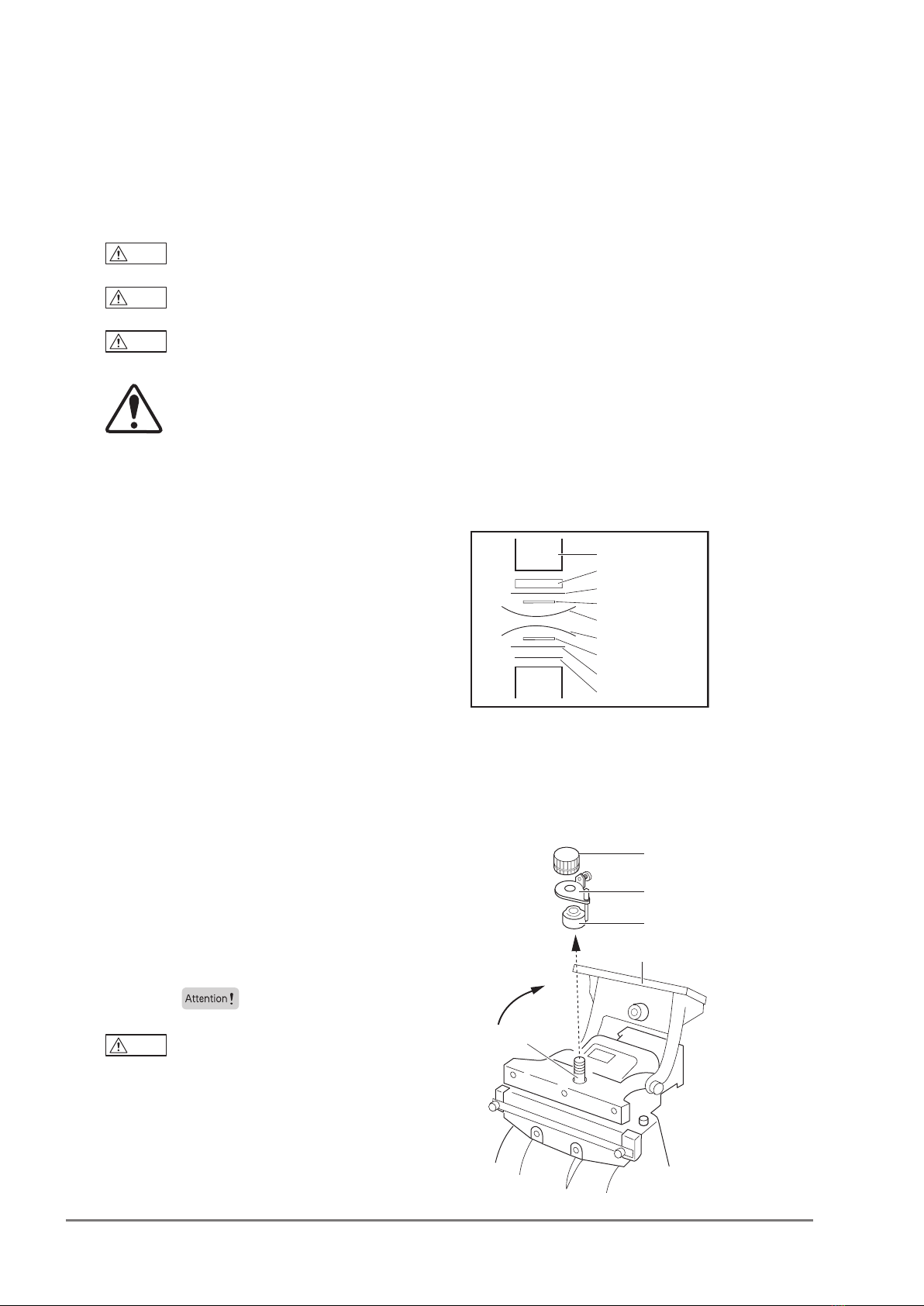

The sealing section consists of the parts as in the
illustration below. When replacing parts, be careful to
arrange the parts exactly in the same order.
󱷦Before replacing parts
When replacing parts, lift up the pressure lever for
easier replacement.
How to lift up the pressure lever
Turn the pressure adjusting nut at the center of the
pressure lever fully counterclockwise, and remove the
pressure adjusting nut. Lift up the pressure lever. For
the installment method, please refer to OPL series
operating instructions “10-1 Seal pressure adjustment
method>>> Attention .”
Replacing the routine maintenance parts
Structure of the sealing section
1 Preparation for parts replacement
Pressure lever
Silicone rubber(white)
Glass tape
Sarcon sheet
Heating element
Glass tape
Fluoro glass sheet
Fluoro glass sheet
Heating element
Pressure adjusting nut
Small lever
Pressure rubber
Pressure lever
Sliding shaft
Warning
Warning
Warning
Always unplug the power plug before replacing parts. There is a danger of electrocution if it has
been done without unplugging.
Follow the directions on this manual when replacing parts. Replacing parts in the way ignoring this
manual could cause malfunction of the machine as well as electrocution and fire.
Always use only specified parts sold through Van der Stahl Scientific. Unspecified parts may cause
malfunction of the machine.
Always unplug the machine before maintenance.
Warning When the pressure lever is lifted up, you
can activate the microswitch by clicking it
with a thin stick, etc. Do not activate the
microswitch as it will start heating and may
result in fire if the plug is not unplugged.
Please refer to warning of OPL series
operating instructions“9-7 Microswitch
replacement.)

OPL Double-Side Heating Type Maintenance Manual Ver. 2.02E
5
Fluoro glass sheet is either sold individually or included
in the maintenance parts kit. 25-30cm of extra fluoro
glass sheet is rolled on the roll bar.
Essential tools: Scissors, a Philips screwdriver
Replace when: The fluoro glass sheet burns, or when
the seal becomes messy.
󱷦
Lower fluoro glass sheet
1Loosen two black plastic nuts at the front side
of the machine to remove (a) lower fluoro glass
sheet holding plate.
2Loosen two black plastic nuts that fix (b) fluoro
glass sheet roll bar fastening plates so (c) fluoro
glass sheet roll bar can be moved. Slide the
fluoro glass sheet toward you.
3Cut the damaged part of the fluoro glass sheet
using scissors.
4Insert the edge of the fluoro glass sheet between
(a) lower holding plate and fluoro glass sheet
holder support.
Fix (a) lower holding plate with black plastic
nuts.
5Roll up the fluoro glass sheet to (c) roll bar so it
does not get wrinkled.
6Tighten the black plastic nuts to secure (c) roll
bar with (b) roll bar fastening plates.
󱷦
Upper fluoro glass sheet (For OPL-200,
OPL-300 double-side heating type)
1Loosen the screws that fix (a) upper fluoro glass
sheet holding plate and slid off the edge of the
fluoro glass sheet.
2Loosen the screws of (b) fluoro glass sheet
holding brackets so the fluoro glass sheet roll
bar can be moved. Slide the fluoro glass sheet
toward you.
3Cut the damaged part of the fluoro glass sheet
using scissors.
4Insert the edge of the fluoro glass sheet between
(a) upper holding plate and pressure lever and
tighten the screws loosened at 1to fix the fluoro
glass sheet edge.
5 Roll up the fluoro glass sheet to the fluoro glass
sheet roll bar so it does not wrinkled.
6Tighten the screws of (b) holding brackets to
secure the fluoro glass sheet roll bar.
2 How to shift fluoro glass sheet
Plastic nut (black)
Plastic nut (black)
(a) Fluoro glass sheet
holding plate (lower)
(b) Fluoro glass sheet
roll bar fastening plate
(c) Fluoro glass sheet
roll bar
(a) Fluoro glass sheet
holding plate (upper)
Fluoro glass sheet
Pressure lever
(b) Fluoro glass sheet
holding bracket
Pull out

OPL Double-Side Heating Type Maintenance Manual Ver. 2.02E
6
Electrodes that mount the heating element consist of
parts as in the right illustration.
Essential tools: Philips screwdriver
Replace when: The heating element breaks,
unevenness is generated, or when the
seal becomes messy.
The heating element is either sold individually or
included in the maintenance parts kit.
󱷦
Upper fluoro glass sheet (For OPL-450,
OPL-600 double-side heating type)
1Loosen two white plastic nuts on the backside
of pressure lever so (a) fluoro glass sheet roll
bar can be moved.
2 Loosen the screws that fixes (b) upper fluoro
glass sheet holding plate. Slide the fluoro glass
to the direction of arrow indicated in the right
illustration.
3Cut the damaged part of the fluoro glass sheet
using scissors.
4Insert the edge of fluoro glass sheet between (b)
upper holding plate and pressure lever. Tighten
the screws loosened at 2to fix the fluoro glass
sheet edge.
5Roll up the fluoro glass sheet to (a) roll bar so it
does not wrinkled.
6Tighten the white plastic nuts to secure (a) roll
bar with (c) fastening plates.
3 Heating element replacement
Electrode mounding bracket
Electrode plate
Electrode plate spring
Electrode cover
Screw A
Screw C
(M4x6)
Screw B
Screw D
Plastic nut (white)
Pressure lever
(b) Fluoro glass sheet
holding plate (upper)
(a) Fluoro glass
sheet roll bar
(c) Fluoro glass sheet
fastening plate
Terminal cover
Mounted only to the
single-side heating
models.
Warning If you loose the screw C, do not substitute
ones longer than the screw C (M4x6) as
there is a danger of short circuit by the
longer screw touching screw D.
Warning When replacing the heating element,
replace the glass tape and Sarcon sheet
as well if they are appear to be damaged.
If they are damaged and cannot properly
insulate the heating element from the body
frame, the short circuit may result.
TIPS The heating element can be replaced
without removing the electrode cover.

OPL Double-Side Heating Type Maintenance Manual Ver. 2.02E
7

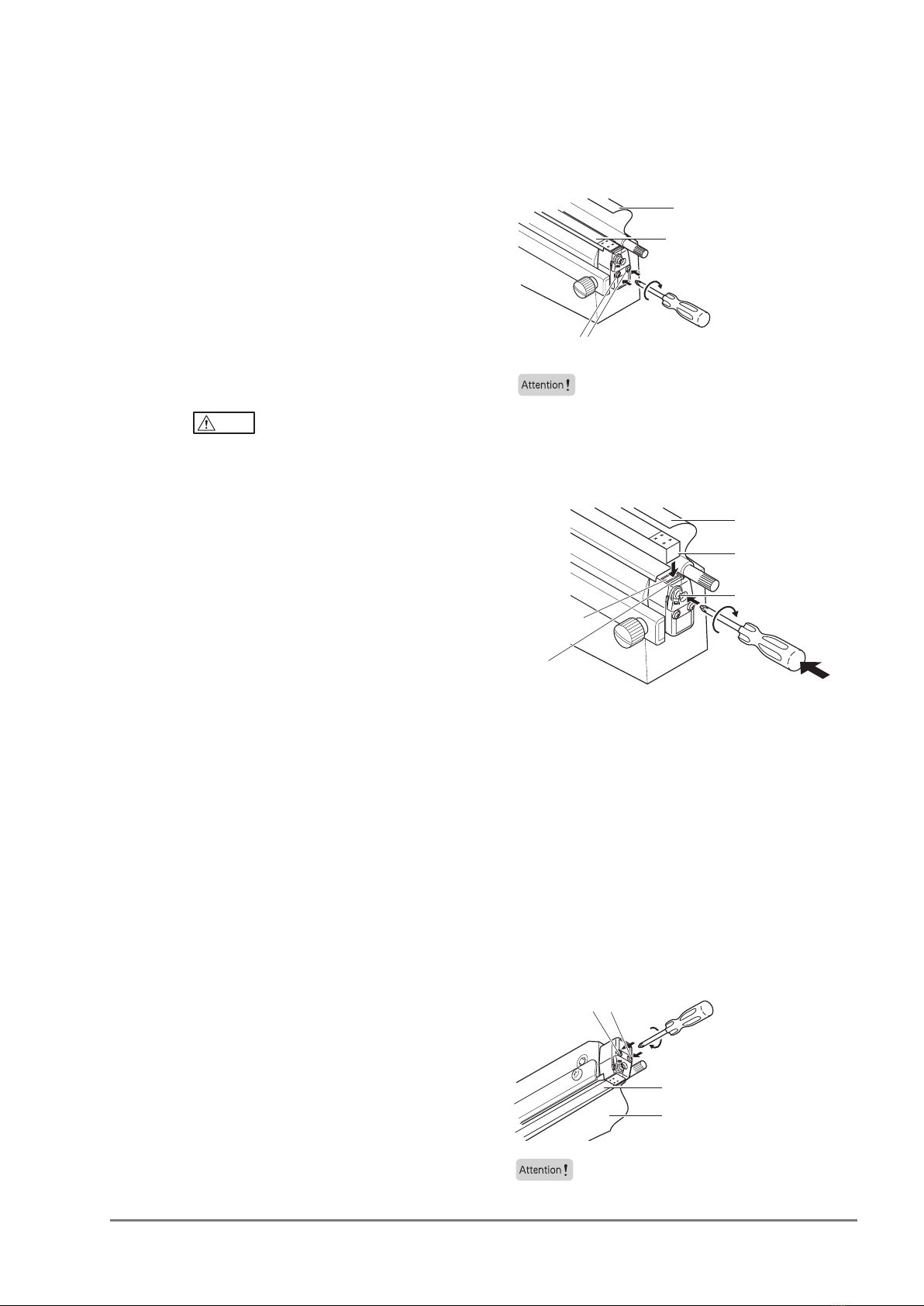

1Remove the fluoro glass sheet. (Refer to “2 How
to shift fluoro glass sheet.”)
2Loosen the screw A of both electrodes with a
Philips screwdriver, and remove the terminal
covers. The illustration on the right describes
the electrode after the terminal cover is
removed.
3Loosen screw B of both electrodes to loosen the
tension of the heating element. It is not
necessary to remove the electrode covers.
4Insert a Philips screwdriver into the hole of the
electrode cover and loosen screw C. The heating
element can be removed.
5When mounting the new heating element, insert
each terminal between the electrode plate and
electrode plate spring. While pushing down the
terminal with your fingers so it stays in place,
tighten the screw C with a Philips screwdriver.
6Tighten the screw B loosened at the procedure 3
so the heating element is stretched tight. When
the screw B is not tightened enough, the heating
element will not be stretched tight enough,
which may result in damaging the heating
element.
7Fix the terminal covers to the electrodes with
screw A.
1Remove the fluoro glass sheet. (Refer to “2 How
to sift fluoro glass sheet.”)
2Loosen the screw B of both electrodes with a
Philips screwdriver, and remove the terminal
covers. The illustration on the right describes
the electrode after the terminal cover is
removed.
󱷦Lower heating element replacement
(for all models)
󱷦Upper heating element replacement
(for double-side heating models)
Caution Without loosening the screw B, the
heating element will be kept
stretched tight. Thus the heating
element terminal cannot be inserted
between the electrode plate and
plate spring.
Heating element terminal
Screw C
Electrode plate
spring
Electrode plate
Fluoro glass sheet
Turn while pushing
Turn
Screw B
Heating element
Fluoro glass sheet
Screw B
Heating element
Fluoro glass sheet
Turn
The above illustration shows ribbon
heating element. The replacement
procedure is the same as for the
braided heating element.
Attention
The above illustration shows ribbon
heating element. The replacement
procedure is the same as for the
braided heating element.
Attention

OPL Double-Side Heating Type Maintenance Manual Ver. 2.02E
8
3Insert a Philips screwdriver into the hole of the
electrode cover and loosen screw C. The heating
element can be removed.
4When mounting a new heating element, insert
each terminal between the electrode plate and
electrode plate spring. While pushing down the
terminal with your fingers so it stays in place,
tighten screw C with a Philips screwdriver.
5Tighten the screw B loosened at the procedure 2
so the heating element is stretched tight. When
the screw B is not tightened enough, the heating
element will not be stretched tight enough,
which may result in damaging the heating
element.
Essential tools: Scissors, Philips screwdriver
Replace when: The heating element breaks often, the
seal becomes messy, etc.
The glass tape and Sarcon sheet are either sold
individually or included in the maintenance parts kit.
1Carefully read the respective replacement
instructions on the fluoro glass sheet and
heating element and remove all of them.
2Completely remove the glass tape and Sarcon
sheet.
4 Glass tape and Sarcon sheet
replacement
Screw C
Electrode plate spring
Electrode plate
Heating element terminal
Turn while pushing
Glass tape
Sarcon sheet
Electrode
Adhere the glass tape over the Sarcon sheet.
About 5mm
About 2mm
About 5mm
About 2mm
Seal length
Attention Applying the Sarcon sheet and
glass tape to a surface with
adhesive residues will negatively
affect the sealing surface.
Caution Without loosening the screw B, the
heating element will be kept
stretched tight. Thus the heating
element terminal cannot be inserted
between the electrode plate and
plate spring.

OPL Double-Side Heating Type Maintenance Manual Ver. 2.02E
9
Essential tools: Industrial-purpose alcohol (Ethanol)
Replace when: The seal becomes messy, etc.
The silicone rubber is either sold individually or
included in the maintenance parts kit.
1Remove the damaged (old) silicone rubber.
2Using an industrial purpose alcohol, etc.,
completely remove the adhesive residues
remaining on the metal portion of the pressure
lever.
3Adhere the new silicone rubber starting from
the edge.
3Cut the new Sarcon sheet 2mm longer than the
seal area for left and right sides and adhere it to
the lever.
4Adhere the glass tape over the Sarcon sheet so it
covers the electrode about 5mm.

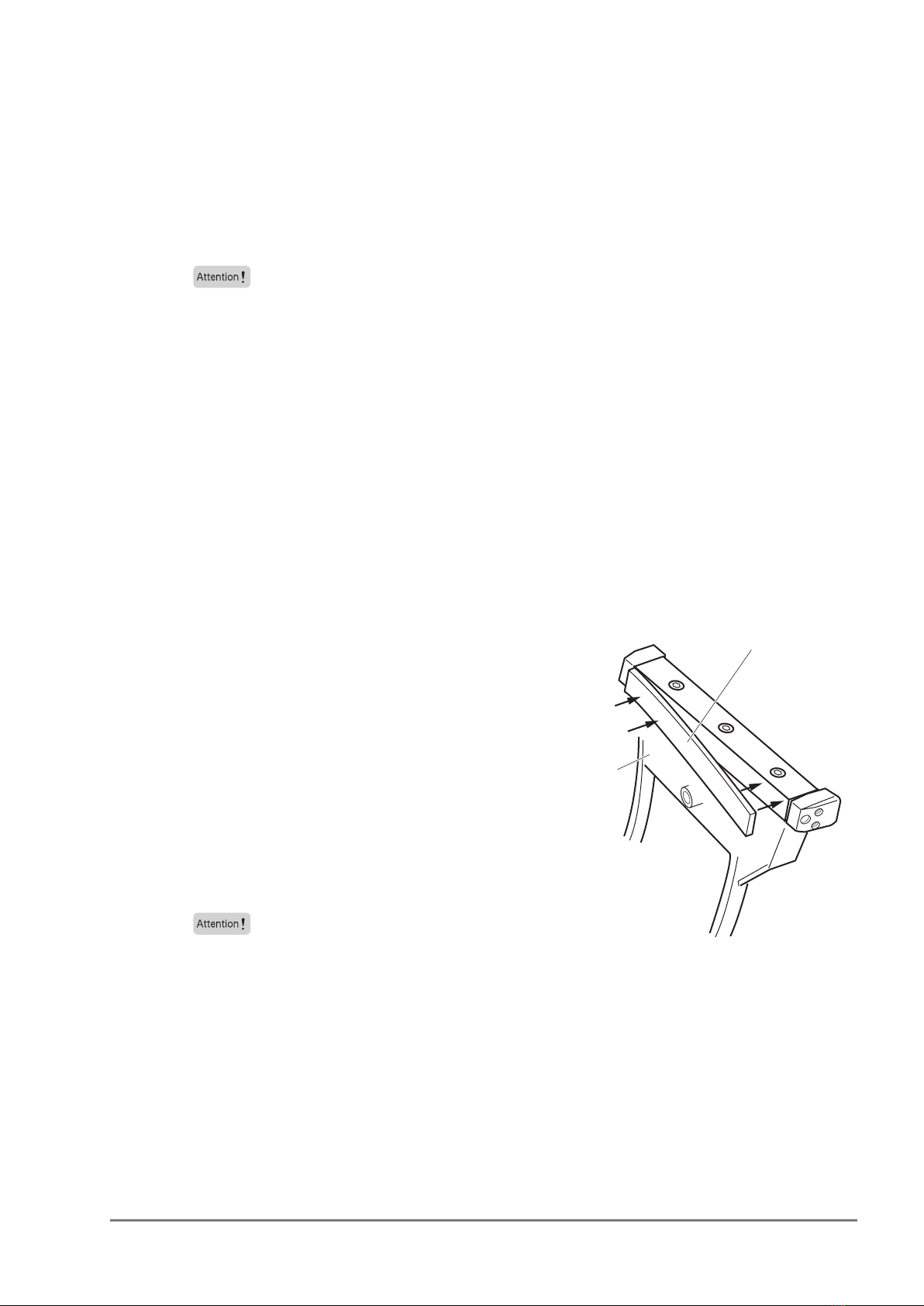

5 Silicone rubber replacement
Silicone rubber
Pressure lever
Adhere from
the edge
Attention If the adhesive of the Sarcon sheet
is weak when replacing the glass
tape, please replace the Sarcon
sheet as well.
Attention Adhere the silicone rubber carefully
as it cannot be reapplied.

Y6082E JAN20172ndEdition
OPL Double-Side Heating Type Maintenance Manual Ver. 2.02E
Represented by
1652 Plum Lane,
Redlands, CA 92374
800-550-3854
www.vanderstahl.com
