Van Der Stahl V-301 G Series User manual

Printed APR 2016
2nd Edition 2.01E
TABLETOP VACUUM AND GAS-FLUSHING
IMPULSE SEALER
V-301 G SERIES
OPERATING INSTRUCTIONS
www.vanderstahl.com
Single
A TYPE
Double
B TYPE

2

Please make sure to follow the below instructions when repacking the machine.
1 Do Not transport the machine with the nozzle placed between the upper and lower levers. Please make
sure that the nozzle is in back position.
2 When you transport the machine, use the packing materials that came with your machine. For how to set
each packing material, please refer to the below illustration.
Please do NOT throw out the packing materials for transportation.

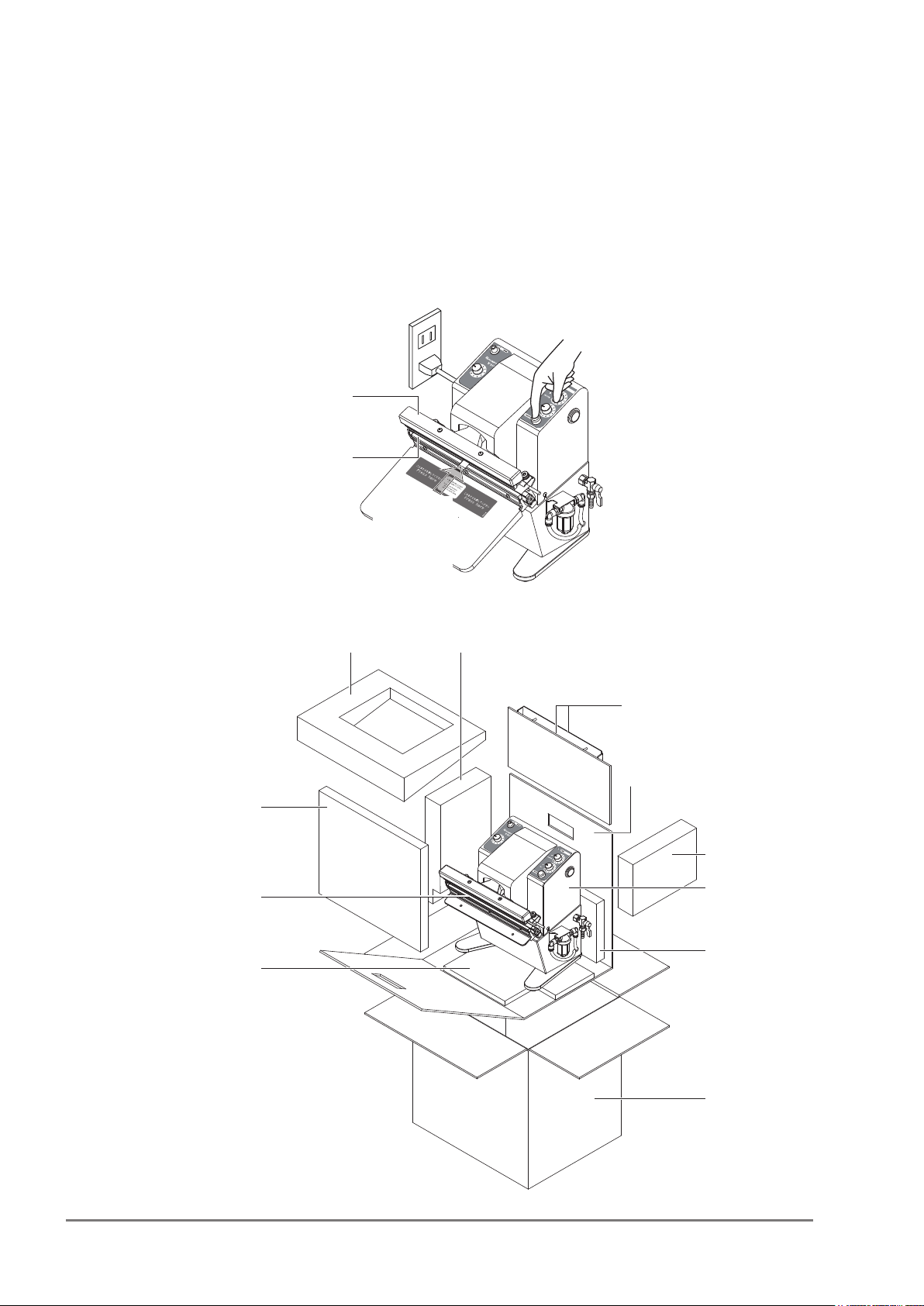

How to repack the V-301G for transportation
Before transportation
How to pack the machine
Pressure lever
󰴤Insert the power
plug into the
wall outlet.
󰴥Push the nozzle IN/
OUT button so the
nozzle withdraws.
󰴦Please make
sure that the
nozzle is in the
back position,
not in between
the levers.
Holder
Front packing
Packing (lever)
Cardboard (bottom
Top packing Left packing
Partition board
Table
Operating instruction
Accessories
Cardboard with handle
Right packing
Rear packing
V-301G (machine)
Packing case


3










Before using, always verify the voltage specification of your particular unit and operate it at the
correct voltages. Please note the following.
1 The voltage specification of your unit is listed on the label which displays the serial
number. This label can be found on the machine body.
2 Please confirm the plug configuration on your specific unit. The explanations and
illustrations in this operator's manual utilize the plug configurations most common in
Japan.
Thank you for purchasing the V-301G series sealer.
Please read all of the safety and operating instructions before operating this machine.
Periodic maintenance and proper operation are necessary to ensure safety when using this
impulse sealer. Keep this manual on hand when operating this sealer.
V-301G series controls heating time by dial setting on the control panel. Also sufficient cooling
time and pressure adjustment produce beautiful sealing performance. As a result of research to
further improve the V-301G series, some details in the operating instructions may differ from
your actual machine. For operating problems or product information, please contact your local
dealer.
Foreword
This manual is designed to cover machines of various voltages and
plug configurations
About the warning labels
Warning Voltages and plug configurations differ according to various worldwide specifications.
Always verify those of your particular unit before beginning operation. Connecting the
power cord to an outlet of a different specification is extremely hazardous.
The following marks are used in this manual to easily identify the conditions of risks, damages,
or some tips for the optimal use of your unit.
Caution   

Warning   

Danger   

Attention  

TIPS  


4

How to repack the V-301G for transportation……………………………………………………………… 2
1 Specification ……………………………………………………………………………………………… 6
2 Package contents ………………………………………………………………………………………… 6
3 Replacement parts ………………………………………………………………………………………… 7
4 Proper use of the sealer ………………………………………………………………………………… 7
5 Warning-caution label location and content ………………………………………………………… 8
6 Operating precautions …………………………………………………………………………………… 9
For safety operation…………………………………………………………………………………………………………………………… 9
For smooth operation ……………………………………………………………………………………………………………………… 11
Other safeguards …………………………………………………………………………………………………………………………… 12
7 Major parts and function ……………………………………………………………………………… 13
8 Proper use of the sealer ……………………………………………………………………………… 14
8-1 Securing the machine ……………………………………………………………………………………………………………… 14
8-2 Table attachment …………………………………………………………………………………………………………………… 14
8-3 How to connect a gas-cylinder to V-301G series ……………………………………………………………………………… 14
8-4 Plugging in the electrical power cord……………………………………………………………………………………………… 15
8-5 Power switch ON …………………………………………………………………………………………………………………… 15
8-6 Seal parameter settings …………………………………………………………………………………………………………… 15
8-6-1 Setting the heating timer …………………………………………………………………………………………………… 15
8-6-2 Selecting operation mode …………………………………………………………………………………………………… 16
8-6-3 Setting the vacuum and gas-flush timers ………………………………………………………………………………… 16
8-7 Forward a nozzle …………………………………………………………………………………………………………………… 17
8-8 Place a pouch to the seal area …………………………………………………………………………………………………… 17
8-9 Press down on a table …………………………………………………………………………………………………………… 17
8-10 Start/stop vacuuming and gas-flushing operation ……………………………………………………………………………… 18
8-11 Press a table further down to seal ………………………………………………………………………………………………… 18
8-12 Take sufficient cooling time………………………………………………………………………………………………………… 19
8-13 The finished seal …………………………………………………………………………………………………………………… 19
8-14 Power switch OFF ………………………………………………………………………………………………………………… 20
8-15 Abort an operation ………………………………………………………………………………………………………………… 20
8-16 Inspection after operation ………………………………………………………………………………………………………… 20
9 Mode setting and operation procedure …………………………………………………………… 21
9-1 Mode setting ………………………………………………………………………………………………………………………… 21
9-2 Detail of work procedures ………………………………………………………………………………………………………… 22
9-2-1 <<Seal only operation>> …………………………………………………………………………………………………… 22
9-2-2 <<Vacuuming + seal>> …………………………………………………………………………………………………… 23
9-2-3 <<Gas-flushing + seal>> ………………………………………………………………………………………………… 25
9-2-4 <<One cycle of vacuuming and gas-flushing + seal>>………………………………………………………………… 27
9-2-5 <<Two cycles of vacuuming and gas-flushing + seal>> ……………………………………………………………… 31
9-2-6 <<Vacuuming · gas-flushing · vacuuming + seal>> …………………………………………………………………… 35
Table of contents


5
10 Replacing the routine maintenance parts ………………………………………………………… 39
10-1 How to shift fluoro glass sheet …………………………………………………………………………………………………… 40
10-2 Heating element replacement (for both ribbon and braided types) …………………………………………………………… 41
󱷦Lower heating element replacement (for both V-301G and V-301G-10DK) ……………………………………………… 42
󱷦Upper heating element replacement (for V-301G-10DK) …………………………………………………………………… 43
10-3 Glass tape and Sarcon sheet replacement ……………………………………………………………………………………… 44
10-4 Silicone rubber replacement ……………………………………………………………………………………………………… 45
10-5 Clean/replace a nozzle …………………………………………………………………………………………………………… 46
10-6 Clean a filter/ replace a filter element …………………………………………………………………………………………… 47
10-7 Clean/replace a nozzle joint ……………………………………………………………………………………………………… 48
10-8 How to remove piping (hose) ……………………………………………………………………………………………………… 49
11 Adjusting seal pressure………………………………………………………………………………… 50
12 Electric diagram ………………………………………………………………………………………… 52
110V ………………………………………………………………………………………………………………………………………… 52
220V ………………………………………………………………………………………………………………………………………… 53
13 Common problems and solution …………………………………………………………………… 54
14 Safety measurement and the error message ……………………………………………………… 56
Exploded view / parts list ……………………………………………………………………………… 57

6

These illustrations are not reduced equally.
Code A type B type
Model name V-301G V-301G-10DK
Power AC 110V or 220V 50/60Hz AC 110V or 220V 50/60Hz
Power consumption 1,050W for 10mm-width heating element
560W for 5mm-width heating element 1,050W
Machine weight 18 kg
Seal dimensions
Effective seal Effective seal length: 300mm
Effective seal width 10mm (When 10mm-widht heating element is installed.)
5mm (When 5mm-widht heating element is installed.) 10mm
Heat timer Dial 1~10 (= 0.1~2.3 seconds)
Vacuum pump
Exhaust speed 10L/min
Ultimate vacuum -58.6 kPa / 320 torr (Acheived vacuuming rate)
Vacuum and gas tmer OFF/ Dial 1 ~ 9 (=0.1~20 seconds) / MANUAL (=continuous mode)
Machine dimensions W 370m m x D 400mm x H 390 mm
NOTE) The exhaust speed and ultimate vacuum represent stand-alone values, before installation to the machine.
The 0 torr of the ultimate vacuum is 0 Pa.
 ※ Width of braided heating element is not stable. Seal width may vary between each braided heating element.
Model Name V-301G V-301G-10DK
5mm-width ribbon heating element 5 pcs.
-
10mm-width ribbon heating element 5 pcs. 2 pcs.
Braided heating element
- 2 pcs.
Please make sure that all of the accessories described below are included.
If not, please contact your dealer.
1 Specification
2 Package contents
Table···1 ea Low pressure rubber hose (3M)···1 ea
Hose band···1 ea
Ribbon heating element
Braided heating element
Philips screwdriver···1 ea
Fexagonal wrench 3mm
···1 ea
Filter element···1 ea


7
Parts Name Sales Unit Maintenance Parts Kit
Ribbon heating element (5mm or 10mm) 10 pcs/set Choice of heating element:
· 5mm ribbon heating element…3 pcs.
· 10mm ribbon heating element…3 pcs.
· Braided heating element …2 pcs.
Braided heating element 5 pcs/set
Fluoro glass sheet 2 sheets 2 sheets
Glass tape W13mm x 5M roll 1 roll —————
Glass tape W13mm x 10M roll 1 roll —————
Glass tape W25mm x 5M roll 1 roll 1 roll
Glass tape W25mm x 10M roll 1 roll —————
Silicone rubber (white) 2 pcs. 1 pc.
Filter element 3 pcs. 2 pcs.
Sarcon sheet 2 pcs. (13mm×320mm) 1pc. (13mm×320mm)
Routine maintenance parts, which will need to be replaced after extensive use, are sold individually as
detailed below. Also the maintenance parts kits that includes all the consumable parts are available.
Replacement parts can be purchased through Van der Stahl Scientific.
1The impulse sealer is a machine which sends strong electric current quickly to the thin ribbon heater,
which presses against the film and instantly heat seals the package. Though this machine yields
superior quality sealing, it is not compatible with films thicker than that indicated in the diagram
below, sponge-like sheets, and materials which are not able to withstand high heat.
2Film thickness limits for the V-301G series are described below. The machine cannot seal bags
which are thicker than that indicated. The machine may malfunction if you try to exceed the limits
of the machine.
Heating method Model Heater width Film thickness
7RWDOWKLFNQHVVRIRYHUODSSLQJ¿OPV
Single side heating V-301G 5mm 0.3mm or less
Single side heating V-301G 10mm 0.4mm or less
Double side heating V-301G-10DK 10mm 0.5mm or less
3 Replacement parts
4 Proper use of the sealer
Attention V-301G and V-301G-10DK use different parts. When you order the parts, please specify the model name.

8

Caution
W2135
UNPLUG BEFORE
PERFORMING
MAINTENANCE.
SHOCK
WARNING
CAUTION
HOT

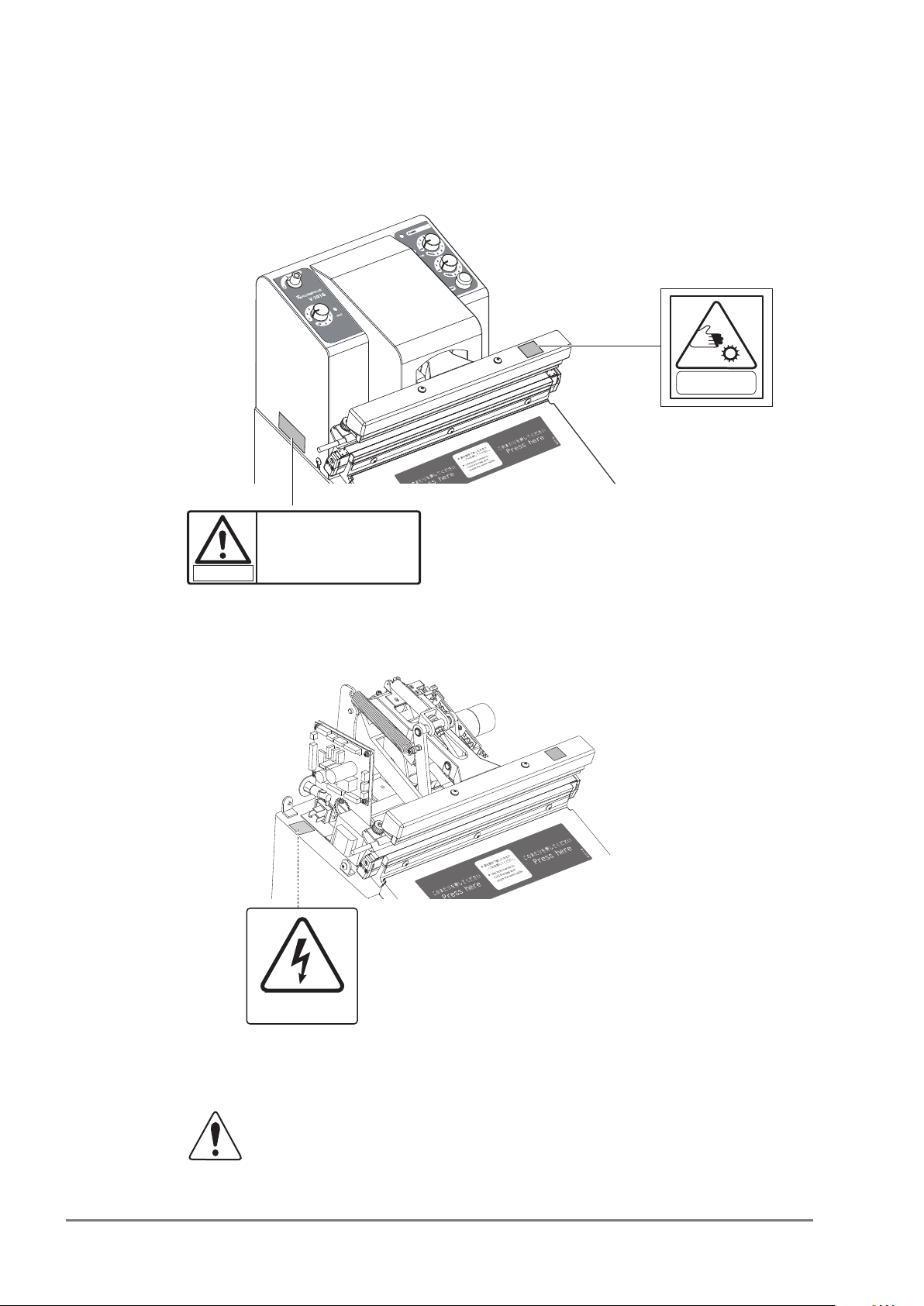

Warning - Caution labels are placed in locations where there is a danger of injury to a person or damage to
the machine. Label location details are illustrated below. Please check them before beginning operation.
Labels not readily apparent are indicated by dotted lines.
5 Warning-caution label location and content
This label is adhered on
the top of pressure lever.
This label is adhered on the side of frame
cover unit.
This label is adhered to the support base
unit. You will see this label when the
frame cover unit is removed.
If Warning - Caution labels peel off or are lost, please purchase the proper
labels and place them in the appropriate location.


9
Warning In an emergency, unplug the power cord
immediately
V-301G series incorporates a number of safety devices and is carefully
designed to prevent fires or other malfunctions.
However, should all of safety devices fail simultaneously, there is a
possibility of fluoro glass sheet catching fire due to a failure of the
heating circuit's tripping mechanism that results in the heating element
overheating. Should smoke or fire appear from the fluoro glass sheet,
immediately turn OFF the power.
Warning When replacing parts, unplug the power plug
Maintenance of the machine is important. Parts should be replaced in
accordance with the operating instructions. There is a risk of danger if
the parts are not replaced properly. Before replacing parts, unplug the
machine from the power source.
Warning Do not use for packaging liquids
Do not splash water on V-301G series or use machine for packaging
liquids since machine is not waterproof.
There is a danger of electrocution or malfunction of the machine.
Warning Do not insert any metal objects into the sealing area
Please do not place any metal objects into the sealing area during
operation. This could cause electrocution.
Warning Confirm proper electric power source
Make sure power source has the specified voltage and electric power as
explained in the operating instructions. Do not use an extension cord, as
the machine may malfunction or may result in fire. Machine will
malfunction if connected to anything other than the specified voltage.
Insert the electric power plug fully into the wall outlet.
Warning Do not let the nozzle suck the liquid
When vacuum packaging the watery (liquid) items, please be careful
not to let the nozzle suck the liquid. The optional large filter will be
required for packaging those items.
6 Operating precautions
For safety operation

10

Warning Do not modify the machine
Modification of V-301G series or the use of unspecified parts may not
only lead to damage of the machine, but there is also a risk of danger to
the operator. Please do not temper with the machine. Accidents or
damage caused by modifications by the customer is the sole
responsibility of the customer.
Caution Do not use in the following places
Do not operate machine in the following places since there is a danger
of malfunction
1 Dusty locations.
2 Locations not within normal temperatures.
3 Locations with highly humidity.
Caution Use machine properly
Read this operating instructions carefully and correctly operate sealer.
Accidents or damage caused by the misuse of the machine, or against
the operating instructions are the sole responsibility of the customer.
Warning If the power switch automatically turns OFF
If heating is not complete within 3 seconds, the power switch will
automatically turn to the OFF position. There is a possibility of the
machine malfunction.
Do not operate the machine until the cause of the shut down is
ascertained and the problem has been addressed.
Caution Do not place hands in the sealing area
With prolonged use, the sealing area will retain heat and become hot. If
you place your fingers in this area, there is a possibility of burns.
In addition, sealing pressure is very strong. Please take sufficient care
not to pinch your fingers.
Caution Be careful of the nozzle
After the sealing process, nozzle comes forward automatically.
Please take sufficient care not to put hand or face close to nozzle,
beside if the sealed pouch is still left on the sealing area, advanced
nozzle might hurt the contents.
Caution When the frame cover is opened
Inside the sealer's body, there are metal plate parts which have sharp
edge.
If the frame cover would be removed for the replacement of parts,
please take care not to be injured.


11
●Heating time should be set at a minimum
Set sealer so that an acceptable seal is completed in the least amount of
heating time. Excessively long heating times (increasing the heat
setting unnecessarily) will damage the fluoro glass sheet, glass tape and
other consumables, as well as result in heating element breakage. This
will lead to decreased work productivity and unnecessary power
consumption.
●Allow sufficient cooling time
Cooling time is important when using an impulse sealer. After the film
is heated, the film must cool with the frame and pressure lever in the
closed position.
Release the table after “beeping” (indication buzzer for seal
completion) sounds. If the table is released before the buzzer, seal
performance will result in poor. Refer to "8-12 Take sufficient cooling
time" for the detail.
●When the fluoro glass sheet, silicone rubber becomes
damaged.
The fluoro glass sheet, silicone rubber will start to wear with use.
Once they are damaged, it will be difficult to achieve smooth and
strong seals. Thoroughly read how to replace the parts and be careful
when doing so.
●To achieve a strong seal
Proper sealing pressure is important in achieving a strong seal. Follow
directions on “11 Adjusting seal pressure” and set accordingly.
●When operating machine for extended periods of time
The machine's temperature will rise upon prolonged use of the
machine. As the temperature of the machine rises, the condition of the
seal will change. Thus, heating time should be shortened and cooling
time should be lengthened accordingly.
●Dust in the sealing area
Dust will prevent attainment of a smooth seal. It could also cause
damage to heating element and / or other routine maintenance parts.
Before using the machine, clean the sealing area.
●When the sponge pad is damaged
The damage on the surface of a sponge pad can cause an air leak during
vacuuming. You may hear the air leakage sound. If so, please remove
the sponge pad and check whether there is any damage on the surface.
If it is damaged, replace to the new one or use the other side with no
damage.
For smooth operation

12

●Run test trials before beginning operation
Depending on the type of film being used, heating / cooling / pressure
strength conditions will differ. Run test trials to find the optimum
sealing condition, especially when trying to find the tightest seal
possible.
●The V-301G series is an impulse sealer
Do not become alarmed if the sealing area does not become hot after the
power switch is turned ON. The machine has not malfunctioned. The
sealer uses an impulse method so that the heating element will not
become hot just by plugging the unit in or turning ON the power switch.
The heater will only become hot for an instant when the heating process
is in operation.
However, after extended periods of use, the sealing area may become
hot.
Other safeguards


13
■The illustaion of V-301G

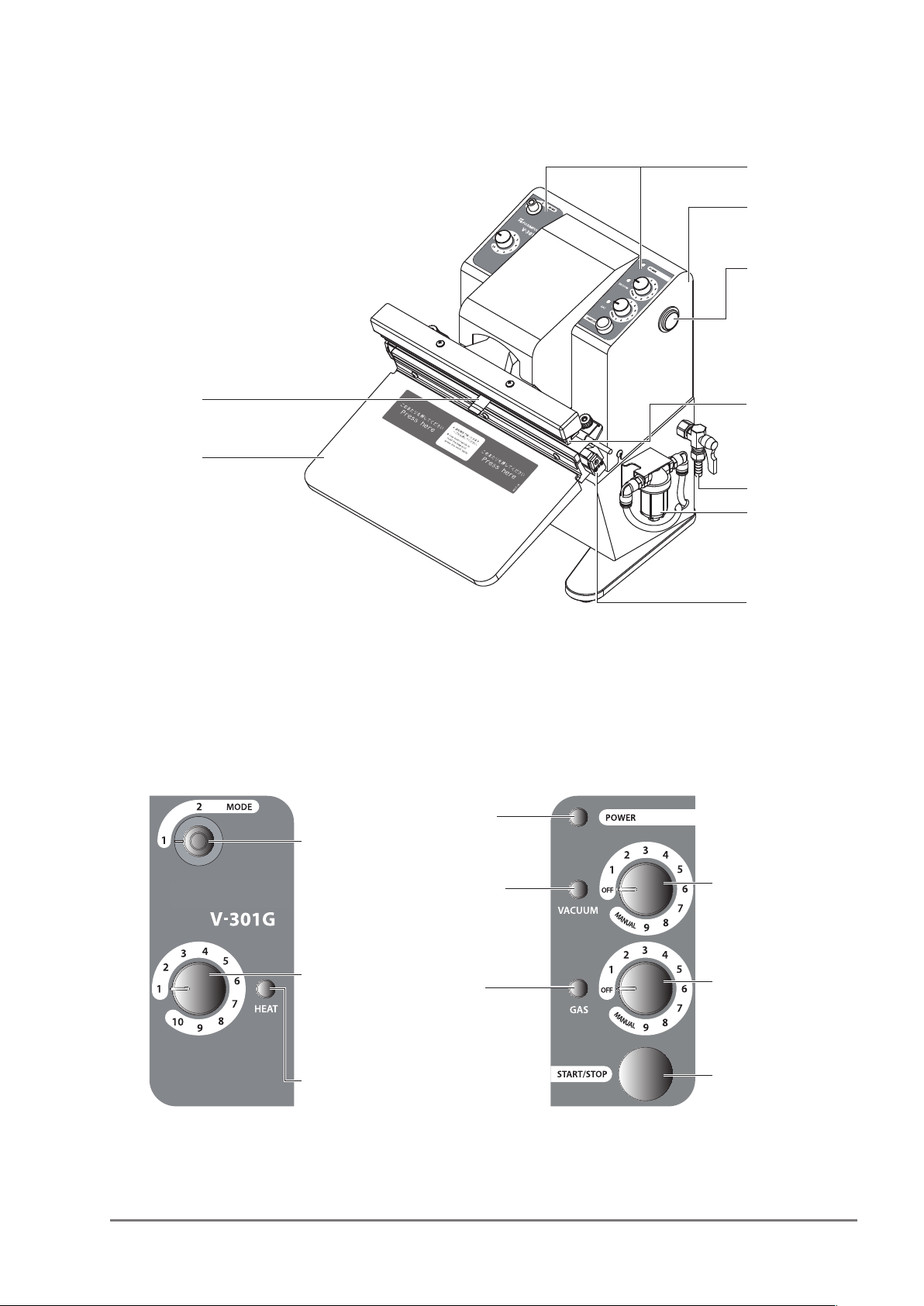

7 Major parts and function
Control Panel
START/STOP button
When the lever is open, the
nozzle moves back and forth by
pressing this button.
When the manual [=continuous]
mode is selected, the vacuuming
or gas-flushing starts/stops by
pressing this botton.
Mode selection switch
You can swith the
operation mode from:
1= 1 cycle of vacuuming
and gas-flushing.
2 = 2 cycles of
vacuuming and gas-
flushing.
Air filter
Gas cock
Body cover
Power switch
Electrode
Push to turn ON the
power. Pushing it again
will turn OFF the power.
Control panel
Nozzle
Gas is inserted into the
bag through this nozzle.
Table
Depress the table to
seal.
Push the area indicated
in the label.
Sponge pad
Works as packing while
gas-flushing.
Power lamp
The light will turn ON
when the machine power
is ON.
Heat lamp
The light will turn ON
during the heating
process.
Gas lamp
The light will turn ON
during the gas-flushing
process.
Vacuum lamp
The light will turn ON
during the vacuuming
process.
Heating timer dial
Adjust the heat timer
according to the
thickness of the bag
thickness and material.
(0.1 ~ 2.3 seconds)
Gas timer dial
Adjust the gas timer according to
the bag size and packaging
content. (Dial 1~9= about 0.1~20
seconds, or manual[=continuous]
mode)
Vacuum timer dial
Adjust the vacuum timer
according to the bag size and
packaging content. (Dial 1~9=
about 0.1~20 seconds, or
manual[=continuous] mode)

14

Use only as described in this manual.
There is a risk of danger and malfunctions may result if the machine is used not in accordance with this manual.
This machine is a desk type sealer. Place the machine on a
flat, horizontal surface and secure an appropriate
workbench.
1Remove the plastic nuts (white) and insert the
screws of the table into the designated holes.
2Fasten the plastic nuts (white) to fix the table
securely.
Please prepare for the regulators to regulate the gas flow
by the user. It is not included in the V-301G series.
1Install the regulators that has the reducing valve
and flowmeter to the gas cylinder.
2The gas cock for providing the gas is located on
the right side of the machine. Install the rubber
tube
3Adjust he gas regulators according to the bag
size.
・Specified flow rate ＝25 l/min
・Standard pressure ＝0.15 MPa
8 Proper use of the sealer
8-1 Securing the machine
8-2 Table attachment
8-3 How to connect a gas-cylinder to
V-301G series
Plastic nut (white)
Holder
Coupler
Hose band
Gas cock
Warning Installing the machine on an unstable or
inclined surface may cause the overturn of
the sealer.
TIPS The coupler size is diameter 9mm.
TIPS About the gas flushing timer, please
refer to “8-6 Seal parameter
settings >>>8-6-3 Setting the
vacuum and gas-flush timers.”


15

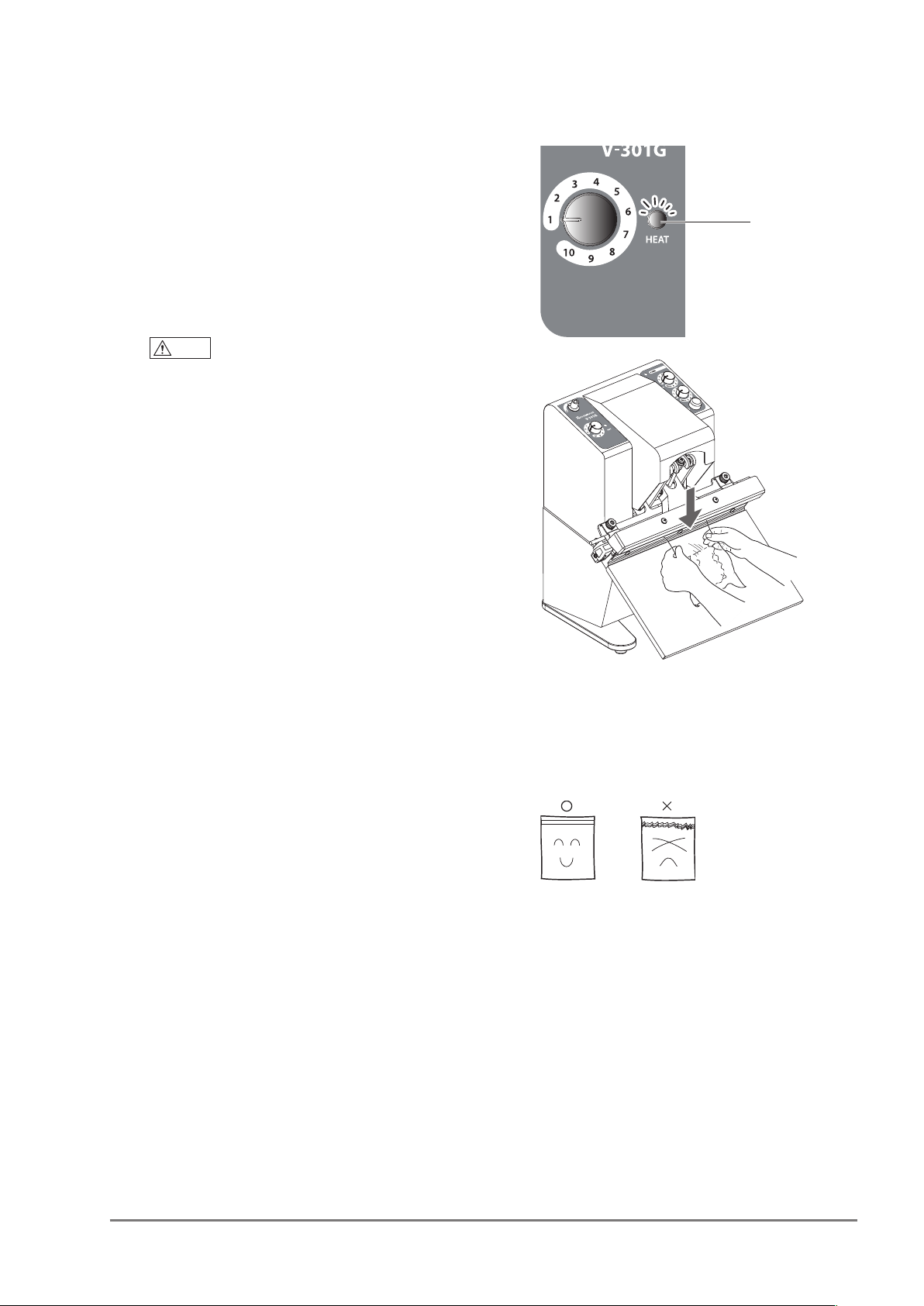

Turn the heating timer dial to set a heat timer.
The bigger the scale number is, the longer the heat time
will be.
[Dial 1 ~ 10 = about 0.1 ~ 2.3 seconds.]
Depending on the film or bag, the required heat time
will differ. Set the heat timer at minimum required to
make a sufficient seal. It will increase the work
efficiency and avoid the unnecessary power
consumption.
The power cord is located on the left side of the
machine, when facing toward it. Make sure the
electrical outlet has adequate current carrying capacity
as described at “1. Specification.” Insert the electric
power plug fully into the wall outlet.
Turn ON the power switch. The power lamp will turn
ON.
Set the heating and gas-flushing time with the timer
unit. The sealing condition will vary depending on the
pouch/ film material, thickness and size. Reset the
sealing condition every time you change the pouch/
film.
8-6-1 Setting the heating timer
8-4 Plugging in the electrical power
cord
8-5 Power switch ON
8-6 Seal parameter settings
Push
Power lamp
Power switch
Heating timer dial
Warning There is a danger of fire if the electrical
power source does not meet proper
specifications.
Warning If the machine is used without taking a
sufficient cooling time explained at “8-12
Take sufficient cooling time,” there is the
danger of fire or burning a fluoro glass
sheet.

16

Reference time for vacuuming and gas-flushing dials
Scale 123456789
Vac/Gas Time (sec) 0.5 2.5 5 7.5 10.5 13 16 18 19

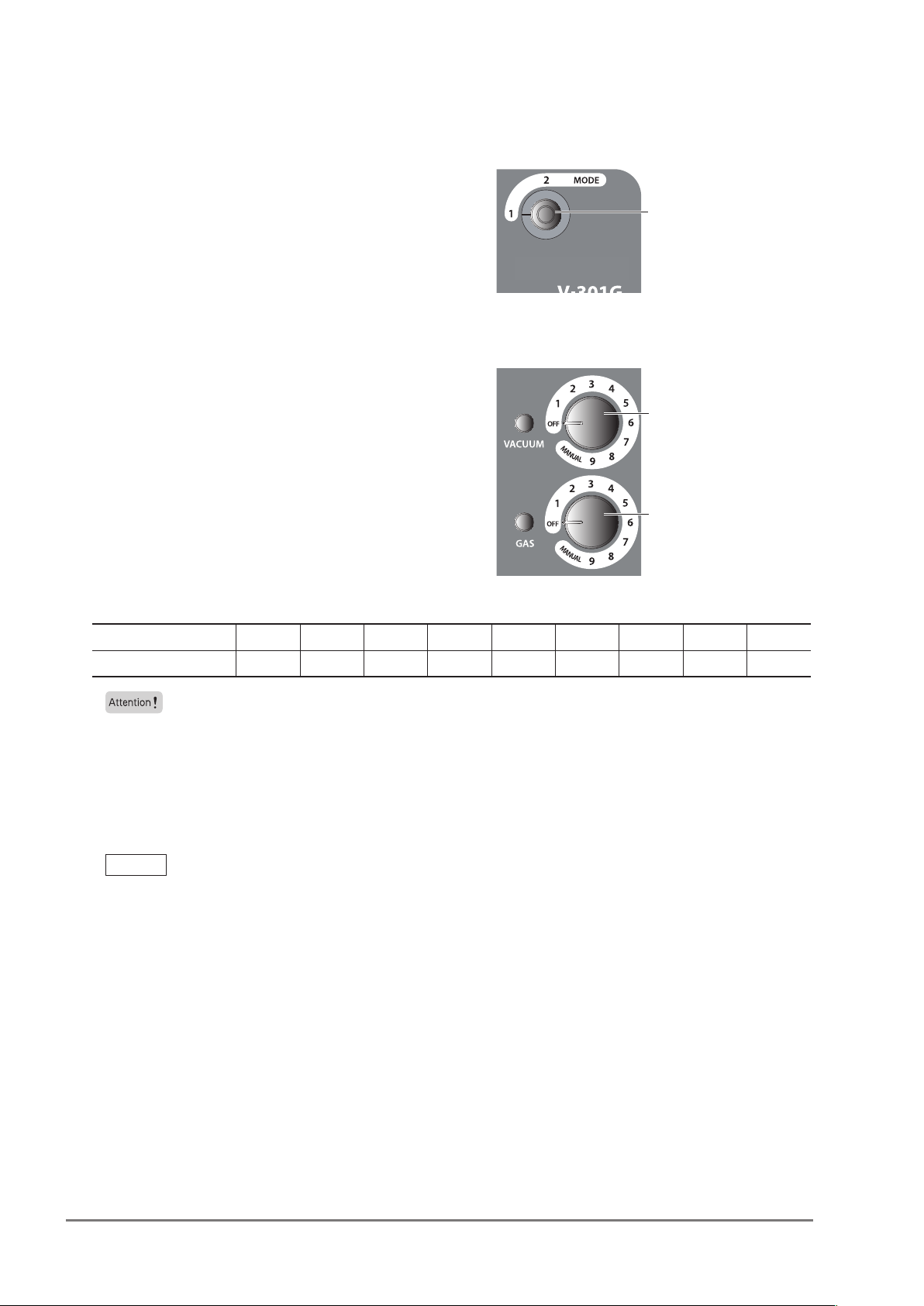

By turning the mode selection switch, you can switch
the operation mode between the followings.
Mode 1: perform one cycle of vacuuming and gas-
flushing.
Mode 2: perform two cycles of vacuuming and gas-
flushing.
Set a vacuum and gas-flushing timers by turning the
respective dials. The bigger the scale number is, the
longer the heat time will be.
[Dial 1 ~ 9 = about 0.1 ~ 20 seconds/ Manual =
continuous operation mode.]
8-6-2 Selecting operation mode
8-6-3 Setting the vacuum and gas-flush
timers
Mode selection switch
Gas timer dial
Vacuum timer dial
Attention When you set a vacuum or gas-flushing
timer to the manual mode, you will hear a
one brief beep. (Also you will hear two
beeps when you cancel a manual mode.)
Under the manual mode, the vacuuming or
gas-flushing operation continues until you
press a START/STOP button.
TIPS For the detail of each operation mode,
please refer to “9 Mode setting and
operation procedure.”


17
Push down on a table with your hands while holding
the pouch/bag until you hear clicking sound. The table
will be locked in intermediate position.
Pressing a START/STOP button will move a nozzle
forward. When the nozzle is in the front position,
pressing a START/STOP button will move a nozzle
backward.

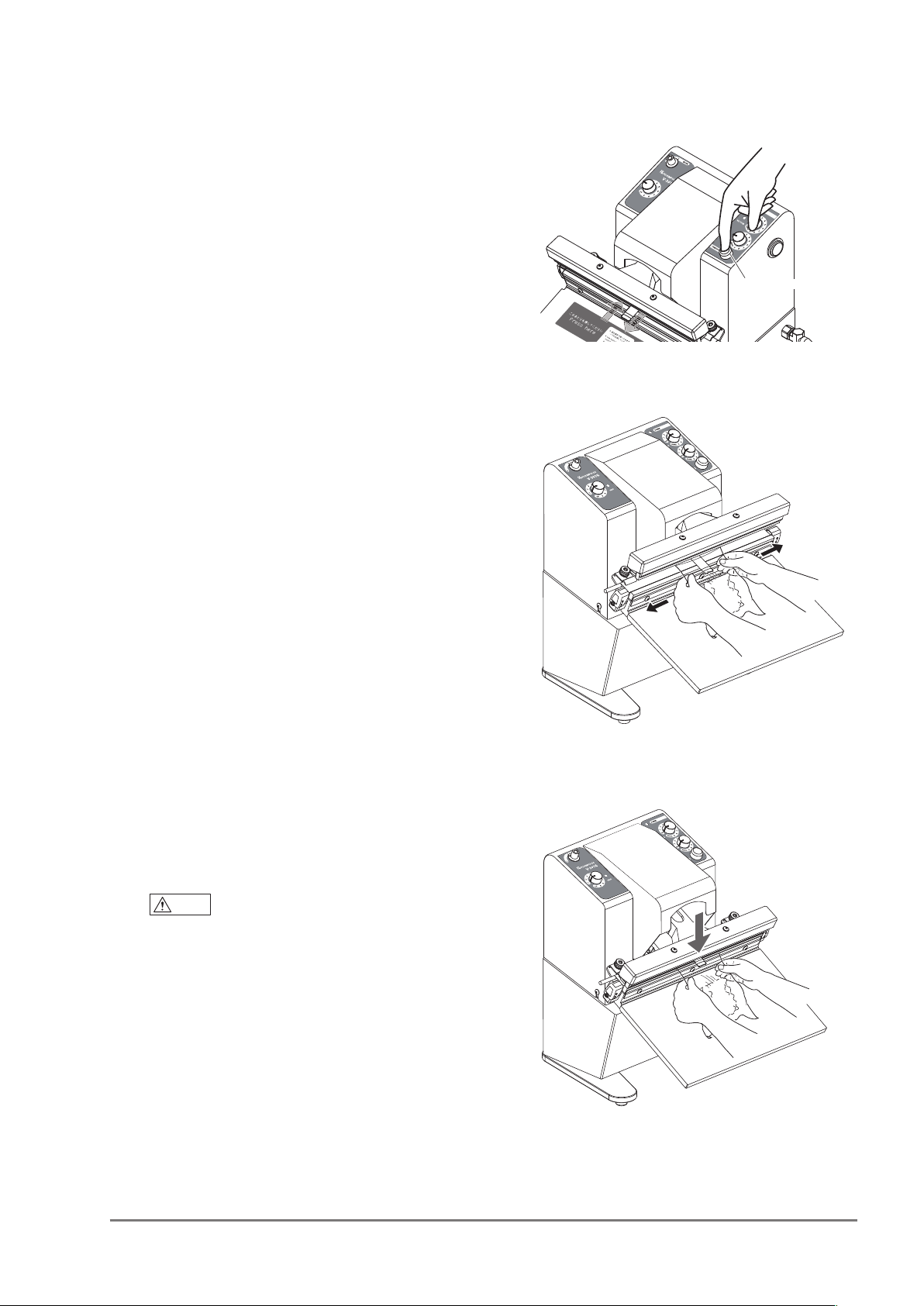

1Place a pouch/bag to the sealing area. When
you desire to perform vacuuming/gas-flushing
operation, insert a nozzle inside the pouch/bag.
2To avoid wrinkles on sealing surface, stretch
out the pouch/bag by pulling both edges by
hands.
3Make sure if a packaging content is in the
proper position.
8-8 Place a pouch to the seal area
8-9 Press down on a table
8-7 Forward a nozzle
START/STOP button
Caution When you push down on the table, please
make sure to touch the position indicated
by the label adhered to the table. If you
push the other place like the edge, it may
break the table.

18


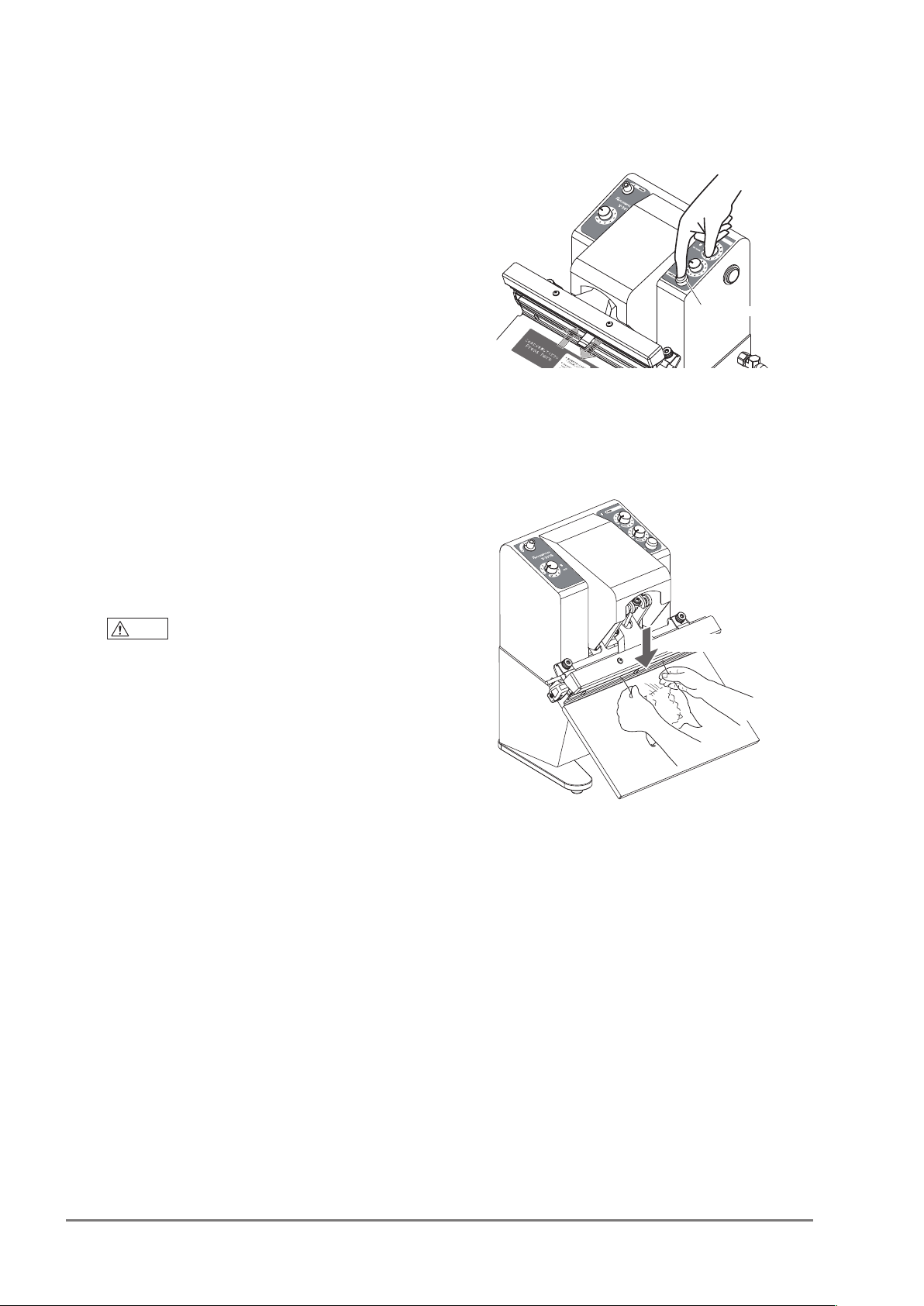

When the pouch/bag is properly set to the sealing area,
press a START/STOP button to start vacuuming and/or
gas-flushing operation.
When the timer mode is selected, a nozzle withdraws
automatically after passing the set time.
When the manual mode is selected, press a START/
STOP button again to finish vacuuming and/or gas-
flushing operation.
After making sure that a nozzle is in the back position,
press down on the table completely. Sealing operation
will start. When you hear a beep sound, sealing is
complete and you can release the table.
8-10 Start/stop vacuuming and gas-
flushing operation
8-11 Press a table further down to seal
START/STOP button
Push further down
Caution When you push down on the table, please
make sure to touch the position indicated
by the label adhered to the table. If you
push the other place like the edge, it may
break the table.


19
Please hold the table in the down position until you hear
the beep sound to allow the sufficient cooling.
Release the table after you hear the beep from the
machine. This “cooling” process is required for V-301G
series as the seal must be cooled while applying
appropriate pressure to give it a clean finish.
After the heating and cooling cycle has finished, the
pressure lever returns to the initial position, and the
sealing is complete. If a sealing is not clean enough,
adjust the heating time or sealing pressure.
8-12 Take sufficient cooling time
8-13 The finished seal
Heat lamp
Hold the table in down
position for 2~3 seconds
after the heat lamp is
turned off.
Caution Insufficient cooling time can cause the
poor sealing and shorten life of
consumable parts.

20

When you want to stop the operation, you can do so by
pressing the START/STOP button several times,
skipping the remaining vacuuming and gas-flushing
operation.
After finishing operation, always turn OFF the power
switch.
The power lamp will turn OFF.
Unplug the power outlet in the case of not using the
machine for a while.
After use, please clean up the sealer and make sure if
any foreign object is clogged at the filter. Replace a
filter element or filter according to “10-6 Clean a filter/
replace a filter element.”
Inspect parts such as fluoro glass sheet and heater to
make sure that they are not damaged. If the parts
appear to be damaged, replace them referring to
operating instructions.
8-15 Abort an operation
8-16 Inspection after operation
8-14 Power switch OFF
Filter
Power switch
Power lamp
PUSH
Caution Please make sure to turn OFF the power
after returning the nozzle to the back
position to prevent the nozzle being
damaged accidentally.
