Van Der Stahl OPL Series User manual

Printed FEB 2017
2nd Edition 2.04E
MICROCOMPUTER-CONTROLLED TEMPERATURE CONTROL
IMPULSE SEALER
OPL(USA) SERIES
OPERATING INSTRUCTIONS
www.vanderstahl.com
5/10 MM
J TYPE
20 MM
A TYPE

OPL (USA) Series Operating Instructions Ver. 2.04E
2

OPL (USA) Series Operating Instructions Ver. 2.04E
3










The following marks are used in this manual to easily identify the conditions of risks, damages,
or some tips for the optimal use of your unit.
Caution   

Warning   

Danger   

Attention  

TIPS  

Before using, always verify the voltage specification of your particular unit and operate it at the
correct voltages. Please note the following.
1 The voltage specification of your unit is listed on the label which displays the serial
number. This label can be found on the machine body.
2 Please confirm the plug configuration on your specific unit. The explanations and
illustrations in this operator's manual utilize the plug configurations most common in
Japan.
Thank you for purchasing the OPL series sealer.
Please read all of the safety and operating instructions before operating this machine. Periodic
maintenance and proper operation are necessary to ensure safety when using this impulse sealer.
Keep this manual on hand when operating the sealer.
Set the heating time according to the material and thickness of the film.
As a result of research to further improve the OPL series, some details in the operating
instructions may differ from your actual machine. For operating problems or product
information, please contact your local dealer.
Foreword
About the warning labels
This manual is designed to cover machines of various voltages and
plug configurations
Warning Voltages and plug configurations differ according to various worldwide specifications.
Always verify those of your particular unit before beginning operation. Connecting the
power cord to an outlet of a different specification is extremely hazardous.

OPL (USA) Series Operating Instructions Ver. 2.04E
4
1 Specification ………………………………………………………………………………………………… 5
2 Package contents …………………………………………………………………………………………… 6
3 Replacement parts ………………………………………………………………………………………… 7
Replacement parts sales unit………………………………………………………………………………………………………………… 7
Maintenance parts kit detail ………………………………………………………………………………………………………………… 7
4 Proper use of the sealer …………………………………………………………………………………… 7
5 Warning-caution label location and content …………………………………………………………… 8
6 Operating precautions ……………………………………………………………………………………… 9
For safety operation…………………………………………………………………………………………………………………………… 9
For smooth operation ……………………………………………………………………………………………………………………… 11
Other safeguards …………………………………………………………………………………………………………………………… 12
7 Major parts and function ………………………………………………………………………………… 13
8 Proper use of the sealer ………………………………………………………………………………… 14
8-1 Securing the machine ………………………………………………………………………………………………………………… 14
8-2 Mounting the table …………………………………………………………………………………………………………………… 14

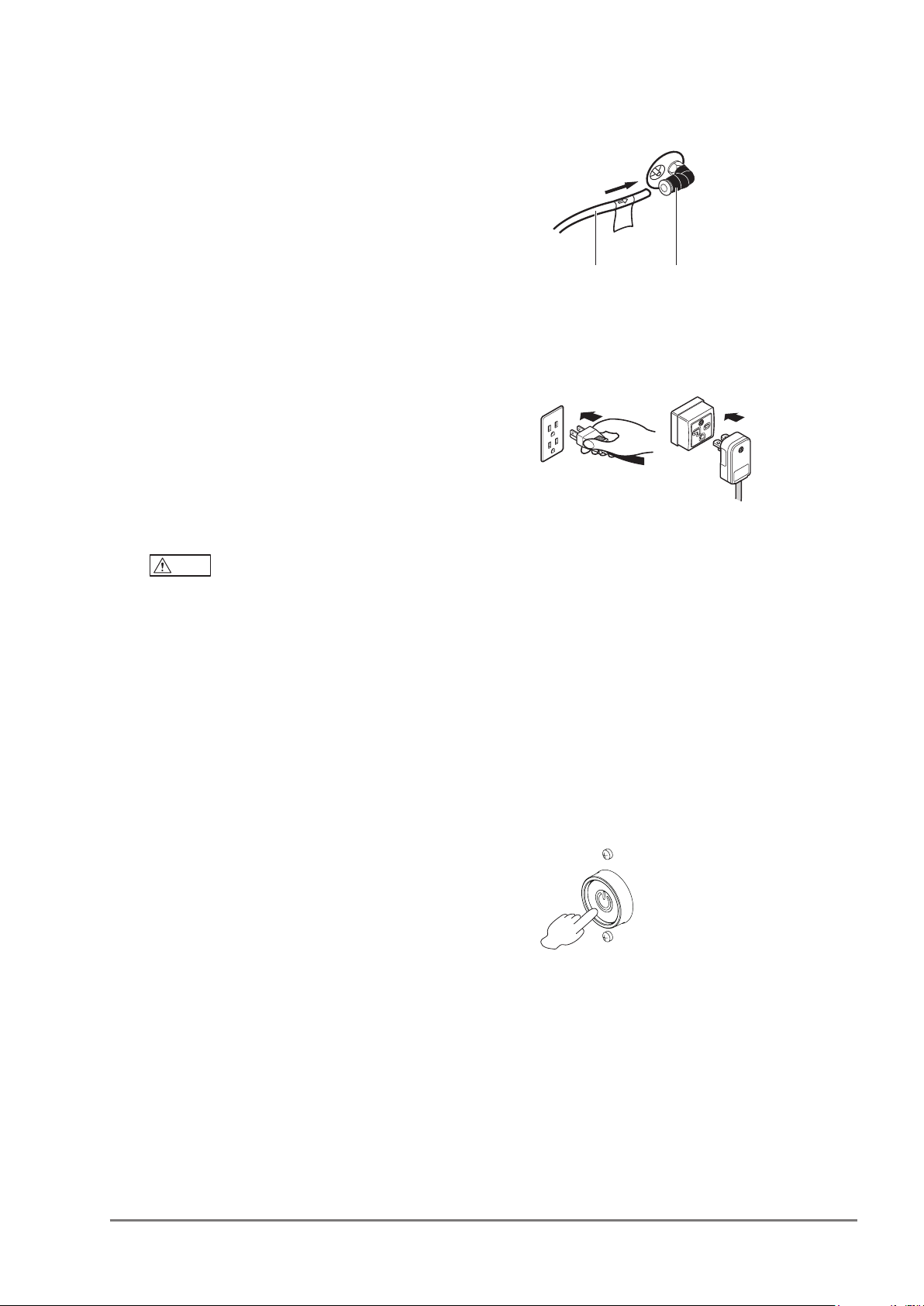

8-3 Air hose insertion ……………………………………………………………………………………………………………………… 15
8-4 Plugging in the electrical power cord ……………………………………………………………………………………………… 15
8-5 Power switch ON ……………………………………………………………………………………………………………………… 15
8-6 Selecting operation method ………………………………………………………………………………………………………… 16
8-7 Seal parameter settings on the control unit ………………………………………………………………………………………… 17
8-8 Sealing pressure adjustment ………………………………………………………………………………………………………… 19
8-9 Test sealing …………………………………………………………………………………………………………………………… 19
8-10 Sealing by selected operation method …………………………………………………………………………………………… 20
8-11 The finished seal …………………………………………………………………………………………………………………… 20
8-12 Power switch OFF …………………………………………………………………………………………………………………… 21
8-13 Inspection after operation…………………………………………………………………………………………………………… 21
9 Replacing the routine maintenance parts …………………………………………………………… 22
9-1 Preparation for parts replacement…………………………………………………………………………………………………… 23
9-2 How to shift fluoro glass sheet ……………………………………………………………………………………………………… 24
9-3 Heating element replacement ……………………………………………………………………………………………………… 25
9-4 Glass tape and Sarcon sheet replacement ………………………………………………………………………………………… 27
9-5 Silicone rubber replacement ………………………………………………………………………………………………………… 28
9-6 Pressure rubber replacement ……………………………………………………………………………………………………… 28
9-7 Microswitch replacement …………………………………………………………………………………………………………… 29
9-8 Temperature sensor replacement …………………………………………………………………………………………………… 30
10 Adjustments ……………………………………………………………………………………………… 31
10-1 Sealing pressure adjustment method……………………………………………………………………………………………… 31
10-2 Pressure adjustment method for table switch-plate (For 200/300 models) …………………………………………………… 31
11 About the optional hot stamp printer ………………………………………………………………… 32
12 Electric diagram ………………………………………………………………………………………… 33
13 Common problems and solution……………………………………………………………………… 36
14 Error message and solutions ………………………………………………………………………… 38
15 To discard ………………………………………………………………………………………………… 38
Exploded view / Parts list…………………………………………………………………………………… 39
Table of contents

OPL (USA) Series Operating Instructions Ver. 2.04E
5
Model name OPL-200 OPL-300 OPL-450 OPL-600
10 20 5 10 20 5 10 5 10
Model version J A J J A J J J J
Machine voltage [V] ※1110/ 220 220 110/ 220 220 110/ 220 220 110/ 220 220
Power consumption [W]
1150 1750 1100 1500 2400 1200 2200 1500 2700
(Stand by 30W)
Power cord and plug
[110V] 14 AWG 3 cores 3m with type A 3 pin plug (12A 125V)
[220V] 2CT 2 x 3 cores 3m with WF5324 plug (20A 250V)
Sealing width [mm] ※2
10 20 5 10 20 5 10 5 10
(± 0.1 mm)
Effective seal length [mm]
200 300 450 600
(-0 to +10 mm)
Operating method By air pedal
Sealing method Impulse/ lower single-side heating type
Seal parameters
Heating temperature: 140 to 480 ºF (in 1 ºF increment)
Heating time: 0.0 to 5.0 seconds (in 0.1s increment)
Cooling temperature: Between 100 ºF and seal-heating temperature (in 1 ºF increment)
Machine dimensions
[mm] (including the table)
260 x 580
x 360
385 x 570
x 365
360 x 580
x 360
360 x 590
x 360
385 x 590
x 370
520 x 510
x 360
520 x 380
x 370
680 x 390
x 360
680 x 380
x 370
Machine weight [kg] 16 23.5 16 16.5 25 15 16 19 21.5
Table-switch plate ※3— — — —
Standard table ※3— —
Special table ※3 ※4
Printer
Inner ※3— —
Outer ※3— — —
Operating temperature range +40 to 105 ºF (+5 to 40 ºC )
Operating humidity range 30 to 80%RH
※1Other voltages available on request. Supply voltage should be within the fluctuation range of 10% from the rated voltage.
Check the white label adhered on the body frame for the voltage of your machine.
※2This is the tolerance of the heating element width. It is not necessarily consistent with the dimension of the actual seal finish.
※3···Standard equipped item ···Optional item
※4The optional special table can be mounted only when it is used along with the FA/OPL stand.
Safety Measures Anti over-heating circuit device When overheating occurs (i.e., when power continues to be distributed to
the heating element for longer than about 3 seconds), the power switch
automatically shuts off to stop further heating.
Anomaly detection Should abnormal situation arise, it will be indicated on the LCD screen on the
control unit and by an alarm sound. See “14 Error message and solutions”
ĺSDJH38) for the details.
$QWLÀQJHUMDPPLQJIHDWXUH The pressure lever will not go down completely if a foreign object such as a
ÀQJHULVFDXJKWLQWKHVHDOLQJDUHD
※ Small fingers such as those of small children may not stop the pressure lever from coming
down completely.
Electrical Appliance and
Material Safety Law
This machine is compliant to the PSE mark (the Product Safety Electrical
Appliance & Material law of Japan).
1 Specification

OPL (USA) Series Operating Instructions Ver. 2.04E
6
富士
イ
ン
パルス
Options
Please make sure that all of the accessories described below are included.
If not, please contact your dealer.
Model Accessories
OPL-200-10 Heating element···5pcs, Philips screwdriver, table-switch plate (with air pedal), seal gauge
OPL-200-20 Heating element···5pcs, Philips screwdriver, table-switch plate (with air pedal)
OPL-300-5 Heating element···5pcs, Philips screwdriver, table-switch plate (with air pedal), seal gauge
OPL-300-10 Heating element···5pcs, Philips screwdriver, table-switch plate (with air pedal), seal gauge
OPL-300-20 Heating element···5pcs, Philips screwdriver, table-switch plate (with air pedal)
OPL-450-5 Heating element···5pcs, Philips screwdriver, standard table, air pedal, seal gauge
OPL-450-10 Heating element···5pcs, Philips screwdriver, air pedal, seal gauge
OPL-600-5 Heating element···5pcs, Philips screwdriver, air pedal, seal gauge
OPL-600-10 Heating element···5pcs, Philips screwdriver, air pedal, seal gauge
2 Package contents
These illustrations are not reduced equally.
Table-switch plate
Standard table
Air pedal
Air pedal is mounted to the
table-switch plate at the time
of factory shipment.
Optional item except for the
OPL-450-5.
Heating element
Philips screwdriver
Seal gauge
(Only for single-side heating
models.)
The seal gauge is not
included for the upper
heating element models.
Special table FA/OPL stand

OPL (USA) Series Operating Instructions Ver. 2.04E
7
Models Heating element Silicone rubber Fluoro glass
sheet Glass tape Sarcon sheet
OPL-200-10
OPL-300-5, OPL-300-10
OPL-450-5, OPL-450-10
OPL-600-5, OPL-600-10
3 pcs. 1 pc. 2 sheets 5m roll ... 1roll 1 pc.
Routine maintenance parts, which will need to be replaced after extensive use, are sold individually as
detailed below. Also the maintenance parts kits that includes all the consumable parts are available.
Replacement parts can be purchased through Van der Stahl Scientific.
The macintenance parts kit is avaibale only for the below listed models.
For OPL-200-20 and OPL-300-20, the maintenance kit is not available. Please purchase the consumable parts
individually.
Parts Name Sales Unit
Heating element 10 pcs./set
Fluoro glass sheet 2 pcs./set
Silicone rubber 2 pcs./set
Glass tape 5m or 10m roll ... 1 roll
Sarcon sheet 2 pcs./set or 5m roll ... 1 roll
Plastic nut black 6mm 5 pcs./set
Microswitch 1 pc.
Microswitch case 1 pc.
1The impulse sealer is a machine which sends strong electric current quickly to the thin ribbon heater,
which presses against the film and instantly heat seals the package. Though this machine yields
superior quality sealing, it is not compatible with films thicker than that indicated in the diagram
below, sponge-like sheets, and materials which are not able to withstand high heat.
2Film thickness limits for the OPL series are described below. The machine cannot seal bags which
are thicker than that indicated. The machine may malfunction if you try to exceed the limits of the
machine.
Heating method Heating element width )LOPWKLFNQHVVWRWDOWKLFNQHVVRISLOHG¿OP
Single-side heating 5mm Less than 0.3mm
Single-side heating 10mm/ 20mm Less than 0.4mm
3 Replacement parts
4 Proper use of the sealer
Replacement parts sales unit
Maintenance parts kit detail

OPL (USA) Series Operating Instructions Ver. 2.04E
8
CAUTION
W2135
UNPLUG BEFORE
PERFORMING
MAINTENANCE
HOT!
CAUTION
WARNING
W2076
Do not place your fingers near the
seal surface.They may get jammed.
The seal surface will become hot
after prolonged use. Do not touch
or burns may result.
Always operate the seal pressure
within the specified range shown
in red(0.1~0.6
m
/
m
). Failure to
do so may result in severe injury
should your fingers get caught in
the seal surface.
HOT!
CAUTION
WARNING W2076
Do not place your fingers near the
seal surface. They may get jammed.
The seal surface will become hot
after prolonged use. Do not touch
or burns may result.
Always operate the seal pressure
within the specified range shown
in red(0.1~0.6m/m). Failure to
do so may result in severe injury
should your fingers get caught in
the seal surface.
CAUTION
W2135
UNPLUG BEFORE
PERFORMING
MAINTENANCE
When opening the cover
for maintenance checks,
the machine must be unplugged
from the wall outlet.
Otherwise jamming or
electrick shock may occure.
W2042-E
Warning - Caution labels are placed in locations where there is a danger of injury to a person or damage to the
machine. Label location details are illustrated below. Please check them before beginning operation.
Labels not readily apparent are indicated by dotted lines.
5 Warning-caution label location and content
This label is adhered to the bottom plate.
This label is adhered on the pressure lever.
Adhered on the left side of the body frame.
If Warning-caution labels peel off or are lost, please purchase the proper labels
and place them in the appropriate location.

OPL (USA) Series Operating Instructions Ver. 2.04E
9
Warning In an emergency, unplug the power cord immediately
This sealer incorporates a number of safety devices and is carefully
designed to prevent fires or other malfunctions. However, should all of
the safety devices fail simultaneously, there is a possibility of the fluoro
glass sheet catching fire due to a failure of the heating circuit's tripping
mechanism that results in the heating element overheating. Should
smoke or fire appear from the fluoro glass sheet, immediately turn OFF
the power from the outlet.
Warning Confirm proper electric power source
Make sure power source has the specified voltage and electric power as
to your machine model. DO NOT use an extension cord, as the machine
may malfunction due to voltage drop or may result in fire.
Machine will malfunction if connected to anything other than the
specified voltage.
Insert the electric power plug fully into the wall outlet.
Warning Do not use for packaging liquids
Do not splash water on the machine or use machine for packaging
liquids since machine is not waterproof. There is a danger of
electrocution or malfunction of the machine.
Warning Do not insert any metal objects into the sealing area
Please do not place any metal objects into the sealing area during
operation. This could cause electrocution.
Warning When replacing parts, unplug the power plug
Maintenance of the machine is important. Parts should be replaced in
accordance with the operating instructions. There is a risk of danger if
the parts are not replaced properly. Before replacing parts, unplug the
machine from the power source and replace parts referring to “9
5HSODFLQJWKHURXWLQHPDLQWHQDQFHSDUWV´ĺSDJH22) thoroughly.
Warning Do not modify the machine
Modification of the OPL series or the use of unspecified parts may not
only lead to damage of the machine, but there is also a risk of danger to
the operator. Please do not tamper with the machine. Accidents or
damage caused by modification by the customer is the sole
responsibility of the customer.
6 Operating precautions
For safety operation
110V
110V
220V
220V

OPL (USA) Series Operating Instructions Ver. 2.04E
10
1Dusty locations.
2Locations not within normal temperatures.
3Locations with high humidity.
Warning Do not use parts other than those specified
When replacing parts, always use only specified parts sold through Van
der Stahl Scientific. We are not responsible for malfunctions caused by
the use of unspecified parts.
Warning If the power switch automatically turns OFF
If after 3 seconds heating is not complete after it has been initiated, the
power switch will automatically turn OFF. There is a possibility of
malfunction of the machine. Do not operate the machine until the cause
of the shut down is ascertained and the problem has been addressed.
Caution Do not use in the following places
Do not operate machine in the following places since there is a danger
of malfunction:
Caution Do not place hands in the sealing area
1With prolonged use, the sealing area will retain heat and
become hot. If you place your fingers in this area, there is a
possibility of burns.
2Do not place hands between the seal jaws (pressure lever and
seal frame).
3Should the foreign objects such as fingers are clamped between
the sealing area and the sealer cannot move to the heating
process within 0.8 seconds, the lever automatically returns to
the initial position. However, the strong pressure is applied
especially to the both ends to the sealing area, and there a
danger that the sealing process may start without notice.
Caution Use the machine properly
Read “8 Proper use of the sealer” in this manual carefully and operate
sealer correctly. Accidents or damage caused by misuse of the machine
not in accordance with the operating instructions are the sole
responsibility of the customer.

OPL (USA) Series Operating Instructions Ver. 2.04E
11
ƔTo achieve a strong seal
Proper sealing pressure is important in achieving a strong seal. Follow
directions on proper sealing pressure adjustments and set accordingly.
See ³6HDOLQJSUHVVXUHDGMXVWPHQWPHWKRG´ĺSDJH31) for the
details.
ƔDust in the sealing area
Dust will prevent attainment of a smooth seal. It could also cause
damage to heating element and/or other routine maintenance parts.
Before using the machine, clean the sealing area.
Ɣ+HDWLQJWHPSHUDWXUHVKRXOGEHVHWDWDPLQLPXP
Set sealer so that an acceptable seal is completed at the lowest heating
temperature. Excessively high heating temperatures will damage the
fluoro glass sheet, glass tape and other consumables, as well as result in
heating element breakage. This will lead to decreased work productivity
and unnecessary power consumption.
Ɣ6HWWKHFRROLQJWHPSHUDWXUHGHSHQGLQJRQWKHILOP
Cooling process is important when using an impulse sealer. After the
film is heated, the film must cool with the frame and pressure lever in
the closed position. Setting the cooling temperature excessively low
will decrease the work productivity. Set the cooling temperature that is
suitable for each film.
ƔWhen the fluoro glass sheet, silicone rubber becomes damaged
The fluoro glass sheet, silicone rubber will start to wear with use. Once
they are damaged, it will be difficult to achieve smooth and strong
seals. Thoroughly read how to replace the parts and be careful when
doing so.
For smooth operation

OPL (USA) Series Operating Instructions Ver. 2.04E
12
Do NOT attempt to plug any other electronic devices into this outlet.
ƔRun test trials before beginning operation
Find the optimum sealing conditions by conducting seal tests before
proceeding. Achieving a superior seal with an impulse sealer is
determined by heating / cooling / pressure strength. Depending on the
type of film being used, heating / cooling / pressure strength conditions
will differ. Run test trials to find the optimum sealing condition on
customer’s responsibility, especially when trying to find the tightest
seal possible.
ƔThe OPL series is an impulse sealer
Do not become alarmed if the sealing area does not become hot after
the power switch is turned to the ON position. The machine has not
malfunctioned.
The sealer uses an impulse method so the heating element will not
become hot just by plugging the unit in or turning the power switch to
the ON position. The heater will only become hot for an instant when
the heating process is in operation. However, after extended periods
of use, the sealing area may become hot.

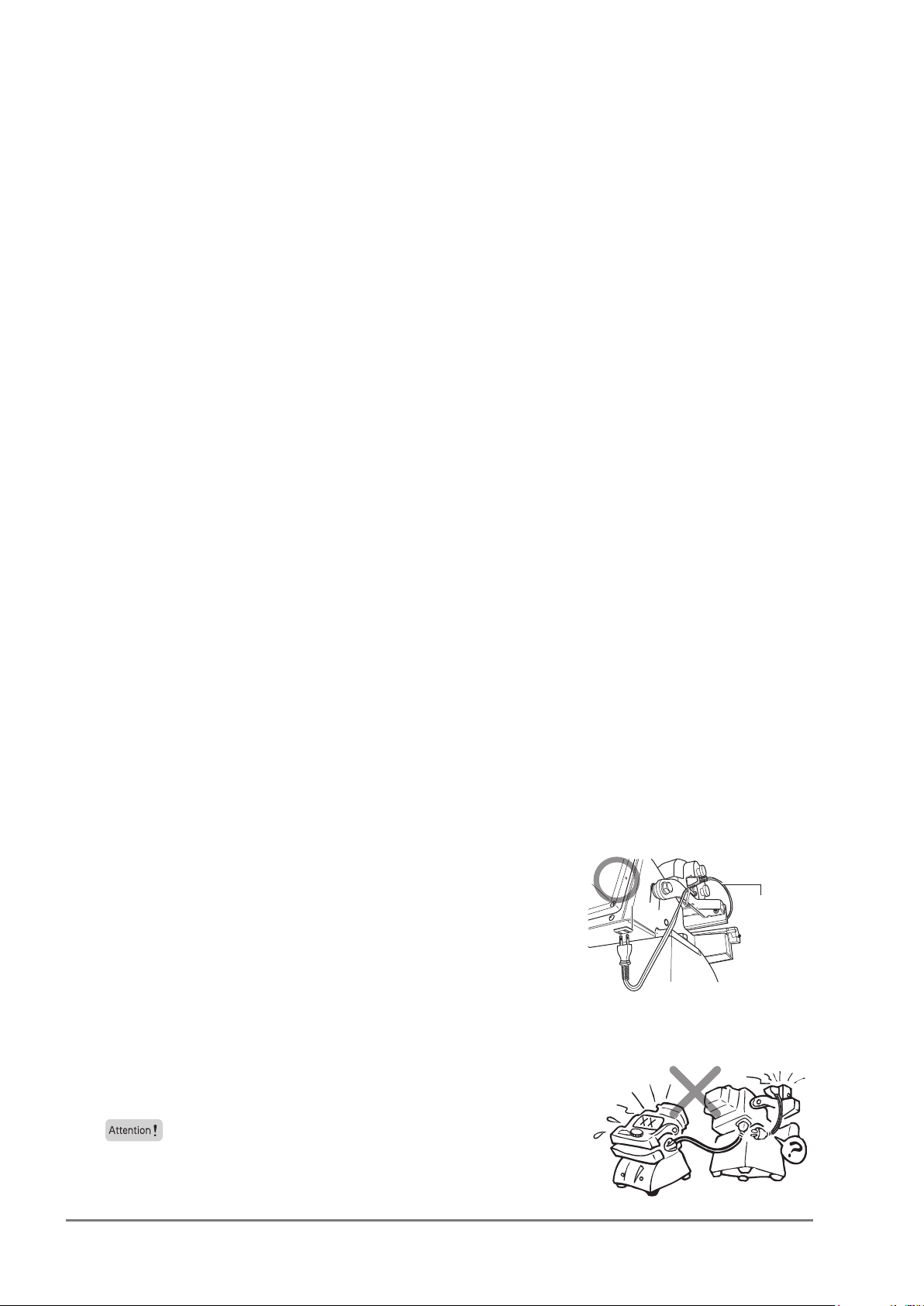

ƔPrinter outlet
The printer outlet is located on the underside of the seal frame head. It
is to be used ONLY when mounting the optional printer.
ƔIf there is a malfunction in the temperature sensor
The temperature sensor is designed to monitor and control heating
temperature by directly measuring the heater temperature. Therefore,
the machine will not operate when the sensor tip is not positioned
correctly or the sensor is disconnected.
When replacing the consumable parts such as heating element or the
temperature sensor, please be sure to position the temperature sensor
correctly. Please refer to “9-8 Temperature sensor replacement” for the
detail.
Other safeguards
The power cord
from the heater
section (white)
Power cord of the printer (black)
Attention There is no printer outlet for OPL-200-20 and
OPL-300-20.

OPL (USA) Series Operating Instructions Ver. 2.04E
13





Arrows and increase or
decrease the numeric value by one
digit every time they are pushed.
If you hold the button in, the
numeric value will increase or
decrease continuously. Use this
method when making wide range
changes in setting.
7 Major parts and function
Control unit
Display
Pressure adjusting nut
Pressure adjusting nut fixing screw
Pressure lever
Electrode
Plastic nut (black)
Fluoro glass sheet
Table-switch plate
Air pedalTemperature sensor
Body frame air switch with elbow joint
Power cord
Power switch
Control unit
1. Turns on when the power is on.
2. Displays each set value.
Adjust the seal pressure
depending on the packaging
material thickness.
Depress the air pedal
to start operation.
1. Set the seal condition according
to the film being used.
2. Set the auto-cycle interval.
3. Turn ON or OFF the auto cycle
interval mode.
Push to turn ON the
sealer.
Push again to turn OFF.
The table switch plate can be
mounted to the OPL-200 and
OPL-300 series and can be
activated by setting the air pedal.
(The air pedal is set to the table-
switch plate at the time of factory
shipment.)
Digital display
Displays the real time temperature
and other settings.
Mode indicator lights
Mode selection button
Switches setting
modes.
Numerical setting arrows
Auto cycle
START/STOP
ABORT CYCLE
Setting can be increased or
decreased.
All operations are
stopped and the sealer
returns to an open restart
position.

OPL (USA) Series Operating Instructions Ver. 2.04E
14
A Table-switch plate
B Standard table
C Special table
Use the sealer only as described in below “8 Proper use of the sealer”. There is a risk of danger and malfunctions
if the machine is not used in accordance with this manual.
This machine is a desk-top sealer. Set the product level
on a solid base that fully withstands the weight of the
product. If an appropriate workbench cannot be
secured, use the optional FA/OPL stand.
A Table switch-plate attachment
When using an air pedal as a foot switch, this
attachment is not necessary.
1OPL-200, OPL-300 Series
Fix the table switch-plate to the body frame
with the wing nuts provided. The height is
micro-adjustable for easy operation. (The wing
nuts are attached to the bolts at the position
where the table is attached to the body frame.)
2OPL-450, OPL-600 Series
The table-switch plate cannot be mounted to
these sealer models. See “8-6 Selecting
operation method” >>> “How to set each
RSHUDWLRQPRGH´ĺSDJH16).
B Standard table attachment
For the OPL series of sealers, the standard table will be
optional parts except for OPL-450-5.
Fix to the seal frame using the wing nuts and bolts.
The height can be adjusted to the optimum level
depending on the application.
C Mount the special table (Optional)
The special table can be mounted to the FA/OPL stand,
which is sold individually. (The air pedal cannot be
installed to the special table.)
8 Proper use of the sealer
8-1 Product setup
8-2 Mounting the table
Special table
FA/OPL stand
Table-switch plate
Air pedal
Wing nut Body frame
Wing nut
Table Seal frame

OPL (USA) Series Operating Instructions Ver. 2.04E
15
Insert the air pedal hose securely into the elbow of the
main frame air switch.
The control unit display will turn on when the power
switch, located on the side of the common frame, is
pushed on.
The power cord is located on the right side of the
machine, when facing toward it. See the label attached
to the machine to determine the proper voltage and
electrical power. Make sure the electrical outlet has
adequate current carrying capacity. Insert the electric
power plug fully into the wall outlet.
8-3 Air hose insertion
8-4 Plugging in the electrical power cord
8-5 Power switch ON
Body frame air switch
with elbow joint
Air hose
Securely insert
the hose
Push to turn ON
110V 220V
Warning There is a danger of fire if the electrical
power source does not meet proper
specifications.

OPL (USA) Series Operating Instructions Ver. 2.04E
16
1 Air pedal operation
2 Table-switch operation
3 Auto-cycle mode
Manual operation or automatic operation is selected by
the “Auto cycle START/STOP” button in the control
unit.
After setting the mode at “8-7 Seal parameter settings
RQWKHFRQWUROXQLW´ĺSDJH17), select either the
START or STOP of the “START/STOP” button.
See “8-6 Selecting operation method” >>> “How to set
HDFKRSHUDWLRQPRGH´ĺSDJH16) for the details.
Ɣ67$576723ĺ6723
(AUTO CYCLE INTERVAL lamp goes off.)
1Air pedal operation:
Operates when stepping on the air pedal.
2Table switch-plate operation:
Operates when pushing the table switch-plate.
Ɣ67$576723ĺ67$57
(AUTO CYCLE INTERVAL lamp lights)
3Auto cycle:
Auto cycle operation is performed at the
appointed interval.
Operation mode OPL-200, OPL-300 series OPL-450, OPL-600 series
Air pedal operation
Push the Auto Cycle START/STOP button to
turn OFF the auto cycle mode. Remove the air
pedal set to the table-switch plate. Place the
DLUSHGDORQWKHÀRRURUWKHRWKHUSODFH
Push the Auto Cycle START/STOP button
to turn OFF the auto cycle mode. Set the air
pedal included in the accessories referring to
$LUKRVHLQVHUWLRQĺSDJH15).
Table-switch plate
operation
Push the Auto Cycle START/STOP button
to turn OFF the auto cycle mode. Mount the
table-switch plate referring to "8-2 Mounting
WKHWDEOHĺSDJH14).
Table-switch plate operation cannot be
selected.
Auto-cycle mode Set the auto-cycle interval time. Turn ON the auco-cycle mode by pusing the Auto Cycle
START/STOP button.
8-6 Selecting operation method
How to set each operation mode

OPL (USA) Series Operating Instructions Ver. 2.04E
17
Heating temperature, heating time, cooling
temperature, and auto cycle interval are set on the
control unit.
Set values vary according to bag (film) material or
thickness, etc., therefore adjust and set each time after
changing films.
Push the SET button, each mode appears in the
following order on the digital display:
TEMP DISPLAY -> HEAT TEMP -> HEATING TIME
-> COOLING TEMP -> AUTO CYCLE INTERVAL
Designated lamp lights during each mode setting.
When no lamp is lit, this indicates real time
temperature displayed.
□Setting the heating temperature
・
Select the “HEAT TEMP” mode and set by adjusting
values with the arrows and buttons.
[Range: 140 to 480°F]
・
Appropriate fusing temperature varies according the
bag (film) material.
・
Set at the lowest temperature necessary for sealing.
Production will increase and unnecessary wear of
parts will be kept at a minimum.
□Setting heating time
・
Select the “HEATING TIME” mode and set by
adjusting values with the arrows and buttons.
[Range: 0.0 to 5.0sec]
・
“Heating time” in temperature control means time set
temperature is maintained, and sealing is performed
normally without excessive heating time (Even if
heating time is set to 0.0 sec.).
Setting heating time is effective only when the
packaging film (bag) is thick and sealing is not
achieved or, if achieved, the film is damaged even
though heating temperature is raised.
□Setting cooling temperature
・
Select the “COOLING TEMP” mode and set by
adjusting values with the arrows and buttons.
 >5DQJHEHWZHHQÛ)DQGWKHVHDOKHDWLQJ
temperature]
・
Be sure to allow enough cooling.
8-7 Seal parameter settings on the
control unit
Set temperature
Set temperature
Heating time
(Heat dwell time)
Mode indicator lights
Digital display
Displays the real time
temperature and other
settings.
Mode selection button
Switches setting
modes.
Numerical setting arrows
Auto cycle
START/STOP
Setting can be increased
or decreased.
The line graph of the heating temperature
when the heating time is set 0.0 sec.
The line graph of the heating temperature
with some heating time.

OPL (USA) Series Operating Instructions Ver. 2.04E
18
Seal parameters:
Settings : Heating temperature 360ºF Heating (retaining) time 0.8 sec Cooling temperature 140ºF Auto cycle 2.4 sec
□Auto cycle and cycle interval time setting
・
Select the “AUTO CYCLE INTERVAL” mode and
set by adjusting values with the arrows and
buttons. [Range: 0.1 to 5.0sec]
・
Setting is only for using the “AUTO CYCLE
INTERVAL” mode.
Setting procedure for each mode
Example)

OPL (USA) Series Operating Instructions Ver. 2.04E
19
“NORMAL” is selected for a bag with a thickness of
0.1~ 0.2mm when shipped.
Sealing pressure necessary for sealing varies according
to material or thickness of the bag (film), therefore
adjust pressure corresponding to the bag (film) used.
After changing the material or thickness of the film, set
again.
After setting the control unit and adjusting the sealing
pressure, turn off the “START/STOP” button and
manually test the sealing a few times for the most
appropriate condition.
8-8 Sealing pressure adjustment
8-9 Test sealing
Pressure adjusting nut
Attention Perform the pressure adjustment referring
to “10-1 Sealing pressure adjustment
PHWKRG´ĺSDJH31). After changing
the material or thickness of the film, set
pressure again.

OPL (USA) Series Operating Instructions Ver. 2.04E
20
1 Air pedal operation
2 Table-switch operation
3 Auto-cycle mode
1 Air pedal operation
Set a bag on the sealing part and step on the air pedal.
The pressure lever lowers, and the sealing process
starts.
2 Table swtich-plate operation
Set a bag on the sealing part and push the specified
point (indication seal is applied), then the pressure lever
lowers and the sealing process starts.
3 Auto-cycle interval mode
The pressure lever repeatedly lowers at the set intervals.
Set a bag on the sealing part in synchronization with the
timing and seal it. If you turn OFF the “START/STOP”
button, the operation stops.
□ABORT CYCLE button
During each operation once the machine has started, if
you want to stop it for any reason, push the “ABORT
CYCLE” button. The pressure lever returns to the initial
state raised. The values set at “8-7 Seal parameter
VHWWLQJVRQWKHFRQWUROXQLW´ĺSDJH17) are not
cleared after pushing the “ABORT CYCLE” button.
Sealing is completed when the pressure lever rises after
the heating and cooling cycles have ended. If a smooth
seal is not achieved, perform the heating/cooling/
pressure settings over again.
8-10 Sealing by selected operation method
8-11 The finished seal
Caution After using for a long period of time, the
sealing parts heats up. There is a danger
of being burned.
Be careful not to catch fingers, etc., in the
sealing parts forced with high pressure.
The machine is designed so that if foreign
objects are caught and the microswitch is
not turned on within 0.8 seconds, the
pressure will automatically release.
However, both end parts are highly
pressured and the heating process may be
carried out even with fingers caught
especially for OPL-450 and 600 series.
Use extreme caution.
