Van Der Stahl MS-350 NP Series User manual

www.vanderstahl.com
Printed AUG 2010
2nd Edition 2.01E
Operating Instuructions
MS-350 NPSeries
MICROCOMPUTER-CONTROLLED SEALER FOR STERILIZABLE BAGS
MEDICAL POUCH SEALER

MS-350 NP Operating Instructions Ver 2.01E

This manual is designed to cover machines of various voltages
and plug configurations
About the warning labels
Foreword
The warning labels indicate when there is a danger of injury to the operator or damage to the
machine.
Below is a list of what each label denotes.
Caution Minor injuries or damages to the unit may occur when the instruction is ignored.
Warning Critical injuries or fatal accidents will almost certainly occur when the instruction
is ignored.
Danger Critical injuries or fatal accidents will almost certainly occur when the instruction
is ignored.
Attention! Important Notes and Restrictions - Read the directions in order to avoid misuse
of the unit.
TIPS Great Tips and References when using the unit - Highly recommend reading
through the information.
Before using, always verify the voltage specification of your particular unit and operate it at the
correct voltage.
Please note the following:
1) The voltage specification of your unit is listed on the label which displays the serial
number. This label can be found on the machine body.
2) The explanations and illustrations in this operators' manual utilize the following standard
plug configurations most common in Japan. However, due to the various configurations in
use worldwide, these may not necessarily correspond with the one attached to your
specific unit.










Warning Voltages and plug configurations differ according to various worldwide specifications.
Always verify those of your particular unit before beginning operation. Connecting the
power cord to an outlet of a different specification is extremely hazardous.
Thank you for purchasing the Fuji Impulse MS-350 NP series sealer.
Please read all of the safety and operating instructions before operating this machine. Periodic maintenance
and proper operation are necessary to ensure safety when using this impulse sealer.
Keep this manual on hand when operating the sealer.
Set the heating time according to the material and thickness of the film.
As a result of research to further improve the MS-350 NP series, some details in the operating instructions
may differ from your actual machine. For operating problems or product information, please contact your
local dealer.
MS-350 NP Operating Instructions Ver 2.01E
3

Table of contents
1 Specification ………………………………………………………………………………………… 5
2 Accessories …………………………………………………………………………………………… 5
3 Replacement parts …………………………………………………………………………………… 6
4 Proper use of the sealer …………………………………………………………………………… 6
5 Warning-caution label location and content …………………………………………………… 7
6 Operating precautions ……………………………………………………………………………… 8
For safety operation…………………………………………………………………………………………………………………………… 8
For smooth operation ……………………………………………………………………………………………………………………… 10
Other safeguards …………………………………………………………………………………………………………………………… 11
7 Major parts and function ………………………………………………………………………… 12
8 Proper use of the sealer ………………………………………………………………………… 14
8-1 Setting the machine ………………………………………………………………………………………………………………… 14
8-2 Mounting the table ………………………………………………………………………………………………………………… 14
8-3 Plugging in the electrical power cord. …………………………………………………………………………………………… 14
8-4 Power switch ON …………………………………………………………………………………………………………………… 15
8-5 Select the operation mode ………………………………………………………………………………………………………… 15
8-6 Setting the sealing condition with the control unit ……………………………………………………………………………… 16
8-7 Adjust the seal pressure …………………………………………………………………………………………………………… 18
8-8 Perform test sealing ………………………………………………………………………………………………………………… 18
8-9 Seal with the selected operation mode …………………………………………………………………………………………… 18
8-10 Finishing sealing …………………………………………………………………………………………………………………… 19
8-11 Counter reset………………………………………………………………………………………………………………………… 19
8-12 Power switch OFF ………………………………………………………………………………………………………………… 20
8-13 Inspection after operation ………………………………………………………………………………………………………… 20
9 Safety devices and error messages …………………………………………………………… 21
10 Replacing the routine maintenance parts …………………………………………………… 22
10-1 Preparation ………………………………………………………………………………………………………………………… 23
10-2 After the replacement ……………………………………………………………………………………………………………… 23
10-3 Replacing the Teflon center-dry tape …………………………………………………………………………………………… 24
10-4 Replacing the temperature sensor………………………………………………………………………………………………… 25
10-5 Replacing the heating element …………………………………………………………………………………………………… 26
10-6 Replacing the 38mm-Width glass tape and Sarcon sheet……………………………………………………………………… 27
10-7 Replacing the silicone rubber (white) …………………………………………………………………………………………… 28
10-8 Replacing the control unit ………………………………………………………………………………………………………… 28
10-9 Replacing the microswitch ………………………………………………………………………………………………………… 29
11 Adjusting each part ……………………………………………………………………………… 30
11-1 Adjusting the seal pressure………………………………………………………………………………………………………… 30
11-2 Adjust the depth of seal position ………………………………………………………………………………………………… 30
12 Electric diagram …………………………………………………………………………………… 31
13 Common problems and solutions ……………………………………………………………… 32
14 Error message and solutions …………………………………………………………………… 34
15 Password Function ……………………………………………………………………………… 35
Exploded view and parts list ……………………………………………………………………………………………………………… 37
MS-350 NP Operating Instructions Ver 2.01E
4

These illustrations are not reduced equally.
Please make sure that all of the accessories described below are included.
If not, please contact your dealer.
1 Specification
2 Accessories
Heating Element 5 pcs.
Philips Screwdriver 1 pc.
Table 1 pc.
38mm-Width Glass Tape 3 pcs.
Spanner 1 pc.
Sarcon Sheet -W13mm x 370mm 1 pc.
Teflon center-dry tape 40mm x 5M 1 roll
Semi Transparent Tape -W15mm x 3M 1 roll
MS-350 NP Operating Instructions Ver 2.01E
5
  












       

Replacement parts can be purchased through your local dealer individually or in kits as detailed below.
Routine maintenance parts, which will need to be replaced after extensive use, are sold individually as
detailed below. Also the maintenance parts kits that includes all the consumable parts are available.
Replacement parts can be purchased through your local Fuji Impulse dealer.
1 The impulse sealer is a machine which sends strong electric current quickly to the thin ribbon heater,
which presses against the film and instantly heat seals the package. Though this machine yields
superior quality sealing, it is not compatible with films thicker than that indicated in the diagram
below, sponge-like sheets, and materials which are not able to withstand high heat.
2 Film thickness limits for the MS-350 NP series are described below. The machine cannot seal bags
which are thicker than that indicated. The machine may malfunction if you try to exceed the limits of
the machine.
3 Replacement parts
4 Proper use of the sealer
Maintenance parts kit detail
MS-350 NP Operating Instructions Ver 2.01E
6
  
  
  
  
 
 
    
  
  
  
 
 
    

 







Heating method Heater width Film thickness (total thickness of piled lm)
Single side heating 10mm (0.39") Less than 0.5mm

If Warning - Caution labels peel off or are lost, please purchase the proper la-
bels and place them in the appropriate location.
WARNING
electric shock
CAUTION
UNPLUG BEFORE
PERFORMING
MAINTENANCE.
KEEP HANDS
AWAY
CAUTION
HOT
W2125
When removing the
control unit, you will see
this label adhered on the
backside of it. Do not
remove the control unit
unless it is necessary.
Adhered on the left side of the
body frame.
Adhered at this position of the
frame cover.

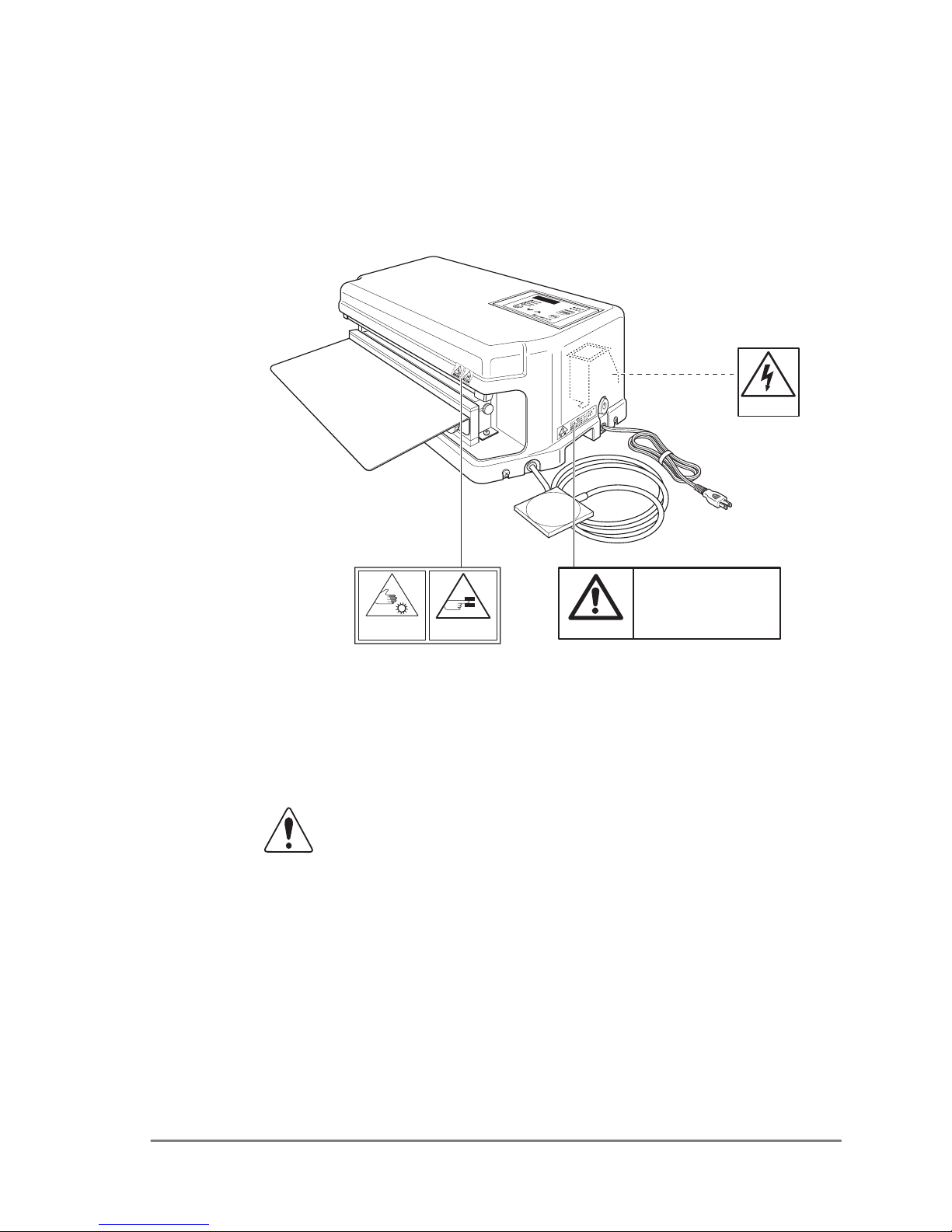

5 Warning-caution label location and content
Warning - Caution labels are placed in locations where there is a danger of injury to a person or damage to the
machine. Label location details are illustrated below. Please check them before beginning operation.
Labels not readily apparent are indicated by dotted lines.
MS-350 NP Operating Instructions Ver 2.01E
7

6 Operating precautions
For safety operation
Warning In an emergency, unplug the power cord immediately
This sealer incorporates a number of safety devices and is carefully
designed to prevent fires or other malfunctions. However, should all of
the safety devices fail simultaneously, there is a possibility of the Teflon
catching fire due to a failure of the heating circuit's tripping mechanism
that results in the heating element overheating. Should smoke or fire
appear from the Teflon, immediately turn OFF the power from the outlet.
Warning Confirm proper electric power source
Make sure power source has the specified voltage and electric power as
explained in “1 Specification” of this manual. DO NOT use an extension
cord, as the machine may malfunction due to voltage drop or may result
in fire. Machine will malfunction if connected to anything other than the
specified voltage.
Insert the electric power plug fully into the wall outlet.
Warning Do not use for packaging liquids
Do not splash water on the machine or use machine for packaging liquids
since machine is not waterproof. There is a danger of electrocution or
malfunction of the machine.
Warning Do not insert any metal objects into the sealing area
Please do not place any metal objects into the sealing area during
operation. This could cause electrocution.
Warning When replacing parts, unplug the power plug
Maintenance of the machine is important. Parts should be replaced in
accordance with the operating instructions. There is a risk of danger if
the parts are not replaced properly. Before replacing parts, unplug the
machine from the power source and replace parts referring to “Replacing
the routine maintenance parts” thoroughly.
Warning Do not modify the machine
Modification of the MS-350 NP series or the use of unspecified parts may
not only lead to damage of the machine, but there is also a risk of danger
to the operator. Please do not tamper with the machine. Accidents or
damage caused by modification by the customer is the sole responsibility
of the customer.

8

Caution Do not use in the following places
Do not operate machine in the following places since there is a danger of
malfunction:
1 Dusty locations.
2 Locations not within normal temperatures.
3 Locations with high humidity.
Warning Do not use parts other than those specified
When replacing parts, always use only specified parts sold through Fuji
Impulse. Not responsible for malfunctions caused by the use of
unspecified parts.
Warning If the power switch automatically turns to the OFF
position
If after 3 seconds heating is not complete after it has been initiated, the
power switch will automatically turn OFF. There is a possibility of
malfunction of the machine. Do not operate the machine until the cause
of the shut down is ascertained and the problem has been addressed.
Caution Do not place hands in the sealing area
With prolonged use, the sealing area will retain heat and become hot. If
you place your fingers in this area, there is a possibility of burns.
Do not place hands between the seal jaws (pressure lever and seal
frame). Should the foreign objects such as fingers are clamped between
the sealing area and the sealer cannot move to the heating process
within 0.5 seconds, the lever automatically returns to the initial
position. However, the strong pressure is applied especially to the both
ends to the sealing area, and there a danger that the sealing process may
start without notice.
Caution Use the machine properly
Read “Proper use of the sealer” in this manual carefully and operate
sealer correctly. Accidents or damage caused by misuse of the machine
not in accordance with the operating instructions are the sole
responsibility of the customer.
Caution Run test trials first before beginning operation
Achieving a superior seal with an impulse sealer is determined by
heating / cooling / pressure strength. Depending on the type of film being
used and the contents of the bag, heating / cooling / pressure strength
conditions may drastically differ. Find the optimum sealing conditions
by conducting seal tests before proceeding.
MS-350 NP Operating Instructions Ver 2.01E
9

● To achieve a strong seal
Proper sealing pressure is important in achieving a strong seal. Follow
directions on proper sealing pressure adjustments and set accordingly.
(Refer to “10-1 Adjusting the seal pressure”.)
● Dust in the sealing area
Dust will prevent attainment of a smooth seal. It could also cause
damage to heating element and/or other routine maintenance parts.
Before using the machine, clean the sealing area.
● Heating temperature should be set at a minimum
Set sealer so that an acceptable seal is completed at the lowest heating
temperature. Excessively high heating temperatures will damage the
Teflon, glass tape and other consumables, as well as result in heating
element breakage. This will lead to decreased work productivity and
unnecessary power consumption.
● Set the cooling temperature depending on the film
Cooling process is important when using an impulse sealer. After the
film is heated, the film must cool with the frame and pressure lever in the
closed position. Setting the cooling temperature excessively low will
decrease the work productivity. Set the cooling temperature that is
suitable for each film.
● When the Teon, silicone rubber becomes damaged
The Teflon, silicone rubber will start to wear with use. Once they are
damaged, it will be difficult to achieve smooth and strong seals.
Thoroughly read how to replace the parts and be careful when doing so.
For smooth operation

10

●Run test trials before beginning operation
Depending on the type of film being used, heating / cooling / pressure strength
conditions will differ. Run test trials to find the optimum sealing condition,
especially when trying to find the tightest seal possible.
● The Fuji Impulse MS-350 NP series is an impulse sealer
Do not become alarmed if the sealing area does not become hot after
the power switch is turned ON. The machine has not malfunctioned.
The Fuji impulse sealer uses an impulse method so the heating element
will not become hot just by plugging the unit in or turning the power
switch to the ON position. The heater will only become hot for an
instant when the heating process is in operation. However, after
extended periods of use, the sealing area may become hot.
● If there is a malfunction in the temperature sensor
The temperature sensor is designed to monitor and control heating
temperature by directly measuring the heater temperature. Therefore,
the machine will not operate when the sensor tip is not positioned
correctly or the sensor is disconnected.
When replacing the consumable parts such as heating element or the
temperature sensor, please be sure to position the temperature sensor
correctly. Please refer to “10-2 Replacing the temperature sensor” for
the detail.
Other safeguards
MS-350 NP Operating Instructions Ver 2.01E
11

Arrows▲ and ▼increase or decrease the
numeric value by one digit every time they
are pushed.
If you hold the button in, the numeric
value will increase or decrease
continuously. Use this method when
making wide range changes in setting.
7 Major parts and function
Control Unit Panel
Frame cover
Table
Touch switch
Power cord
Power switch
Control unit
Digital Display
Mode indicator
lights
Mode selection button
Allows for changes in
the mode setting.
Numerical setting arrows
Auto cycle
START/STOP
ABORT CYCLE
Counter and setting display
Setting can be increased
or decreased during
counter mode...

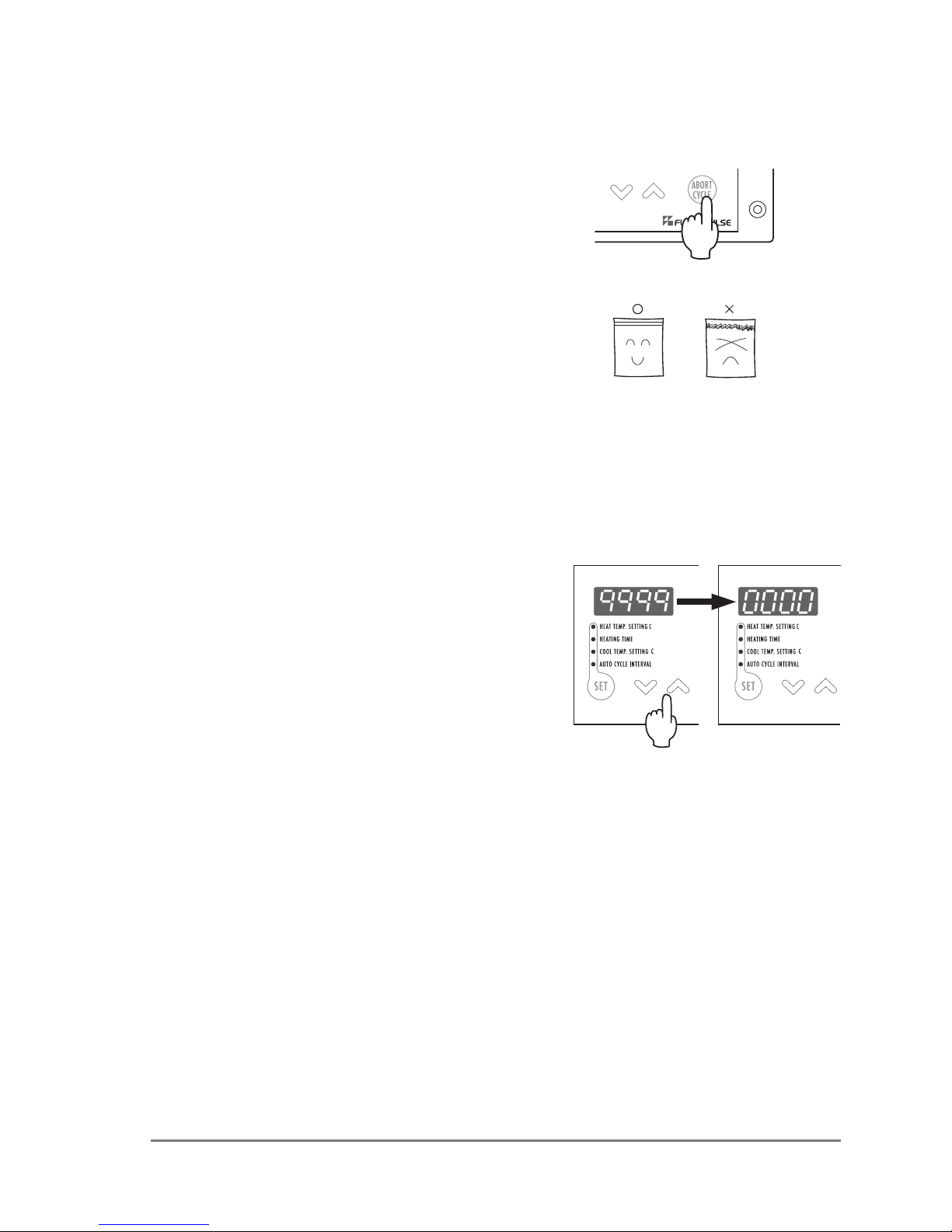

COUNTER RESET
All operations are
stopped and the
sealer returns to
the initial position.
1. Set the seal condition according to the
film being used.
2. Set the auto-cycle interval.
3. Turn ON or OFF the auto cycle interval
mode.
Push to operate the machine.
Push to turn ON the sealer.
Push again to turn OFF.
12
MS-350 NP Operating Instructions Ver 2.01E

MS-350 NP Operating Instructions Ver 2.01E
13

The power cord is located on the right side of the
machine, when facing toward it. Make sure the
electrical outlet has adequate current carrying capacity
as described at “1. Specification.” Insert the electric
power plug fully into the wall outlet.
1Slightly loosen the 6x10 white plastic screw at
the sealer front.
2 Insert the L-shaped table corner into the gap
between the unit frame and the white plastic
screw.
3 Tighten the screws firmly at the height suitable
for your product.
Install the machine on a flat, secure working place.
Use only as described in this manual.
There is a risk of danger and malfunctions may result if the machine is used not in accordance with this manual.
8 Proper use of the sealer
8-1 Setting the machine
8-2 Mounting the table
8-3 Plugging in the electrical
power cord.
Table
White plastic screw6x10
Seal receiving plate
Warning Installing the machine on an unstable or
inclined surface may cause the overturn
of the sealer.
Warning There is a danger of fire if the electrical
power source does not meet proper
specifications.
14


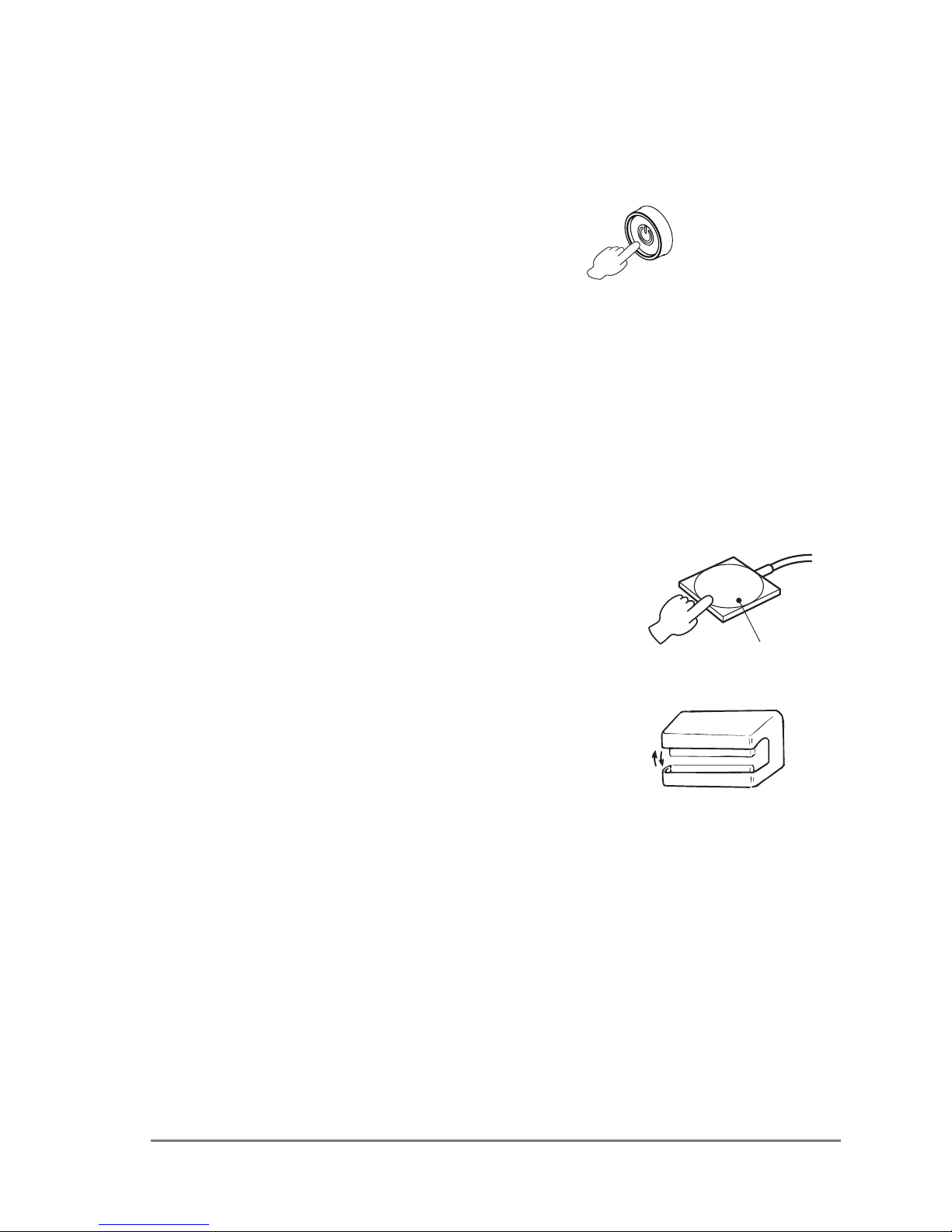

Turn ON the power switch located on the side of the
machine. The digital display on the control panel will
light up. (The number initially displayed is the counter.)
A Touch switch operation mode
The sealing process begins once you press the touch
switch.
B Auto
-
cycle mode
Automatic operation takes place based on the present
intervals. Set the interval while the machine is in the
auto cycle interval mode. (The interval is the time
between seals that allows for loading.)
The "Auto cycle START/STOP" button allows you to
select between manual (touch switch) and continuous
automatic operation.
Turn ON or OFF the auto-cycle interval mode after
selecting the operation mode referring to “8-6 Select
the operation mode >>> How to set each operation
mode.”
8-4 Power switch ON
8-5 Select the operation mode
A Touch switch operation
B Auto-cycle mode
Touch switch
Push to turn ON
MS-350 NP Operating Instructions Ver 2.01E
15

Set the heating temperature
･ Activate the "heating temperature" mode. Use ▲/▼
arrows to set the heating temperature.
[Setting range : 60-200 ℃] [140-392F]
･ The optimum heating temperature differs depending
on the material of pouch/ film.
･ Set the heating temperature at the minimum required
to make a sufficient sealing.
Set the heating (retaining) time
・ Activate the "heating time" mode. Us ▲/▼ arrows to
set the heating temperature.
[Setting range : 0.0 - 5.0 sec.]
・ Heating time of the temperature controlled machine
indicates the time to retain the set heating
temperature. Normally the sealing can be performed
without setting the heating time (with 0.0 seconds). It
will be effective to set the heating time (heat
temperature retaining time) when the packaging
material/ film is thick and the sealing cannot be
performed properly and the film is damaged even
though the sealing is complete.
･The heating temperature, heating time (heating
temperature retaining time), cooling temperature and
auto-cycle interval are set with the control unit.
The setting values will vary depending on the
pouch/film material, thickness, etc. Reset the seal
conditions every time you change the bag.
･Setting the various modes
Pushing the SET button changes the modes in the
following order:
TEMP DISPLAY→HEATING TEMP→HEATING
TIME→COOLING TEMP→AUTO CYCLE
INTERVAL.
･The mode indicator lights show which mode is
currently displayed. If no light is lit, the machine is in
the counter mode.
Set the cooling temperature
・
Activate the "cooling temperature" mode. Use ▲/▼
arrows to set the cooling temperature.
[Setting range : 40 ℃ (100F)- Set heating temp.]
・
Set sufficient cooling temperature.
Setting the auto-cycle interval
・ Activate the "auto-cycle interval" mode. Us ▲/▼
arrows to set the heating temperature.
[Setting range : 0.1 - 5.0 sec.]
・ Set the value only when operating the machine with
auto-cycle mode.
8-6 Setting the sealing condition
with the control unit DIGITAL DISPLAY
MODE
INDICATOR
LIGHTS
ALLOWS FOR CHANGES NUMERICAL
SETTING ARROWS
AUTO CYCLE
START/STOP
Counter and setting
display
In the mode setting
Setting can be increased
or decreased
During counter mode...
counter reset.
The line graph of the heating temperature
when the heating time is set 0.0 sec.
The line graph of the heating temperature
with some heating time.
Set temperature
Heating time
(Heat retaining time)
Set temperature

16

Power ON
MODE DIGITAL DISPLAY
RETURN TO TEMP DISPLAY
SET - FIRST TIMEPUSH
SET - SECOND TIMEPUSH
SET - THIRD TIMEPUSH
SET - FOURTH TIMEPUSH
SET - FIFTH TIMEPUSH
.................
.................
.................
.................
DECREASE VALUE INCREASE VALUE
DECREASE VALUE INCREASE VALUE
TEMP. DISPLAY
HEATING (RETAINING) TIME
COOLING TEMP.
AUTO CYCLE
SET ONLY WHEN AUTO CYCLE IS DESIRED
HEATING TEMP.
Power ON
MODE
DIGITAL DISPLAY
TEMP. DIAPLAY
HEATING (RETAINING) TIME
COOLING TEMP.
AUTO CYCLE
RETURN TO TEMP DISPLAY
Setting Complete
HEATING TIME DISPLAY
HEATING TEMP.
PRESS
PRESS
PRESS
PRESS




HEATING TEMP DISPLAY
COOLING TEMP DISPLAY
AUTO CYCL DISPLAY
SET - FIRST TIMEPUSH
SET - SECOND TIMEPUSH
SET - THIRD TIMEPUSH
SET - FOURTH TIMEPUSH
set
PUSHING FIVE TIMES WILL
RETURN YOU TO THE TEMP MODE.
- TO RESET THE VALUES -
Setting the different modes
Example)
Settings : Heating temperature 180℃ Heating (retaining) time 0.8 sec Cooling temperature 60℃Auto cycle 2.4 sec
MS-350 NP Operating Instructions Ver 2.01E
17

The pressure adjusting nut is adjusted to the
"NORMAL" position at the time of factory shipment.
The required sealing pressure varies depending on the
type and thickness of the film. Adjust the sealing
pressure according to each of the film to be used.
Perform the pressure adjustment referring to “11-1
Adjusting the sealing pressure.” Change the pressure
setting every time you change the film.
After completing the control unit and seal pressure
adjustment, turn off the auto-cycle mode and manually
perform the seal test to find the optimum sealing
condition to your film.
A Touch switch operation
Place a pouch to the sealing area. Pressing the touch
switch will lower the pressure lever to start sealing.
B Auto
-
cycle interval mode
Automatic operation takes place based on the preset
intervals. Place a pouch to the sealing area according to
the timing that the pressure lever descends. You can
deactivate the auto-cycle mode by pushing the
Auto-Cycle START/STOP button.
Caution The sealing area become hot with the
prolonged use, and there is a danger of
burning.
Also, it is extremely dangerous to place
fingers to the sealing area where the
strong pressure is applied. The machine
is designed to release the pressure when
the microswitch is not activated within 0.8
seconds due to the foreign objects being
inserted to the sealing area. However,
the strong pressure is applied especially
to both ends of the sealing jaws, and the
sealer may start heating.
8-7 Adjust the seal pressure
8-8 Perform test sealing
8-9 Seal with the selected
operation mode
Touch switch
A Touch switch operation
B Auto-cycle mode

18

 

 
  


 

 
  
  


To stop the operation after the machine started working,
push the “ABORT CYCLE” button. The lever will
return to the initial position. The set value will not be
erased even if the “ABORT CYCLE” button is pressed.
After the heating and cooling cycle has finished, the
pressure lever returns to the initial position, and the
sealing is complete. If a sealing is not clean enough,
adjust the heating/ cooling time or sealing pressure.
As the sealing operation proceeds, the numeric value of
the counter increases own at a time from 0000 to 9999.
When you want to reset the counter to 0000, push
either ▲ or ▼ arrow buttons while the machine is in
the counter mode.
● ABORT CYCLE button
8-10 Finishing sealing
8-11 Counter reset
MS-350 NP Operating Instructions Ver 2.01E
19

After finishing operation, always turn OFF the power
switch.
As the set value and the seal count are retained by the
control unit, there is no need to put the value every
time after turning OFF the power switch.
Unplug the power outlet in the case of not using the
machine for a while.
After use, please clean up the parts. Inspect parts such
as Teflon and heating element to make sure that they
are not damaged. If the parts appear to be damaged,
replace them referring to operating instruction.
8-12 Power switch OFF
8-13 Inspection after operation
Push to turn OFF

20
