Van Der Stahl OPL Series User manual

Printed AUG 2013
1st Edition 1.04E
MICROCOMPUTER-CONTROLLED TEMPERATURE CONTROL
IMPULSE SEALER
OPL(USA) SERIES
OPERATING INSTRUCTIONS
www.vanderstahl.com

OPL(USA) Series Operating Instructions Ver1.04E
2


3










Before using, always verify the voltage specification of your particular unit and operate it at the
correct voltages. Please note the following.
1 The voltage specification of your unit is listed on the label which displays the serial
number. This label can be found on the machine body.
2 Please confirm the plug configuration on your specific unit. The explanations and
illustrations in this operator's manual utilize the plug configurations most common in
Japan.
Thank you for purchasing the OPL series sealer.
Please read all of the safety and operating instructions before operating this machine. Periodic
maintenance and proper operation are necessary to ensure safety when using this impulse sealer.
Keep this manual on hand when operating the sealer.
Set the heating time according to the material and thickness of the film.
As a result of research to further improve the OPL series, some details in the operating
instructions may differ from your actual machine. For operating problems or product
information, please contact your local dealer.
Foreword
This manual is designed to cover machines of various voltages and
plug configurations
About the warning labels
The following marks are used in this manual to easily identify the conditions of risks, damages,
or some tips for the optimal use of your unit.
Caution   

Warning   

Danger   

Attention  

TIPS  

Warning Voltages and plug configurations differ according to various worldwide specifications.
Always verify those of your particular unit before beginning operation. Connecting the
power cord to an outlet of a different specification is extremely hazardous.

OPL(USA) Series Operating Instructions Ver1.04E
4
1 Specification ……………………………………………………………………………………………… 5
2 Package contents ………………………………………………………………………………………… 6
3 Replacement parts ………………………………………………………………………………………… 7
4 Proper use of the sealer ………………………………………………………………………………… 7
5 Warning-caution label location and content ………………………………………………………… 8
6 Operating precautions …………………………………………………………………………………… 9
For safety operation…………………………………………………………………………………………………………………………… 9
For smooth operation ……………………………………………………………………………………………………………………… 11
Other safeguards …………………………………………………………………………………………………………………………… 12
7 Major parts and function ……………………………………………………………………………… 13
8 Proper use of the sealer ……………………………………………………………………………… 14

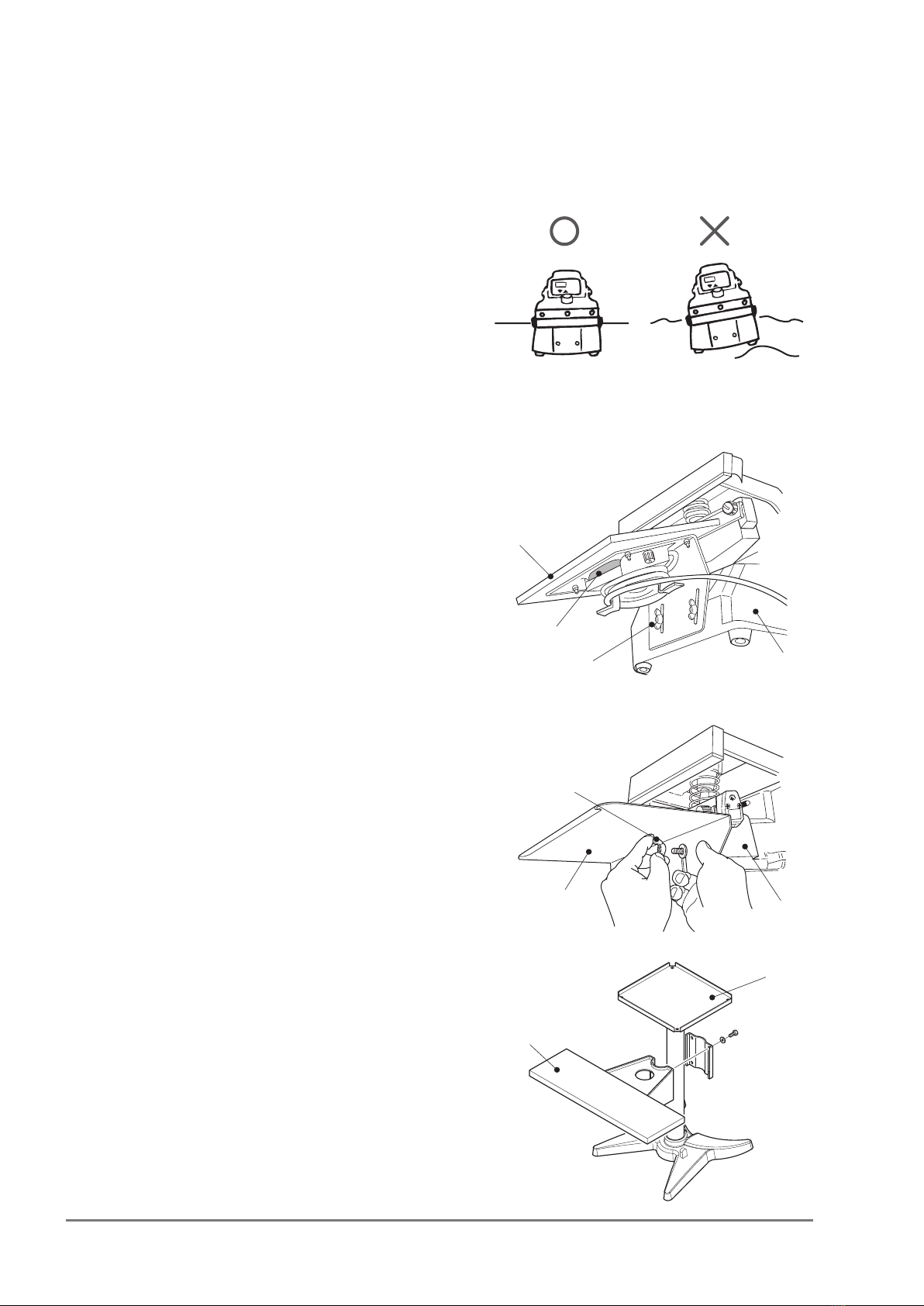

8-1 Setting the machine ………………………………………………………………………………………………………………… 14
8-2 Mounting the table ………………………………………………………………………………………………………………… 14

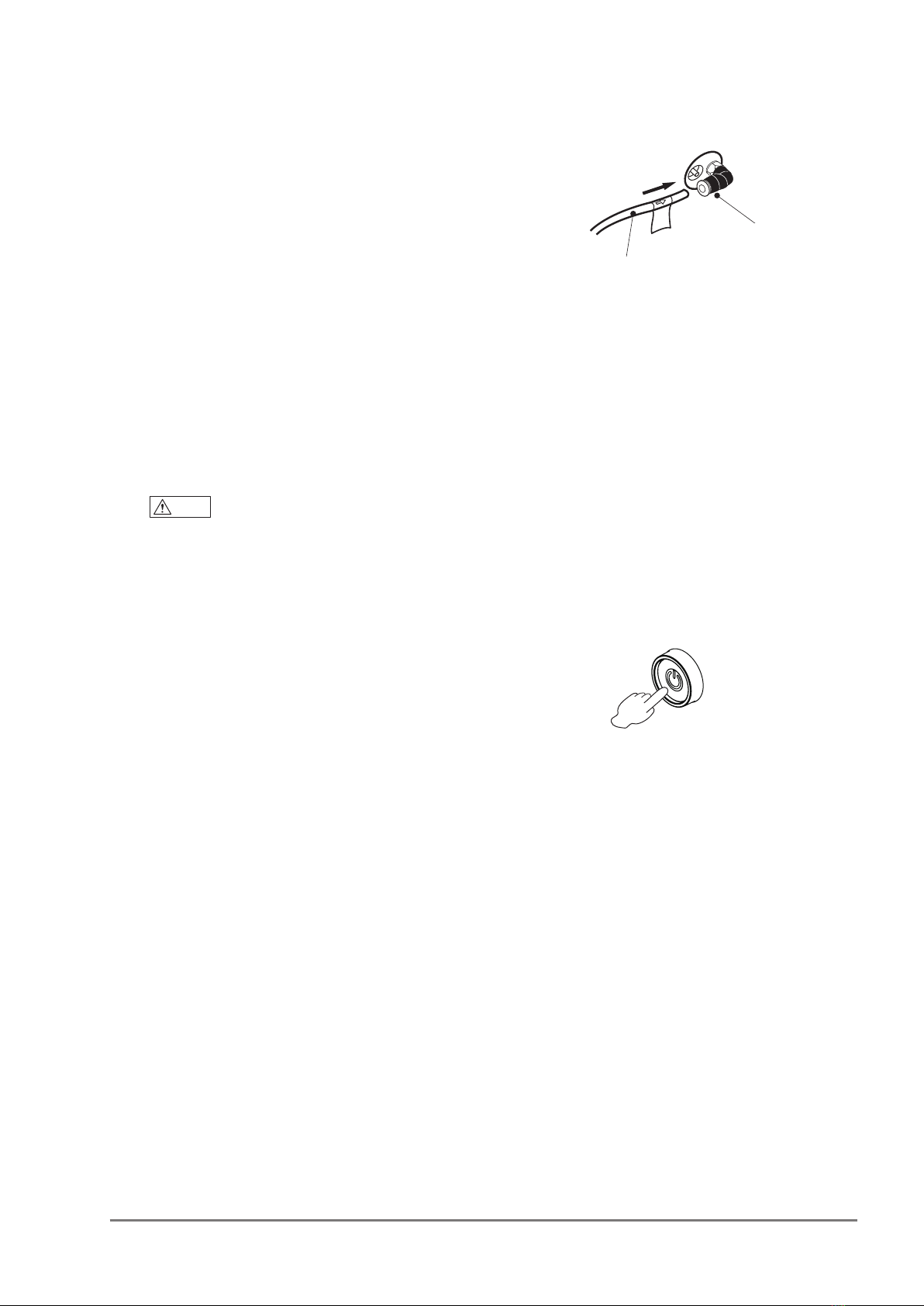

8-3 Insert the air hose…………………………………………………………………………………………………………………… 15
8-4 Plugging in the electrical power cord……………………………………………………………………………………………… 15
8-5 Power switch ON …………………………………………………………………………………………………………………… 15
8-6 Select the operation mode ………………………………………………………………………………………………………… 16

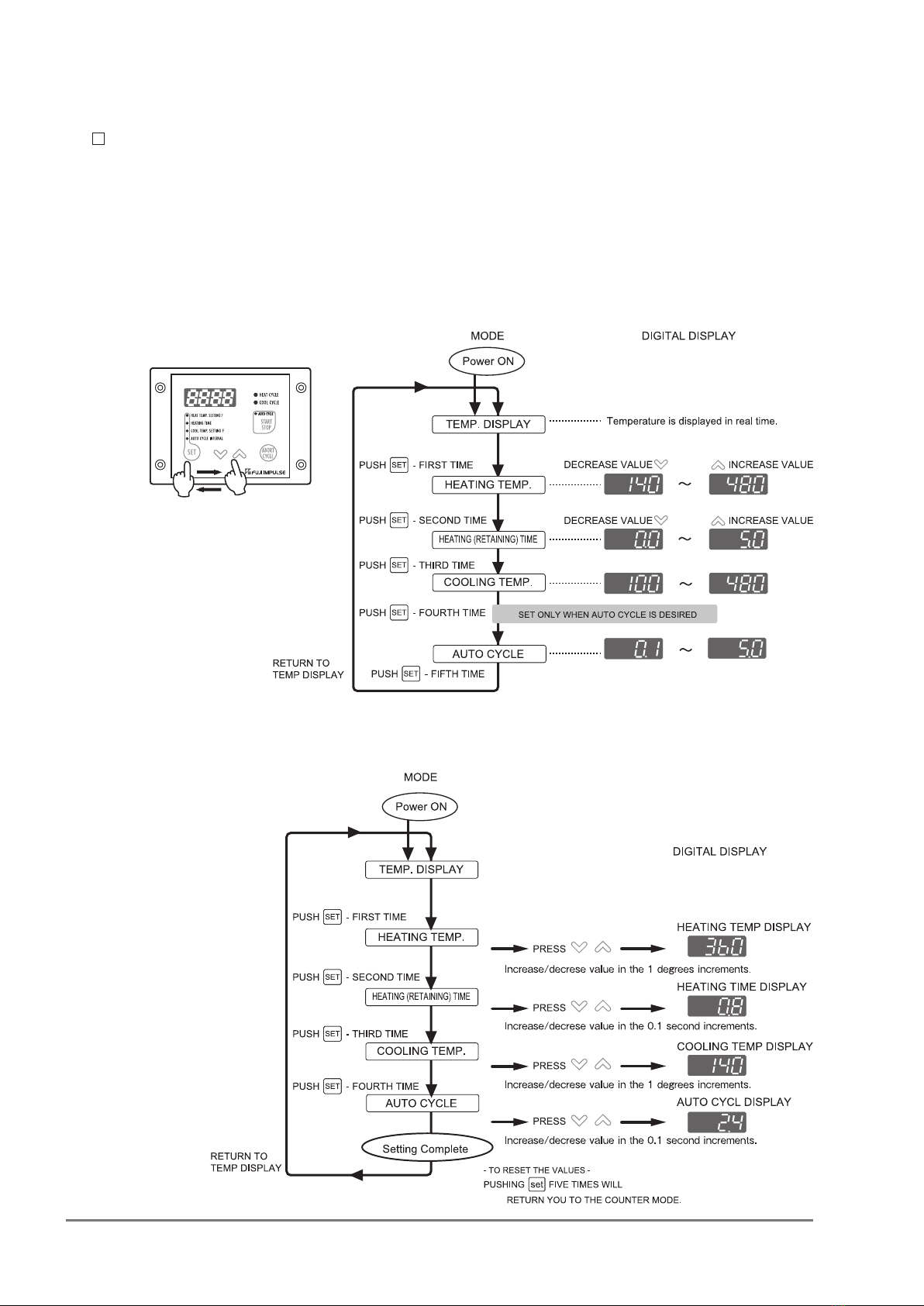

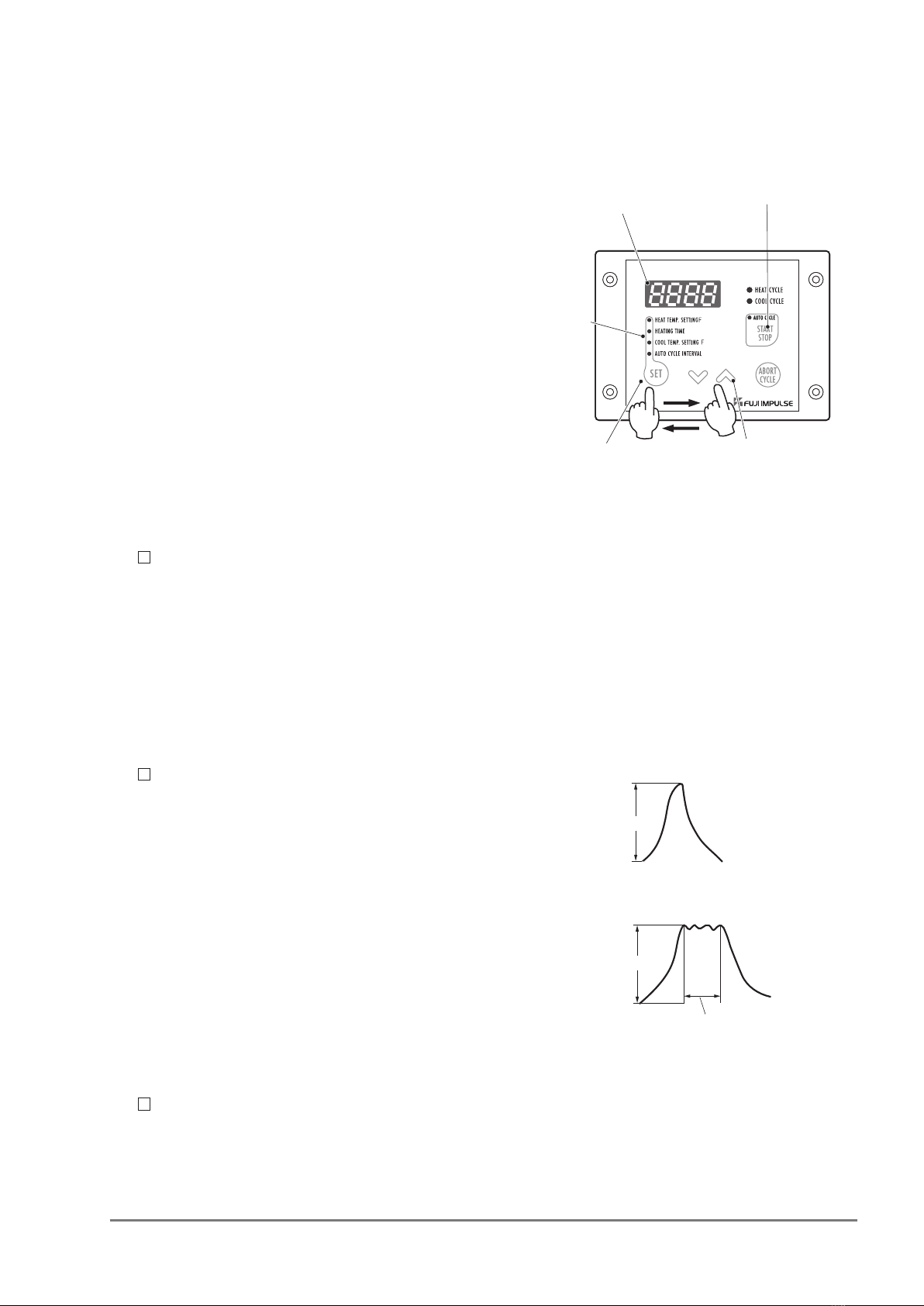

8-7 Setting the sealing condition with the control unit ……………………………………………………………………………… 17
8-8 Adjust the seal pressure …………………………………………………………………………………………………………… 19
8-9 Perform test sealing ………………………………………………………………………………………………………………… 19
8-10 Seal with the selected operation mode …………………………………………………………………………………………… 20
8-11 Finishing sealing …………………………………………………………………………………………………………………… 20
8-12 Power switch OFF ………………………………………………………………………………………………………………… 21
8-13 Inspection after operation ………………………………………………………………………………………………………… 21
9 Replacing the routine maintenance parts ………………………………………………………… 22
Structure of the sealing section …………………………………………………………………………………………………………… 22
9-1 Preparation ………………………………………………………………………………………………………………………… 22
9-2 Sliding the Teflon sheet …………………………………………………………………………………………………………… 23
9-3 Replacing the heating element …………………………………………………………………………………………………… 24
9-4 Replacing the glass tape and Sarcon sheet……………………………………………………………………………………… 25
9-5 Replacing the silicone rubber ……………………………………………………………………………………………………… 26
9-6 Replacing the pressure rubber …………………………………………………………………………………………………… 26
9-7 Replacing the microswitch ………………………………………………………………………………………………………… 27
9-8 Replacing the temperature sensor………………………………………………………………………………………………… 28
10 Adjusting each part …………………………………………………………………………………… 29
10-1 Adjusting the seal pressure………………………………………………………………………………………………………… 29
10-2 Table switch plate actuator pressure adjustment ……………………………………………………………………………… 29
11 About the optional hot stamp printer………………………………………………………………… 30
12 Electric diagram ………………………………………………………………………………………… 32
110V ………………………………………………………………………………………………………………………………… 32
220V ………………………………………………………………………………………………………………………………… 33
13 Common problems and solutions …………………………………………………………………… 34
14 Error message and solutions ………………………………………………………………………… 36
Exploded view / parts list ……………………………………………………………………………… 37
Table of contents


5
Code Model Voltage
V
Power
W
Sealing
Width
mm
Sealing
Length
mm
Weight
kg
Machine
Dimention mm
W x D x H
Printer Special
Table
Standard
Table
Table
Switch-
plate
Inner Outer
- OPL-200-10 110 1150 10 200 16 260x580x360 ---
- OPL-300-5 110 1100 5 300 16 360x580x360
- OPL-300-10 110 1500 10 300 16.5 360x590x360
- OPL-450-5 110 1200 5 450 15 520x510x360 ---
- OPL-450-10 220 2200 10 450 16 520x380x370 ---
- OPL-600-5 110 1500 5 600 19 680x390x360 --- ---
- OPL-600-10 220 2700 10 600 23.5 680x390x370 --- ---
1 Specification
...Standard equipped ...Optional
Optional special table can be mounted only when it is used along with the FA stand.


6




Please make sure that all of the accessories described below are included.
If not, please contact your dealer.
Model Accessories
OPL-200-10
Heating element/ 5pcs, Philips screwdriver, Table-switch plate (with air pedal), Seal gauge
OPL-300-5 Heating element/ 5pcs, Philips screwdriver, Table-switch plate (with air pedal), Seal gauge
OPL-300-10 Heating element/ 5pcs, Philips screwdriver, Table-switch plate (with air pedal), Seal gauge
OPL-450-5 Heating element/ 5pcs, Philips screwdriver, Seal gauge, Standard table, Air pedal
OPL-450-10 Heating element/ 5pcs, Philips screwdriver, Seal gauge, Air pedal
OPL-600-5 Heating element/ 5pcs, Philips screwdriver, Seal gauge, Air pedal
OPL-600-10 Heating element/ 5pcs, Philips screwdriver, Seal gauge, Air pedal

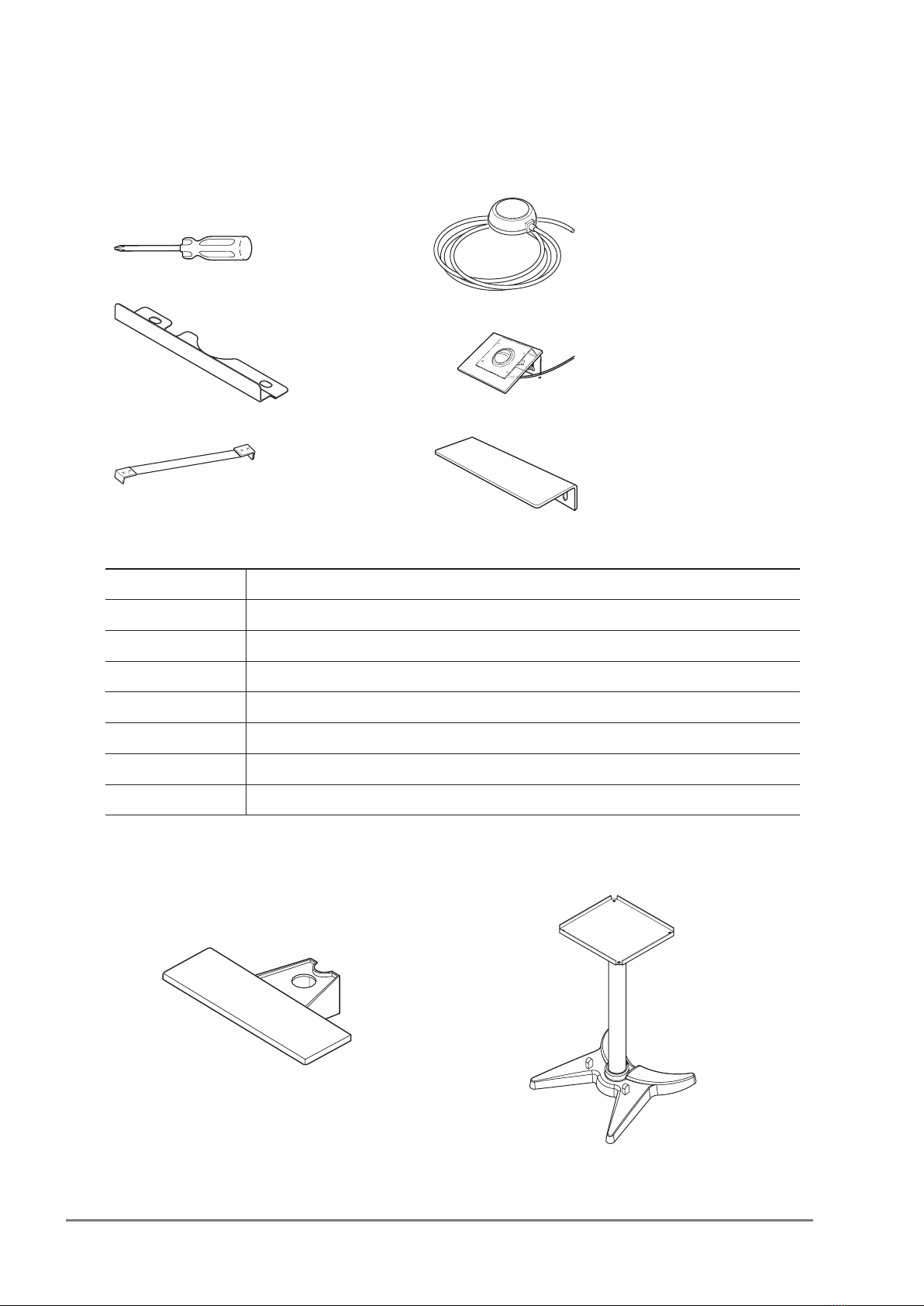

2 Package contents
Options
These illustrations are not reduced equally.
Heating element
Philips screwdriver
Seal gauge Table-switch plate
Standard table
Air pedal
(Only for single side heating
models.)
(Air pedal is mounted to the table-switch
plate at the time of factory shipment.
(Optional product except for OPL-450-
5)
Special table
FA stand


7
Routine maintenance parts, which will need to be replaced after extensive use, are sold individually as
detailed below. Also the maintenance parts kits that includes all the consumable parts are available.
Replacement parts can be purchased through Van der Stahl Scientific.
1The impulse sealer is a machine which sends strong electric current quickly to the thin ribbon heater,
which presses against the film and instantly heat seals the package. Though this machine yields
superior quality sealing, it is not compatible with films thicker than that indicated in the diagram
below, sponge-like sheets, and materials which are not able to withstand high heat.
2Film thickness limits for the OPL series are described below. The machine cannot seal bags which
are thicker than that indicated. The machine may malfunction if you try to exceed the limits of the
machine.
Heating element Silicone rubber 7HÀRQ Glass tape Sarcon sheet
3 pcs. 1 pc. 2 pcs. 5M roll ... 1roll 1 pc.
Parts Name Sales Unit
Heating element 20 pcs./set or 10 pcs./set
7HÀRQ 2 pcs./set
Silicone rubber 2 pcs./set
Glass tape 5M or 10M roll ... 1 roll
Sarcon sheet 2 pcs./set or 5M roll ... 1 roll
Plastic nut black 6mm 5 pcs./set
Microswitch 1 pc.
Microswitch cover 1 pc.
Heating method Heater width )LOPWKLFNQHVVWRWDOWKLFNQHVVRISLOHG¿OP
Single side heating 5mm Less than 0.3mm
Single side heating 10mm Less than 0.4mm
3 Replacement parts
4 Proper use of the sealer
Replacement parts sales unit
Maintenance parts kit detail


8
Ɣ'R QRW SODFH \RXU ILQJHUV QHDU WKH VHDO VXUIDFH
They may get jammed.
Ɣ7KHVHDOVXUIDFHZLOOEHFRPHKRWDIWHUSURORQJHG
use. Do not touch or burns may result.
Ɣ$OZD\VXQSOXJEHIRUHSHUIRUPLQJPDLQWHQDQFH
HOT WARNING CAUTION
W2079
When opening the cover for maintenance
checks, the machine must unplug from the
wall outlet. Otherwise jamming or electrick
shock may occure.
CAUTION
UNPLUG BEFORE
PERFORMING
MAINTENANCE.
WARNING
electric shock
Warning - Caution labels are placed in locations where there is a danger of injury to a person or damage to
the machine. Label location details are illustrated below. Please check them before beginning operation.
Labels not readily apparent are indicated by dotted lines.
5 Warning-caution label location and content
When removing the control unit,
you will see this label adhered
on the backside of it. Do not
remove the control unit unless it
is necessary.
Adhered on the left side of the
body frame.
This label is adhered to the bottom plate.
This label is adhered on the pressure lever.
If Warning - Caution labels peel off or are lost, please purchase the proper
labels and place them in the appropriate location.


9
6 Operating precautions
For safety operation
Warning In an emergency, unplug the power cord immediately
This sealer incorporates a number of safety devices and is carefully
designed to prevent fires or other malfunctions. However, should all of
the safety devices fail simultaneously, there is a possibility of the Teflon
catching fire due to a failure of the heating circuit's tripping mechanism
that results in the heating element overheating. Should smoke or fire
appear from the Teflon, immediately turn OFF the power from the
outlet.
Warning Confirm proper electric power source
Make sure power source has the specified voltage and electric power
as explained in “1 Specification” of this manual. DO NOT use an
extension cord, as the machine may malfunction due to voltage drop or
may result in fire. Machine will malfunction if connected to anything
other than the specified voltage. Insert the electric power plug fully into
the wall outlet.
Warning Do not use for packaging liquids
Do not splash water on the machine or use machine for packaging
liquids since machine is not waterproof. There is a danger of
electrocution or malfunction of the machine.
Warning Do not insert any metal objects into the sealing area
Please do not place any metal objects into the sealing area during
operation. This could cause electrocution.
Warning When replacing parts, unplug the power plug
Maintenance of the machine is important. Parts should be replaced in
accordance with the operating instructions. There is a risk of danger if
the parts are not replaced properly. Before replacing parts, unplug the
machine from the power source and replace parts referring to
“Replacing the routine maintenance parts” thoroughly.
Warning Do not modify the machine
Modification of the OPL series or the use of unspecified parts may not
only lead to damage of the machine, but there is also a risk of danger to
the operator. Please do not tamper with the machine. Accidents or
damage caused by modification by the customer is the sole
responsibility of the customer.


10
1Dusty locations.
2Locations not within normal temperatures.
3Locations with high humidity.
Warning Do not use parts other than those specified
When replacing parts, always use only specified parts sold through Van
der Stahl Scientific. We are not responsible for malfunctions caused by
the use of unspecified parts.
Warning If the power switch automatically turns OFF
If after 3 seconds heating is not complete after it has been initiated, the
power switch will automatically turn OFF. There is a possibility of
malfunction of the machine. Do not operate the machine until the cause
of the shut down is ascertained and the problem has been addressed.
Caution Do not use in the following places
Do not operate machine in the following places since there is a danger
of malfunction:
Caution Do not place hands in the sealing area
1With prolonged use, the sealing area will retain heat and
become hot. If you place your fingers in this area, there is a
possibility of burns.
2Do not place hands between the seal jaws (pressure lever and
seal frame).
3Should the foreign objects such as fingers are clamped between
the sealing area and the sealer cannot move to the heating
process within 0.8 seconds, the lever automatically returns to
the initial position. However, the strong pressure is applied
especially to the both ends to the sealing area, and there a
danger that the sealing process may start without notice.
Caution Use the machine properly
Read “Proper use of the sealer” in this manual carefully and operate
sealer correctly. Accidents or damage caused by misuse of the machine
not in accordance with the operating instructions are the sole
responsibility of the customer.


11
ƔTo achieve a strong seal
Proper sealing pressure is important in achieving a strong seal. Follow
directions on proper sealing pressure adjustments and set accordingly.
(Refer to “10-1 Adjusting the seal pressure”.)
ƔDust in the sealing area
Dust will prevent attainment of a smooth seal. It could also cause
damage to heating element and/or other routine maintenance parts.
Before using the machine, clean the sealing area.
Ɣ+HDWLQJWHPSHUDWXUHVKRXOGEHVHWDWDPLQLPXP
Set sealer so that an acceptable seal is completed at the lowest heating
temperature. Excessively high heating temperatures will damage the
Teflon, glass tape and other consumables, as well as result in heating
element breakage. This will lead to decreased work productivity and
unnecessary power consumption.
Ɣ6HWWKHFRROLQJWHPSHUDWXUHGHSHQGLQJRQWKHILOP
Cooling process is important when using an impulse sealer. After the
film is heated, the film must cool with the frame and pressure lever in
the closed position. Setting the cooling temperature excessively low
will decrease the work productivity. Set the cooling temperature that is
suitable for each film.
ƔWhen the Teflon, silicone rubber becomes damaged
The Teflon, silicone rubber will start to wear with use. Once they are
damaged, it will be difficult to achieve smooth and strong seals.
Thoroughly read how to replace the parts and be careful when doing so.
For smooth operation


12
Do NOT attempt to plug any other electronic devices into this outlet.
ƔRun test trials before beginning operation
Find the optimum sealing conditions by conducting seal tests before
proceeding. Achieving a superior seal with an impulse sealer is
determined by heating / cooling / pressure strength. Depending on the
type of film being used, heating / cooling / pressure strength conditions
will differ. Run test trials to find the optimum sealing condition on
customer’s responsibility, especially when trying to find the tightest
seal possible.
ƔThe OPL series is an impulse sealer
Do not become alarmed if the sealing area does not become hot after
the power switch is turned to the ON position. The machine has not
malfunctioned.
The sealer uses an impulse method so the heating element will not
become hot just by plugging the unit in or turning the power switch to
the ON position. The heater will only become hot for an instant when
the heating process is in operation. However, after extended periods
of use, the sealing area may become hot.
ƔPrinter outlet
The printer outlet is located on the underside of the seal frame head. It
is to be used ONLY when mounting the optional printer.
ƔIf there is a malfunction in the temperature sensor
The temperature sensor is designed to monitor and control heating
temperature by directly measuring the heater temperature. Therefore,
the machine will not operate when the sensor tip is not positioned
correctly or the sensor is disconnected.
When replacing the consumable parts such as heating element or the
temperature sensor, please be sure to position the temperature sensor
correctly. Please refer to “9-8 Replacing the temperature sensor” for the
detail.
Other safeguards
The power cord from the heater section (white)
Power cord of the printer (black)


13
$UURZVŸDQGźLQFUHDVHRUGHFUHDVHWKH
numeric value by one digit every time
they are pushed.
If you hold the button in, the numeric
value will increase or decrease
continuously. Use this method when
making wide range changes in setting.
7 Major parts and function
Control Unit Panel
Display
Pressure adjusting nut
Pressure adjusting nut
mounting screw
Pressure lever
Electrode
Plastic nut (black)
Teflon
Table switch plate
Air pedal
Body frame air switch with
elbow joint
Power cord
Power switch
Control unit
1. Turns on when the
power is on.
2. Displays each set
value.
1. Set the seal condition according to the
film being used.
2. Set the auto-cycle interval.
3. Turn ON or OFF the auto cycle interval
mode.
Push to turn ON the sealer.
Push again to turn OFF.
Temperature sensor
Digital Display
Mode indicator
lights
Mode selection button
Allows for changes in the
mode setting.
Numerical setting arrows
Auto cycle
START/STOP
ABORT CYCLE
Real time temperature display and
setting display
Numerical values can be
increased or decreased when
setting each mode.
All operations are
stopped and the sealer
returns to the initial
position.


14
OPL series is the table-top type sealer. Place the
machine on a flat, horizontal working table.
The optional FA stand is available when you cannot
secure the proper working place.
A Mount the table-switch plate
Skip this procedure when using the air pedal as a foot
switch.
B Mount the standard table
For the OPL series of sealers, the standard table will be
optional parts except for OPL-450-5.
Fix to the seal frame using the wing nuts and bolts. The
height can be adjusted to the optimum level depending
on the application.
C Mount the special table (Optional)
The special table can be mounted to the FA stand,
which is sold individually. (The air pedal cannot be
installed to the special table.)
Use only as described in this manual.
There is a risk of danger and malfunctions may result if the machine is used not in accordance with this manual.
1OPL-200, OPL-300 Series
Fix the table-switch plate to the body frame
using the wing nut. The height can be adjusted
to the optimum level depending on the
application. (The wing nuts are installed to the
bolts of the body frame where the table is to be
installed.)
2OPL-450, OPL-600 Series
The table-switch plate cannot be mounted to
these sealer models. (Refer to "8-6 Select the
operation mode >>> How to set each operation
mode.")
8 Proper use of the sealer
8-1 Setting the machine
8-2 Mounting the table
Table-switch
plate
Air pedal
Wing nut Body frame
Wing nut
Table
Seal frame
A Table-switch plate
B Standard table
Special table
FA
stand
C Special table


15
Insert the air pedal hose securely into the elbow of the
main frame air switch.
The power cord is located on the right side of the
machine, when facing toward it. Make sure the
electrical outlet has adequate current carrying capacity
as described at “1. Specification.” Insert the electric
power plug fully into the wall outlet.
The control unit display will turn on when the power
switch, located on the side of the common frame, is
pushed on.
8-3 Insert the air hose
8-4 Plugging in the electrical power
cord
8-5 Power switch ON
Body frame air switch
with elbow joint
Air hose
Securely insert the
hose
Push to turn ON
Warning There is a danger of fire if the electrical
power source does not meet proper
specification.


16
Ɣ$XWRF\FOHLQWHUYDOPRGH2))
(Auto cycle interval lamp OFF)
1Air pedal operation ..... The machine operates
when the air pedal is depressed.
The "Auto cycle START/STOP" button allows you to
select between manual and continuous automatic
operation.
Turn ON or OFF the auto-cycle interval mode after
selecting the operation mode referring to "8-7 Setting
the sealing condition.”
For the detail, refer to “8-6 Select the operation mode
>>> How to set each operation mode.”
Ɣ$XWRF\FOHLQWHUYDOPRGH21
(Auto cycle interval lamp ON)
3Auto cycle mode ..... Automatic operation takes
place based on the preset intervals.
2Table switch plate operation ..... The machine
operates when the table switch plate is pushed.
Operation mode OPL-200, OPL-300 series OPL-450, OPL-600 series
Air pedal operation
Push the Auto Cycle START/STOP button to
turn OFF the auto cycle. Remove the air pedal
set to the table-switch plate. Place the air
pedal to your preferred place.
Push the Auto Cycle START/STOP button
to turn OFF the auto cycle. Set the air pedal
included in the accessories referring to "8-3
Insert the air hose" and use it to operate the
machine.
Table-switch plate operation
Push the Auto Cycle START/STOP button
to turn OFF the auto cycle. Mount the table-
switch plate referring to "8-2 Mounting the
table" and use it to operate the machine.
This operation mode cannot be used.
Auto-cycle mode Set the auto-cycle interval time, and turn ON the auto-cycle mode by pushing the Auto Cycle
START/STOP button.
How to set each operation mode

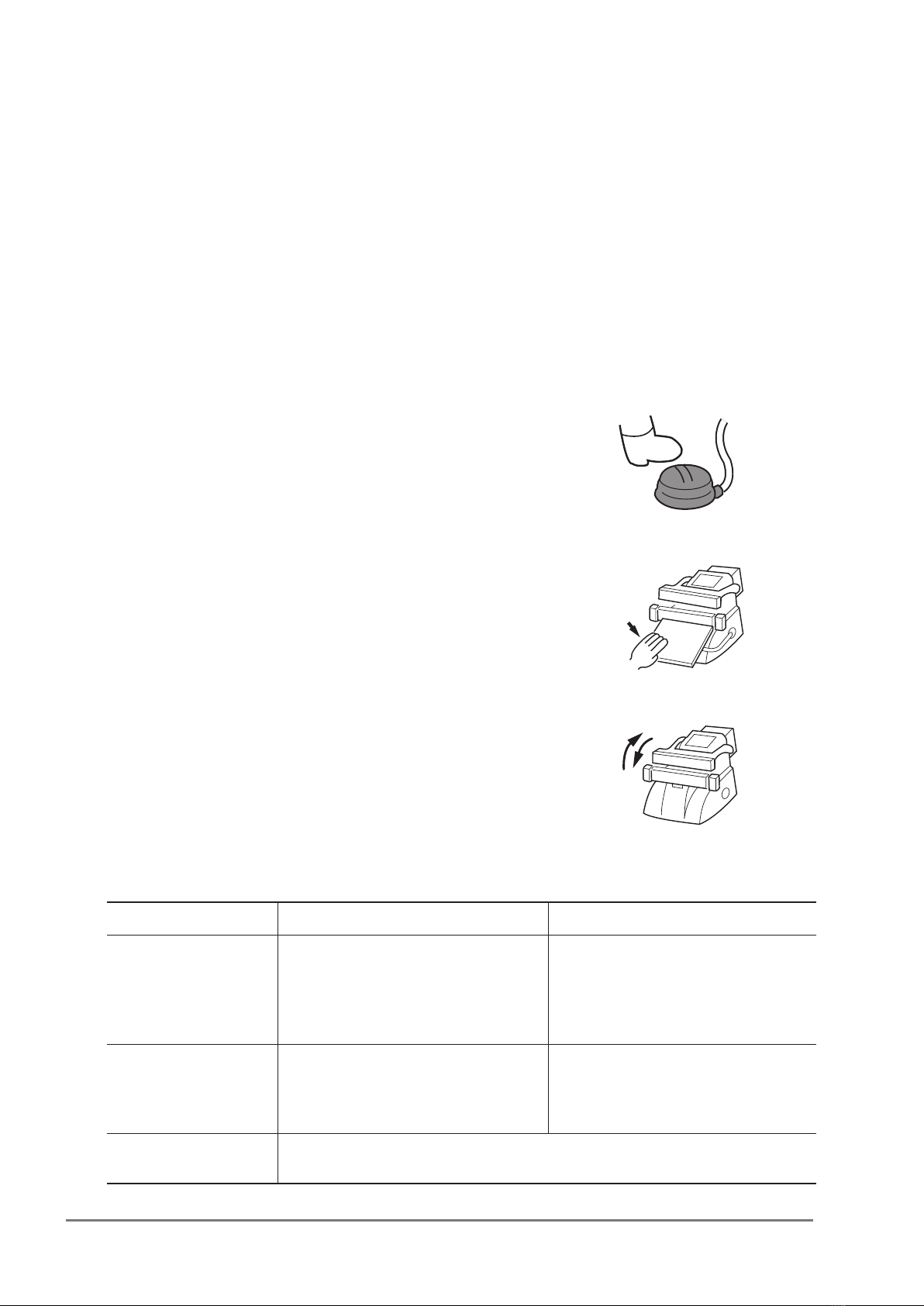

8-6 Select the operation mode
1 Air pedal operation
2 Table-switch operation
3 Auto-cycle mode


17
Set the heating temperature
･$FWLYDWHWKHKHDWLQJWHPSHUDWXUHPRGH8VHŸź
arrows to set the heating temperature.
[Setting range : 140-480ºF]
･The optimum heating temperature differs depending
on the material of pouch/ film.
･Set the heating temperature at the minimum required
to make a sufficient sealing.
Set the heat (retaining) time
･$FWLYDWHWKHKHDWLQJWLPHPRGH8VŸźDUURZVWR
set the heating temperature.
[Setting range : 0.0 - 5.0 sec.]
･Heating time of the temperature controlled machine
indicates the time to retain the set heating
temperature. Normally the sealing can be performed
without setting the heating time (with 0.0 seconds). It
will be effective to set the heating time (heat
temperature retaining time) when the packaging
material/ film is thick and the sealing cannot be
performed properly and the film is damaged even
though the sealing is complete.
･The heating temperature, heating time (heating
temperature retaining time), cooling temperature and
auto-cycle interval are set with the control unit.
The setting values will vary depending on the pouch/
film material, thickness, etc. Reset the seal conditions
every time you change the bag.
･Setting the various modes
Pushing the SET button changes the modes in the
following order:
 7(03(5$785(',63/$<ĺ+($7,1*
7(03ĺ+($7,1*7,0(ĺ&22/,1*
7(03ĺ$872&<&/(,17(59$/
･The mode indicator lights show which mode is
currently displayed. If no light is lit, the machine is in
the counter or temp display mode.
Set the cooling temperature
･$FWLYDWHWKHFRROLQJWHPSHUDWXUHPRGH8VHŸź
arrows to set the cooling temperature.
[Setting range : 100ºF - Set heating temp.]
･Set sufficient cooling temperature.
8-7 Setting the sealing condition with
the control unit
The line graph of the heating temperature
when the heating time is set 0.0 sec.
The line graph of the heating temperature
with some heating time.
Set temperature
Heating time
(Heat retaining time)
DIGITAL DISPLAY
MODE
INDICATOR
LIGHTS
ALLOWS FOR CHANGES NUMERICAL SETTING
ARROWS
AUTO CYCLE
START/STOP
Temperature and setting
display
Push to switch the displayed setting
mode. Setting can be increased or
decreased
During counter mode... counter
reset.
Set temperature


18
Setting the auto-cycle interval
･$FWLYDWHWKHDXWRF\FOHLQWHUYDOPRGH8VŸź
arrows to set the heating temperature.
[Setting range : 0.1 - 5.0 sec.]
･Set the value only when operating the machine with
auto-cycle mode.
Setting the different modes
Example)
Settings : Heating temperature 360ºF Heating (retaining) time 0.8 sec Cooling temperature 140ºFAuto cycle 2.4 sec


19
The pressure adjusting nut is adjusted to the
"NORMAL" position for the film of 0.1 to 0.2 mm
thickness at the time of factory shipment.
The required sealing pressure varies depending on the
type and thickness of the film. Adjust the sealing
pressure according to each of the film to be used.
After completing the control unit and seal pressure
adjustment, turn off the auto-cycle mode and manually
perform the seal test to find the optimum sealing
condition to your film.
8-8 Adjust the seal pressure
8-9 Perform test sealing
Pressure
adjusting nut
Attention Perform the pressure adjustment referring
to “10-1 Adjusting the sealing pressure.”
Change the pressure setting every time
you change the film.


20
1 Air pedal operation
2 Table-switch plate operation
3 Auto-cycle mode
1Air pedal operation
Place a pouch to the sealing area. Depressing the air
pedal will lower the pressure lever to start sealing.
2Table-swtich plate operation
Place a pouch to the sealing area. Lightly press the part
of the table-switch plate where indicated by the label to
lower the pressure lever and start sealing.
3Auto-cycle interval mode
Automatic operation takes place based on the preset
intervals. Place a pouch to the sealing area according to
the timing that the pressure lever descends. You can
deactivate the auto-cycle mode by pushing the Auto-
Cycle START/STOP button.
Ɣ$%257&<&/(EXWWRQ
To stop the operation after the machine started working,
push the “ABORT CYCLE” button. The lever will
return to the initial position. The set value will not be
erased even if the “ABORT CYCLE” button is pressed.
After the heating and cooling cycle has finished, the
pressure lever returns to the initial position, and the
sealing is complete. If a sealing is not clean enough,
adjust the heating/ cooling time or sealing pressure.
8-10 Seal with the selected operation
mode
8-11 Finishing sealing
Caution The sealing area become hot with the
prolonged use, and there is a danger of
burning.
Also, it is extremely dangerous to place
fingers to the sealing area where the
strong pressure is applied. The machine is
designed to release the pressure when the
microswitch is not activated within 0.8
seconds due to the foreign objects being
inserted to the sealing area. However, the
strong pressure is applied especially to
both ends of the sealing jaws, and the
sealer may start heating. (Especially for
OPL-450 and 600 series.)
