VEVOR ALK-T1 User manual

ion Splicer User Manual
Technical Support and E-Warranty Certificate
www.vevor.com/support
OPTICAL FIBER FUSION SPLICER
USR MANUAL
Model: ALK-T1
We continue to be committed to provide you tools with
competitive price. "Save Half", "Half Price" or any other similar
expressions used by us only represents an estimate of savings
you might benefit from buying certain tools with us compared
to the major top brands and doses not necessarily mean to
cover all categories of tools offered by us. You are kindly
reminded to verify carefully when you are placing an order with
us if you are actually saving half in comparison with the top
major brands.

- 1 -
Have product questions? Need technical support? Please feel free
to contact us: [e-mail]
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves clear interpretation of
our user manual. The appearance of the product shall be subject to
the product you received. Please forgive us that we won't inform you
again if there are any technology or software updates on our product.
Model: ALK-T1
OPTICAL FIBER
FUSION SPLICER

2
Catalog
Warnings and safety precautions ............ 错误！未定义书签。
Warning .......................................................................................... 4
Caution ........................................................................................... 5
Chapter 1 Product Description ................................................... 4
1.2 Configuration .......................................................................... 8
1.3 Introduction of Fusion Splicer Components ................ 10
1.4 Operation buttons ................................................................ 11
Chapter 2 Basic operation ...................................................... 13
2.2 Power on and off ..................................................................13

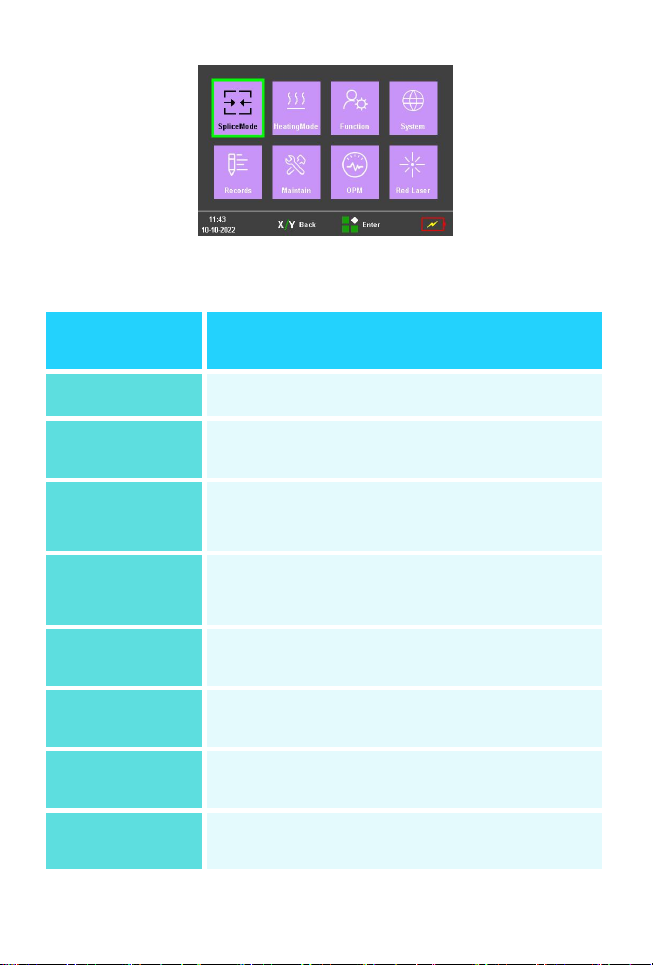

2.3 Introduction to the main menu and shortcut key
operations .................................................................................. 14
2.4 Preparation before splicing ..............................................17
2.5 System and function settings ............................................. 21
2.6 Splicing operations .............................................................. 23
2.7 Splice Result save and find ................................................28
2.8 Heating Operation ................................................................29
2.9 OPM and VFL Operation .................................................... 31
Chapter 3 Maintenance ............................................................. 33
3.0 Equipment maintenance menu ..........................................33
3.1 Arc Correction .......................................................................34

3
3.2 Electrodes Maintenance ..................................................... 34
3.3 System parameter self-test ................................................ 36
3.4 Cleaning and maintenance of Fusion Splicer ..................36
Chapter 4 Password Control Function (Optional) ................. 38
4.1 Management options interface .......................................... 38
4.2 Power-on password login interface introduction ............. 40
Appendix 1 Warning Information ..............................................44
Appendix 2 Problems and Troubleshooting ........................... 45
After-sales Service Guarantee Card ....................................... 48

4
Warnings and safety precautions
This product is designed for fusing glass optical fibers for
communication purposes and should not be used for fusing
other substances. Incorrect handling may result in electric
shock, fire and personal injury. For the safety of the user,
please read and observe the following carefully.
Warning
Do not use power adapters, batteries, power cords, etc.
other than those specified for this product. Do not use
voltages other than those specified for this product as this
may cause a fire or electric shock.
Do not allow liquids such as water or metallic substances to
enter the interior of the machine, as this may cause fire,
electric shock or machine failure. In the event of water or
metallic substances entering the machine, stop using it,
unplug it from the mains and contact our maintenance
department.
Do not use the fusion splicer in a flammable or explosive
environment, as this may lead to fire or explosion.
Do not touch the electrodes when the fusion splicer is in
operation to avoid being injured by the high voltage
generated by the electrode discharge. Also when replacing
the electrodes the power must be switched off and the power
cord unplugged.
If you find that the machine is smoking, smells or makes
unusual noises, please stop using it immediately and unplug
it from the power supply and contact our maintenance
service. If you continue to use the machine, it may cause fire,
electric shock, machine failure and other accidents.
It is forbidden to dismantle or modify the fusing machine,
battery or power adapter to avoid heat, rupture or fire.
Please use the battery in strict accordance with the

5
operating instructions, as incorrect use of the battery may
result in heat, rupture, explosion, fire or personal injury
Caution
Do not use and store the fusion splicer in an environment
with high temperatures and humidity as this may cause
damage to the equipment.
Do not touch the heat shrink tube during or just after
heating, as the heat shrink tube is very hot and may cause
burns.
Do not touch the fusion splicer, AC power cord and AC plug
when your hands are wet as this may cause electric shock.
Do not use any chemicals other than alcohol to clean
microscope lenses, V-grooves, displays etc. as this may
result in blurred images, smudges etc. and may even cause
corrosion and damage to the equipment.
When used in dusty environments, appropriate dust control
measures must be taken to avoid large amounts of dust
entering the inside of the machine and causing it to
malfunction.
Do not subject the fusion splicer to strong vibrations and
shocks, as this may cause damage to the machine. Use a
special carrying case for transporting or storing the fusion
splicer.
Use the power adapter supplied as standard, if you use
your own adapter, the fusion splicer may not work properly.
Please check the battery level before using the fusion
splicer. If the battery level is low or there is an under voltage
alarm, please recharge the battery pack in time. (When the
battery is fully charged but still has a very short operating
time, please replace the battery with the specified type in
time).

6
Chapter 1 Product Description
1.1 Basic Parameters
Parameters
Applicable Optical
Fiber Types
SM, MM, DS, NZDS, UI, BUI, EDF
Applicable fiber core
number
Single core
Number of motors
4
Alignment method
Core alignment, cladding alignment, fine
alignment
Applicable fiber
diameter
Cladding Diameter:125-150μm，Coating
diameter:250～1000μm
Splicing mode
Pre-stored: 8 groups, user define: 792
groups
Splicing method
Electric arc fusion welding
Splicing function
Step-by-step splicing (semi-automatic and
manual), automatic splicing
Boot time
3s
Average splicing loss
0.02dB(SM)，0.01dB(MM)，0.04dB(DS)，
0.04dB(NZDS)
Return loss
Better than 60dB
Splicing time
10sec(typical mode)/8sec(fast mode)
Splicing loss
evaluation
Exists
Tension test
Min. 2N
Display
3.5-inch TFT true color LCD display
User-device interaction
mode
Buttons
Fiber Magnification
X and Y:115 times，X or Y:230 times

7
Power supply
11.1V Lithium battery，13.5V/5A power
adapter
Battery
Typically170 times(splicing/heating)，full
charge: 2.5H，recharge cycle: 500 times,
3500mAh
Power-saving function
Support setting power saving mode to
achieve power saving function
Storage
10000 records
Image Storage
20 images
Electrode lifetime
5000
Data Interface
USB2.0
Operating Environment
Elevation: 0～5000m, Relative humidity 0～
95% (no condensation), working
temperature -20℃～55℃, maximum wind
speed 15m/s
Storage Environment
Relative humidity 0～95% (no
condensation), temperature -40℃
80℃, temperature -10℃～40℃(battery)
Weight
1.28KG
Size
210D×133W×105H(mm)
Authority management
function
Optional
Applicable sleeve
diameter
2mm,3mm,4mm,6mm
Applicable sleeve
length
60mm，50mm，45mm，40mm，25mm(FP-03)
Heating time
2mm sleeve(10-15sec)，4mm

8
sleeve(15-20sec)，6mm sleeve(15-20sec)
Heating temperature
10-260℃(user editable)
Automatic heating
Automatic recognition when cover closed
Night work light
LED
Aerial work
Optional aerial work platform
Removable battery
Pluggable replacement
Battery safety
protection
overcharge and over discharge protection
Reverse power supply
Output DC5V/2A. Providing power for
mobile, external LED lighting and other 5V
devices
Working status
indicator
Easy to know the current status of the
device at a glance when working in complex
conditions
Button backlight
Convenient for better operation of
equipment at night
OPM（optional）
Measuring range
-70~+26dBm
Plug Type
InGaAs
Bias
±5%
Standard wavelength
1310/1490/1550
Display Resolution
0.05dB
VFL（optional）
Power
15mW
Wavelength
650nm±20nm

9

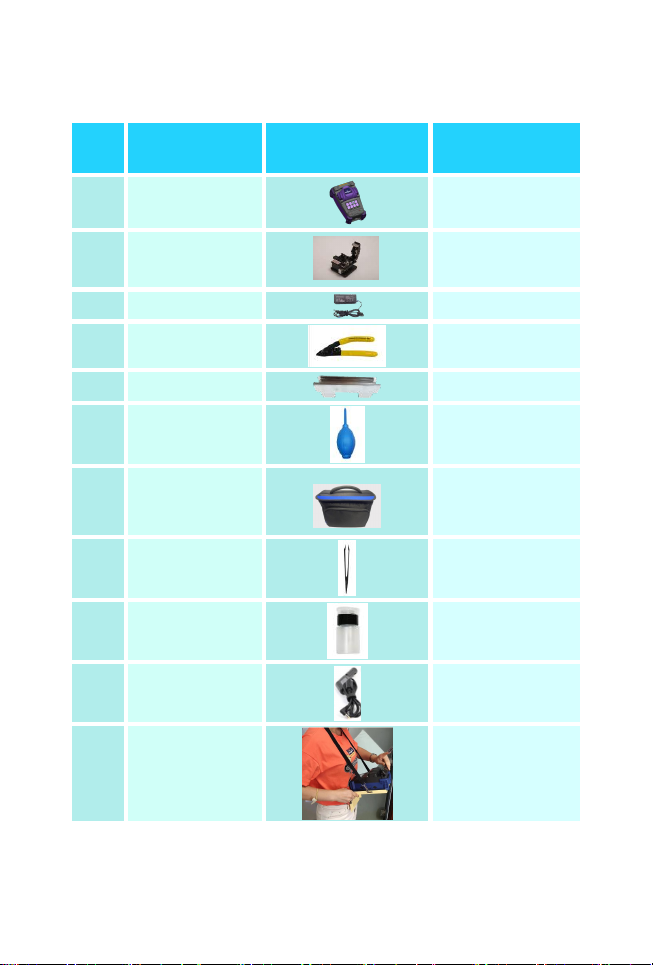

1.2 Configuration
Item
Product
Name
Marks
1
Fusion Splicer
●
2
Fiber Cleaver
●
3
Power Adapter
●
4
3-hole stripper
●
5
Cooling Tray
●
6
blowing ball
●
7
Carrying bag
●
8
plastic tweezer
●
9
Alcohol
Dispenser
●
10
Car charger
optional
11
Aerial working
platform
optional

10

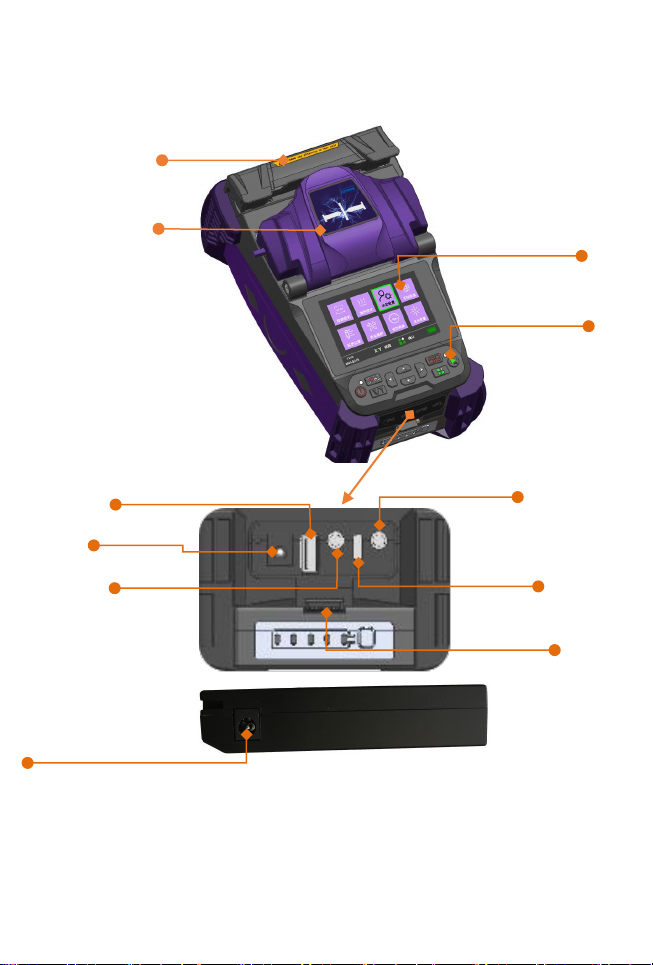

1.3 Introduction of Fusion Splicer Components
NOTE: VFL and optical power meter are optional
functions.
Heater
Wind Cover
VFL
Output 5V/2A
Battery remover switch
Battery charging port
Screen
Operation Buttons
USB Port
Power Meter
Charger 13.5V-2A

11

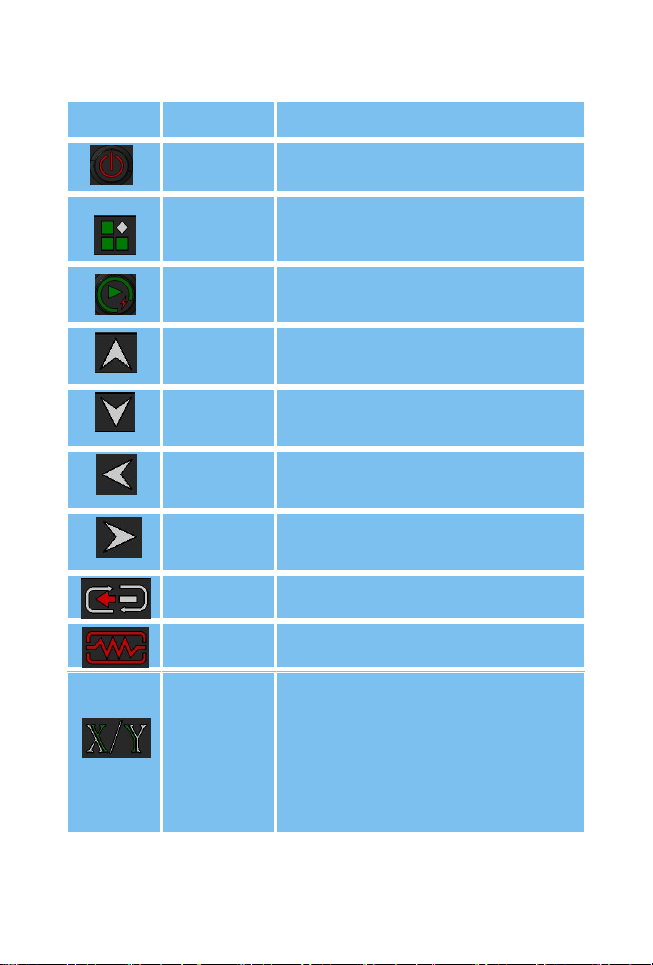

1.4 Operation buttons
Name
Button function details
Power
Device on or off
Menu
Access to the menu, confirmation
key under the menu
Start
Start of alignment, start of
discharge fusion, etc.
Up
Menu cursor up, work screen
shortcuts
Down
Menu cursor down, work screen
shortcuts
Left
Menu cursor left, work screen
shortcuts
Right
Menu cursor right, work screen
shortcuts
Reset
Fusing interface motor reset
Heat
Start heating
X/Y
switch/exit
Switching between X and Y fields
of view in fiber optic alignment
mode, long press for 2 seconds to
quickly switch between left and
right fiber optics in manual mode,
menu screen to return to previous
screen

12
镜头

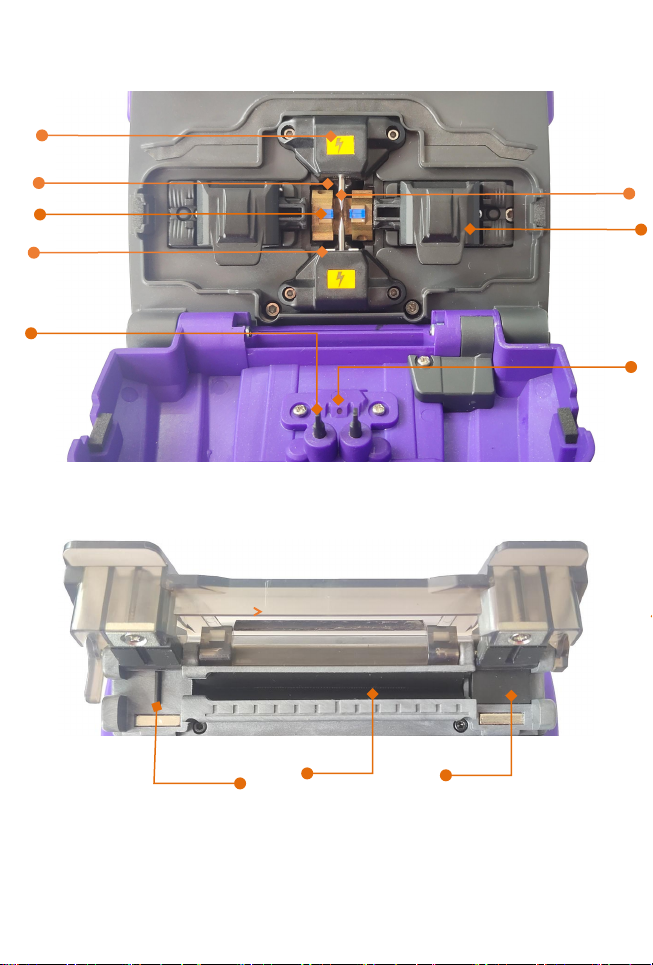

1.4.1 Splicing
1.4.2 Heater
Red Light
Electrode Cap
Heater Oven
Camera
Electrode
V-groove
Fiber Holder
LED Light
Fiber Presser
SC Switch
Heater Button

13
Chapter 2 Basic operation
This chapter describes the basic operation of the fusion
splicer. Read this chapter in detail to use the equipment
correctly and to avoid problems such as damage to the
equipment and no normal results.
2.1 Power supply connection
The product supports the following two types of power
supply: internal lithium battery pack (no external power
adapter plugged in); external power adapter (external
power adapter plugged in). Plugging the DC output
cable of the adaptor into the external power connector
of the fusion splicer will charge the battery pack.
When the battery is too low, the fusion splicer will
display an alarm message on the display and the user
should promptly charge the battery pack or power it
with the power adapter.
When the battery is too low, the fusion splicer will show
an alarm message on the display and the user should
recharge the battery pack or use the power adapter to
supply power in time.
Low battery sign
Battery indicator and charging
logo in the top right corner of
the display

14
2.2 Power on and off
Short press the power button " " to turn on the
machine, the power button indicator turns red, the
buzzer emits "beep, beep" two sounds, after which the
display shows the working screen. Long press the
power button to switch off the machine, you can
observe that the display first turns off, the power
indicator flashes, and the indicator goes out after
releasing the hand, indicating that the fusion splicer has
been closed normally.
2.3 Introduction to the main menu and
shortcut key operations
2.3.1 Introduction to the main menu
screen
（1）Press the menu key " " to enter the main menu
screen
Working screen

15
Menu
Description
Splice Mode
Set parameters in splice mode
Heat Mode
Set parameters in heat mode
Function
settings
Setting parameters for discharge
compensation, tension test, automatic
heating of closed lids, etc.
System
settings
Set display parameters, menu language,
time, restore factory settings, power
saving, etc.
History
Record discharge times, fusion results,
stored images, error, etc.
Maintenance
ARC and LED calibration, electrode
maintenance, self-test
Power meter
settings
Select wavelength and compensation, etc.
VFL settings
VFL switch
Menu

16
2.3.2 Introduction to shortcut keys
Four shortcut keys have been added to the workbench
interface to operate the operation as follows.

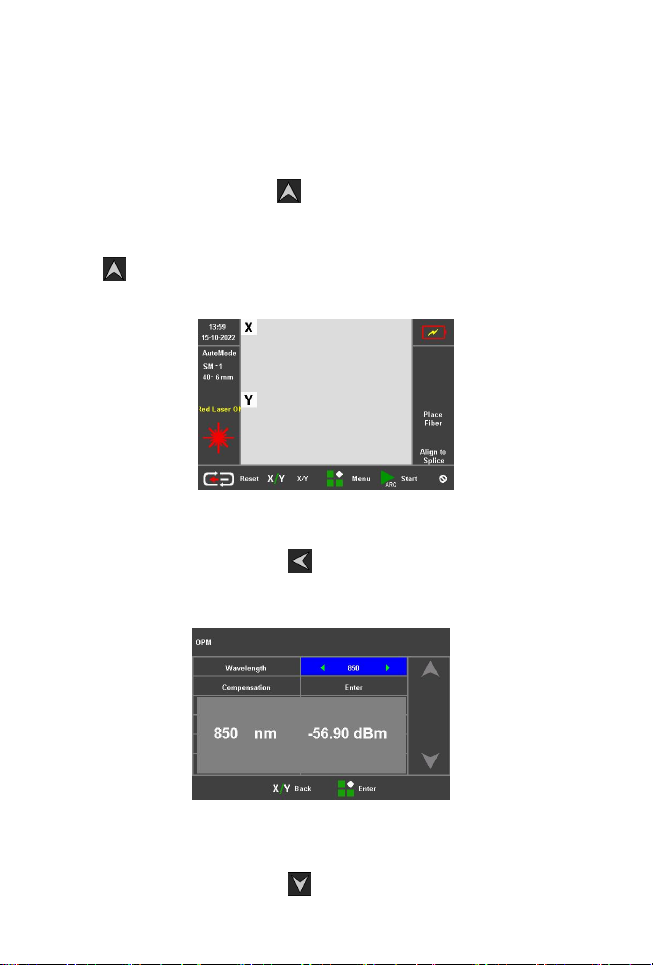

1) Press and hold the " " up key for 2s, the red light on
logo will appear on the right side of the workbench, at
this time, it means the red light is on. Press and hold
the " " up key again for 2s, then the red light will turn
off.
Shortcut to open the VFL function
2）Press and hold the " "left button for 2s, the
workbench will jump to the power meter setting screen.
3）Press and hold the " " down key for 2s and the

17
table will jump to the ARC calibration screen.
4）Press and hold the " " right button for 2s and the
workbench will jump to the red light setting screen.
2.4 Preparation before splicing

18
2.4.1 Stripping of protective layers other
than the fiber coating
2.4.2 Install heat shrink tubing
Cut away the Kevlar with scissors
Peel off the outer
plastic layer with the
large jaw of the
Strip 0.9 bare
Strip pigtail
and
patch cord
Strip drop cable
Install heat
shrink tubing
Peel off the inner
plastic layer with
small jaws using
3-hole stripper.

19
2.4.3 Removal and cleaning of fiber optic
coatings
After stripping the fiber, a dust-free paper moistened
with high purity alcohol is used to remove debris from
the coating layer, starting at the interface between the
coating and the bare fibre and rotating in a circular
direction towards the bare fibre.
2.4.4 Cleave the fiber
(1) Open the cleaver flap and place the stripped fiber into the
cleaver fiber holder slot, keeping the fiber perpendicular to
the cleaver surface.
(2) Slowly press down on the cleaver fiber holder flap and the
cleaver flap.
(3) Gently push the slider forward to cut the fiber.
(4) Open the cleaver flap and fiber holder flap and remove
the cut fiber.
(5) Remove the fibre scrap and place in the fibre scrap box.
Note: When the cutting end is not good or the fiber cannot be
cut, please adjust the cutter face; in addition, it is better to
use the cleaver that comes with the fusion splicer.
Clean fiber
Stripping of fiber
coating
