VEVOR Thicknesser M1B-LS-3301 User manual

M1B-LS-3301
USER MANUAL
Thicknesser

Have product questions? Need technical suppo? Please feel free to contact us:
CustomerSe[email protected]
NEED HELP? CONTACTUS!
This is the original instruction, please read all manual instructions carefully before
operating. VEVOR resees clear interpretation of our user manual. The appear-
ance of the product shall be subject to the product you received. Please forgive us
that we won't inform you again if there is any technology or software updates on
our product.
Thicknesser
01

02
IMPORTANT: carefully read the instructions in this manual as well as the general
safety instructions before using this tool.
Keep the packaging material out of the reach of children -- risk of suocation.
WARNING ! Always take basic safety precautions when using power tools to
safeguard against the risk of re、electric shock and /or personal inju.
1. For safe operation. We recommend that you take appropriate measures for the
protection of hearing if the sound pressure of 85dB (A) is exceeded
2. Keep the work area clean.Cluttered work areas increase the risk of accidents and
injuries.
3. Keep the workplace environment safe. Do not use power tools in damp or wet
areas. Do not expose power tools to rain. Make sure the work area is well lit. Do not
use power tools in explosive environments, such as in the vicinity of ammable
liquids、gases or dust.
4. Protect against the risk of electric shock. Avoid body contact with eahed
suaces, Such as pipes,radiators,cookers and refrigerators.
5. Keep children at a safe distance. Do not allow onlookers to touch the tool or the
extension cord. Onlookers should be kept away from the work area.
6. Put away tools that are not being used . When not in use, sto the tool in a d
place out of the reach of children.
7. Do not force the tool . The tool does the job better and safer when used at the
rate for which it was designed.
8. Use the correct machine. Do not force small machines or accessories to peorm
jobs that require a poweul machine. Use tools only for their intended purpose.
9. Wear suitable clothing. Do not wear loose clothing or jewelle. they can be
caught in moving pas. Non-slip shoes are recommended when working outdoors.
Wear a hair net if you have long hair.
10. Wear safety glasses. Wear a dust mask if the work generates dust.
11. Be careful with the cable. Never car the tool by the cable. Do not pull the
cable to disconnect the plug from the socket. Keep the cable away from heat、oil
and sharp edges.
SAFETY INSTRUCTIONS
Before using the tool, read the instruction book carefully.
Class ll appliance, reinforced insulation or double insulation

03
12. Secure the workpiece. Secure the workpiece with stand. This is safer than using
your hands and means you have both hands free to operate the tool.
13. Do not overreach. Always maintain a rm footing and good balance.
14. Maintain the tool in good care. Keep cutting tools sharp an chean for better,
safer work. Follow the instructions for lubricating and for the replacement accesso-
ries. Check power cords regularly. If damaged, they must be replaced at an autho-
rised seice centre. Check extension cords at regular inteals and replace them if
they are damaged. Keep the hands clean、d and free from oil and grease.
15. Always unplug the power cord. when the tool is not being used, and before
caring out seice work or changing accessories, such as knife blades/carbon
brush/gears and so on.
16. Remove adjuster keys/spanners and other assembling tools. Remove adjuster
keys/spanners and other assembling tools before staing the power tool.
17. Avoid accidental staing. Never car a power tool with your nger on the
switch when it is connected to the mains. Make sure the power switch is in the OFF
position before plugging in the power cord.
18. If using the tool outdoors. only use an extension cord approved for outdoor use.
19. Stay ale . Always be careful when using the equipment. Use your common
sense ,Do not use the tool if you are tired.
20. Connect dust extraction equipment . If dust extraction and dust collection
equipment is provided. This should be connected and used correctly.
21. Check for damaged pas. If a guard or some other pa has been damaged,
check carefully before using the tool to ensure that it will operate correctly and as
intended. Make sure that moving pas are properly adjusted and do not jam and
that no pas are incorrectly tted or damaged. Check for any other factors that
could inuence functionality. Guards or other pas that are damaged must be
repaired or replaced by an authorised seice centre. Unless otherwise specied in
these instructions. If the power switch does not work, it must be replaced by an
suthorised seice centre. Do not use the tool if it cannot be switched on and o
using the power switch.
WARNING! The use of accessories or attachments other than those recommended in
these operating instructions can result in personal inju. Repairs must only be
carried out by qualied personnel. This power tool has been manufactured in
compliance with current safety standards and requirments. Repair may only be
carried out by qualied personnel using identical spare pas. Failure to car out
repairs currectly can result in the risk of personal inju/death or material damage.
NOTE: A tempora voltage drop can occur when staing the machine. Which could
aect other equipment. If the main supply impedance Zmax. is lower than
0.206ohms, this kind of inteerence is common. Contact your electricity supplier for
more information.

04
1. Wear safety glasses, Don’t sent wood into outfeed side.
2. Before use, check that all screws connections are properly tightened.
3. Do not force the tool. Let the feed mechanism do the work. Never inse objects or
body pas in the outfeed.
4. Check regularly that the rubber roller and iron roller are clean. If the rollers are
contaminated the workpiece will not infeed correctly- risk of persona inju.
5. Do not machine workpieces with many knots or sprigs.
6. The operating position is in front of the machine. Stand by the side of the infeed
table.
7. Remove any nails,screws and other metal objects from the workpiece before
machining.
8. Check that the blades are correctly installed.
9. Handle the knife blades with care--risk of personal inju and/or damage to
propey.
10. Never sta to planer until the blade shaft has reached full speed.
11. Never use blunt blades-risk of kickback.
12. Always replace or sharpen all blades at the same time. All blades must be of the
same size and weight.
13. Never inse your ngers or other body pas in the chip outlet side--risk of
personal inju-- DANGER.
14. Pls check the recoil claw is in the correct position.
15. If infeed wood not smooth,pls don’t force the wood,check if machine have some
problems.
16. Do not wear gloves to plane wood.
17. Do not plane wet wood, will cause the feed roller to slip and lead machine
broken.
18. Do not plane hardness wood, will shoen the working life of the knife blades.
19. Do not plane the wood too long, the machine will be overloaded,infulence the
wood planing suace eect.
IMPORTANT SAFETY INSTRUCTIONS

05
TECHNICAL DATA
Model：M1B-LS-3301
For US user
M1B-LS-3301
For European users
Specs:
Rating(s):
Feed Speed:
Max.planing width:
blade:
Planing depth:
Planing height:
Working table size:
Packing size:
110V~60Hz 2000W
6m/min
330mm
2pcs
0-3mm
6-160mm
330x290mm
570×360×505mm
230V~50Hz 2000W
6m/min
330mm
2pcs
0-3mm
6-160mm
330x290mm
570×360×505mm
G.W: 29.3kg
N.W: 27.5kg
29.3kg
27.5kg
Tested wood width is 150mm for feeding speed

06
DESCRIPTION
1. The tool is designed for planing wooden planks and d wood. It is forbidden to
plane other materials. such as metals、plastics、branches、tree trunks、wet
wood and ve hard wood.
2. The tool is intended for household and professional use .
3. Pls use this machine under correct operation, if don’t know how to use it, pls
contact with facto.

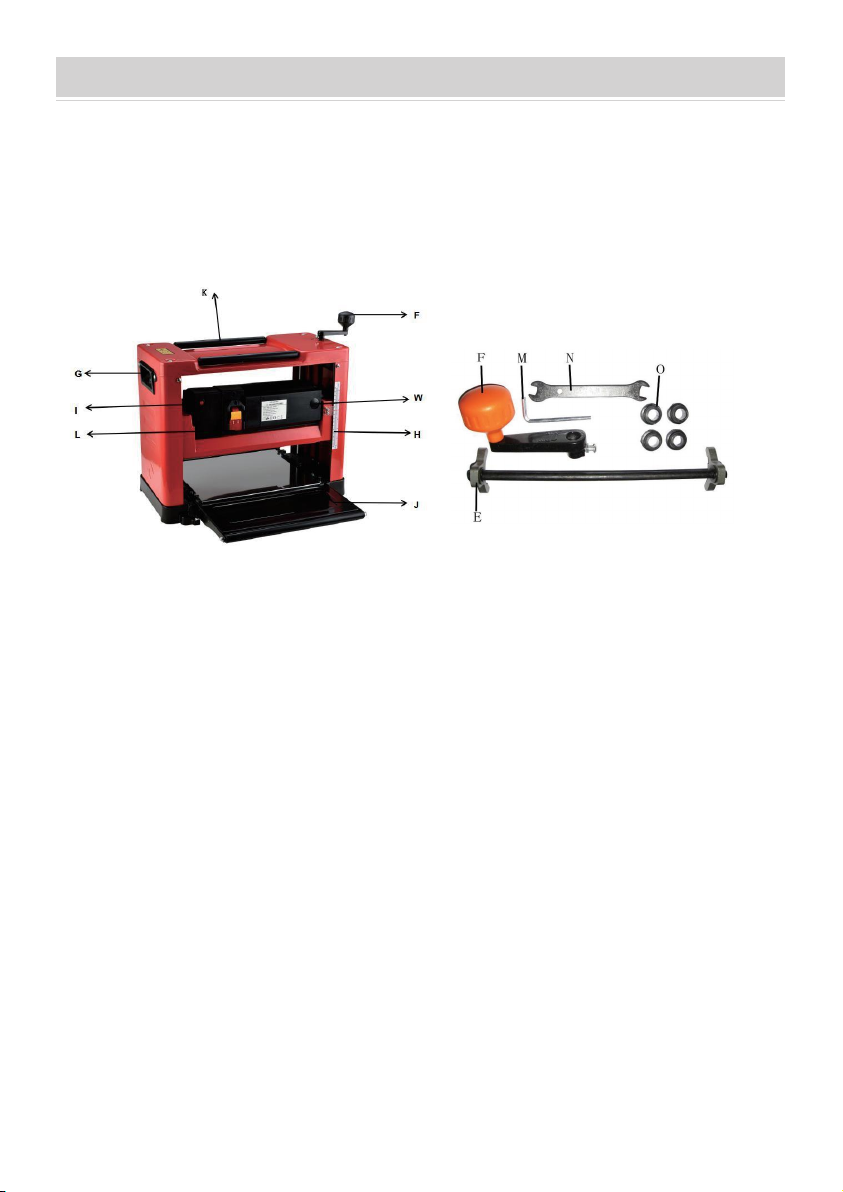

E-Knife blade bit gauge F-Depth adjustment handle G-Caring handle
H-depth label I-Overcurrent protective device J-Extension table
K-Roller bar L-Switch M-Allen wrench
N-Open spanner O-Rubber feet W-Carbon brush cover
Advised wear ear protection.
Advised wear safety glasses.
Advised wear dusk mask.

07
Unpacking
Carefully unpack the machine. The packaging must be recycled in accordance with
local regulations.
WARNING! Turn o the machine and unplug the power cord before cleaning 、
peorming maintenance and adjustment.
Assembly
Before using the machine must be in accordance with the requirements of the
assembly complete.
Evacuation of shavings and wooddust:
The tool is equipped with a dust hood with vacuum cleaner connection (V),this dust
hood at the bakc of the machine for connection to a vacuum cleaner connection. A
exible hose(not supplied) can be connected to the collector . Some species of wood
or processed wood produce sawdust harmful to health.
Pls attention: Always use the tool must be connected to a vacuum cleaner.
Install rubber feet (O):
If no need use foot frame to working ,pls put 4pcs rubber feet into the fourholes in
the buttom of the machine.

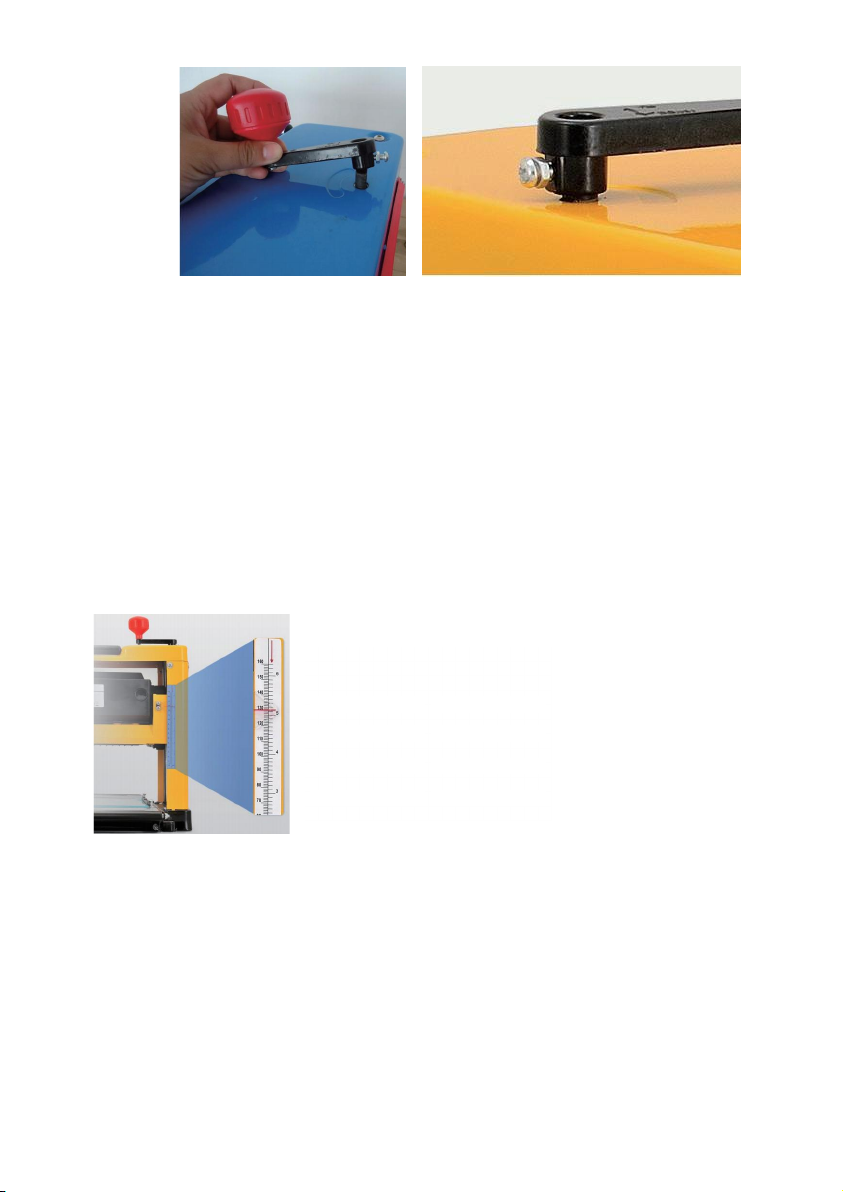

Install depth Adjustment handle
Place the depth adjustment handle (F) on the protruding shaft to the right of the
machine’s top suace. Push on the handle rmly and lock it with the supplied screw.
OPERATION STEPS

08
Adjust depth of the planer
In order to be able to completely correct and safe operate this machine, User
must be know how to correct adjust. Ve Impoent!!!
Rotate the depth adjustment handle(F) a circle, the machine depth can be rised
or lowered by 1.5 mm.
Before using, pls plane the wood a few times, that’s can be ensure the surgace of the
wood is completely horizontal in later use. Please refer to the correct wood width
range to adjust the depth of the one-time planer:
0~100
width of wood (mm) cutting depth (mm)
160~210
210~330
0~3
0~2
0~1

09
At rst, user needs a ruler to measure the thickness of the wood to be planed, Then
obeation depth label (H) to adjust the depth label to the thickness of the planer
required by the user.
Such as: the thickness of wood it’s 200mm, user wants to planer 2mm, so depth label
pointer is at 198mm, In this way, the thickness required by the user can be reached
during the one- time working process.
Pls note:The distance between the bottom of the machine and the knife shaft is the
thickness of the wood when it is planed; The dierence between the thickness of the
wood when it comes out of the machine and the thickness when it comes in is the
thickness of the wood that was shaved o.
1. Width of wood 0-100mm, we suggest cutting depth adjust 0-3mm, Max 3mm per
time.
2. Width of wood 160-210mm, we suggest cutting depth adjust 0-2mm, Max 2mm
per time.
3. Width of wood 210-330mm, we suggest cutting depth adjust 0-1mm, Max 1mm
per time.
Warning! The length of the wood must not be less than 153mm.The thickness of the
wood must not be less than 10mm.
Operate switch (power ON/OFF)
Plug the power cord into the mains supply. If you are using an extension cord, the
cross section of the conductors must be sucient for the tool’s power supply. Avoid
inappropriate use of cable. as this can lead to voltage drop and cause power loss
and over heating.
Up press the button marked “I” to
sta the machine. Down press the
button marked “O” to stop the
machine.

10
OPERATION
Coarse PLANING
Coarse planing is used to provide a reference suace for machining.
1. Set a small removal setting for the best suace nish.
2. Process where possible along he grain.
Note :the suace nish is aected by various factors.
1. the wood’s hardness,moisture content,bre structure. etc.
2. Blade sharpness,machining direction,material removal per pass. etc.
3. Peorm test machining to nd the best setting.
PLANING
Planing involves material removal of the workpiece to the desired thickness, the
machining of the suace opposite a coarse planed refernece suace.

11
MAINTENANCE
WARNING :Turn o the machine and unplug the power cord before cleaning and
maintenance, Do not use water or other liquids to clean electrical pas.

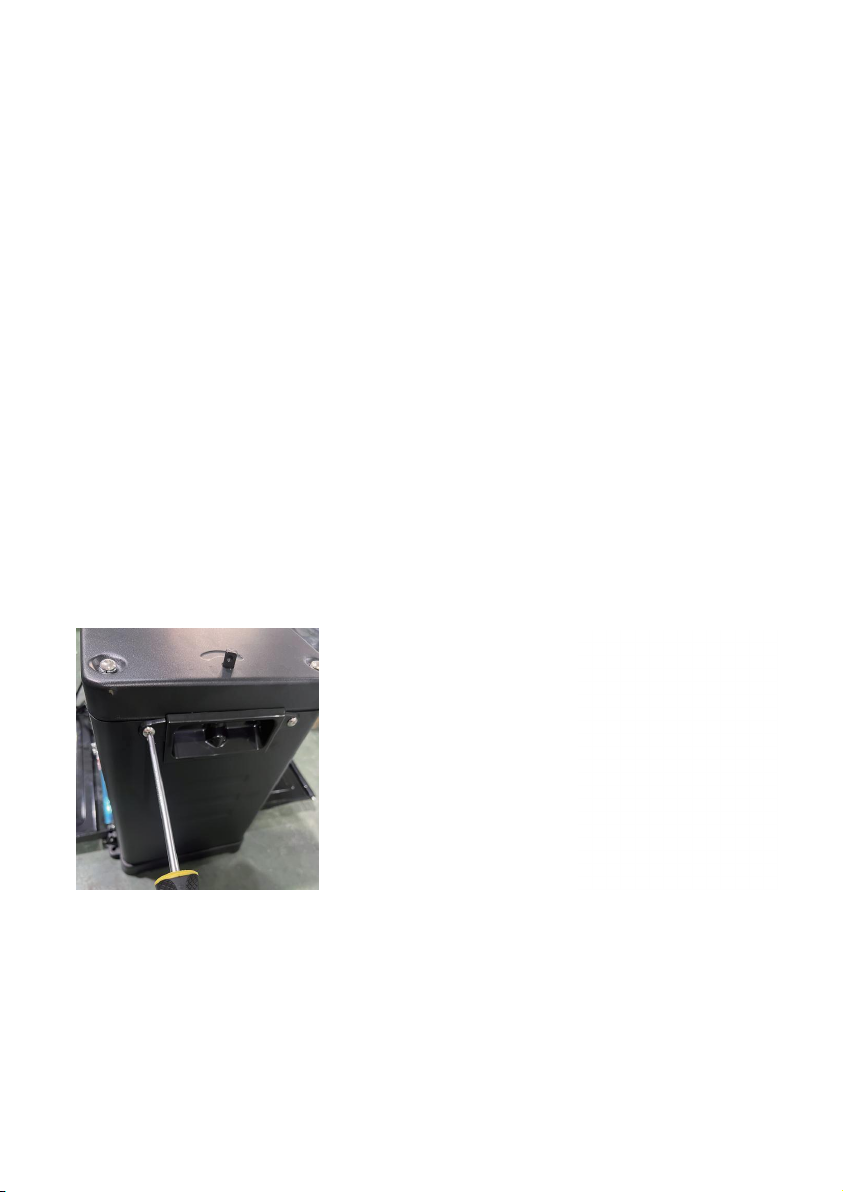

CHECK AND REPLACEING THE CARBON BRUSH
1. Turn o the machine, unplug the power cord and wait until all moving pas have
stopped completely.
2. Dismantle the carbon brush cover (W) as illustrated using a screw driver.
3. Fit the new carbon brushes. Always replace both carbon brush at the same time.
4. Replace the carbon brush cover (W).
Overcurrent protective device correct use and replacement (I)
When the load power is too large, the current exceeds the load, so the overcurrent
protective device will jump!
1. When the overcurrent protective device jump,rst disconnect the power supply of
the machine, then press the protective button to reset it
2. When press the protective button to reset it, don’t reboot immediately. Need wait
for the machine temperature to cool then sta for use.
3. If overcurrent protective device jump frequently. Pls replacement a new.

12
ADJUST TABLE EXTENSION (J)
Attention: this adjustment is already facto set ok ,in order to avoid to eecting
the function of the machine . need to check again.
1. Put the engine body rise to a suitable height , so that it is easily assembly.
2. Place a horizontal rule on the main worktable, use rule to measure the table
extension (J) and main worktable’s level.
3. If the table extension (J) are not ush with the main worktable, loosen the nut and
turn the screw until table extension’s rollers and the main worktable touch the ruler,
Adjust both the left and right -hand table extensions (J).

13
Replacing and Adjusting the blades
WARNING ! Turn o the machine, unplug the power cord and wait until all moving
pas have stopped completely before replacing or adjusting the blades.
ENGINE BODY LEVEL ADJUSTING
ATTENTION:This adjustment is already facto set ok. in order to avoid to eecting
the function of the machine. need to check again. Poor parallelism is usually caused
by misaligned blades or A fall in transit caused the body to tilt. Always check that
the blade holder and the work table parallel before attempting to adjust the paral-
lelism setting.
Engine body is lowered to a ceain height by rotating the handle, two wooden
blocks of the same height are placed at the lower end of the body and clamped
tightly
1. Loosen the two screws on the handle of the right panel using a cross screwdriver,
see picture 1 Attention: only need adjusting right panel
2. Take o right pane
3. Use 24mm open wrench +30mm open wrench to adjusting engine body up and
down. Position 1 use 24mm open wrench, position 2 use 30mm open wrench. 24mm
open wrench clamp 24mm nut do not rotate and turn the 30mm open wrench one
turn to the left (clockwise) to keep the screw nut loose
4. Use 24mm open wrench adjust 24mm nut, rotate clockwise to raise the engine
body and counterclockwise to down the engine body, Until the engine body is level
with the base
5. Use 24mm open wrench clamp 24mm nut do not rotate, use 30mm open wrench
tighten 30mm nut

14

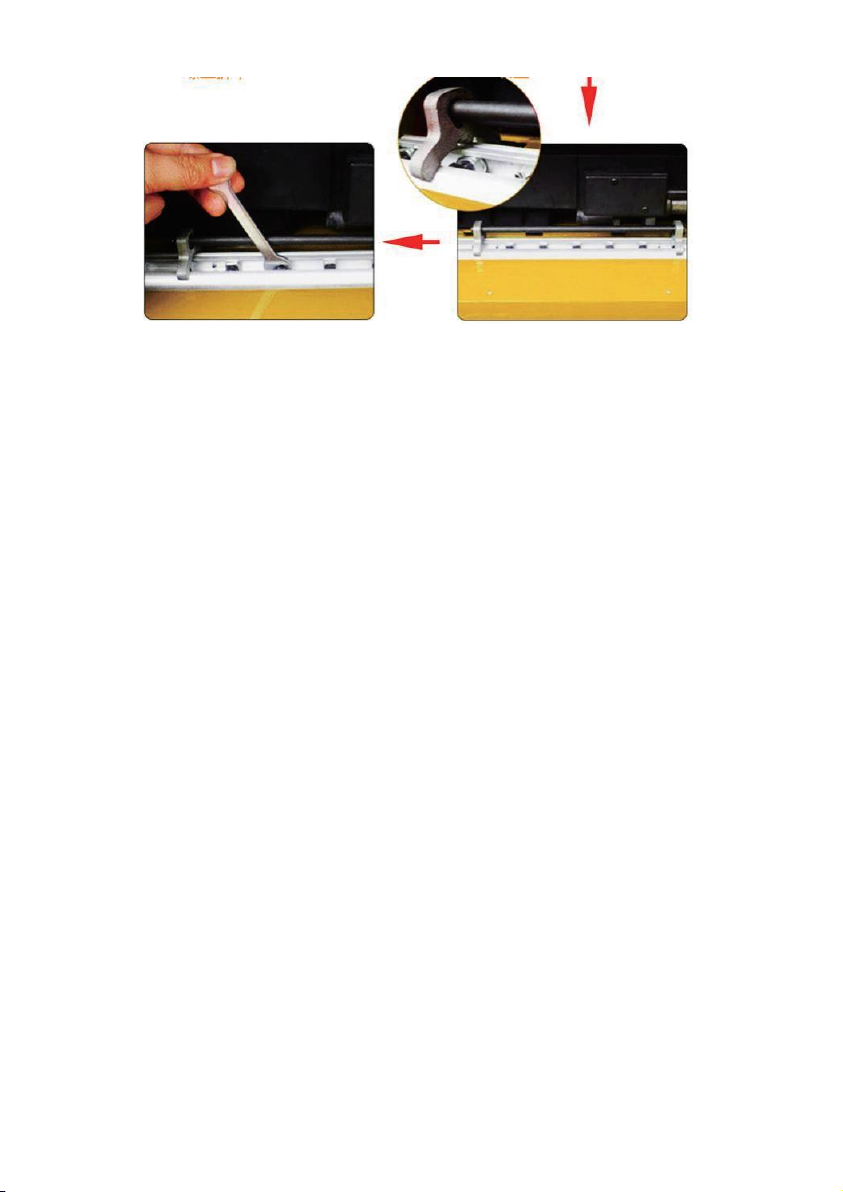

Dismantling the knife blade
1. Use allen wrench (N) to remove the dust hood (V) by loosening the screws (U), see
below picture.
2. Use the double open wrench (N) to loosen the blade locking plate (B) and knife
blade (C) by turning the outer hexagon bolt (A) clockwise. The knife blades are
spring-loaded (D) and can be remove when the blade locking plate is removed.
3. Remove the knife blade and blade locking plate.
Install the knife blade
1.First ensure that the pressure springs (D) on the knife shaft are in the
2 xed holes 2.Align the hole in the knife blade with the pin in the blade locking
plate,
3.Inse the 8 outer hexagon bolt (A) into the xed hole of the blade locking plate
4.Inse the knife blade (C) and knife locking plate(B) and 8 outer hexagon bolt (A)
together in the slot and lock in position by turning the outer hexagon blot (A)
anticlockwise but not 100% tighten. Ensure that the blades face in the right direc-
tion (see picture).
5.Set the height of the knife shaft of the knife blades as 1mm with the bit
gauge(E),That two suppo blocks on left and right side of bit gauge are pressed
against the knife blade.(Loosen, if necessa, the clamping screws to move the blade
to the correct position.) When the knife blade is positioned correctly. Hold it rmly in
place and tighten all outer hexagon bolt (A).

15
Warning! Check that total 18 screws are tightened.Turn the blade holder by hand
to check that it rotates easily and smoothly. Handle the blades with caution to
avoid personal inju and/or damage to propey.
LUBRICATION :
1. Regularly remove shavings from the depth setting chains、reduction drive and
lifting screws for the blade holder.
2. Remove chips with a cloth and brush and lightly grease with a clean brush dipped
in oil.
3. Never pour oil directly on the components-- too much oil means dust will stick
and impair lubrication, which in turn shoens component life.
4. The balde holder’s bearings are sealed and must not be lubricated.
MAINTENANCE
1. Keep the machine clean and free of dust and chips.
2. Clean reapped materials from the blade holder and tongues and carefully lubri-
cate with a clean brush dipped in oil.
3. Remove resin and the like from the rollers and work table with a non-ammable
solvent.
4. Clean plastic pas with a damp cloth and mild detergent. Never immerse the tool
in water or any other liquid. Never use detergents or alcohol.
5. Always check that all guards and other components are correctly tted before use.
Guards or other pas that are damaged must be repaired or replaced by an autho-
rised seice centre, unless otherwise specied in these instructions.

16
This product is subject to the provision of european Directive 2012/19/EC. The
symbol showing a wheelie bin crossed through indicates that the product requires
separate refuse collection in the European Union. This applies to the product and all
accessories marked with this symbol. Products marked as such may not be discard-
ed with normal domestic waste, but must be taken to acollection point for recycling
electrical and electronic devices.
Impoer: WAITCHX
Address: 250 bis boulevard Saint-Germain 75007 Paris
Impoer: FREE MOOD LTD
Address: 2 Holywell Lane, London, England, EC2A 3ET
EUREP UK LTD
UNIT 2264, 100 OCK STREET, ABINGDON
OXFORDSHIRE ENGLAND OX14 5DH
UK REP
EUREP GmbH
Unterlettenweg 1a, 85051 Ingolstadt,
Germany
EC REP
Manufacturer: ZHEJIANG LANGCHENG INDUSTRY&TRADE CO., LTD
Address: No.18 Weisan East Road, Hardware Machine Industrial Zone,
Tongqin Town, Wuyi County, Jinhua City 321201 Zhejiang, P.R.China

E-mail: CustomerSe[e-mail]
