Viavi FCOMP/-PRO T-BERD/MTS-2000V2 User manual

FCOMP/-PRO Option
For T-BERD®/MTS-2000V2, -4000
V2 and OneAdvisor-800
Platforms
User Manual

Viavi Solutions
1-844-GO-VIAVI
www.viavisolutions.com
FCOMP/-PRO Option
For T-BERD®/MTS-2000V2, -4000 V2
and OneAdvisor-800 Platforms
User Manual

User Manual 700MAN203 Rev. 007 v
Notice
Every effort was made to ensure that the information in this document was accurate at
the time of printing. However, information is subject to change without notice, and VIAVI
reserves the right to provide an addendum to this document with information not avail-
able at the time that this document was created.
Copyright
© Copyright 2023 VIAVI, LLC. All rights reserved. VIAVI, Enabling Broadband and
Optical Innovation, and its logo are trademarks of VIAVI, LLC. All other trademarks and
registered trademarks are the property of their respective owners. No part of this guide
may be reproduced or transmitted electronically or otherwise without written permission
of the publisher.
Trademarks
VIAVI, MTS/T-BERD 4000 V2, MTS/T-BERD 2000, MTS/T-BERD 5800, SmartOTDR,
CellAdvisor 5G and OneAdvisor 800 are trademarks or registered trademarks of VIAVI
in the United States and/or other countries.
Microsoft, Windows, Windows CE, Windows NT, and Microsoft Internet Explorer are
either trademarks or registered trademarks of Microsoft Corporation in the United States
and/or other countries.
Netscape Navigator is a trademark or registered trademark of Netscape Communica-
tions Corporation in the United States and other countries.
Ordering information
This guide is a product of VIAVI's Technical Information Development Department,
issued as part of the User Manual.

vi User Manual 700MAN203 Rev. 007
Product Regulatory Compliance
California Proposition 65
California Proposition 65, officially known as the Safe Drinking Water and Toxic Enforce-
ment Act of 1986, was enacted in November 1986 with the aim of protecting individuals
in the state of California and the state's drinking water and environment from excessive
exposure to chemicals known to the state to cause cancer, birth defects or other repro-
ductive harm.
For the VIAVI position statement on the use of Proposition 65 chemicals in VIAVI prod-
ucts, see the Hazardous Substance Control section of VIAVI's Standards and Policies
web page.
EU WEEE and Battery Directives
This product, and the batteries used to power the product, should not be disposed of as
unsorted municipal waste and should be collected separately and disposed of according
to your national regulations.
VIAVI has established a take-back processes in compliance with the EU Waste Electrical
and Electronic Equipment (WEEE) Directive, 2012/19/EU, and the EU Battery Directive,
2006/66/EC.
Instructions for returning waste equipment and batteries to JDSU can be found in the
WEEE section of VIAVI's Standards and Policies web page.
If you have questions concerning disposal of your equipment or batteries, contact
VIAVI's WEEE Program Management team at [e-mail].
EU REACH
Article 33 of EU REACH regulation (EC) No 1907/2006 requires article suppliers to
provide information if a listed Substances of Very High Concern (SVHC) is present in an
article above a certain threshold.
For information on the presence of REACH SVHCs in VIAVI products, see the
Hazardous Substance Control section of VIAVI's Standards and Policies web page.
EU CE Marking Directives (LV, EMC, RoHS, RE)
This product conforms with all applicable CE marking directives. Please see EU Decla-
ration of Conformity for details.

User Manual 700MAN203 Rev. 007 vii
Contents
About This Guide xi
Purpose and scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
Assumptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
Technical assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
Recycling Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
Chapter 1 FCOMP/-PRO Principles 1
General introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
FCOMP/-PRO Tests description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Loss test and Loss test + OTDR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Automatic configuration in Loss Test (+ OTDR) mode . . . . . . . . . . . . . . 7
Real time bi-directional OTDR analysis: Loopback Method . . . . . . . . . . 8
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Measurement process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Real time bi-directional OTDR analysis: TrueBIDIR method. . . . . . . . . . 9
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Measurement process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
High Fiber Count . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Chapter 2 Establishing references for Loss & ORL measurements,
without Switch 13
Activating the function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Contents
viii User Manual 700MAN203 Rev. 007
Establishing References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Factory References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Reference process (Loopback and Side by Side) . . . . . . . . . . . . . . . . . . .16
Loopback Referencing method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Side-by-Side referencing method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Chapter 3 Loss test (bi-directional IL/ORL + Fault Finder) 21
Configuring the Loss test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Test Cables parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
IL/ORL parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
IL / ORL Alarms parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Link parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Report parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
FCOMP-PRO Configuration file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Saving the parameters from FiberComplete configuration. . . . . . . . . 30
Loading a configuration file FiberComplete. . . . . . . . . . . . . . . . . . . . . . . 31
Performing the tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Sending a message. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Starting the test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Results screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Cable view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
IL/ORL BiDir View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Fault Finder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Manual saving and report generation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Chapter 4 Loss test and OTDR (unidir or manual bidir) 41
Configuring the OTDR test (unidir and/or manual bidir - no TrueBIDIR
or Loopback) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
OTDR parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
OTDR Alarms parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Report parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Starting the test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
OTDR Results screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Manual otdr saving and report generation. . . . . . . . . . . . . . . . . . . . . . . . 47
Saving traces and creating a report. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Contents
User Manual 700MAN203 Rev. 007 ix
Opening a report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Chapter 5 Loopback OTDR 51
Configuring the Loopback Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Test Cables parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
OTDR parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Alarm parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
OTDR Alarms parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Link Description parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Saving configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Loading a configuration file. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Performing the tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Results screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Results page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Process View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Summary view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
SmartLink view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
OTDR results trace / SmartLink results . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Saving results and generating a report . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Saving results and creating a report from results page . . . . . . . . . . . . 63
Opening a report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Chapter 6 TrueBIDIR OTDR 67
Configuring the True Bidirectional Test . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Test Cables parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
OTDR parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Alarms OTDR parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Performing the tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Results screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Results page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Bi-Directional SmartLink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
OTDR traces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Adding an event (in OTDR Expert mode only) . . . . . . . . . . . . . . . . . . . . . 74
Changing an Event code (in OTDR expert mode only) . . . . . . . . . . . . . . 76
Manual saving and report generation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Saving traces and creating a report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Contents
x User Manual 700MAN203 Rev. 007
Opening a report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Chapter 7 High Fiber Count 79
Establishing references for Loss and ORL measurements . . . . . . . . . . . 80
Factory References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Referencing process with simplex connectors (non native MPO net-
works), with fanout test cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Referencing process with MPO native networks (no fanout test cables)
81
Configuring the MPO Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Configuring a measurement set up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Creating a project for an automatic switch sequence . . . . . . . . . . . . . . 83
Opening an existing project . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Customizing a test sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Project without label or with label for Simplex fiber. . . . . . . . . . . . . . 85
Project with label - Multiple connectors . . . . . . . . . . . . . . . . . . . . . . . . 86
Validating the end-to-end continuity and polarity . . . . . . . . . . . . . . . . 86
Launching the project test process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Stopping the test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Results display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
In Cable tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Expert OTDR - Trace tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Search / Filter function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Files and project storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Manual saving and report generation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Opening a report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

User Manual 700MAN203 Rev. 007 xi
About This Guide
The VIAVI equipments provide handheld, modular platforms designed for the construc-
tion, validation and maintenance of fiber networks.
The topics discussed in this chapter are as follows:
•“Purpose and scope” on page xii
•“Assumptions” on page xii
•“Technical assistance” on page xii
•“Recycling Information” on page xii
•“Conventions” on page xii

About This Guide
Purpose and scope
xii User Manual 700MAN203 Rev. 007
Purpose and scope
The purpose of this guide is to help you successfully use the equipment features and
capabilities. This guide includes task-based instructions that describe how to configure,
use, and troubleshoot the equipment with OTDR/Fibercomplete module and FCOMP/-
PRO software option.
Assumptions
We are assuming that you have basic computer and mouse/track ball experience and
are familiar with basic telecommunication and fiber optic concepts and terminology.
Technical assistance
If you require technical assistance, call 1-844-GO-VIAVI. For the latest TAC information,
go to http://www.viavisolutions.com/en/services-and-support/support/technical-assis-
tance.
Recycling Information
VIAVI recommends that customers dispose of their instruments and peripherals in an
environmentally sound manner. Potential methods include reuse of parts or whole prod-
ucts and recycling of products components, and/or materials.
Waste Electrical and electronic Equipment (WEEE)
Directive
In the European Union, this label indicates that this product should not be
disposed of with household waste. It should be deposited at an appropriate
facility to enable recovery and recycling.
Conventions
This guide uses naming conventions and symbols, as described in the following tables.

About This Guide
Conventions
User Manual 700MAN203 Rev. 007 xiii
Table 1 Typographical conventions
Description Example
User interface actions appear in this typeface. On the Status bar, click Start.
Buttons or switches that you press on a unit
appear in this TYPEFACE.
Press the ONswitch
Code and output messages appear in this type-
face.
All results okay
Text you must type exactly as shown appears in
this typeface.
Type: a:\set.exe in the dialog box
Variables appear in this typeface. Type the new hostname.
Book references appear in this typeface. Refer to Newton’s Telecom Dictio-
nary
A vertical bar | means “or”: only one option can
appear in a single command.
platform [a|b|e]
Square brackets [ ] indicate an optional argu-
ment.
login [platform name]
Slanted brackets < > group required arguments. <password>
Table 2 Keyboard and menu conventions
Description Example
A plus sign + indicates simultaneous keystrokes. Press Ctrl+s
A comma indicates consecutive key strokes. Press Alt+f,s
A slanted bracket indicates choosing a submenu
from menu.
On the menu bar, click
Start > Program Files.

About This Guide
Conventions
xiv User Manual 700MAN203 Rev. 007
Table 3 Symbol conventions
Table 4 Safety definitions
This symbol represents a general hazard.
This symbol represents a risk of electrical shock.
NOTE
This symbol represents a Note indicating related information or tip.
This symbol, located on the equipment or its packaging indicates that
the equipment must not be disposed of in a land-fill site or as municipal
waste, and should be disposed of according to your national regula-
tions.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result
in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided, may result
in minor or moderate injury.

1
User Manual 700MAN203 Rev. 007 1
Chapter 1 FCOMP/-PRO Principles
This chapter describes the features and usage of the FiberComplete PRO (FCOMP-
PRO) - The fiber acceptance testing process control application.
The topics discussed in this chapter are as follows:
•"General introduction" page 2
•"FCOMP/-PRO Tests description" page 3

Chapter 1 FCOMP/-PRO Principles
General introduction
2 User Manual 700MAN203 Rev. 007
General introduction
FiberCompletePRO™ is the first solution to fully automate all the fundamental fiber-qual-
ification tests, such as bidirectional insertion loss (IL), optical return loss (ORL) and
optical time domain reflectometry (OTDR), with one module from one optical port. For
high fiber count projects, it is now possible to automatically test up to 12 ribbon fibers
with the Multi-fiber MPO optical switch module.
Select the best module and software configuration upon the fiber qualification tests
needed:
• Bi-Directional insertion loss (IL) and ORL with Fault Finder:
– available with E41xx-FCOMPFF and E41xx-B-FCOMP modules
– available with E41xx-B modules implemented with E41OTDRPM optical
power meter option and EOTDR-TO-FCOMP-UPG software option.
• Bi-Directional insertion loss (IL), ORL and OTDR (unidirectional and/or bi-
directional):
– available with E41xx-B FCOMP modules
– available with E41xx-B modules implemented with E41OTDRPM optical
power meter option and EOTDR-TO-FCOMP-UPG software option.
• On-board true bi-directional OTDR event analysis
– TrueBIDIR Method (two units at each end of the link)
• available with E41xx-A, E41xx-B, E41xx-C, E41xx-B FCOMP modules
with ETRUEBIDIR-FCOMP-PRO software option
– Loopback Method (a single unit at one end and a loop cable at the other
end)
• available with Smart OTDR A & B, E41xx-A, E41xx-B, E41xx-C, E41xx-B
FCOMP modules with ELOOPBACK-FCOMP-PRO software option
• High Fiber Count
– available with an additional module: E41MPO12SM multi-fiber MPO switch
module.

Chapter 1 FCOMP/-PRO Principles
FCOMP/-PRO Tests description
User Manual 700MAN203 Rev. 007 3
FCOMP/-PRO Tests description
Loss test and Loss test + OTDR
Requirements
FCOMP/-PRO-Loss Test and Loss Test + OTDR are used to perform automatically and
through a single connection port, the following tests:
•Bidirectional insertion loss (IL)
•Bidirectional optical return loss (ORL) using the continuous wave mode (OCWR)
•Distance/length measurements
•Unidirectional / manual Bidirectional OTDR (when TrueBIDIR or Loopback Soft-
ware options are not installed) and/or fault analysis, according to the module/
option installed.
To carry out the measurements, 2 equipments are needed, both equipped with Fiber-
Complete capable modules (see references in Chapter 15) and broadband power
meters on the mainframes.
Using one unit at each end of the fiber under test and without any connection/disconnec-
tion, IL/ORL and distance measurements are performed and results exchanged via the
fiber under test (FUT).
If the OTDR is selected, an OTDR measurement is launched automatically:
• Unidirectional mode: the OTDR acquisition is performed from the local unit
where the test has be initiated. Traces are saved locally
• Bidirectional mode: the OTDR acquisition is initiated successively from each
unit. The traces are saved locally. (See “TrueBIDIR OTDR” on page 67 for auto-
mated and real-time bi-directional OTDR analysis
If the Fault Finder is set to Yes (note: it automatically set the OTDR to No), a failed value
of IL and/or ORL triggers the fault finder function automatically in order to identify the
worst faulty elements.

Chapter 1 FCOMP/-PRO Principles
FCOMP/-PRO Tests description
4 User Manual 700MAN203 Rev. 007
Configurations
Two configurations are available, depending on the tests that have to be performed:
•Construction/Installation tests with loss, optical return loss, distance and OTDR.
•Acceptance Tests with loss, optical return loss and distance, and faults detection
in case of problem.
Construction/Installation Test
In this configuration, bidirectional IL and ORL, length and/or unidirectional/bidirectional
OTDR measurements are performed.
The bidirectional IL/ORL and length results are stored on each unit witih SW version
<23.5x only.
For SW version >= 23.5x: only the local unit (the one that initiates START) stores all
results files.
The OTDR traces are stored on the locally unit (where the test has been initiated).

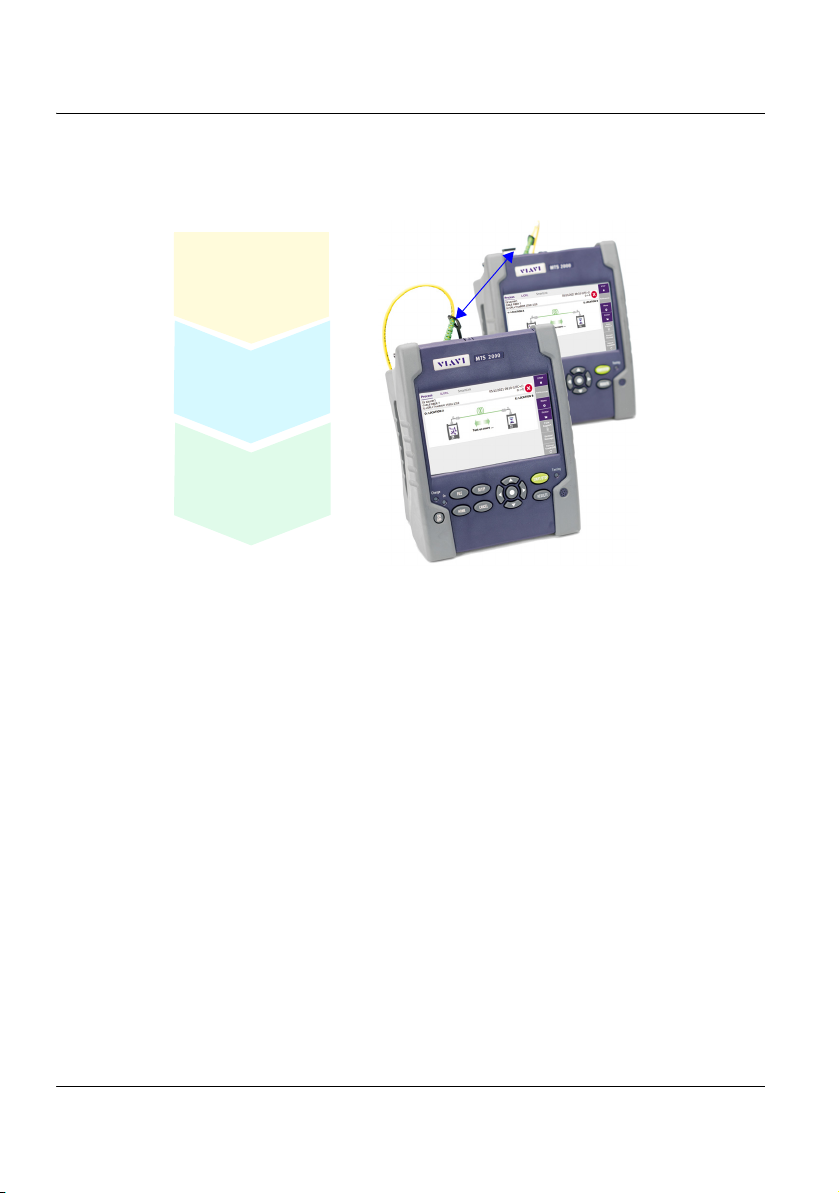

Figure 1 Configuration for IL/ORL + OTDR/Fault Finder function
Local
Remote
IL / ORL / Distance /
OTDR
Acquire
Measure Bidir IL &
ORL and OTDR
Analyze
Characterize the
link and find faults
Report
Save all the results
automatically

Chapter 1 FCOMP/-PRO Principles
FCOMP/-PRO Tests description
User Manual 700MAN203 Rev. 007 5
Acceptance Tests
In this configuration, the bidirectional IL, ORL and length measurements are performed
and results are automatically stored on local unit.
If the Fault Finder function has been selected in the Setup menu, and if at least one
result exceeds the defined IL/ORL thresholds (Splice > 0.3 dB, Connector > 0.75 dB,
Reflectance > -32 dB and Bend > 1 dB), the predominant defects by event type causing
the failure are identified and located.
The FiberComplete screen displays an easy to interpret result table that prompts
predominant issues for easy troubleshooting.

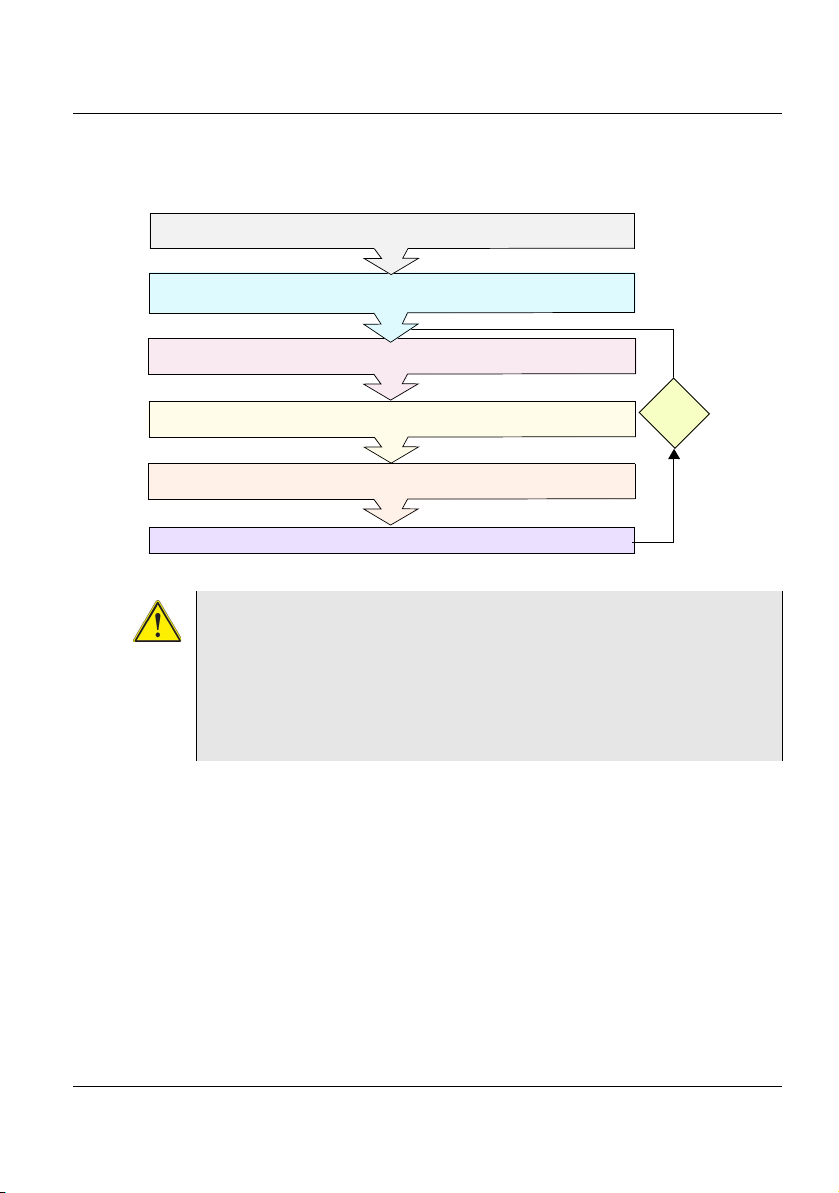

Figure 2 Construction/Installation Test
Do an OTDR measurement and store/display the SmartLink mapper
Next
Fiber
Measure ORL A & ORL B, and store/display on local unit
Measure Loss A->B, B->A, and Avg and store/display on local unit
Press START key to transfer setup parameters and start the
measurement process
Setup Unit A or B
Reference the light source and ORL on units A and B
If a Bidirectional OTDR measurement is performed, the OTDR results
are automatically saved on each unit;
•The OTDR results trace for acquisition performed from Location A to
Location B is stored on the local unit (Location A)
•The OTDR results trace for acquisition performed from Location B to
Location A is stored on the remote unit (Location B)
If TrueBIDIR, all the OTDR measurements are stored on the local unit

Chapter 1 FCOMP/-PRO Principles
FCOMP/-PRO Tests description
6 User Manual 700MAN203 Rev. 007
Figure 3 FCOMP Pro view
Figure 4 Acceptance Test
Pass
Next
Fiber
Measure ORL A & ORL B, and store/display on local unit
Measure Loss A->B, B->A, and Avg and store/display on local unit
Press Start key to transfer setup parameters and start the
measurement process
Set up Unit A or B
Reference the light source and ORL on Units A & B
Compare results with defined thresholds
Fail
Fault finder
