iConsole Folding Bike with
Backrest and Bottle Cage
User manual
EN

2
EN
VirtuFit iConsole Folding Bike with
Backrest and Bottle Cage

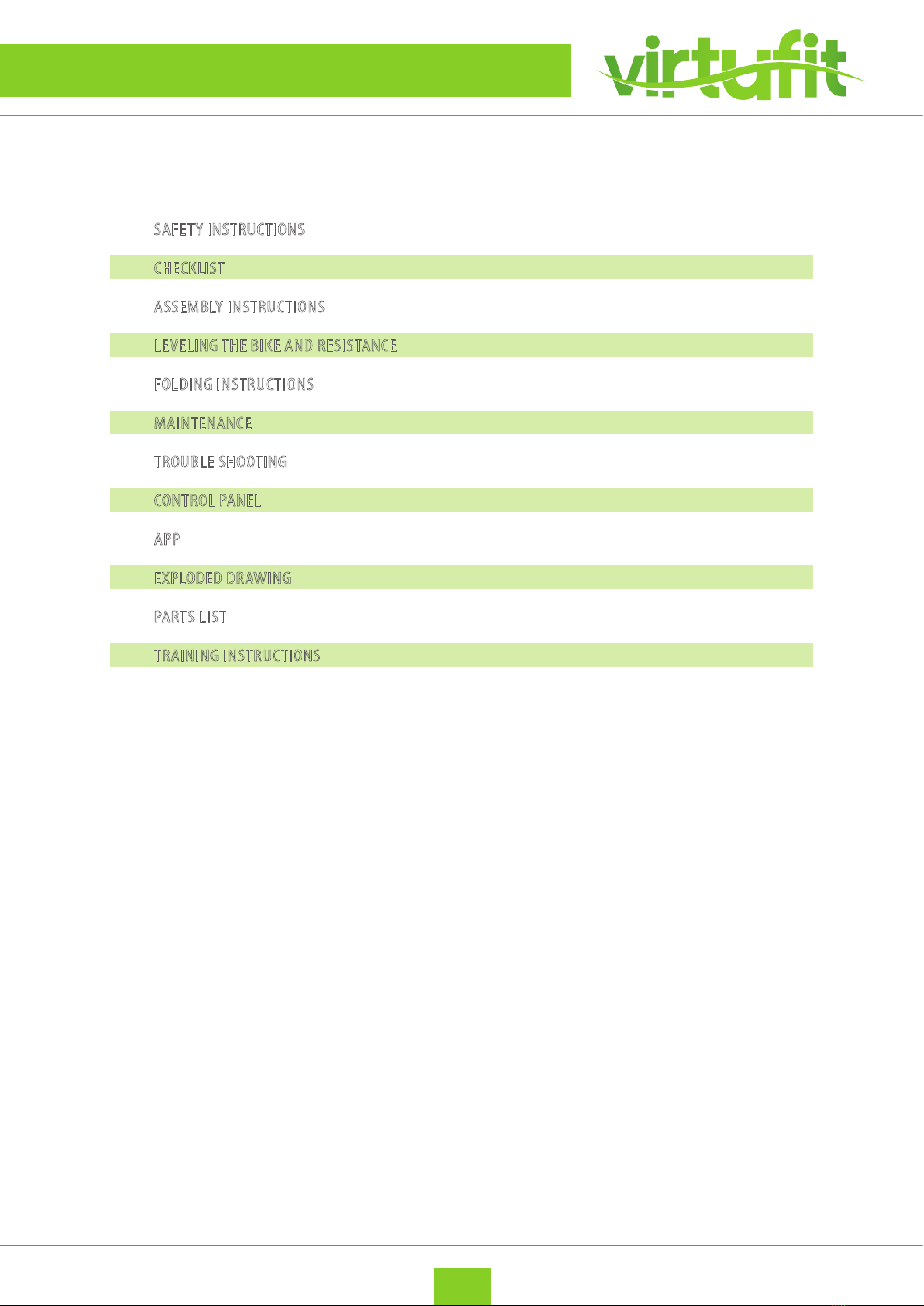

INDEX
SAFETY INSTRUCTIONS
CHECKLIST
ASSEMBLY INSTRUCTIONS
LEVELING THE BIKE AND RESISTANCE
FOLDING INSTRUCTIONS
MAINTENANCE
TROUBLE SHOOTING
CONTROL PANEL
APP

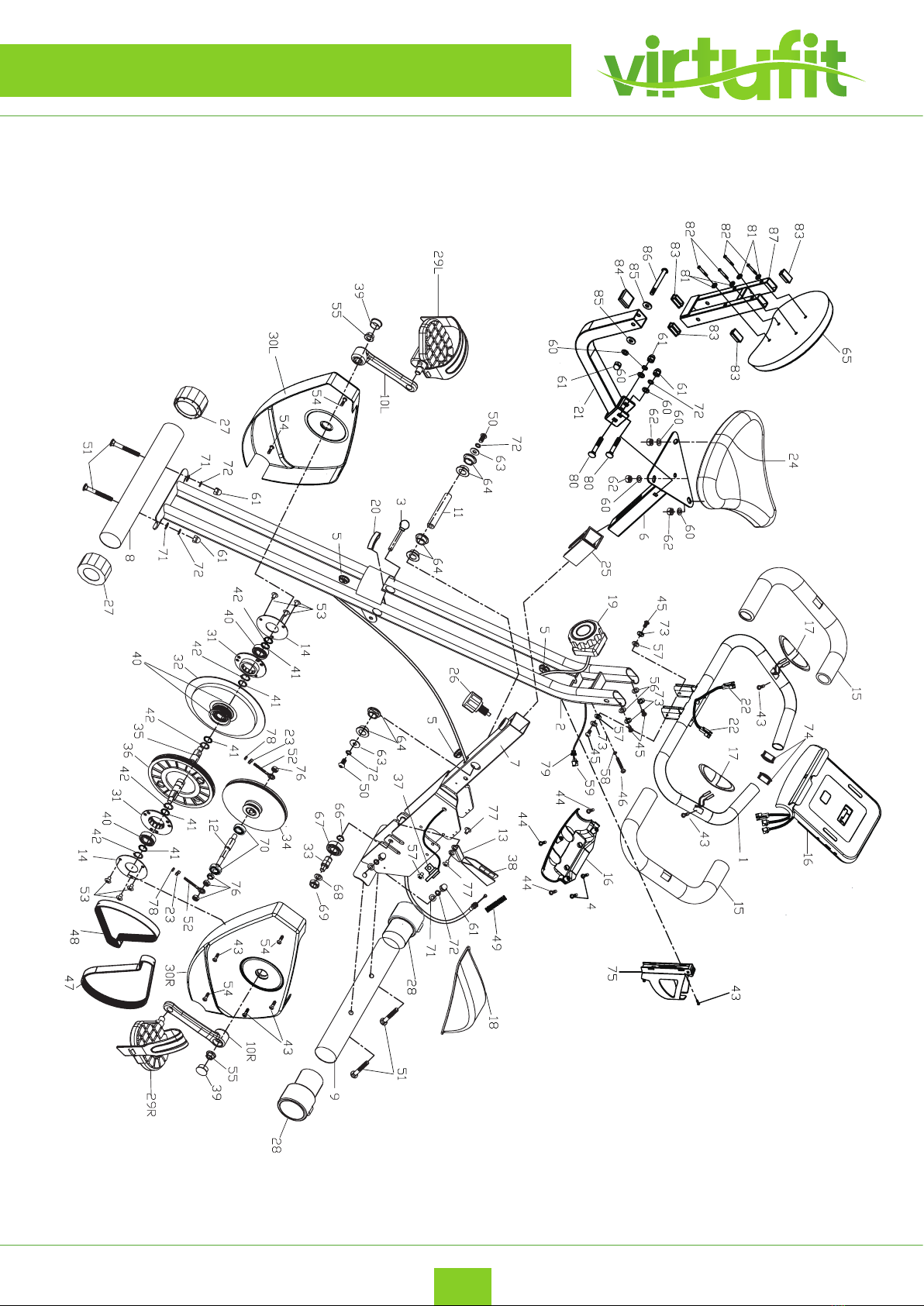

EXPLODED DRAWING
PARTS LIST
TRAINING INSTRUCTIONS
3 - 4
5
6 - 8
9
10
11 - 12
13
14 - 15
16
17
18 - 19
20

VirtuFit iConsole Folding Bike with
Backrest and Bottle Cage
3EN
SAFETY INSTRUCTIONS
– It is important to read this entire manual before assembling and using the equipment. Safe and
eective use can only be achieved if the equipment is assembled, maintained and used properly.
It is your responsibility to ensure that all users of the equipment are informed of all warnings and
precautions.
– Before starting any exercise program, you should consult your doctor to determine if you have
any medical or physical conditions that could put your health and safety at risk, or prevent you
from using the equipment properly. Your doctor’s advice is essential if you are taking medication
that aects your heart rate, blood pressure or cholesterol level.
– Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, extreme shortness of breath, lightheadedness, dizziness or feelings of nausea. If you do
experience any of these conditions you should consult your doctor before continuing with your
exercise program.
– Keep children and pets away from the equipment. The equipment is designed for adult use only.
– Use the equipment on a solid, at level surface with a protective cover for your oor or carpet. To
ensure safety, the equipment should have at least 0.5 metres of free space all around it.
– Before using the equipment, check that the nuts and bolts are securely tightened.
– The safety of the equipment can only be maintained if it is regularly examined for damage and/or
wear and tear.
ATTENTION
WARNING:
Before beginning any exercise program consult your physician. This is especially
important for people who are over 35 years old or who have pre-existing health
problems. Read all instructions before using any tness equipment. Do not operate this
exercise equipment without properly tted guards, as the moving parts can present a
risk of serious injury if exposed.

4
EN
VirtuFit iConsole Folding Bike with
Backrest and Bottle Cage
SAFETY INSTRUCTIONS
– Always use the equipment as indicated. If you nd any defective components while assembling or
checking the equipment, or if you hear any unusual noises coming from the equipment during use,
stop immediately. Do not use the equipment until the problem has been rectied.
– Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get caught
in the equipment or that may restrict or prevent movement.
– The max user weight is 110 KGS. Braking ability is independent of speed.
– The equipment is not suitable for therapeutic use.
– Care must be taken when lifting or moving the equipment so as not to injure your back. Always use
proper lifting techniques and/or seek assistance if necessary.
– Please keep the space at least 1 to 2 meter at the end of base frame to escape any accidents!
– Place the device on a clean and at surface. Do not place the equipment on a thick carpet.
– The device is for indoor use and not for outdoor use to prevent damage. Keep the storage location
dry, clean and at. It is forbidden to use the device for purposes other than training.
Warranty claim is excluded if the cause of the defect is the result of:
• Maintenance assembly and repair work not carried out by an ocial dealer.
• In the event of improper use, neglect and / or poor maintenance.
• Failure to maintain the tness equipment in accordance with the manufacturer’s instructions (see
the enclosed manual).

VirtuFit iConsole Folding Bike with
Backrest and Bottle Cage
5EN

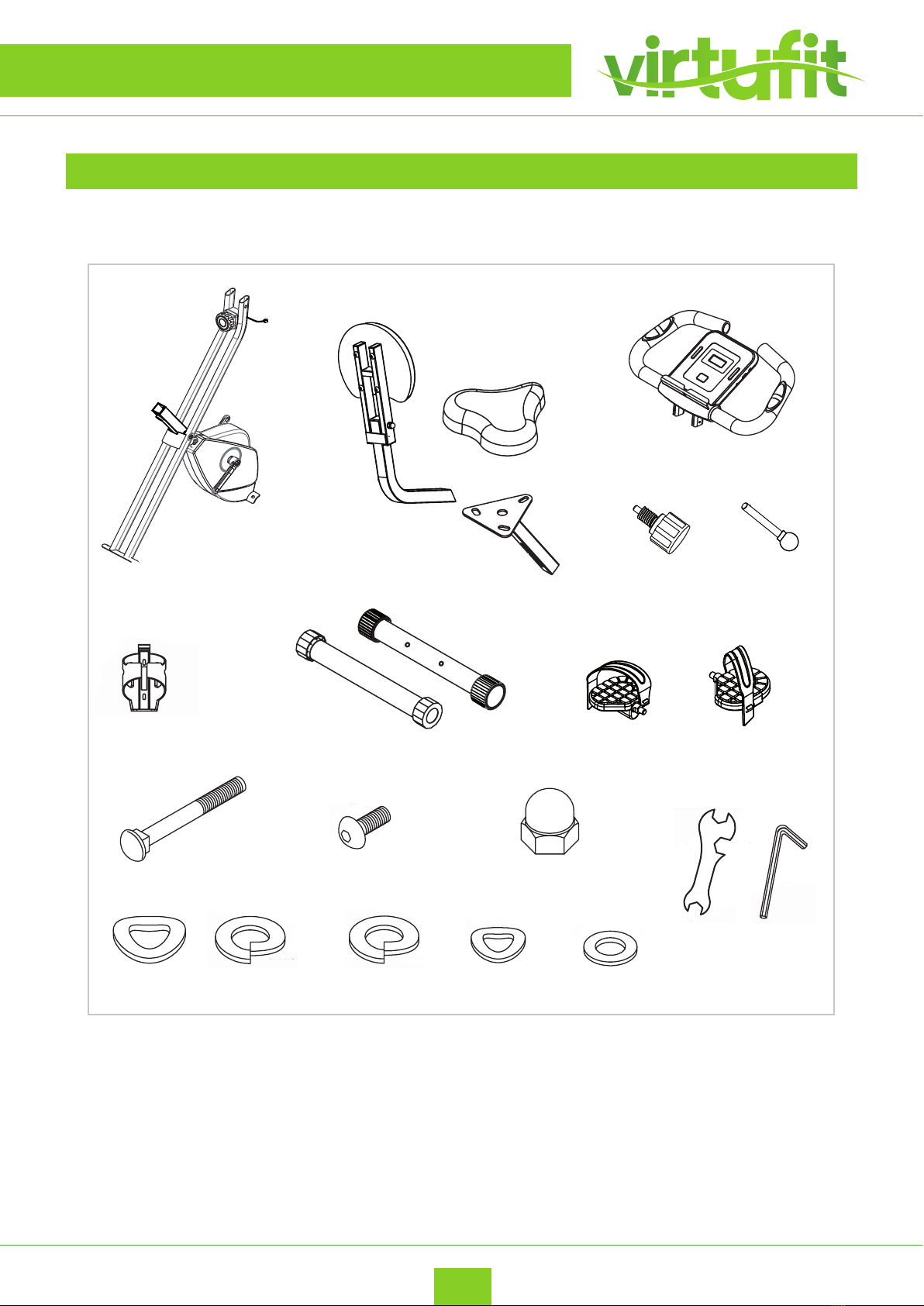

CHECKLIST
TOOLKIT
When you open the carton, and you will nd the below parts in the carton:
24
29
72
water bottle holder
water bottle holder
water bottle holder
water bottle holder
XX 4 4
water bottle holder
water bottle holder
water bottle holder
water bottle holder
water bottle holder
water bottle holder
water bottle holder
water bottle holder
water bottle holder

6
EN
VirtuFit iConsole Folding Bike with
Backrest and Bottle Cage
STEP 1
ASSEMBLY INSTRUCTIONS
Missing parts: If you think you are missing certain parts in your package, carefully check the styrofoa and
the folding bike. Some parts (bolts, screws, etc.) are already attached to / in the folding bike.
Error message: Ensure that all cables are carefully attached. The aluminum legs are very sensitive and
must remain straight. Do you receive an error message after mounting your folding bike? Then you have to
straighten these aluminum legs again, this may cause the error message to disappear.
Socket screws: The folding bike contains socket screws, make sure that the allen key is rmly in the
bolt before you apply force to the key. In this way you prevent the head of the socket head screw from
being rotated.
• Assemble Rear & Front Stabilizer
• Assemble Pedals (L / R).

VirtuFit iConsole Folding Bike with
Backrest and Bottle Cage
7EN
STEP 2
• Assemble Saddle.
Adjust the Saddle
The Saddle Support has “Max” Sign to show
the maximum height of Saddle. You should
not exceed this height. Unscrew the Seaat
Adjustment Knob (26) a couple of turns then
pull the knob outwards to release the Seat
Support Tube (6). To get the ideal seat height
you must adhere to the following guideline;
the highest pedal should be near your knee
and the saddle should protrude just above
your waist.
ASSEMBLY INSTRUCTIONS

8
EN
VirtuFit iConsole Folding Bike with
Backrest and Bottle Cage
STEP 3
ASSEMBLY INSTRUCTIONS
• Assemble Handlebar & Exercise Monitor.

VirtuFit iConsole Folding Bike with
Backrest and Bottle Cage
9EN
LEVELING THE BIKE
TENSION KNOB
For sucurity and staility, your folding bike
has a factory welded frame and once fully
assembled correctly, should not need further
alignment. However, in the interest of safety,
please always ensure that your folding bike is
positioned on a solid, at surface. If necessary,
use a rubber mat underneath to reduce the
possibility of slipping in use. If you need to
make a ne adjustment, simply twist the end
of either Rear Frame Stabiliser Adjustable Hex
End Cap (27) to compensate for uneven oors.
To ensure smoth ecient cycling action, the
tension belt braking system on your folding
bike has been correctly adjusted by our
factory during production.
TENSION KNOB ADJUSTMENT
You could adjust the tension for varied
resistance with the Tension Control (19).
NOTE: You should begin your “Exercise
Period” at the resistance level and speed
to suit your needs. Remember to start out
slow and easy, and work your way up to the
tness level you desire.
LEVELING THE BIKE AND RESISTANCE
ongelijke ondergrond.
465 mm
810 mm
ongelijke ondergrond.
465 mm
810 mm

10
EN
VirtuFit iConsole Folding Bike with
Backrest and Bottle Cage
NOTE: Store your machine in a dry area away from children and high trac areas as shown in
the illustration. Be sure it is secure and cannot fall onto small animals or children.
U kunt de borgpin (
klappen. Als u de opvouwbare hometrainer wilt gebruiken
kunt u de borgpin (
3

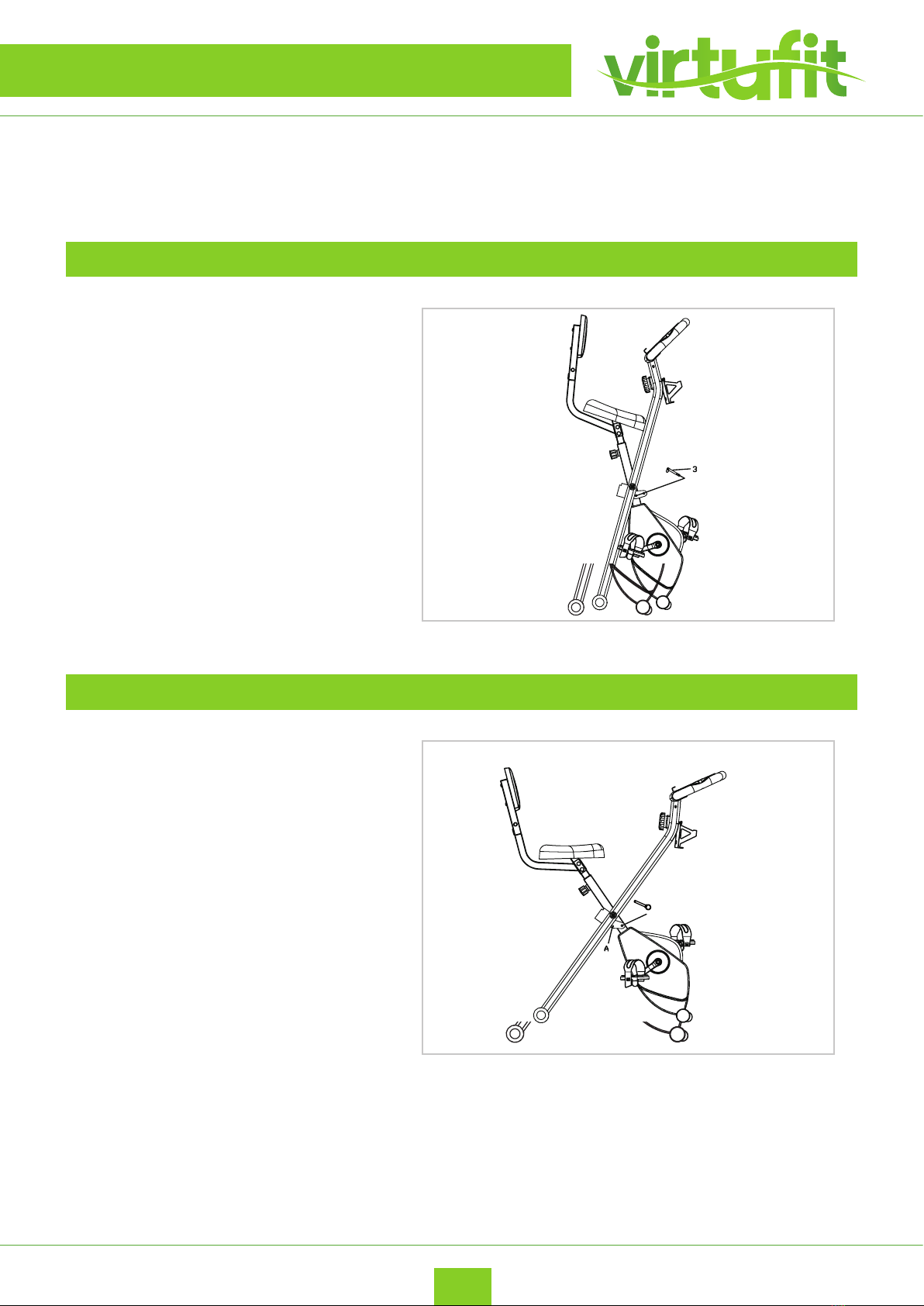

FOLDING
UNFOLDING
Using the Locking Pin (3) to fold and unfold
the bike. When folded, the Locking Pin (3) is
in Positon B.
Using the Locking Pin (3) to fold and unfold
the bike. When in use, the Locking Pin (3) is
in Position A.
FOLDING INSTRUCTIONS

VirtuFit iConsole Folding Bike with
Backrest and Bottle Cage
11 EN
SEMI-ANNUAL MAINTENANCE
DAILY MAINTENANCE
• Clean and remove sweat after each use Do not use aggressive cleaning agents and ensure that
the device remains free of moisture.
• Check that the rail and the wheels under the seat are free from dust and dirt.
• Inspect all bolts and nuts in connection with moving parts of the device, tighten as required.
• Check the mobility of moving parts and components of the use equipment, silicone spray if
necessary.
Safeandeectiveusecanonlybeachievedifthedevicewillbeassembledandmaintained
well. It is your responsibility to ensure that the equipment is regularly maintained. Parts
that are already used and / or damaged must be replaced before continuing using. The
rower machine may only be used indoors and stored away, prolonged exposure to
weathering and changes in temperature / humidity can have a serious impact on the
electrical components and moving parts of the folding bike.
MAINTENANCE

12
EN
VirtuFit iConsole Folding Bike with
Backrest and Bottle Cage
BATTERY
MAINTENANCE
AA BATTERY
The monitor uses on “AA” battery. You can
replace the battery through the back of the
unit.
The batteries must be installed correctly. If
the screen is unreadable or only parts of the
image work, follow the next step: Remove
the batteries and wait 15 seconds, then
reinsert the batteries correctly.
ADVICE FOR HANDLING BATTERIES
CHANGING THE BATTERIES
1. Remove the batteries when they are exhausted or if you do not use the product for an extended
period of time in order to avoid hazards through leaking batteries.
2. Do not recharge batteries nor dissemble or throw then into re. Danger of explosion!
3. Pay attention to the polarity (+) and (-). Always replace all the batteries; do not mix old and new batteries,
or dierent battery types.
4. Use preferably alkaline batteries, as they have a longer operation time then usual zinc-coalbatteries.
5. A change of batteries is necessary when the display becomes weaker or completely faded.
1. If you see an improper display on the monitor, please replace the batteries to have a good result.
2. Please use 2pcs of 1.5v AA batteries as a power supply.

VirtuFit iConsole Folding Bike with
Backrest and Bottle Cage
13 EN
Display does not work
If the display no longer works, you can replace the batteries. These are at the back of the display.
Display shows no values
If the display does not show any values, you can try to check the sensor cables and the cables in the back
of the display. If this still does not work, you can move the sensor slightly.
Folding bike beeps
Check that all bolts and nuts are tightened securely. Spray silicone spray if necessary. Also check the wheels.
Squeaky exercise bike
First lubricate all rotating parts with silicone spray. It can also be that a screw is tightened too tightly or too
loosely, this creates friction and therefore a beep. If this is the case, try to nd out exactly where the beep is
coming from and then loosen or tighten this screw. The screws should be tightened in such a way that they
can always be released by hand.
Ticking noise when pedaling
This is probably caused by one of the pedals. Disassemble the trapper (s) and then reattach them to the
device. Be careful, the left-hand trapper has to be turned counterclockwise to tighten, the right-hand
trapper clockwise. Tighten the pedals securely. If this does not oer the solution, report this to the supplier.
Heart rate display does not work
This can have various causes.
• The sensor cables running from the heart rate sensor to the display are incorrectly tted or have come
o during use.
• It may be that the sensors have become damp, dirty or greasy, clean them regularly.
The console doesn’t work
• Are there any other problems? Please contact your dealer.
• When the display show Drawing D, it means the batteries need to be changed.
• If there is no signal when you pedal, please check if the cable is well connected.
Afbeelding A Afbeelding B Afbeelding C Afbeelding D
TROUBLE SHOOTING

14
EN
VirtuFit iConsole Folding Bike with
Backrest and Bottle Cage

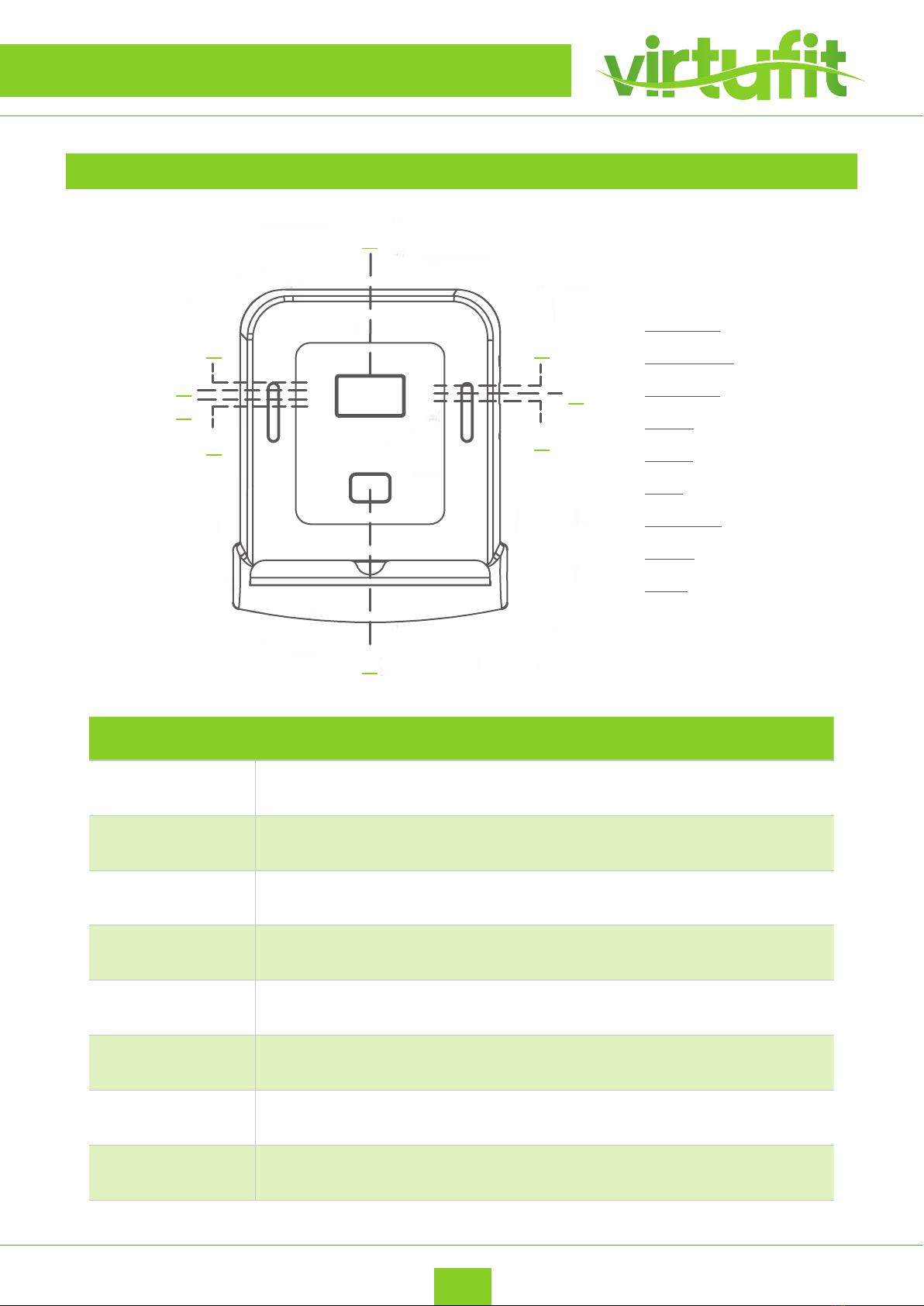

CONSOLE
CONTROL PANEL
BUTTON FUNCTION
SCAN Changing from function to function every 2 seconds.
MODE To select dierent functions.
TIME Workout time during your exercise. 0:00 - 99:59 (minutes).
SPEED Workout speed during your exercise. 0.0 - 999.9 (KM/H).
DISTANCE Workout distance during your exercise. 0.0 - 999.9 (KM).
ODOMETER Automatically counts the total distance of all training. 0 - 9999 (KM).
CALORIES Burned calories during your exercise. 0.0 - 999.9 (cal).
PULSE Heart rate during your exercise. 30 - 230 (beats per minute).
TIME
DISTANCE
SPEED
SCAN ODOM ETER
CALORIES
PULSE
1
2
3
4
5
6
7
8
9
1. MONITOR
2. ODOMETER
3. CALORIES
4. PULSE
5. MODE
6. TIME
7. DISTANCE
8. SPEED
9. SCAN

VirtuFit iConsole Folding Bike with
Backrest and Bottle Cage
15 EN
BUTTON FUNCTION
TIME Press the MODE button until the TIME function is selected. The total cycling time
from the beginning to the end of the exercise is displayed.
SPEED Press the MODE button until the SPEED function is selected. The
speed is displayed during training when you start training.
CALORIES Press the MODE button until the CALORIES function is selected. The total calories
from the beginning to the end of the exercise is displayed.
DISTANCE Press the MODE button until the DISTANCE function is selected.
The distance of each workout is displayed when you start training.
ODO The distance is automatically added when you start training.
PULSE Press the MODE button until the PULSE function is selected. Hold your
hands on the sensor for 3 seconds to display your heart rate.
FUNCTIONS
MONITOR
CONTROL PANEL
Operation monitor
1. When monitor power on (or press MODE, RESET key and hold for 3 seconds), LCD screen will display all
segments with Beep sound for one second and enter to SCAN mode.
2. With any signal been transmitted into the monitor, the value of TMR, DST, and CAL will start to count up.
4. Without any signal been transmitted into the monitor for 4 minutes, the monitor will enter to SLEEP
mode.

16
EN
VirtuFit iConsole Folding Bike with
Backrest and Bottle Cage
TRAINING USING APP
APPLE DEVICE
ANDROID DEVICE
DOWNLOAD THE ICONSOLE+ APP
Depending on
the operating system of the tablet or smartphone,
you must go to Apple App Store of Google Play Store
to download the app. You can also scan the QR code
to download the app directly.
After the app has been successfully downloaded, you
must complete the following steps to connect the
folding bike to your phone/tablet.
1. Go to option settings of your smartphone or tablet and turn on the bluetooth function.
2. Next, bluetooth devices are searched for. The name of the app appears in the list.
3. Select it and the two devices will search for a connection.
4. Then type the code 0000 so that the two devices are connected to each other.
5. When the two devices are connected, the computer automatically turns o and you can use the
folding bike through your phone. If you close the app and disconnect it, the computer will restart.
1. Go to option settings of your smartphone or tablet and turn on the bluetooth function.
2. Start the app now.
3. Press the bluetooth icon with rotating arrows for the list of bluetooth devices.
4. Select the name of the app in this list to connect.
5. When the two devices are connected, the computer automatically turns o and you can use the folding
bike through your phone. If you close the app and disconnect it, the computer will restart.
APP STORE
tphone of tablet via Bluetooth, zal het console uitgaan.
ing+ app verlaat en de bluetooth
tphone of tablet uit zet, zal het console
iBiking+
Opmerking:
smartphone of tablet via Bluetooth, zal het
ls u de Fit Hi Way of iBiking+ app
rbinding op uw smartphone of tablet uit
automatisch weer aan gaan.
Fit Hi Way iBiking
GOOGLE PLAY STORE
APP

VirtuFit iConsole Folding Bike with
Backrest and Bottle Cage
17 EN
EXPLODED DRAWING

18
EN
VirtuFit iConsole Folding Bike with
Backrest and Bottle Cage
PARTS LIST
#DESCRIPTION QTY
1 Handlebar 1
2 Rear frame 1
3 Locking pin 1
4 Screw M5*10 2
5 Pval line plug 15*20 3
6 Saddle support 1
7 Main frame 1
8 Rear stabilizer 1
9 Front stabilizer 1
10 Crank (R & L) 2
11 Main shaft 1
12 Lower drive wheel shaft 1
13 Magnetic bracket 1
14 Round steel 2
15 Handle grip foam 2
16 Console 1
17 Pulse sensor pad 2
18 Chain cover (U) 1
19 Tension Control Knob 1
20 EVA sticker 1
21 Bracket stem support 1
22 Pulse sensor wire 2
23 Backrest support 1
24 Saddle 1
25 Saddle stem insert 1
26 Seat adjustment knob 1
27 Adjustable hex and cap 2
28 End cap 2
29 Pedal (R & L) 2
30 Chain cover (R & L) 2
#DESCRIPTION QTY
31 Pulley brush 2
32 Flywheel 1
33 Pulley bracket 1
34 Lower drive wheel 1
35 Upper drive wheel shaft 1
36 Upper drive wheel 1
37 Sensor bracket 1
38 Magnet 6
39 Crank guard trim 2
40 Bearing 2
41 Waved washer 5
42 Spring washer 5
43 Self-tapping screw M4*25 6
44 Screw M5*15 3
45 Allen screw M6*12 4
46 Screw M5*50 1
47 Drive belt 230J 1
48 Drive belt 220J 1
49 Spring 1
50 Allen screw M8*20 2
51 Carriage bolt M8*65 4
52 Screw M6*40 2
53 Screw M6*12 6
54 Self-tapping screw M4*20 4
55 Nut M10*1.25 2
56 Curved washer M6 2
57 Flat washer M6 2
58 Flat washer 1
59 Sensor wire 1
60 Spring washer 6

VirtuFit iConsole Folding Bike with
Backrest and Bottle Cage
19 EN
#DESCRIPTION QTY
61 Dome lockut 7
62 Nylon locknut M8 3
63 Flat washer 2
64 Inner bushing 6
65 Backrest 1
66 Lock ring 1
67 Bearing 1
68 Flat washer 1
69 Nylon locknut M10 1
70 Bearing 2
71 Curved washer 4
72 Spring washer 8
73 Spring washer 4
74 Handlebar end cap 2
75 Water bottle holder 1
76 Nut M10*1 4
77 Screw M5*10 2
78 Locknut M6 2
79 Wire plug 1
80 Carriage bolt 2
81 Flat washer 4
82 Screw 4
83 Obling end cap 4
84 Square end cap 1
85 Flat washer 2
86 Allen bolt 1
87 Backrest support 1
PARTS LIST

20
EN
VirtuFit iConsole Folding Bike with
Backrest and Bottle Cage
TRAINING INSTRUCTIONS
WARMING UP
STRETCHEN
COOLING DOWN
A successful exercise program consists of a warm-up, aerobic exercise, and a cool-down.
Do the entire program at least two and preferably three times a week, resting for a day
between workouts. After several months, you can increase your workouts to four or ve
times per week.
The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two
to ve minutes before strength-training or aerobic exercising. Perform activities that raise your heart rate
and warm the working muscles. Activities may include brisk walking, jogging, jumping jacks, jump rope,
and running in place.
Stretching while your muscles are warm after a proper warm-up and again after your strength or aerobic
training session is very important. Muscles stretch more easily at these times because of their elevated
temperature, which greatly reduces the risk of injury. Stretches should be held for 15 to 30 seconds.
The purpose of cooling down is to return the body to its normal or near normal, resting state at the end of
each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to return to the
heart.
TOE TOUCH
INNER THIGH STRETCH
ACHILLES STRETCH
HAMSTRING STRETCH SIDE STRETCH
