VIRTUFIT CTR 1.0 User manual

CTR 1.0 Crosstrainer
ENG
User manual

2VirtuFit CTR 1.0 Crosstrainer
ENG
INDEX
Important safety notice 3
Assembly instructions 4
Maintenance 9
Operating Guide 10
Technical drawing 13
Parts list 15

3VirtuFit CTR 1.0 Crosstrainer
ENG
IMPORTANT SAFETY NOTICE
WARNING: We suggest that you should consult with your physician or health
professional before starting your workout, especially for the age up to 35 old or people
with health problems. We take no responsible for any problems or injuries if you don’t
follow our specication.
IMPORTANT
- This elliptical trainer is made for home use only and tested up to a maximum body weight of 115 kgs.
- Follow the steps of the assembly instructions carefully.
- Use only original parts as delivered.
- Before the assembly, be sure to check if delivery is complete by using the included partslist.
- For assembly use only suitable tools and asks for assistance with assembly if necessary.
- Place the exerciser on an even, non-slippery surface. Because of possible corrosion, the usage of anY
exerciser in moist areas is not recommended.
- Check before the rst training and every 1-2 months that all connecting elements are tight tting
and are in the correct condition. Replace defective components immediately and/ or keep the
equipment out of use until repair. For repairs, use only original parts.
- In case of repair, please ask your dealer for advice.
- For repairs, use only original spare parts.
- Avoid the use of aggressive detergents when cleaning the home exerciser.
- Ensure that training starts only after correct assembly and inspection of the item.
- For all adjustable parts be aware of the maximum positions to which they can be
adjusted/ tightened to.
- The home exerciser is designed for adults. Please ensure that children use it only under the supervi
sion of an adult.
- Ensure that those present are aware of possible hazards, e.g. movable parts during training.
- Warning: incorrect/excessive training can cause health injuries.
- Consult your physician before starting with any exercise program. He or she can advise on the kind of
training and which impact is suitable.

4VirtuFit CTR 1.0 Crosstrainer
ENG
ASSEMBLY INSTRUCTION
Before you start to assemble the device, please read the following points carefully:
1. Missing parts: If you think you are missing certain parts in your package, carefully check the styrofoam
and the device yourself. Some parts (bolts, screws, etc.) are already attached to / in the device.
2. Error message: Make sure that all cables are carefully attached. The adjusable feet are very sensitive and
should remain straight. Do you get an error message after the installation of your cross trainer? Then you
should bend these adjustable feet straight again, this may cause the error message to disappear.
3. Transport wheels: Make sure that the transport wheels are attached to the front of the device.
4. Allen screws: In the upright of crossbar are hex bolts, make sure that the Allen key is properly in the bolt
before you apply force to the key. In this way you prevent the head of the socket head from being turned.
STEP 1
– Attach the Front Stabilizer (35) and the Rear Stabilizer (36) to the Main Frame (40)
with Carriage Bolt (33), Domed Nut (23) and Arc Washer (22).

5VirtuFit CTR 1.0 Crosstrainer
ENG
– Turn the resistance knob all the way. Cable (53) needs to be as long as possible.
– Connect the Sensor 16 and 38,and Tension Control wire 53 and 39 as shown above, x the
Upright Post (15) with the Main Frame (40) with Bolt (26), Arc Washer (22). Fasten tightly.
Note: Tighten the Screw (27) and the Arc Washer (22) after the STEP 3.
STEP 2
ASSEMBLY INSTRUCTION

6VirtuFit CTR 1.0 Crosstrainer
ENG
– Fix the Lower Handle Bar (25L/R)to the Upright Post (15) with Bolt (18) ,Washer (9), D Washer (19).
– Fix the Pedal Tubes (42L/R) with the Pedal Crank by Pedal Hinge Bolt (46L/R)Curved Washer (50),
and Nylon Nut (51L/R). Install the Pedal (44) on the Pedal Tube (42L/R) with Hex Head Bolt(43),
Knob (27).
STEP 3
ASSEMBLY INSTRUCTION

7VirtuFit CTR 1.0 Crosstrainer
ENG
– Install the Middle handlebar (4) on the Upright Post (15) with bolt (8) Arc Waser (9);
– Fix the Handlebar ( 11 L / R ) to the Lower Handle Bar ( 25 L / R ) with Bolt (21),
Arc Washer (85) and Domed Nut (23).
STEP 4
ASSEMBLY INSTRUCTION

8VirtuFit CTR 1.0 Crosstrainer
ENG
STEP 5
ASSEMBLY INSTRUCTION
– Connect wires ( 1a / 1b ) to wires ( 4a / 4b ) Handle Pulse Wire (1a) and (1b), then connect Sensor
wire (16) to the Computer (1);
x the Computer (1) onto the Upright Post (15) with Screw (2) and Washer (103);
– Attach the Bottle Holder (98) to the Support Tube (15) with Crosshead (99);
– Then, put the Bottle (100) in the Bottle Holder (98).
CAUTION: MAKE SURE YOU HAVE TIGHTENED ALL THE BOLTS AND NUTS WELL BEFORE BE
GINNING YOUR WORKOUT.
NOTE: THE END CAP ON THE FRONT STABILIZER TUBE IS MOVABLE, WHICH IT IS EASY FOR
YOU TO MOVE YOUR ELIPTICALL.

9VirtuFit CTR 1.0 Crosstrainer
ENG
MAINTENANCE
1. The upright is xed with Allen screws, making sure that the bolts are tight at all times. If the bolts
are not tightened tight enough, this can cause cracking.
2. All moving parts mounted on the base of the device should be greased with grease once every 6
months. This can be done with Vaseline (without acids) or with silicone oil.
3. After each use, the appliance should be cleaned with a slightly damp cloth and soft soap. If the
perspiration is not removed in time, corrosion can occur.
4. Do not place the cross trainer in a room with high humidity. For example, a shed or a room where
the washing machine is located.
PROBLEM SOLUTIONS
Squeaky crosstrainer: First lubricate all rotating parts with silicone spray. It can also be that a screw is
tightened too tightly or too loosely, this creates friction and therefore a beep. If this is the case, try to nd
out exactly where the beep is coming from and then loosen or tighten this screw. The screws should be
tightened in such a way that they can always be released by hand.
No resistance: First check whether you can hear the motor running. You will hear the motor spin very
briey when you increase or decrease the resistance. If you hear the engine running then all electronics
are OK, but the V-belt probably ended. You can then open the housing and replace the V-belt. If you do
not hear the motor running, it may be that the motor or display is defective. First check whether the cable
that runs upwards in the pipe is connected properly.
Ticking sound: It is possible that the ywheel (in the housing) comes against a cable with every pedaling.
This may be disturbing but will not cause permanent damage to your cross trainer. To solve this, open the
housing and move the cable or you can fasten it with for example a tie-wrap.
Heart rate display does not work: This can have various causes. 1. The sensor cable running from the
heart rate sensor to the display is not properly mounted or has come o during use. 2. It may be that the
sensors have become damp, dirty or greasy, clean them regularly. 3. If you have a lot of calluses on your
hands, it is more dicult for the sensors to measure, when this is the case a chest strap is recommended.

10 VirtuFit CTR 1.0 Crosstrainer
ENG
LOOPBAND AFSTELLEN
OPERATING GUIDE
BUTTON FUNCTION EXPLANATION
(1) MODE Push down for selecting functions. If the long time holds down “MODE” button
down for resetting time, distance and calories.
(2) SCAN
Press “MODE” button until “SCAN” appears, monitor will rotate through all the 6
functions: Time, speed, distance, ODO, calorie, pulse. Each display will be hold 5
seconds.
(3) TIME Count the total time from exercise start to end.
(4) SPEED Display current speed.
CONTROL PANEL

11 VirtuFit CTR 1.0 Crosstrainer
ENG
LOOPBAND AFSTELLEN
OPERATING GUIDE
BUTTON FUNCTION EXPLANATION
(5) DIST Count the distance from exercise start to end.
(6) CALORIES Count the total calories from exercise start to end.
(7) ODO The total distance which this function is refers to from battery capacity period
runs.
(8) PULSE
Press MODE button until “PULSE” appears. Before measuring your pulse rate,
please place your palms of your hands on Both of your contact pads and the
monitor will show your current heartbeat rate in beats per minute(BPM) on the
LCD after 6~7 seconds.
REMARK:During the process of pulse measurement, because of contact
jamming, the measurement value may be higher than the virtual pulse rate
during the rst 2~3 seconds, then will return to normal level. The measurement
value can not be regarded as the basis of medical treatment
NOTE:
1. If the display is faint or shows no gures ,please replace the batteries.
2. The monitor will automatically shut o if there is no signal received after 4 minutes.
3. The monitor will be auto-powered on when starting to exercise push button w/signal in.
4. The monitor will automatically start calculating when you start to exercise and will stop
calculating when you stop exercising for 4 seconds .
CONTROL PANEL

12 VirtuFit CTR 1.0 Crosstrainer
ENG
OPERATING GUIDE
SPECIFICATIONS:
FUNCTION FUNCTION EXPLANATION
AUTO SCAN Every 5 seconds
TIME 00:EE00’ ~99:59’
CURRENT SPEED The maximum signal can be pickup is 999.9(ML)KM/H
TRIP DISTANCE 0.0 ~9999 (ML)KM
CALORIES 0.0 ~9999 kCAL
ODO 0.0 ~9999 (ML)KM
PULSE RATE 40 ~240 BPM
BATTERY TYPE 2pcs of SIZE –AAA or UM –4
OPERATING
TEMPERATURE 0°C ~ +40°C
STORAGE
TEMPERATURE -10°C ~ +60°C

13 VirtuFit CTR 1.0 Crosstrainer
ENG
TECHNICAL DRAWING
4
3
5
6
6
7
89
14
11L
12
13
14
11R
13
12
15
53
9
9
18
17
19 20
21
85 23
24
24 20
25L
25R
21
85 23
19
18
17
22
26
28 29
30
313228
32
3029
28
31
22
23
34
33
35
33
22
23
36
37
37
38 39
40
30
41
42L
27
43
44
32
31 41
30
45
28
46L
4748 49L5051L
52
52 51R
50
49R
484746R
41 42R
43
27
28
45
30
32
31
80 81 82 83
10
16
54 55
1b 1a
26
1
2
98
99
100

14 VirtuFit CTR 1.0 Crosstrainer
ENG

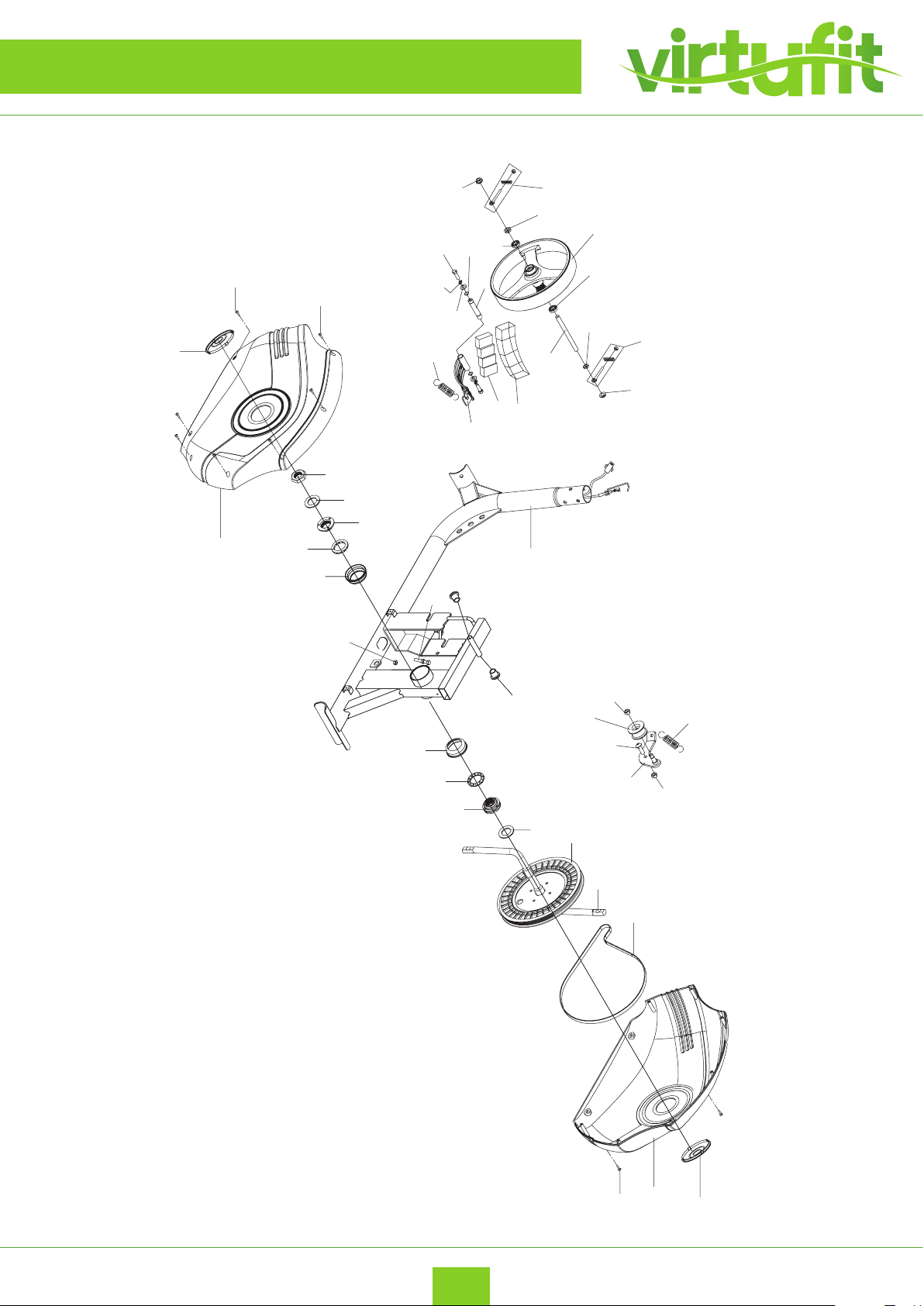

TECHNICAL DRAWING
57
L95
59R
56
40
84
60
61
62
63
64
65
75
58
64
63
65
66
67
77
68
64
90
91
75
92
78
75
79
76
69
72
74
69 73
73
70
70
71
93
86
97
96
91 94 95
88
89
87

15 VirtuFit CTR 1.0 Crosstrainer
ENG
PARTS LIST
# Description Qty
01 Computer 1
02 Screw M5 4
03 Pulse 2
04 Middle Handlebar 1
05 Screw ST4x19 2
06 End cap φ25 2
07 Small cover 1
08 Bolt M8x30 2
09 Arc Washer D8 4
10 Foam grip 2
11 Handlebar ( L / R ) 2
12 Foam grip 2
13 End cap φ28 2
14 Stopple φ12.6Xφ6 2
15 Upright post 1
16 Wire 1
17 End cap S13 2
18 Bolt M8x16 2
19 Washer D8Xφ32X2 2
20 Bushing φ32Xφ19X28 4
21 Bolt M8x40 4
22 Arc washer D8Xφ20X1.5XR30 8
23 Domed Nut M8 8
24 Plastic insert 2
25 Lower handlebar ( L / R ) 2
26 Screw M8X16XS6 4
27 Knob M10 4
28 End cap S17 6
29 Bolt M10x60 2
30 Bushing φ14x12.5Xφ10.1 8
31 Washer D10Xφ20x2 4
32 Nylon nut M10 8
33 Carriage Bolt M8X60 4
# Description Qty
34 End cap φ50 2
35 Front stabilizer 1
36 Rear stabilizer 1
37 End cap φ50 1
38 Sensor 1
39 Tension control cable 1
40 Main frame 1
41 End cap J40X25 4
42 Pedal tube ( L / R ) 2
43 Bolt M10X50 4
44 Pedal 2
45 Bolt M10X50 2
46 Bolt ( L / R ) 1 / 2 2
47 Arc Washer D17 2
48 Bushing φ24X20Xφ16.1 4
49 U bracket 2
50 Spring washer 1 / 2” 2
51 Nylon nut ( L / R ) 1 / 2” 2
52 End cap S19 2
53 Power line connection 1
54 Crosshead screw M5*15 1
55 Motor 1
56 Crank cover 2
57 Crosshead screw ST4.2*16 5
58 Crosshead screw ST4.2*19 12
59 Chain cover ( L / R ) 1
60 Nut 1
61 Washer 1
62 Left collar housing 1
63 Collar ball 1
64 Collar housing 2
65 Right collar housing 1
66 Washer 1

16 VirtuFit CTR 1.0 Crosstrainer
ENG
PARTS LIST
# Description Qty
67 Chain wheel 1
68 Belt 1
69 U bracket 2
70 Bearing 2
71 Axle 1
72 Nut M10 2
73 Nut M10 2
74 Flywheel 1
75 Nylon nut M8 2
76 Tension spring 1 1
77 Crank 1
78 Bolt 1
79 Bracket 1
80 Open-end wrench S13 14 15 1
81 Hex wrench S6 1
82 Hex wrench S8 1
83 Open-end wrench S17 18 19 1
# Description Qty
84 End cap 2
85 Arc washer D8Xφ16X1.5XR30 4
86 Magnetic board 1
87 Tension spring 2 2
88 Plastic lattice 1
89 Magnet 4
90 Hexagon nut M6 2
91 Hexagon bolt M6*20 3
92 idler 1
93 Hexagon thin nut M10*1.0*2 1
94 Spring washer d6 2
95 Washer d6 2
96 Srap ring d12 2
97 Axle of magnetic board 1
98 Bottle holder 1
99 Crosshead screw M5*15 2
100 Bottle 1

ENG
For questions or missing parts please contact your dealer.
