Vitea Care FRANK User manual

Instrukcja używania
Instructions for use
FRANK
4-WHEEL STEEL ROLLATOR
FRANK
PODPÓRKA UŁATWIAJĄCA
CHODZENIE
216
VCBK
BASIC UDI-DI 59017804VCBKRG

Instructions for use
TABLE OF CONTENT
1. Introduction 3
2. Product description 3
3. Indications 5
4. Contradictions 5
5. Usage 6
6. Safety of use 8
7. Everyday use and maintenance 9
8. Technical parameters 13
9. Symbols 14
10. Contact details 15
MODEL: FRANK
LANGUAGE: ENGLISH VERSION: 2020-11
2 VITEACARE.COM
PLEASE READ WHOLE INSTRUCTION CAREFULLY BEFORE USE

MODEL: FRANK
LANGUAGE: ENGLISH VERSION: 2020-11 VITEACARE.COM 3
1. INTRODUCTION
Four wheel steel rollator with footrest, equipped with two xed rear wheels
with brake and locking the wheels and the two front wheels swivel. It lets you
easily navigate through any surface, inside and outside the building. Handles
anatomical made of polyethylene, steel frame.
2. PRODUCT DESCRIPTION

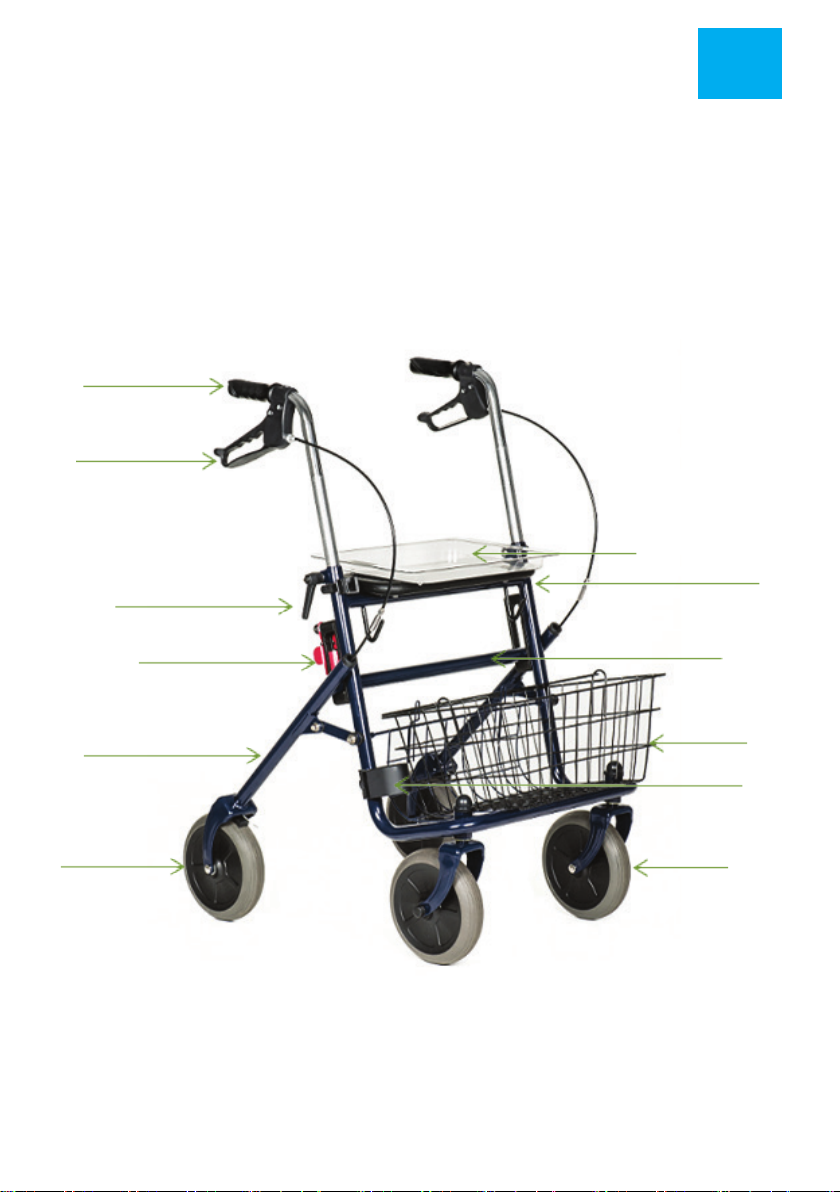

Illustration 1
1. Handle holder; 2. Brake lever with locking rotation of the wheels; 3. Handles
height screw adjustment; 4. Lock; 5.Side frame; 6.Rear wheel; 7.Tray; 8. Seat;
9.Transverse frame; 10. Basket for small items; 11. Crutches holder; 12. Caster
front wheels.
1
2
3
10
9
8
7
12
4
5
6
11

4 VITEACARE.COM
MODEL: FRANK
LANGUAGE: ENGLISH VERSION: 2020-11
Elements that should be inside the packaging:
Basket for small items
Tray for small items
Illustration 3
Illustration 4
Illustration 2
The mounting kit (two knobs with
screws and washer to mount hand
holder and armrests)

MODEL: FRANK
LANGUAGE: ENGLISH VERSION: 2020-11 VITEACARE.COM 5
Illustration 5
Rollator
3. INDICATIONS
Rehabilitation supports are an ancillary equipment to facilitate tilting and moving
of patients with di󰀨erent types of motor disorders. They can be used as an aid for
patients after surgery (lower limbs) who are unable to use crutches, showing no
coordination disorders, patients with mild dysfunction of the lower limbs or weakness.
They are used in patients with in patients with impaired balance preventing them
from independent vertical position and locomotion, as well as various types of
circulatory dysfunction (e.g. intermittent claudication). Supports can also be used as
an aid for geriatric patients.
4. CONTRAINDICATIONS
Contraindications to the upright position, injuries and dysfunctions of upper limbs
preventing the patient from supporting themselves, impaired coordination and
perception.

6 VITEACARE.COM
MODEL: FRANK
LANGUAGE: ENGLISH VERSION: 2020-11
5. USAGE
• The product is packed In folded position.
• After unpacking the package, check if it contains all parts in accordance with the list of
elements set out above.
• Ensure that all components have no visible damage. If any doubts, please contact the
manufacturer.
• Do not use the rollator until all parts are properly connected.

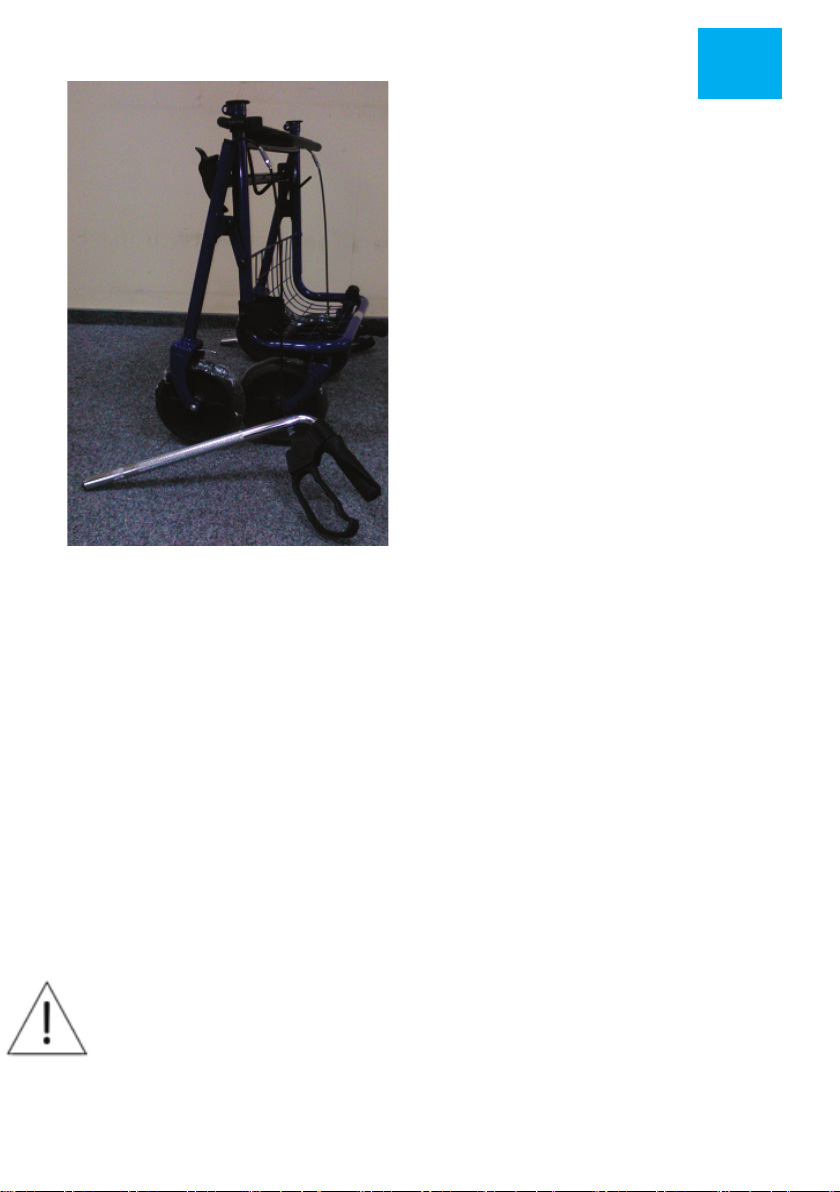

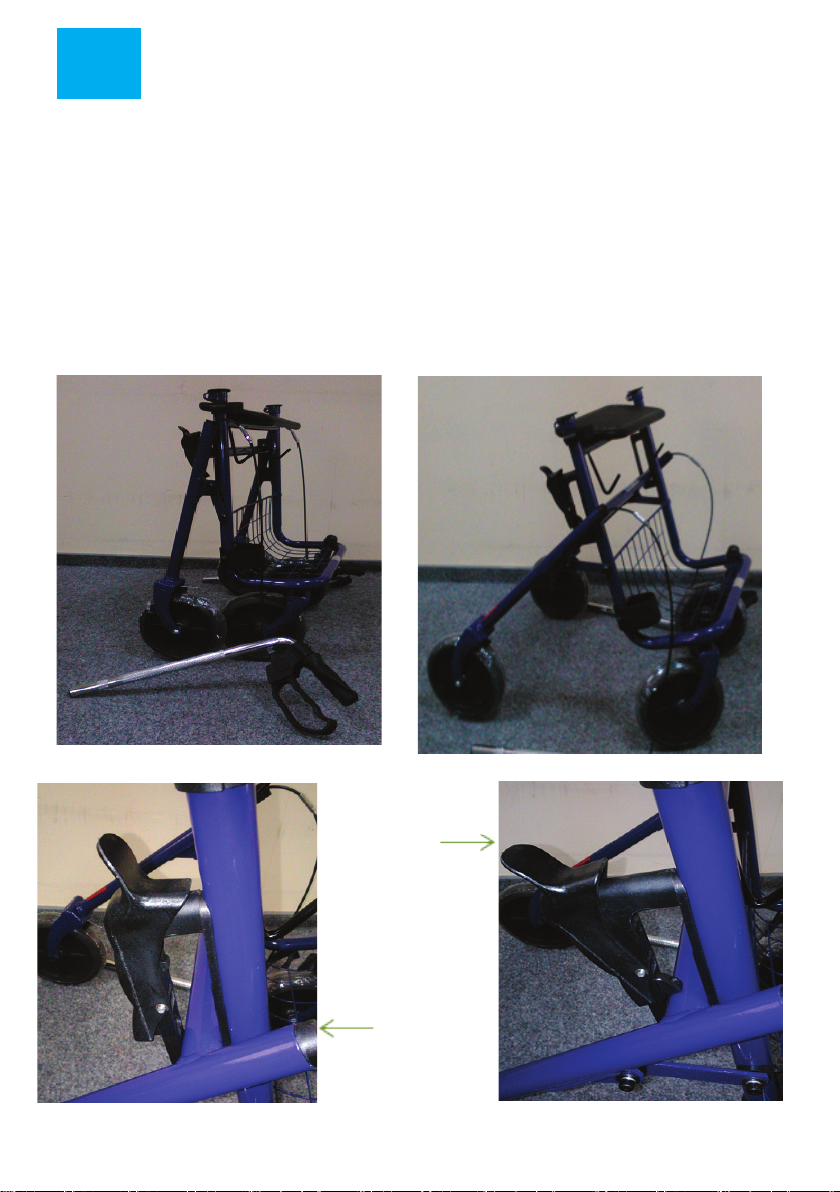

• Unfold the frame, pulling its front and back crosspiece. Set the frame on an even surface.
• Place your hand on the seat and transverse frame, push rmly and block the blockade (it is
placed on the side of the frame) until its automatic latch. Please, make sure that the safety
lever reached its ultimate position (Illustraton 8.).
Illustration 9
Illustration 8
Illustration 7
Illustration 6
Lever
secured
Lever
cocked

MODEL: FRANK
LANGUAGE: ENGLISH VERSION: 2020-11 VITEACARE.COM 7
• Remove the plugs from slots, place the screw on yoke of the frame stand so that the
marking on the screw head would be placed inside the slot. Place handle holder into
the guide of frame stand and screw in the blocking screw. Please, make sure that the
screws are screwed in tightly and that the both handle holder are at the same height.
Illustration 10
• The tray can be xed on the seat. Place the tray on the seat so that the four latches
would slide into the seat’s slots. In this way the tray is protected against slipping of.
Then on the basket, should place the tray.
• Place the basket in the front part of the rollator.
• Hang it on the lashing placed below the seat proceed in reverse order.
Illustration 11

6. SAFETY OF USE
8 VITEACARE.COM
MODEL: FRANK
LANGUAGE: ENGLISH VERSION: 2020-11
• Before using the rollator, refer to this manual and keep it for future reference.
• At standstill and the use of seat should apply the locking rotation of the wheels both rear
wheels.
• The stand will not replace the wheelchair, the seat is used only for temporary resting or
transport the patient on a short distance.
• The rollaror is used only to provide rest to one user. Do not stand on it..
• The rollator should be used on even surfaces at an incline less than 5%
• With the rollator you can only use on surfaces where all four wheels touching the ground
are to use all of four wheels.
• Use of the product on the icy, wet, greasy, strongly gritty surfaces is unacceptable - it
creates a risk of falling.
• Before each use of this product:
- Perform visual inspection of all structural components of the product,
- Check the operation of the braking system. Squeeze the brake handles to see
if the brake pads are t properly to wheels and are able to stop rollator. Press the
handles down to activate the parking brake and check if it works properly,
- Carefully check the stability and condition of the support frame.
• Do not use the support in the event of any visible or perceptible damage (e.g. cracks in
the frame). It may cause an accident.
• The rollator is designed for users with a maximum weight of 110kg.
• Maximum weight that can be moved in the bag- 1,5kg.
• Do not leave the stroller with the user close to open sources of re.
• Be aware that the surface temperature of the upholstery and the frame parts may
be increased after exposure to the sun or other heat source. Furthermore, with low
temperatures there is a danger of overcooling metal parts of stroller. It may cause burns
or frostbite parts of the body.
• All repairs must be carried out by qualied personnel. And during the warranty period only
by the manufacturer’s service.
• Do not exceed the maximum height of the handles to push, rollator will lose stability.
• Push the rollator with both hands simultaneously in the direction of travel.
• Before using, make sure that all screws are tight.
• Make sure that the lock used to folding and unfolding that product work properly.
• Due to the possibility of jamming the ngers put extreme caution in the area of horizontal
hinge strut, fold-out footrest and side frame hinge.
• Longer edge of the holder has to be parallel to the direction of movement

MODEL: FRANK
LANGUAGE: ENGLISH VERSION: 2020-11 VITEACARE.COM 9
• Handles should be located at a height that will provide comfort and a sense of security
for the user. It is important to ensure that both hands are positioned at the same height.
• To change the height of the handles unscrew the knob for xing handles, remove
washers, the screws and depending on the needs extend or shorten the frame handles.
• After adjusting the appropriate height, tighten the knob. (Illustration 8.)
• Make sure that the handle is properly tightened, so that it prevents movement of the
handles.
7. EVERYDAY USE AND MAINTENANCE
HEIGHT ADJUSTMENT HANDLES
FOLDING
• In order to fold rollator for ease of transport, you must rst block rotation of the wheels
• Then it is necessary to remove the tray, basket for small items.
• turn the blockade lever upward.
• Draw the transverse frame upwards.
UNFOLDING
• Place your hand on the seat, push rmly and block the blockade (it is placed on the
side of the frame) until its automatic latch. Please, make sure that the safety lever
reached its ultimate position.
• Before each use check the operation of the braking system. Press the brake holders
to control whether the brake pads adhere to the wheel well and are able to stop the
rollator.
• Press the holders downward to activate the hand brake and check whether it operates
correctly.
BRAKE FORCE ADJUSTMENT

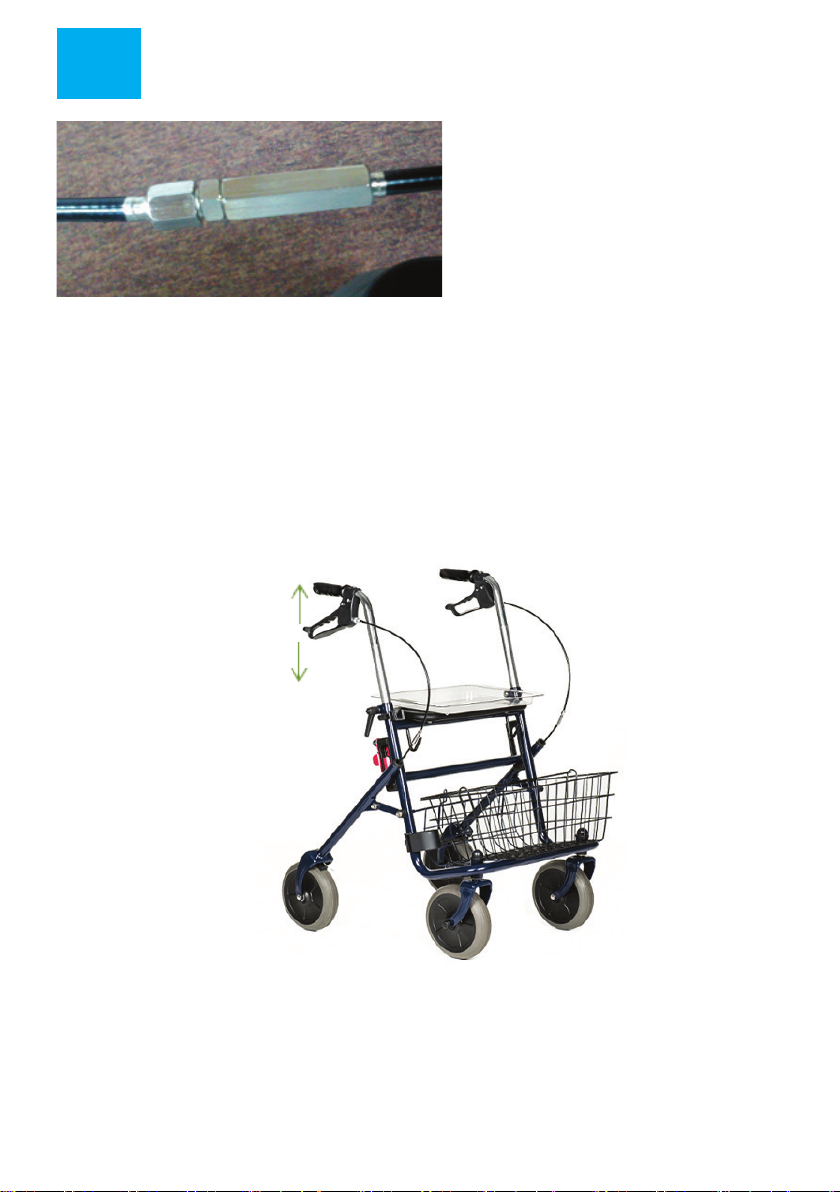

• The breaking force can be adjusted – screw or unscrew the thumb, which is nearby
Bowden cable. (Illustration 12.)
• Brake blocks cannot touch the ring of a wheel.
• When the brake force is adjusted, tighten the nut.
• After adjusting the braking force, it is important to check the operation of the braking
system.
• Squeeze the brake handle to check if the brake pads properly adhere and are able to stop
rollator. Then pull the handles down to apply the parking brake and check if it works properly.

10 VITEACARE.COM
MODEL: FRANK
LANGUAGE: ENGLISH VERSION: 2020-11
• The rollator is equipped with multi-functional brake. The brake handle is located under
the rollator handle. It can operate as a standard brake as well as parking brake
• To use the standard brake, lift up the brake handle.
• To use a parking brake, push down the brake handle to the point where you can hear
the distinctive sound of inclusion brake (You should use in that same time both the right
and left brake).
• You should use in that same time both the right and left brake.
BRAKE SYSTEM
Illustration 12
Standard brake
Parking brake

MODEL: FRANK
LANGUAGE: ENGLISH VERSION: 2020-11 VITEACARE.COM 11
ELBOW CRUTCHES
• On the right side of rollator, there are two elbow crutches holders: upper and lower.
• Place a elbow crutches in the bottom holder, and then push it in the top holder. Make
sure that the elbow crutches is rmly seated in the holder, and that it will not fall out
when you move.
OVERCOMING OBSTACLES (THRESHOLD, CURBS)
• In order to drive the rollator onto the threshold or curb should set the rollator
perpendicularly to the edge of the obstacle. Holding the handle, tilt the rollator in rear
raise the front wheels up.
• Then drive the rear wheels to the edge of the obstacle and holding the rollator handle,
lift slightly up and enter rollator on the obstacle
You must not use:
• solvents,
• toilet detergents,
• sharp brushes and hard objects,
• detergents that contain chlorine,
• corrosive detergents,
Do not clean the rollator with pressure or steam aggregates!
CARE AND MAINTENANCE
• Clean the frame with a damp cloth, clean the seat with damp cloth with mild detergent.
• Remove all soiling from the movable components of the support (wheels, clamping
screws, locks).
• In order to maintain the walker’s parameters, it is very important to keep all elements
clean and stored properly. Storing the walker in damp places (baths, laundry rooms,
etc.) or outdoors, combined with lack of hygiene will quickly degrade the performance
and aesthetic of the wheelchair.
• Do not expose the wheelchair on to extreme weather conditions (rain, snow very
strong sun), because certain parts can change color.

12 VITEACARE.COM
MODEL: FRANK
LANGUAGE: ENGLISH VERSION: 2020-11
Frequency Object of control Comments
Before rst installation Checking the technical condition
and all the elements within the
packaging.
Check if any elements have any
visible mechanical damage.
Before each use Control of wheels, brakes. The brakes can worn out, check
the condition of the brakes before
each use. You should also check
the condition of wheels and clean
them from dust and sand.
Every two weeks Screw and nut control regarding
their correct xing.
Make sure if all the screws and
top are xed tightly.
Every two months Cleanliness and general
condition.
In case of mechanical damage
contact the producer immediately.
Once a month Wheel axles. Wheel axles must be
impregnated, between the axle
and the hub put a few drops of
lubricant.
Repair
• In case of reparation, please contact the producer.
Customer service
• If you have any questions or need help, contact the producer.
TECHNICAL REVIEW
The review should be carried out regularly, it should be preceded by thorough cleaning
the rollator (so as to reveal any hidden damage).

MODEL: FRANK
LANGUAGE: ENGLISH VERSION: 2020-11 VITEACARE.COM 13

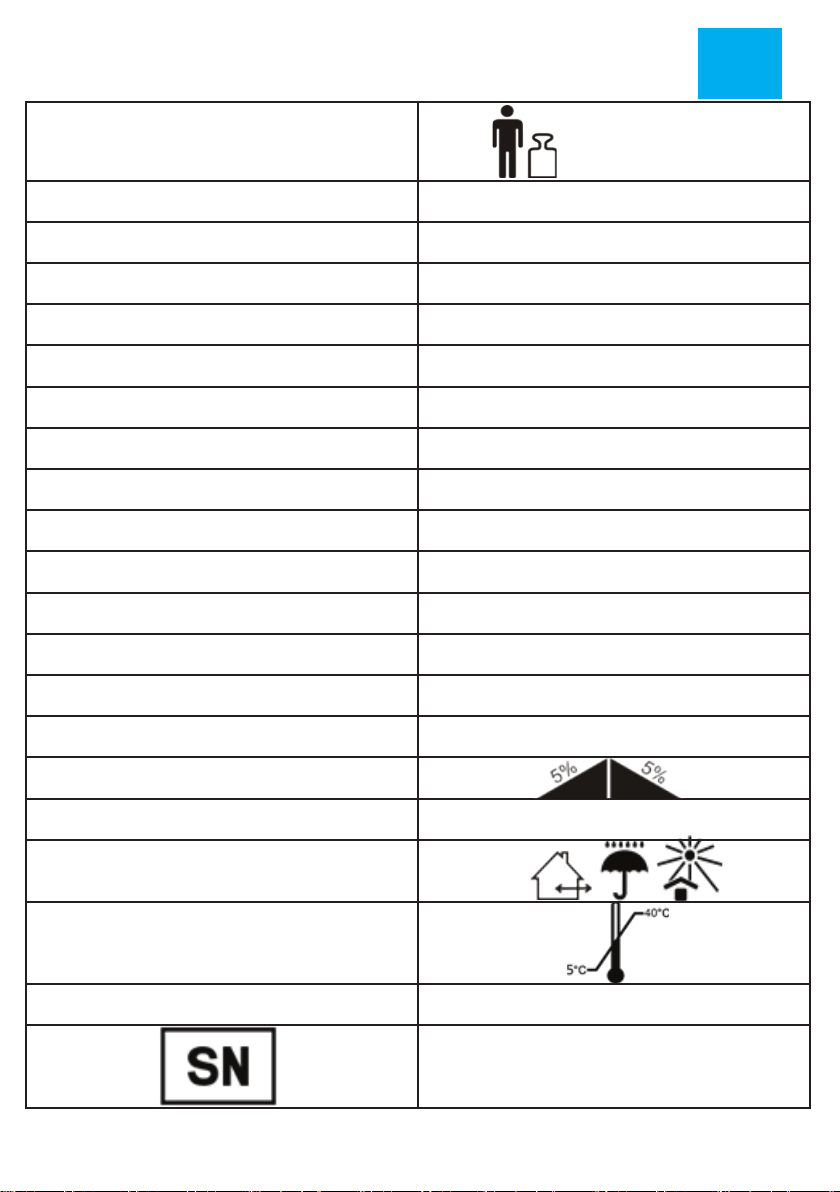

8. TECHNICAL PARAMETERS
Permitted user weight 130 kg
Usage period 5 years since production date
Maxiumum safe working load 121 kg
Maximum load bags 1 kg
Rollator height 790 - 980 mm
Rollator width 600 mm
Rollator height 740 mm
Seat height 610 mm
Seat width 160 mm
Seat length 380 mm
Rollator width after folding 490 mm
Rollator weight 7,2 kg
Minimum turning radius 65º
Wheels diameter 190 mm
Type of wheels Full
Maxiumum safe slope
Materials Aluminum, polyethylene, rubber
Description of the environment in which the product
will be used
Temperature of storage and use
The humidity for the storage and use From 30% to 70%
Printed on the product

9. SYMBOLS
Conrmation of product compliance with EU standards
Production date
Manufacturer
See the instructions for use
WARNING
Catalogue number
Serial number
Protect from moisture
Protect from sunlight
Permissible user weight
Indoor and outdoor use
MODEL: FRANK
LANGUAGE: ENGLISH VERSION: 2020-11
14 VITEACARE.COM

Possibility of ngers jamming
Temperature of storage and use
Maximum safe slope
The product is intended to transport by car
The product is not designed for use as a seat to
transport in a motor vehicle
The product is intended to the transport by plane
10. CONTACT DETAILS
mdh Co., Ltd.
St. 22/24 Ks. W. Tymienieckiego, 90-349 Łódź, Poland
tel. [phone], fax. [phone]
www.mdh.pl, www.viteacare.com
MODEL: FRANK
LANGUAGE: ENGLISH VERSION: 2020-11 VITEACARE.COM 15

Instrukcja używania
SPIS TREŚCI
1. Wstęp 17
2. Opis produktu 17
3. Wskazania 19
4. Przeciwwskazania 19
5. Użytkowanie 20
6. Bezpieczeństwo użytkowania 22
7. Czynności obsługi i konserwacji 23
8. Parametry techniczne 27
9. Symbole 28
10. Dane kontaktowe 29
MODEL: FRANK
JĘZYK: POLSKI WERSJA: 2020-11
16 VITEACARE.COM/PL
PRZED UŻYCIEM PRZECZYTAJ UWAŻNIE CAŁĄ INSTRUKCJĘ

MODEL: FRANK
JĘZYK: POLSKI WERSJA: 2020-11 VITEACARE.COM/PL 17
1. WSTĘP
Składana podpórka czterokołowa, wyposażona w dwa stałe koła tylne z
hamulcem i blokadą kół oraz dwa przednie koła obrotowe. Umożliwia łatwe
poruszanie się po każdej powierzchni, wewnątrz i na zewnątrz budynku.
Uchwyty anatomiczne wykonane z polietylenu, rama ze stali.
2. OPIS PRODUKTU
Ilustracja 1
1. Rączki; 2. Dźwignia hamulca z możliwością blokady obrotu kół; 3.Śruba
regulacji wysokości rączek; 4. Blokada; 5. Rama boczna; 6. Koło tylne; 7.
Taca; 8. Siedzisko; 9. Rama poprzeczna; 10. Koszyk na drobne przedmioty;
11. Uchwyt na kulę; 12.Skrętne koło przednie.
1
2
3
10
9
8
7
12
4
5
6
11

18 VITEACARE.COM/PL
MODEL: FRANK
JĘZYK: POLSKI WERSJA: 2020-11
Elementy, które powinny znajdować się wewnątrz opakowania:
Koszyk na drobne przedmioty
Taca na drobne przedmioty
Ilustracja 3
Ilustracja 4
Ilustracja 2
Zestaw mocujący (dwa pokrętła
ze śrubkami oraz podkładkami do
mocowania rączek i podłokietników)

MODEL: FRANK
JĘZYK: POLSKI WERSJA: 2020-11 VITEACARE.COM/PL 19
Ilustracja 5
Podpórka
3. WSKAZANIA
Podpórki rehabilitacyjne są sprzętem pomocniczym ułatwiającym pionizację i
poruszanie się pacjentów o różnym typie zaburzeń motorycznych. Mogą być
stosowane jako pomoc dla pacjentów po zabiegach chirurgicznych (operacje w
obrębie kończyn dolnych) nie mogących posługiwać się kulami, nie wykazujących
zaburzeń koordynacyjnych, pacjentów z lekką dysfunkcją kończyn dolnych lub ich
osłabieniem. Są stosowane w przypadku pacjentów z zaburzeniami równowagi
uniemożliwiającymi samodzielną pionizację i lokomocję oraz różnego typu
dysfunkcjami krążeniowymi (np. chromanie przestankowe). Podpórki mogą być
również stosowane jako pomoc w lokomocji pacjentów geriatrycznych.
4. PRZECIWWSKAZANIA
Przeciwwskazania do pionizacji, urazy i dysfunkcje kończyn górnych
uniemożliwiające wspieranie się na podpórce, zaburzenia koordynacji.

20 VITEACARE.COM/PL
MODEL: FRANK
JĘZYK: POLSKI WERSJA: 2020-11
5. UŻYTKOWANIE
• Produkt pakowany jest w pozycji złożonej.
• Po wyjęciu z opakowania należy sprawdzić czy zawiera ono wszystkie części zgodnie z
wykazem elementów zamieszczonym powyżej.
• Należy upewnić się, że wszystkie elementy nie posiadają widocznych uszkodzeń
mechanicznych. W przypadku wątpliwości należy skontaktować się z wytwórcą.
• Nie używaj podpórki dopóki wszystkie części nie zostaną właściwie połączone.
• Montaż – proszę zapoznać się z Ilustracją 1.
• Aby rozłożyć podpórkę należy nacisnąć dłonią na siedzisko oraz ramę poprzeczną. Jeśli
podpórka jest już całkowicie rozłożona, należy przekręcić dźwignię zabezpieczającą (która
znajduje się z boku stelaża ramy) do jej automatycznego zatrzaśnięcia się. Należy upewnić się,
że dźwignia zabezpieczająca osiągnęła pozycję końcową (ilustracja 8.).
Ilustracja 9
Ilustracja 8
Ilustracja 7
Ilustracja 6
Lever
secured
Lever
cocked
