Vivo MOUNT-E-FD55W User manual

Electric Flip Down
Ceiling TV Mount
Instruction Manual
SKU: MOUNT-E-FD55/W
Assembly Video & Product Info
www.vivo-us.com/products/mount-e-fd55

Contact Us First!
PERSONABLE CUSTOMER SUPPORT
Our friendly product support team is here to help!
DO NOT RETURN ITEM
We’re Here for You!
Missing a Part?
Our customer-minded support team is here for YOU,
Monday-Friday 7am-7pm CST.
We oer immediate assistance with rapid response times
from customer service agents and product techncians to
help you every step of the way!
Monday-Friday
Chat Us:
www.vivo-us.com
Give us a Call:
309-278-5303
Email Us:
[email protected]om
If any parts are received damaged / defective OR you are
missing a part, please reach out to us within 30 days of
product delivery to have it replaced at no cost.
We are happy to replace parts to ensure you have a fully
functioning product
7AM - 7PM

Product Warranty
Returns | Product Didn’t Work Out?
For the most up to date details on your product’s warranty, please visit
the product’s listing on our website or reach out to customer support.
vivo-us.com/products/mount-e-fd55
We oer a hassle-free 30 day return on all products. Contact customer
support at 309-278-5303 or [email protected]om. Please note: For items
ordered in error or no longer needed, the return shipping charges will
be at the buyer’s expense.
If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product
support team at 309-278-5303 or [email protected] for further assistance. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly
specied in this manual. Do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting,
incorrect assembly or inappropriate use.
LBS
CAUTION!
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
DO NOT EXCEED WEIGHT CAPACITY
FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY.
WARNING: DO NOT INSTALL INTO DRYWALL ALONE
VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick
and concrete walls. If unsure, please contact us at vivo-us.com, email at he[email protected], or call
us at 309-278-5303.

4
Phillips
Screwdriver

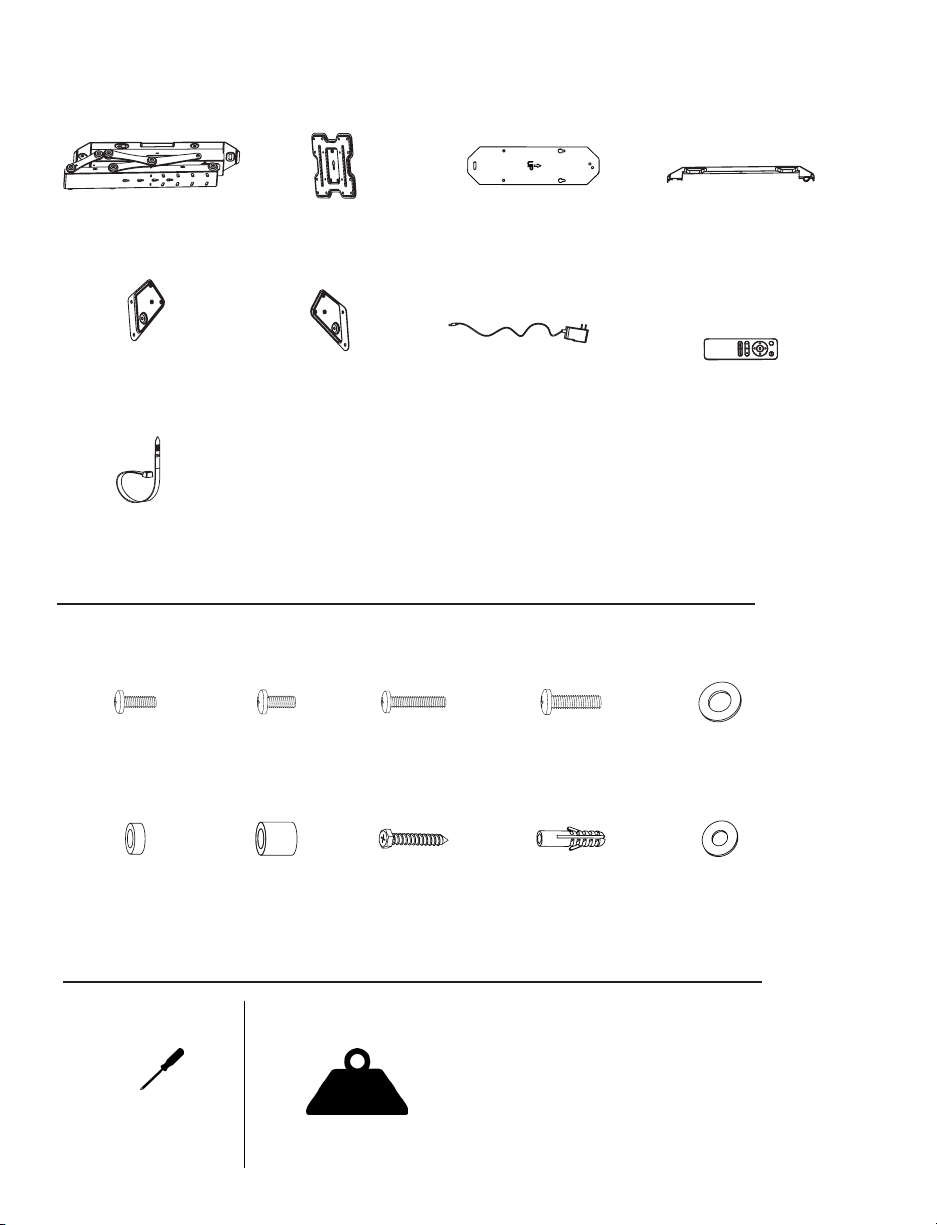

Package Contents
Included Hardware & Tools
Tools Needed: Weight Capacity:
66lbs
(30kg)
A (x1)
Mount
B(x1)
VESA Plate
C(x1)
Celing Template
H(x1)
Remote
D (x2)
Decorative Cover
E (x2)
VESA Adapter
F (x2)
VESA Adapter
G (x1)
AC Adapter
I(x4)
Cable Tie
M-E (x4)
M8 Washer
M-F (x8)
Small
Spacer
M-A (x4)
M6x14mm Screw
M-B (x4)
M8x16mm
Screw
M-C (x4)
M6x30mm
Screw
M-D (x4)
M8x35mm
Screw
M-G (x8)
Large
Spacer
W-A (x6)
ST6.3x55mm
Screw
W-B (x6)
Concrete
Anchor
W-C (x4)
Washer

5
ASSEMBLY STEPS

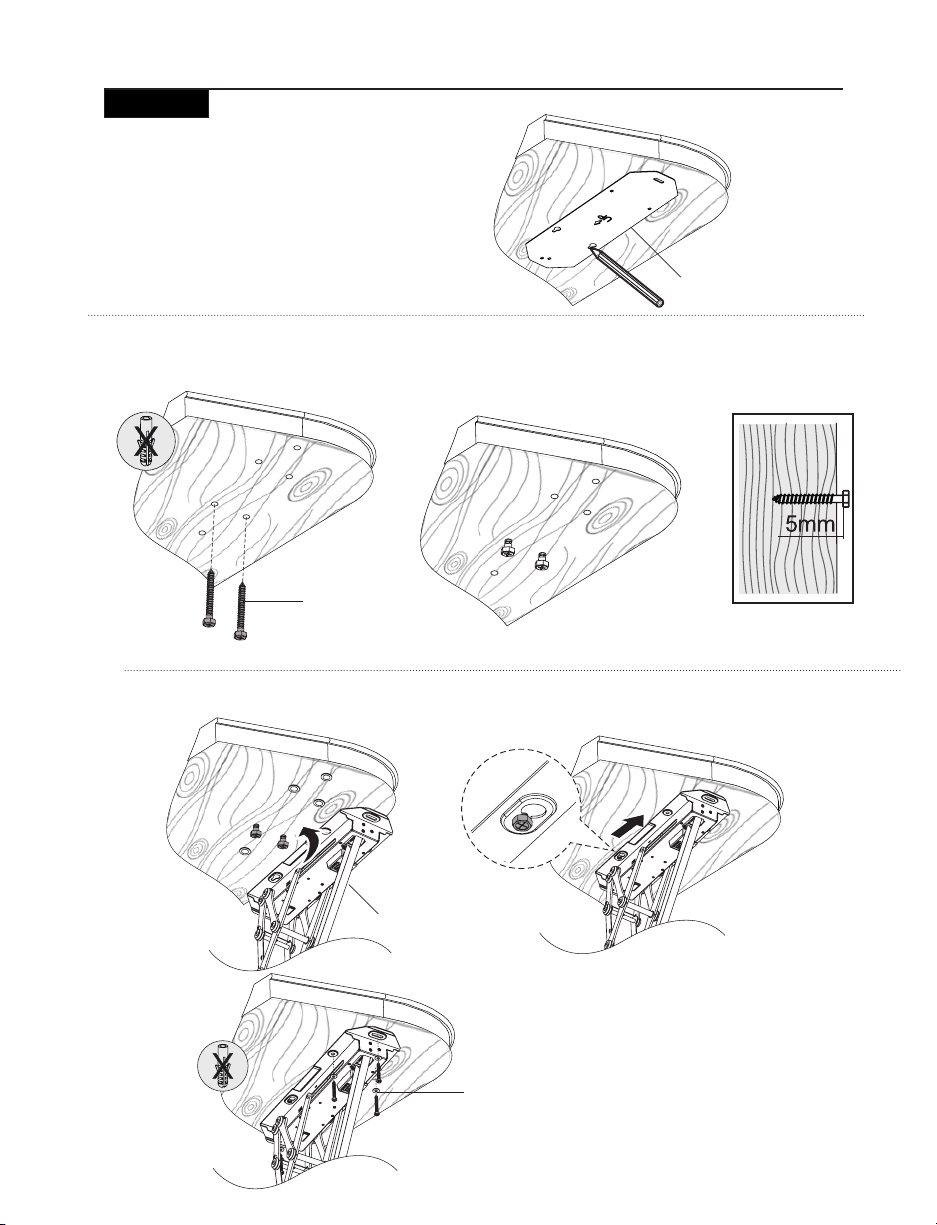

STEP 1a
OPTION A: Wood Ceiling
Using Ceiling Template (C), mark exact location of
mounting holes.
C
W-A
Slide Mount (A) backward, then secure using additional Screws (W-A) with Washers (W-C).
Drill pilot holes 2.2” deep using a 4.5mm drill bit. Insert two Mounting Screws (W-A), leaving a 5mm
gap from ceiling. Hang Mount (A) so that the screws t into the keyhole openings.
NOTE: If mounting to a wood beam ceiling,
ensure the front and back holes are used
for the main support if mount is in line with
the beam. If perpendicular to the beam, use
keyhole openings for the main support.
Do NOT use included Anchors (W-B) for
wood or drywall.
A
W-C

6
STEP 1b
OPTION B: Concrete Ceiling
Using Ceiling Template (C), mark exact
location of mounting holes.
Hang Mount (A) so that the screws t into the keyhole openings. Slide Mount (A) backward, then
secure using additional Screws (W-A) with Washers (W-C). Tighten all screws.
Drill pilot holes 2.4” deep, using a 10mm drill bit. Insert six Anchors (W-B), then tighten two Screws
(W-A), leaving a 5mm gap from ceiling.
C
A
W-C
W-A
W-A
W-B

7

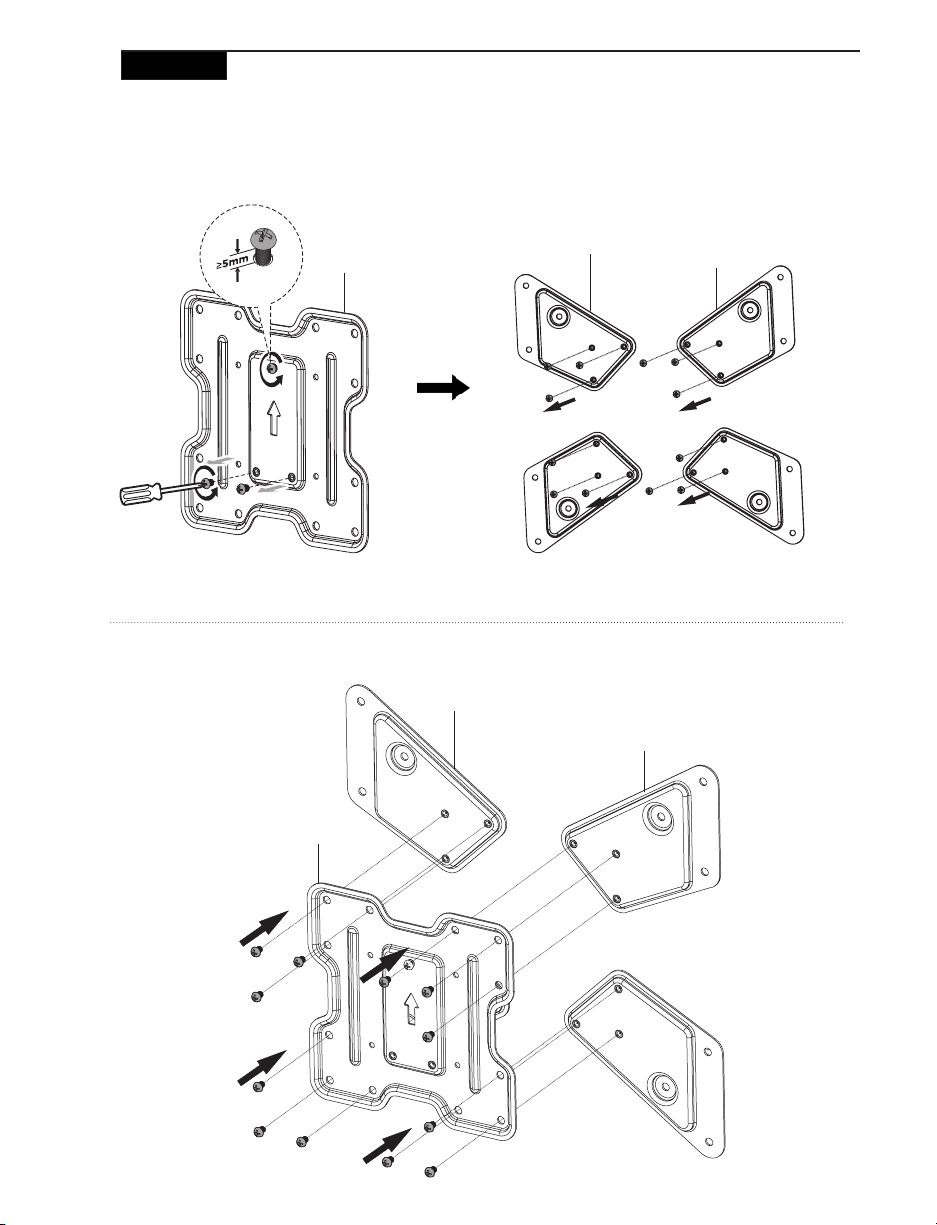

STEP 2
Remove the two bottom screws from the VESA Plate (B) and set aside for later use. Loosen the top
screw leaving at least 5mm of threads exposed. Remove the screws from VESA Adapters (E, F).
B
B
E
E
F
F
Align VESA Adapters (E, F) with VESA Plate (B) and assemble, using screws previously removed from
VESA adapters (E, F).

8
STEP 3
OPTION A: Flat Back TV
Align the VESA plate assembly with the mounting holes in the back of the TV screen. Install VESA
plate to TV using appropriate screws and washers according to your screen type.
M-A
M-F
M-B
M-G
OPTION B: Curved/Recessed Back TV
Align the VESA plate assembly with the mounting holes in the back of the TV screen. Install VESA
plate to TV using appropriate screws and washers according to your screen type.

9
STEP 4
Hang VESA Plate (B) on Mount (A) by inserting the attached screw on VESA Plate (B) into the
Mount (A) keyhole.
B
A
Using screws previously removed from step 2, fasten VESA Plate (B) to Mount (A).
B
A

10

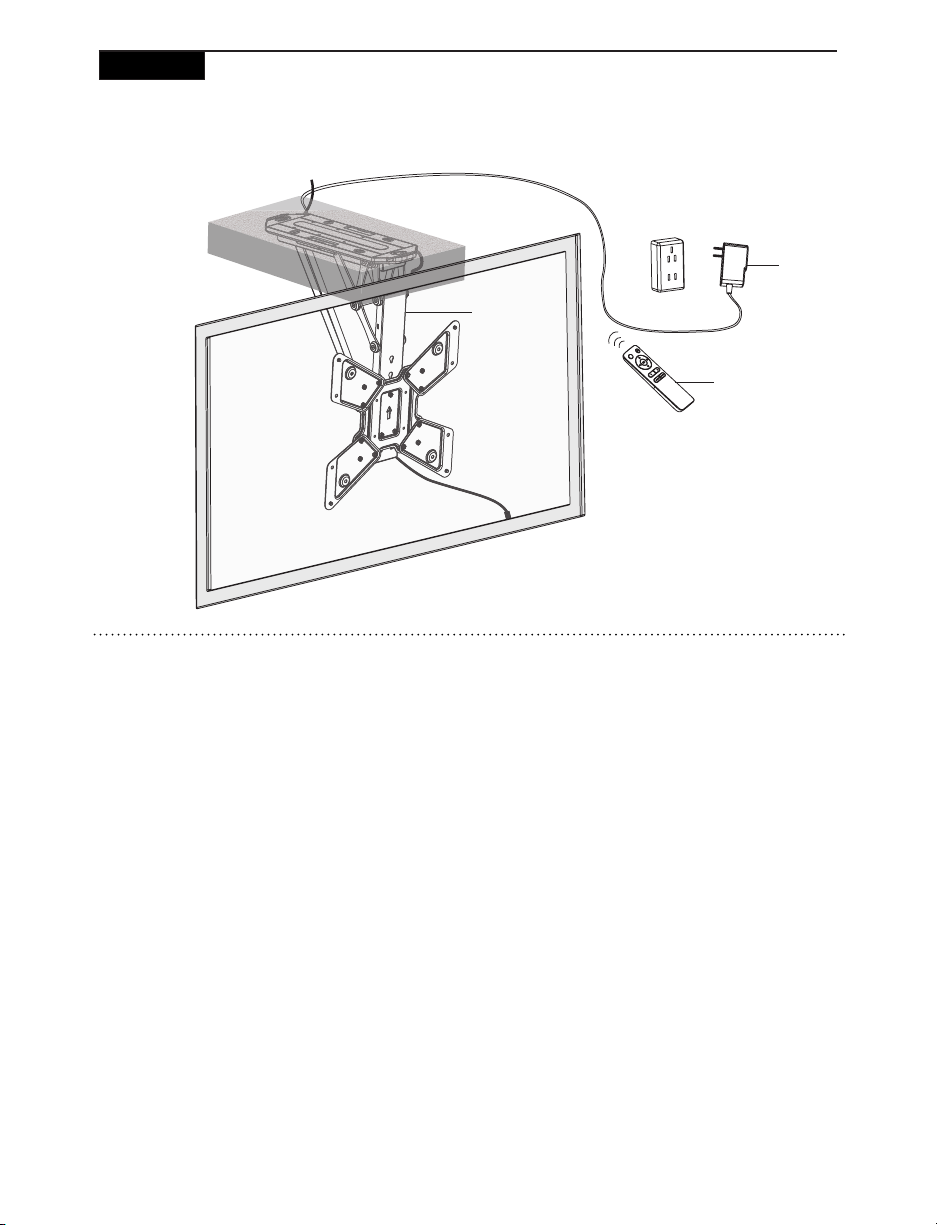

STEP 5
STEP 4 - CONT’D
NOTE: Clearance between the ceiling and top edge of TV should be no less than 15mm when TV is in
the fully lowered position
Run cables along edge of Mount (A). Allow slack in cables for arm movement. Place Decorative
Covers (D) over cables and snap into place. Using Cable Ties (I), fasten cables.
NOTE: Keep cables clear from arm to avoid damage due to pinching.
DD
A
I
