Collaborative Workstations
Assembly Instructions
Before you begin, please make sure all parts and proper quantities are included. (See Part Identier Key) Any parts damaged during shipment must be
reported within 24 hours of receipt. To report information regarding damages or if you have any questions, please call 800.242.2303.
Step 1:
• Place base cabinet on it’s side on a protected at surface.

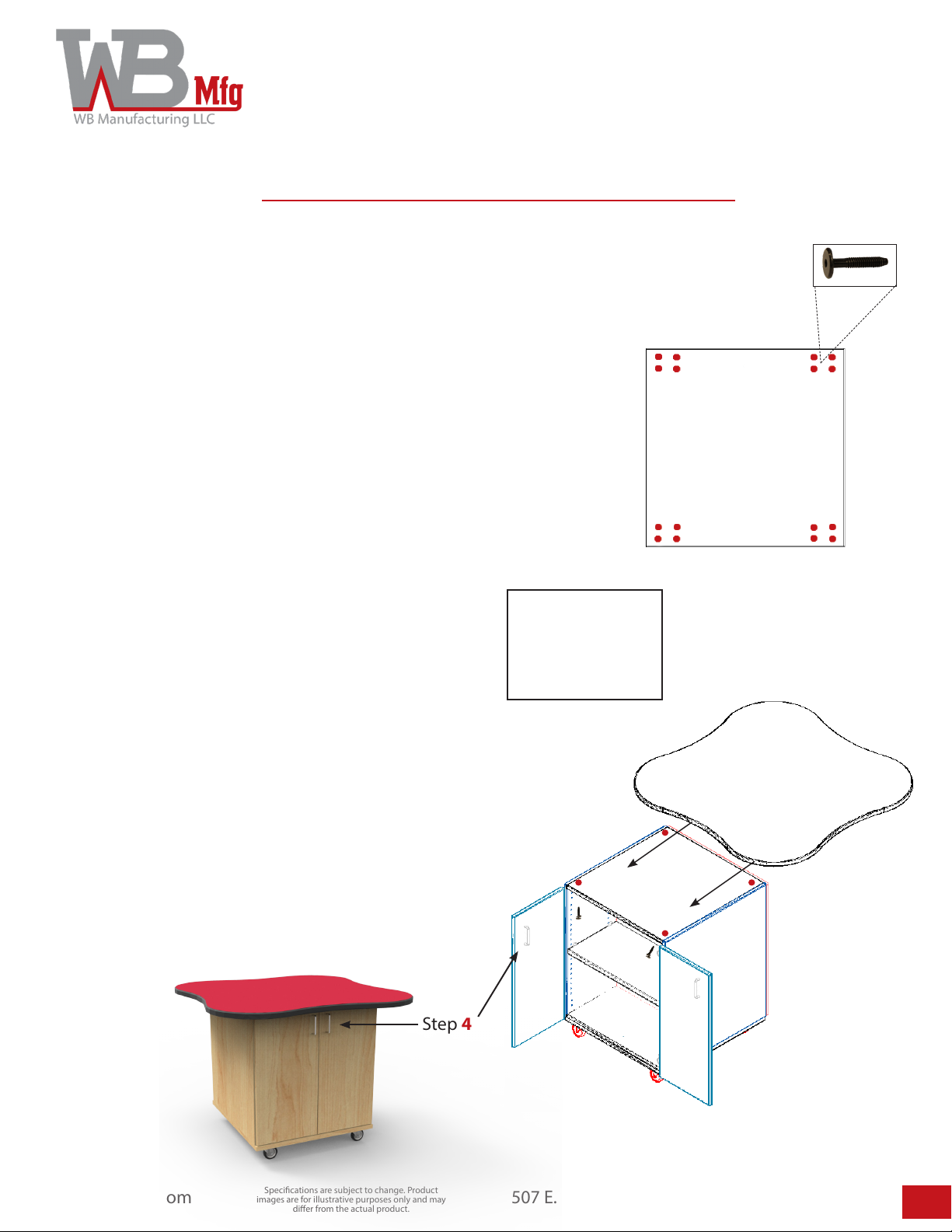

• Align caster with the pre-drilled inserts. (See image to the right;
pre-drilled inserts are marked in red as an example for assembly
instruction ONLY.)
• Use the ¼-20x25mm joint connector bolts to attach casters to
the base cabinet.
• Repeat for each of the four casters.
Step 2:
• With someone’s help, position the cabinet right side up. Make
sure to have the two locking casters’levers pushed down to
secure cabinet in place.
Step 3:
• Place top on base cabinet and align with the pre-drilled inserts.
• Using the ¼-20x35mm joint connector bolts, insert the 1st bolt
through the pre-drilled inserts up into the top going through
the inside of the base cabinet. Use a 4mm Allen wrench or 4mm
Hex bit and a screw gun to fasten the bolt into place.
• After the rst bolt is fastened, proceed to the back of the
cabinet, on the opposite side, to attach the second bolt.
• Repeat these steps for the remaining two sides.
Step 4:
• Wire pulls are factory installed on the inside of door to prevent
damage in transit.
• Unscrew each wire pull handle using a Phillips drill bit and a
screw gun.
• Reattach with wire pull on the outside of the cabinet.
• Repeat for each of the wire pulls.
V051820 subject to change.
Step 1
Sub-bottom of cabinet
Step 3
Urban Edge/Urban Edge XL
Step 4
CLW7252-323236-AC
Tools Required
• 4mm Allen wrench OR
• 4mm Hex bit
• Drill extension
• Screw gun

2
wibenchmfg.com 507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303
Specications are subject to change. Product
images are for illustrative purposes only and may
dier from the actual product.
Part # Description Qty.
0400484 3” heavy duty plate casters w/ out brake 2
0400485 3” heavy duty plate casters w/ brake 2
04066947 ¼-20x25mm joint connector bolt (black)
(Used to apply casters)
16
0406686-WO ¼-20x35mm joint connector bolt (black)
(Used to attach base cabinet to top)
4
Part Identifier Key (Cast1)
CLW7252-323236-AC CLW7254-630036-AC
CLW6192-141436-AC
Urban Edge/Urban Edge XL
These Assembly Instructions can be used for the below products.
Reection
Susie/Susie XL Stewart
Square Cube/Square Cube XL
CLW6107-818136-AC
Collaborative Workstations
CLS7192-4336-AC
