Whalen PROL-37 User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2017-06-30 Rev. 0001-B Factory: FOCIDI
46"Flat Panel TV Stand
Stock # PROL-37
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our customer service number and have your instructions
and parts list ready to provide the model name, part name or factory number:
866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenstyle.com
Or e-mail your request to [e-mail]
LOT NUMBER:
DATE PURCHASED: / /

2
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: 46" Flat Panel TV Stand (PROL-37)
MADE IN CHINA
1. Please read the Assembly Instructions prior to assembling this product.
2. Remove all hardware from the box and sort by size.
3. Check to see that all hardware and parts are present BEFORE assembling.
4. Ask a friend to assist you with the assembly of this furniture.
5. To avoid damage, assemble the product on a sturdy, level and protective surface.
6. Please wait until all steps are completed before fully tightening bolts.
7. Make sure all bolts are tightly fastened before the unit is used.
MAXIMUM RECOMMENDED WEIGHT LOADS
GENERAL INFORMATION, TIP
S
AND
TRICKS
FITS UP TO MOST 55” FLAT PANEL TVS
MAXIMUM LOAD 135 lb. (61.2 kg)
MAXIMUM LOAD 50 lb. (22.6 kg)
This product is sold with one set of Tipping Restraint Hardware K
it. You must install the Tipping
Restraint Hardware between the wall and the TV console
to prevent any accidents or damages. When
properly installed, this restraint can provide
protection against the unexpected tipping of the unit due to
small tremors, bumps or climbing. The restraint is only a deterrent and is not a substitute for proper
adult supervision. Use of tip-over restraints may only reduce, but not eliminate, the risk of tip-over.

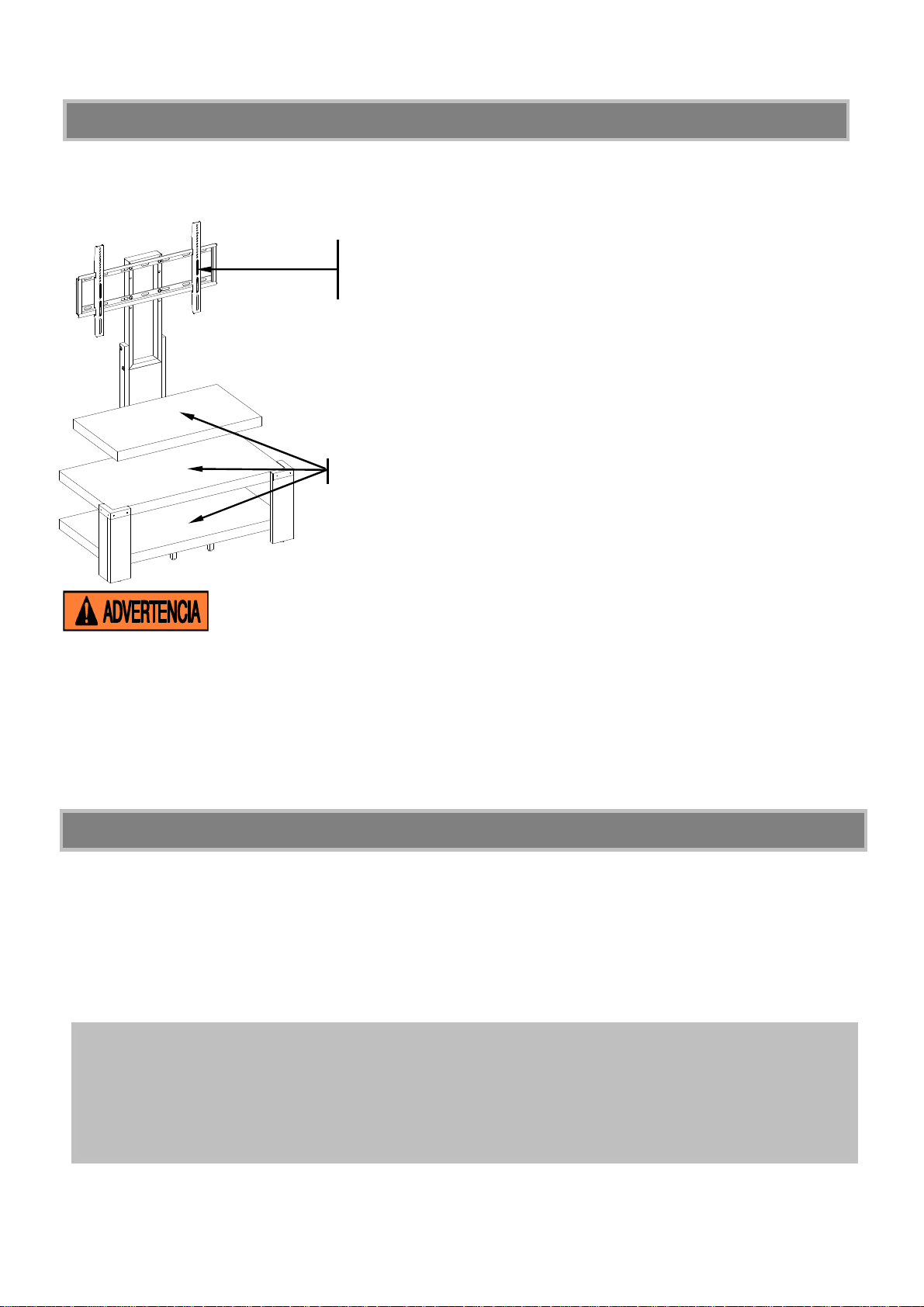

THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH FLAT
PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND WEIGHT LIMITS.
NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL TVS OR EQUIPMENT. TO
AVOID INSTABILITY, PLACE FLAT PANEL TV IN THE CENTER OF THE UNIT; THE BASE OF THE
TELEVISION MUST BE ABLE TO REST ON THE SUPPORTING SURFACE OF THE UNIT WITHOUT
OVER-HANGING THE EDGES. IMPROPERLY POSITIONED FLAT PANEL TVS, OR FLAT PANEL TVS
INCLUDING OTHER EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND WEIGHT LIMITS
COULD FALL OFF OR BREAK THE UNIT,CAUSING POSSIBLE SERIOUS INJURY.

3
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.

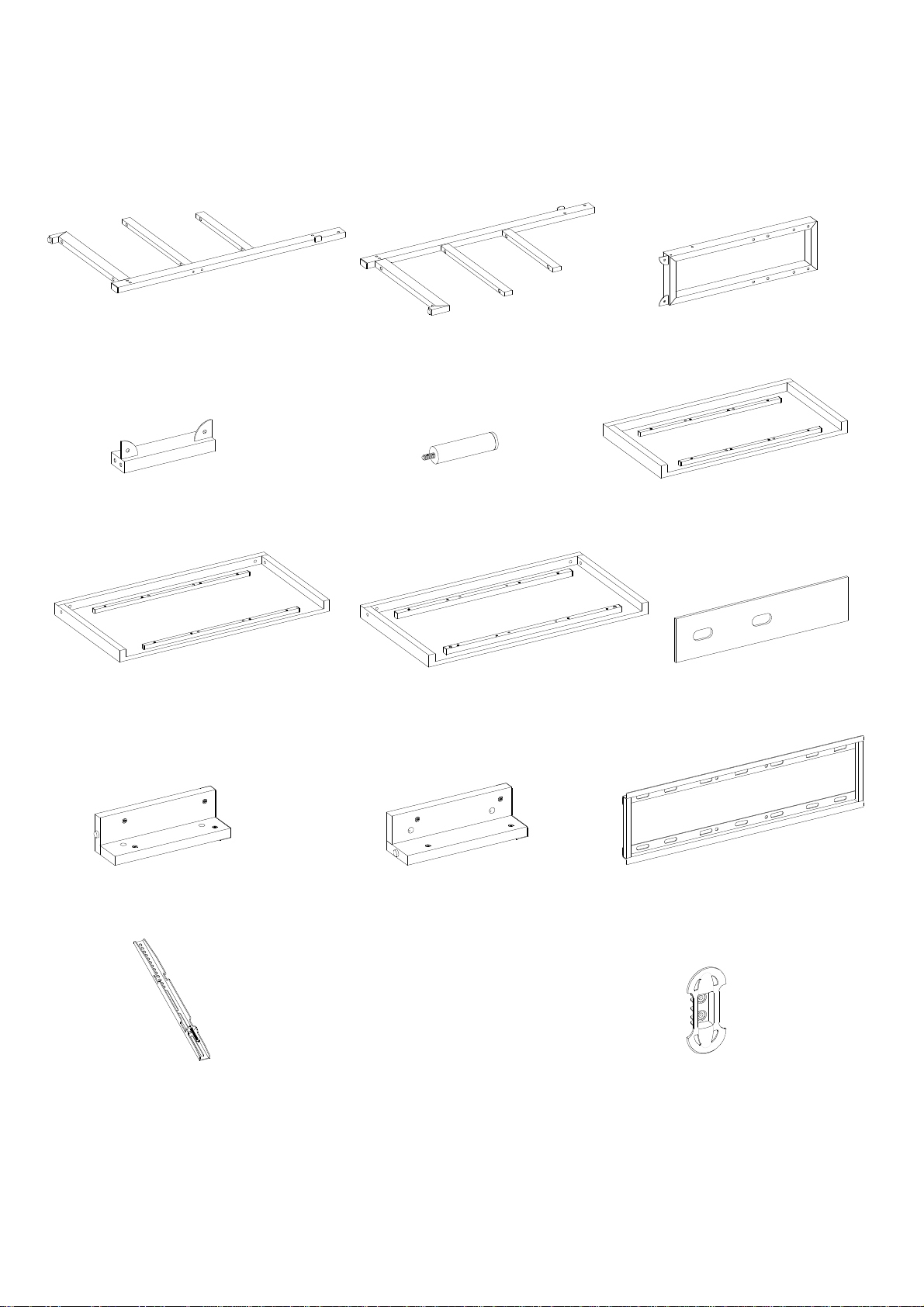

A- Left Side Frame (Qty. 1) B- Right Side Frame (Qty. 1) C- Back Top Frame (Qty. 1)
D- Back Bottom Stretcher E- Bottom Back Support F- Top Shelf
(Qty. 1) (Qty. 2) (Qty. 1)
G- Middle Shelf (Qty. 1) H- Bottom Shelf (Qty. 1) I- Back Panel (Qty. 1)
J- Left Front Leg (Qty. 1) K- Right Front Leg (Qty. 1) L- Mounting Frame (Qty. 1)
M- Monitor Bracket (Qty. 2) N- Cable Wheel (Qty. 2)

4

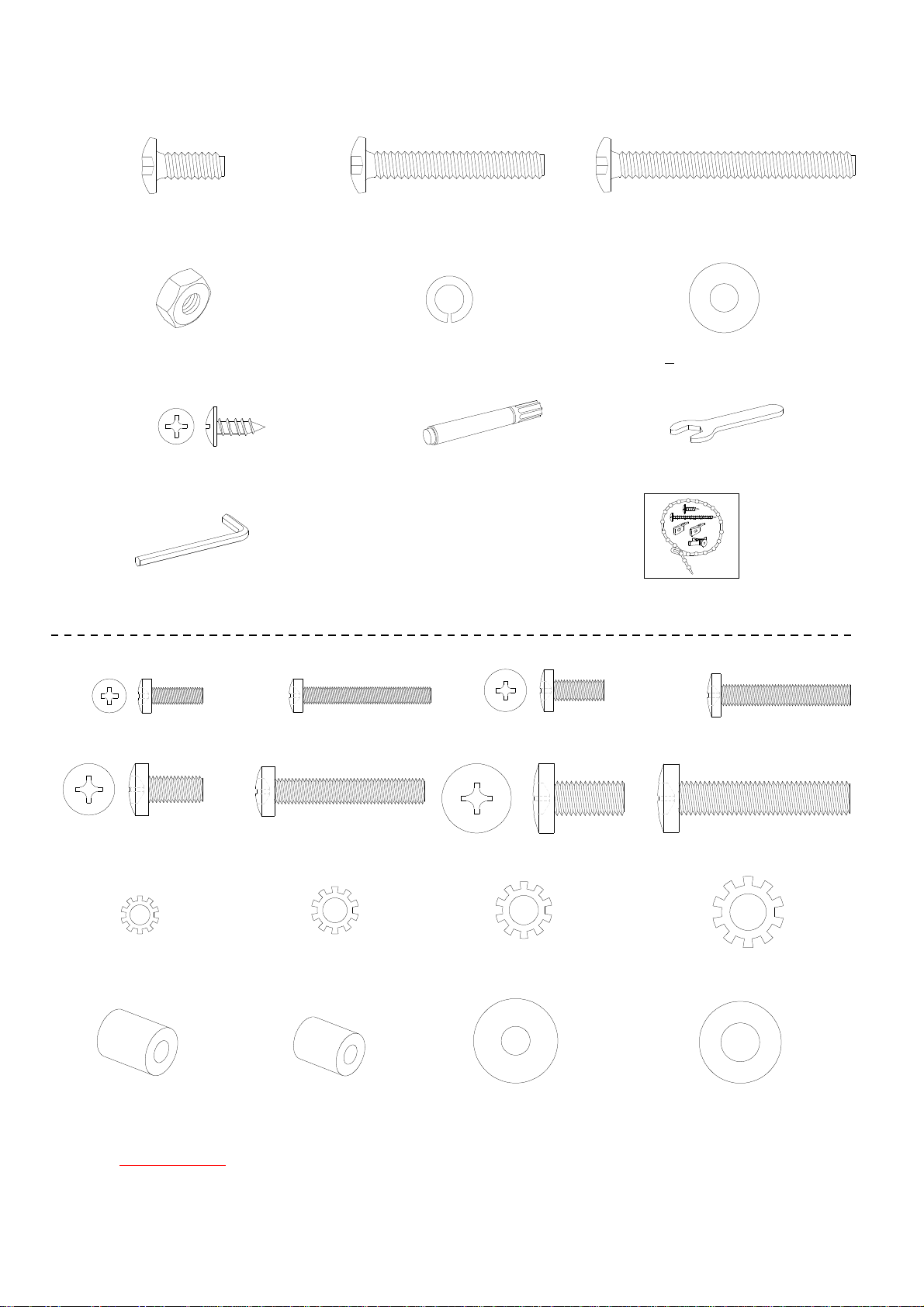

Parts and Hardware List
(1) 5/8” Bolt (2) 1-5/8” Bolt (3) 2-1/4” Bolt
(Qty. 4+1 extra) (Qty. 24+1 extra) (Qty. 8+1 extra)
(4) Hex Nut (5) Lock Washer (6) Flat Washer
(Qty. 4+1 extra) (Qty. 32+1 extra) (Qty. 36+1 extra)
(7) #4 x 10 mm Screw (Qty. 4+1 extra) Touch-up Pen (Qty. 1) Open Wrench (Qty. 1)
4 mm Hex Wrench (Qty. 2) Tipping Restraint Hardware Kit (Qty. 1)
(Inside Plastic Bag)
TV Mounting Kit
M4 x 12 Bolt (Qty. 4) M4 x 30 Bolt (Qty. 4) M5 x 12 Bolt (Qty. 4) M5 x 30 Bolt (Qty. 4)
M6 x 12 Bolt (Qty. 4) M6 x 35 Bolt (Qty. 4) M8 x 16 Bolt (Qty. 4) M8 x 40 Bolt (Qty. 4)
M4 Lock Washer M5 Lock Washer M6 Lock Washer M8 Lock Washer
( Qty. 4 ) ( Qty. 4 ) ( Qty. 4 ) ( Qty. 4 )
Large Spacer Small Spacer M4/M5 Flat Washer M6/M8 Flat Washer
( Qty. 4 ) ( Qty. 4 ) ( Qty. 8 ) ( Qty. 4 )
Tools required: Hex wrench, open wrench (provided) and Phillips screwdriver (not provided).

5
Assembly Instructions
NOTE: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled, go
back and fully tighten all bolts. This will make it easier during assembly of unit.
1. Unpack the unit and confirm that you have all the hardware and required parts.

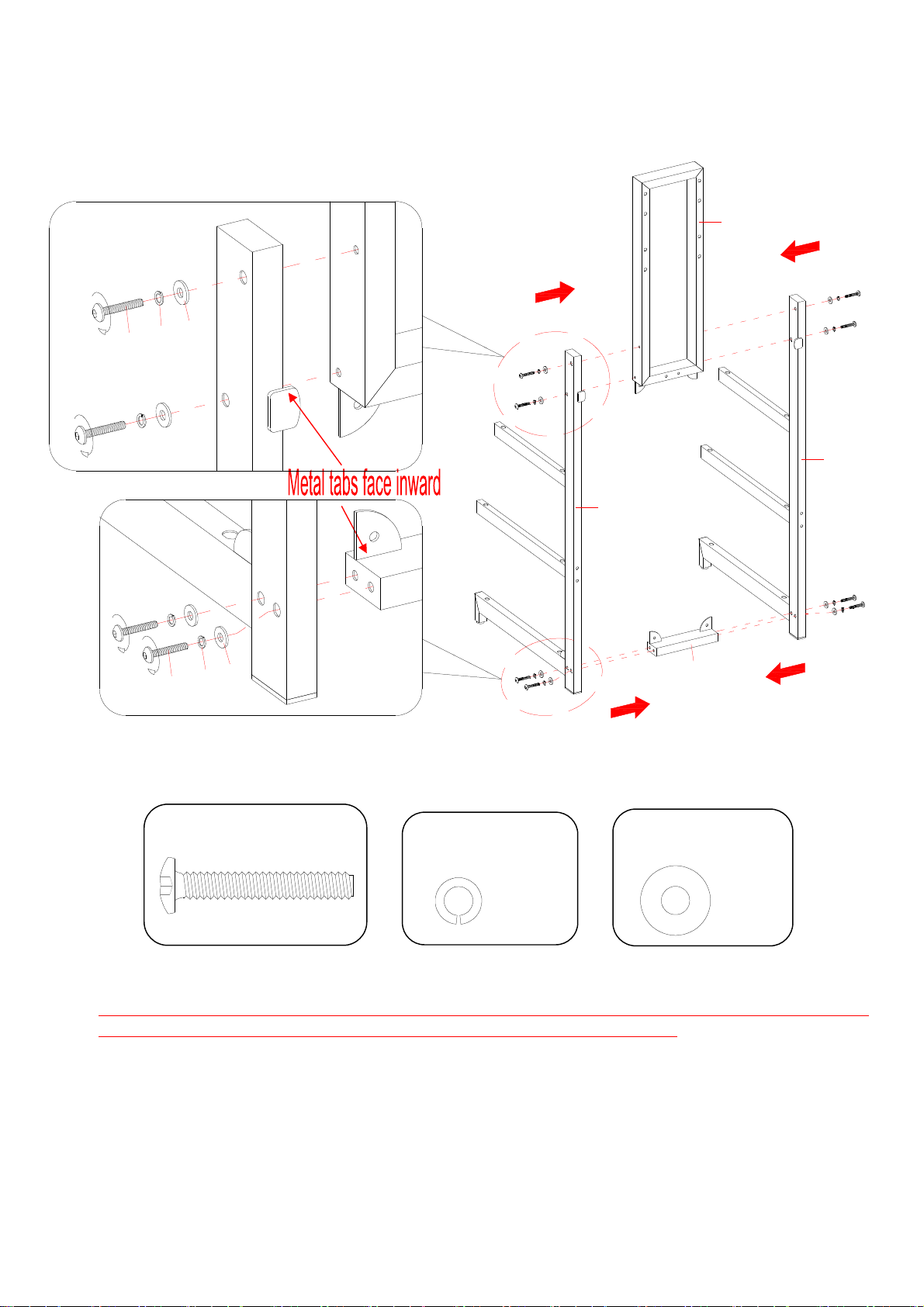

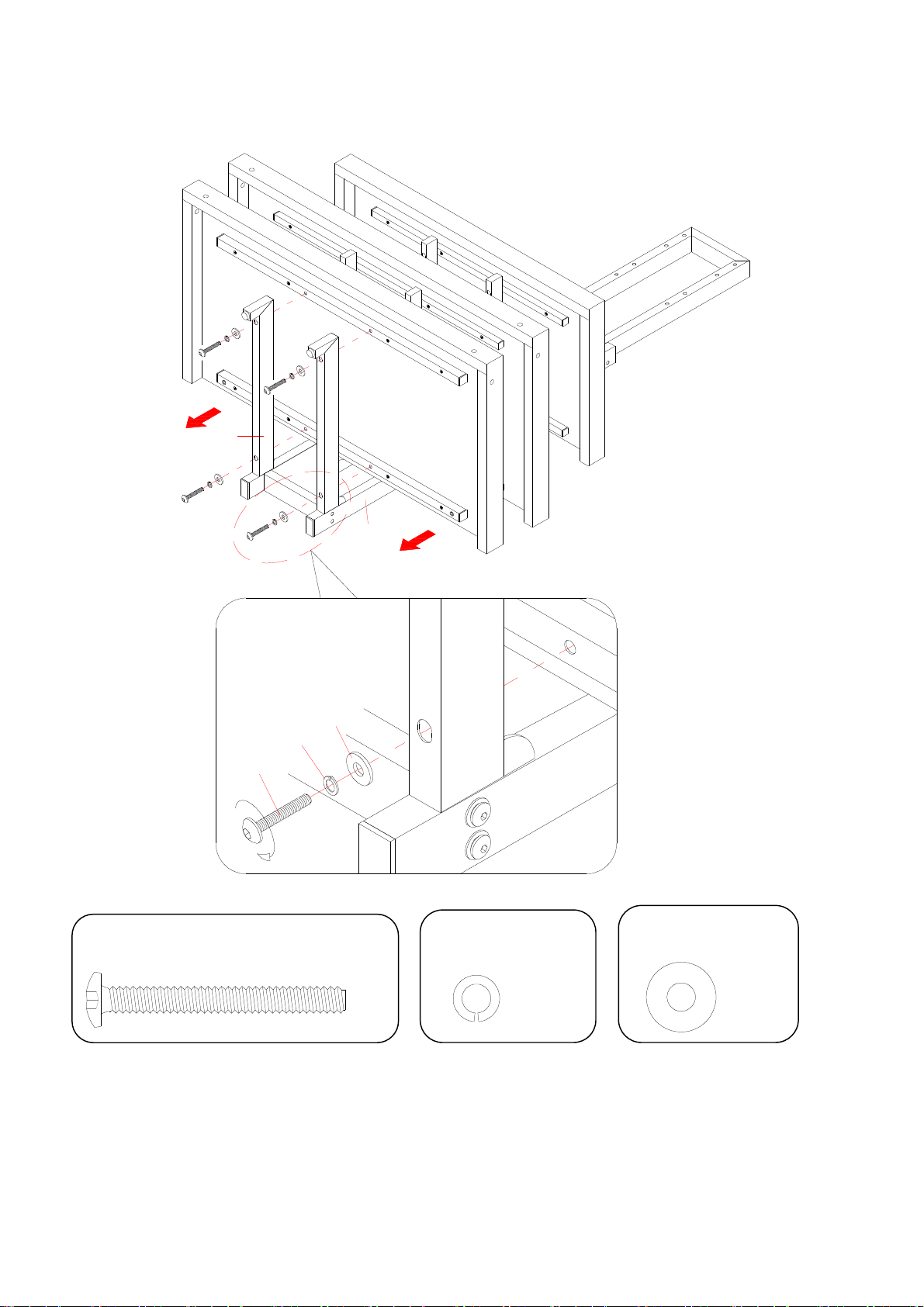

2. Attach Back Top Frame (C) and Back Bottom Stretcher (D) between the Left and Right Side Frames (A
and B). Make sure that the metal brackets on the Back Bottom Stretcher (D) face up and point forward.
Tighten the bolts with the enclosed Hex wrench.
C
A/B
26
5
26
5
A/B D
D
A
B
C
Lock Washer
(8 used in this step)
⑤
Flat Washer
(8 used in this step)
⑥
1-5/8” Bolt
(8 used in this step)
②

6
Assembly Instructions
3. Pick up the Back Panel (I) and fit it between the front of Left and Right Side Frames (A and B). Insert
and screw four Screws (7) through the corner brackets to secure the Back Panel in place. Tighten the
screws with a Phillips screwdriver.
D
I
C
A
B
7
C/D
A/B
I
#4 x 10 mm Screw
(4 used in this step)
⑦

7
Assembly Instructions
4. Lay the previous unit down on a level and protective surface as shown.

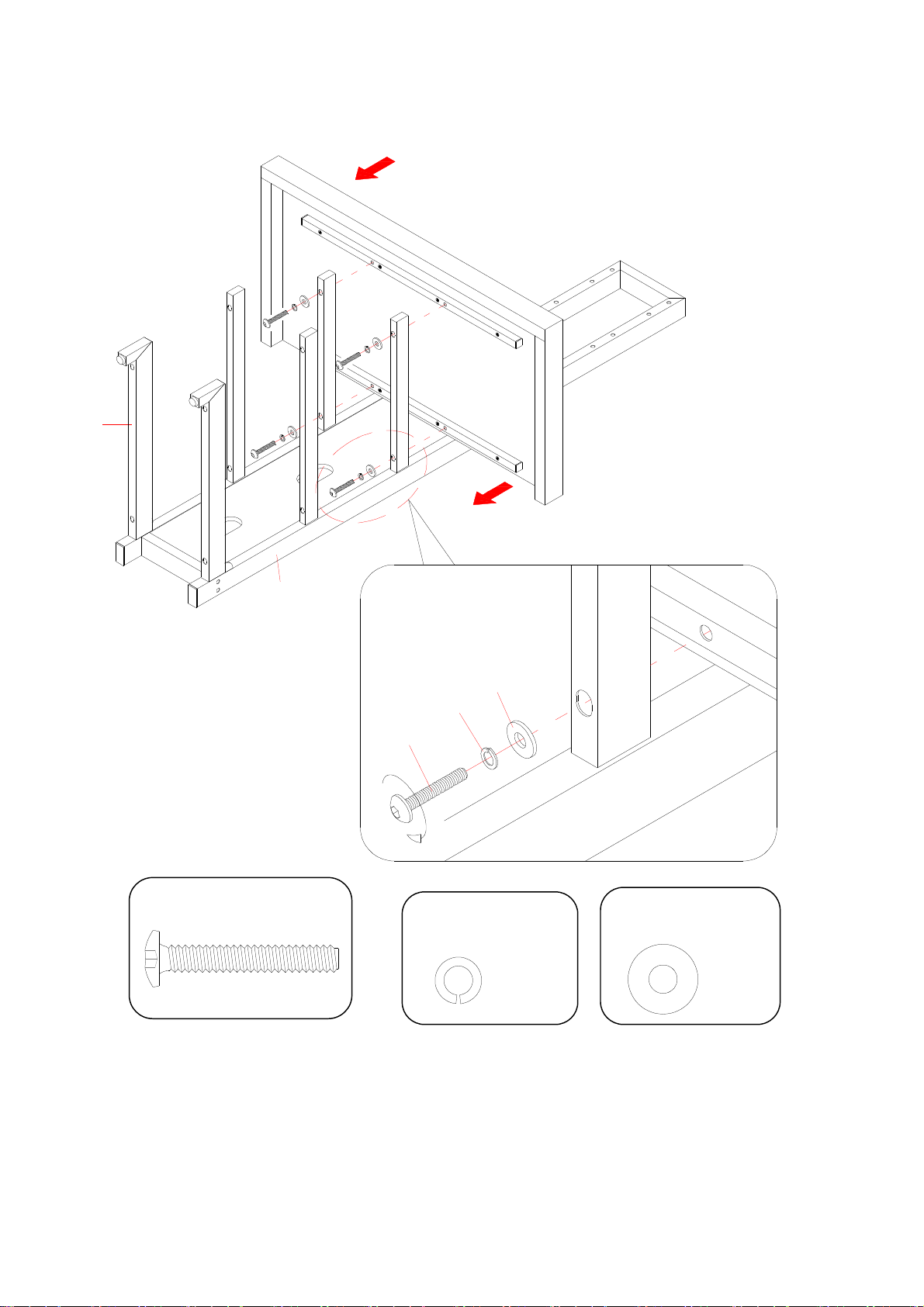

5. Attach the Top Shelf (F) to the upper rails of Left and Right Side Frames (A and B) with four 1-5/8”
Bolts (2) and four Washers (5 and 6).
Lock Washer
(4 used in this step)
⑤
Flat Washer
(4 used in this step)
⑥
25
6
A
B
F
A/B
F
1-5/8” Bolt
(4 used in this step)
②

8
Assembly Instructions

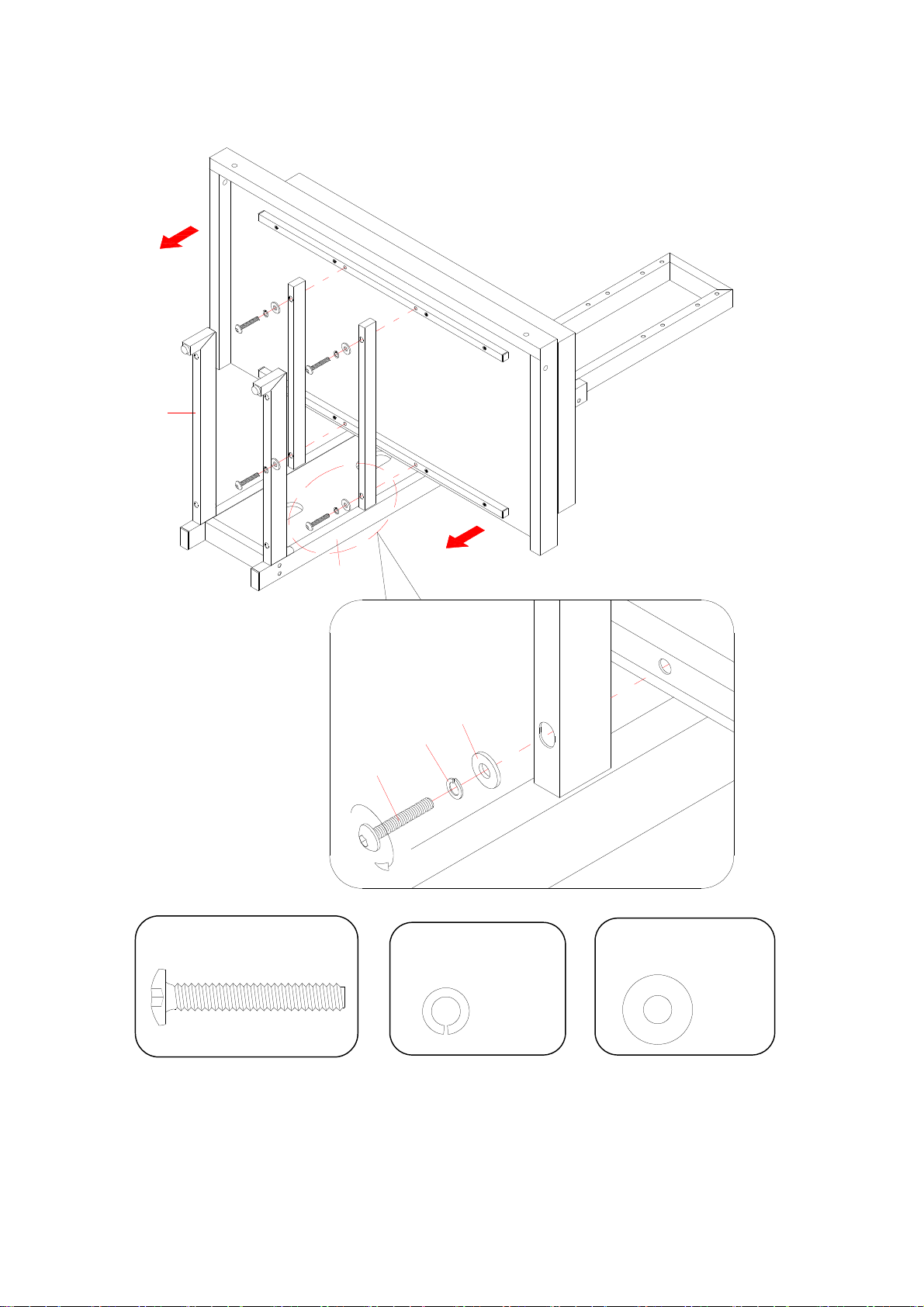

6. Align and attach the Middle Shelf (G) to the middle rails of Left and Right Side Frames (A and B) with
four 1-5/8” Bolts (2) and four Washers (5 and 6).
Lock Washer
(4 used in this step)
⑤
Flat Washer
(4 used in this step)
⑥
25
6
A/B
G
A
B
G
1-5/8” Bolt
(4 used in this step)
②

9
Assembly Instructions
7. Attach the Bottom Shelf (H) to the bottom rails of Left and Right Side Frames (A and B) with four
2-1/4” Bolts (3) and four Washers (5 and 6).
2-1/4” Bolt
(4 used in this step)
③
Lock Washer
(4 used in this step)
⑤
Flat Washer
(4 used in this step)
⑥
A
B
H
35
6
A/B
H

10
Assembly Instructions
8. Attach the Front Legs (J and K) to the lower shelves (G and H) with eight 1-5/8” Bolts (2) and eight
Washers (5 and 6).
H
G
J
K
G/H
J/K
25
6
Lock Washer
(8 used in this step)
⑤
Flat Washer
(8 used in this step)
⑥
1-5/8” Bolt
(8 used in this step)
②

11
Assembly Instructions
9.

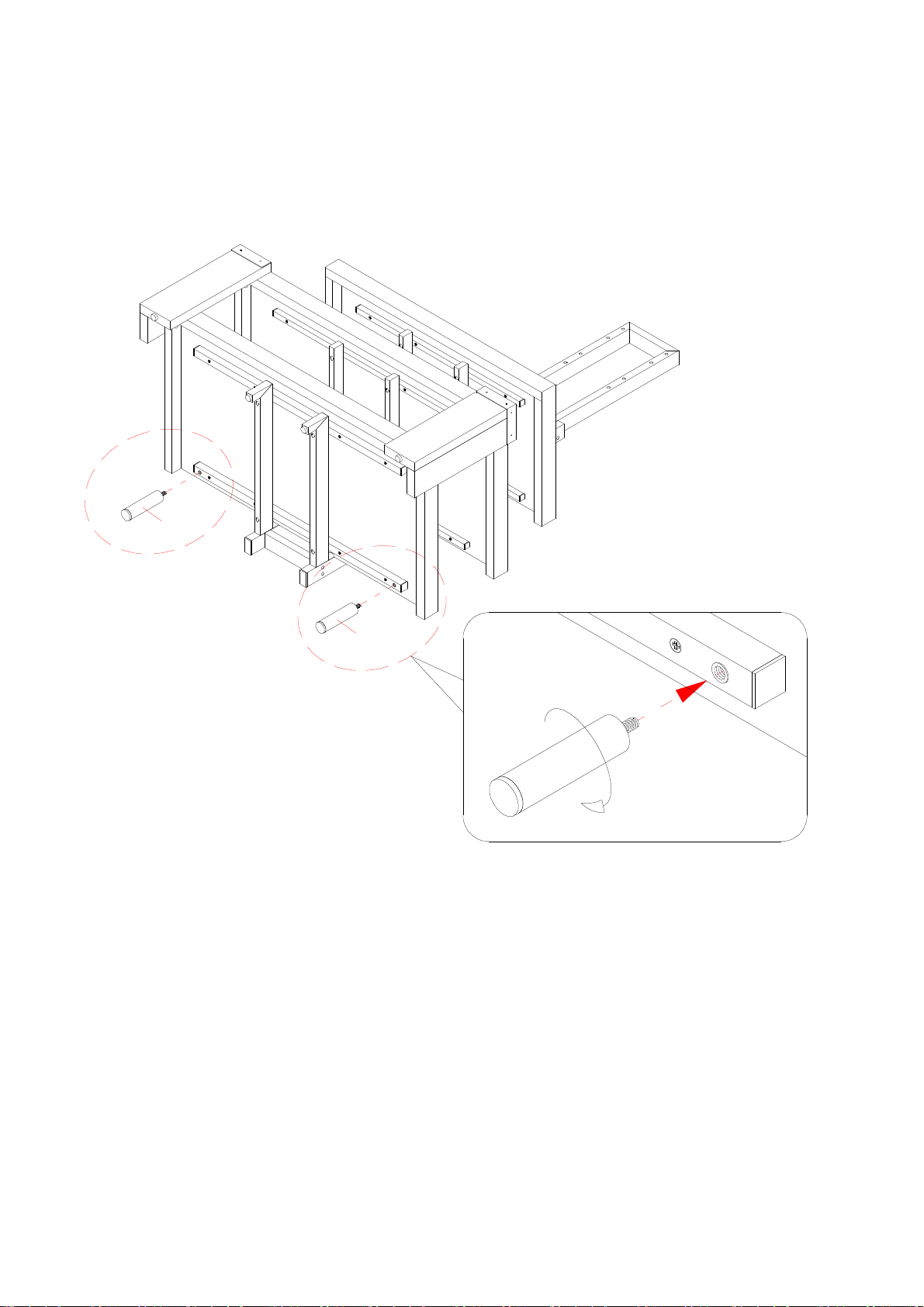

Secure screw 2 Bottom Back Supports (E) into the threaded sockets on the back rail of the Bottom Shelf
(H).
H
E
E
H
E

12
Assembly Instructions
10. Stand the unit upright.
11.
Attach the Mounting Frame (L) to the Back Top Frame (C) with four 2-1/4” Bolts (3) and Washers and
then secure with the Hex Nuts (4). Securely tighten with the provided open wrench and hex wrench.
Hex Nut
(4 used in this step)
④
2-1/4” Bolt
(4 used in this step)
③
Lock Washer
(4 used in this step)
⑤
Flat Washer
(8 used in this step)
⑥
C L
CL
45
6
3
6

13
Mounting the Monitor Bracket to a television with a flat back
NOTE: For televisions with a curved or recessed back, proceed directly to step #14.
12. Determine the correct diameter of the bolt your TV requires by hand threading them into the threaded
inserts on the back of the TV. If you encounter any resistance, stop immediately. If you are unable to
find the correct bolt consult a local hardware store.
13.
Follow the appropriate diagram above to attach Monitor Brackets (M) to the back of your TV with the
selected fasteners. Make sure the Monitor Brackets are centered and level with each other. Secure the
bolts with a Phillips screwdriver. DO NOT over tighten the bolts.
NOTE: Lean the TV up against a wall or other solid surface when attaching with the Monitor Brackets.
DO NOT place the TV face down on the glass this may cause permanent damage.
TV

14
Mounting the Monitor Bracket to a television with a curved / recess back
14. Determine the correct diameter of the bolt your TV requires by hand threading them into the threaded
insert on the back of the TV. If you encounter any resistance, stop immediately. If you are unable to
find the correct bolt consult a local hardware store.
15.
Follow the appropriate diagram above to attach Monitor Brackets (M) to the back of your TV with the
selected fasteners. Make sure the Monitor Brackets are vertically centered and level with each other.
Secure the bolts with a Phillips screwdriver. DO NOT over tighten the bolts.
NOTE: Lean the TV up against a wall or other solid surface when attaching with the Monitor Brackets.
DO NOT place the TV face down on the glass this may cause permanent damage.
TV

15
Assembly Instructions

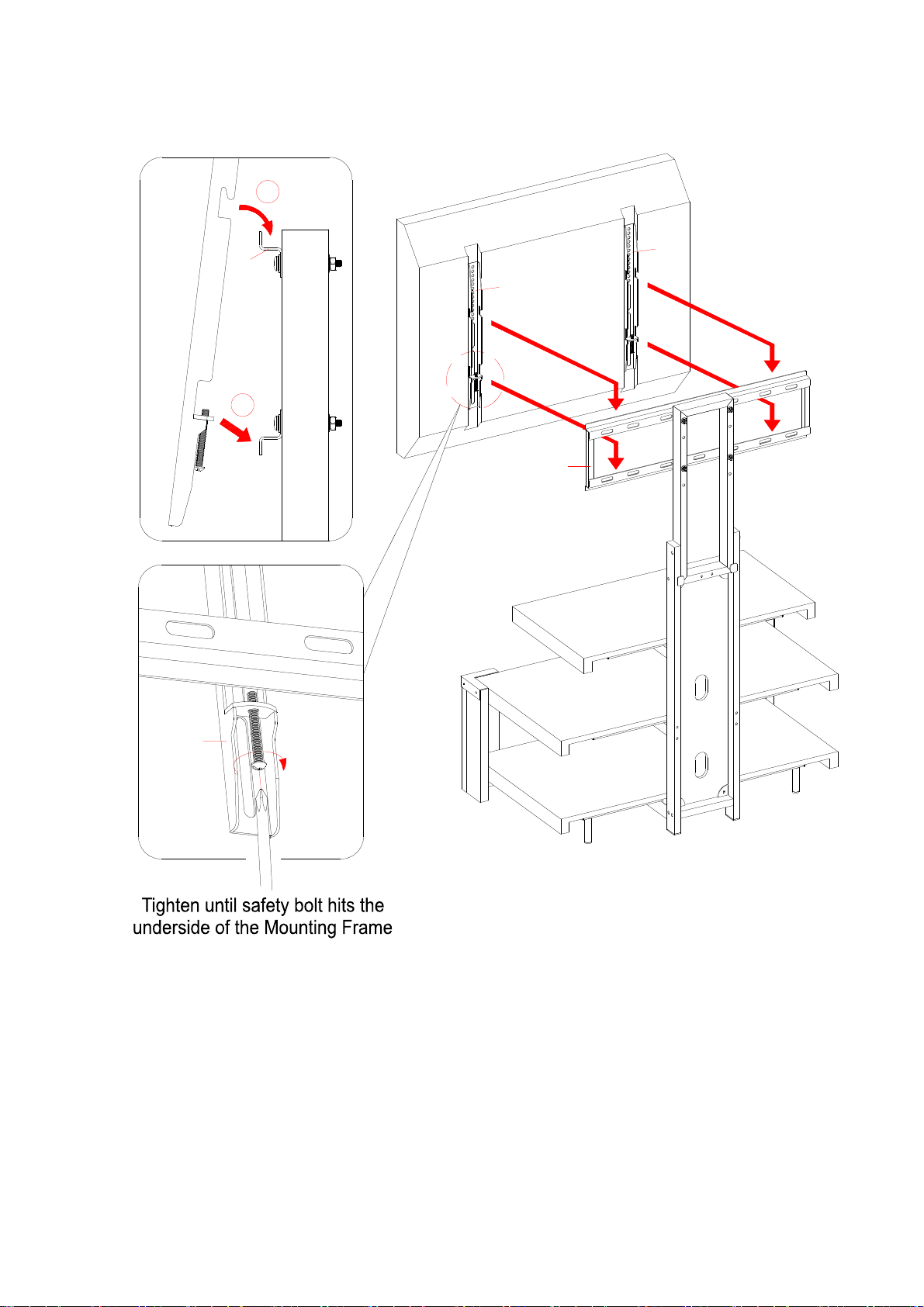

16. Once the Monitor Brackets (M) are attached onto the back of television, ask for assistance to lift the
television up to attach the Monitor Brackets onto the Mounting Frame (L). Set the hooks on Monitor
Brackets over the Mounting Frame then lower them onto the bars of the Mounting Frame. Loosen the
Safety Bolt pre-attached on the Monitor Brackets to ensure an easy fit at the bottom hooks. Proceed to
center the television.
L
M
L
1
2
M
LM
M

16
Assembly Instructions
17.
Attach 2 Cable Wheels (N) to the backside of the assembled unit with the 5/8” Bolts (1). Tighten the
bolts with the provided Hex wrench.

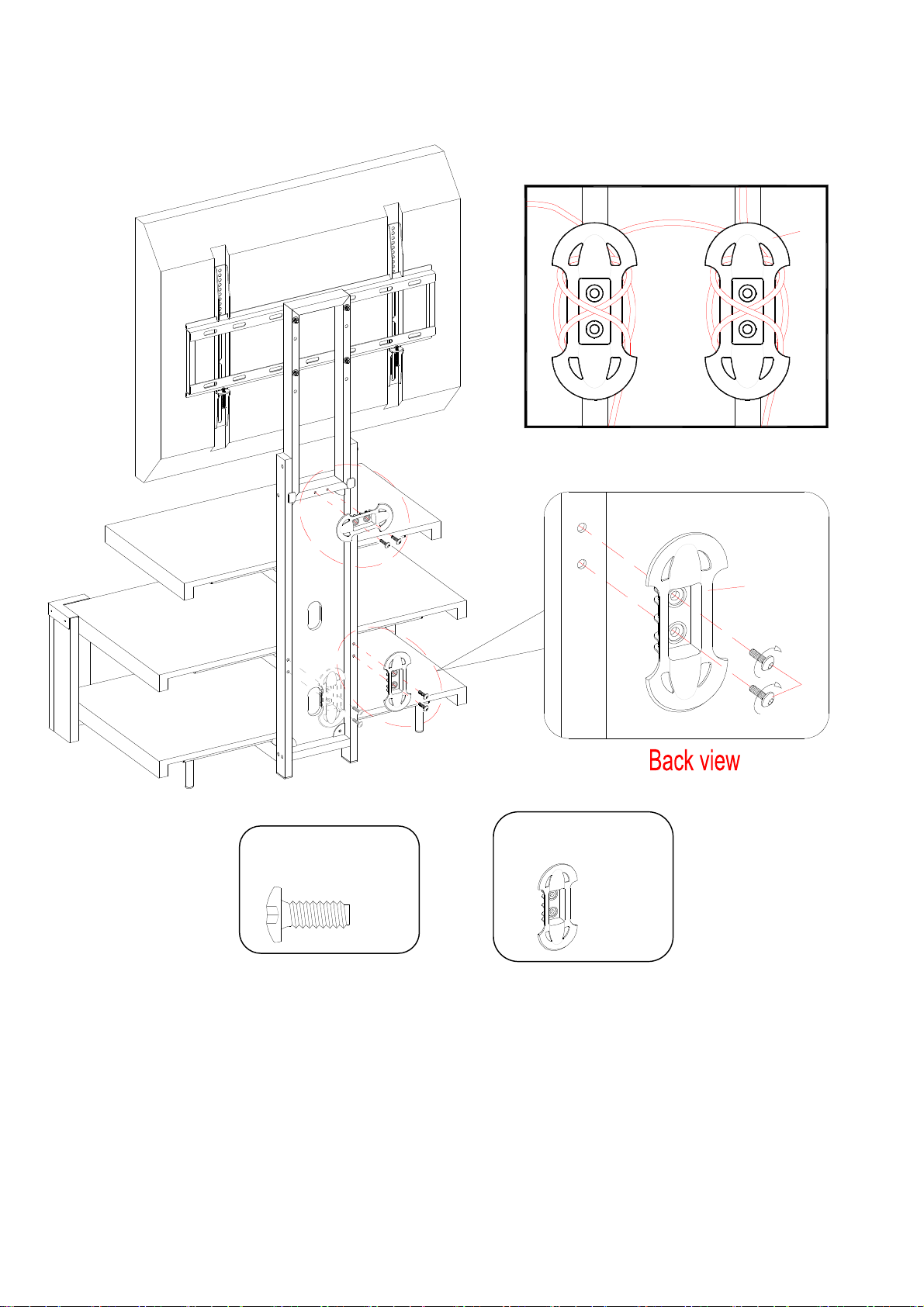

18. The Cable Wheels (N) enable you to shorten, separate and route cables and cords. Using the Cable
Wheels, you can create a system for routing cables through channels, between components and to
power sources without tangled mess or annoying signal interference.
N
1
N
5/8” Bolt
(4 used in this step)
①
Cable Wheel
(2 used in this step)
N

17
Assembly Instructions
Tools required: Hex wrench (provided), Phillips screwdriver, Mallet, Power Drill, and 3/8” Drill Bit.

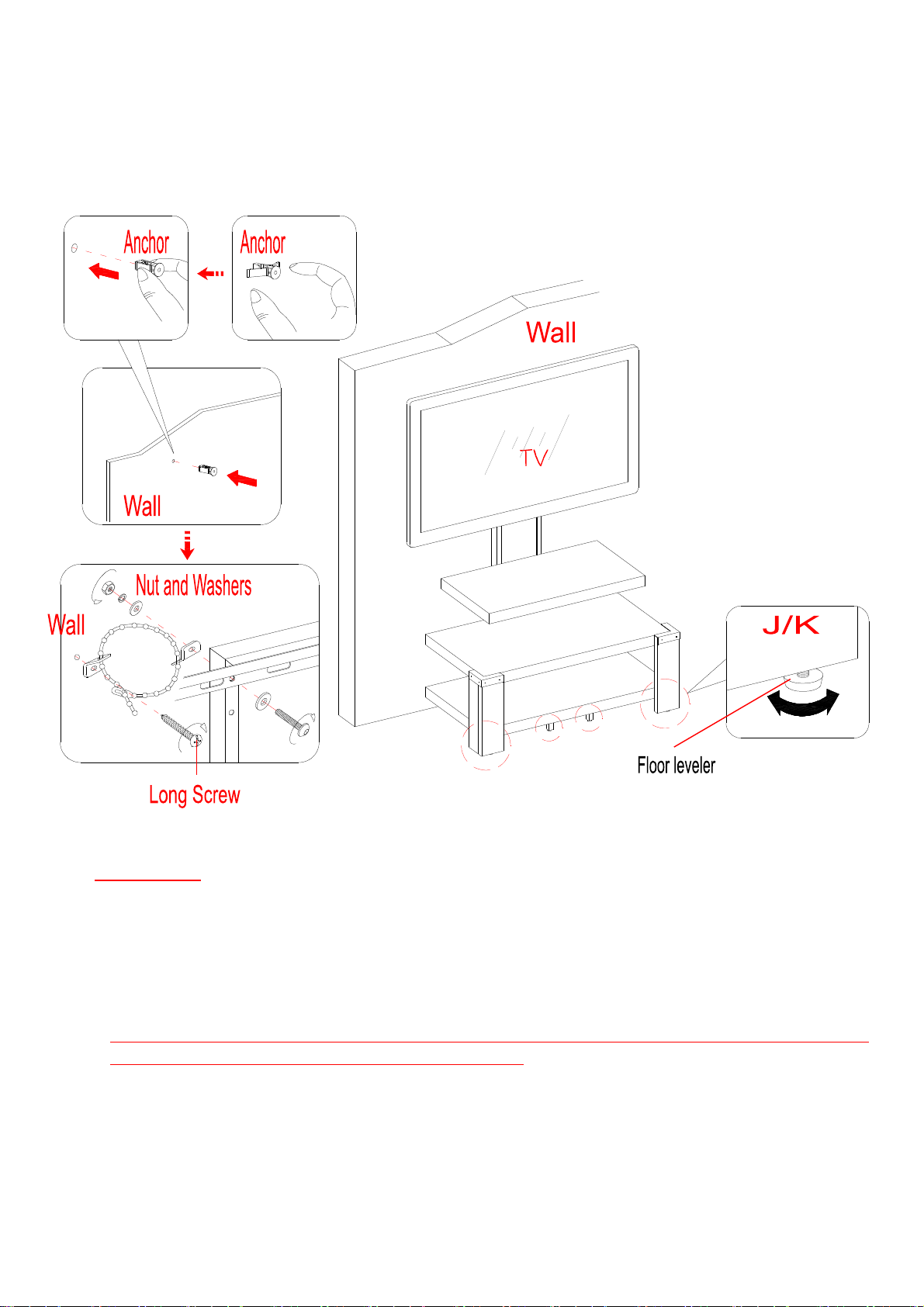

19. Adjust the pre-attached Floor Levelers at the bottom of console to level the unit as shown.
20.
Carefully move the console and position it at the desired location against a wall. Now, follow the
instructions printed on the plastic bag containing Tipping Restraint Hardware to mount the Tip-over
Restraint to the console and the wall.
NOTE: You must install the Tipping Restraint Hardware with the unit to prevent the unit from
tipping, causing any accidents or damage to the unit.
21. The console is now ready for use.

18
Care and Maintenance
 Use a soft, clean cloth that will not scratch the surface when dusting.
 Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area.
 Using solvents of any kind on your furniture may damage the finish.
 Never use water to clean your furniture as it may cause damage to the finish.
 Always use coasters under beverage glasses and flowerpots.
 Liquid spills should be removed immediately. Using a soft, clean cloth, blot the spill gently. Avoid rubbing.
 Always use protective pads under hot dishes and plates. Heat can cause chemical changes that may create
spotting within the furniture finish.
 In the event that your furniture is stained or otherwise damaged during use, we recommend that you call a
professional to repair your furniture.
 Check bolts/screws periodically and tighten them if necessary.
Further Advice about Furniture Care
It is best to keep your furniture in a climate-controlled environment. Extreme temperature and humidity
changes can cause fading, warping, shrinking and splitting of wood. It is advised to keep furniture away from
direct sunlight as sun may damage the finish.
Proper care and cleaning at home will extend the life of your purchase. Following these important and helpful
tips will enhance your furniture as it ages.
A touch-up pen has been provided to minimize the small nicks or scratches that may occur during
assembly or shipping. We hope you enjoy your purchase for many years.
Thank you for your purchase!
QUALITY GUARANTEE
We are confident that you will be delighted with your Whalen Furniture purchase.
Should this product be defective in workmanship or materials or fail under normal use, we will repair or
replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet
your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state
or province to province.
Customer Service: 866-942-5362
8:30 a.m. - 4:30 p.m., PST, Monday to Friday
www.whalenstyle.com

ESTE INSTRUCTIVO CONTIENE INFORMACION IMPORTANTE DE SEGURIDAD.
POR FAVOR LEA Y MANTENGA PARA USO FUTURO.
Fecha 2016-09-30 Rev. 0001-A Fábrica: FOCIDI
Consola para TV de pantalla plana de 46"
Serie # PROL-37
ENSAMBLE REQUERIDO POR ADULTO
Si tiene alguna pregunta acerca del ensamble o si alguna parte está faltante, no retorne este producto a
la tienda en donde lo compró. Por favor llame a nuestro departamento de ayuda al cliente teniendo sus
instrucciones y lista de partes para proveer el modelo, nombre de parte o el número de fábrica:
866-942-5362
Hora Estandar del Pacífico: 8:30 a.m. - 4:30 p.m., de Lunes a Viernes
O visite nuestra página de Internet 24 horas al dia, 7 días a la semana para asistencia
www.whalenstyle.com
O mande un correo electrónico a [e-mail]
LOTE NÚMERO:
FECHA DE COMPRA: / /

2
FABRICANTE: Whalen Furniture Manufacturing
CATALOGO: Consola para TV de pantalla plana de 46" (PROL-37)
HECHO EN CHINA
1. Por favor lea el instructivo antes de comenzar el ensamble.
2. Remover todo el herraje de la caja y acomodar por medida.
3. Checar que todo el herraje y partes esten completos ANTES de comenzar el ensamble.
4. Pida ayuda a un amigo para ensamblar esta unidad.
5. Para evitar daños, ensamble esta unidad en una area libre, limpia y nivelada.
6. Espere que todos los pasos se terminen antes de apretar todos los tornillos completamente.
7. Asegurese que todos los tornillos esten bien apretados antes de utilizar al unidad.
INFORMACIÓN GENERAL, RECOMENDACIONES Y TRUCOS
CARGA MÁXIMA 50 lb. (22.6 kg)
Esté producto
viene con un juego de restricción de movimiento. Debe instalar los topes de movimiento
entre la pared y la consola de TV para prevenir accidentes o daños. Cuando esté instalado correc
tamente,
esté tope puede proveer protección para evitar que
la unidad se caiga a causa de pequeños sismos, golpes,
o que se suban a ella
. El tope de movimiento es solo un impedimiento, no hay substituto para la
supervision adulta. Uso del juego de restricción
de movimiento solo reducira, no eliminara, el riesgo de
una volcadura
.
PESOS MÁXIMOS RECOMENDADOS
PARA LA MAYORÍA DE LAS TELEVISIONES
CON PANTALLA PLANA DE 55 pulgadas
CARGA MÁXIMA 135 lb. (61.2 kg)
ESTA UNIDAD NO DEBE UTILIZARSE CON TELEVISIONES CRT O DE TUBO.
UTILIZARSE ÚNICAMENTE CON TELEVISIONES DE PANTALLA PLANA Y EQUIPO DE AUDIO/VIDEO
QUE TENGA LA MEDIDA/PESO RECOMENDADO. NUNCA UTILIZAR CON TELEVISIONES MÁS
GRANDES/PESADAS DE LAS RECOMENDADAS. PARA EVITAR INESTABILIDAD COLÓQUELA EN EL
CENTRO DE LA UNIDAD; LA BASE DE LA TELEVISIÓN DEBE DE REPOSAR SOBRE LA SUPERFICIE
DE SOPORTE DE LA UNIDAD SIN REBASAR LAS ORILLAS. LAS TELEVISIONES DE PANTALLA
PLANA COLOCADAS INAPROPIADAMENTE, O LAS TELEVISIONES DE PANTALLA PLANA
INCLUYENDO EQUIPO QUE SOBREPASA LAS MEDIDAS Y PESOS RECOMENDADOS PUEDEN
CAERSE Y/O ROMPER LA UNIDAD, CAUSANDO POSIBLES DAÑOS O
LESIONES.
