WYLER Clinotronic PLUS User manual

WYLER AG
Im Hölderli
CH-8405 WINTERTHUR
Switzerland
Tel. [phone]
Fax. [phone]
Homepage: http://www.wylerag.com
E-Mail: [e-mail]
OPERATOR'S MANUAL
The intelligent universal inclinometer
File: „clino_e.doc“

clino_e.doc Page 2 of 24 Pages
Content
1 GENERAL 5
1.1 INTRODUCTION 5
1.2 DESCRIPTION 5
1.3 OPERATING INSTRUCTIONS
2 OPERATING ELEMENTS 6
2.1 GENERAL INFORMATION 6
2.2 FUNCTIONS IN DETAIL 7
2.3 BATTERY TEST /CHANGE OF BATTERY 8
2.4 FUNCTION CHECK 8
2.5 SET ABSOLUTE ZERO 8
2.6 CHANGE UNITS OF MEASUREMENT 9
2.7 CHANGE RELATIVE BASE /SAVE SET-UP 10
2.8 HOLD -FUNCTION 11
2.9 PRINT -FUNCTION.11
2.10 CANCEL 11
2.11 RESET 12
2.12 DATA TRANSMISSION
3. APPLICATIONS 12
3.1. ABSOLUTE MEASUREMENT 12
3.2. RELATIVE MEASUREMENT 12
3.3 MEASUREMENT OF WIDE ANGLES
3.4. SWITCHING OFF
13
4. TECHNICAL SPECIFICATIONS 14
4.1 GENERAL 14
4.2 SPECIFICATIONS FOR PORT CONNECTION
14
5. SERVICE 17
5.1 CALIBRATION 17
5.2 ACCESSORIES /SPARE PARTS
18
6. STORAGE /CARE AND HANDLING OF THE BATTERIES
18

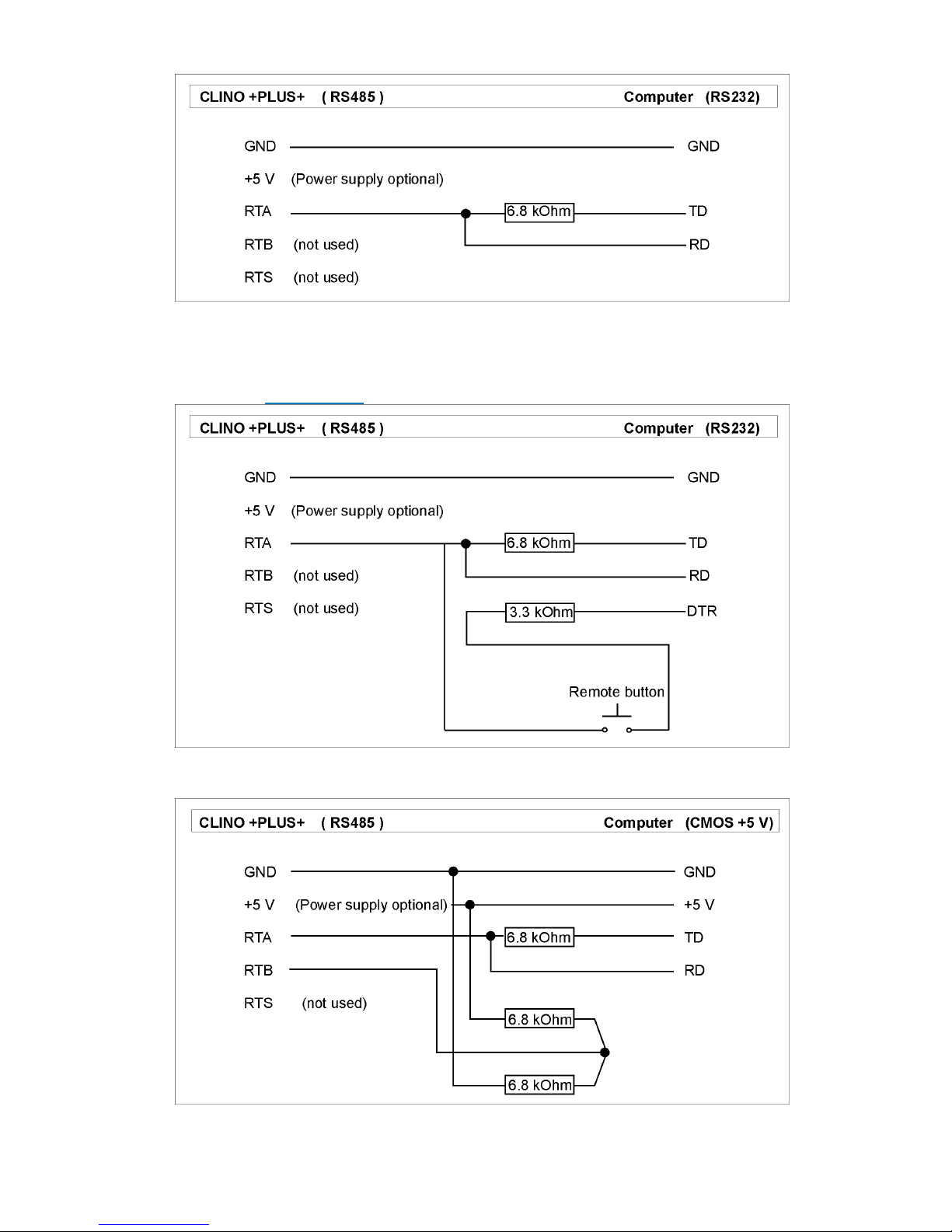

APPENDIX A Connecting wiring diagrams
19
APPENDIX B Attaching +CLINO PLUS+
22
APPENDIX C CLINOMASTER for the calibration of the CLINOTRONIC
23
APPENDIX D Repair of Measuring Instruments
24
Modifications:
Date Modified by Description of modifications
2.5.2000 HEH 2.2 / possibility to deactivate automatic shut off
8.1.2003 HEH/MO Index included / Appendix “C” included
2.4.2003 HEH New:Express Repair Service

clino_e.doc Page 3 of 24 Pages
INDEX
Key word
A
Chapter Page
Absolute measurement 3.1 12
Accessories / Spare parts 5.2 18
Applications 3 12
Automatic shut off deactivating 2.2 7
B 2.3 8
Battery 4.1 14
Battery indication 2.2 8
Battery indicator 2.1 6
Battery life 4.1 14
Battery / Care and handling of the batteries 6.2 18
Battery test / Change of Battery 2.3 8
C 5.2 18
Cable 2.5m with remote button 5.2 18
Calibration 5.1 17
Calibration 4.1 14
Calibration with master Appendix C 23
Cancel 2.10 11
CE conformity 4.1 14
Certificate Appendix C 23
Change relative base / save set-up 2.7 10
Change units of measurement 2.6 9
CLINOMASTER for the calibration of the CLINOTRONIC Appendix C 23
Connecting a remote button to the +CLINO PLUS+ using the RS485 interface Appendix A 19
Connecting the +CLINO PLUS+ to a computer with a CMOS +5V interface Appendix A 20
Connecting the +CLINO PLUS+ to a computer with a CMOS +5V interface Appendix A 21
Connecting the +CLINO PLUS+ to a computer with a RS232 interface using Appendix A 20
Connecting the +CLINO PLUS+ to a computer with a RS232 interface using Appendix A 20
Connecting the +CLINO PLUS+ to a computer with a RS422 interface using Appendix A 21
Connecting the +CLINO PLUS+ to a computer with a RS422 interface using Appendix A 22
Connecting the +CLINO PLUS+ to a computer with a RS485 interface using Appendix A 19
Connecting the +CLINO PLUS+ to a computer with a RS485 interface using Appendix A 19
Connection mode 4.2.3 15
Connection mode, polling, data exchange 4.2.3 15
D
Data frame structure 4.2.3 16
Data transfer 4.2.1 14
Data Transmission 2.12 12
Description 1.2 5
Direction of the indicated inclination 2.2 7
E
ENTER/HOLD key 2.2 7
ENTER/HOLD key 2.1 6
Express Repair Service, ERS Appendix D 24
F
Function check 2.4 8
Functions in detail 2.2 7
G
General 1 5
General information 2.1 6
General specifications 4.1 14
H
HOLD - Function 2.8 11

clino_e.doc Page 4 of 24 Pages
I
Important modifications compared with the previous model 1.1 5
Indication of inclination 2.1 6
Indication of inclination in selected units 2.1 6
Interface connector to PC (RS232) 5.2 18
Interface socket RS485 2.1 6
Interface socket RS485 2.2 8
Introduction 1.1 5
K
KEY ECHO Visual indication "a key is depressed" 2.1 6
L
Limits of error 4.1 14
M
Magnets and threads 5.2 18
Magnets and threads Appendix B 22
Measurement of wide angles 3.3 13
Measuring bases 5.2 18
Measuring units 2.2 7
Measuring units 2.6 10
O
ON/MODE key 2.1 6
ON/MODE key 2.2 7
Operating elements 2 6
Operating instructions 1.3 5
P
Print - Function. 2.9 11
R
Relative measurement 3.2 12
Repair of Measuring Instruments Appendix D 24
Reset 2.11 12
Resolution 4.1 14
S
SELECT/PRINT key 2.1 6
SELECT/PRINT key 2.2 7
Selection pointer for operation modes 2.2 7
Service 5 17
Set absolute zero 2.5 8
Settle time 4.1 14
Shut off the instrument 3.4 13
Special cases of display units 2.6 9
Specifications for port connection 4.2 14
Storage 6 18
T
Technical specifications 4 14
Temperature coefficient 4.1 14
Temperature range 4.1 14
Threads and magnetic inserts 5.2 18
W
Weight 4.1 14

clino_e.doc Page 5 of 24 Pages
1 GENERAL
1.1 INTRODUCTION
The electronic inclinometer +CLINO PLUS+ is with regard to the appearance as well as to the functions quite
similar to the predecessor CLINO 45. The internal technology was however completely redesigned and updated to
the latest possible technology.
Important modifications
•More rugged and from the measurement's point of view more stable housing, 100 x 75 x 30 mm
•New sensor type (similar to the ZEROTRONIC sensor) with SEALTEC technology (sensor housing
sealed)
•New software for angular computing
•Standard batteries, no loss of calibration data when changing batteries.
•True RS485 – Interface / connections to various WYLER instruments as well as to a PC
•State of the art microelectronics incorporated.
•Faster sampling leads to more rapid display reply
Additional features, as up until now:
•Possible range of measurement: ±10 / 30 / 45 Grad.
•Display of the measured values in all commonly used units. Simple selections by using the instruments
keys.
•Setting a relative base length and display of the values to this base.
•Automatic zero setting by using the respective keys.
•Absolute and relative measurements simple to set by using the keys.
•Calibration of the unit is easily possible using the built-in software.
•Inclination measurement in any quadrant is possible using one of the four precisely machined surfaces,
which form the square frame of the instrument.
1.2 DESCRIPTION
The +CLINO PLUS+ follows a new concept from base up and is an electronic inclinometer with unsurpassed
versatility. Contained in the rugged and compact housing are: The precision inclination sensor, the custom
developed microprocessor, the large LCD display unit, the operating elements and the interface socket.
The +CLINO PLUS+ provides a measuring capacity of ± 45 degree (upon requirement delivery is also possible
with a measuring range of ± 10 or ± 30 degrees). Four precisely machined surfaces assure accuracy and
repeatability of measurements. Selectable by push-button, any units suitable for inclination may be applied to the
display. Even slope indication based on a relative base of selectable length is possible. Simple push-button
operation automatically sets absolute as well as relative zero. The interface socket (RS 485) provided, will connect
to a variety of other WYLER instruments like e.g. Levelmeter 2000, T/C directly to a PC.
All indicated values are, by integration of calibration values stored, computed prior to display. If required, an
integrated calibration mode may be actuated in order to replace the stored calibration data. For this purpose, the
+CLINO PLUS+ must, with the aid of suitable equipment, be accurately inclined, using 5 deg. steps over the range
of ± 50 deg.
The measuring principle is based on a friction free suspended disc of mass weighing less than 1 gram. Two
electrodes together with the disc supported between them, represent a differential capacitor. Changes of
capacitance resulting because of disc displacement when the unit is inclined, are detected by counting the
frequency and after suitable evaluation are displayed in the selected units.
Completely friction free pendulum supports in conjunction with damping by air displacement provide excellent
accuracy in respect of repetition and hysteresis as well as rapid availability of values.
1.3 OPERATING INSTRUCTIONS
Attentive study of these operating instructions, prior to first time use, will make you familiar with the multiple
functions and possibilities of the +CLINO PLUS+ . Faulty manipulations or at the worst, unintended loss of
calibration data will then be prevented.

clino_e.doc Page 6 of 24 Pages
2 OPERATING ELEMENTS
2.1 GENERAL INFORMATION
– 6 –
INDICATION OF INCLINATION in selected
units
– 1 –
ON/MODE – key
- To switch operating mode on
- To toggle between modes
– 8 –
INTERFACE SOCKET RS485
– 2 –
ENTER/HOLD – key
- Enter key
- key to freeze measurement values
– 3 –
SELECT / PRINT – key
- key to select items
- key to send data to port
Four measuring bases square to each other
KEY ECHO
Visual indication "a key is depressed"
– 5 –
Indication of direction of inclination
– 7 –
Battery indicator
Visible only in case of low battery
– 4 –
Selection pointer for
operation modes
Attention!
Whilst trying out the different functions be careful never to operate the two bottom keys " ENTER/HOLD"
and " SELECT/PRINT" simultaneously. This would result in the loss of calibration data. This combination is
protected by an additional safety feature: The two keys must be operated for a period of 10 seconds before this
command is accepted. See 2.10 for information concerning data recovering

clino_e.doc Page 7 of 24 Pages
2.2 FUNCTIONS IN DETAIL
– 1 – ON/MODE Key
Use this key to put the +CLINO PLUS+ into operation. The Key ON/MODE must remain
pressed until all the display segments are visible.
The +CLINO PLUS+ thereafter automatically changes to the previously set operational mode. The
display will show until the first valid measurement value is available.
When pressing the ON/MODE key for more than 3 seconds the display starts flashing and
the automatic shut off is disabled. In the standard mode the instrument shut off after about 5
minutes. To turn off the instrument press the ON/MODE key for more than 3 seconds until
the display disappears.
Exeption: In case the instrument is powered by an external power supply, the instrument is never
shutting off automatically.
Attention!
At this stage a display " " in flashing mode indicates loss of calibration data.
Possible cause: This may be due to accidental call of the calibration mode. (A protection through two
key operation and 5 seconds command delay should prevent such accidents) or the
calibration was started but not finished correctly.
Chapter 5.1 contains instructions for recalibration. Possible data recovering according
to chapter 2.10.
– 1 – ON/MODE Key
For selection of different operation modes. Move the selection pointer - 4 - by operating this key.
– 2 – ENTER/HOLD Key
Puts a selected operation mode into effect or enters a choice made by using the SELECT" key.
– 2 – ENTER/HOLD Key
Use this key to "freeze" a measurement value. The hold function is particularly useful if
measurements have to be taken when the display is not visible. The +CLINO PLUS+ will pause
until two identical values are detected in succession (self sensing for motion). The valid indication
will be displayed with flashing figures. (Delete the indication by re-selecting HOLD function or
by operating the SELECT/PRINT. key)
– 3 – SELECT/PRINT Key
Use this key to select an option within an opened (selected) operation mode. E.g. Selection of
desired measurement unit within the operation mode "UNIT"; in case of digital input, selection of
the value (0...9) of a digital position.
– 3 – SELECT/PRINT Key
•Cancel the HOLD – function
•Sending a value to the port RS485
– 4 – Selection pointer for operation modes
Serves as pointer for the selection of the different operation modes. Indicates the operation mode
currently in use: Absolute; relative; or measurements with respect to a relative base length; setting
of absolute zero point. A flashing pointer indicates that an action by the operator is required. For
example, whilst setting absolute zero point, the flashing pointer indicates that the input of the
second measurement value is required.
– 5 – Indicator for direction of indication
A comprehensive symbol indicates the direction of the indicated inclination.
Rising to the right. (positive inclination)
Falling to the right. (negative inclination)
– 6 – Measuring units
Indication of the measuring unit currently employed. A total of 16 possibilities (measuring units and
formats) are available.

clino_e.doc Page 8 of 24 Pages
– 7 – Battery indicator
Low battery voltage (drained battery) is indicated by the sign "BATT" appearing in inverted mode
at the lower left corner of the display.
- 8 - Interface port RS 485
True RS485 – Interface / connections to various WYLER instruments such as e.g.
Levelmeter 2000, WYLER T/C as well as to a RS 232 com port of a PC (Special WYLER
connector required)
2.3 BATTERY TEST /CHANGE OF BATTERY
Appearance of the sign "BATT" in the lower left corner of the display, this will be displayed constantly in all
measuring modes, indicates a drained battery, which must be replaced.
The display "BATT" allows for timely replacement of the battery.
Specification:
•1 x Size AA 1.5V Alkaline / 130 hrs
•1 x Size AA 3.0V MnO2-Lithium / 300 hrs
Battery installation
2.4 FUNCTION CHECK
Press the key "ON/MODE" until all the display's segments are visible. Immediately after releasing the key the
display shows until the first measuring value is seen in the last selected measuring mode.
Incline the +CLINO PLUS+ to the left. The following displays are correct:
(any value)
Incline the +CLINO PLUS+ to the right. The following displays are correct:
(any value)
The +CLINO PLUS+ persistently indicates: flashing means that no calibration data is available. Data
was probably lost or destroyed by accidentally calling the calibration utility. The +CLINO PLUS+ must be
recalibrated. See chapter 5.1 for calibration procedure. For possible salvation see chapter 2.10.
2.5 SET ABSOLUTE ZERO
The absolute zero represents a base for absolute inclination measurements (Deviation from horizontal or vertical).
In order to achieve best results take care that the +CLINO PLUS+ and measuring object are at identical
temperatures and put the +CLINO PLUS+ into operation a few minutes prior to zero setting.
The absolute zero is automatically calculated and set from the two values entered whilst conducting a reversal
measurement. (Reversal measurement = Two measurements made in the same spot but in exactly opposing
directions). For this operation place the +CLINO PLUS+ upon a suitable surface, (rigid location; as flat as possible;
as near to horizontal as possible). In order to allow, positioning in exactly the same location, after rotating the
instrument through 180 degrees, mark out position and particularly the orientation of the +CLINO PLUS+.

clino_e.doc Page 9 of 24 Pages
By multiple use of the key "ON/MODE", align the selection pointer with the position "ZERO".
The selection pointer is
flashing
Use the key "ENTER/HOLD" to collect the first reading. The instrument may still be positioned correctly.
A measurement is only collected after two identical values are repeated. (The +CLINO PLUS+ is able to detect
when it is free from interference)
As soon as a valid measurement is registered it will be displayed.
e.g..
The selection pointer is flashing
Now rotate the +CLINO PLUS+ by 180 Deg. (Not upside down!, but in opposing direction). Use the
key "ENTER/HOLD" to collect the second reading. Again, the instrument may now be accurately positioned
and aligned in the place where the first reading was taken. The +CLINO PLUS+ displays:
first, (after a few seconds) for a very
short period:
and then e.g.:
As soon as a valid measurement is available the +CLINO PLUS+ will calculate and set the exact zero point, switch
to absolute measuring mode and display the actual inclination of the surface. The +CLINO PLUS+'s zero is set to
perform more absolute measurements. The measurement units used previously, remain set.
As the zero setting is retained in the memory it is not absolutely necessary to reset for each use, but in favor of
accuracy, periodic re-setting is recommended, after lengthy storage.
The level of vibration at the measuring location largely influences the time necessary to collect a valid
measurement. Heavy vibration may even completely prevent the condition (two identical values in succession),
necessary to register a true measurement.
In order to regain measuring capability under this condition, take the +CLINO PLUS+ to an object with a lower
vibration level and complete the operation in process. By key operation for RESET (Chapter 2.11) the +CLINO
PLUS+ may instantly be returned to standard settings. All previous adjustments are lost by re-setting!
Memorized calibration data is not affected.
2.6 CHANGE UNITS OF MEASUREMENT
To display measurements in other than the currently set measurement units, repeatedly use the
key “ON/MODE " to move the selection pointer to the right until the indication of units in use starts flashing.
Using the key “SELECT/PRINT" all the possible units and formats can be displayed in succession. Select one
of the possibilities and use the key “ENTER/HOLD“ to enter your choice. The unit indication will be displayed
in normal mode and the +CLINO PLUS+ is ready to measure using the new units. Unless a new selection is made,
this setting will remain effective even after the instrument switches off (sleep mode).
ATTENTION! Special cases:
•No unit indication displayed = Artillery per mil.
•Measurement units mm/m and selection pointer in position "REL.BASE" = mm over a relative base
of selected length.
•Measurement units "/10" ; inch per 10 inch and selection pointer in position "REL.BASE" = inch
over a relative base of selected length.

clino_e.doc Page 10 of 24 Pages
The following measuring units may be selected:
Display/Format Measuring unit Code Character for
printout
00.00 mm/m mm/m/2 Dec. M
X .00 00 mm/m mm/m /4 Dec. M
.00 00 "/10" Inch/10 Inch I
.00 00 "/12" Inch/12 Inch K
00.00 mrad Milliradian R
00 00 mrad Milliradian R
00.00 Degree/2 Dec. D
X .00 00 Degree /4 Dec. D
00 00 Degree /Min. G
X 00 00 Min./Sec. S
00.00 gon Gra /2 Dec. O
X .00 00 gon Gra /4 Dec. O
00.00 mm/m mm/rel.base L
X .00 00 mm/m mm/rel.base L
.00 00 "/10" Inch/rel.base H
00 00 Artillerypermille A (Display without units)
(X= Unsuitable setting for the +CLINO PLUS+; included for special purpose instruments respectively for
+CLINO PLUS+ with a measuring range of ± 10 degree)
2.7 CHANGE RELATIVE BASE /SAVE SET-UP
A mode, displaying inclination by the height in mm / inch at the end of a straight line with the length previously set,
is included in the +CLINO PLUS+. "Measurement with relative base in mm or in inch".
Factory default settings for base length are: 100 mm or 10 inch. To change these base lengths or to see which
base lengths are presently set, proceed as follows:
Repeatedly using the key "ON/MODE”, align the selection pointer with the indication "REL.BASE".
Now use the key “SELECT/PRINT " to display the length presently stored. Repeated use of
“SELECT/PRINT " will in turn display the values stored in the "mm" and in the "inch" memory.
With the desired display, (note unit indicated; mm/m for length in mm, "/10" for length in inch) use the key
“ENTER/HOLD " to open the memory for alteration. The selection indicator (flashing) will jump below the first
digit.
Using the key “ON/MODE this digit can be changed. Each key operation will increase the value by 1.
Use the key “SELECT/PRINT " to move the selection indicator to the next digit. Change all digits as desired.
The value displayed is the base length in mm or in inch depending on the memory opened, no fractions are
possible.
Use the key "nENTER/HOLD" to store the new value. The new value will, even after switching the +CLINO
PLUS+ off (sleep mode) remain stored until newly changed.
After this operation the +CLINO PLUS+ automatically returns to the previously set measuring mode. Inclinations
are displayed in the units last set.
If necessary change to different measurement unit. The following possibilities are available for measurements with
relative base:
00.00 mm/m Selection indicator on position "REL.BASE "
.00 00 "/10" Selection indicator on position "REL.BASE "

clino_e.doc Page 11 of 24 Pages
For relative base measurements the following approach is applicable:
2.8 HOLD -FUNCTION
This function is available in all measuring modes. Use the key “ENTER/HOLD ". While the +CLINO PLUS+
waits for a valid measurement (two identical values in succession) the display will show . As it is
practically impossible for two successive values to be identical while the instrument is handled, the +CLINO
PLUS+ may be positioned after the key is depressed.
As soon as the condition for a valid measurement is fulfilled, the measuring value is displayed with flashing digits.
To read the measurement value, the +CLINO PLUS+ may be removed from its located position. The display value
is "frozen".
Use the key “SELECT/PRINT " to transmit the value via the port RS485 to a connected peripheral instrument.
Without a connection, the HOLD mode will be cancelled.
The level of vibration at the measuring location considerably influences the time necessary to collect a valid
measurement. Severe vibration may even completely prevent the condition (two identical values in succession),
necessary to register a true measurement.
In order to regain measuring capability under this condition the HOLD mode can be cancelled by pressing
“SELECT/PRINT”
2.9 PRINT -FUNCTION.
Using the Key “SELECT/PRINT " will send the displayed value via RS485 to the printer.
The possibilities for such a connection are described in the Appendix.
2.10 CANCEL
You have started with an alteration, but wish to discontinue. Provided, no parameters have yet been transferred by
“ENTER/HOLD" this is possible. Press the “ON/MODE" key first and keep it pressed while pressing also
the key “SELECT/PRINT" to regain the "old" parameters.
YOUR SALVATION,IF YOU ENTERED THE CALIBRATION PROGRAMME ACCIDENTALLY!

clino_e.doc Page 12 of 24 Pages
2.11 RESET
The +CLINO PLUS+ shows: no reaction to key operation. Or the display is incomprehensive. Probably you found
a faulty key sequence as yet unknown to us, which the processor cannot interpret.
If you wish to return the +CLINO PLUS+ to factory default setting. (Cancel all parameters set by operator). Or
you have special reasons (problems using hold function or zero setting), which force you to a reset in order to
continue operation.
Solution: Depress first the key “ON/MODE" and keep it pressed while pressing “ENTER/HOLD" for longer
than 10 second.
Apart from the calibration data all stored settings are removed or are set to factory defaults.
The +CLINO PLUS+ is now set as follows:
Measuring mode Absolute
Measuring unit mm/m 2 decimals
Relative base 100 mm and 10 inch
Absolute zero Lost, chapter 2.5
Relative zero Lost, chapter 3.2
2.12 DATA TRANSMISSION
True RS485 – Interface / connections to various WYLER instruments such as e.g. Levelmeter 2000, WYLER T/C
as well as to a RS 232 com port of a PC (Special WYLER connector required).
3. APPLICATIONS

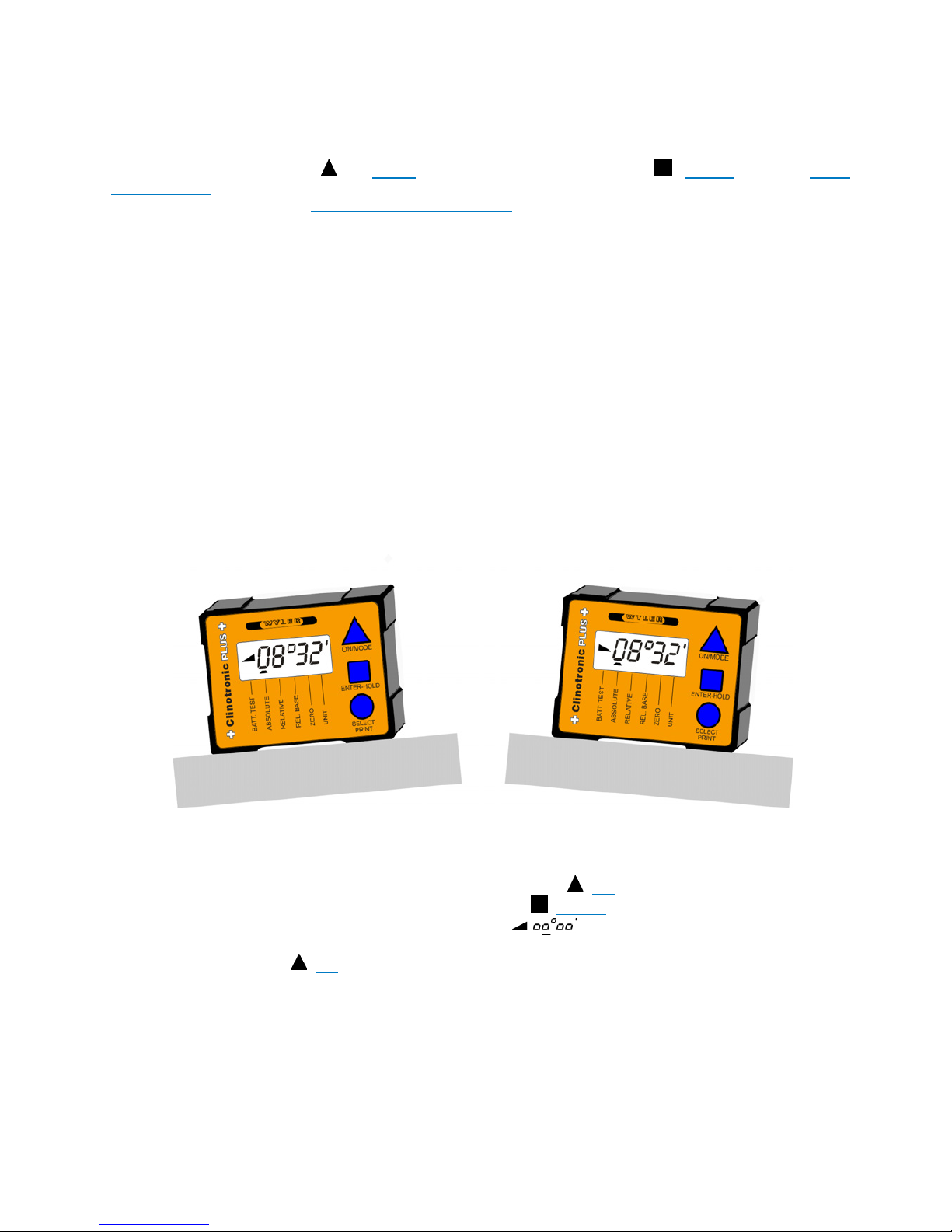

3.1. ABSOLUTE MEASUREMENT
For accurate measurements it is advisable to reset the absolute zero point of the +CLINO PLUS+ in accordance
with chapter 2.5. prior to first measurement. Thereafter place the +CLINO PLUS+ on the surface to be measured,
the instrument directly displays the inclination with respect to absolute horizontal or vertical.
Inclined to the right / +08°32‘ Declined to the right / -08°32‘
3.2. RELATIVE MEASUREMENT
Place the +CLINO PLUS+ on the reference surface and using the key “ON/MODE" select the mode
"RELATIVE" the selection indicator will then flash. Using the key “ENTER/HOLD" will put the relative mode into
operation, allow a moment until the +CLINO PLUS+ displays showing that the reference is set. The
+CLINO PLUS+ will then display the difference of inclination with respect to the pre-set value. To return to
absolute mode use the key “ON/MODE"

clino_e.doc Page 13 of 24 Pages
3.3 MEASUREMENT OF WIDE ANGLES
The four surfaces framing the instrument are finished perpendicularly to each other. Each of them may be
employed as a measuring base thereby allowing inclination measurements at any angle greater than the sensor
measuring capacity. (± 45 Deg)
Vertical and horizontal measurements / Measurements with the different bases
Declined to the right Inclined to the right
Inclined to the right Inclined slightly to the right
3.4 SHUT OFF THE INSTRUMENT
To shut off the instrument press the “ON/MODE " key for min. 3 seconds until the display is empty.
Remarks:
When an external power supply is connected the instrument can not be shut off.

clino_e.doc Page 14 of 24 Pages
4. TECHNICAL SPECIFICATIONS
4.1. GENERAL
Measuring range
Messbereich ± 10 Arcdeg ± 30 Arcdeg ± 45 Arcdeg
Calibration /
Kalibrierung
Last values at: /
letzte Werte bei: ± 10 Arcdeg ± 30 Arcdeg ± 50 Arcdeg resp. ± 60 Arc.deg.
Limits of Error /
Fehlergrenze < 1 Arcmin + 1 Digit
< 1.5 Arcmin
+ 1 Digit
< 2 Arcmin
+ 1 Digit
Settle time /
Messzeit
Value available after /
Anzeige nach: < 2 Secs.
Resolution /
Auflösung
Dep. on units set /
abhängig von Einstellung > 0.02 mm/m
Temp. coeff. /
Temperatur-Koeff.
Zero and scale /
Null und Skala < 0.01 Arcdeg./°C
Data connection /
Anschluss RS485 / asynchron / 7 Bit / 2 Stop Bit / no parity / 9600 Baud
Battery / Batterie
1 x Size AA 1.5V Alkaline
or
1 x Size AA 3.0V MnO2-Lithium
Battery life /
Betriebsdauer
In full operation /
Vollbetrieb
Size AA 1.5V Alkaline / 130 hrs
Size AA 3.0V MnO2-Lithium / 300 hrs
Housing /
Gehäuse Aluminium hard anodised 100 x 75 x 30 mm
Weight / Gewicht 485 g, incl. Battery
Temp. range /
Temp. -Bereich
Operating
Storage
0 to 40 °C.
-20 to 70 °C.
CE conformity Emission:
Immunity:
fulfilled: EN50081-1 / EN50081-2
fulfilled: EN50082-1 / EN50082-2
4.2 SPECIFICATIONS FOR PORT CONNECTION
4.2.1. DATA TRANSFER: Asynchron / 7 Data Bit / 2 Stop Bit / No Parity / 9600 Baud

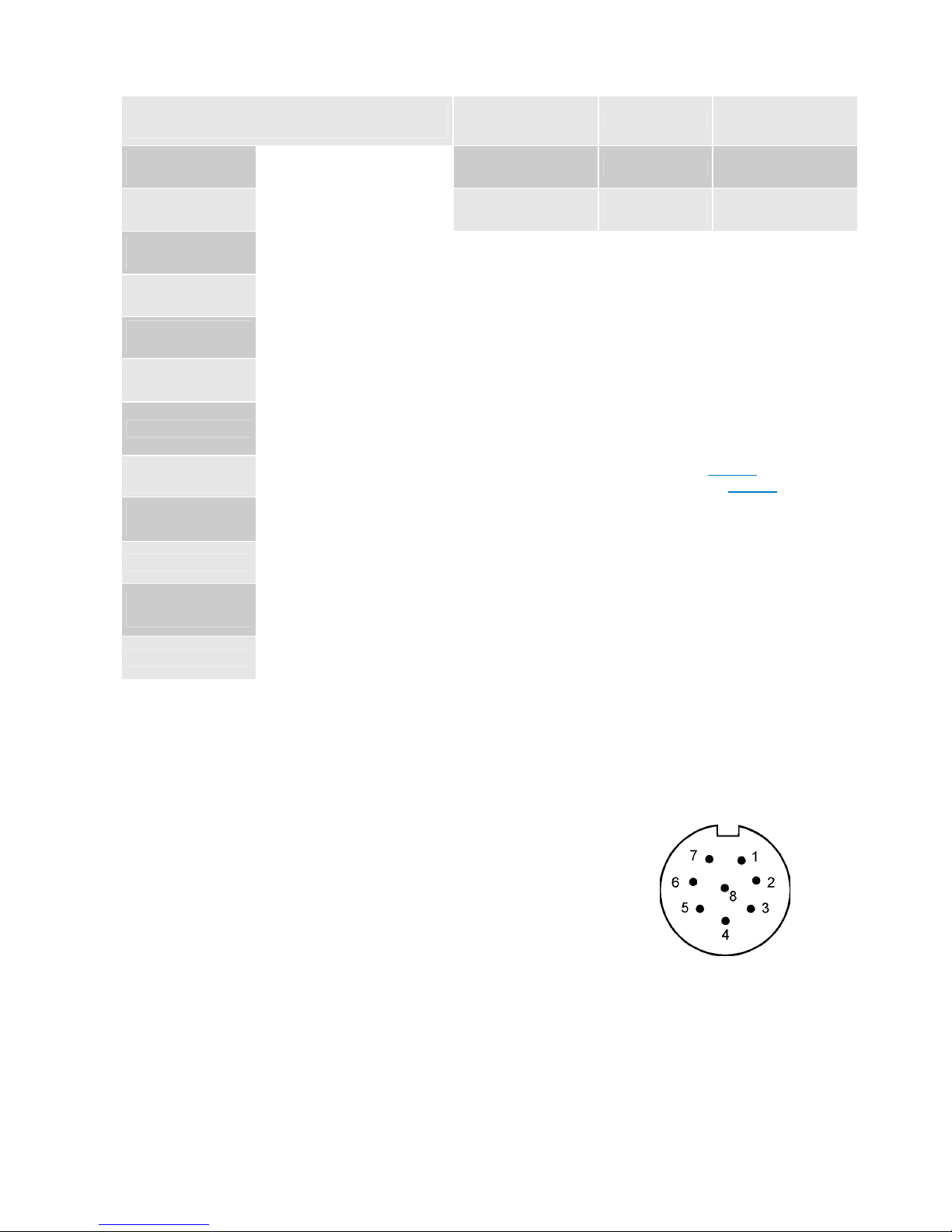

4.2.2. PIN DEFINITION /CONNECTOR
Connector: 8pol Binder Series 712 female
PIN-definition: •1
•2 GND
•3 +5V
•4 RTA
•5 RTB
•6
•7 RTS
•8
Outside view of connector
Remarks: Additional information concerning data transfer see APPENDIX A

clino_e.doc Page 15 of 24 Pages
4.2.3. CONNECTION MODE
I) +CLINO PLUS+ (Compatibility) – MODE
Polling mode
•Pressing SELECT/PRINT Key will send response
•Receiving (ASCII Character ‚H‘) will bring instrument to HOLD-MODE.
•Receiving (ASCII Character ‚P‘) will send data to port (response)
Timing of data exchange
•Immediately after receiving command, response will be sent.
•During the data transmission (response) the open drain signal (RTS) will be held low
Used data frame
Frame characters: (All ASCII - Characters)
II) +CLINO PLUS+ -Mode
Character set
•ASCII Numbers ‚0‘ .. ‚9‘
•ASCII Letters ‚A‘ .. ‚F‘
•ASCII Special characters ‚~‘
•ASCII Control characters <CR>
Polling mode
•Instrument will not transmit any data spontaneously
•Instrument will transmit a response only upon reception of a command
•The same data frame structure is used for commands as well as responses
Timing of data exchange
•A request may be sent to the instrument with max. rate or with large intervals between the individual
characters.
•Immediately after receiving (<CR>, = carriage return) of command, response will be sent.
•During the data transmission (response) the open drain signal (RTS) will be held low

clino_e.doc Page 16 of 24 Pages
Command / Response data frame structure
Header ASCII ‚~‘ (Begin of command or response)
ASCII ‚~‘ (minimum 4 of these characters must be sent)
ASCII ‚~‘
ASCII ‚~‘
Address ASCII ‚0‘ .. ‚9‘ ‚A‘ .. ‚F‘ Bit[7..4] ⇒+ (Instruments resp. sensor address)
ASCII ‚0‘ .. ‚9‘ ‚A‘ .. ‚F‘ Bit[3..0] ⇒+
ASCII ‚1‘
Opcode ASCII ‚0‘ .. ‚9‘ ‚A‘ .. ‚F‘ Bit[3..0] ⇒+
Data ASCII ‚0‘ .. ‚9‘ ‚A‘ .. ‚F‘ Bit[31..28] ⇒+
ASCII ‚0‘ .. ‚9‘ ‚A‘ .. ‚F‘ Bit[27..24] ⇒+
ASCII ‚0‘ .. ‚9‘ ‚A‘ .. ‚F‘ Bit[23..20] ⇒+
ASCII ‚0‘ .. ‚9‘ ‚A‘ .. ‚F‘ Bit[19..16] ⇒+
ASCII ‚0‘ .. ‚9‘ ‚A‘ .. ‚F‘ Bit[15..12] ⇒+
ASCII ‚0‘ .. ‚9‘ ‚A‘ .. ‚F‘ Bit[11..8] ⇒+
ASCII ‚0‘ .. ‚9‘ ‚A‘ .. ‚F‘ Bit[7..4] ⇒+
ASCII ‚0‘ .. ‚9‘ ‚A‘ .. ‚F‘ Bit[3..0] ⇒+
CheckSum ASCII ‚0‘ .. ‚9‘ ‚A‘ .. ‚F‘ Bit[7..4] ⇐
ASCII ‚0‘ .. ‚9‘ ‚A‘ .. ‚F‘ Bit[3..0]
Trailer ASCII <CR> (End of command or response)
Examples to +CLINO PLUS+ -Mode

clino_e.doc Page 17 of 24 Pages
5. SERVICE
5.1 CALIBRATION
A reserved memory space incorporated in the +CLINO PLUS+ contains calibration data in predefined intervals.
Prior to all displays this data is accessed applying a specialized interpolation and is used to compute the
measurement value. Calibration data stored in this memory is initiated from an automatic calibration process
based on a high accuracy dividing head, which is performed at the manufacturing stage.
Recalibration is possible at any time if suitable and accurate equipment which allows precise setting of angles
(dividing head, sine equipment etc.) is available.
Arecalibration may also be performed at any time starting the calibration program by key operation. The
following example is for a +CLINO PLUS+ with a measuring range of ± 45 deg. Basically the same procedure is
used for other ranges.
**1** Mount the +CLINO PLUS+ to the angular reference equipment and set an angle of 50 deg. sloping to the
right (display facing you and data connector being on the right side). Connect the cable of the remote
push button to the data connector.
**2** Before starting the calibration procedure preferably a reset is performed (See chapter 2.11)
To reset, simultaneously press the two keys “ON/MODE" and “ENTER/HOLD" by starting with
the “ON/MODE" key, for a min. period of 1 sec.
Start the calibration program by pressing first the key “SELECT/PRINT” and keep pressed while using
simultaneously the key “ENTER/HOLD” for a period of min. 5 seconds . A successful start to the
calibration program is indicated by the display showing at first " 00.00" thereafter displaying
in flashing mode which represents the first calibration point.
**3** To enter a calibration point first confirm that the reference setting corresponds with the value displayed,
then press the remote button or if absent the key “ENTER/HOLD”. Allow a moment ( a few seconds)
for the +CLINO PLUS+ to register the respective data. The instrument must remain untouched.
**4** When the calibration data for one setting is successfully stored, the +CLINO PLUS+ will display the next
setting required. The display will, in 5 deg. steps successively show to
Due to automatic adjustment of acceptance requirement calibration may be impossible if vibrations are
present or if an unstable set-up is used.
**5** Adjust the angular equipment according to the new value flashing on the +CLINO PLUS+ display.
**6** Repeat operation 3 to 5 until the last value is registered.
**7** Upon completion the +CLINO PLUS+ automatically returns to the mode last set or, if the setting data was
cancelled to the standard setting.
IMPORTANT! Prior to absolute measurements it is necessary to reset zero.

clino_e.doc Page 18 of 24 Pages
5.2 ACCESSORIES /SPARE PARTS
The following items are available:
Batteries
1 x Size AA 1.5V Alkaline
or
1 x Size AA 3.0V MnO2-Lithium
Art. No.
604-012-0001
604-012-0002
Interface-Connector
+CLINO PLUS+ to PC
(RS232)
With this connector the +CLINO PLUS+ may
be connected to the com port (RS232) of a
PC. The cable mentioned below is needed
in addition.
Art. No. 065-STECKER-232
Cable 2.5m connecting
+CLINO PLUS+ to
Interface connector
With this cable and the above mentioned
connector the +CLINO PLUS+ may be
connected to the com port (RS232) of a PC
Art. No. 065-025-878-001
Cable 2.5m with
remote button
The cable is recommended for calibration
procedure or for applying the HOLD function
without touching the instrument.
Art. No.
015-025-8D1PLUS
Various measuring
bases
Flat or prismatic in length of :
100 mm to 300 mm
Various threads and magnetic inserts
See Appendix B
6. STORAGE
6.1 STORAGE POSITION INSTRUMENT
For long periods of storage never place the +CLINO PLUS+ in a position with it's longitudinal axis vertical. An
incorrect storage position may, due to overloading of the pendulum system, result in a substantial drift of the zero
point whilst recovering its equilibrium.
6.2 CARE AND HANDLING OF THE BATTERIES
Read the instructions in your manual before installing batteries. Make sure to insert the batteries properly,
following the symbols showing you the correct way to position the positive (+) and negative (-) ends of the
batteries. Keep battery contact surfaces clean by gently rubbing with a clean pencil eraser or cloth. Replace
batteries with the size and type specified by the device's manufacturer. Remove all used batteries from the device
at the same time, then replace them with new batteries of the same size and type. Store batteries in a cool, dry
place at normal room temperature. Remove batteries from devices that will be stored for extended periods. Don't
dispose of batteries in a fire—they may rupture or leak. Don't recharge a battery unless it is specifically marked
"rechargeable." Attempting to recharge a normal battery could result in rupture or leakage.

clino_e.doc Page 19 of 24 Pages
APPENDIX A
a) Connecting a remote button to the +CLINO PLUS+ using the RS485 interface
b) Connecting the +CLINO PLUS+ to a computer with a RS485 interface using the RS485 interface of the
instrument
c) Connecting the +CLINO PLUS+ to a computer with a RS485 interface using the RS485 interface of the
instrument / also a remote button installed

clino_e.doc Page 20 of 24 Pages
d) Connecting the +CLINO PLUS+ to a computer with a RS232 interface using the RS485 interface of the
instrument
Remarks: Cable and interface connector can be ordered from the nearest distributor or from WYLER AG.
e) Connecting the +CLINO PLUS+ to a computer with a RS232 interface using the RS485 interface of the
instrument / also a remote button installed
f) Connecting the +CLINO PLUS+ to a computer with a CMOS +5V interface using the RS485 interface of
the instrument
