WYLER Clinotronic S User manual

Manual Clinotronic S
Seite 1 / 46
Manual
Electronic Inclinometer
Clinotronic S
WYLER AG
Im Hölderli 13
8405 Winterthur
Switzerland
[phone]
www.wylerag.com
[e-mail]

Manual Clinotronic S
Seite 2 / 46
Table of content
1. Manual Clinotronic S................................................................................................................................. 3
Introduction .................................................................................................................................................................3
Note♥, Attention !, Warning!........................................................................................................................................3
Manufacturer name and address ...............................................................................................................................3
Product brand and type designation ...........................................................................................................................4
Applicable documents.................................................................................................................................................4
2. Product description, technical data ........................................................................................................... 5
Measuring device, accessories ...................................................................................................................................5
3. Safety instructions .................................................................................................................................... 7
Intended use ...............................................................................................................................................................7
Not intended use!........................................................................................................................................................7
Electromagnetic environment......................................................................................................................................7
Additional information for FCC (USA) and IC (Canada)..............................................................................................8
Safety Instructions Lithium Ion Batteries.....................................................................................................................9
Deadlines for calibration ...........................................................................................................................................10
4. Prepare product for use .......................................................................................................................... 11
Content of case.........................................................................................................................................................11
Controls ....................................................................................................................................................................12
Replacement of Li-ion batteries .................................................................... Fehler! Textmarke nicht definiert.
Charging with power adapter or laptop .....................................................................................................................13
5. Operation................................................................................................................................................ 14
5.1 Configurations.....................................................................................................................................................14
5.2 Measurment bases .............................................................................................................................................15
5.3 Screen overview and keyboard...........................................................................................................................16
5.4 Switching On/Off, Measuring Range...................................................................................................................17
5.5 Menu "Settings", entry and exit ...........................................................................................................................18
5.6 Settings in "Device".............................................................................................................................................19
5.6.1 Device: "Brightness"...................................................................................................................................20
5.6.2 Devices:"Bluetooth"....................................................................................................................................21
5.6.3 Zapper teach-in............................................................................... Fehler! Textmarke nicht definiert.
5.7 Settings in "Units" .............................................................................................................................................23
5.7.1 "Units" ........................................................................................................................................................24
5.7.2 Self-selected base mm/xxxx mm ................................................... Fehler! Textmarke nicht definiert.
5.8 Type of Measurement ........................................................................................................................................26
5.8.1 Absolute measurement ..............................................................................................................................27
5.8.2 Reversal measurement "Absolute Zero" ....................................................................................................28
5.8.3 Temporary reference level "Relative Zero" ................................................................................................30
5.9 Device Info..........................................................................................................................................................32
5.9.1 Device Info .................................................................................................................................................33
5.9.2 Advanced Settings .....................................................................................................................................34
5.9.2.1 Use Local gravity...............................................................................................................................35
5.9.2.2 Disable local gravity ..........................................................................................................................37
5.9.2.3 wylerMASTER calibration .................................................................................................................38
5.9.2.4 Factory Reset....................................................................................................................................43
6. Specifications ......................................................................................................................................... 44
7. Maintenance........................................................................................................................................... 45
For safe operation.....................................................................................................................................................45
Cleaning....................................................................................................................................................................45
Troubleshooting ........................................................................................................................................................45
Repackaging before re-transport ................................................................... Fehler! Textmarke nicht definiert.
Address customer service.........................................................................................................................................45
8. Disposal.................................................................................................................................................. 46
Decommissioning, disposal ......................................................................................................................................46
Document version and release notes........................................................................................................................46

Manual Clinotronic S
Seite 3 / 46
1. Manual Clinotronic S
Introduction
Before you start
Read this manual carefully before using the Clinotronic S for the first time.
Please also note the safety instructions.
Note♥: Mishandling or unintentional deletion of calibration data
are prevented by Note♥
Note♥, Attention !, Warning!
To make your reading easier, the following references are used in this manual:
•"Note♥:" This highlights useful tips.
•"Achtung !:" This is to avoid mishandling or disadvantages
•This indicates notes that are required by law.
Manufacturer name and address
WYLER AG
Im Hoelderli 13
8405 Winterthur
Switzerland
Phone [phone] www.wylerag.com
Fax [phone] [email protected]
Representatives: www.wylerag.com

Manual Clinotronic S
Seite 4 / 46
Product brand and type designation
Product brand
Clinotronic S
type designation:
*Art. No. 015-S-XG45 without inserts
*Art. No. 015-S-HG45 with two magnets on each side
*Art. No. 015-S-PG45 with two M3 threads on all sides
*Subject to change
Applicable documents
The CE Declaration of Conformity can be found on our homepage at: www.wylerag.com
at the product page Clinotronic S "Download".

Manual Clinotronic S
Seite 5 / 46
2. Product description, technical data
Measuring device, accessories
The measuring device
oThe housing of the Clinotronic S is made of black anodized aluminum.
oThe four measuring bases are located in each of the quadrants (frame).
oThe front and back are equipped with a plastic film.
Screen area: The film is equipped with barely visible distance points against streaking when
touched.
oThe front consists of the color screen and the operating membrane keyboard
oOn the right side is the USB-C port
oAs standard, the device is equipped with Bluetooth® BLE and the wylerCONNECT MINI
oAn infrared (IR) trigger for data acquisition is also included
oThe power supply consists of a replaceable, rechargeable 3.6V lithium-ion battery
The access is on the left.
oThe device can be charged via the USB-C port and the included charging power supply (5V) or
on laptop.
Dimension, weight, type of protection, storage
Measuring range: ±45°
Resolution : 5 arcsec or 0.02mm/m
Dimension L x H x T: 100 x 75 x 30 mm
Weight: 400 g
Protection class: IP64
Storage conditions: -20° bis +60° C
Operating conditions: 0° to 40 ° C
Standard accessories
owylerCONNECTMINI (BluetoothBLE)
oUSB power adapter and cable USB-A/USB-C
oInfrared(IR) trigger
oLi-ion battery
oPlastic carrying case
oManual
oAndroid App in Google Store, iOS App in Apple Store

Manual Clinotronic S
Seite 6 / 46
Optional accessories www.wylerag.com
Mechanically
oMagnets below, above, left, and right. Art. No. 015-S-HG45
oThreads M3 bottom, top, left, and right Art. No. 015-S-PG45
Software
oInterface software
oGeometry measuring software
oMonitoring software
oSoftware tools
Calibration
owylerMASTER
Remote display
oAndroid smartphone with installed App
Power
oExtra Li-ion batteries
oExternal charger for max two Li-ion batteries

Manual Clinotronic S
Seite 7 / 46
3. Safety instructions
•The device complies with the applicable directives and standards
Consult:
- The current CE Declaration of Conformity Clinotronic S
- This instruction manual and the quick reference
- The type label on the back of the device
Intended use
•The Clinotronic is designed exclusively for measuring inclination angles.
For this purpose, the device is placed on a flat, stable surface or held by hand
The measured value can
- be read directly on the screen
- be read by Bluetoothand app on smartphones as Androidor iOS
- be sent via Bluetoothand wylerCONNECT MINI to a Windows computer
Attention !: There are no other uses!
Not intended use!
•The device must not be used as a base, e.g. be used in a vise. The precision housing can be deformed
and will be unusable.
•It must not be used under water, as the tightness class is insufficient and the device may suffer a short
circuit inside.
•It must not be used in any way as a hammer as this damages the measuring surfaces, and the device
is therefore no longer able to measure.
•The device must not be thrown. The aluminum housing can cause serious injuries and damage
Electromagnetic environment
Note♥: The electromagnetic environment should be assessed before operating this equipment
Do not use this device near sources of strong electromagnetic radiation (such as unshielded,
intentionally operated high-frequency sources), as these may interfere with proper operation.

Manual Clinotronic S
Seite 8 / 46
Additional information for FCC (USA) and IC (Canada)
FCC part 15 and ICES-0003
Device Class A
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation”.
This Class A digital apparatus complies with Canadian ICES-0003.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense

Manual Clinotronic S
Seite 9 / 46
Safety instructions lithium-ion batteries
The lithium-ion batteries 3.6V are rechargeable
Type of battery: 18650
Only the original type 18650 lithium-ion batteries may be used
Lithium-ion batteries are only allowed to be charged with the supplied chargers.
Lithium-ion batteries are only allowed to be charged under supervision.
Close the lithium-ion battery cover carefully, but not with heavy force!
A rubber gasket is installed to provide a seal.
Note the current airline regulations regarding the
transport of lithium-ion batteries in any baggage!
Do not immerse the device in water!
The lithium-ion batteries are protected against overcharging and short circuiting.
Underwater, the short-circuit protection is not ensured!

Manual Clinotronic S
Seite 10 / 46
Frequency of calibration
•The calibration schedule must be determined by the customer.
•Our non-binding recommendation:
In case of suspected damage: immediately
For weekly use or more: every year
For monthly use: every 2-3 years
•WYLER AG operates a calibration center for the parameters length, planarity
and angles according to EN / ISO / IEC 17025.
•The accreditation is carried out by METAS.
WYLER accreditation number: SCS 044

Manual Clinotronic S
Seite 11 / 46
4. Prepare product for use
Contents of case
1Case
2Clinotronic S
3Lithium-ion batteries 3.6V, Type 18650
4USB power adapter
5Cable USB-A/USB-C
6Infrared (IR) trigger
7wylerCONNECT MINI
→Quick reference
→Manual download at www.wylerag.com

Manual Clinotronic S
Seite 12 / 46

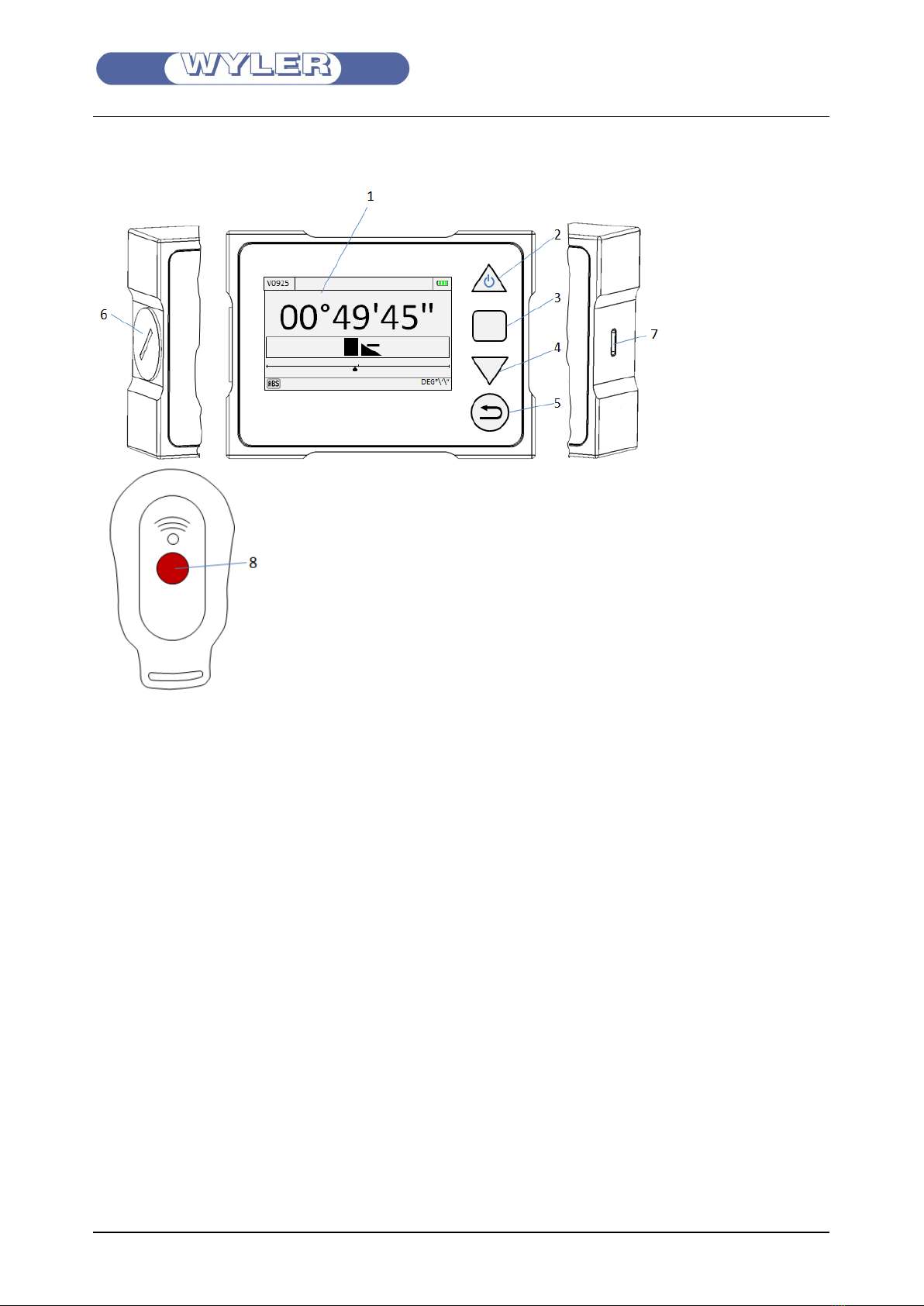

Controls
•1Screen
•2On/Off
•3Menu
Enter
•4Arrow button down
Shortcut (hold 2 seconds) "Relative Zero"
•5Back/cancel
•6Lithium-ion battery lid
•7USB-C connection
•8Infrared (IR) trigger

Manual Clinotronic S
Seite 13 / 46

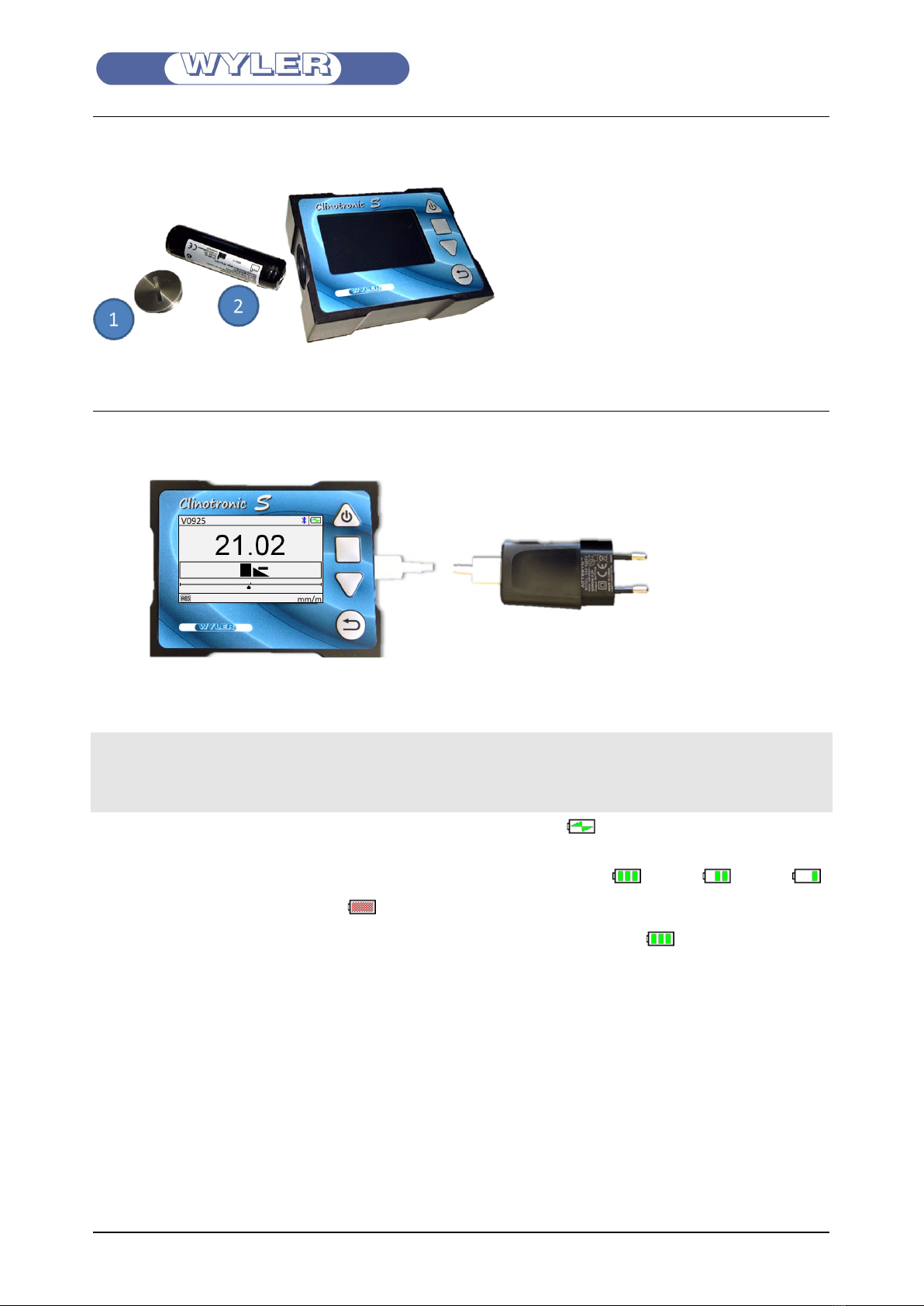

Replacement of lithium-ion (Li-ion) batteries
1 Remove battery lid, remove depleted Li-ion battery
2 Insert fully charged Li-ion battery (nose forward)
Close the lid. (Don't tighten too much)
Charging with power adapter or laptop
A Charging with power adapter
oPlug the charger into a power outlet (100-240V AC)
oConnect the Clinotronic S with the cable to the power adapter
Note ♥: While charging, you can use the device in only limited ways.
During the charging process, the specification of the device can not be guaranteed
due to temperature development during charging.
Charge the device before measuring!
oThe charging symbol appears in the upper right corner:
oThe device will automatically start charging
The following states of charge appear on the screen for 100%: or 75%: or 50%:
Almost empty: 25%
oCharge the Clinotronic S as soon as possible until the symbol 100% appears.
oLoading time full capacity: 8 h
oTypical usage time with radio switched on:
- backlight medium 33 h
B Charge via USB cable to the PC or laptop
oConnect the Clinotronic S with the cable to the PC or laptop
oThe Clinotronic S receives only a trickle charge with minimal power.
oThis allows you to measure without heating up the Clinotronic S.
oCharge the device before measuring!

Manual Clinotronic S
Seite 14 / 46

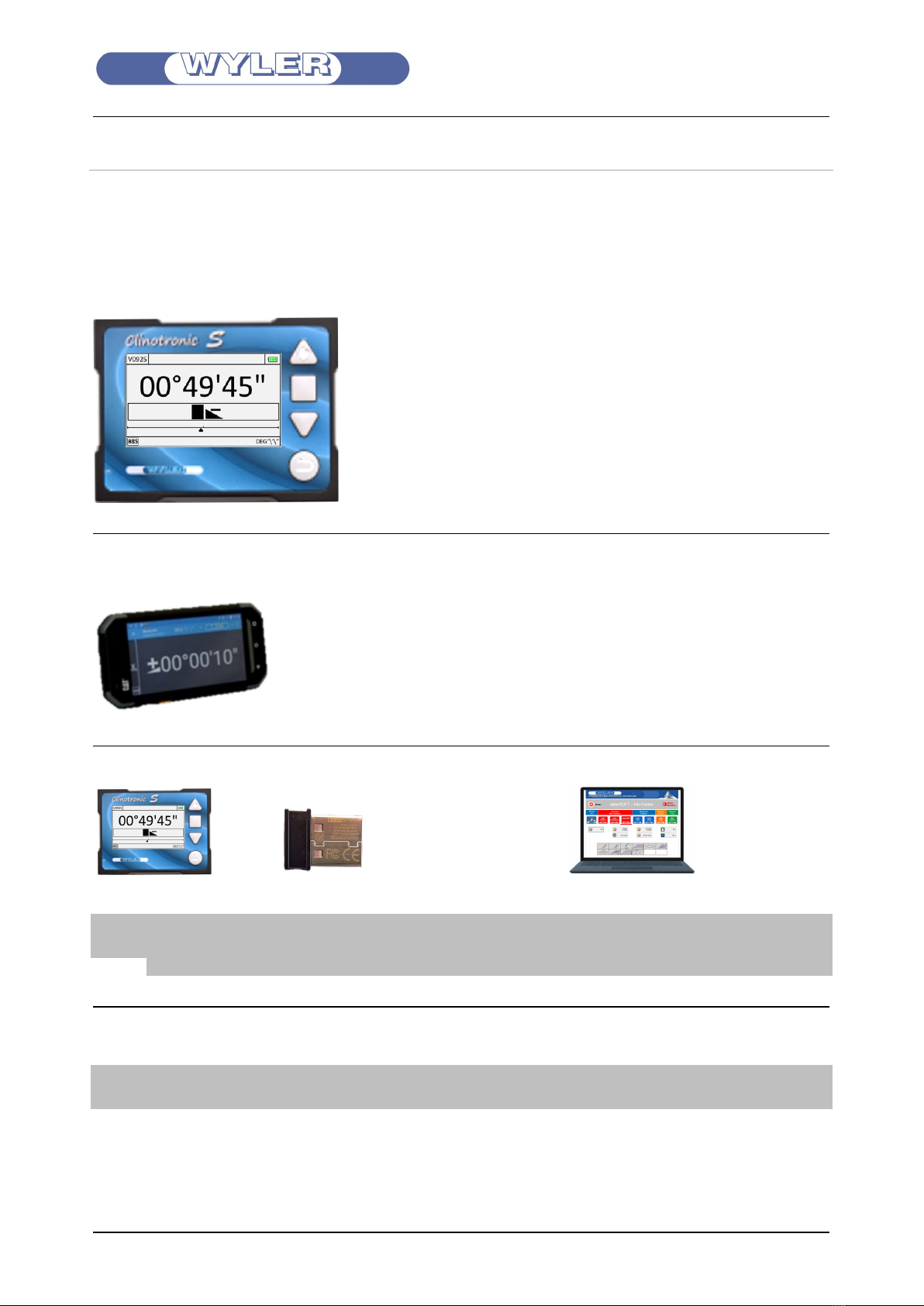

5. Operation
5.1 Configurations
As standalone
for immediate measuring and reading
Wireless with an Androidor iOSsmartphone and the free app "Clinotronic S"
as a remote display
Minimum requirement for Android: for iOS:
Wireless with the wylerCONNECT MINI for Windows computer
max 7 ⇒wylerCONNECTMINI ⇒PC
e.g. with wylerEXPLORER
Note ♥: The wylerCONNECT MINI connects up to seven Clinotronic S units with the Windows
computer.
Use our software products to collect and display data. Visit www.wylerag.com
Connected via cable (USB-C / USB-A) with a Windows computer
Note ♥: With the cable, you can update the firmware of the Clinotronic S via Windows computer.
The corresponding firmware loader can be found at www.wylerag.com

Manual Clinotronic S
Seite 15 / 46
5.2 Measurment bases
The device is equipped with four (4) measuring bases with flat measuring surfaces
Horizontal application
Measurement base above
Measurement base below
Vertical application
Measurement base left side Measurement base right side

Manual Clinotronic S
Seite 16 / 46
5.3 Screen overview and keyboard
•1 Screen
•2 Serial number; 2a IR number + 1 x flash when triggered
•3 Display of value (depending on the selected unit)
•4 Radio activated, not activated:
•5 Charge indicator , empty , charging
•6 Mode of measurement ABS = Absolute
Mode of measurement REL = Relative Zero (On-site relative zero)
•7 Local gravity is enabled
Standard value (9.8065 m/s2)
•8 Calibration executed with wylerMASTER
•9 Graphical display of the entire angle range
•10 Graphical display of the angle range near zero
•11 Gradient triangle and symbol plus / minus according to inclination
•12 Unit (depending on the setting)
•13 On/Off
within menu: Up arrow
•14 Menu
within menu: Enter
within submenu: Move cursor to the right
•15 Arrow down
Shortcut (press 2 seconds and release): "Relative Zero"
•16 Back / Cancel
within Menu: Move cursor to the left

Manual Clinotronic S
Seite 17 / 46
5.4 Switching on/off, measuring range
Switch On
•Press the button The screen starts immediately.
Note ♥:The device starts with the last used settings
Switch Off
•To switch off, press the button until the following message appears:
Release the button. The device is switched off.
Measuring range
•The measuring range at new state or after factory reset: ~ 46.5°
•After wylerMASTER calibration (see chapter 5.9.2.3) : 45°
Over range
The device stands in over range condition

Manual Clinotronic S
Seite 18 / 46
5.5 "Settings" menu, entry and exit
•Press the button to enter the "Settings" menu
In "Settings" contents:
Device .........................
Unit.............................
Measurement...............
Device Information........
•Use the up arrow and down arrow to move the cursor up und down.
•Using select the desired menu item in the menu. .
•With the button Back / Cancel you return to the measuring mode
Note ♥: With one or repeated clicks of you will return to the next highest level in the menu
until the measurement mode appears
Note ♥: With you can also cancel any function (such as Relative Zero, etc.)

Manual Clinotronic S
Seite 19 / 46
5.6 Settings in "Device"
Enter with into the "Settings" menu
•Use to select "Device"
•after that press:
•"Device" contents:
Brightness .........................
Bluetooth.........................
Zapper teach-in...................

Manual Clinotronic S
Seite 20 / 46
5.6.1 Device: "Brightness"
•In the "Devices" menu, use and to select "Brightness"
•Use to select the desired brightness:
Off
Medium
High
•Confirm your choice with
or
•cancel with
Note ♥: In both cases you will jump back to the "Device" menu
Attention !: As the brightness level increases, the unit consumes more power.
