WYLER Clinotronic S User manual

Manual Clinotronic S
Technical changes reserved 1 / 45 947-MA-0004-E R3.0
Manual
Electronic Inclinometer
Clinotronic S
WYLER AG
Im Hölderli 13
8405 Winterthur
Switzerland
[phone]
www.wylerag.com
[email protected]

Manual Clinotronic S
Technical changes reserved 2 / 45 947-MA-0004-E R3.0
Contents
1. Manual Clinotronic S................................................................................................................................ 3
Introduction .................................................................................................................................................................3
Note, Attention !, Warning!..........................................................................................................................................3
Manufacturer name and address ...............................................................................................................................3
Product brand and type designation ...........................................................................................................................4
Applicable documents.................................................................................................................................................4
2. Product description, technical data ....................................................................................................... 5
Measuring device, accessories...................................................................................................................................5
3. Safety instructions ................................................................................................................................... 7
Intended use ...............................................................................................................................................................7
Not intended use!........................................................................................................................................................7
Electromagnetic environment......................................................................................................................................7
Additional information for FCC (USA) and IC (Canada)..............................................................................................8
Safety Instructions Lithium Ion Batteries.....................................................................................................................9
Deadlines for calibration ...........................................................................................................................................10
4. Prepare product for use......................................................................................................................... 11
Content of case.........................................................................................................................................................11
Controls ....................................................................................................................................................................12

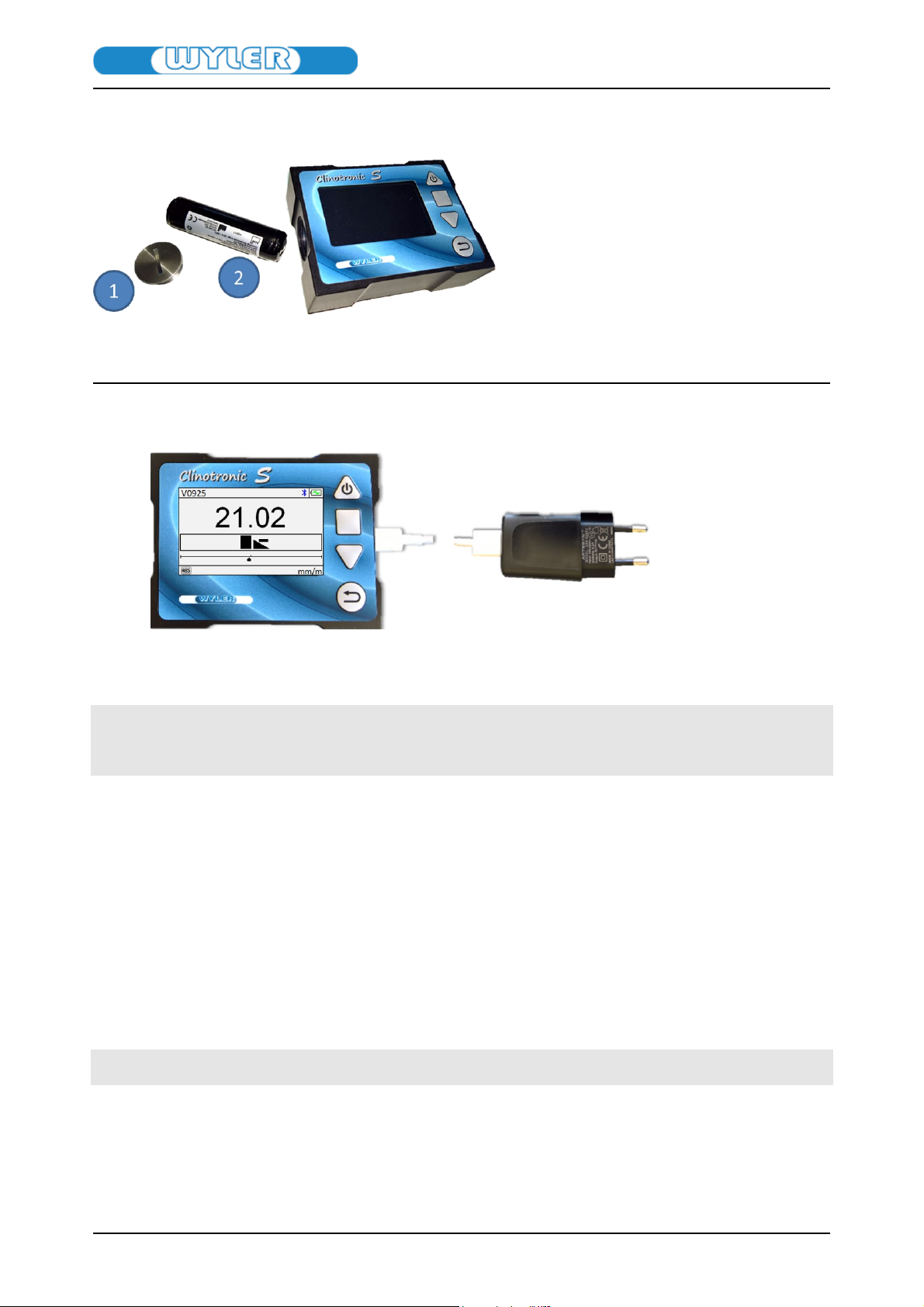

Charging with power adapter or operate on the laptop .............................................................................................13
5. Operation ................................................................................................................................................. 14
5.1 Configurations.....................................................................................................................................................14
5.2 Measurment bases .............................................................................................................................................15
5.3 Screen overview and keyboard...........................................................................................................................16

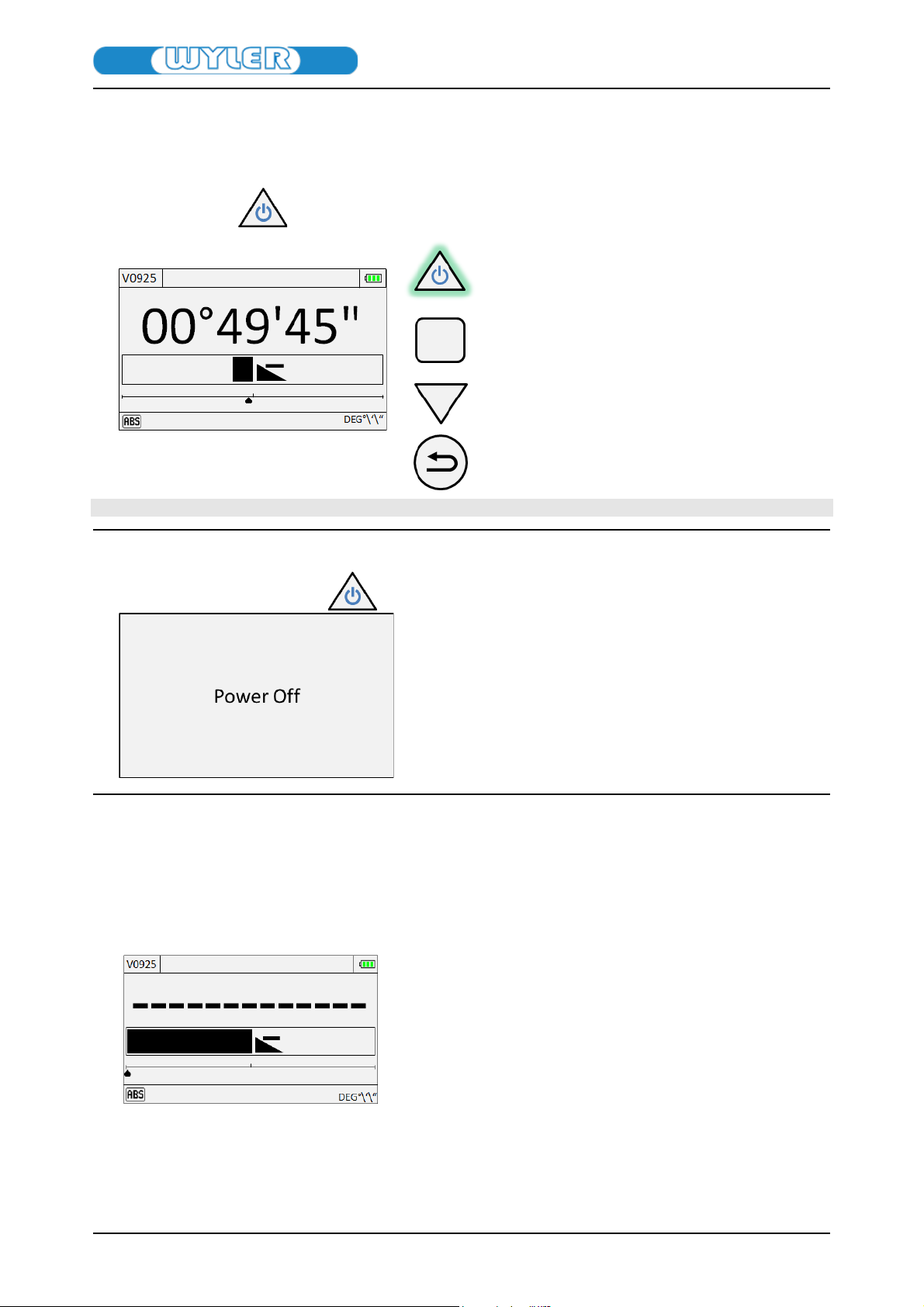

5.4 Switching On/Off, Measuring Range...................................................................................................................17
5.5 Menu "Settings", entry and exit ...........................................................................................................................18

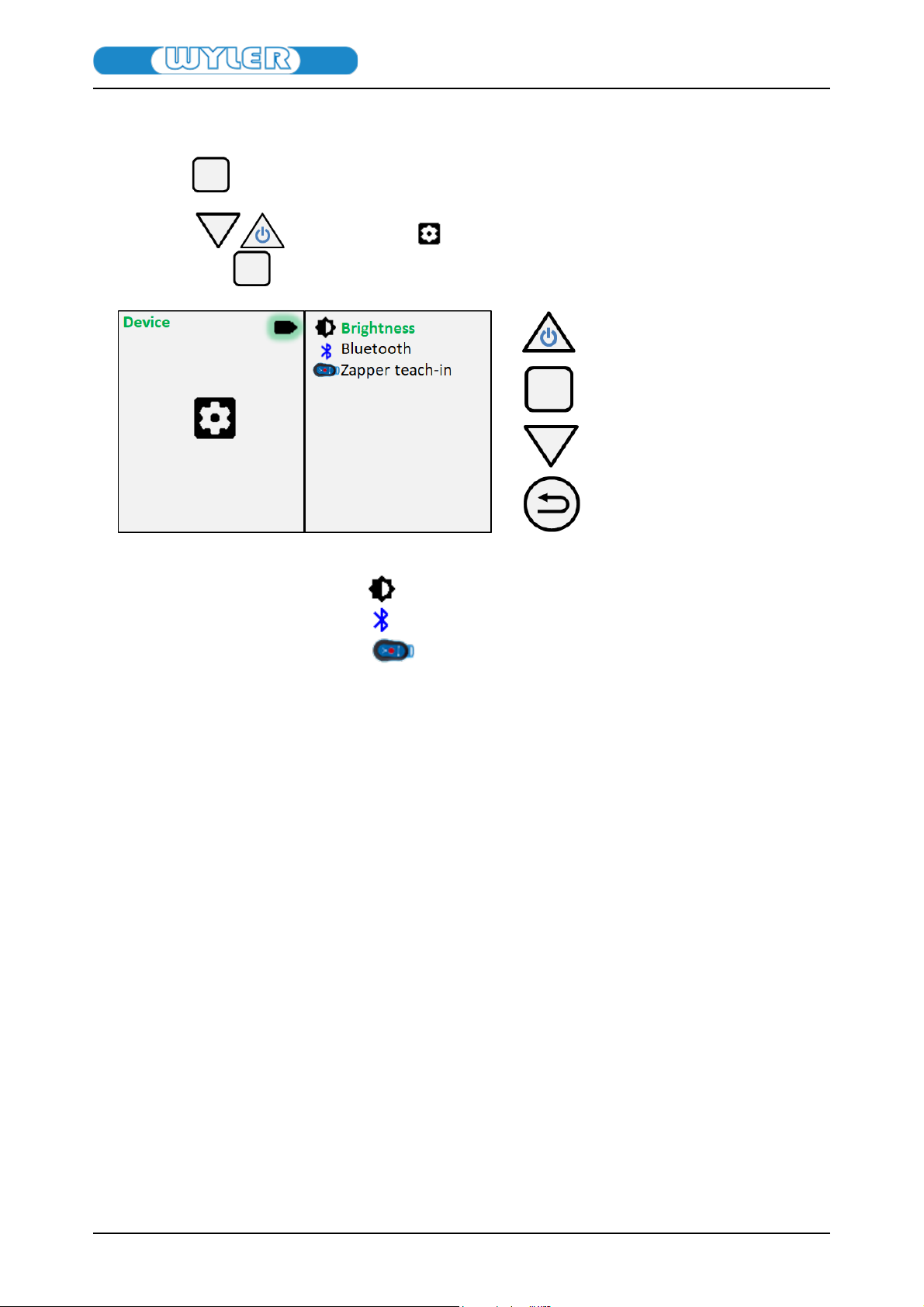

5.6 Settings in "Device".............................................................................................................................................19

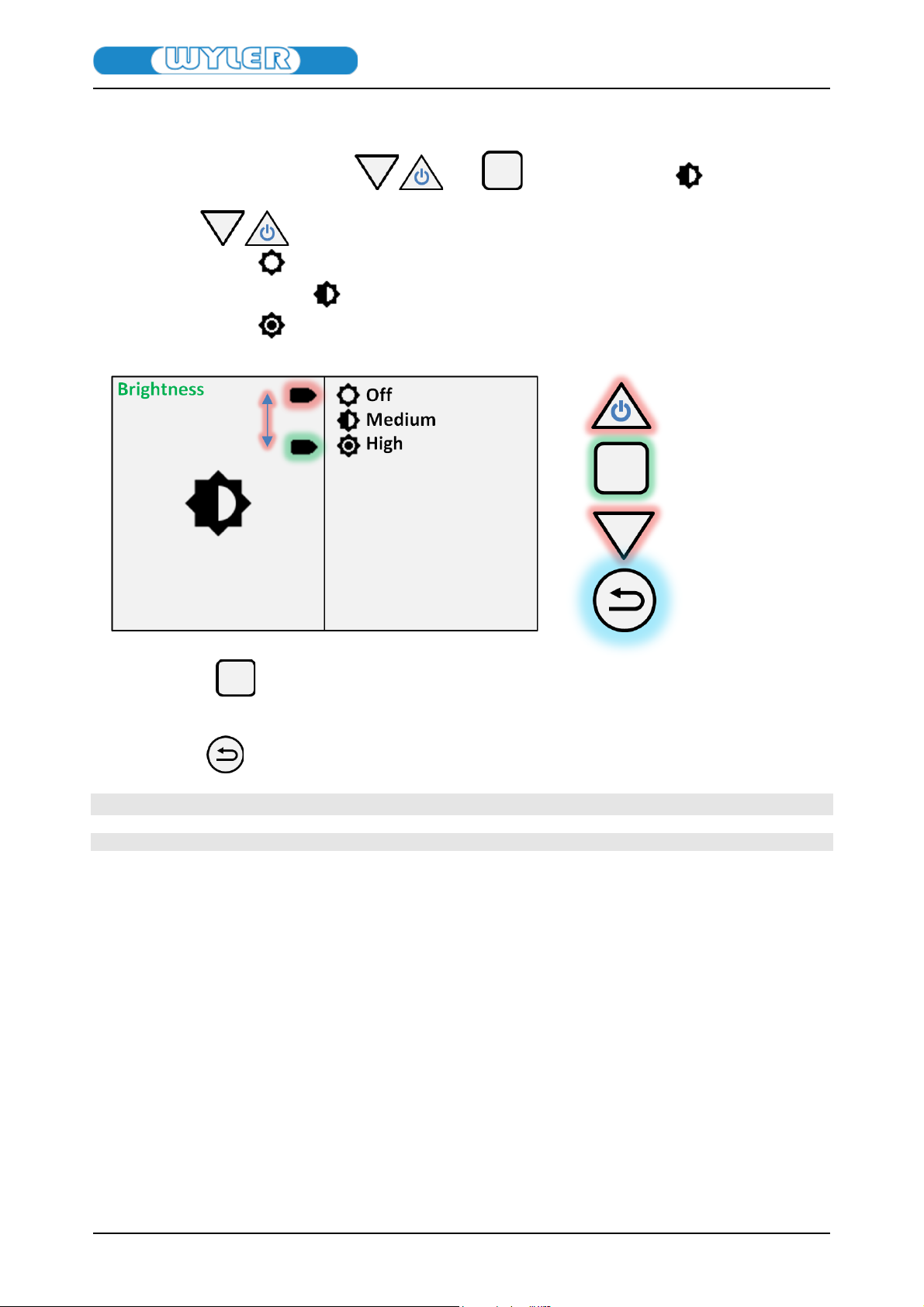

5.6.1 Device: "Brightness"...................................................................................................................................20
5.6.2 Device:"Bluetooth" .....................................................................................................................................21
5.6.3 Zapper teach-in..........................................................................................................................................22
5.7 Settings in "Units" ...............................................................................................................................................23
5.7.1 "Units" ........................................................................................................................................................24
5.7.2 Self-selected base mm/xxxx mm ...............................................................................................................25
5.8 Type of Measurement ........................................................................................................................................26
5.8.1 Absolute measurement ..............................................................................................................................27
5.8.2 Reversal measurement "Absolute Zero" ....................................................................................................28
5.8.3 Temporary reference level "Relative Zero" ................................................................................................30
5.9 Device Info..........................................................................................................................................................32
5.9.1 Device Info.................................................................................................................................................33
5.9.2 Advanced Settings .....................................................................................................................................34
5.9.2.1 Use Local gravity...............................................................................................................................35
5.9.2.2 Disable local gravity ..........................................................................................................................37
5.9.2.3 wylerMASTER calibration .................................................................................................................38
5.9.2.4 Factory Reset....................................................................................................................................43
6. Maintenance............................................................................................................................................ 44
For safe operation.....................................................................................................................................................44
Cleaning....................................................................................................................................................................44
Troubleshooting ........................................................................................................................................................44
Address customer service.........................................................................................................................................44
7. Disposal ................................................................................................................................................... 45
Decommissioning, disposal ......................................................................................................................................45
8. Document version and release notes…………………………………………...…………………………………..45

Manual Clinotronic S
Technical changes reserved 3 / 45 947-MA-0004-E R3.0
1. Manual Clinotronic S
Introduction
Before you start
Read this manual carefully before using the Clinotronic S for the first time.
Please also note the safety instructions.
Note: Incorrect manipulations or unintentional deletion of calibration data will be prevented by these
instructions.
Note, Attention !, Warning!
To make your reading easier, the following references are used in this manual:
•"Note:" This should highlight useful tips.
•"Attention !:" This is to avoid mishandling or disadvantages
•This mentions legally mandatory notes
Manufacturer name and address
WYLER AG
Im Hoelderli 13
8405 Winterthur
Switzerland
Phone [phone] www.wylerag.com
Fax [phone] [email protected]
Representatives: www.wylerag.com

Manual Clinotronic S
Technical changes reserved 4 / 45 947-MA-0004-E R3.0

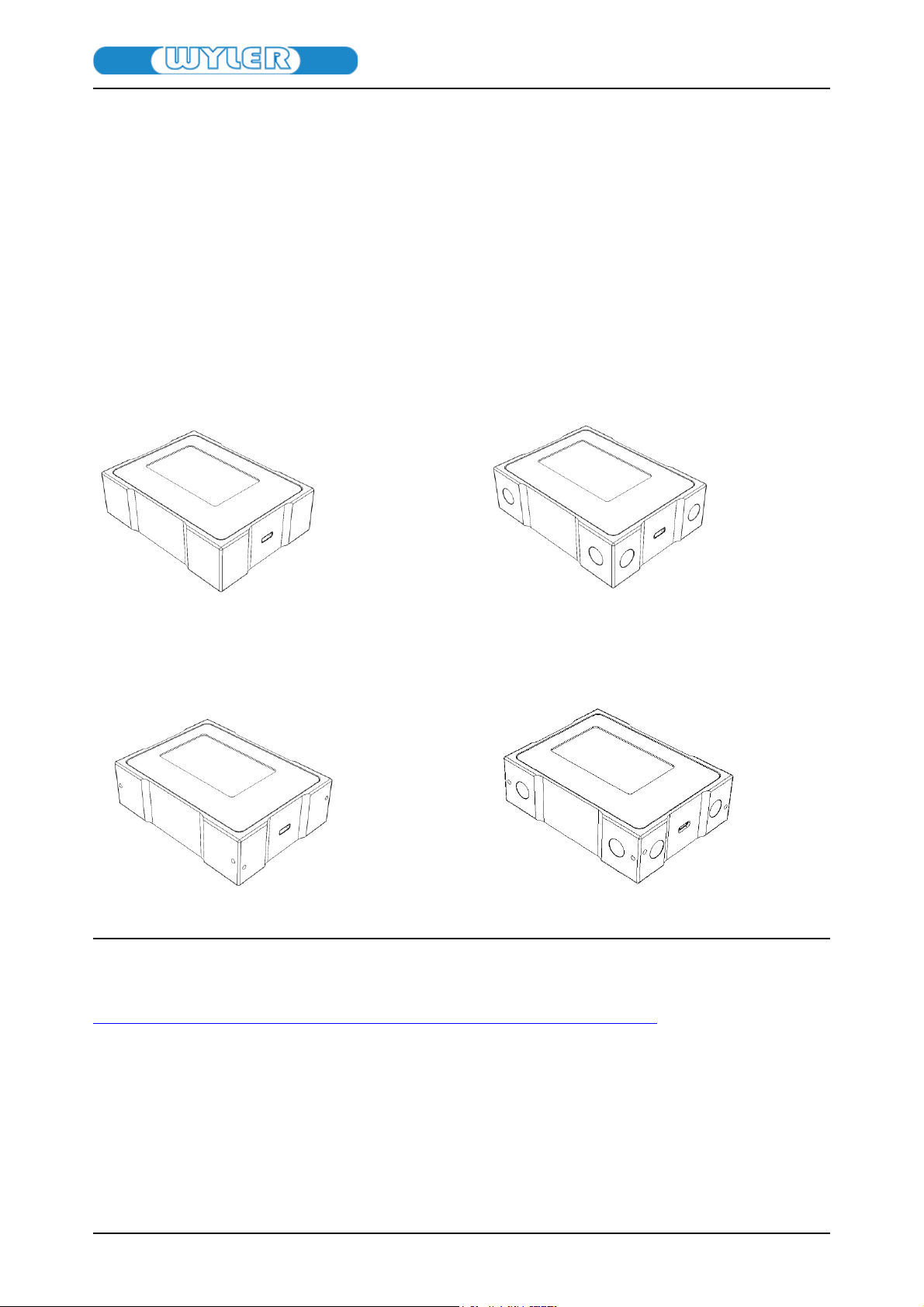

Product brand and type designation
Product brand
Clinotronic S
Type designation:
*Art. No. 015-S-XG45 *Art. No. 015-S-HG45
without inserts with 2 magnets on each side
*Art. No. 015-S-PG45 *Art. No. 015-S-UG45
with 2 M3 threads on all sides with 2 M3 threads on all sides
*Subject to change
Applicable documents
https://www.wylerag.com/fileadmin/pdf/cerificates_DoC/DoC_Clinotronic S_R2.pdf
The CE Declaration of Conformity can be found on our homepage at: www.wylerag.com
at the product page Clinotronic S "Download".

Manual Clinotronic S
Technical changes reserved 5 / 45 947-MA-0004-E R3.0
2. Product description, technical data
Measuring device, accessories
The measuring device
oThe housing of the Clinotronic S is made of black anodized aluminum.
oThe 4 measuring bases are located in each of the quadrants (frame).
oThe front and back are equipped with a plastic film.
Screen area: The film is equipped with barely visible distance points against streaking when
touched.
oOn the front side located is the color screen and the operating membrane keyboard
oOn the right side is the USB-C port
oAs standard, the device is equipped with Bluetooth® BLE and the wylerCONNECT MINI
oIncludet is also an infrared (IR) trigger for data acquisition
oThe power supply consists of a replaceable, rechargeable 3.6V lithium-ion battery
The access is on the left.
oThe device can be charged via the USB-C port and the included charging power supply (5V).
Dimension, weight, type of protection, storage
Measuring range: 45°
Resolution : 5 arcsec or 0.02mm/m
Dimension L x H x T: 100 x 75 x 30 mm
Weight: 400 g
Protection class: IP64
Storage conditions: -20° bis +60° C
Operating conditions: 0° to 40 ° C
Accessories
owylerCONNECTMINI (BluetoothBLE)
oUSB power adapter and cable USB-A/USB-C
oInfrared(IR)-Trigger
oLi-ion-Battery
oKoffer aus Kunststoff
oManual
oAndroid-App in Google-Store, iOS-App in Apple Store
Note: Scope of delivery of the accessories is defined in the actual catalog!

Manual Clinotronic S
Technical changes reserved 6 / 45 947-MA-0004-E R3.0
Optional accessories www.wylerag.com
Soft ware
oInterface software
oGeometry measuring software
oMonitoring soft ware
oSoftware tools
Calibration
owylerMASTER
Remote display
oAndroid smartphone with installed App
Energie
oExtra Li-ion-Batteries
oExternal charger for max two Li-ion batteries

Manual Clinotronic S
Technical changes reserved 7 / 45 947-MA-0004-E R3.0
3. Safety instructions
•The device complies with the applicable directives and standards
Consult:
- The current CE Declaration of Conformity Clinotronic S
- This instruction manual and the quick reference
- The type label on the back of the device
Intended use
•The Clinotronic is designed exclusively for measuring inclination angles.
For this purpose, the device is placed on a flat, stable surface or held by hand
The measured value can
- be read directly on the screen
- be read by Bluetoothand app on smartphones as Androidor iOS
- be sent via Bluetoothand wylerCONNECT MINI to a Windows computer
Attention !: There are no other uses!
Not intended use!
•The device must not be used as a base, e.g. be used in a vise. The precise housing can be deformed
and will be unusable.
•It must not be used under water, as the tightness class is insufficient and the device may suffer a short
circuit inside.
•It must not be used in any form as a hammer because the measuring surfaces are beeing damaged
and the device is therefore no longer measurable.
•The device must not be thrown. The aluminum housing can cause serious injuries and damages
Electromagnetic environment
Note: The electromagnetic environment should be assessed before operating this equipment
Do not use this device near sources of strong electromagnetic radiation (such as unshielded,
intentionally operated high frequency sources), as these may interfere with proper operation.

Manual Clinotronic S
Technical changes reserved 8 / 45 947-MA-0004-E R3.0
Additional information for FCC (USA) and IC (Canada)
FCC part 15 und ICES-0003
Device Class A
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation”.
This Class A digital apparatus complies with Canadian ICES-0003.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense

Manual Clinotronic S
Technical changes reserved 9 / 45 947-MA-0004-E R3.0
Safety Instructions Lithium Ion Batteries
The lithium ion batteries 3.6Vare rechargeable
Type of battery: 18650
Only the original type 18650 lithium ion batteries may be used
Lithium-ion batteries are only allowed to be charged with the supplied chargers.
Lithium-ion batteries are only allowed to be charged supervised.
Verschliessen Sie den Lithium-Ionen Batterien-Verschlussdeckel sorgfältig, aber nicht mit Gewalt!
Für die Dichtheit des Verschlusses ist ein Gummi-Dichtring montiert.
Note the current regulations of the airlines regarding the
transport of lithium-ion batteries in any baggage!
Do not immerse the device in water!
The lithium ion batteries are protected against overcharging and short circuit.
Underwater the short-circuit protection is not secure!

Manual Clinotronic S
Technical changes reserved 10 / 45 947-MA-0004-E R3.0
Deadlines for calibration
•The rhythm of the calibration must be determined by the customer.
•Our non-binding recommendation:
In case of suspected damage: immediately
For weekly use or more: every year
For monthly use: every 2-3 years
•WYLER AG operates a calibration center for the parameters length, planarity
and angles according to EN / ISO / IEC 17025.
•The accreditation is carried out by METAS.
WYLER accreditation number: SCS 044

Manual Clinotronic S
Technical changes reserved 11 / 45 947-MA-0004-E R3.0
4. Prepare product for use

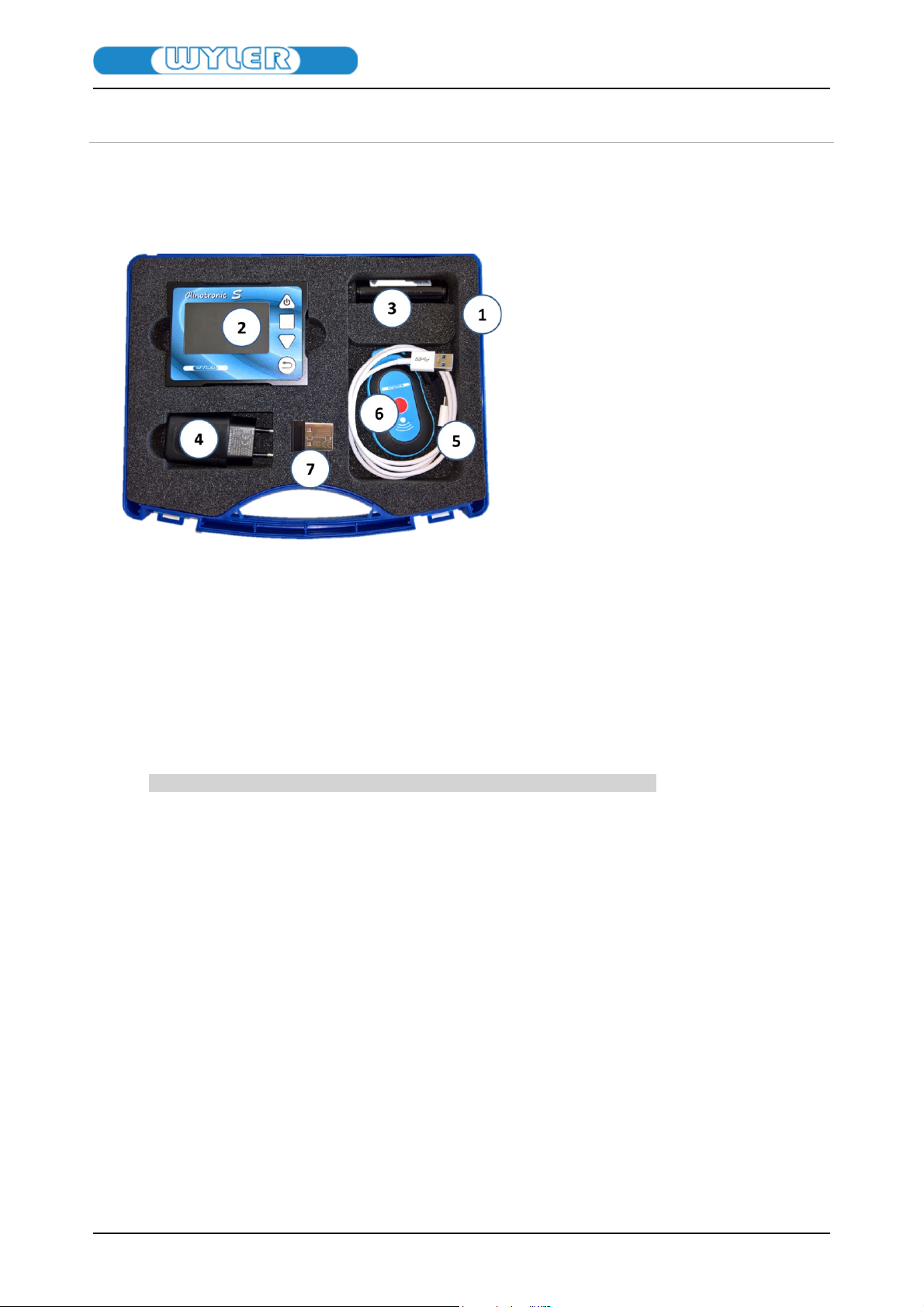

Content of case (including accessories)
1Case
2Clinotronic S
3Lithium-ion-Batteries 3.6V, Type 18650
4USB power adapter
5Cable USB-A/USB-C
6wylerTRIGGER Infrarot(IR) trigger
7wylerCONNECT MINI
→Quickreference
→Manual download at www.wylerag.com
Note: Scope of delivery of the accessories is defined in the actual catalog!

Manual Clinotronic S
Technical changes reserved 12 / 45 947-MA-0004-E R3.0

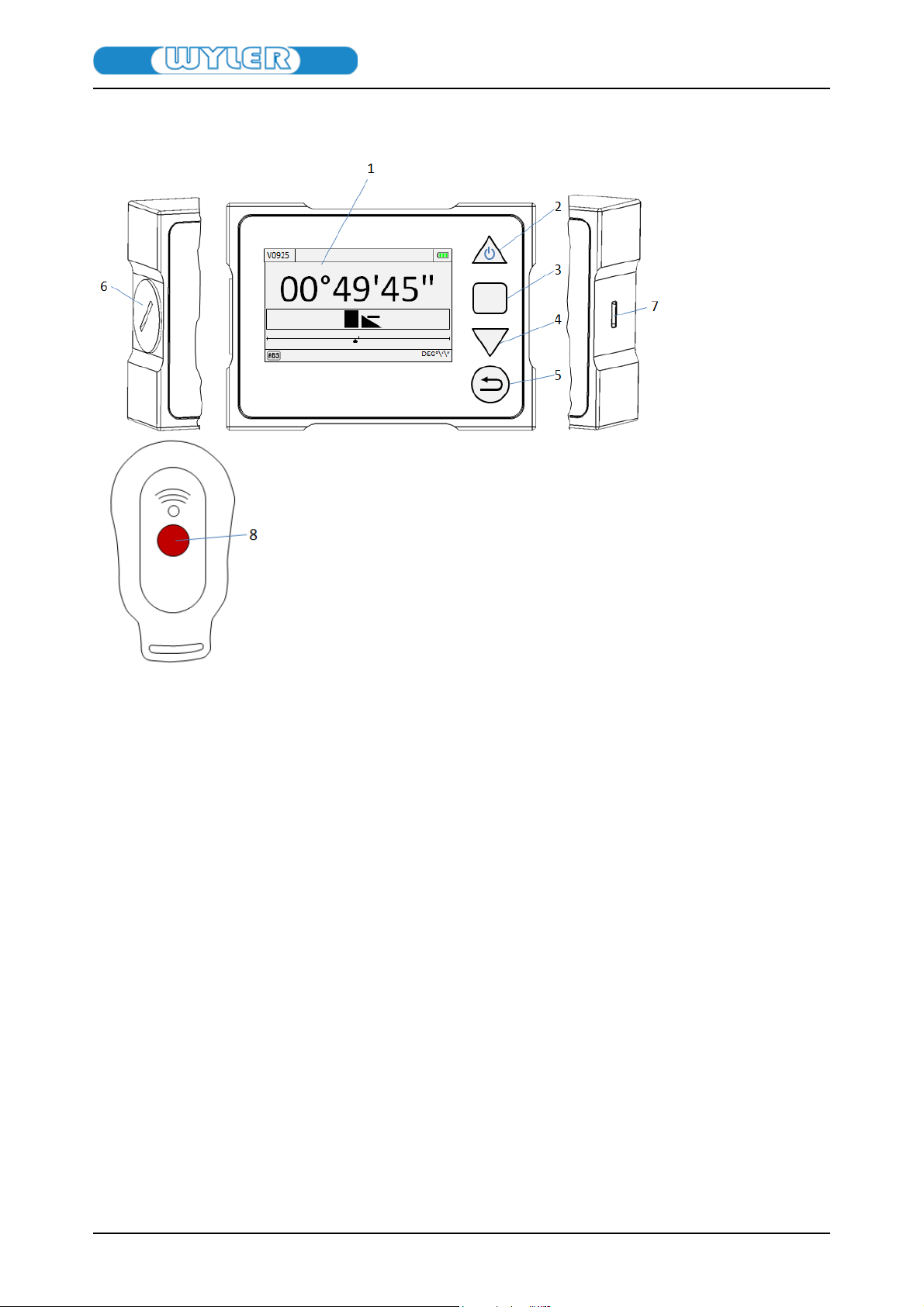

Controls
•1Screen
•2On/Off
•3Menu
Enter
•4Arrow button down
Short cut (hold 2 seconds) "Relative Zero"
•5Back/cancel
•6Lithium-ion battery lid
•7USB-C connection
•8wylerTRIGGER Infrared (IR) trigger

Manual Clinotronic S
Technical changes reserved 13 / 45 947-MA-0004-E R3.0
Replacement of Li-ion batteries
1 Remove battery lid, remove empty Li-ion battery
2 Insert full Li-ion battery (nose forward)
Close the lid. (Don't tighten too much)
Charging with power adapter or operate on the laptop
A Charging with power adapter
oPlug the charger into a power outlet (100-240V AC)
oConnect the Clinotronic S with the cable to the power adapter
Attention !: While charging, you can NOT use the device.
During the charging process, the specification of the device can not be guaranteed
due to temperature development during charging.
Charge the device before measuring!
oSwitch on the device.
oThe device goes into battery charging mode. A large battery symbol appears on the screen.
oOnce the battery is charged, the text "Charged" appears on the screen and the battery icon is
no longer animated
oDisconnect the device from the USB cable. The device switches back to measurement mode
and is ready for use.
Loading time full capacity: 8 h
Typical usage time with radio switched on:
- backlight medium 33 h
B Usage via USB cable to the PC or laptop
oConnect the Clinotronic S with the cable to the PC or laptop
oThe Clinotronic S is powered via the USB socket of the PC. The device remains in measuring
mode
Note: If the device is connected to the PC via the USB cable, it is operated electrically.
But the battery is not charging.

Manual Clinotronic S
Technical changes reserved 14 / 45 947-MA-0004-E R3.0
5. Operation
5.1 Configurations
As stand alone device
for immediate measuring and reading
Wireless with an Androidsmartphone and the free app "wylerUNIVERSAL" as a remote display
Wireless with the wylerCONNECT MINI for Windows computer
max 2 wylerCONNECTMINI PC
e.g. with wylerEXPLORER
Note: The wylerCONNECT MINI connects up to 2 Clinotronic S with the Windows computer.
Use our software products:
wylerEXPLORER: to display values.
wylerCHART: to collect and display data with max. 2 Clinotronic S without
sofware licence.
SDK: to collect data with your own software.
Visit: www.wylerag.com
Connected via cable (USB-C / USB-A) with a Windows computer
Note: With the cable you can update the firmware of the Clinotronic S via Windows computer.
The corresponding firmware loader can be found at www.wylerag.com

Manual Clinotronic S
Technical changes reserved 15 / 45 947-MA-0004-E R3.0
5.2 Measurment bases
The device is equipped with four (4) measuring bases with flat measuring surfaces
Horizontal application
Measurement base above
Measurement base below
Vertical application
Measurement base left side Measurement base right side

Manual Clinotronic S
Technical changes reserved 16 / 45 947-MA-0004-E R3.0
5.3 Screen overview and keyboard
•1 Screen
•2 Serial number; 2a IR number + 1 x flash when triggered
•3 Display of value (depending on the selected unit)
•4 Radio activated, not activated:
•5 Charge indicator , empty , charging
•6 Mode of measurement ABS = Absolute
Mode of measurement REL = Relative Zero (On-site relative zero)
•7 Local gravity is enabled
Standard value (9.8065 m/s2)
•8 Calibration executed with wylerMASTER
•9 Graphical display of the entire angle range
•10 Graphical display of the angle range near zero
•11 Gradient triangle and symbol plus / minus according to inclination
•12 Unit (depending on the setting)
•13 On/Off
within menu: Up arrow
•14 Menu
within menu: Enter
within submenu: Move cursor to the right
•15 Arrow down
Short cut (press 2 seconds and release): "Relative Zero"
•16 Back / Cancel
within Menu: Move cursor to the left

Manual Clinotronic S
Technical changes reserved 17 / 45 947-MA-0004-E R3.0
5.4 Switching On/Off, Measuring Range
Switch On
•Press the button The screen starts immediately.
Note:The device starts with the last used settings
Switch Off
•To switch off press the button until the following message appears:
Release the button. The device is switched off.
Measuring range
•The measuring range at new state or after factory reset: ~ 46.5°
•After wylerMASTER calibration (see chapter 5.9.2.3) : 45°
Over range
The device stands in over range condition

Manual Clinotronic S
Technical changes reserved 18 / 45 947-MA-0004-E R3.0
5.5 Menu "Settings", entry and exit
•Press the button to enter into menu "Settings"
In "Settings" contents:
Device .........................
Unit.............................
Measurement...............
Device Information........
•Use the arrow up and arrow down to move the cursor up und down.
•Using select the desired menu item in the menu. .
•With the button Back / Cancel you return to the measuring mode
Note: With one or repeated clicks of you will get back the next higher level in menu
until the measurement mode appears
Note: With you can also cancel any function (such as Relative Zero, etc.)

Manual Clinotronic S
Technical changes reserved 19 / 45 947-MA-0004-E R3.0
5.6 Settings in "Device"
Enter with into the menu "Settings"
•Select with the item "Device"
•after that press:
•"Device" contents:
Brightness .........................
Bluetooth.........................
Zapper teach-in...................

Manual Clinotronic S
Technical changes reserved 20 / 45 947-MA-0004-E R3.0
5.6.1 Device: "Brightness"
•In the menu"Devices" select with and the item "Brightness"
•Select with the desired brightness:
Off
Medium
High
•Confirm with your choice
or
•cancel with
Note: In both cases you will jump back to the "Device" menu
Attention !: Depending on brightness level the unit consumes more power.
