Quick Reference Clinotronic S Release 1.1.1
Im Hölderli 13
8405 Winterthur Outside Switzerland: contact our representatives
Switzerland www.wylerag.com/en/contact/representatives/
Thank you for choosing WYLER!
Read this quick reference before start working with the Clinotronic S.
Please observe the safety instructions.
Brand and Type
Brand Clinotronic S, Types Art. 015-S-XG45 without inserts
Art. 015-S-HG45 with 2 magnets each side
Art. 015-S-PG45 with 2 threats M3 each side
Warning! The following sign is used in this Quick Reference:
This is intended to indicate special dangers
Safety instructions
The Clinotronic S complies with the applicable directives and standards, see:
This Quick Reference - The nameplate on the back of the device
The manual with the CE Declaration of Conformity Clinotronic S at www.wylerag.com
Intended Use
The Clinotronic S is designed exclusively for measuring inclination angles.
Attention!: There is no other use!
Not intended use
- The device does not serve as a support in vices! The precise housing can deform.
- Do not immerse underwater! Since the device may suffer a short circuit inside.
- Do not use as a hammer! The damaged measuring surfaces are then no more precise.
- Do not throw the device! The housing can cause serious injury.
- Do not use this device near sources of strong electromagnetic energy Radiation (e.g.,
unshielded radio frequency source) because they can interfere with operation.
- Only the original WYLER AKKUS may be used.
- The batteries may only be charged with the included chargers.
- The batteries may only be charged supervised. Do not leave the batteries lying around
- The batteries must not be charged at temperatures below 0 ° C
- The batteries must not be discharged at temperatures below -20 ° C.
- Close the battery cap on the device carefully, but not by force!
For the tightness of the closure, an O-ring is mounted.
- Observe the current regulations of the airlines regarding the
Transports of lithium-ion batteries in hand luggage and in checked baggage!
- Do not immerse the device in water! Underwater, the built-in short-circuit
securing your effect!
Technical datas, Mass, Weight, Protection, Operation, Storage
Measuring Range: 45° Resolution: 5 arcsec oder 0.02mm/m
Dimension L x H x D: 100 x 75 x 30 mm Weight: 400 g
Protection: IP64 Weight Scope of delivery: 850 g
Storage: Im Koffer bei -20° bis +60° C Operation temperature: 0° bis 40 °

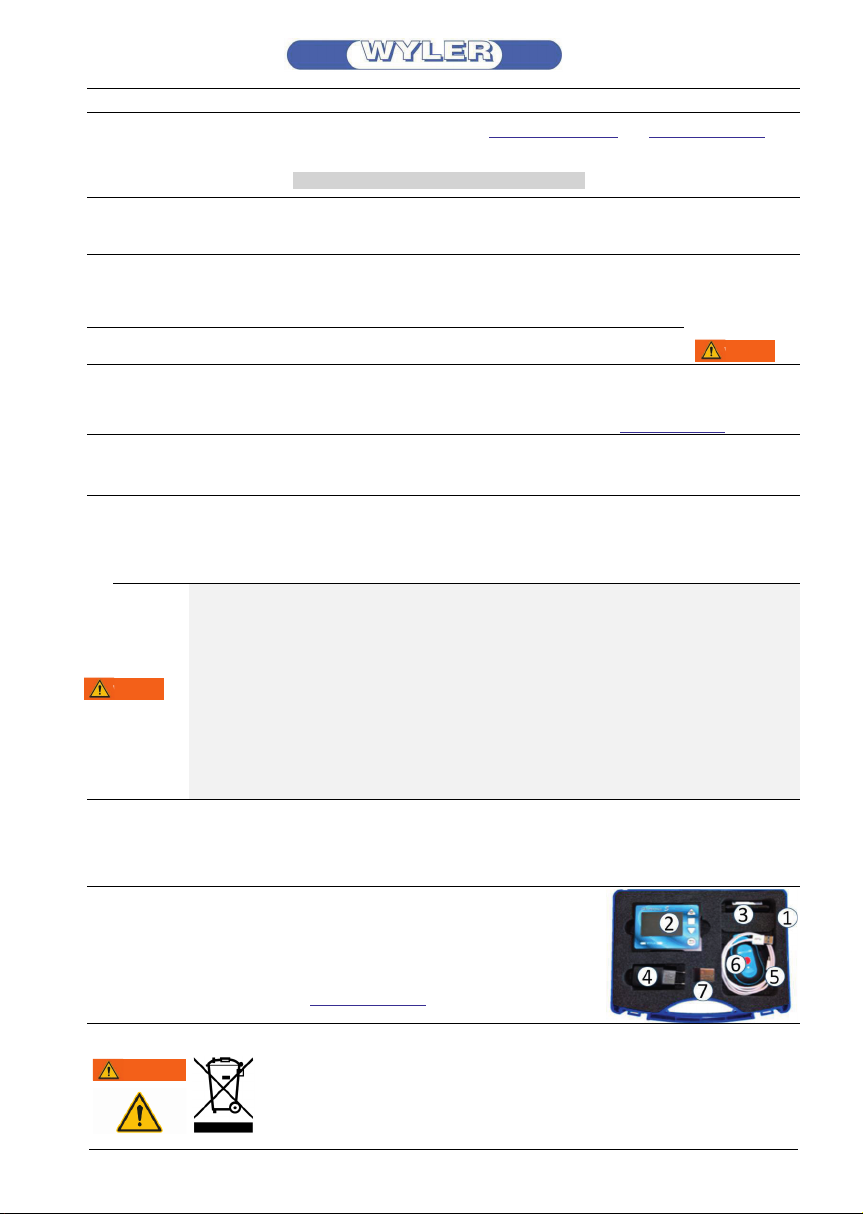

Standard scope of delivery (accessories see www.wylerag.com)
1- Case for storage, transport and shipping for repair
2- Clinotronic S, 3- Li-Ion Battery
4- Battery Charger 5- USB cable
6- IR Zapper 7- wylerCONNECT MINI, Bluetooth
- Quick reference (Manual see: www.wylerag.com)
Decommissioning, disposal
When decommissioning the Clinotronic S,follow the local regulations for
Disposal of electronic waste.
- The batteries must be removed from the device and both parts separately from
the be supplied for proper disposal.
