Xilinx Ml506 User manual

ML505/506

QuickStart

May 2008

Overview

•Setup

•Boot with ACE-loader ACE File

•Observe LCD and Terminal messages

•Load new Configuration

•Re-load ACE-loader

ML505 BSB Hardware

•The ML505 MicroBlaze design

hardware includes:

–DDR2 Interface (256 MB)

–BRAM

–External Memory Controller (EMC)

•ZBT SRAM

–Networking

–UART

–Interrupt Controller

–System ACE CF Interface

–GPIO (IIC, LEDs and LCD)

–PLB Arbiter

Note: Presentation applies to the ML505 and ML506

Additional Setup Details

•Refer to ml505_overview_setup document for details on:

–Software Requirements

–ML505 Board Setup

•Equipment and Cables

•Software

•Network

–Terminal Programs

•This presentation requires the

9600-8-N-1 Baud terminal setup

Note: Presentation applies to the ML505 and ML506

Hardware Setup

•Connect the Xilinx Parallel

Cable IV (PC4) to the

ML505 board

•Connect the RS232 null

modem cable to the

ML505 board

Note: Presentation applies to the ML505 and ML506

Hardware Setup

•The ML505 uses a DVI video

interface

•Connect a DVI monitor

or

•Use a DVI/VGA adapter

to connect a VGA monitor

–http://www.belkin.com

Note: Presentation applies to the ML505 and ML506

Hardware Setup

•USB Keyboard

–www.dell.com

Note: Presentation applies to the ML505 and ML506

Factory CompactFlash

•The CompactFlash shipped with the ML505 board has the

following ace files preloaded:

Note: Presentation applies to the ML505 and ML506

Verify Factory Default Settings

•Set the Ethernet PHY jumpers, J22, J23 to positions 1-2 (1)

•Insert the Factory CompactFlash into the ML505 board (2)

•Set the Front DIP switches (SW3) to 00010101 (1 = ON) (3)

•Set the Rear DIP switches (SW6) to 11001010 (4)

•Power-up the ML505 board

4

Note: Presentation applies to the ML505 and ML506

2

3

1

Bootload

•The system_bootload.ace loads:

Note: Presentation applies to the ML505 and ML506

Bootload

•The terminal window also reflects the bootload application

•Use the left/center/right buttons to choose an application or type a

number in the terminal window

•After each demo, push the SysACE reset to return to bootload

Note: Presentation applies to the ML505 and ML506

Slideshow

•Type 1, to launch the slideshow application in Configuration 1

•The slideshow loads the presentation into memory then presents it

Note: Presentation applies to the ML505 and ML506

Slideshow

•The slideshow app will present a series of slides on the Monitor:

Note: Presentation applies to the ML505 and ML506

Web Server

•Type 2, to launch the web server application in Configuration 2

–Note: You may need to turn off your browser's proxy and specify a direct

connection to the Internet in your browser options

Note: Host IP is 1.2.3.9, subnet mask is 255.0.0.0; Ethernet connection is 100 Full Duplex

Web Server

•In your web browser, enter http://1.2.3.4:8080/index.html

Note: Presentation applies to the ML505 and ML506

Simon

•Type 3, to launch the Simon application in Configuration 3

Note: Presentation applies to the ML505 and ML506

Board Diagnostics

•Type 4, to launch the XROM application in Configuration 4

Note: Presentation applies to the ML505 and ML506

Board Diagnostics

•XROM includes a series of board test routines

Note: Presentation applies to the ML505 and ML506

USB Keyboard

•Type 5, to launch the USB Keyboard application in Configuration 5

•Type ML505 and view results:

Note: Presentation applies to the ML505 and ML506

My ACE

•Type 6, to launch the My ACE application in Configuration 6

Note: Presentation applies to the ML505 and ML506

This manual suits for next models

1

Table of contents

Other Xilinx Computer Hardware manuals

Xilinx

Xilinx MicroBlaze User manual

Xilinx

Xilinx ML628 User manual

Xilinx

Xilinx LogiCORE IP AXI User manual

Xilinx

Xilinx Alveo U200 User manual

Xilinx

Xilinx Zynq-7000 User manual

Xilinx

Xilinx Virtex-6 FPGA User manual

Xilinx

Xilinx Spartan-3A DSP FPGA Series Quick start guide

Xilinx

Xilinx VC709 User manual

Xilinx

Xilinx Spartan-3A DSP FPGA Series User manual

Xilinx

Xilinx Alveo X3522 User manual

Xilinx

Xilinx AC701 Si570 Owner's manual

Xilinx

Xilinx Kintex-7 FPGA KC705 User manual

Xilinx

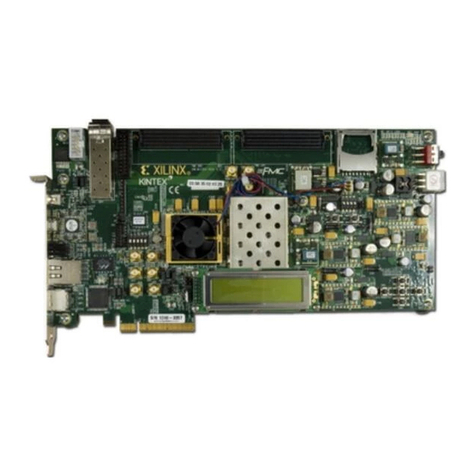

Xilinx KC705 User manual
