Xplova X5 Evo User manual

Smart Video Cycling Computer
Quick Start Guide
智慧拍攝車錶
快速入門指南
智慧拍摄车表
快速入门指南
スマートビデオサイクリングコンピューター
クイックスタートガイド
Smart Video Cycling Computer


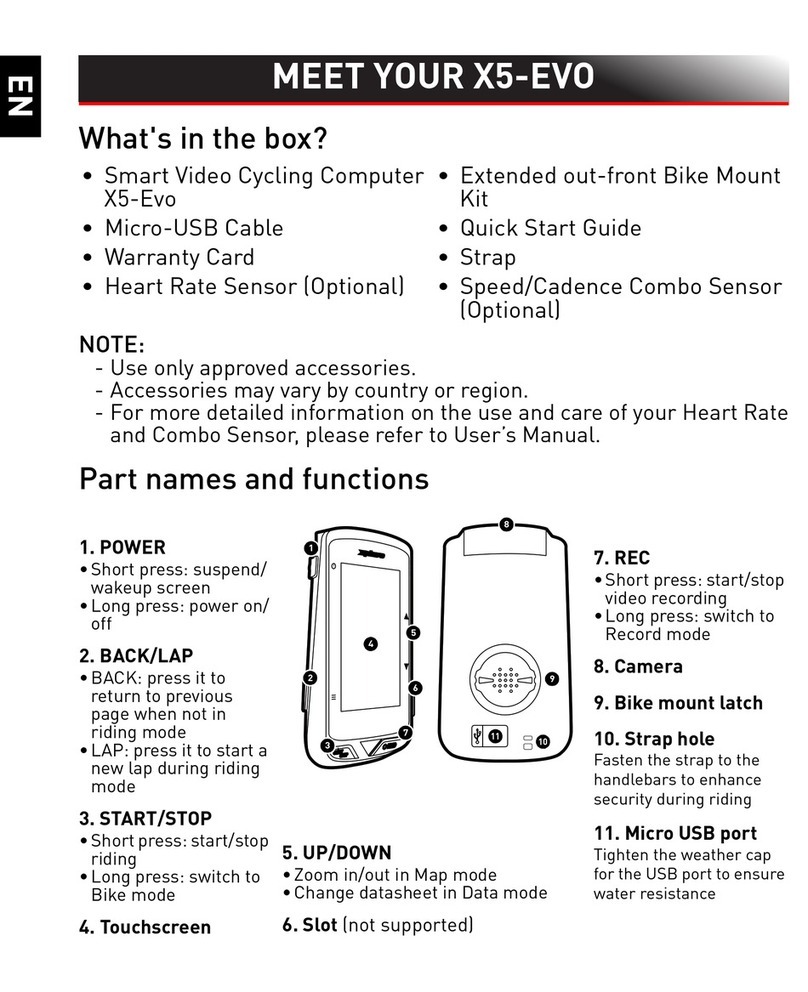

MEET YOUR X5EVO
What's in the box?
• Smart Video Cycling Computer X5Evo
• Extended out-front Bike Mount Kit
• Micro-USB Cable
• Quick Start Guide
• Warranty Card
• Strap
• Heart Rate Sensor (Optional)
• Speed / Cadence Combo Sensor (Optional)
!
• Use only approved accessories.
• Accessories may vary by country or region.
NOTE • For more detailed information on the use and care of your
Heart Rate and Combo Sensor, please refer to User’s Manual.
What do the buttons do?
1.POWER
• Short press: suspend/
wakeup screen
•Long press: power on/off
2.BACK/LAP
• BACK: press it to return
to HOME screen in non-
riding status
•LAP: press it to start a
new lap during a ride
3.START/STOP
• Short press: start/stop
recording
• Long press: switch to
Bike mode
4.Touchscreen
5.UP/DOWN
• Zoom in/out in map mode
• Date sheet change in date mode
6.3GSIMcard door (not
support)
7.REC
• Short press: start/stop
8
video recording
• Long press: switch to
Record mode
8.Camera
9.Bike Mount
Latch 10.Strap
hole
Fasten the strap to the
handlebars. Enhance
security during riding
11.Micro USB Port
Cover the USB port tightly
to prevent from water
damage
1
2
3
4
7
5
6
11
10

GETTINGSTARTED
Charging the X5Evo to 100%
Before you start using the X5Evo for the first time, you should
charge the built-in battery (using the provided USB cable) for at
least 5 hours. Afully charged battery will be ready to give you up
to 12 more hours of ride time whenever GPS-enabled (Wi-Fi/
Backlight-off).
!
NOTE
• Gently pull up the rubber cover from the Micro-USB Port to
avoid breaking it off. Ensure putting it back when recharging
process is done.
• To prevent corrosion, thoroughly dry the Micro-USB port,
rubber cover, and the surrounding area before charging or
connecting to a computer.
• The X5Evo can be charged while using.
• The operating temperature rang for X5Evo is from -10°C to
50°C
• Do not leave X5Evo in high temperature (over 60°C) and damp
environments.
Installing the X5Evo on the bike
1. Attach the Extended out-front Bike Mount on the bike han-
dle bar. Align it with the bike stem and tighten the screw.
Ensure that the mount is securely locked and parallel with
the ground level toward the front.
2. Hold X5Evo firmly and turn it toward the right. Place it hori-
zontally on the mount notch and press downward slightly.

3. Turn 90-degrees counterclockwise to lock it on the bike
mount.
4. Eventually X5Evo is parallel to your stem. You can operate
with ease.
Performing the initial Startup
Press and hold the POWER button to activate X5Evo and follow
the on-screen instructions to personalize your computer profile
and configure system settings.
Pre-Ride Setting
Please set the basic settings in advance to get more accurate
ride information from X5Evo.
• Connect to a Wi-Fi network: Settings > Network > Wi-Fi.
• Locate your GPS: Settings > System > GPS > Activate GPS
(It is recommended to locate your GPS at an open air area).
• Pair your X5Evo with optional ANT+ Sensors (if available):
Settings > ANT+.
• Altitude Calibration: Settings > Device > Altitude Calibration.

LET'S GOFOR ARIDE
Home screen display
The home screen provides quick access to features and settings.
Routes
Train
Settings
Status bar
Activities
Video
Ride mode (Start)
Bike mode selection
Start/Stop a ride
1. From the home screen, tap on the bike icon on [RIDE] to
bring up the bike mode menu (or long press [START/STOP]
button). There are four different bike modes for selection:
Road (default) , Downhill Off-Road , Leisure ride
and Indoor . Choose one of the them in which you are
interested.
2. Tap [RIDE] to start recording a ride (or short press [START/
STOP] button).
3. During recording, tap screen to stop timer/start a new seg-
ment (or short press [LAP] button to start a new segment).
4. Tap screen again to continue/save/discard the recording (or
short press [START/STOP] button).
5. Swipe down from the top of screen to access the Quick
Access Menu.
6. Swipe left or right to view other data pages.

Camera recording setup
X5Evo supports 4 types of camera recording. Tap [REC] to open
with a wide-angled preview screen. Tap video icon to bring up the
record mode menu for selection: [Auto] , [Loop/Recycle] ,
[Time-lapse] and [Manual] . Tap to start/stop a cam-
era recording.
View activities
1. From the main screen, tap to view recorded activities.
2. Select an activity. From the single activity page, you will see
the overview with values about the ride.
Get routes ready and training yourself
Do you like to create your own bike trails or discover new bike
routes? With CONNECTapp, it helps you to navigate over tens of
thousands of routes from the Cloud Platform. You can download
routes from CONNECT to X5Evo to make your cycling trip awe-
some! Furthermore, using CONNECTapp to personalise training
schedules and workout plans and help you achieve your cycling
goals.

More excited features
To maximize your X5Evo's availiability, it is strongly recom-
mended that your smart phone must be installed two apps:
1. CONNECT is a bicycle riding group event APP, main fea-
tures including recordes uploading, route elevation, and
training plan selection.
2. VIDEO is for sports community, with your own cycling video
creation, favorite routes recommendation and live tracking.
Open your smartphone’s application store (Google Play or App
Store) and search for "Xplova VIDEO" or "Xplova CONNECT".
Download and install the applications.
Need help?
Getting more information:
Xplova Website User Manual Service information

Declaration of Conformity
We,
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan
Contact Person: Mr. RU Jan, E-mail: [e-mail]
And,
Acer Italy s.r.l.
Via Lepetit, 40, 20020 Lainate (MI) Italy
Tel: [phone] ,Fax: [phone]
www.acer.it
Product: Smart Video Cycling Computer
Trade Name: Xplova
Model Number: X5Evo
We, Acer Incorporated, hereby declare under our sole responsibility that the product
described above is in conformity with the relevant Union harmonization legislation: Direc-
tive 2014/53/EU on Radio Equipment, RoHS Directive 2011/65/EU. The following harmo-
nized standards and/or other relevant standards have been applied:
EMCD Directive: 2014/30/EU
• EN 55032:2012/AC:2013 Class B
• EN 61000-3-2:2014 Class D
• EN 61000-3-3:2013
• EN 55024: 2010+A1:2015
R&TTE Directive: 2014/53/EU
• EN 301 489-1 V2.1.1
• EN 301 489-3 V1.6.1
• EN 301 489-17 V3.1.1
• EN 300 328 V2.1.1 • EN 301 893 V2.1.0
LVD Directive: 2014/35/EU
• EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013
• EN 62209-2:2010
• EN 62311:2008
RoHS Directive: 2011/65/EU
• EN 50581:2012
• EN 62479:2010
• EN 50566:2013
This device contains the radio equipment and should operate with a minimum distance of
0 centimeters between the radiator and your body
Operation frequency and radio-frequency power are listed as below:
Bluetooth: 2402-2480MHz < 10 dBm
WLAN 2.4GHz: 2412MHz-2462MHz < 20 dBm
Year to begin affixing CE marking: 2017.
6/29/2017
RU Jan / Sr. Manager Date
Acer Incorporated (Taipei, Taiwan)

SAR information
RF exposure information (SAR)
This device meets the EU requirements (2014/53/EU) on the limitation of
exposure of the general public to electromagnetic fields by way of health
protection. The limits are part of extensive recommendations for the
protection of the general public. These recommendations have been
developed and checked by independent scientific organizations through
regular and thorough evaluations of scientific studies. To guarantee the
safety of all persons, regardless of age and health, the limits include a
significant safety buffer.
Before radio devices can be put in circulation, their agreement with
European laws or limits must be confirmed; only then may the CE sym-
bol be applied.
The unit of measurement for the European Council's recommended limit
for mobile devices is the "Specific Absorption Rate" (SAR). This SAR limit
is 2.0 W/kg, averaged over 10 g of body tissue. It meets the requirements
of the International Commission on Non-Ionizing Radiation Protection
(ICNIRP). The maximum SAR value is calculated at the highest output
level in all frequency bands of the mobile device. The highest SAR value
reported under this standard during product certification for use of the
device at a distance of 0 cm from the body.
During use, the actual SAR level is usually much lower than the maxi-
mum value, because the mobile device works in different output levels. It
only transmits with as much output as is required to reach the network.
In general the following applies: The closer you are to a base station, the
lower the transmission output of your device.
Disposal Instructions
Do not throw this electronic device into the trash when discarding. To
minimize pollution and ensure utmost protection of the global environ-
ment, please recycle. For more information on the Waste from Electrical
and Electronics Equipment (WEEE) regulations, visit www.acer-
group.com/ public/Sustainability/sustainability01.htm

FCC
Federal Communications Commission (FCC) Statement
15.19
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1) this device may not cause harmful interference and
2) this device must accept any interference received, including interference that may
cause undesired operation of the device.
15.21
You are cautioned that changes or modifications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
FCC RF Radiation Exposure Statement:
1. This Transmittermust not be co-located or operating in conjunction with any other
antenna or transmitter.
This equipment complies with RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 5mm between the radiator and your body.

IC
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device
must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables auxappar
eils radio
exempts de licence.L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage adioélectrique subi, même
si le brouillage est susceptible d'en compromettre le fonctionnement.
RF Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 5mm between the radiator & your body. This transmitter must not
be co-located or operating in conjunction with any other antenna or transmitter.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition auxrayonnements IC établies
pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec
un minimum de 5mm de distance entre la source de rayonnement et votre corps.

95220010 @X5E
http://www.xplova.com QG-001-10-07
