For the New Users
___________________________________________________________________________________________________________________________
Thank you for your purchase of Xplova X5 Smart Video Cycling Computer. In
this chapter, we will guide you step-by-step to know the X5, Setting, Installation
and how to use it.

6
Package Contents
___________________________________________________________________________________________________________________________
Carefully unpack and check to make sure all of the following standard
accessories are included in the package. Optional accessories may vary
depending on the model, specifications, and purchase area. Please check your
purchase location as some accessories may vary depending on regions. For
more information, please contact Xplova retailers.
Standard Accessories
___________________________________________________________________________________________________________________________
Smart Video Cycling Computer X5
Cycling Computer Bike Mount
Micro-USB Cable
Quick Service Guides
Warranty Card

7
Optional Accessories
___________________________________________________________________________________________________________________________
Heart Rate Sensor and Strap
Speed / Cadence Combo Sensor
◆Please contact Xplova retailers if you need to purchase any optional
accessories.
*Note: Please scan the QR Code to receive the latest information about Xplova
products.

8
Product Overview
1. [Start/Stop] Button
2. [REC] Button
3. [Up/Down] Switch Button
4. SIM Card Slot
5. [Power] Button
6. [Mode] Button
7. Camera
8. Bike Mount Latch
9. Micro-USB Port (for Charging and
Data Transmission)

9
Initial Power-up Setting
___________________________________________________________________________________________________________________________
1. Charging the Xplova X5: Before
using your Xplova X5, please
make sure it is fully charged using
the Micro-USB cable. To charge
your X5, simply plug the USB
cable to the port on the back of
X5.
*Note: Before using your device
for the first time, charge your X5
for at least 5 hours to ensure the
built-in battery is fully charged. If
using 5V1A charger, the charging
time may take approximately 3
hours.
2. Installing SIM Card: If you would
like to connect X5 with the
Internet using 3G, you must insert
a 3G SIM Card into its slot on X5
(at the location #4 on the previous
page of Product Overview).
3. Powering On: If the device has
sufficient power or in charging
mode, long press the [Power]
button until the power-up screen
is displayed.

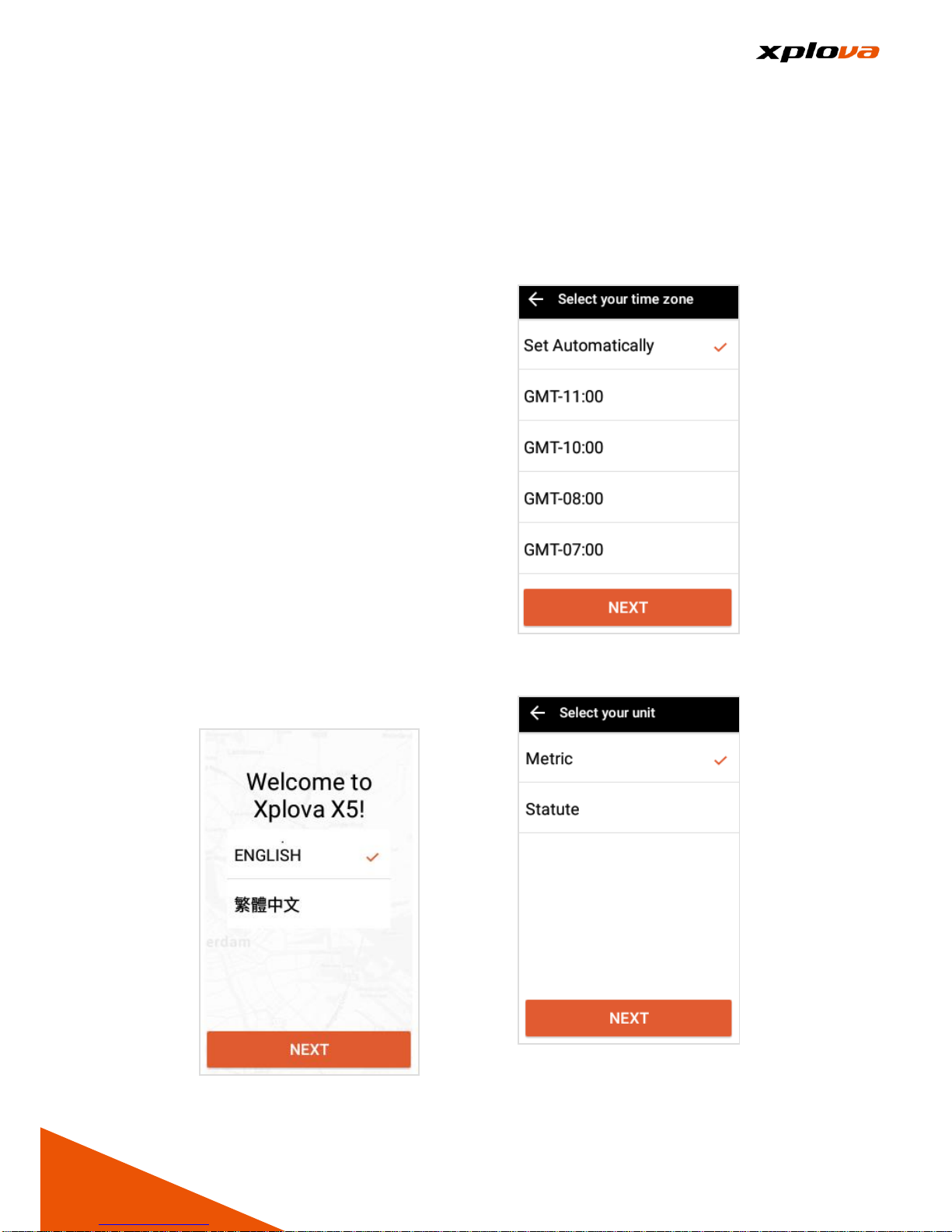

4. Language Selection: After the
Welcome screen appears, select
your desired language.
5. Time Zone Selection: It is
recommended to keep the default
setting [Set Automatically] in
which it will automatically use
GPS to locate your current time
zone.
6. Unit Selection: Select the
calculation unit [Metric] or
[Statute].

10

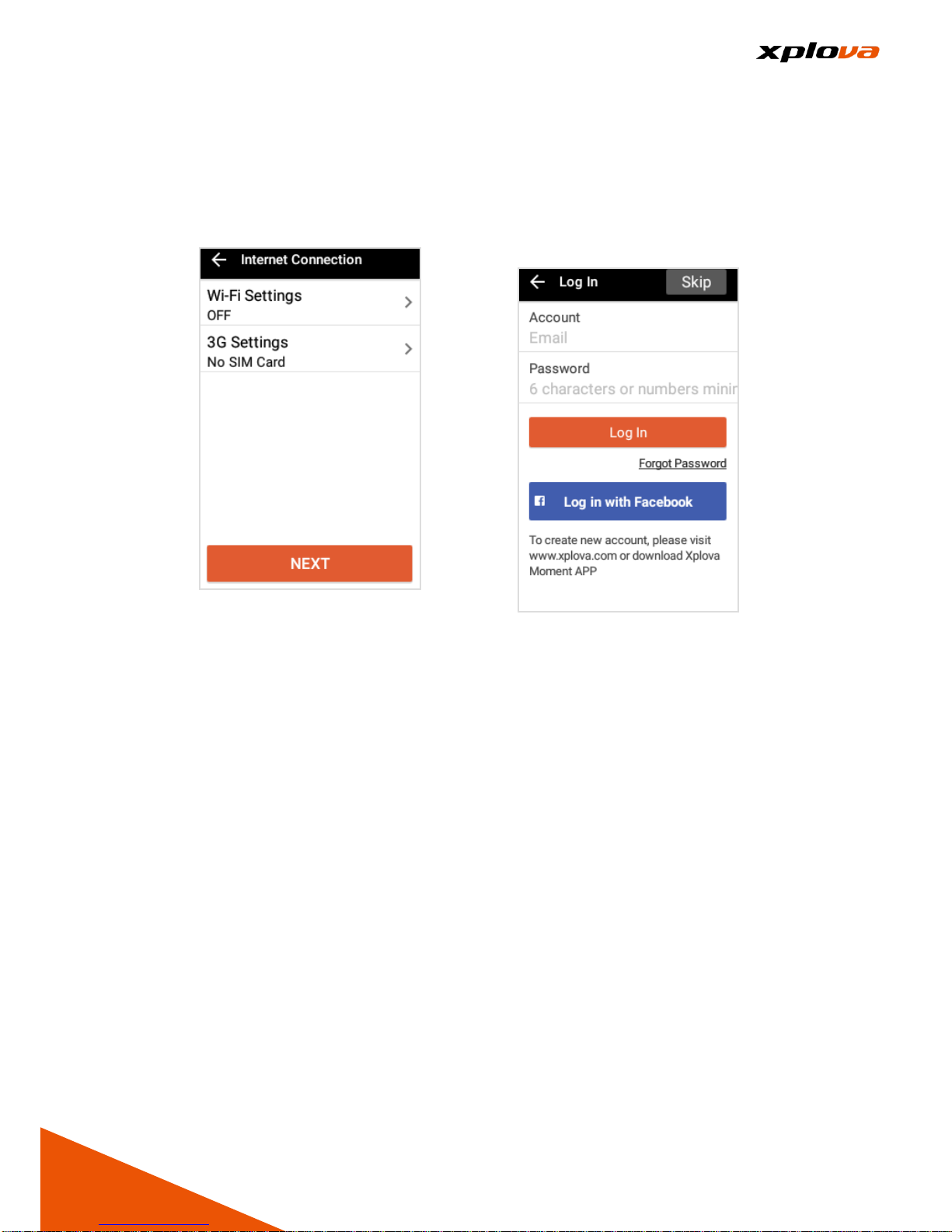

7. Network Configuration: To set
up the Wi-Fi, please refer to Wi-Fi
Setting. If 3G SIM Card is
inserted and Wi-Fi is also
available, X5 will use Wi-Fi as
first priority to save your data
usage.
*Note ： If you are already
connected to the Internet, you will
be directed to Map Settings.
Please refer to [Map Download]
section for detailed information.
8. Login: Log in with Xplova
Account or FB Account. You can
also register a new account at
Xplova official web site
(http://www.xplova.com/) or
Xplova Moment Mobile APP. You
can also skip and log in later.

11
9. Warning Screen: When the
Warning screen appears, tap [OK]
at the bottom of the screen after
finished reading.
10.Home screen: When the home
screen appears, this indicates the
initial setup is now completed.

12
Main Screen
___________________________________________________________________________________________________________________________
Before you start to record your ride, you will see the cumulative cycling
kilometers at the bottom of the screen. After you start riding, it will display the
current riding time and distance.
1. Altitude
2. Speed
3. Heart Rate
4. Power
5. Status Bar
6. Slope
7. Cadence
8. Bike Name
9. Bike Odometer
10.Trip Time
11.Total Distance

13
Status Bar
___________________________________________________________________________________________________________________________
You can easily see the current device information and status from the X5
Status Bar Icon.
Status Bar
Icon
Description
Paired with Combo Cadence Sensor.
Paired with Heart Rate Strap Sensor.
Paired with Speed Sensor.
Activity Recording Paused.
Activity Recording Track Started.
Paired with Power Meter.
Lap Count / Segment.
USB Connected.
GPS ON.
Button Silenced.
Wireless Network Connected.
SIM Card Not Installed.
SIM Card Installed.
Power Level Display (Percentage).
Current Time.

14
Operation Mode Switching
___________________________________________________________________________________________________________________________
Long press the [Power] button to turn on the device then you will enter
Device Mode.
Press the [Mode] button or swipe the screen to switch between modes.
Toggling the [Mode] button will display the following modes in sequence:
Device Mode, Navigation Mode, Training Mode, Device Mode... ; if you
swipe the screen left and right with a finger then the mode shall be
switched according to swiping pattern;
Short press [Power] to turn the screen off. If the recording is in progress, it
will continue recording. To turn the screen back on, just short press the
[Power] button again.
*Note: To switch Navigation Mode, swipe the information list (below the map)
to switch the mode.
Device
Mode
Navigation
Mode
Training
Mode

15
Below provides brief instructions for 1)Three different Modes, 2) Screen
Description, and 3) Quick Access Menu.
Device Mode
Display time, distance, environment, and other activity
information with instrument panel or table.
In Device mode, press the [Up/Down] button or swipe the screen up and
down to switch to other activity information.
Device Mode

16
Navigation Mode
Support offline maps, choose or find your current location,
obtain route related details, access Smart Sign™Guidance
information, and etc.
In Navigation mode, press the [Up/Down] button to switch to Altitude Table
or Smart Sign™Guidance page.
Navigation Mode
Altitude Table
Smart-Sign™ List

17
Training Mode
Display primarily your performance data, such as time,
distance, heart rate, burned calories, and power along with
a real time graph.
In Training mode, press the [Up/Down] button or swipe the screen up and
down to switch to other training modes.

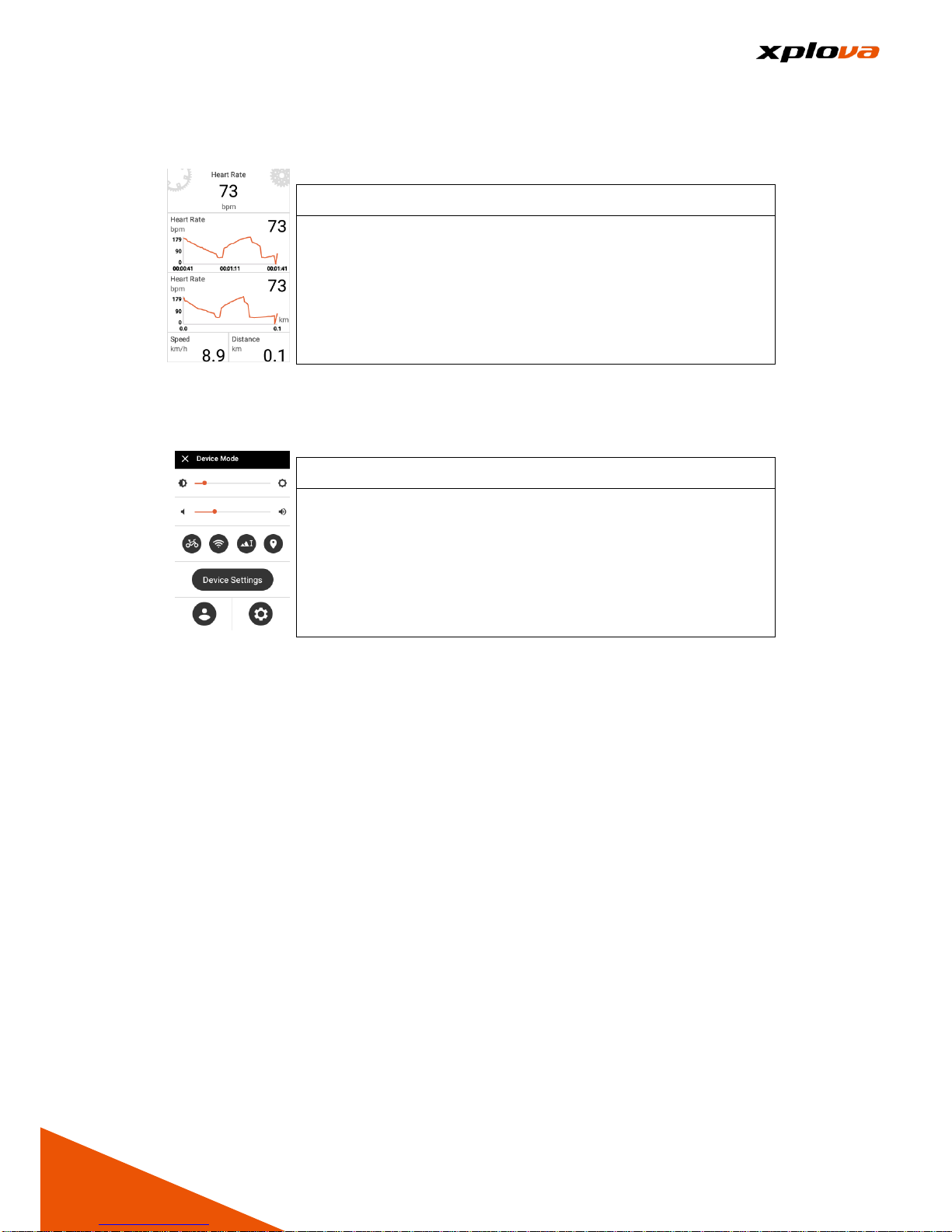

Quick Access Menu
Display the current settings of brightness and volume.You
can also go to advanced setting of bike, network, altitude,
GPS, and X5 settings.
In all three modes, swipe down from the Status Bar, or long press the
[Mode] button to access the Quick Access Menu.

18
Quick Access Menu
___________________________________________________________________________________________________________________________

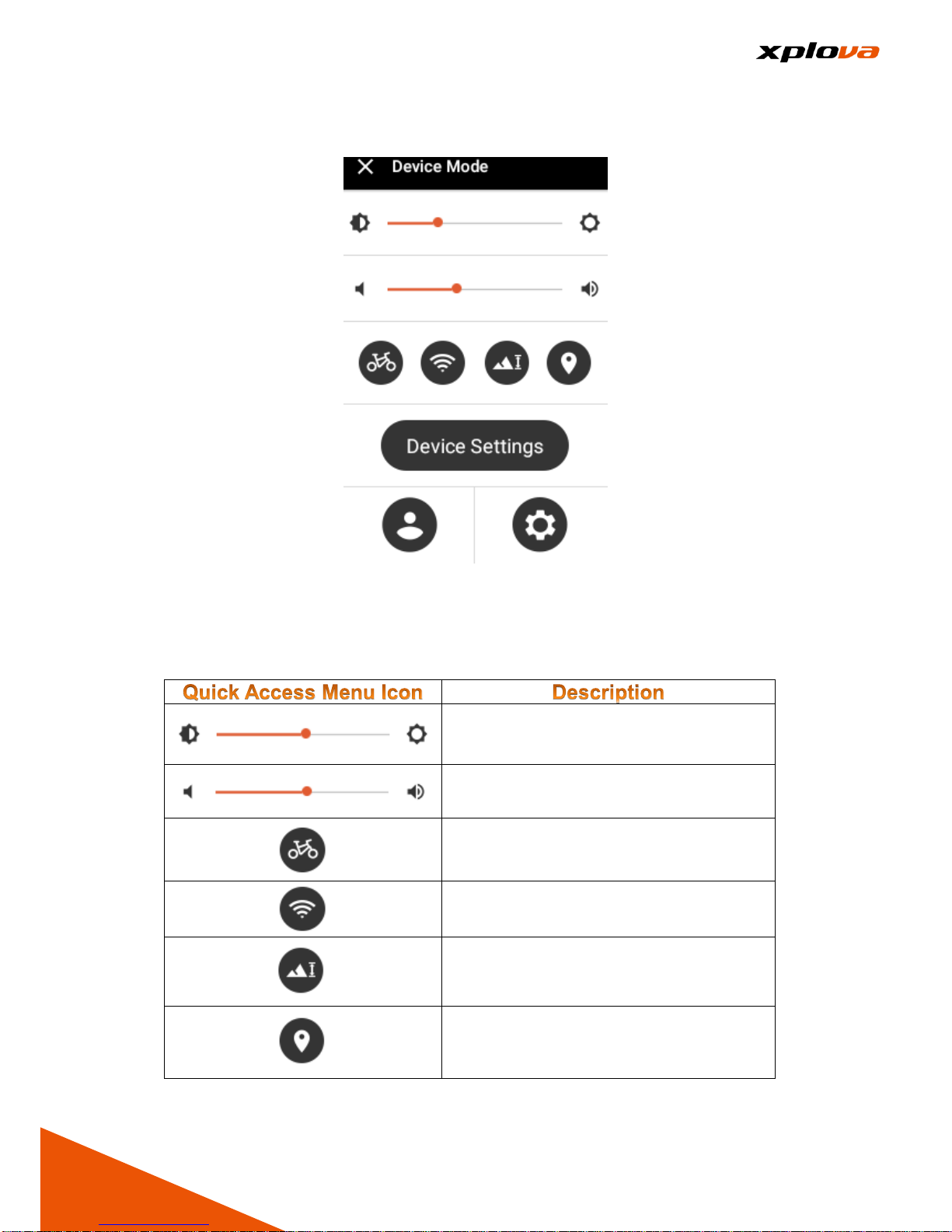

There are 2 methods to access the Quick Access Menu:
1. Swipe down from the Status Bar.
2. Press the [Mode] button for 1 second.
Adjust the backlight brightness.
Adjust the volume level.
Bike Settings.
Wireless Network or 3G Settings.
Altitude Settings.
GPS Settings.

19
Enter the current mode setting.
*Note: The available settings vary
depending on the current mode.
Profile Settings.
General Settings.
Pre-Ride Setting
___________________________________________________________________________________________________________________________
Follow the steps below to quick start your ride and record your journey.
1. Internet Setting (Preset Wi-Fi or Turn on 3G to facilitate uploading of ride
records.)
2. Confirm your Bike (Confirm and setup the bike name and information of this
ride).
3. Locate your GPS. (It is recommended to locate your GPS at an open air
area).
4. Pair your X5 with Heart Rate Belt or Combo Sensor (In order to record
more accurate ride information, the paired devices are different depending
on each rider's individual conditions and needs).
5. Altitude Calibration (Select the proper altitude point to calibrate).
6. Pre-Ride Setting Completed, Ready for the Ride!
*Note: Please refer to descriptions in the following chapters for advanced
functions such as download route, register for activities, smart video, etc.
Network Setting
___________________________________________________________________________________________________________________________
Enter Quick Access Menu. Tap to enter Network Connection Settings;
select [Wi-Fi] or [3G]. For example, setting the Wi-Fi for the first time:

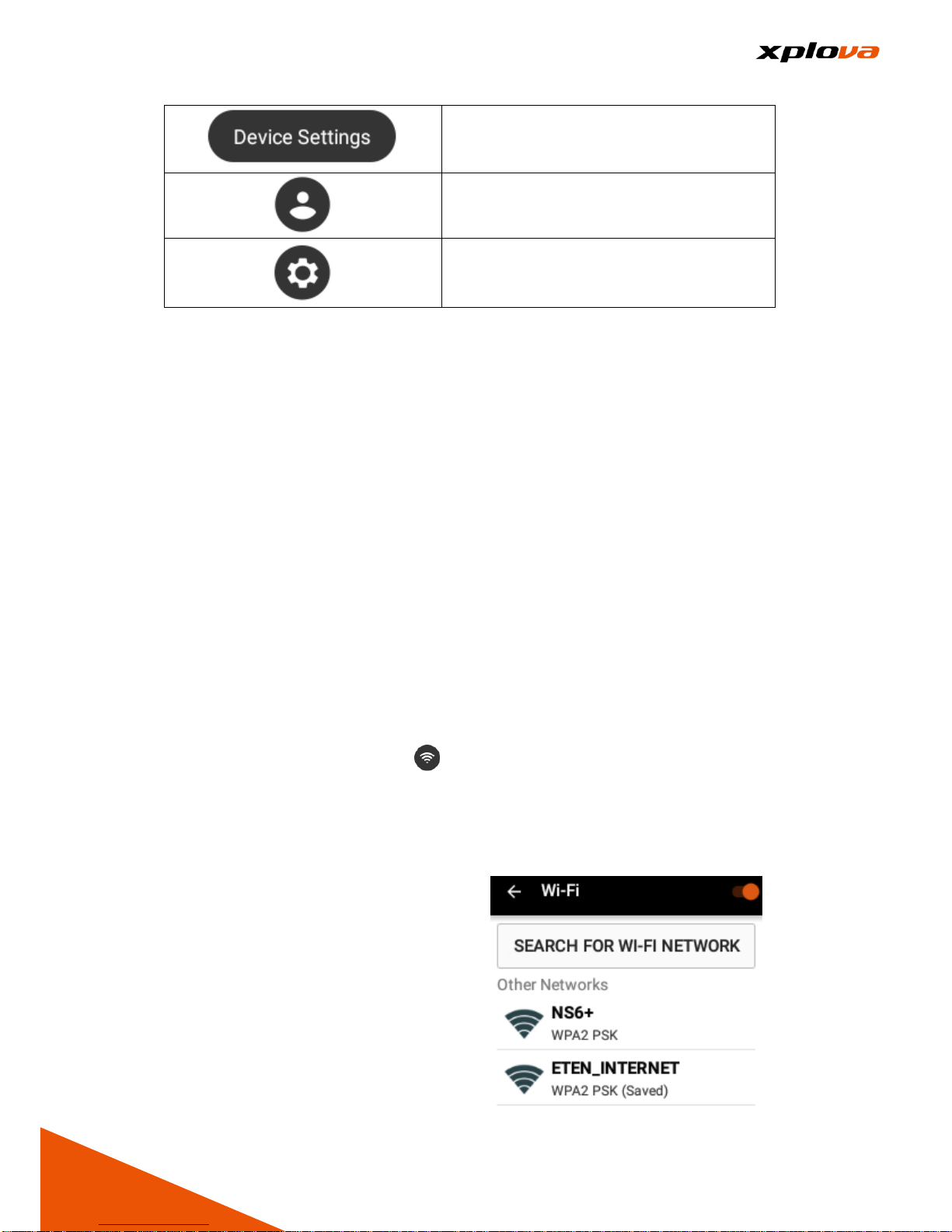

Wi-Fi Setting
___________________________________________________________________________________________________________________________
1. Tap Wi-Fi [ON/OFF] on the upper
right corner of Setting.
2. Press [Search For Wi-Fi
Network].

20
3. Select the desired wireless
network. If password is required,
enter the password to connect.
4. After the password is verified, the
screen will display "Connected"
with a Wireless Network Icon on
the status bar.
5. Tap the current connected
network, the wireless network
status and information will be
displayed.
*Note: Turn on Wi-Fi module
requires time; please wait 5 - 10
seconds to turn on Wi-Fi again
after turning off.
