Xylem Ebro TLC 750 BT User manual

BA_TLC750_NFC_BT_ENG_07
Operation Manual
Dual Radio Thermometer
TLC 750 BT
TLC 750 NFC

TLC 750 BT / TLC 750 NFC
Operation Manual
Page 2
Table of contents
1. Before working with the device.......................................................................................... 3
2. Overview........................................................................................................................... 3
3. Safety instructions............................................................................................................. 4
4. Precautions....................................................................................................................... 4
5. Device operation ............................................................................................................... 5
5.1 Switching on.................................................................................................................... 5
5.2 Switching off.................................................................................................................... 5
5.3 Penetration probe temperature measurements................................................................ 5
5.4 Infrared temperature measurements................................................................................ 5
5.5 Logging modes................................................................................................................ 6
5.5.1 AdHoc logging mode .................................................................................................... 6
5.5.2 List logging mode ......................................................................................................... 7
5.6 Settings Menu ................................................................................................................. 8
5.6.1 Settings Menu Enter..................................................................................................... 8
5.6.2 Settings Menu Operation.............................................................................................. 8
5.6.3 Settings Menu Entries................................................................................................... 9
6. What to do if.....................................................................................................................10
7. Battery indicator and charge.............................................................................................10
8. Care and Maintenance.....................................................................................................10
9. Disposal ..........................................................................................................................11
10. Technical specifications * ...............................................................................................12
11. Equipment......................................................................................................................12
12. Standardize....................................................................................................................13
13. Regulatory information ...................................................................................................13
14. Service information.........................................................................................................15
15. Manufacturer information................................................................................................15

TLC 750 BT / TLC 750 NFC
Operation Manual
Page 3
1. Before working with the device
• Please read the operating instructions carefully.
• Familiarize yourself with your new device, get to know all the functions and components,
learn important details for commissioning and the handling the device and get tips for the
case of a malfunction.
• By observing the operating instructions, you will also avoid damage to the device and the
risk of your statutory rights of defects due to misuse. For damages resulting from failure to
comply with this User manual, we assume no liability.
• Pay particular attention to the safety instructions!
• Keep this manual in a safe place!
2. Overview
The TLC 750 NFC and TLC 750 BT are both infrared and contact thermometers. You can
choose between these two types of measurement at any time. While using them as an
infrared thermometer, two integrated laser pointers help to aim at the desired measuring
surface.
The model variant TLC 750 BT has a Bluetooth LE interface integrated for wireless data
transmission. In addition, the device offers a USB interface for wired data transmission. The
integrated battery can be charged via USB or using wireless charging technology.
In addition to the functions of the TLC 750 BT device, the model variant TLC 750 NFC has
an NFC reader integrated with which NFC tags can be read.
1........ two laser pointers
2....... .Infrared lens
3........ Button 1 / Infrared measurement
4...... ..Button 2
5........ Button 3
6........ Display
7........ Penetration probe
8........ NFC reader antenna position
(on backside)

TLC 750 BT / TLC 750 NFC
Operation Manual
Page 4
3. Safety instructions
The device is not suitable for children. Keep out of the reach of children!
Risk of injury!
There is a risk of injury when the probe needle is unfolded.
Risk of contamination! In case of injuries with the probe needle you could
contract dangerous germs!
Burns!
After measuring high temperatures, the probe needle still is hot for some
time.
Avoid over-tightening the penetration probe pivot. Overstressing the
penetration probe may cause breakage.
Operate the device only within the specified parameters.
Warning of laser light!
Risk of injury to the eyes! Do not aim the laser directly or indirectly via
reflective surfaces to the eyes.
4. Precautions
Protect the thermometer from the following influences:
• Strong electromagnetic fields e.g. induction heaters
• Static electricity
• Do not use on or near hot or very cold objects.

TLC 750 BT / TLC 750 NFC
Operation Manual
Page 5
5. Device operation
5.1 Switching on
The device can be switched on by pressing button or by unfolding the penetration probe.
If penetration probe is folded, IRT measurement is active. Otherwise core temperature
measurement is active.
When the device is switched on, the device waits for a Bluetooth connection and displays
this with a flashing Bluetooth symbol. Once connected, the Bluetooth icon is permanently
displayed.
5.2 Switching off
The device will switch off automatically after 2 minutes if no button is pressed, or immediately
when the penetration probe is closed.
5.3 Penetration probe temperature measurements
The Penetration probe must be unfolded for this mode of operation. Position the probe
needle where you want to measure the temperature. Wait until temperature has stabilized.
By pressing button last measured temperature value is held until is pressed again.
5.4 Infrared temperature measurements
The penetration sensor must be closed for this mode of operation. To take a reading with the
infrared sensor, point the infrared lens at the point to be measured and press and hold the
button. Aim so that both laser points are on the object to be measured. The area whose
temperature is measured is located between the two laser points. If button is released
the last measured value is held.

TLC 750 BT / TLC 750 NFC
Operation Manual
Page 6
5.5 Logging modes
5.5.1 AdHoc logging mode
This mode offers real time measurement data transmission via a Bluetooth LE connection. In
addition measurement values can be stored at internal storage memory for readout at a later
time. The device has to be programmed by host software for this mode.
Step
Description
LCD display
1
In infrared mode temperature measurements are taken
while button is pressed.
In penetration probe mode temperature measurements are
taken while no key is pressed.
2
In infrared mode temperature value is held if button is
released. In this state device alternately shows “HOLD”
and “SAVE”.
In penetration probe mode temperature measurement is
held if button is shortly pressed. In this state device
alternately shows “HOLD” and “SAVE”.
If Bluetooth is connected measurement data is transferred
via Bluetooth.
Only available at TLC 750 NFC device:
If button is pressed down the internal NFC reader
searches every time once for NFC tags.
If a NFC tag was found device shows “TAG” and
alternately “HOLD” and “SAVE”.
If Bluetooth is connected NFC tag data is transferred via
Bluetooth.
3
To store measurement to internal storage memory
button has to be pressed. Device confirms with "OK".
To discard measurement button has to be pressed.
Device confirms the memory with the display "CLR".
Pressing takes a new measurement.
Only available at TLC 750 NFC device:
To store NFC tag data to internal storage memory
button has to be pressed. Device confirms the memory
storage executing with "OK".
To discard NFC tag data button has to be pressed.
Devices confirms with "CLR".
Pressing takes a new measurement.

TLC 750 BT / TLC 750 NFC
Operation Manual
Page 7

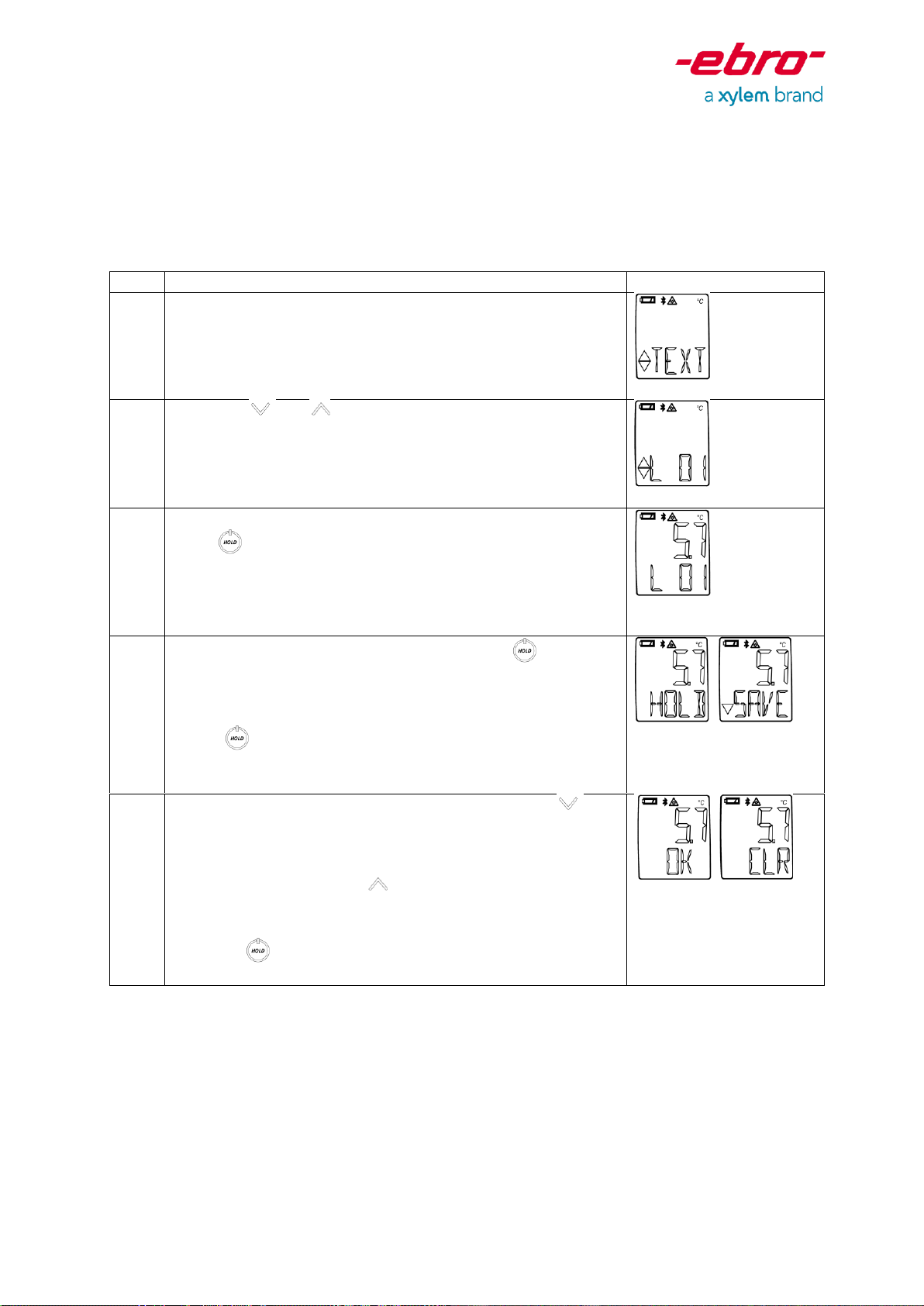

5.5.2 List logging mode
This operating mode offers a guided tour with display of the measuring locations. In addition
measurement values can be stored at internal storage memory for readout at a later time.
Device has to be programmed by host software with a tour list before list logging mode is
active.
Step
Description
LCD display
1
After device is started the first location text is shown on
LCD. This location texts are free programmable by host
software.
2
By use of or buttons it is possible to change
measurement location
3
In infrared mode temperature measurements are taken
while button is pressed.
In penetration probe mode temperature measurements are
taken while no key is pressed
4
In infrared mode temperature value is held if button is
released.
In penetration probe mode temperature measurement is
held if button is shortly pressed. In this state display
alternately shows “HOLD” and “SAVE”.
5
To store measurement to internal storage memory
button has to be pressed. Device confirms with "OK". List
location is automatically changed to next list location.
To discard measurement button has to be pressed.
Device confirms with "CLR".
Pressing takes a new measurement.

TLC 750 BT / TLC 750 NFC
Operation Manual
Page 8
5.6Settings Menu
5.6.1 Settings Menu Enter
When device is switched off: press and buttons and after that additionally button
for 3 seconds.
5.6.2 Settings Menu Operation
If menu is entered it is possible to change current displayed menu entry by the and
Buttons.
When button is pressed next menu entry is displayed.
If no button is pressed for 3 seconds next menu entry is displayed. After last menu entry is
displayed device starts measure mode.

TLC 750 BT / TLC 750 NFC
Operation Manual
Page 9

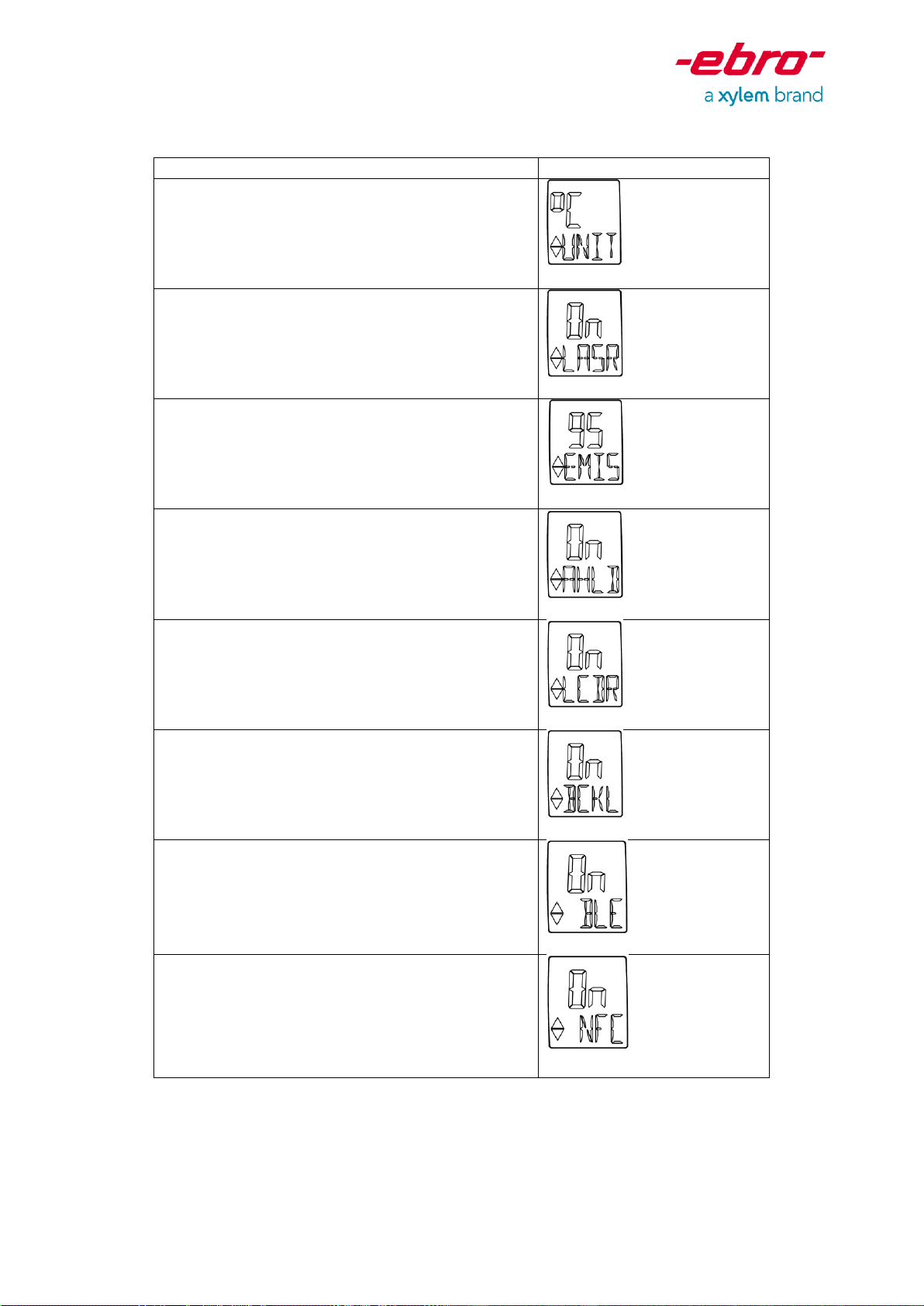

5.6.3 Settings Menu Entries
Menu entry
LCD display
“UNIT”
Temperature unit
[°C / °F]
Default: °C
“LASR”
IRT Laser
[ON / OFF]
Default: ON
“EMIS”
IRT Emissivity
[10..100]
Default: 95
“AHLD”
Auto Hold function for penetration probe
[ON / OFF]
Default: ON
“LCDR”
LCD rotation setting
[ON / OFF]
Default: ON
“BLKL”
Backlight
[ON / OFF]
Default: ON
“BLE”
Bluetooth switch off timeout (30s)
[ON / OFF]
Default: ON
Only available at TLC 750 NFC device:
“NFC”
NFC reader functionality
[ON / OFF]
Default: ON

TLC 750 BT / TLC 750 NFC
Operation Manual
Page 10

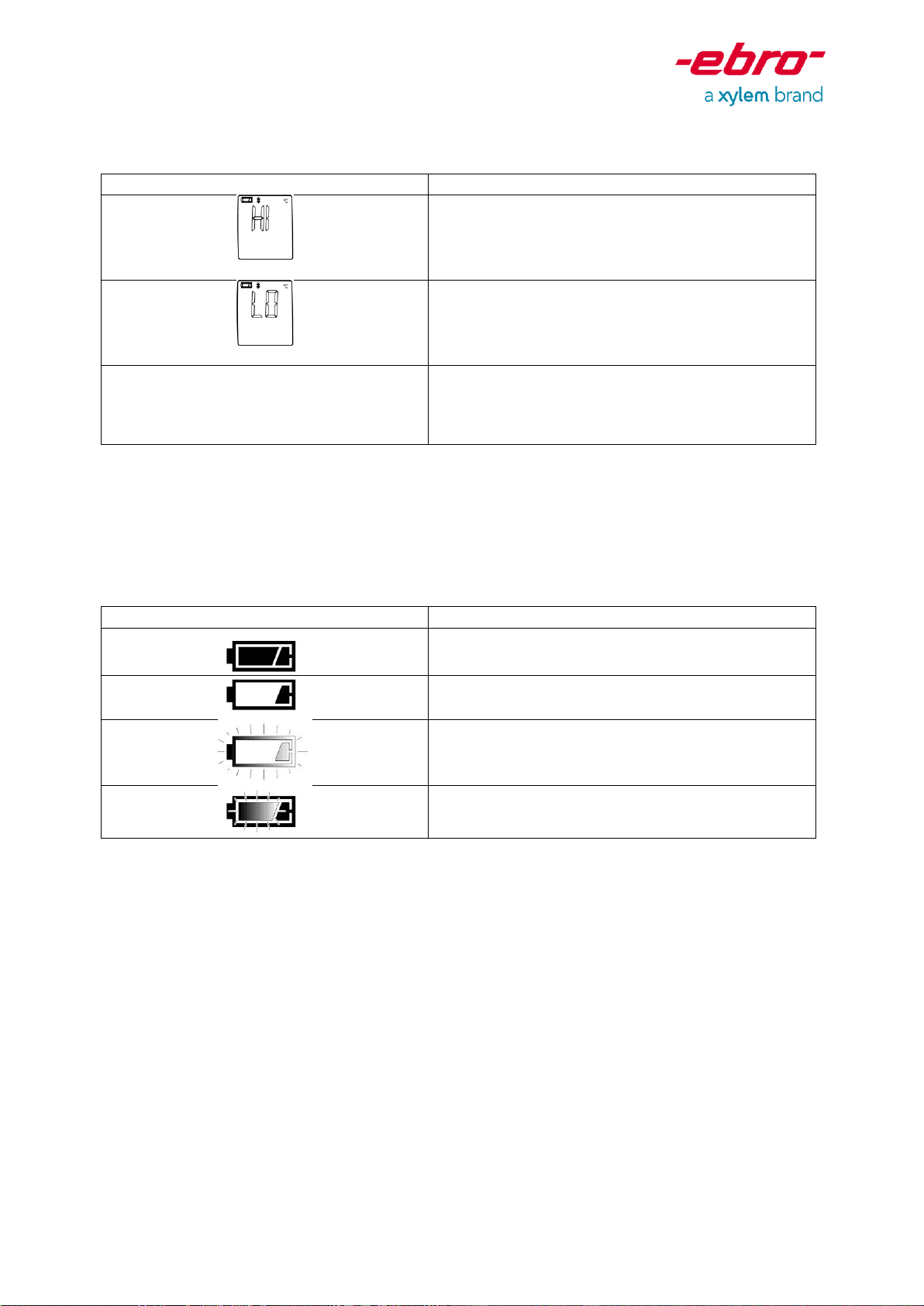

6. What to do if...
Failure
Cause, Troubleshooting
Temperature to be measured above + 250 ° C.
Temperature to be measured below -50 ° C.
Device can not be switched on:
Battery empty. Charge the battery.
If still not working with charged battery, contact
the ebro service team
7. Battery indicator and charge
The battery of the device can be charged via the USB port or wirelessly using the base
station IF 750 or the charger CS 750.
Charging indicator
Description
Battery fully charged
Charging completed
Battery partially discharged
Battery almost empty
Charging active
8. Care and Maintenance
Clean the lens
Blow loose particles with clean compressed air. Then carefully remove impurities with a soft
brush. Gently wipe the surface with a damp cotton ball. Moisten the cotton ball only with clear
water! DO NOT use solvents to clean the lens.
Clean housing
Clean the device with soap solution and a damp cloth. DO NOT immerse the device in the
water. DO NOT use solvents such as acetone!

TLC 750 BT / TLC 750 NFC
Operation Manual
Page 11
9. Disposal
If the device has become unusable, it must be disposed of in a way that is
appropriate for the environment. Do not dispose of the device with household
waste, but do it according to the specific national requirements legislation
regarding recycling.

TLC 750 BT / TLC 750 NFC
Operation Manual
Page 12
10. Technical specifications *
Measuring Range
-50 …+250 °C
Accuracy (at +23°C ± 1°C)
Infrared:
-50° C ... -30.1 °C ±4.0 °C
-30 °C ... -18.1 °C ±2.5 °C
-18 °C ... -0.1 °C ±1.5 °C
0 °C ... +64,9 °C ±1.0 °C
65 °C ... +250 °C ±2.0 °C or 2 % (the larger value applies)
Penetration probe:
± 0.5 °C in a measuring range -30.0 …+99 °C;
otherwise ±1.0 °C or 1 % (the larger value applies)
Sample rate
1s
Resolution
0,1 °C
Emissivity
0,95, adjustable
IR optics
8:1
Laser
Dual Laser to display the measuring surface
Working temperature:
Measuring: -20°C …+50 °C
Charging: 0 …+40°C
Storage temperature
-30 …+70 °C (without battery pack)
-20 … +55 °C (with battery pack)
Weight
130 g
Dimensions
L x B x T 169.5 x 44 x 23 mm
Protection class
IP65
Battery operating time
typical 8h at continuous use
Battery type
3.7V Lithium Polymer
Battery charging
USB
Requirements for the external Power supply unit:
-Limited Power Source according IEC60950-1 or
PS2 classified IEC62368-1
- Short-circuit current < 8A
Wireless (WPT) by means of IF 750 or CS 750
Battery recharge time
typical 3h
Interfaces
USB 2.0 (USB C)
Bluetooth 4.0 Low Energy (BLE)
TLC 750 NFC: NFC Reader 13.56 MHz (ISO 14443 A)
Temperature measurements
storage size
200
List storage size
100
NFC tag data storage size
TLC 750 NFC: 100
*technical changes reserved
11. Equipment
Article No.
Designation
Description
1340-5750
IF 750
Base station USB / Ethernet / BLE integrated
wireless charging station
1341-5750
CS 750
Wireless charging station

TLC 750 BT / TLC 750 NFC
Operation Manual
Page 13
12. Standards
This product meets the requirements of the standard DIN EN 13485
Suitability: S, T (storage, transport)
Environment: E
Accuracy class: 0.5
According to DIN EN 13485 is a regular check and calibration of the meter necessary.
13. Regulatory information
General
This device is tested according to ETSI EN.
It meets the requirements of ETSI EN
Radio approvals
RED
EN 61000-4-2
EN 61000-4-3
EN 61326-1:2006
EN 62368-1:2014
EN 62311
ETSI EN 300 330
ETSI EN 303 ETSI EN 300 328 V 2.1.1
ETSI EN 301 489-1 V 2.1.1
EN 301 489-3
EN 301 489-17
FCC
FCC ID: VQ5-TLC750NFC
This device contains FCC ID: QOQBGM113
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
The Federal Communications Commission (FCC) warns the users that
changes or modifications to the unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
FCC §15.105 (b):
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reason-able protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be deter-mined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from

TLC 750 BT / TLC 750 NFC
Operation Manual
Page 14
that to which the Receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
IC
IC: 7412A-TLC750NFC
This device contains IC: 5123A-BGM113
This device complies with Industry Canada’s license-exempt RSSs.
Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that
may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada
applicables aux appareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes:
1) l’appareil ne doit pas produire de brouillage;
2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d’en compromettre le
fonctionnement.
Changes of any kind on the device lead to the expiry of the operating license.
Information, operating instructions and declarations of conformity can be found at
www.ebro.com.

TLC 750 BT / TLC 750 NFC
Operation Manual
Page 15
14. Service information
Xylem Analytics Germany Sales GmbH & Co. KG
ebro
Dr.-Karl-Slevogt-Str. 1
82362 Weilheim
Germany
Phone: [phone]
Fax: [phone]
Internet: www.ebro.com
E-Mail: [e-mail]
15. Manufacturer information
Xylem Analytics Germany GmbH
Dr.-Karl-Slevogt-Str. 1
82362 Weilheim
Germany
