XYZ Printing da Vinci Pro EVO User manual

1
da Vinci Pro EVO User Manual
Important Safety Precautions (P.2)
- Safety and Regulation (P.2)
- Safety Instructions (P.2)
- Note on Power Supply (P.3)
- Safety Notice and label (P.3)
About da Vinci Pro EVO (P.4)
- Introduction (P.4)
- Specifications (P.5)
- Accessory Checklist (P.6)
- Precautions and Instructions of Maintenance Tools (P.6)
- Maintenance and Service (P.7)
Unpacking and Installation (P.7)
- Unpacking (P.7)
- Hardware Installation (P.9)
- Software Installation (P.12)
Feed Module Adjustment (P.14)
Operating The Printer (P.16)
- Main Screen Function Introduction (P.17)
- Function and Description (P.17)
- Printing (P.34)
Operating The Software (P.36)
- Software Interface (P.36)
- Connecting to the Printer (P.37)
Laser Engraver Module (Optional) (P.38)
Support Information (P.39)

2
Please read the product User Manual carefully before using this product.
This user manual is mainly intended for users to understand how to use the da Vinci Pro EVO 3D
printer (“Pro EVO”) correctly. In the user manual, users can learn more about the operating
tips, application skills and maintenance of the Pro EVO 3D printer.
For more information on the Pro EVO, please contact your local dealer or visit the official website
of XYZprinting : http://www.xyzprinting.com.
LIMITATION OF WARRANTY AND LIABILITY
XYZprinting is responsible for the device in its original configuration. Any changes to the
configuration of the machine must be performed or authorized by the XYZprinting technical
department. XYZprinting is not responsible for the problems and warranty dues to the use of
not original spare parts or printing materials.
Trademarks
All trademarks and registered trademarks are the properties of their respective owners.
Print History
New editions of this manual incorporate new and changed material different from previous
editions. Minor corrections and updates may be incorporated into reprints of the current edition
without releasing additional announcements or documentation regarding the updated version.
The User Manual is for user reference only. If you need to obtain the latest information, you are
welcomed to visit the XYZprinting website: www.xyzprinting.com
Important Safety Precautions
Safety and Compliance
Please read through this manual and all safety precautions carefully before using, operating,
unpacking, replacing, removing any part or maintaining this product. Please also comply with
the instructions of relevant safety.
Safety Instruction
Do not move the machine by yourself as it is heavy.
Do not place the printer on a soft or tilted surface. Otherwise, the machine will fall / flip
over and become damaged or cause personal injury.

3
Do not place the printer in a dusty, humid or outdoor environment.
Weak odors may be generated during the printing process. We recommend working in a
well-ventilated.
Do not leave the product or power cord to unattended children. Otherwise, personal injury
or electric shock might occur.
Do not place any liquid container on top of the product. Otherwise, overflow or spill might
go into the machine and pose the risks of danger or safety concern.
Do not wipe the printer with alcohol or flammable chemicals. Otherwise, danger might
occur.
Do not move the machine when it’s powered on.
Please use the provided power cord. Otherwise, incorrect grounding might lead to
damage.
Do not reach into the machine with your hands during operation. Otherwise, risks of
impact from moving printing parts or burn from high temperature might occur.
The machine becomes hot during operation and thus run in high temperature. Do not
touch or replace parts when they are not cooled down.
After startup, the parts in the machine will heat up or move depending on the user’s
instructions. During product operation, do not touch or block the operation of the parts.
Defect reparation must be carried out according to the contents of this instruction manual.
Where the defect cannot be repaired, please contact your printer dealer or the customer
service center.
Note on Power Supply
Do not use with damaged cord or plug. To unplug grasp the plug, not the cord. Do not
handle plug or machine with wet hands.
Do not handle plug or machine with wet hands. Turn off the power switch before
unplugging.
Do not run the machine over cord. Keep cord away from heated surfaces.
If the system is left in idle mode for an extended amount of time, turn off the main switch.
Safety Notice and label
Warning
Class I Equipment. This equipment must be earthed. The power plug must be connected to a properly wired
earth ground socket outlet. An improperly wired socket outlet could place hazardous voltages on accessible
metal parts.
Marking of hazardous moving parts

4

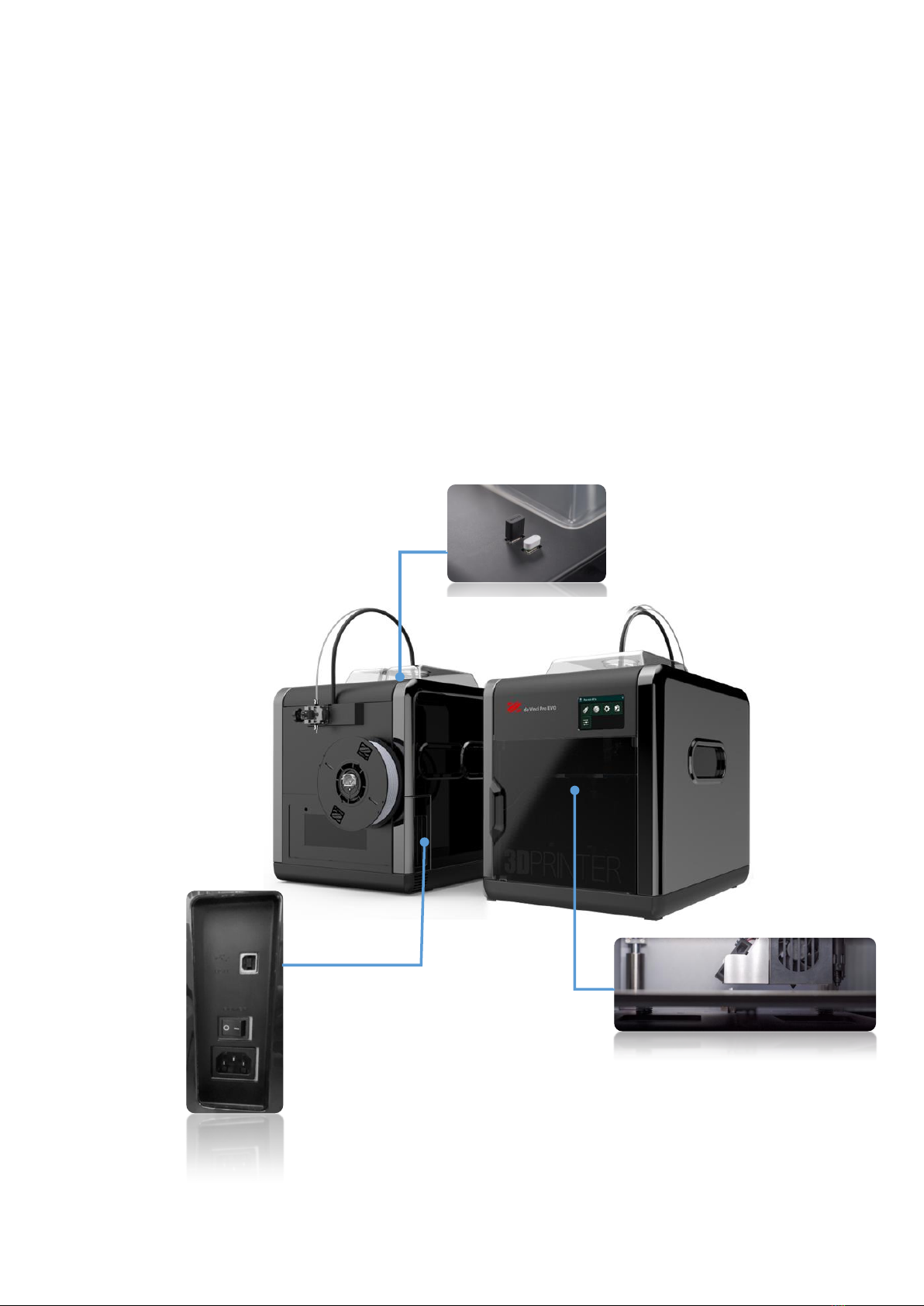

About da Vinci Pro EVO
Introduction
1. Extruder module
2. Print bed and removable metal print bed
3. 5 inch touch screen
4. USB socket/USB Port
5. USB socket/USB Port
6. USB cable port
7. Power switch
8. Power inlet
9. Feeding motor system
10. Filament holder
11. Top cover
3
6
7
8
9
4, 5
10
11
1
2

5
Specifications
Print technology
Fused Filament Fabrication( FFF )
Max. build area (WxDxH)
220 x 200 x 200 mm
Material compatibility
TPU / Nylon / Premium Metallic PLA / Carbon Fiber / PP GF30 /
Tough PLA / PETG / ABS / PLA / PC / *PC/ *Carbon PET(PET CF15)
/ *Carbon Nylon(PAHT CF15)
*Optional High Temp extruder module
Filament diameter
1.75 mm
Layer resolution
0.05 mm ~ 0.4 mm
XY positioning precision
X / Y : 0.0125 mm
Auto calibration
Yes
Filament feeding system
P-Motor gap adjustment
Offline printing
Yes（USB）
Support 3rd party material
Yes
Print head diameter
0.4 mm
User interface
5 inch touch screen
Print bed
Heated, removable metal print bed
Print bed temperature
40 ~ 110 °C
Connectivity
USB 2.0 cable, Wi-Fi dongle, USB flash drive
Printing software
XYZprint 3
Supported file formats
.stl / .3mf / .obj / .igs / .stp / .ply / .amf / .3cp / .iges / .step /
G-code
Operating systems
Microsoft Windows 10 / 11（64-bit）
macOS 10.14及以上
Product dimensions (WxDxH)
485 x 532 x 572 mm
Net weight
24 kg
Operating temperature
15 ~ 32 ℃
Storage temperature-Filament
10 ~ 40 ℃

6

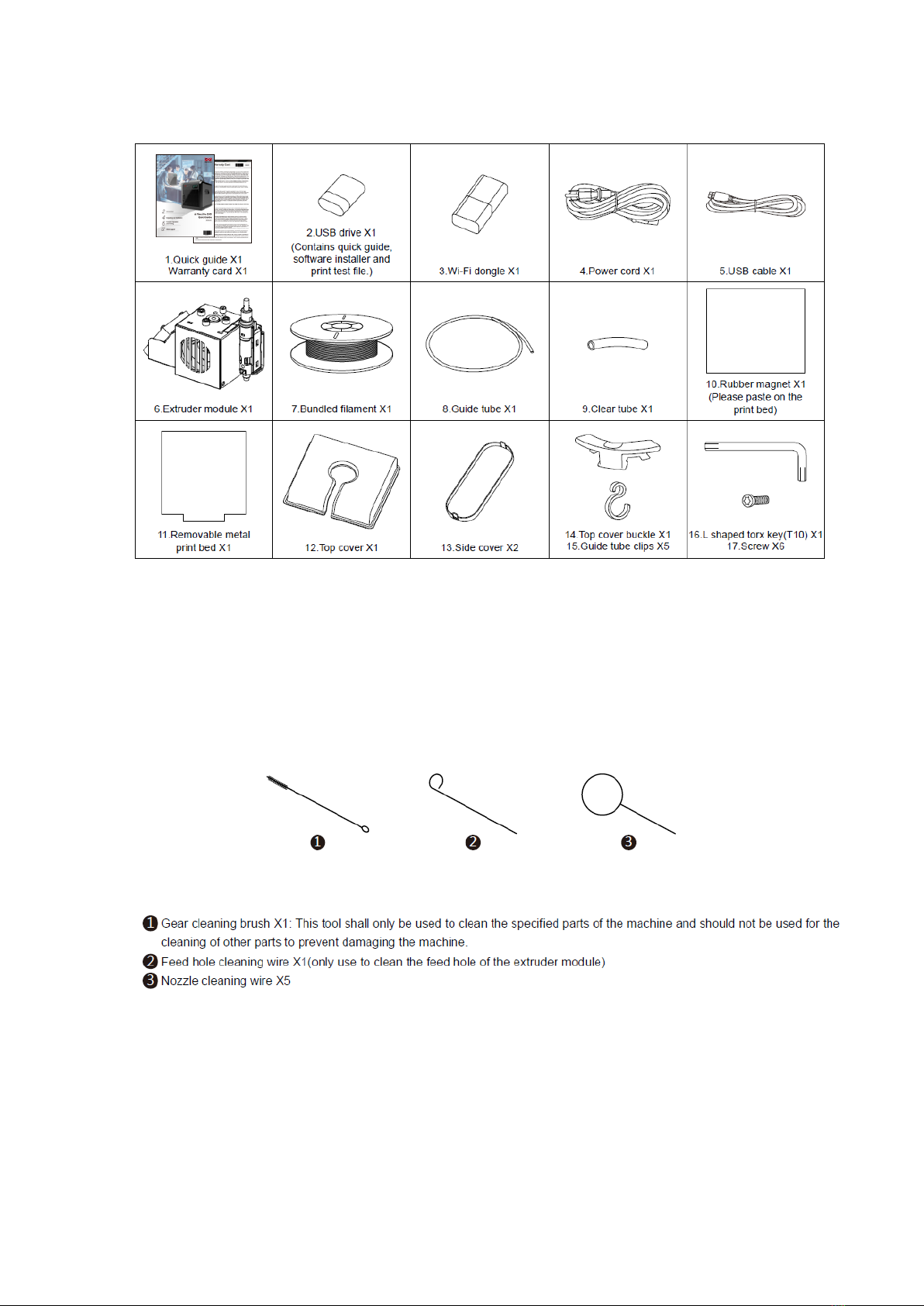

Accessory checklist
※The company reserves the rights at any time under the specific circumstances of accessory to
improve the right of specific style and size to actual supply prevail.
Maintenance Tools
The following tools are intended for use under the guidance or guardianship of an adult
only. Do not allow children unfamiliar with the tools to have access to them in case of
danger.
Precautions and Instructions of Maintenance Tools
Regular cleaning of the print nozzle facilitates to not only extending service life of the
printer, but also improves print quality.
To prevent the incomplete flow of the filament as to affect the print quality, as may be caused by
the remaining and the stacking of the filament after the print head is operated for a longer time,
please select “Clean Nozzle” option in “Maintenance” menu of the Printer and then clean

7
the steel wires or that remained in the feed hole with the Nozzle in order to remove the residual
debris.
* Filament should be unloaded from the extruder module before cleaning the feeding path.
* Care should be taken during the operation to avoid potential burn injuries.
Filament scraps generated during printing may remain on the feeding motor and gear,
which will affect the printing quality and operation of the printer. In this case, please clean
the scraps.
Maintenance and Service
If an abnormal sound is heard from the Z-axis when the machine is operating, please apply
grease to protect the machine.
When the printer needs to be serviced during the term of the warranty, it is recommended
that the machine is packed with original packaging materials prior to shipment. For this
purpose, the packaging materials are better to be kept. If other packaging materials are
used instead, the printer might be damaged during printing. We reserve the right to assess
relevant service fees.
Unpacking and Installation

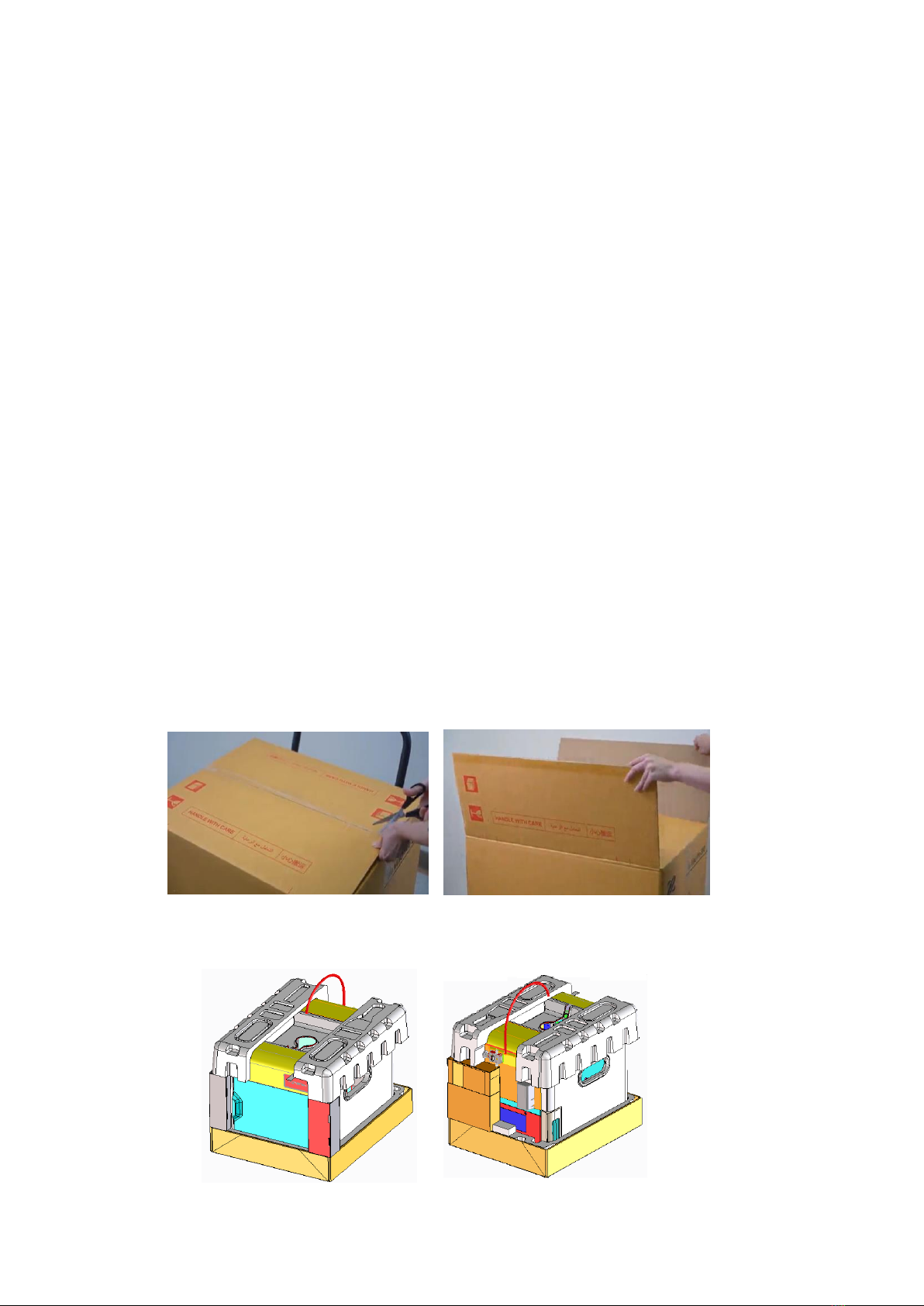

Unpacking
Please follow the instructions to unpack the product. Failure to follow the procedure may result
in damage to parts.
1. Open the outer box to pull it out.
2. Remove the cushions of accessories on the upper two sides and all fixing materials at the
front and rear.

8
3. Remove the cushions and accessories above the machine.
4. Remove the packaging bags and take out the printer, then remove all fixing tapes on the
printer and take off the top cover.
5. Open the front cover and remove the tapes and cardboard above the front of the printer and
the tape below.
6. Cut the tape binding the cushions on both sides and remove the cushions.
7. Remove the fixing cardboard above the printer.
8. Remove the tape on the fixing cushions on the left and right sides, and remove all cushions
inside the machine.

9
9. Take out the filament box and extruder module accessory box.
10. Please remove the two clips from both sides of the belt before using.
Hardware Installation
Print Bed Installation
Tear off the tape affixed to the backside of the Rubber Magnet (Accessory 10) and then align the
magnet with the corner of the print bed. Next, press the magnet down until it is attached to the
print bed securely.
After that, load the Removable metal print bed (Accessory 11) on the magnetic-bonded print
bed.

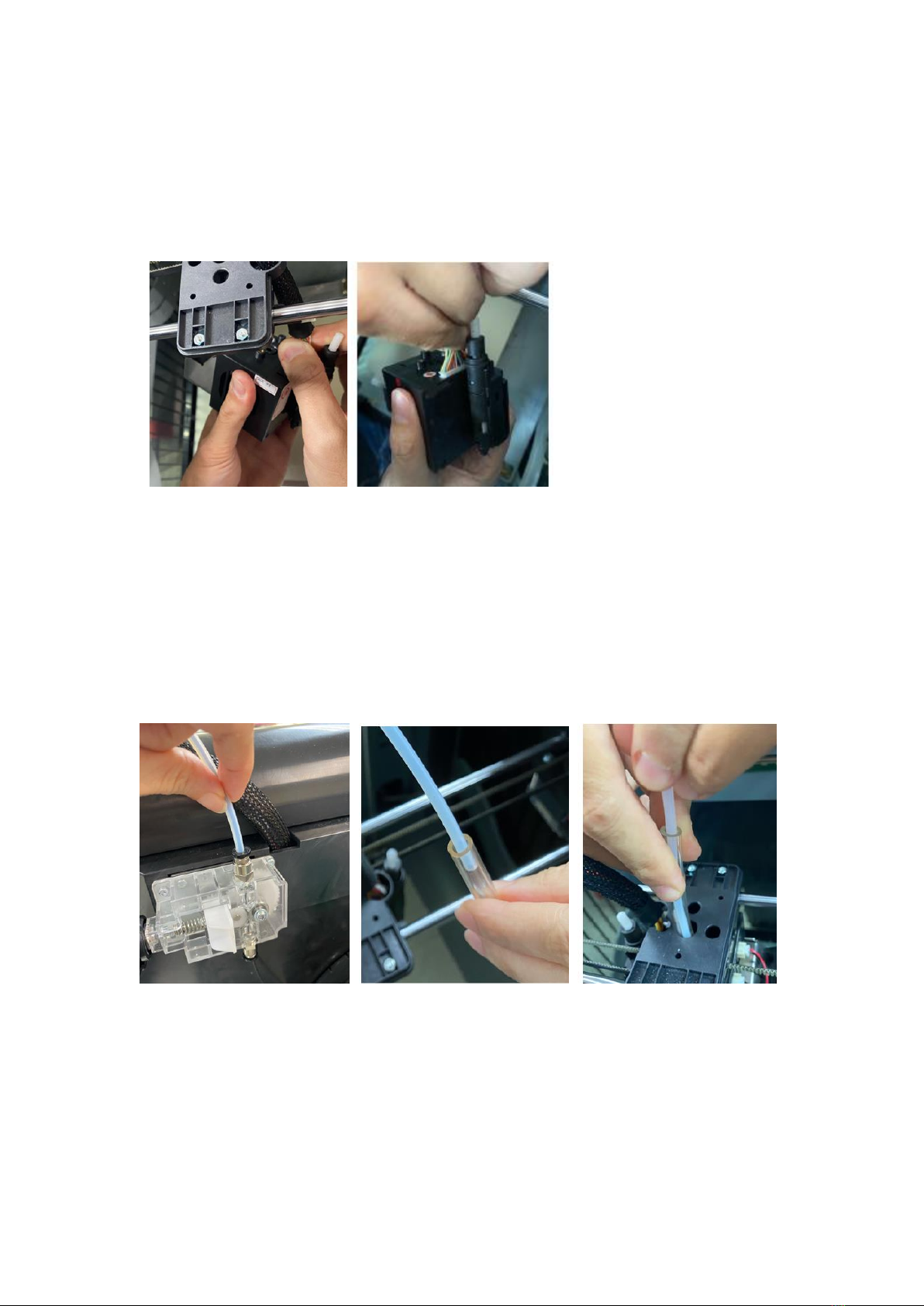

Extruder Module Installation
Hand Tools: L shaped torx Key(accessory 16) or T10 Torx Screwdriver.
Disconnect the power. Insert the heated flat cable and then align the extruder module with the
correct position of the 3-point screw hole. After that, tighten these 3 screws with the L-shaped
torx key (Accessory 16) respectively until the extruder module is secured in position.
Mind the pinching position (as shown in the figure) when
inserting the heating cable into the interface, and confirm the
fool-proof position, then align the two ends and insert with
even force.

10
Extruder Module Removement
Filament should be unloaded from the extruder module before module removement.
Loosen the screws at the three holes (loosening instead of taking down the screws, and keep the
screws on the holes), support the extruder module by hand, then press both ends of the heating
cable to pull it out.
Mind the pinching position (as shown
in the figure), and pull out the heating
cable with even force.
Guide Tube and Clear Tube Installation
Insert one end of the guide tube (accessory 8) into the feed module and secure it tightly.
Insert the clear tube (accessory 9) into another end and be sure to complete this installation, in
order to press the clear tube down to remove the guide tube in the future. (Please be sure to
complete this step to facilitate pressing down the clear tube and removing the guide tube)
Press the filament guide tube goes into the feed hole of the extruder module tightly and the
installation of the filament guide tube is duly completed.

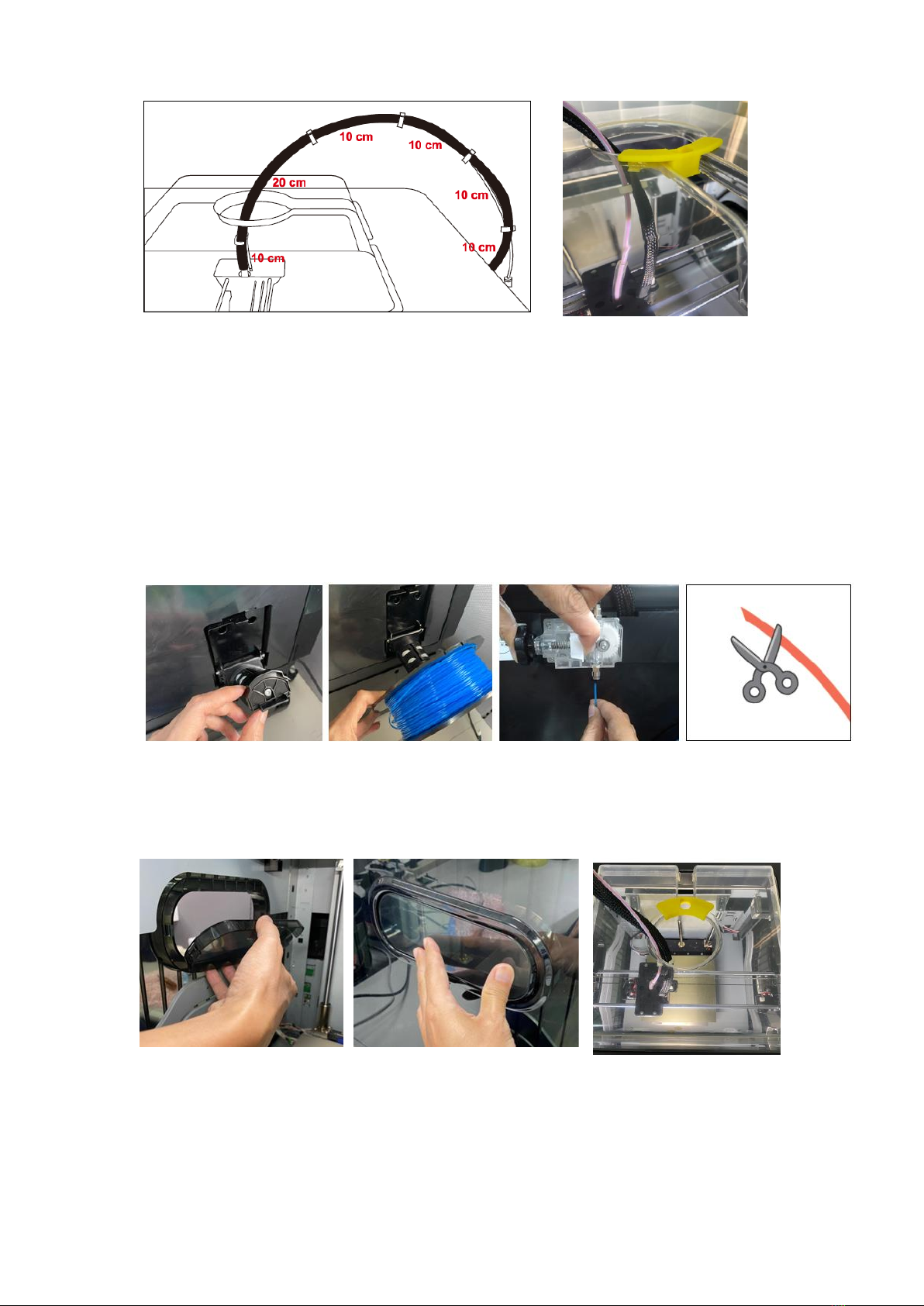

Guide tube clips (This file is stored on USB drive) and Top cover buckle
Installation
Guide tube clips (accessory 15) is used to fix the wires and guide tube, and can stabilize when
moving of the wires and tube during printing.
Please avoid the distance position that will touch the upper cover when the printing moves.

11
The recommended installation position is as follows:
* The top cover buckle file can be downloaded from the website.
It is recommended to print the top cover buckle in ABS material.
Filament Installation
The feeding module is located at the back of the printer. Put down the filament holder first, and
place the filament on the spool holder. Pull out a section of the filament and insert it into the
feed port.
Note :
Before pushing the filament into the guide hole, please cut the tip of the filament off at a 45°.
Side cover and Top cover installation
Starting from the internal side of the printer, install the side cover towards the latch direction.
The top cover is placed directly on the top of the printer.

12
System requirement
Operating Systems
Windows
Microsoft® Windows® 8, 10, 11 (64 bit)
Mac OS® X 10.15, 11, 12
Minimum Hardware Requirements
CPU : 4th Generation Intel® Core™ i5 Processor or above
RAM: 8GB
Hard disk space: 20GB or more
Storage : 1GB above ( Recommended 20GB)
1GB free storage for installation.
For MAC: RAM: 8GB / Hard disk space: 20GB or more
Software Installation
“XYZprint 3” should be installed on the service PC for preparing the files for production.
Connect the USB drive provided with the printer to your PC. After booting the software driving
procedure, the installation program will appear on your PC screen. Click the program twice to
start installation.

13
Start XYZmaker Suite, select and start "XYZprint3" to perform printing.
XYZprint 3 Interface

14

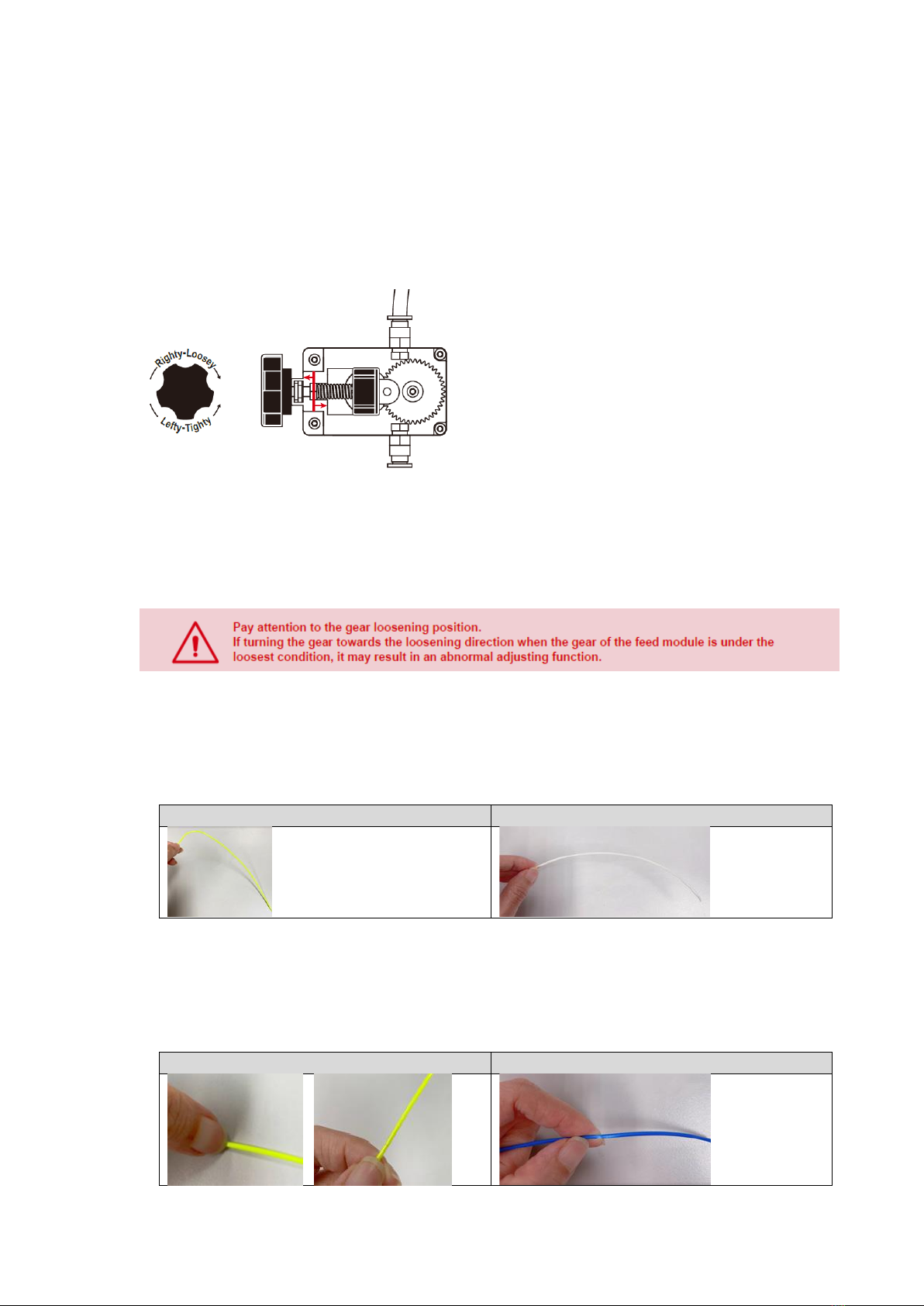

Feed module adjustment
Before loading the filament, please set the middle value of the temperature on the operation
panel according to the recommended printing temperature range of the filament you are using,
as the temperature of the loaded filament, and then observe the feeding condition to make
adjustments.
The tightness of the gear in the feed module can be adjusted according to the material of the
filament being used.
The gear tightness of the feed module can be adjusted with the material used.
Please make sure to tighten or loosen the gear of the filament feeding module correctly. It must
be tight enough to grab the filament and push them into the extruder hole, but must not be
tightened excessively, If the gear screw of the feed module is too tightly, the gear will not be
able to push the filament correctly.
Filament Properties
1. Check the properties of the filament
Cut off 15~20cm of filament. Grasp both ends with both hands respectively and then loosen
either end horizontally and vertically. If the filament is sagging, it belongs to soft material;
otherwise, it is hard material.
Soft material (per the schematic diagram)
Hard material (per the schematic diagram)
2. Identify the touching effect of the filament surface
A. Take out the filament and then lightly press the surface of the filament with a fingernail. If a
trace remains, then it means the filament is not made of rigid-base material.
B. Take out the filament and then lightly scrape the surface of the filament with a fingernail. If a
trace or debris remains, the filament is not made of abrasion-resistant material.
Non-rigid material
Not hard wearing

15
When loading the filament, the material used for presetting the printer will be located at
the center position of the nut in the feed module. You may adjust the gear tightness
according to the clamping force indicated in the following filament characteristics.
During the printing process, you may also execute fine-tuning of the gear for the feed
module in order to achieve the desired tightness.
Material
Observe the feeding condition
Adjustment Methods
Hex nut position
Soft material
Observe whether the filament inside the
guide tube is excessively squeezed,
twisted, or unsmooth feeding conditions,
and whether the flow of filament is stable.
If the filament is presenting any
squeezing, warping or unsmooth feeding
sign, please adjust the clamping force of
the gear in order that the filament will be
extruded steadily from the print head.
Clockwise to loosen
Middle left
General
When it is impossible to judge the
material characteristics or when using
general materials, it is recommended to
adjust the nut to the center position first,
and observe whether the filament feeding
condition inside the guide tube is stable.
If the flow of the filament is not smooth,
please adjust the gear clamping force.
Adjust the net to the
center position
If the filament cannot be
extruded, turn the nut
leftward until tight (adjust
in a counterclockwise
direction)
Center or middle right
Hard material
Observe whether the filament flows out
stably and smoothly, or whether there are
mechanical abnormal noises during the
process.
If the filament cannot be
extruded, turn the nut
leftward until tight (adjust
in a counterclockwise
direction)
Middle left or middle right

16
Hard material
If there is no flow or abnormal sound, try
to loosen or tighten until the abnormal
sound is eliminated and the filament flows
out stably.
If there is abnormal sound,
turn the nut leftward until
tight (adjust in a
counterclockwise
direction) or turn the nut
rightward to loosen (adjust
in a clockwise direction)
Middle left or middle right
Non-rigid
material,
not hard
wearing,
Fiber material
When extruding the filament from the
print head, please check if any scraped
debris remains in the gear-clamping area.
If the filament cannot be extruded or if an
abnormal sound is heard, you may loosen
or tighten the gear until the sound stops
and the print head is steadily extruding
the filament.
Clockwise to loosen
Middle left
* If the gear of the feed module is loosened, you may execute the adjustment. In this case, the gear of the
feed module should be tightened correctly.
* Specific conditions may exist in the filaments supplied by different manufacturers. Please make the
adjustment according to the conditions of the filament that will be used.
Operating the Printer
Setting the language shown on the printer screen before use, and through the Quick Tour to
quickly understand content of each function of the main screen.
You can also select "Qui Tour" in the "Settings" function later to learn about the various
functions. In order to ensure the print quality, please perform maintenance according to the
reminder items first to exclude reminder symbols.

17
Main Screen Function Introduction
Users may get the printing status and use information through the display panel, and carry out
function operation by pressing keys.
Function and description
1. USB drive:
Users may browse the 3D model stored in the USB drive, or directly select the.3cp file,
import it into the printer and carry out printing without importing the file by the computer.
Reminder: Please put the print bed in place before printing, complete the feeding
procedure and confirm that the front cover is closed.

18
Check if the USB drive is plugged to the printer.
Tap the USB Printing Menu in the main screen. Browse the file information from the
USB or select the file (.3w file) to print.
2. Filament:
You can see filament information on this page.
Including the ”Load”, ”Unload”and ”Temperature”adjustment of the filament.
2-1 Load filament: Filament > Load
Please pay attention to the filament direction and the rotation direction of the filament
holder when feeding.

19

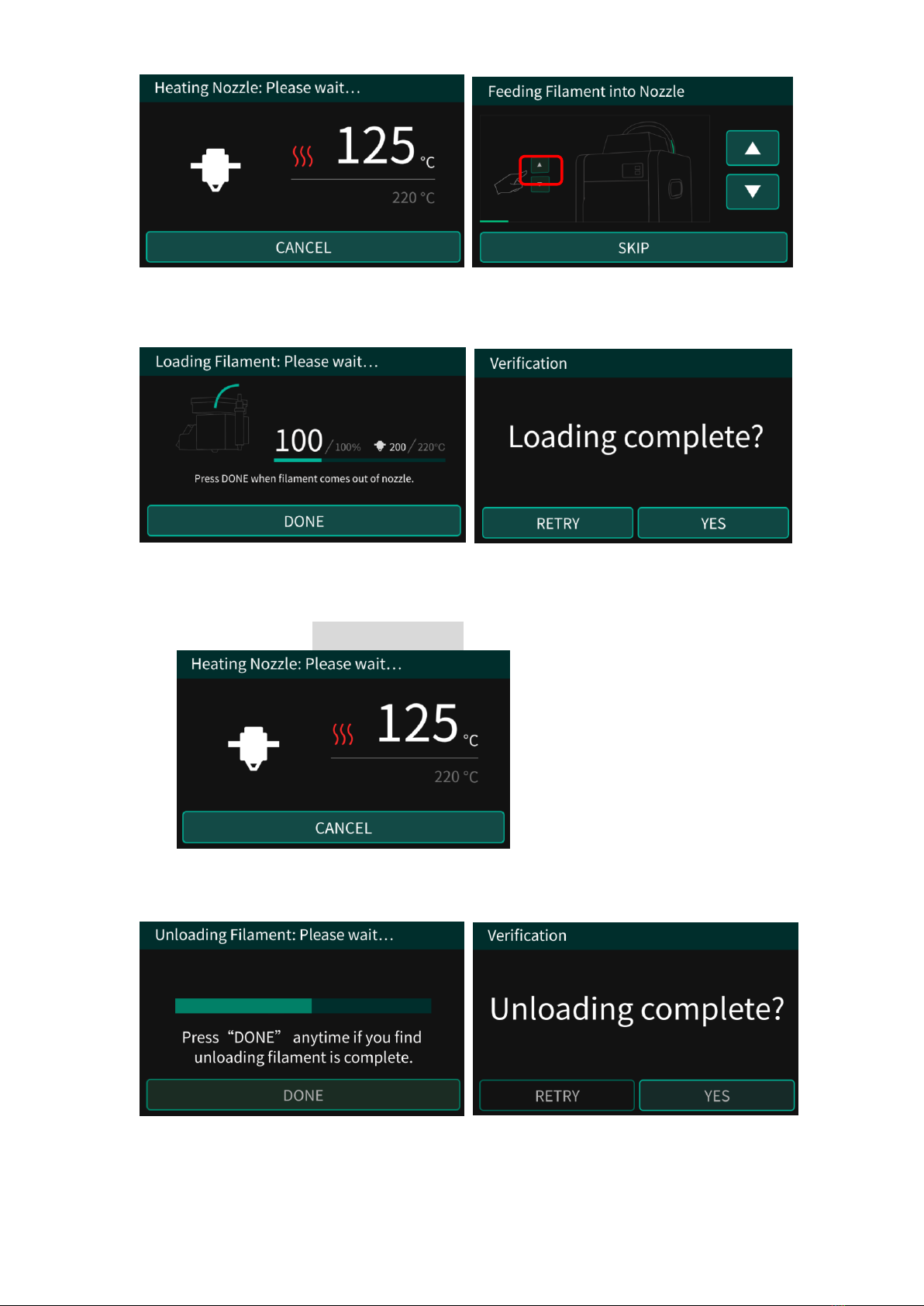

Wait for the extruder module to be heated to the working temperature after confirming
that the filament is loaded, which will be driven by the feeding system to push the extruder
module along the filament tube; or directly press and hold the "up" key to speed up the feeding.
Press "DONE" anytime if you find filament is comes out of print head.
When the loading operation is complete, tap to "YES" confirm.
2-2 Unload filament: Filament > Unload
When the print head has been warmed up to working temperature, the feeding motor will
eject the filament.
Press "DONE" if you find filament is ejected from the feed module.
When the unloading operation is complete, tap to "YES" confirm.

20
2-3 Nozzle temp setting: Filament > Temperature
Auto detect
The printer will automatically detect the filament reel data when XYZprinting filament is
used, and automatically adjust the temperature of loaded and unloaded filament.
Preset temperature value will be imported regardless of the filament system. Users may set
the temperature values of loaded and unloaded filament by manual according to the
characteristics of the filament used.
3. Setting：
This includes: Print Bed, Print Head, Network, Sound, Statisticsm, Display, Language, Reset,
Advanced, Quick Tour and Legal Info. The version used is shown below.
