Yale Delayed Egress 7100 Series User manual

7100, 7200 Series Exit Device
Delayed Egress
Installation Instructions
Copyright ©2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For technical support contact Yale®at 800.438.1951 x5033 or [email protected]
8094700162000 10/20
This product can expose you to
lead which is known to the state
of California to cause cancer and
birth defects or other reproductive
harm. For more information go to
www.P65warnings.ca.gov.
Attention Installer
Any retrofit or other field modification to a fire rated opening
can potentially impact the fire rating of the opening, and
Yale Locks & Hardware makes no representations or
warranties concerning what such impact may be in any
specific situation. When retrofitting any portion of an
existing fire rated opening, or specifying and installing a new
fire-rated opening, please consult with a code specialist or
local code official (Authority Having Jurisdiction) to ensure
compliance with all applicable codes and ratings.
WARNING
Available on the following devices:
Rim
Mortise
SquareBolt®
Concealed Vertical Rod
*Surface Vertical Rod
*Rod Guards Required (made by other manufacturers)

Copyright ©2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in
part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For technical support contact Yale®at 800.438.1951 x5033 or [email protected]
2
Delayed Egress
Installation Instructions
7100, 7200 Series Exit Device
8094700162000 10/20
TOC Table of Contents
1 Panic and Fire Related Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
a Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
b Required Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
c Optional Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
d Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2 End Cover and PC Board Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3 DIP Switch Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
4 Installation of End Cover Asssembly to Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5 Device Mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

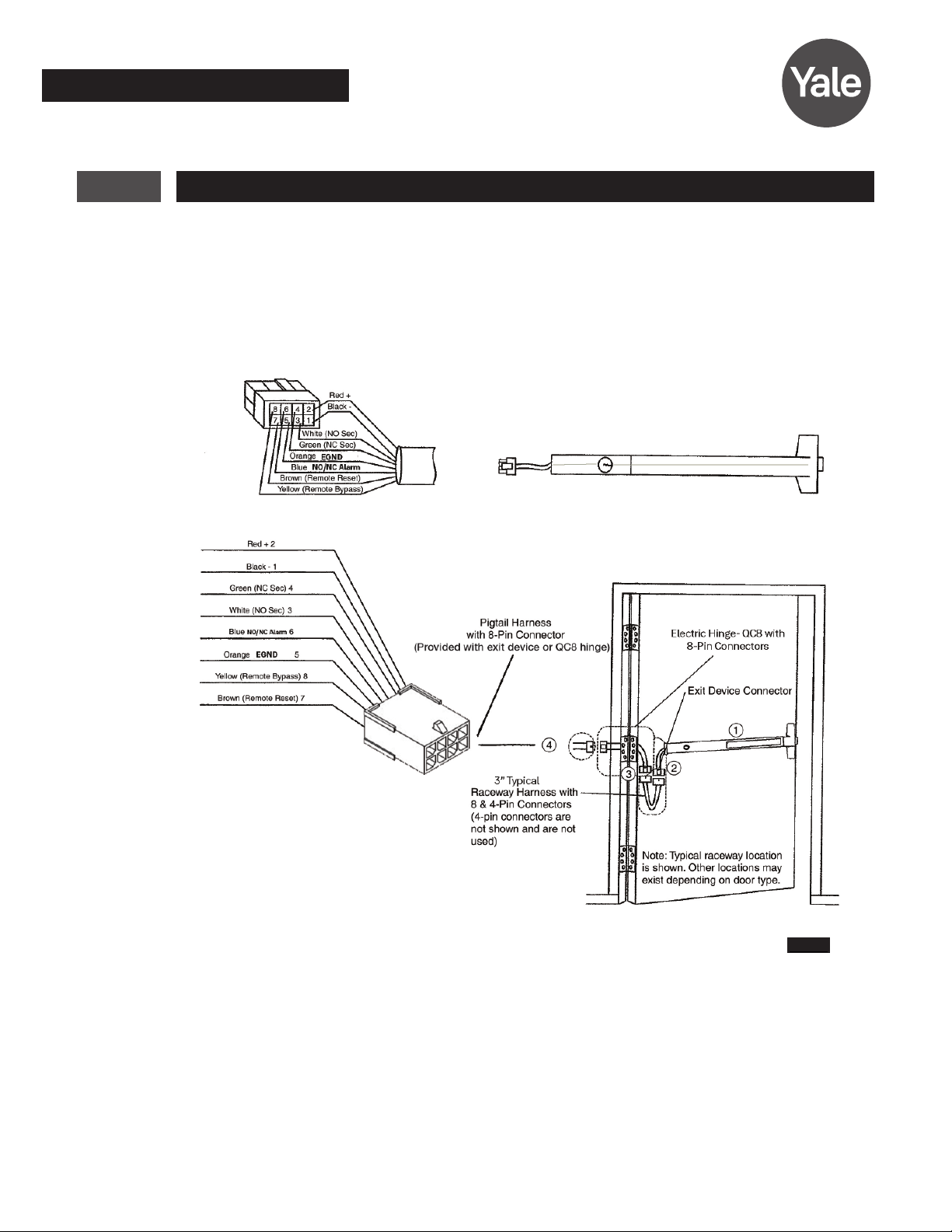

6 Wiring Layout: Input/Output Wiring Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
7 ElectroLynx Connector System for All Electrical Installation . . . . . . . . . . . . . . . . . . .10
8 ElectroLynx Wiring Options Overview with QC8 Hinge . . . . . . . . . . . . . . . . . . . . . . . . . 11
9 Installing Delayed Egress Exit Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

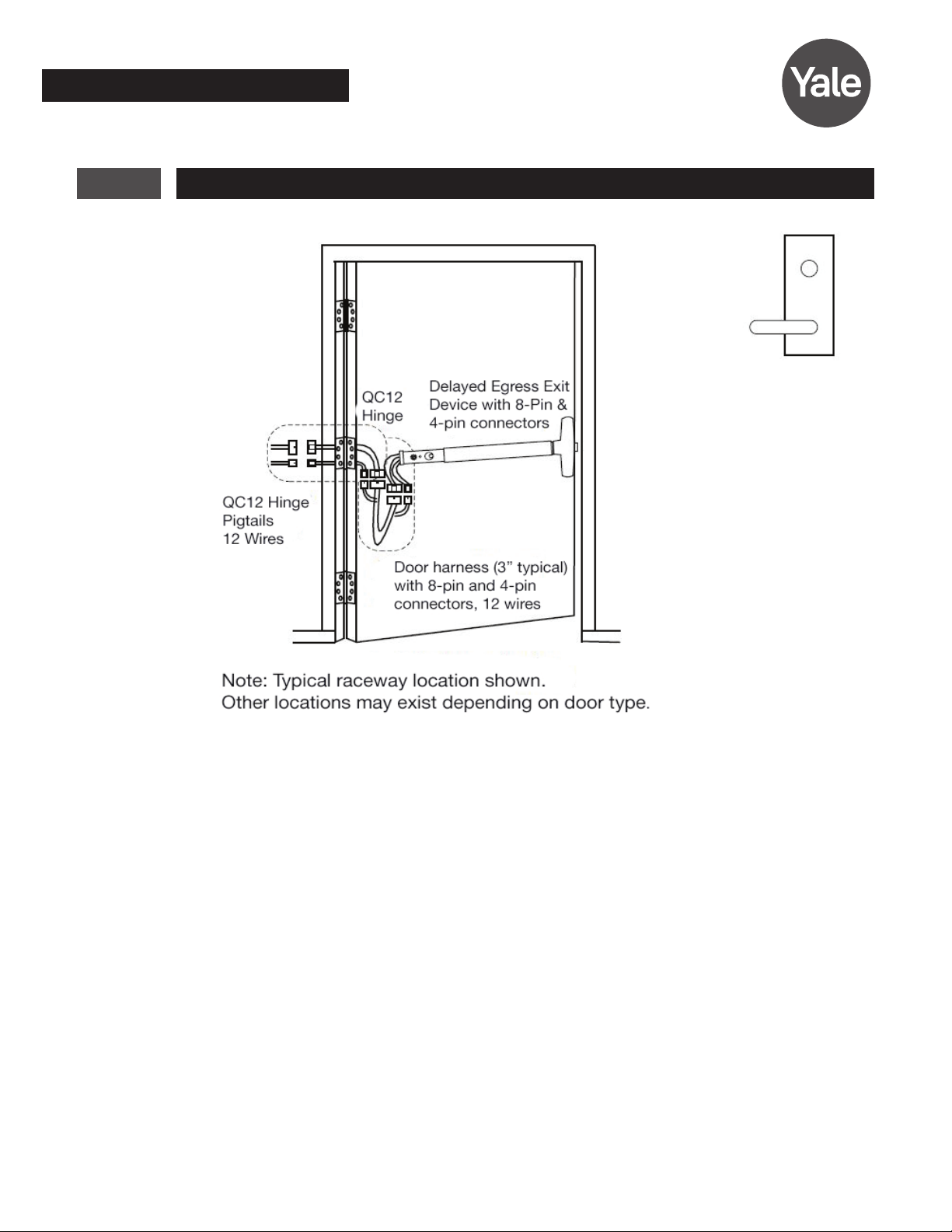

10 ElectroLynx Wiring Options Overview with QC12 Hinge . . . . . . . . . . . . . . . . . . . . . . . .13

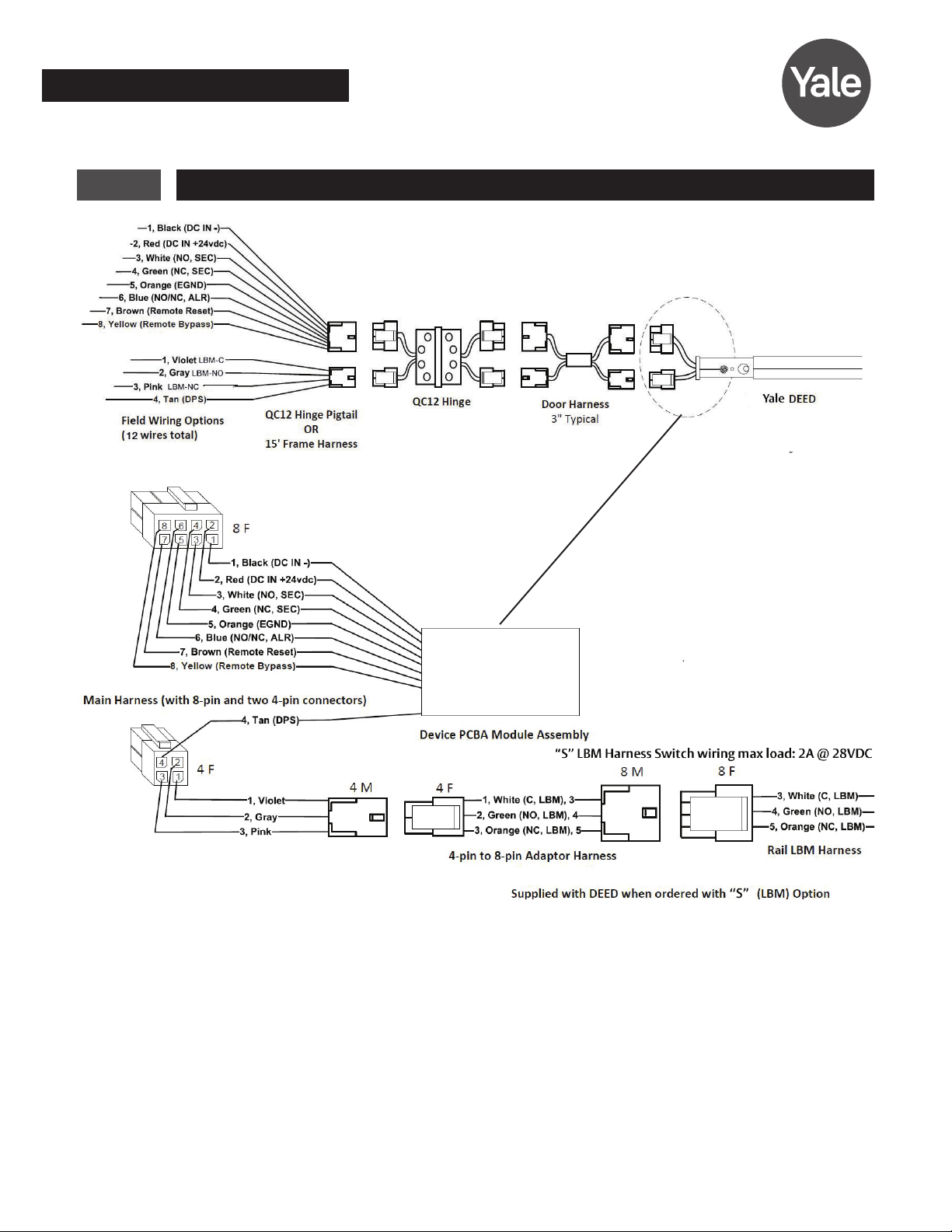

11 ElectroLynx Wiring Deed with “O” Trim Monitor Option and QC12 Hinge . . . . . . . .15

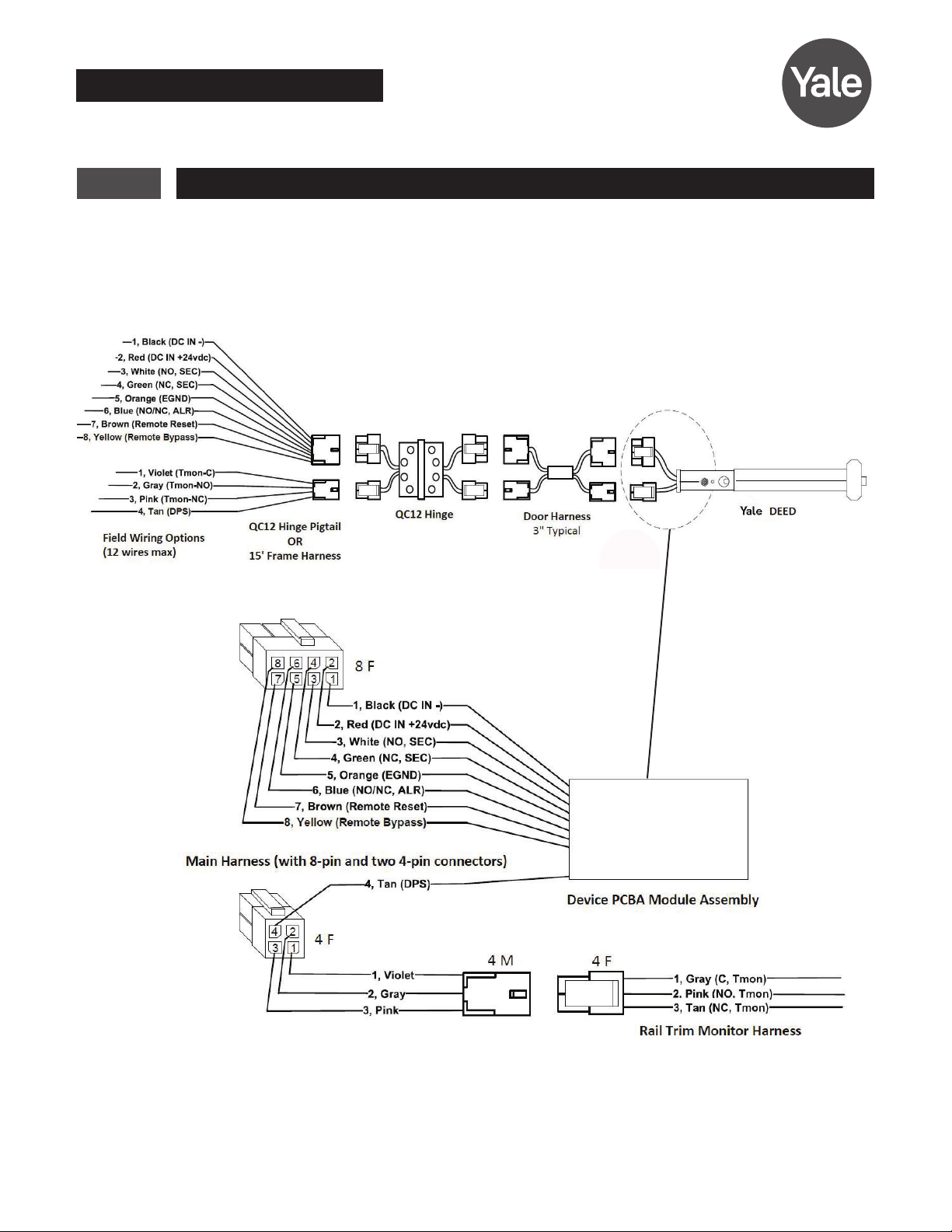

12 ElectroLynx Wiring Deed with Electrified Trim (ET) Option and QC12 Hinge . . . . .17
13 ElectroLynx Wiring Deed with “S” Latchbolt Monitor Option and QC12 Hinge. . .18
14 Non-ElectroLynx Door Prep . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
15 Wiring Diagram - Single Door Exit Only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Copyright ©2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in
part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited
For technical support contact Yale®at 800.438.1951 x5033 or [email protected]
3
Delayed Egress
7100, 7200 Series Exit Device
Installation Instructions
8094700162000 10/20
TOC Table of Contents
16 Wiring Diagram - Single Door with Remote Inputs & Monitoring Outputs. . . . . . . .21
17 Wiring Diagram - “O” Trim Monitor Entry with External Door Position Switch . . 22
18 Wiring Diagram - 690F Electrical Trim Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
19 Wiring Diagram - 691F Electrical Trim Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
20 Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
21 Additional Options Non ElectroLynx Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
22 BOCA 15 Second Delay & BOCA 30 Second Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
23 NFPA 101 Requirements: 30 Second Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
24 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
25 Appendix: Legacy Boards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Copyright ©2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in
part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For technical support contact Yale®at 800.438.1951 x5033 or [email protected]
4
Delayed Egress
Installation Instructions
7100, 7200 Series Exit Device
8094700162000 10/20
1 Panic and Fire Rated Devices
1. Check device for shipping damage prior to installation and make sure all parts are on hand.
2. Identify options provided with device.
3. Identify model, type and hand of trim if applicable (see exit device and trim instructions for
reversing hands).
4. Contact hardware supplier if device is damaged or missing parts.
aChecklist
bRequired Components (Numbered list correlates with numbers in Figure 1)
cOptional Components (Numbered list correlates with numbers in Figure 1)
1. Delayed Egress Exit Device
2. 24VDC UL Listed Regulated and Filtered Power Supply with Fire Alarm Interface (recommend
Securitron BPS 24-1 or 24-2 (UL294 Listed), depending on requirements). Power supply is NOT to
be used in UL603 Burglar Alarm System.
3. Power transfer UL or ULC listed (2-10 wire depending on system)-Securitron (EPT) or equivalent.
4. Sign (MUST BE INSTALLED ON DOOR ABOVE DEVICE).
NOTE: The delayed egress system is to be installed in accordance with NFPA 101.
5. Remote Annunciator
6. Door Position Switch (DPS)
7. Standard Trim
8. Electrified Trim
9. Device and Trim Cylinder
dElectrical Specifications*
Input Voltage 24VDC (+/-10%)
Wire Size:
18 AWG Min (up to 100')
Signal or Control 22AWG Min
Power Consumption:
Standard Device - 500mA
Device with Electric Trim - 1.5A
*Follow Local Electrical Codes for Wiring.
NOTE: Components shown do not reflect all possible applications. Consult
manufacturer for special applications.
Figure 1
6.
4.
PUSH UNTIL ALARM
SOUNDS. DOOR CAN BE
OPENED IN 15 SECONDS.
3.
5.
1.
8.
7.
9.
115 VAC
1 or 2A
60 Hz
Fire
Alarm
Circuit
Required
Or
2.

Copyright ©2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in
part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited
For technical support contact Yale®at 800.438.1951 x5033 or [email protected]
5
Delayed Egress
7100, 7200 Series Exit Device
Installation Instructions
8094700162000 10/20
2 End Cover and PC Board Assembly
Rear Cover End Cap
1-1/8" (29)
Mortise Cylinder
with Yale 2160 Cam
®
(Order Separately)
1765 Series
Cylinder Collar
(Order separately
when required)
End Cover
Circuit Board Assembly
Indicator Light ( )LED
Lens Cover
Arming Switch Activator
Tabs
NOTE:Factory keyed orders will
be shipped assembled.
Cylinder Nut
Activator Legs
1765 Series
Cylinder Collar
1-1/8"
(29)
1-1/2"
(38)
2160 Cam
Dia
.742"
(18.9
mm)
Order Separately
®
NOTE: • Use Yale®2153 x 2160 cam,
1-1/8" mortise cylinder
• For cylinders over 1-1/8",
use Yale® 1765 Series cylinder ring.
Typical Mortise Cylinder
1. Trim device to proper length as required.
36" Exit Device - 1" maximum can be trimmed
48" Exit Device - 6" maximum can be trimmed
2. Carefully slide circuit board assembly into end Cover to ensure indicator light (LED) is not bent.
3. Insert mortise cylinder into end cover with keyway horizontal, as shown.
4. Slide arming switch activator over mortise cylinder so activator legs are on each side of switch.
5. Insert flange of cylinder nut into arming switch activator to allow rotation of activator.
6. Tighten cylinder nut on mortise cylinder and to secure circuit board assembly.
7. Verify assembly by rotating key counter clockwise and clockwise. Key should move freely and
arming switch should trip for both rotation directions. If key does not rotate freely, verify cylinder
nut was placed in correct orientation. If arming switch does not trip, activator legs on arming
switch activator can be bent to reduce or increase rotational travel.
Figure 2

Copyright ©2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in
part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For technical support contact Yale®at 800.438.1951 x5033 or [email protected]
6
Delayed Egress
Installation Instructions
7100, 7200 Series Exit Device
8094700162000 10/20
3 DIP Switch Settings
* S2-8: When an external DPS is used and switch S2-8 ON, and 40 second reset delay (S2-4 and S2-5) are set
ON, after activation of momentary egress by cylinder key switch or external remote reset signal, if the Door/DPS is
open beyond 40sec the device will remain in momentary egress mode indefinitely and shall not enter alarm mode;
then once the Door/DPS is closed it will rearm immediately.
** With S2-8 OFF (S2-4 and S2-5 set for 5, 10, 20 or 40sec), if door/DPS is open after selected time the alarm will
sound. Close door to reset and rearm device using cylinder key or remote reset signal.
If door/DPS is opened then closed before selected time expires, the device will rearm immediately.
If DPS is not used, is bypassed with S2-7 ON, the door will rearm immediately after 5, 10, 20 or 40 sec whether the
door is open or closed, with either S2-8 ON or OFF.
Ensure eight S2 Dip Switches are set per application before moving on to the next page of instructions.
S2-1: Nuisance Audible may be selected ON (default) or
OFF.
S2-2 and S2-3: Nuisance Delay time may be selected 0
(Immediate), 1, 2, or 3 (default) seconds.
S2-4 and S2-5: Reset Delay time may be selected 5, 10
(default), 20 or 40 seconds.
S2-6: Whether an external LBM is used for not used for this
product, the switch must be set ON (default) to Bypass.
S2-6 OFF position is not used.
S2-7: Switch must be set ON (default) to Bypass when an
external Door Position Switch (DPS) is NOT used, and OFF
when an external DPS is used.
S2
Nuisance Audible
Nuisance Delay
(Special) RAC
Nuisance Delay
Reset Delay
Reset Delay
LBM Bypass
DPS Bypass
Nuisance Delay (seconds)
0123
S2-2 OFF OFF ON ON
S2-3 OFF ON OFF ON
Reset Delay (seconds)
5102040
S2-4 OFF OFF ON ON
S2-5 OFF ON OFF ON
PCBA DIP SWITCH VIEW

Copyright ©2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in
part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited
For technical support contact Yale®at 800.438.1951 x5033 or [email protected]
7
Delayed Egress
7100, 7200 Series Exit Device
Installation Instructions
8094700162000 10/20
4 Installation of End Cover Assembly to Device
1. Turn end cover assembly over to circuit board side.
2. Ensure eight S2 Dip Switches are set for application (see previous page).
3. Slide end cover assembly into device, making sure not to pinch or crimp wires.
4. Connect device lock assembly harness to connector J1. Place wire connectors and excess wire
between end cover and P.C. board. (Figure 3, Device End View)
5. Check all connections before proceeding.
6. Proceed to device mounting (see packed instructions).

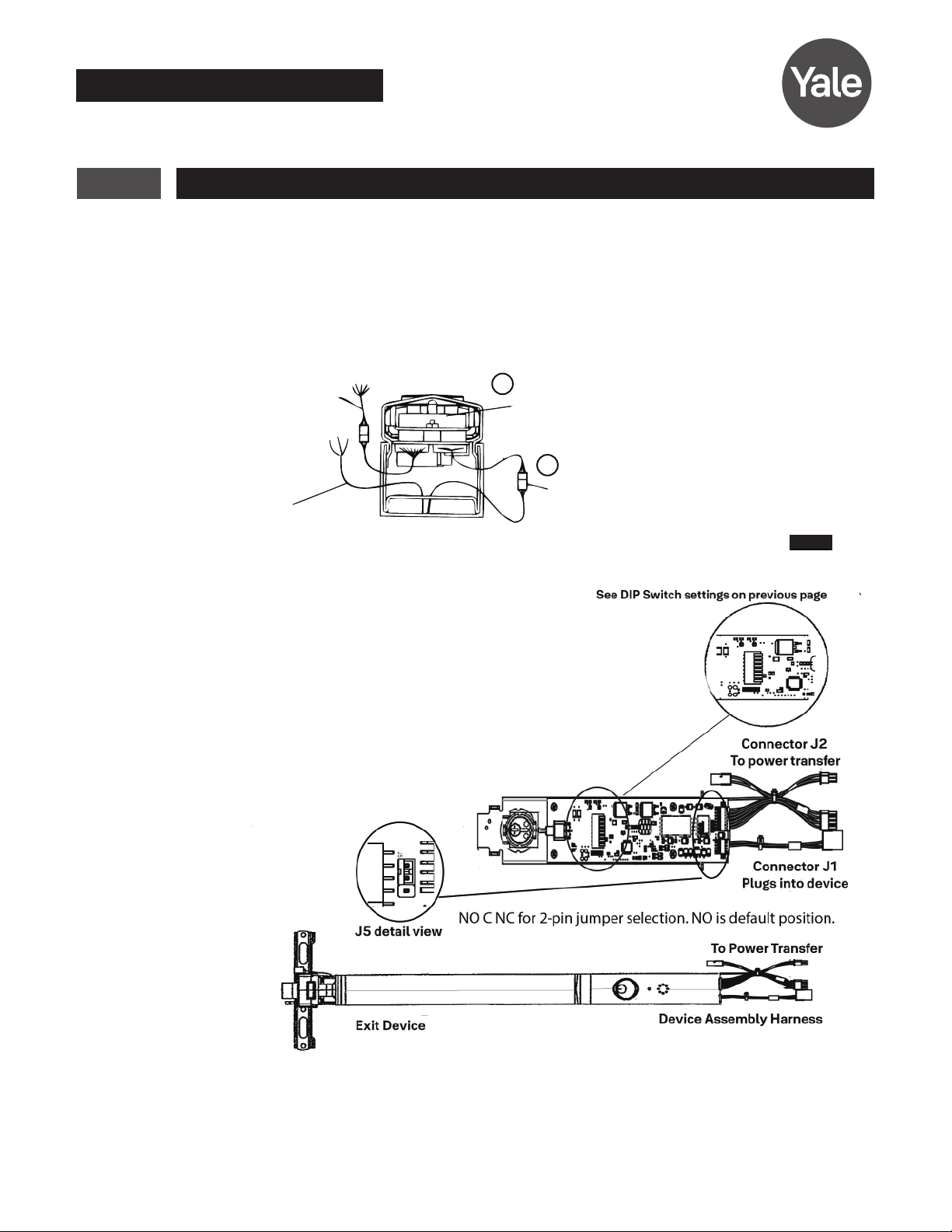

Connector J2
To Power Transfer Hinge
Optional "O", "S" or
Safe/Secure wire
(Refer to wiring diagram
for wiring)
Place Connector
and Excess Wire
in this Area
J1 Connector
Plugs into Device Lock Assembly
4
5
NOTE: Review J5 Alarm Relay NO or NC selection above. If NC contact is required, remove PBCA/
cover assembly from rail, move 2-pin jumper to NC, then re-install PCBA/cover on rail.
Device End View
Figure 3

Copyright ©2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in
part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For technical support contact Yale®at 800.438.1951 x5033 or [email protected]
8
Delayed Egress
Installation Instructions
7100, 7200 Series Exit Device
8094700162000 10/20

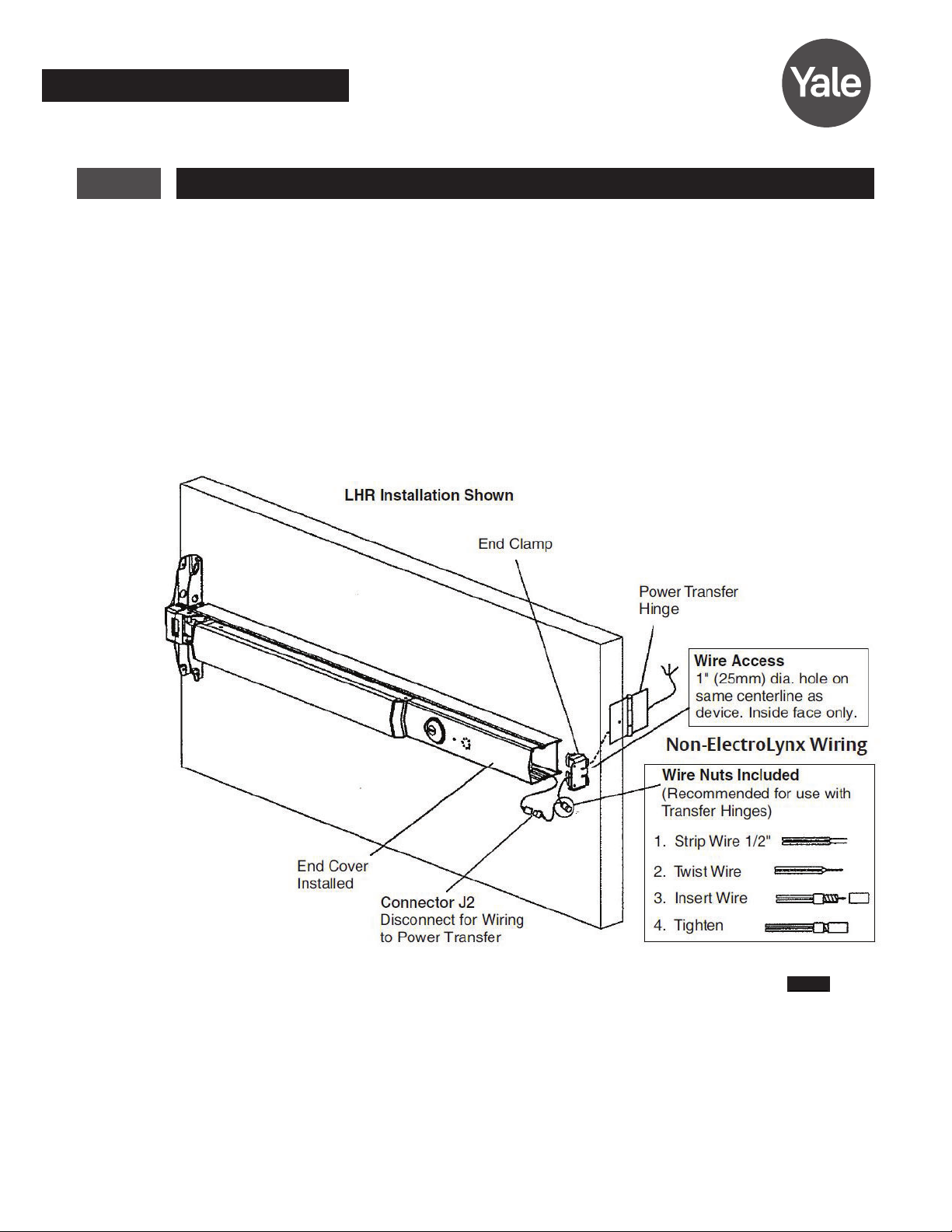

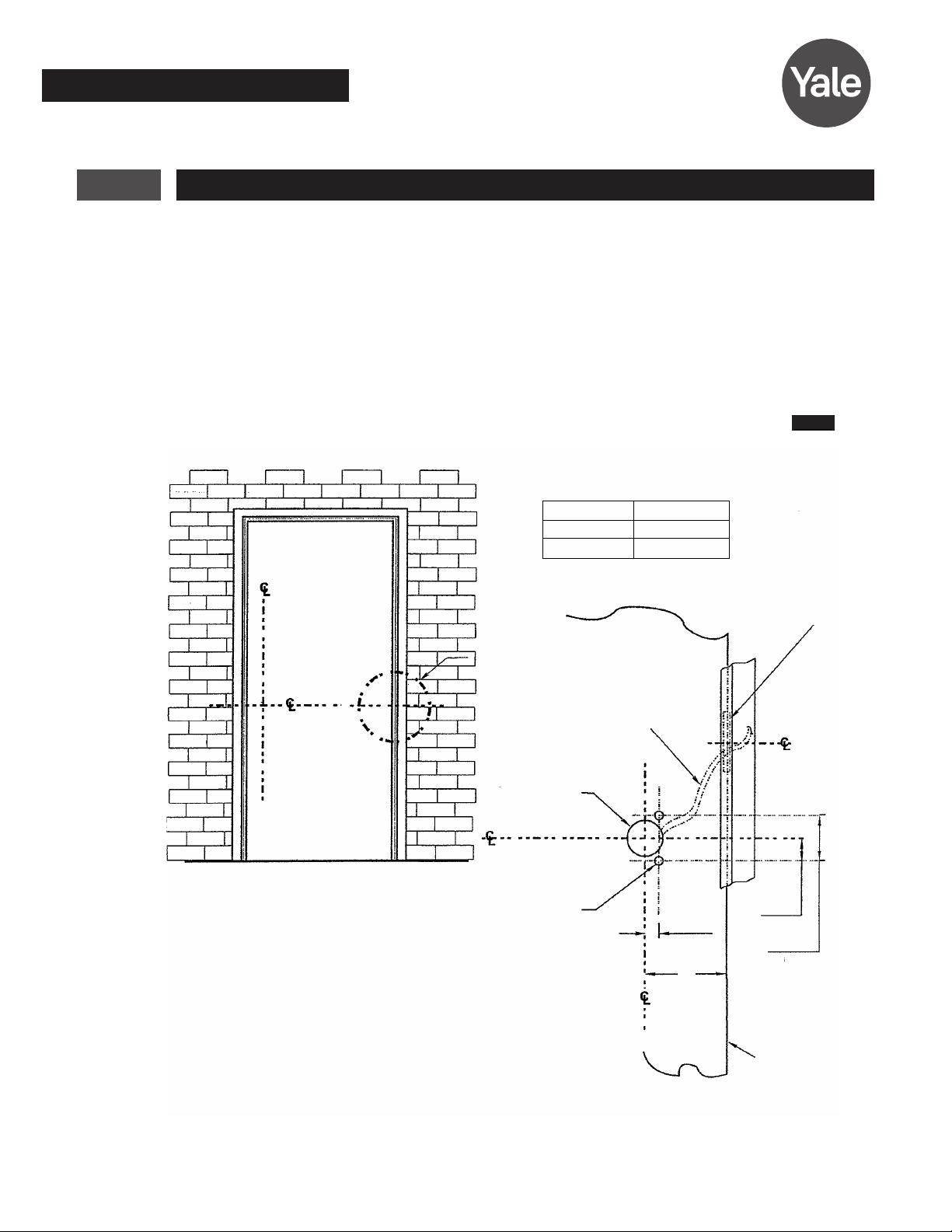

5 Device Mounting
1. Refer to installation instructions included with device and trim for complete door and frame
preparations. Refer to template #7477-00001 for wire access hole location.
2. Feed wires from power transfer through wire access hole in door. (Figure 4)
3. When required, mount outside trim to door (see trim installation instructions).
4. Mount device to door (see device installation instructions).
5. Do not install end cap until device has been wired and tested for operation (See wiring diagrams).
6. Check mechanical operation and proceed to wiring diagrams.
NOTE: Wire nuts can be inserted into wire access hole after making connections. Quick disconnect
can be used without removing wire nuts.
NOTE: For QC8 and QC12 ElectroLynx wiring, refer to Sections 8 and 10. ElectroLynx has pluggable
connectors, wire nuts are not needed.
Figure 4
NOTES:
• Wires must be protected from abrasion.
• For use with Class II circuits only.

Copyright ©2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in
part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited
For technical support contact Yale®at 800.438.1951 x5033 or [email protected]
9
Delayed Egress
7100, 7200 Series Exit Device
Installation Instructions
8094700162000 10/20
6 Wiring Layout: Input/Output Wiring Descriptions
Pin Number Input/Output Wire Color Description Pin Number
10 Input Black 24VDC Power Supply (-Circuit Ground) 1
12 Input Red 24VDC Power Supply (+Positive) 2
11 Output White
Secure Relay Output - Normally Open (NO)
contact. Power off - contact is open
Powered/armed - Relay energizes contact
closes. After 15 or 30 seconds delay when
device releases, the relay de-energizes, contact
opens (same as Power off state).
3
13 Output Green
Secure Relay Output - Normally Closed (NC)
contact. Power off - contact is closed.
Powered/armed - Relay energizes, contact
opens. After 15 or 30 seconds delay when
device releases, relay de-energizes, contact is
closed (same as Power off state).
4
NC EGND Orange Earth Ground connection to PCB mounting
plate via ring terminal 5
3 Output Blue
Alarm Relay Output - J5 jumper Selectable
NO/NC contact that changes state when alarm
cycle has been activated. Default shipped
position - jumper is on NO contact setting.
Power off - contact is NO or NC as per jumper
selection.Powered/armed - Relay energizes
contact reverses state. When alarm cycle is
activated - Relay de-energizes (same as Power
off state).
6
8 Input Brown
Remote Reset Input - Momentary input from
key switch, pushbutton, etc. Will release
device for 5, 10, 20, or 40 seconds for egress or
ingress and also reset device when in bypass or
alarmed state.
7
6 Input Yellow
Remote Bypass Input - Momentary input from
key switch, pushbutton, etc. Will maintain
device in an unlocked state for normal device
operation. Device must be rearmed by resetting
from key switch on device or remote reset.
8
J2 Connector
(See Figure 5 on next page)
8-Pin
ElectroLynx
Connector
NOTE: ElectroLynx QC8 Hinge is only required if all eight wires are used. When DPS and any other
wiring options are on the 4-pin connector, the hinge is NOT required.
NOTE: Secure and Alarm Relay contacts are rated max load 1A @24VDC.

Copyright ©2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in
part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For technical support contact Yale®at 800.438.1951 x5033 or [email protected]
10
Delayed Egress
Installation Instructions
7100, 7200 Series Exit Device
8094700162000 10/20
Figure 5
Pin Number Input/Output Wire Color Description Pin Number
NC Input/Output Violet C, LBM or C, Trim Mon. or ET(-) 1
NC Input/Output Gray NO, LBM or NO, Trim Mon. or ET(+) 2
NC Input/Output Pink NC, LBM or NC, Trim Mon. 3
2 Input Tan Door Position Switch Input-Input sense for DPS
switch option
4
J2 Connector (See Figure 5 below.)
7 ElectroLynx Connector System for All Electrical Installation
1. Mount exit device per instruction sheet provided.
2. Plug exit device connector into raceway connector in door. Feed through 1" (25mm) hole in door.
Install rail mounting end clamp bracket with two (2) screws supplied. Install end cap.
3. Plug raceway connector from edge of door into electric hinge connector and feed wires back
through door prep. Mount electric hinge to door.
A. If wiring now, wire frame side wires, to wires on pigtail harness, on hinge as required by
using connectors allowed by local code. Plug pigtail harness connector into electric hinge
connector. Feed harness through frame prep and mount electric hinge.
B. If wiring later, plug pigtail harness connector into electric hinge connector. Feed harness
through frame prep and mount electric hinge.
NOTE: ElectroLynx QC12 Hinge is required if DPS and/or any options shown are required.
NOTE: Refer to Section 25 if replacing legacy PCBA/wiring with new PCBA/wiring.
Top View
Bottom
View
4-Pin ElectroLynx Connector
6 Wiring Layout: Input/Output Wiring Descriptions, continued

Copyright ©2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in
part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited
For technical support contact Yale®at 800.438.1951 x5033 or [email protected]
11
Delayed Egress
7100, 7200 Series Exit Device
Installation Instructions
8094700162000 10/20
8ElectroLynx Wiring Options Overview with QC8 Hinge
7ElectroLynx Connector System for All Electrical Installation, continued
Installation Notes:
1. Wiring to pigtail harness is per facility wiring requirement.
2. For an ElectroLynx system, go to function or monitor page(s) with your device.
3. Combinations of certain monitors can be used in each device. These instructions detail installation
of each monitor separately.
ElectroLynx Connector System Notes:
System is designed to be installation friendly, with plug connectors from electric hinge through door
to device. The only wiring required is loose wires on pigtail harness assembly on frame side of electric
hinge (included with QC Hinge). Combinations of certain switches and monitors can be used.
The plug and receptacle connectors are designed to mate and lock together. Plug connectors into each
other with locking mechanism aligned. Do NOT force connectors together any other way.

Copyright ©2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in
part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For technical support contact Yale®at 800.438.1951 x5033 or [email protected]
12
Delayed Egress
Installation Instructions
7100, 7200 Series Exit Device
8094700162000 10/20
9 Installing Delayed Egress Exit Device
Figure 6
Refer to Figure 6 for delayed egress exit device installation wiring.
NOTE: For ElectroLynx Hinge Connector System: Follow Section 6 wiring instructions.
For non-ElectroLynx door:
Remove connector at end of exit device and connect to incoming wires from power source using wire
nuts, butt splices, etc. See Section 14 for hole locations and sizes.

Copyright ©2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in
part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited
For technical support contact Yale®at 800.438.1951 x5033 or [email protected]
13
Delayed Egress
7100, 7200 Series Exit Device
Installation Instructions
8094700162000 10/20
Note:
New wiring shown.
Items followed by * indicate NEW PCBA wiring OR NEW DEVICE wiring that differs from Legacy wiring. Pluggable
4-pin connections from Device Harness to Main Harness is for new QC12 hinge wiring method.
QC12 Hinge -
Wiring Options
Wiring to 8-pin and 4-pin connectors are REQUIRED (12 wires max)
- If external DPS wiring is REQUIRED (Set PCBA Dip Switch S2-7 OFF)
- If LBM, Trim Monitor, OR Electrified Trim Options are REQUIRED.
10 ElectroLynx Wiring Options Overview with QC12 Hinge
Refer to Figure 7 on page 14 for “O” Monitor - Trim Actuated SPDT Switch wiring.
NOTE:
• Switch wiring max load: 2A @28VDC.
• Wire must be protected from abrasion.
• For use with Class II circuits only.
• For ElectroLynx QC12 Hinge Connector System: Follow Sections 11, 12, and 13 wiring instructions.
• For non-ElectroLynx door:
Remove connector at end of exit device and connect to incoming wires from power source using
wire nuts, butt splices, etc. See Section 14 for hole locations and sizes.
After routing two wires from ET through the chassis and the wire channel in back of rail then Install Molex Female
4-pin connector (supplied) onto pre-crimped female terminals ontoBlack wire pin 4-1, Red wire pin 4-2

Copyright ©2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in
part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For technical support contact Yale®at 800.438.1951 x5033 or [email protected]
14
Delayed Egress
Installation Instructions
7100, 7200 Series Exit Device
8094700162000 10/20
10 ElectroLynx Wiring Options Overview with QC12 Hinge, continued
Figure 7

Copyright ©2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in
part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited
For technical support contact Yale®at 800.438.1951 x5033 or [email protected]
15
Delayed Egress
7100, 7200 Series Exit Device
Installation Instructions
8094700162000 10/20
11 ElectroLynx Wiring Deed with “O” Trim Monitor Option and QC12 Hinge
QC12 Hinge - Field Wiring Options
Wiring to 8-pin and 4-pin connectors is REQUIRED (12 wires max).
• If external DPS wiring is NOT REQUIRED, set PCBA Dip Switch S2-7 ON.
• If external DPS wiring is REQUIRED, set PCBA Dip Switch S2-7 OFF.
Supplied with DEED when ordered with “O” Trim Monitor (Tmon) Option

Copyright ©2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in
part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For technical support contact Yale®at 800.438.1951 x5033 or [email protected]
16
Delayed Egress
Installation Instructions
7100, 7200 Series Exit Device
8094700162000 10/20
11 ElectroLynx Wiring Deed with “O” Trim Monitor Option and QC12 Hinge, continued
Mechanical Trim

Copyright ©2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in
part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited
For technical support contact Yale®at 800.438.1951 x5033 or [email protected]
17
Delayed Egress
7100, 7200 Series Exit Device
Installation Instructions
8094700162000 10/20
12 ElectroLynx Wiring Deed with Electrified Trim (ET) Option and QC12 Hinge
QC12 Hinge - Field Wiring
Options
Wiring to 8-pin and 4-pin
connectors is REQUIRED
(12 wires max).
• If external DPS wiring
is NOT REQUIRED, set
PCBA Dip Switch S2-7
ON.
• If external DPS wiring
is REQUIRED, set
PCBA Dip Switch S2-7
OFF.
Supplied with DEED when ordered Fail Safe or
Fail Secure Electrified Trim (ET)
*Requires field to route two wires from ET through
the chassis and the wire channel in back of rail then
install loose Molex Female 4-pin(*4F) connector
(supplied) onto pre-crimped female terminals onto
Black wire pin 4-1, Red wire pin 4-2.
690F Electrified Trim (ET)
Fail Safe
Or
691F Electrified Trim (ET)
Fail Secure

Copyright ©2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in
part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For technical support contact Yale®at 800.438.1951 x5033 or [email protected]
18
Delayed Egress
Installation Instructions
7100, 7200 Series Exit Device
8094700162000 10/20
13 ElectroLynx Wiring Deed with “S” Latchbolt Monitor Option and QC12 Hinge
QC12 Hinge - Field Wiring Options
Wiring to 8-pin and 4-pin connectors is REQUIRED (12 wires max).
• If external DPS wiring is NOT REQUIRED, set PCBA Dip Switch S2-7 ON.
• If external DPS wiring is REQUIRED, set PCBA Dip Switch S2-7 OFF.

Copyright ©2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in
part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited
For technical support contact Yale®at 800.438.1951 x5033 or [email protected]
19
Delayed Egress
7100, 7200 Series Exit Device
Installation Instructions
8094700162000 10/20
Mechanical Trim
13 ElectroLynx Wiring Deed with “S” Latchbolt Monitor Option and QC12 Hinge, continued

Copyright ©2018, 2020 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in
part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For technical support contact Yale®at 800.438.1951 x5033 or [email protected]
20
Delayed Egress
Installation Instructions
7100, 7200 Series Exit Device
8094700162000 10/20
14 Non-ElectroLynx Door Prep
Figure 8
Refer to Figure 8 for non-ElectroLynx Door preparation.
NOTE:
• Do not scale drawing.
• Dimensions are in inches (") and millimeters (mm).
• LHR H.M. opening shown. Details are typical for all opening materials (both hands).
• This preparation is an addition to preparation shown on device template.
• See device template to locate centerline.
• Shields for wiring access recommended for insulated and composite doors.
• Locate and prepare wiring access holes when installing device.
Vertical
Reference
Horizontal
Reference
Hinge Edge Detail
INSIDE FACE OF DOOR
Clear Channel Access
Required for Wire
Connection Hinge
1" (25mm) Dia.
(Wiring Access)
Horizontal Reference
Device Center line
(See Note 5)
Exit Device End Clamp Mounting
Holes (For reference only)
HINGE EDGE DETAIL
Hinge Edge
Of Door
5/16" Ref
(8mm)
5/8" Ref
(16mm)
A
1-1/4" Ref
(32mm)
Exit Device
7200 Serie
s
7100 Series
Dim. A
1-11/16" (43mm)
2-5/16" (59mm)
Conducting Hinge or
Approved Power Transfer
(made by other manufacturers)
