Yealink SIP-T19P User manual

Accessing the web user interface:
Account Settings: Click on Account->Register
Parameters of the account:
Network Settings:
Account Settings:
Configuring via phone user interface
Configuring via web user interface
Register status icons on the LCD screen:
Note: Please locate your computer in the same network segment of the IP phone [phone].X) to access
the web user interface. Contact your system administrator for more information.
Note: Check with your system administrator if any error appears during the registration process or a
specific configuration is required for your registration.
Note: The wrong network settings may result in inaccessibility of the phone and may have an impact on
the network performance. Contact your system administrator for more information.
1. Press when the phone is idle to get the IP address of the phone.
You can configure the network in the following ways:
It shows the register status of the current account.
You can select Enabled/Disabled to enable/disable the account.
It is shown on the LCD to identify the account.
It is shown as caller ID when placing a call.
It is provided by ITSP for registration (required).
It is an authenticated ID for authentication provided by ITSP (required).
It is provided by ITSP for registration (required).
It is provided by ITSP for registration (required).
DHCP: By default, the phone attempts to contact a DHCP server in your network to obtain its
valid network settings, e.g., IP address, subnet mask, gateway address and DNS address.
Static IP Address: If the phone cannot contact a DHCP server for any reason, you need to
configure IP address, subnet mask, gateway address, primary DNS address and
secondary DNS address for the phone manually.
PPPoE: If you are using an xDSL modem, you can connect your phone to the Internet via PPPoE
mode. Contact the ITSP for the user name and password.
Press the Menu soft key when the phone is idle, select Settings->Advanced Settings
(password:admin)->Network->WAN Port/VLAN/Webserver Type/802.1x Settings to configure
the network.
For more information, refer to the User Guide available online:
http://www.yealink.com/SupportDownloadfiles_detail.aspx?CateId=334&flag=142
Copyright 2014 YEALINK NETWORK TECHNOLOGY CO.,LTD.
Press the Menu soft key when the phone is idle, select Settings->Advanced Settings
(password:admin)->Account to configure the account.
2. Open the web browser on your computer, enter the IP address into the address bar
(e.g., "http://192.168.0.10" or "192.168.0.10") and press Enter.
Register Status:
Line Active:
Label:
Display Name:
User Name:
Register Name:
Password:
Server Host:
3. Enter the user name (default: admin) and password (default: admin) in the login page
and click Confirm.
Network Settings: Click on Network->Basic->IPv4 Config
Note: For more information on account parameters, refer to Configuring via web user interface.
Registered Register Failed Registering
c
Configuring Your Phone
Quick Installation Guide
www.yealink.com
Applies to firmware version 72.1 or later.

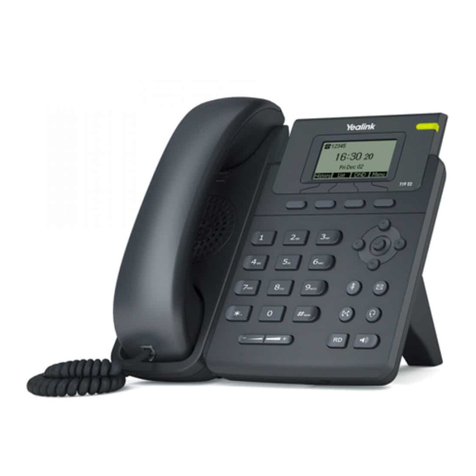

SIP-T19P & SIP-T19
Enterprise IP Phone
http://ArtTel.ru

1. Attach and detach the stand, as shown below:
3. Connect the network and power, as shown below:
The following items are included in your package. If you find anything missing,
contact your system administrator.
Packaging Contents
Assembling the Phone
Power Adapter
(Optional)
Handset Cord
Handset
IP Phone
Ethernet Cable Quick Installation
Guide & Quick
Reference Guide
SIP-T19P & SIP-T19 Quick Installation Guide www.yealink.com
You have two options for network and power connections. Your system administrator will
advise you on which one to use.
Note: PoE is only applicable to the SIP-T19P IP phone. If inline power (PoE) is provided, you don’t need to
connect the power adapter. Make sure the Etherne cable and hub/switch are PoE compliant.
After the IP phone is connected to the network and supplied
with power, it automatically begins the initialization process.
After startup, the phone is ready for use. You can configure
the phone via web user interface or phone user interfafce.
Welcome
Initializing... please wait
A
AC Power Option
B
PoE ( Power over
Ethernet ) Option
2. Connect the handset and optional headset, as shown below:
Note: The headset should be purchased separately.
Startup
b) Detach the stand:
Stand
a) Attach the stand:
Power Adapter
(DC 5V)
PC Connection
(Optional)
PC Connection
(Optional)
IEEE 802.3af compliant
PoE Hub/Switch
Wall Mount Method
Desk Mount Method
http://ArtTel.ru
