Zonair3D BUBBLE | PURE AIR User manual

USER
MANUAL
BUBBLE | PURE AIR

Zonair3d is a Spanish company
operating on all five continents
engaged in the research and scientific
development of air purification systems.
In collaboration with a number of
scientific institutions and research
centres, Zonair3D works on the
development of solutions that oer
answers to unresolved needs in such
areas as health, wellbeing or buildings,
among others.
BUBBLE | PURE AIR
This pioneering product is our response
to current environmental pollution and
our concerns over the constant and
ever-increasing deterioration of the
quality of the air we breathe.
Bubble| Pure Air is the first mobile
space in which it is possible to breathe
constantly regenerated 99.995% pure
air, free from contaminating particulate,
free from bacteriological and allergenic
agents, and with gaseous pollutants
reduced to levels of comfort.
Pure air is essential for the respiratory
system to operate properly, it
is important factor in anti-aging
treatment, it enhances respiratory
pathway recovery following physical
exercise and it is of fundamental
importance to the existence of life.

Contents
6 GETTING STARTED
8 TECHNICAL SPECIFICATIONS
9 ASSEMBLY INSTRUCTIONS
10 CARE AND MAINTENANCE
12 FAQ’s
Welcome
Thank you for choosing Zonair3d and congratulations on your purchase of a
Bubble| Pure Air. Please take a few minutes to read this manual before starting
to use your Zonair3d equipment in order to familiarise yourself with its operation.

Getting Started
GENERAL SAFETY INSTRUCTIONS
Bubble | Pure Air is the first mobile space in which it is possible to breathe
constantly regenerated 99.995% pure air. This equipment includes electrical
components. It is therefore important that you carefully read the following safety
instructions before use.
·This equipment should not be used by people with reduced physical or mental
abilities without assistance or supervision.
·It is not a toy. Children should not use this equipment unless supervised by
an adult.
·Do not block the Airbox air intake nor the air outlet from the Bubble | Pure Air.
·Do not spill water or other liquids on the Airbox.
·Do not switch on the equipment if any of the electrical components is damaged
or not operating correctly.
·If the power cord is damaged or broken, it can be replaced by a male/female
power cord such as those used for computers or similar equipment.
·Remember to switch o the equipment before unplugging it from the
power socket.
·Do not operate inside the unit, unless for filter replacement (refer to Maintenance
instructions). Any other operation must be carried out by personnel authorised by
ZONAIR3D.
·Before disassembling any panel, check that the unit is not switched to the electric
power network.
·Only use filters supplied by ZONAIR3D.
·Do not store Bubble | Pure Air when damp or wet.
Positioning
· Position the equipment in a large, ventilated space.
·Do not position the equipment on a so surface.
Always position the equipment on a flat, stable surface.
·Do not position the equipment close to explosives.
·Do not position the equipment close to heat sources, such as radiators,
fireplaces or ovens.

7Bubble | Pure Air
UNPACKING
You will find the following items inside the box:
BAG 1
BUBBLE (Arch System)
BAG 2
BUBBLE (Dome)
AIRBOX
Bag 1 containing the arch system, which includes:
Arch System:
12 Rods:
Bubble 210 cm high: 8 rods 135 cm / 4 rods 57 cm
Bubble 250 cm high: 8 rods 135 cm / 4 rods 80 cm
2 Rods for replacement
1 Cross piece
Cylindrical structure: 6 (or 8) metallic tubes for the base
1 Strong adhesive patch
Bag 2 containing Bubble's dome, which includes:
1 Flex tube
1 Diuser
1 User manual + CD
Airbox, which includes:
Torx T-25 key for filter maintenance
Electrical power cord

Technical Specifications
TYPE OF
BUBBLE BASE (M) HEIGHT (M) MATERIAL WEIGTH DOME BAG
WEIGTH RODS
BAG
STANDARD
HOME
2.00x3.00
2.00X2.00
3.50x3.50
TEAM
1.50x1.50
2.10
2.50
2.50
2.00
white
mixed
clear PVC
white
mixed
clear PVCC
white
mixed
clear PVC
15KG
17KG
20KG
20KG
25KG
30KGG
10KG
12KG
15KG
10KG
10KG
10KG
15KG
15KG
15KG
8KG
8KG
8KG
GENERAL BUBBLE SPECIFICATIONS
VOLTAGE 230 V ± 15% 50/60 Hz
MAXIMUM ABSORBED CURRENT 1,1 A
FAN SPEED 2900 rpm
WEIGHT 53 Kg approx
FILTERING STAGES
· Pre-filter F7
· H14 Absolute filter
· GRSystem | ZONAIR3D filter, gas reduction system
with activated carbon filter based on Zonair3d's exclusive
R&D technology
MAXIMUM ABSORBED POWER 176 W pump unit (EC engine)
MAXIMUM FLOW 645 m3/h
SIZES 735 mm (L) x 550 mm (W) x 603 mm (H)
ACOUSTIC PRESSURE LEVEL (*)
INTERNAL SILENCER
48 dB (A) Maximum Flow
IP CLASSIFICATION IP54
OPTIONAL (ON DEMAND):
· Transformer
( 110 V – 220 V and 60 Hz - 50 Hz)
· Special connector according to the destination country
(UK, US…)
* Acoustic pressure level at 3 m distance.
GENERAL AIRBOX SPECIFICATIONS

9Bubble | Pure Air
Assembly Instructions

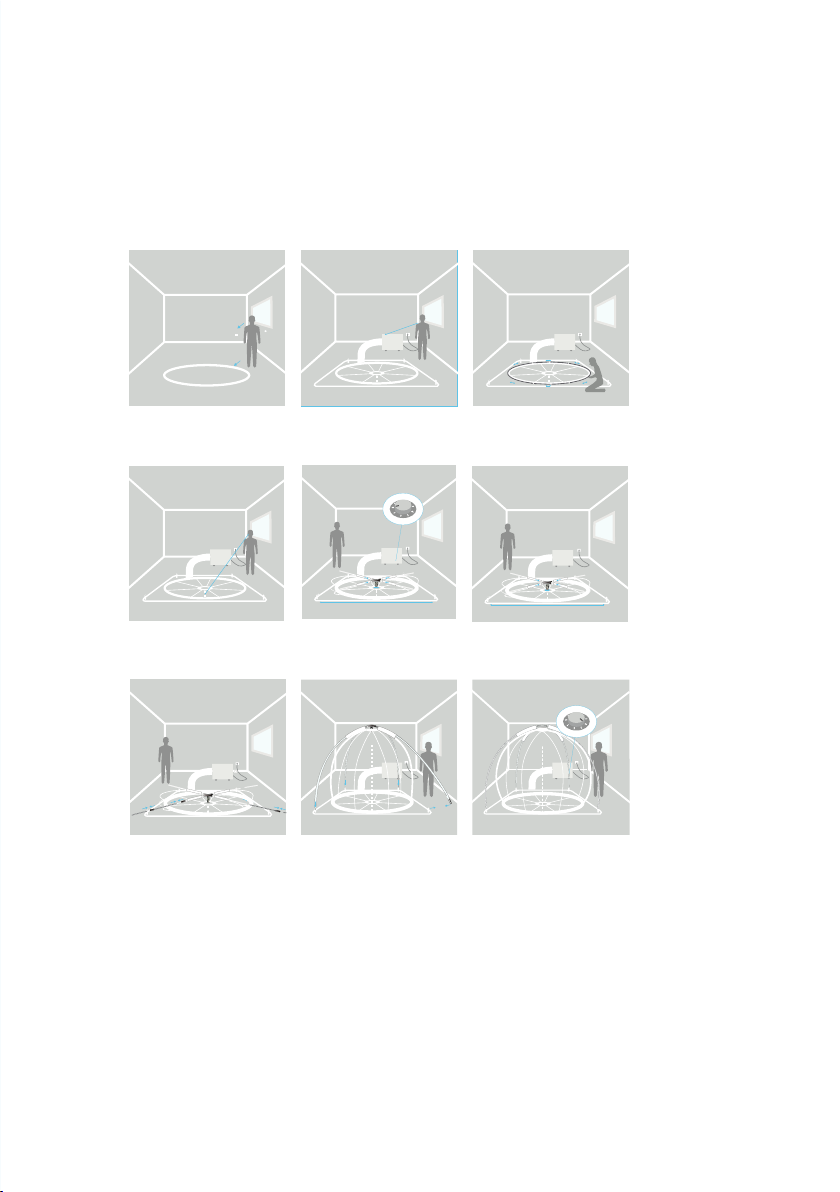

ASSEMBLY OF BUBBLE | PURE AIR
Before assembly, clean the area where the Bubble will be installed and avoid the
presence of sharp objects that could damage the Bubble. Arch system:
DISASSEMBLING THE BUBBLE| PURE AIR
Aer use, switch the Airbox regulator to o and disconnect from the power supply.
Open the zips for better air expulsion.
Always store in its bag when not in use. To disassemble, remove the structure
from the base and disassemble the rods, the cylindrical base structure and carefully
fold the bubble. Store the fabric in its carry case, and the rods, cross piece and
cylindrical base in the other carry bag.
4. Close the zip of the Bubble.
Connect the Airbox to the
power supply and turn it on.
5. Set the regulator at position
number 8 to fill the Bubble up.
6. Insert the 4 upper rod sections
of the Bubble into the cross piece.
7. Set the cross piece parallel
to the longest side of the base.
Connect the rest of the rod
sections (3 rods per side)
while the Bubble fills with air.
8. Insert the end of the rods to
the anchor points located at
the corners of the floor.
9. Once the Bubble is filled up, set
the regulator at position number 4.
1. Locate a power supply for
connection to the Airbox.
2. Connect the end of the tube
to the outlet on the Airbox and
adjust.
3. Open the velcro from the base
and insert the cylindrical structure
made of rods. Close the velcro.

Care and Maintenance
BUBBLE | PURE AIR
Bubble | Pure Air is a unique product that uses a high-quality design and materials.
Please read the following instructions for keeping your equipment in the best
possible condition:
Cleaning and maintaining the floor
·Unplug the airbox from the power supply before cleaning or performing
its maintenance.
·Use a microfibre cloth and neutral soap for general cleaning.
·Do not use solvents nor abrasive materials that could damage the surface of
the Bubble.
·Use methylated spirit or Acrylnet for persistent stains.
The fan of the Airbox does not require maintenance. Do not try to repair or
adjust any mechanical part of the equipment.
Contact Zonair3d or your local distributor for more information about the
guarantee.
AIRBOX
Replacement of filters

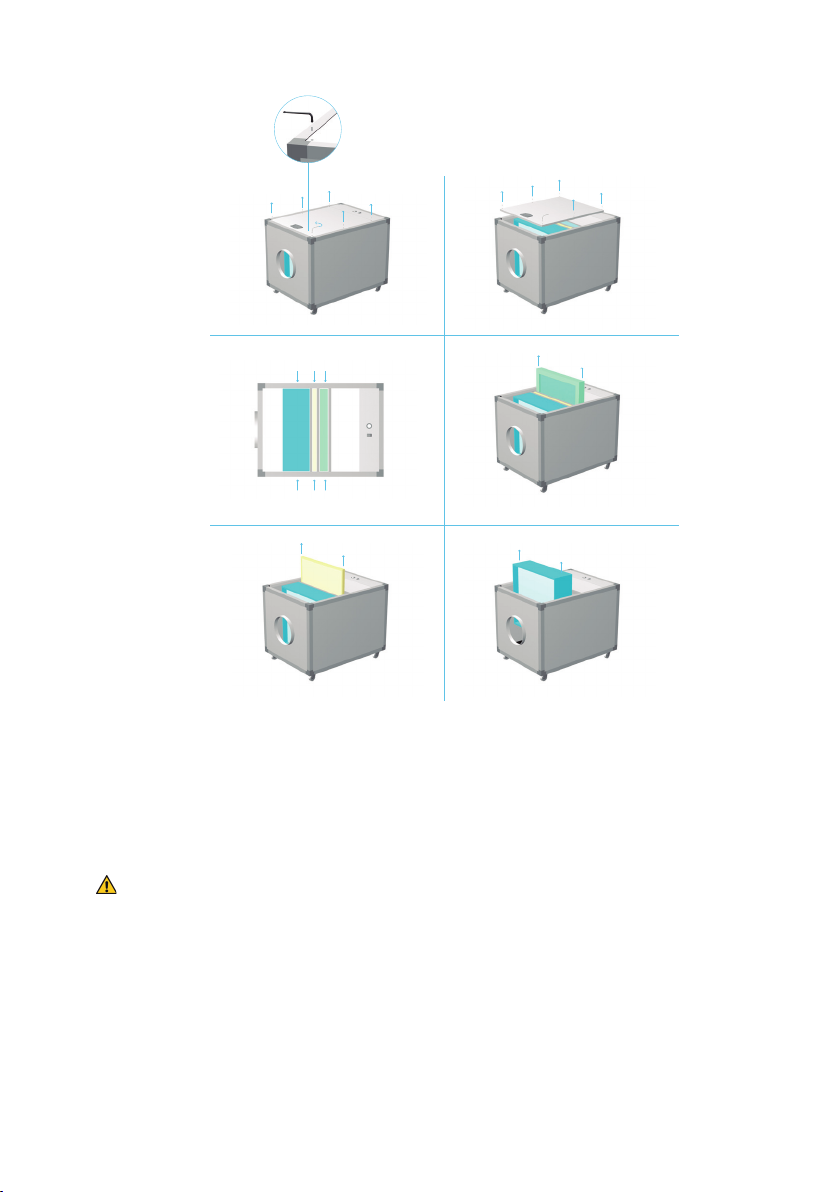

The Airbox is supplied with the three filters installed. They are easy to replace.
For optimum operation of the equipment under normal conditions, Zonair3d
recommends the following filter replacement plan:
IMPORTANT: It is recommend to use mask and gloves to replace the filters.
FILTER REPLACEMENT
Pre-filter (F7)
Absolute Filter
GRSystem | Zonair3d
Every 6 months
Every 2 years
Every year

11 Bubble | Pure Air
In the event of high pollutant concentrations, the filters may become clogged
faster and require a dierent filter replacement plan.
Contact Zonair3d or your local distributor for replacements.
IMPORTANT: It is important that only original filters supplied by Zonair3d be used
to ensure the desired result and correct operation of the equipment. The guarantee
will become void if filters other than those supplied by Zonair3d are used.
MANAGEMENT OF USED FILTERS
Contact your local waste manager regarding the correct disposal of used filters.
1
3
5
2
4
6

FAQs
How much space is needed to install BUBBLE | PURE AIR?
Approximately 4x4,5m for the base and 2,70m for the height and the necessary
space for Airbox.
How are the Airbox filters maintained?
Change the pre-filter every six months, the GRSystem every year and the absolute
(HEPA 14) filter every two years.
How long can the motor be le running?
As long as you like. The Airbox consumes 176w at full power.
Does BUBBLE | PURE AIR have any side eect?
It has no contraindications or side-eects and it improves quality of life for those
who breathe the pure air inside it. Pure air is harmless.
Is it counter-productive to breathe pure air and then go back outside into a
polluted environment?
No; the longer you breathe pure air, the greater the benefits. Breathing pure air for
as long as you like enables you to better deal with the outside environment.
Is BUBBLE | PURE AIR an oxygen bubble?
It is NOT an oxygen bubble. It is a space containing pure air that is 99.995%
particulate-free and does not modify the original air composition (approximately
21% oxygen, 78% nitrogen and other gases).
What is the dierence between BUBBLE | PURE AIR and a hyperbaric chamber?
Hyperbaric chambers (or diving chambers) increase the natural concentration of
oxygen present in the air. Bubble | Pure Air does not alter the composition of the
air but rather enables pure air to be breathed at optimum composition levels.
How long do I need to stay inside BUBBLE | PURE AIR? Can I sleep inside?
The longer you breathe pure air, the greater the benefits. Therefore, the answer
is yes.
Should I unplug the Airbox when not in use?
We recommend unplugging the Airbox when not in use so as to fully disconnect it
from any power source and thus protect against any possible electrical fault caused
by external factors.
Where should BUBBLE | PURE AIR take its air from?
We recommend using air from a properly ventilated room or outside air to ensure
the best possible air quality (CO2).

13 Bubble | Pure Air
What can the BUBBLE | PURE AIR be used for? Has it been medically tested?
Yes, BUBBLE has been scientifically and medically tested. At www.zonair3d.com
you can find all medical studies published so far and keep updated on the new
technologies based on pure air.
Does it improve or heal asthma?
It improves and regenerates respiratory pathways and mucosae, having
desinflamatory eects. The usual use of Bubble improves the wellbeing of those
suering respiratory failure and related diseases.
What is the recommended temperature for use?
It is advisable to place BUBBLE in a place at a comfortable temperature (18-25º),
avoiding direct sun exposure, because heat concentrates inside. In cold weather,
the material resists up to -30ºC.
Can I smoke, use candles, etc. inside?
Do NOT smoke, nor use candles or any other inflammable objects inside.
Can I introduce essential oils in the Airbox?
NO. Altering any part of the Airbox will void the warranty.
How many people can stay inside?
In the standard version of Bubble (2x3m) scientific evidence shows that the best air
quality inside is maintained for occupancy of up to 4 people.
How long will it last and what guarantee is provided?
The motor comes with a two-year guarantee. When used properly, the BUBBLE
can last forever.
What can the BUBBLE | PURE AIR be used for?
It is currently being used in the field of medicine, as well as in sport, wellness,
cosmetics, veterinary care, by NGOs, etc. The BUBBLE can be used for a wide
variety of purposes.
Can the initial odor of a new transparent BUBBLE be reduced or eliminated
somehow?
We recommend having it inflated or unfolded for as long as possible before use
in order for the ‘new’ smell to dissipate (the transparent material used is
phthalate-free - for medical use - but does have an odor to begin with).

TECHNICAL SUPPORT AND REPAIRS
For technical issues or any support needed,
please contact your local distributor (visit
website www.zonair3d.com)
or email Zonair3d Technical Support at:
[email protected].
You may also visit our website
http://www.zonair3d.com
where you will find general most frequently
asked questions (FAQs).

[email protected] | zonair3d.com
PURE AIR, JUST BREATHE
BUBBLE_USER MANUAL ARCH SYSTEM_160726
