3M 3MPF201 User manual

Installation and Operating Instructions for
3MPF201
3M™Advanced Whole House Filtration System for Well Water
3MPF301
3M™Advanced Whole House Filtration System for City Water
To reduce the risk associated with property damage due to water leakage:
• Read and follow Use Instructions before installation and use of this system.
• Before starting installation, shut off main water supply and drain pipes.
• Installation and Use MUST comply with all state and local plumbing codes.
• Protect from freezing, remove filter when temperatures are expected to drop below 40° F (4.4° C).
• Do not install systems in areas where ambient temperatures may go above 110° F (43.3° C).
• Do not install on hot water supply lines. The maximum operating water temperature of this filter system is 100°F (37.8°C).
• Do not install if water pressure exceeds 125 psi (862 kPa). If your water pressure exceeds 80 psi (552 kPa) you must install a pressure
limiting valve. Contact a plumbing professional if you are uncertain how to check your water pressure.
• Do not install where water hammer conditions may occur. If water hammer conditions exist, you must install a water hammer arrester. Contact
a plumbing professional if you are uncertain how to check for this condition.
• Where a backflow prevention device is installed on a water system, a device for controlling pressure due to thermal expansion must be installed.
• Do not use a torch or other high temperature sources near filter system, filters, plastic fittings or plastic plumbing.
• On plastic fittings, never use pipe sealant or pipe dope. Use PTFE thread tape only, pipe dope properties may deteriorate plastic.
• Take care when using pliers or pipe wrenches to tighten plastic fittings, as damage may occur if overtightening occurs.
• Do not install in direct sunlight or outdoors.
• Do not install near water pipes which will be in path of a drilling tool when selecting the position to mount the bracket.
• Mount filter in such a position as to prevent it from being struck by other items used in the area of installation.
• Ensure that the location and fasteners will support the weight of the system when installed.
• Ensure all tubing and fittings are secure and free of leaks.
• Shut off fuel or electric power supply to water heater after the water is shut off.
• The disposable replacement filter MUST be replaced every 12 months at the rated capacity or sooner if a noticable reduction in flow rate occurs.
Read, understand, and follow all safety information contained in these instructions prior
to installation and use of the 3MPF201 and 3MPF301 Series Filtration Systems. Retain
these instructions for future reference.
The 3MPF201 and 3MPF301 Filtration Systems are intended for use in filtering potable water in whole
house applications and have not been evaluated for other uses. These filters are typically installed at the
point-of-entry, and must be installed as specified in the installation instructions by a qualified professional.
To reduce the risk associated with choking:
• Do not allow children under 3 years of age to have access to small parts during the installation of this product.
To reduce the risk associated with the ingestion of contaminants:
• Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
To reduce the risk associated with hazardous voltage due to an installer drilling through existing electric wiring or water pipes in the area
of installation:
• Do not install near electric wiring or piping which may be in path of a drilling tool when selecting the position to mount the filter bracket.
To reduce the risk of physical injury:
• Shut off inlet water supply and depressurize system as shown in manual prior to filter removal.
WARNING
CAUTION
Homeowner: Please retain for operation and future maintenance instructions.

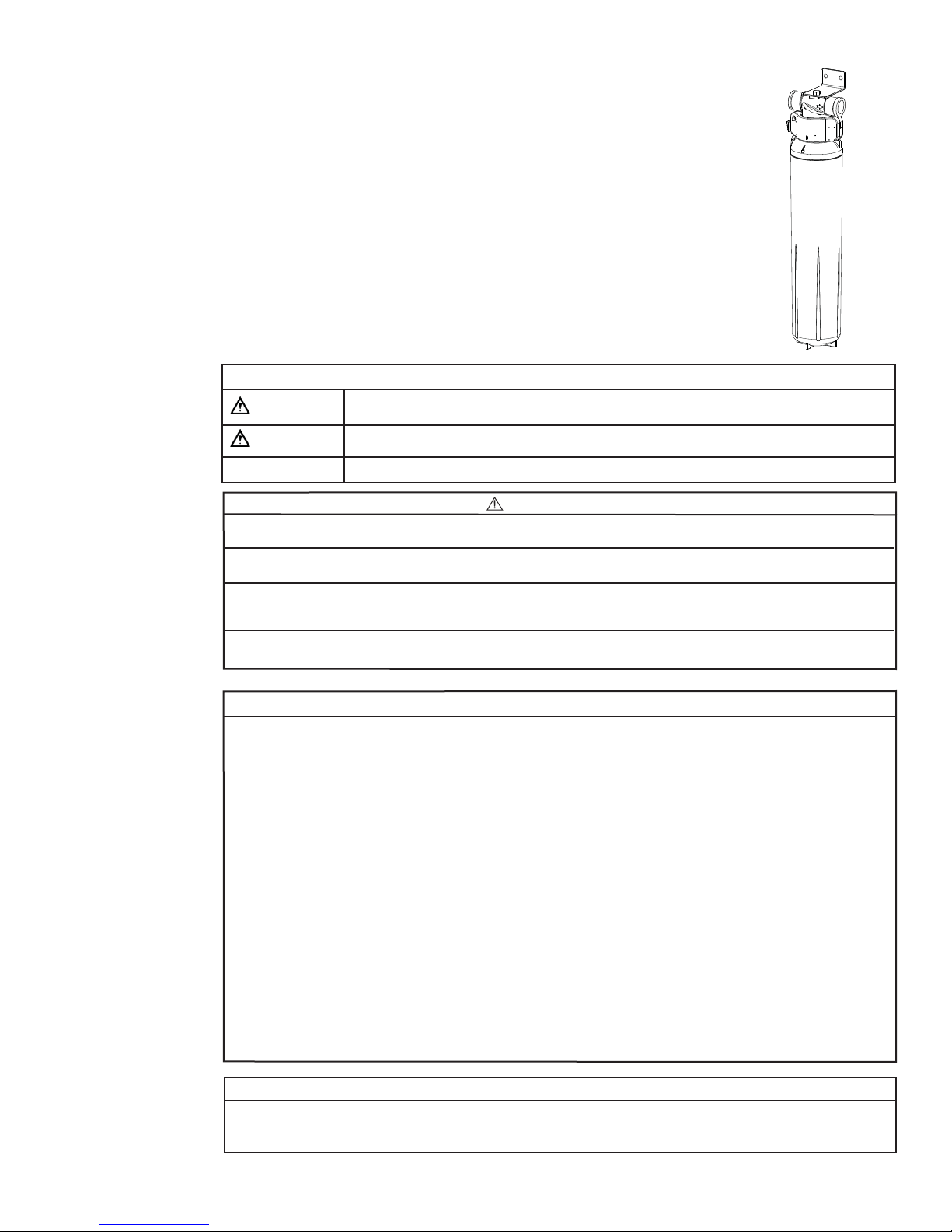

EXPLANATION OF SIGNAL WORD CONSEQUENCES
WARNING
WARNING
Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury and/or property damage.
CAUTION
CAUTION
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury and/or property damage.
CAUTION
CAUTION
Indicates a potentially hazardous situation, which, if not avoided, may result in property damage.
• Failure to follow instructions will void warranty.
• Allow a minimum of 3” (7.6 cm) clear space under filter to facilitate filter change.
• Install with the inlet and outlet ports as labeled. Make sure not to reverse connections.
IMPORTANT NOTES

Assembly schematic (see Figure 2) is based on suggested materials.
Installation of this filtration system can be modified by using various adapters.
Parts and Materials Included:
1) Filter Head Assembly
2) Replacement Filter
Tools and Materials that may be Required (not included):
Gather the required tools before starting installation.
Read and follow the instructions provided with any tools listed here.
A) Pipe Cutter
B) Two 1” NPT Male connectors
C) Three Ball Valves
D) PTFE Thread Tape
E) Adjustable Wrench
F) Torch (not shown)
G) Plumbing Solder (not shown)
H) Plumbing Flux (not shown)
I) Common piping and fittings will be
required to complete the installation (not shown)

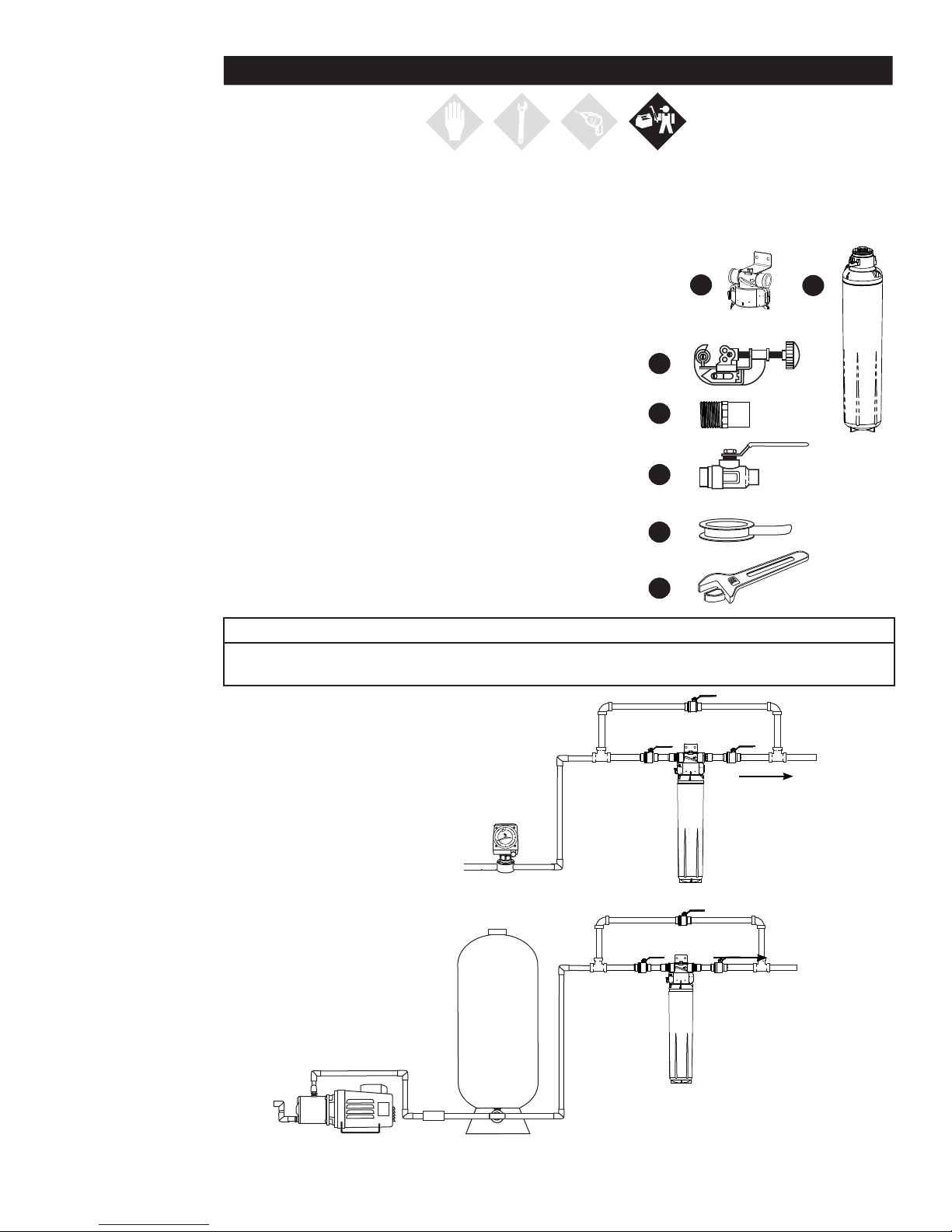

GETTING STARTED
City Water Installation
Well Water Installation
Master
Shut-Off
Valve
To Household
Plumbing
Pump
Master
Shut-Off
Valve
To Household
Plumbing
Pressure
Tank
To reduce the risk associated with property damage due to water leakage:
• Installation and Use MUST comply with all state and local plumbing codes.
CAUTION
000069
Gallons
Gallons
2700
2700
3000
3000
Model
Model
BRP
BRP
20
20
10
10
30
30
40
40
50
50
70
70
80
80
90
90
0
Bad
Badg
erMeter
erMeter
300
300
600
600
1600
1600
1800
1800
1200
1200
2100
2100
2400
2400
Water
Meter
Figure 1
2
1
A
B
C
D
E
• Professional Installation Required: Installation requires shutting water off to home, cutting home water sup-
ply pipe and using a welding torch to add piping and fittings. Specialized tools and skills are required. Not a
do-it-yourself type of project. Professional installation required!

Figure 2
IMPORTANT INSTALLATION INSTRUCTIONS
1. Shut off main water supply. Drain water from water lines by opening faucet downstream of install location.
2. Cut pipe to length needed to install filter head and recommended bypass.
3. Assemble filter head and bypass system as shown in Figure 2. Use three ball valves and one filter head as shown.
Use common pipe and connections to assemble system.
4. Use supplied bracket or pipe hangers to support the system.
5. Install replacement filter into filter head by following replacement filter instructions as shown on next page.
6. Open main water supply slowly to pressurize system and check for leaks.
7. Close bypass valve and open faucet to flush no less than 10 gallons (approximately 15 minutes) through system before use.
Plumbing Assembly of Bypass and Filtration System
Valve #1
Valve #1
Valve #2
Valve #2
Valve #3
Valve #3

LIMITED WARRANTY
REPLACEMENT FILTER INSTRUCTIONS
NOTE: Before changing filter, turn off water supply. Place a bucket
under filter to catch the small amount of water that will run out after
filter removal. (Refer to Figure 2 for the following instructions)
1. Close shut-off valve #2 and open downstream faucet to relieve pressure.
2. Close faucet and shut-off valve #3.
3. Slide filter locking latch to the right and push up and to the left to the
unlock position.
4. With both hands, twist out filter by turning unit 90° to the left (coun-
terclockwise) and down (used filter will be heavy).
5. Remove replacement filter from box. Ensure both o-rings are pres-
ent on the new replacement filter and are seated into grooves;
moisten o-rings with water. DO NOT use any petroleum products to
lubricate the o-rings.
6. Install new replacement filter into head by pushing filter up and turn-
ing to the right (clockwise) until locking latch clicks into place.
7. Open valves #2 and #3. Flush no less than 10 gallons (approximately
15 minutes) through system before use.
TROUBLESHOOTING GUIDE
Water Leaks at Fittings:
Repeat install procedure.
CAUTION
To reduce the risk associated with property damage due to water leakage:
• The disposable replacement filter MUST be replaced every 12 months or at the rated capacity or if a noticeable
reduction in flow rate occurs.
Step 3
Locking
Latch
Step 4
Step 6
INSTR8022 0512
3M is a trademark of 3M Company.
© 2012 3M Company. All rights reserved.
3M Purification Inc.
400 Research Parkway
Meriden, CT 06450
855-3M-WATER (855-369-2837)
www.3MWater.com
Limited Warranty: 3M Purification Inc. warrants this Product will be free from defects in material and manufacture for the following periods from
the date of purchase. Ten (10) year for the Product, except for the replacement filter cartridge, which is warranted for one (1) year. This warranty does
not cover failures resulting from abuse, misuse, alteration or damage not caused by 3M Purification Inc. or failure to follow installation
and use instructions. No warranty is given as to the service life of any filter cartridge or membrane as it will vary with local water condi-
tions and water consumption. 3M PURIFICATION INC. MAKES NO OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICU-
LAR PURPOSE OR ANY IMPLIED WARRANTY OR CONDITION ARISING OUT OF A COURSE OF DEALING, CUSTOMER OR USAGE OF
TRADE. If the Product fails to satisfy this Limited Warranty during the warranty period, 3M Purification Inc. will replace the Product or
refund your Product purchase price. This warranty does not cover labor. The remedy stated in this paragraph is Customer’s sole
remedy and 3M Purification Inc.’s exclusive obligation.
This warranty gives you specific legal rights, and you may have other rights which may vary from state to state, or country to country.
For any warranty questions, please call 855-3M-WATER (855-369-2837) or mail your request to: Warranty Claims, 3M Purification Inc.,
400 Research Parkway, Meriden, CT 06450. Proof of purchase (original sales receipt) must accompany the warranty claim, along with
a complete description of the Product, model number and alleged defect.
Limitation of Liability. 3M Purification Inc. will not be liable for any loss or damage arising from this 3M product, whether direct,
indirect, special, incidental, or consequential, regardless of the legal theory asserted, including warranty, contract, negligence or strict
liability. Some states and countries do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you. states and countries do not allow the exclusion or limitation of incidental or consequen-
tial damages, so the above limitation or exclusion may not apply to you.
