EGNL Series Vandal Resistant Emergency Light
AC, AC/DC and Self-powered
Use Flexible Conduit Only
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always
be followed including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1. All servicing should be performed by qualified service personnel.
2. Disconnect power at fuse or circuit breaker before installing or servicing.
3. All electrical connections must be in accordance with local codes,
ordinances and the National Electric code.
4. All unused wires must be capped to prevent shorting.
5. Do not use outdoors.
6. Do not let power supply cords touch hot surfaces.
7. Do not mount near gas or electric heaters.
8. Equipment should be mounted in locations and at heights where it will not
readily be subjected to tampering by unauthorized personnel.
9. The use of accessory equipment not recommended by the manufacturer
may cause an unsafe condition.
10. Do not use this equipment for other than intended use.
11. Use caution when handling batteries (self-powered only).
12. Allow battery to charge for 24 hours before first use (self-powered only).
SAVE THESE INSTRUCTIONS
Installation Instructions
1. Turn off AC power.
2. Feed AC unswitched circuit of rated voltage into junction box and leave 6”
of wire length.
3. Using a flat head screwdriver, insert the blade into the slots and tilt to
release the latch and open the front cover (see figure 1).
4. Push in the locking clips located on each side of the reflector and remove
the reflector assembly (see figure 1).
Wall and Ceiling Mount
1. Remove the appropriate knockouts in the back plate.
2. Feed AC wires through the center hole into the back plate.
3. Mount and secure the back plate to the junction box. Ensure the gasket is
compressed tightly to the surface.
4. Make the proper connections according to model configuration:
For self-powered see figure 3.
For AC, AC/DC see figure 4.
5. Attach safety cable from housing to reflector assembly.
6. Connect battery connector to PCBA.
7. Reattach reflector assembly. Push in the locking clips located on each side
of the reflector and snap in reflector assembly (see figure 1).
8. Adjust LED strips as required (see figure 6).
9. Snap in the lens.
Note: for units with auto-test option, ensure button on lens aligns with
test switch on reflector.
IMPORTANT: Maximum mounting height: 22 feet from floor.
WARNING:
Risk of Shock.
Disconnect Power before Installation and Maintenance.

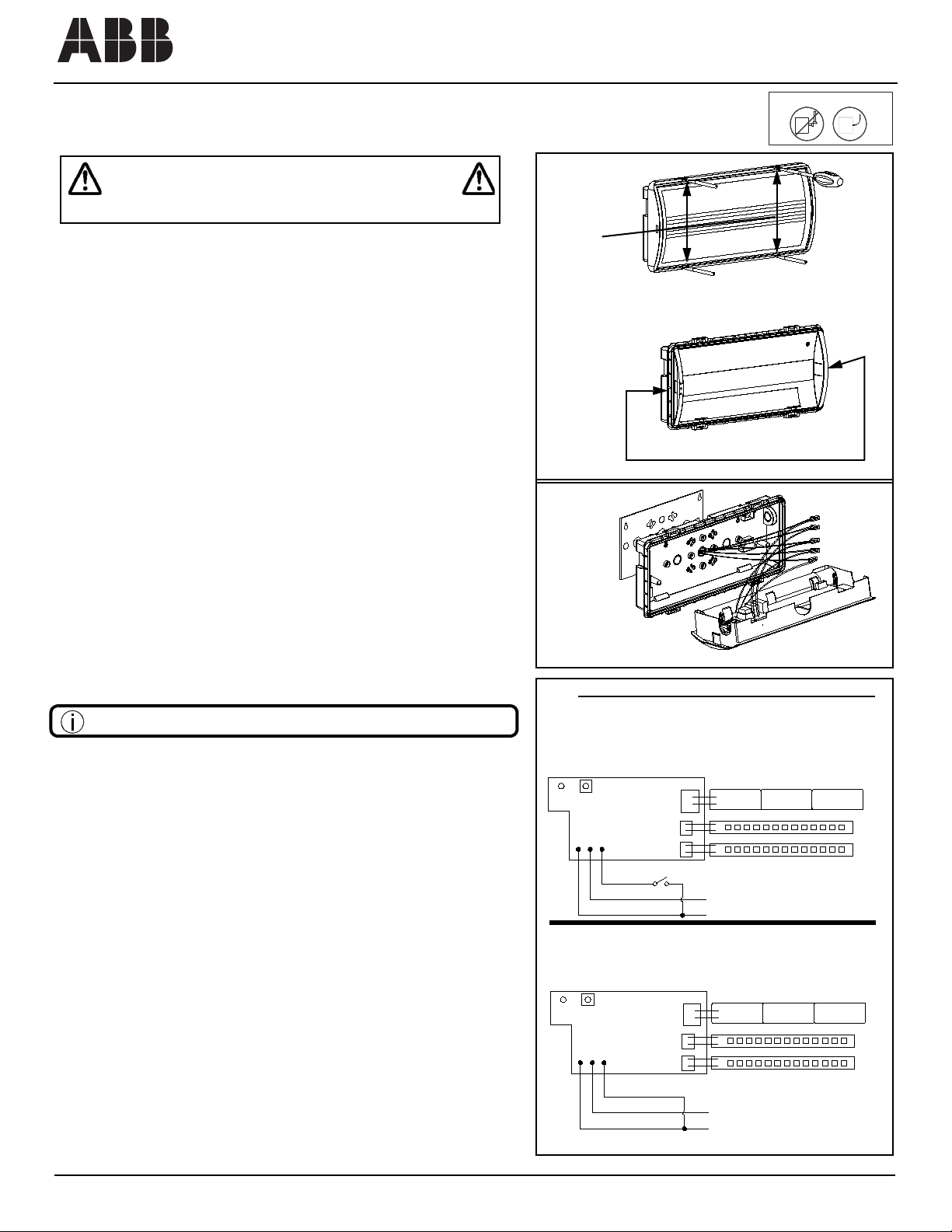

Figure 1
Reflector locking clip location
Slot location
to open front cover
Back plate
Wire nuts
Gasket
Reflector
Figure 2
Figure 3
Red
White (Neutral)
Black (120 to 347VAC)
Wall switch
Battery
LED 1
LED 2
Te s t
LED
Wiring diagram for self-powered models
PCBA
indicator
switch
With wall switch
Without wall switch
Red
White (Neutral)
Black (120 to 347VAC)
Battery
LED 1
LED 2
PCBA
Connect the black and red wires to hot lead, white wire to the neutral as
shown below.
Connect the black wire to 120/347Vac, white wire to the neutral.
Connect the red wire to one contact of the wall switch and conect the
other contact to the black wire as shown below.
Tes t
LED
indicator
switch

EGNL Series Vandal Resistant Emergency Light
Tel: [phone] Fax: [phone] 750.2103 Rev. A
2/2
© 2020 ABB. All rights reserved.
T-bar installation (see figure 5)
1. Bend the 4 tabs on the mounting frame 90 degrees outward to hang onto
the t-bar.
2. Hook the mounting frame onto the t-bar and use 4 self-drilling screws (not
provided) to secure the mounting frame to the t-bar.
3. Feed AC circuit wires to junction box on the unit and leave 6 inches of wire.
4. Make the proper connections according to model configuration:
For self-powered see figure 3.
For AC, AC/DC see figure 4.
5. Insert unit into the mounting frame and ensure all 4 clips are engaged.
Maintenance:
Equipment must be tested regularly in accordance with local codes.
AUTO-TEST OPTION
(Self-powered units only)
Self-Diagnostics / Self-Testing
1. When AC power is supplied to fixture, the unit will automatically initiate a
self-test and self-diagnostic test as follows:
a. Verifies battery disconnection, charger board failure, lamps failure and
transformer failure at every 4 seconds.
b. 3 minute self-testing every month after installation.
c. 120 minute self-testing every year after installation.
d. Factory per-sets all functions. Does not need field adjustment.
2. Dual color LED lamp indicator shows the following status:
a. Green color: ON/ Ready
Blinking: Testing
b. Red color (Service Alert)
c. Service Alert LED Code (Red color LED lamp indicator)
Note:
After solving emergency equipment fault, press test button for 2 seconds
without releasing. LED lamp will show green and unit will resume charging.
3. For manual test, press test button as follows:
This unit comes with a (3) three year limited warranty.
Refer to (www.emergi-lite.com/warranty) for full warranty.
o One blink ON/pause (4 seconds) Battery is not con-
nected
oo Two blinks ON/pause (4 seconds)
Battery is shorted or
battery voltage drops
below acceptable
level.
ooo Three blinks ON/pause (4 seconds) Charger board circuit
fault.
oooo Four blinks ON/pause (4 seconds) Transformer fault.
ooooo Five blinks ON/pause (4 seconds) Emergency lamp fault.
Press test button once (within 2 seconds) 30 second test
Press test button twice (within 2 seconds) 3 minute test
Press test button 3 times (within 2 seconds) 30 minute test
Press test button 4 times (within 2 seconds) 90 minute test
Figure 6
120°
180°
60°
60°
Narrow light output
Standard light output
Directional light output
Yellow +
PCBA
Red
White (Neutral)
Black (120 to 347VAC)
LED 1
LED 2
Purple - 12-24Vdc
DC input
Figure 4
Yellow +
PCBA
Wiring diagram for AC / DC models
Red
White (Neutral)
Black (120 to 347VAC)
Wall switch
LED 1
LED 2
Purple - 12-24Vdc
DC input
With wall switch
Without wall switch
Connect the black and red wires to hot lead, white wire to the neutral as
shown below.
Connect the black wire to 120/347Vac, white wire to the neutral.
Connect the red wire to one contact of the wall switch and connect the
other contact to the black wire as shown below.
CAP YELLOW AND PURPLE WIRE SEPARATELY IF NOT USED.
CAP YELLOW AND PURPLE WIRE SEPARATELY IF NOT USED.
Figure 5
(Cut out: 13.8” x 5.9”)
Unit
T-bar
4 Self-drilling screws
(not provided) J-box cover
J-box
Ceiling tile
T-bar mounting frame
T-bar
