ABB PrimEvo SM100E Manual

Power Supply :
220-240VAC, 50 Hz
Power Consumption
: Max. 4.8W
Operation : Maintained or Non-maintained
Function : Manual test
Duration : Discharge 1H or 3H
Charge time : 24h
Protection grade : IP20
Emergency lumens output : 3H/120lm
Light distribution : Path way (Standard)
Ta 0°...+45°
?45mm 55mm
PrimEvo SM100E
Instruction Leaflet
ABB B.V
Bruntcliffe Lane
Morley, Leeds
W.Yorkshire LS27 9LL, United Kingdom
Telephone [phone]
Sales [phone]
Fax [phone]
Email [e-mail]
Technical Specifications
1 of 4
4 of 4
Explanations
Charge
Duration
Model Number Discharge
Duration Battery
TECHNICAL INFORMATION
Power
Input
Voltage Operation
Maintained and Non-Maintained function
PrimEvo SM100E
24h 3 h Ni-Cd,3.6V 1000mA
220-240V~
50Hz
M:4.8W
Maintained
Non-maintained
N
SL
L
NEUTRAL
PERMANENT LIVE
SWITCH LIVE
Jump cable
Maintained Operational:
Connect L,N and leave Jump cable connected.
For switchable Maintained Operational:
Connect L,N and remove Jump cable,
Connect switch live to terminal indicated.
Non maintained Operational:
Connect L,N and remove Jump cable
Photometric
Narrow lens
NM:1.5W
Note: We reserve the right to make technical changes or modify
the contents of this document without prior notice. With regard to
purchase orders and/or contracts, the agreed particulars
shall prevail. ABB does not accept any responsibility whatsoever for
potential errors or possible lack of information in this document.
We reserve all rights in this document and in the subject matter
and illustrations contained therein. Any reproduction, disclosure
to third parties or utilisation of its contents - in whole or in parts -
is forbidden without prior written consent of ABB.
Copyright © 2017 ABB
All rights reserved

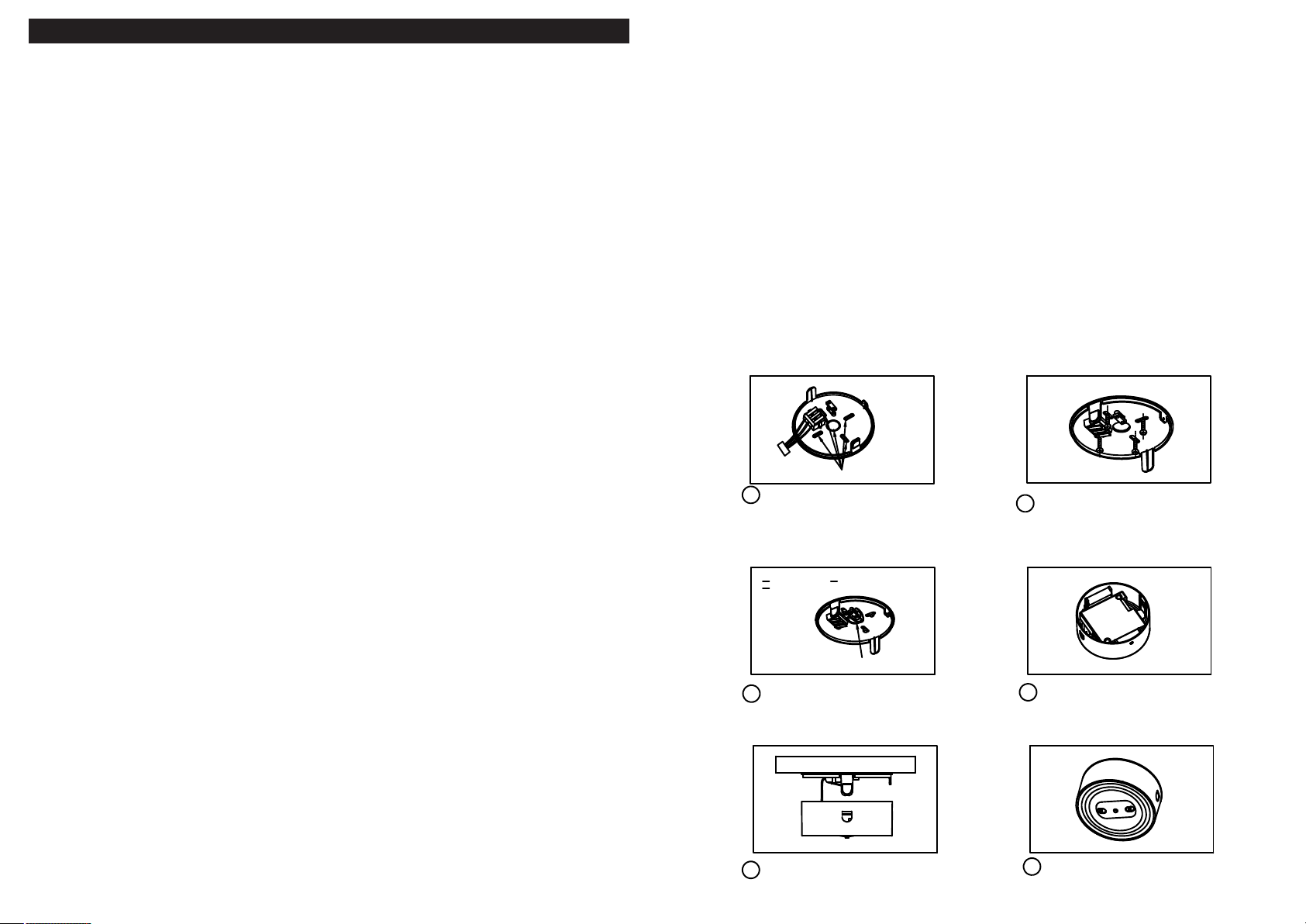

4Connect battery connector.
Remove screw then open fixture,
Pull out AC cable connector from
PCBA knock out center hole on
back plate.
1Install back plate on appropriate
ceilling surface.
2
Feed the power cable through
the knock hole and connect
to terminal block on fixture.
3
L Live (Brown)
N Neutral (Blue)
knock
VDE H03VVH2-F 0.75 X 2C
VDE H03VVH2-F 0.75 X 2C
INSTALLATION
SL Maintained or Non- maintained
CAUTIONS
3 of 4
2 of 4
INSTALLING AND CONNECTING
The luminaire should be connected to the voltage equivalent to that indicated on the type label.
The surface mounted luminaire is fitted with a terminal block suitable for loop-in-loop-out connection.
For further information on the different connection possibilities, see the instructions in this instruction
leaflet.
PLEASE NOTE!
Constant voltage is required and the batteries must be sufficiently charged for emergency lighting to
function properly. Failure to observe this requirement can damage the batteries, the light source or
in worst-cast scenario the luminaires electronics.
INSPECTION AND MAINTENANCE
The company strongly advises annual inspection of your emergency lighting installation.
English
Carefully read this instruction leaflet before installing or using the luminaire. This leaflet provides
important information about the correct installation, use, maintenance and disposal of this product.
Please observe the following guidelines:
1. The luminaire should only be installed by qualified personnel. Installation must be in accordance
with European installation requirements HD 60364 and additional local regulations.
2. This product may not be modified in any way what so ever or used for a purpose or in an environment
other than for which it is designed. Failling to observe these guidelines will invalidate the warranty
and the CE-compliance of this product.
3. The luminaire is suitable for indoor use only
4. Before installing the luminaire, the supply must be isolated.
5. The light source in this luminaire is non-replaceable.
The luminaire will, under no circumstances, be covered with insulating material or similar material
only PrimEvo
Replace the battery when the battery no longer meets its rated duration of operation (see the label of
battery replacing).
GENERAL INFORMATION
LED emergency light, down light style, self-contained lighting, for path way and door light used
optional.
LED light source provides low power consumption and long life. Enclosure is made by polycarbonate,
recessed mounting or surface mounting.
PRECAUTIONS
This product should be installed by a registered electrician in accordance with local standards and
electrical regulations. Take care to ensure the mains supply is isolated before installation. Check the
unit label for correct supply voltage and frequency.
SERVICE AND OPERATION
Normal Operation: The green indicator light on the bottom unit stays on.
The LED will go out if the mains supply fails, if the internal charger is malfunctions, or if the unit is in
test mode. The fixture must be charged for 24 hours after installation.
Battery: Sealed Nickel-Cadmium rechargeable battery pack. Batteries of a different type must not
be used. Batteries should be replaced by authorised service personnel only. If the unit no longer
maintains its rated battery backup test times. Should only be replaced by competent service
personnel with manufacturers battery pack. Old Battery's should be recycled.
Test Switch: If pressed the test switch, LED indicator will go out and the fixture will operate from its
battery supply.
5Press the test switch, indicator
will go out, emergency light will
light on.
6
Snap fixture housing assemble
on back plate, install screw,
restore power supply.
SM100E
