PowerValue 11 RT
6-10 kVA
Quick guide

Quick guide | PowerValue 11 RT 6-10 kVA 1
1
2
3

2 PowerValue 11 RT 6-10 kVA | Quick guide
4
5

Quick guide | PowerValue 11 RT 6-10 kVA 3
6
7

4 PowerValue 11 RT 6-10 kVA | Quick guide

Quick guide | PowerValue 11 RT 6-10 kVA 5
1en
es
da
zh
fr
fi
ru
nl
de
pt
cz
el
it
sv
pl
PowerValue 11 RT 6-10 kVA
Quick guide 7
Kurzanleitung 21
Guide de référence rapide 35
Guida rapida 49
Guía rápida 63
Guia de consulta rápida 77
Pikaopas 91
Snabbinstruktion 105
Kvikguide 119
Rychlý průvodce 133
Краткое руководство 147
Skrócony podręcznik 161
速成指南 175
Σύντομος οδηγός 189
Beknopte installatiehandleiding 203

6 PowerValue 11 RT 6-10 kVA | Quick guide

Quick guide | PowerValue 11 RT 6-10 kVA 7
1en
PowerValue 11 RT 6-10 kVA
Quick guide
Safety instructions 8
Installation 13
Operation 15
Troubleshooting 17

8 PowerValue 11 RT 6-10 kVA | Quick guide
en
Safety instructions
Read carefully
Always follow the precautions and instructions described in this manual. Any
deviations from the instructions may result in electrical shock or cause accidental
load loss.
ABB DOES NOT TAKE ANY RESPONSIBILITY FOR DAMAGES CAUSED THROUGH INCORRECT
MANIPULATIONS OF THE UPS SYSTEM.
Safety notices
WARNING WARNING INDICATES THE PRESENCE OF A HAZARD WHICH COULD
RESULT IN SEVERE INJURY AND/OR SERIOUS DAMAGE TO THE SYSTEM.
CAUTION CAUTION INDICATES THE PRESENCE OF A HAZARD WHICH COULD
RESULT IN MINOR INJURY AND/OR DAMAGE TO THE PRODUCT.
NOTE NOTE INDICATES THE PRESENCE OF A HAZARD WHICH COULD LEAD TO
PROPERTY DAMAGE.
Safety symbols
SAFETY WARNING: THE SYMBOL IS USED TO ALERT THE USER TO WARNINGS,
CAUTIONS AND NOTES.
DANGER: THE SYMBOL IS USED TO ALERT THE USER TO THE OCCURRENCE
OF ELECTRICAL LIVE PARTS WITH HAZARDOUS VOLTAGES.

Quick guide | PowerValue 11 RT 6-10 kVA 9
1en
Batteries
DANGER WARNING
COMPONENTS INSIDE THE UPS ARE CONNECTED TO THE
BATTERY EVEN WHEN THE UPS IS DISCONNECTED FROM
THE MAINS POWER SUPPLY.
DANGER WARNING
DISCONNECT THE BATTERIES BEFORE CARRYING OUT ANY
KIND OF SERVICE AND/OR MAINTENANCE. VERIFY THAT NO
CURRENT IS PRESENT AND NO HAZARDOUS VOLTAGE
EXISTS IN THE CAPACITOR OR BUS CAPACITOR TERMINALS.
DANGER WARNING
A BATTERY CAN PRESENT A RISK OF ELECTRICAL SHOCK
AND HIGH SHORT CIRCUIT CURRENT. THE FOLLOWING
PRECAUTIONS MUST BE OBSERVED WHEN WORKING ON
BATTERIES:
• REMOVE WATCHES, RINGS OR OTHER METAL OBJECTS
• MAKE USE OF PROPER PPE (PERSONAL PROTECTION
EQUIPMENT) AS PER LOCAL POLICIES AND RULES
—WEAR FLAME/ARC RESISTANT WHOLE BODY
CLOTHING
—WEAR SUITABLE VOLTAGE RATED GLOVES
—USE SAFETY DIELECTRIC FOOTWEAR
—WEAR ARC FLASH FACE SHIELD
—USE VOLTAGE RATED TOOLS
• DO NOT LAY TOOLS OR METAL PARTS ON TOP OF
BATTERIES
• DISCONNECT THE CHARGING SOURCE PRIOR TO
CONNECTING OR DISCONNECTING BATTERY TERMINALS.
DANGER WARNING
THE BATTERY CIRCUIT IS NOT ISOLATED FROM THE INPUT
VOLTAGE. HAZARDOUS VOLTAGES MAY OCCUR BETWEEN
THE BATTERY TERMINALS AND THE GROUND. VERIFY THAT
NO VOLTAGE IS PRESENT BEFORE SERVICING.
WARNING
NEVER DISPOSE BATTERIES ON FIRE AS THEY MAY EXPLODE.

10 PowerValue 11 RT 6-10 kVA | Quick guide
en
WARNING
DO NOT OPEN OR MUTILATE THE BATTERIES.
WARNING
RELEASED ELECTROLYTE IS HARMFUL TO THE SKIN AND EYES.
CAUTION
REPLACE BATTERIES WITH THE SAME NUMBER AND SAME TYPE OF
BATTERIES.
Installation
DANGER WARNING
DISPLAY A WARNING LABEL ON ALL PRIMARY POWER
ISOLATORS INSTALLED REMOTE FROM THE UPS AREA TO
WARN ELECTRICAL MAINTENANCE PERSONNELS THAT THE
CIRCUIT FEEDS A UPS.
MAKE SURE THAT WARNING LABEL CONTAINS THE
FOLLOWING TEXT OR EQUIVALENT: “ISOLATE THE UPS
(UNINTERRUPTIBLE POWER SUPPLY) BEFORE WORKING ON
THIS CIRCUIT”.
DANGER WARNING
HIGH FAULT CURRENTS (LEAKAGE CURRENTS). BEFORE
CONNECTING THE MAINS ENSURE THAT THE UPS IS
GROUNDED!
DANGER WARNING
DO NOT REMOVE ANY SCREWS FROM THE UPS SYSTEM OR
FROM THE BATTERY CABINET: DANGER OF ELECTRICAL
SHOCK.

Quick guide | PowerValue 11 RT 6-10 kVA 11
1en
DANGER WARNING
WHEN OPENING OR REMOVING THE UPS-COVERS YOU ARE
EXPOSED TO DANGEROUS VOLTAGES.
DANGER WARNING
RISK OF BACKFEED VOLTAGE, ISOLATE THE UPS INSTALLING
AN EXTERNAL ISOLATING DEVICE BETWEEN MAINS INPUT
AND UPS; BEFORE OPERATING ON THIS CIRCUIT, CHECK
FOR HAZARDOUS VOLTAGE.
WARNING
WATER CONDENSING MAY OCCUR IF THE UPS IS UNPACKED IN A VERY
LOW TEMPERATURE. IN THIS CASE IT IS NECESSARY TO WAIT UNTIL THE
UPS IS FULLY DRIED INSIDE OUT BEFORE PROCEEDING INSTALLATION
AND USE TO AVOID HAZARDS AND ELECTRIC SHOCK, WAIT UNTIL THE
UPS IS FULLY DRY BOTH INSIDE AND OUTSIDE BEFORE INSTALLING.
CAUTION
INDUCTIVE LOADS (FOR EXAMPLE MONITORS AND LASER PRINTERS)
HAVE A VERY HIGH POWER CONSUMPTION AT START-UP. IF CONNECTED
TO THE UPS, THE START-UP POWER OF SUCH LOADS MUST BE TAKEN
INTO CONSIDERATION WHEN CALCULATING THE CAPACITY OF THE UPS
TO PREVENT THE UPS FROM BEING OVERLOADED AND TURNED OFF.
NOTE
TO REDUCE THE RISK OF FIRE, CONNECT THE UPS TO A CIRCUIT
PROVIDED WITH BRANCH CIRCUIT OVERCURRENT PROTECTION WITH AN
AMPERE RATING IN ACCORDANCE WITH THE IEC/EN 60934 STANDARD OR
YOUR LOCAL ELECTRICAL CODE.
SEE TECHNICAL SPECIFICATIONS FOR RECOMMENDATIONS.

12 PowerValue 11 RT 6-10 kVA | Quick guide
en
Operation
CAUTION
DO NOT OPERATE IN CASE OF PRESENCE OF WATER OR MOISTURE.
CAUTION
DO NOT DISCONNECT THE MAINS CABLE FROM THE UPS OR THE
BUILDING WIRING SOCKET DURING OPERATION AS THIS REMOVES THE
GROUND FROM THE UPS AND ALL CONNECTED LOADS.
CAUTION
SWITCH OFF THE CONNECTED LOADS BEFORE TURNING ON THE UPS.
THEN SWITCH ON THE LOADS ONE BY ONE AFTER THE UPS IS TURNED
ON. SWITCH OFF ALL OF THE CONNECTED LOADS BEFORE TURNING OFF
THE UPS.
CAUTION
REPLACE FUSES ONLY BY DEVICES OF THE SAME TYPE AND OF THE
SAME AMPERAGE TO AVOID FIRE HAZARDS.
NOTE
PRESS THE OFF BUTTON TO FULLY DISCONNECT THE UPS. WAIT UNTIL
THE UPS IS ON BYPASS OR ON STAND-BY MODE BEFORE
DISCONNECTING IT FROM THE MAINS.
NOTE
INDISCRIMINATE OPERATION OF SWITCHES MAY CAUSE OUTPUT LOSS OR
DAMAGE TO EQUIPMENT.

Quick guide | PowerValue 11 RT 6-10 kVA 13
1en
Installation
Planning before installation
Install the unit to a position where any danger to the UPS is minimized to ensure a
long service life:
• Install the UPS indoors.
• Leave 50cm of space on each side of the cabinet to enable cooling airflow and
ensure that the circulation of air to the ventilation slits is not obstructed.
• Avoid excessively high temperature and excessive moisture
• Make sure that the surface is solid and flat
Rack mount installation – requires rack mounting kit, to be purchased
separately
• Identify the rail holes in the rack for positioning the cabinet. Position the rails in
the bottom of the 3U space for 6kVA units and 5U space for 10kVA units.

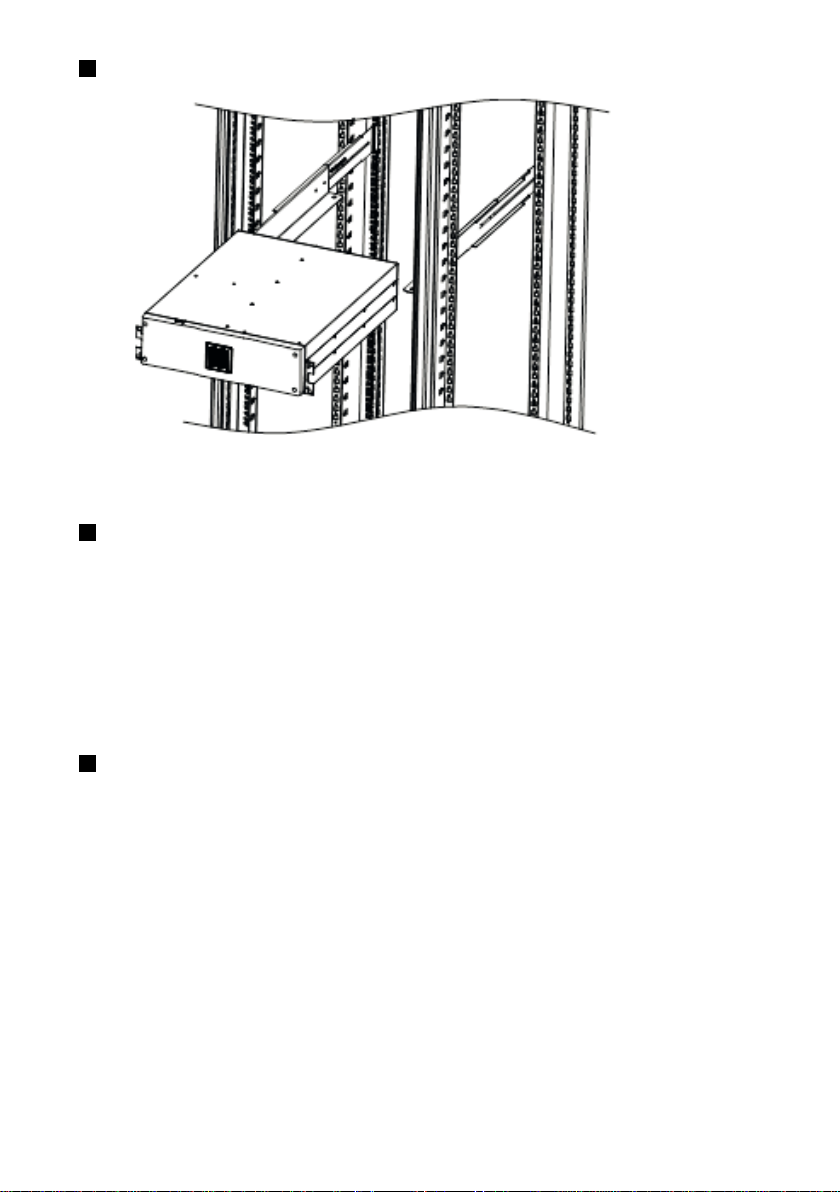

• Slide the cabinet into the rack. (Fig.1)
• If installing additional UPS units, repeat the steps above for each cabinet
Tower installation
PowerValue 11 RT 6 kVA
• Carefully rotate the LCD control panel 90º to the right. (Fig.2)
• Place the units to a vertical position.
• Screw the supports to the sides of the unit. (Fig.3)
PowerValue 11 RT 10 kVA
• Carefully rotate the LCD control panel 90º to the right in the top and bottom front
panels. (Fig.4)
• Place the units to a vertical position.
• Screw the supports to the sides of the unit. (Fig.5)

14 PowerValue 11 RT 6-10 kVA | Quick guide
en
Electrical connections
• PowerValue 11 RT 6 kVA (see Fig.6)
Legend
1GND contact
2EPO
3Parallel port
4Output circuit breaker
5Output sockets
6SNMP/ AS400 slot
7USB
8RS232
9Bypass
10 AC input
11 AC output
• PowerValue 11 RT 10 kVA (see Fig.7)
Legend
1SNMP/ AS400 slot
2EPO
3USB
4Parallel port
5Battery connector
6GND contact
7Output sockets
8Output circuit breaker
9AC output
10 Bypass
11 AC input

Quick guide | PowerValue 11 RT 6-10 kVA 15
1en
Operation
You can operate the UPS through the user-friendly display (see chapter 4 of the user
manual for a full list of possible operations).
Power on/off
Scroll up Scroll down
Select / Edit
UPS start-up
To start up the UPS with mains supply:
1. Check that all cables are connected correctly and well-fixed mechanically.
2. Keep the power-on button pressed for longer than 1 second. The fans are
activated and the UPS will load for a few seconds.
3. The UPS performs a self-test and the LCD shows the default UPS status screen.

16 PowerValue 11 RT 6-10 kVA | Quick guide
en
To start up the UPS without mains supply (cold start):
1. Check that all cables are connected correctly and well-fixed mechanically.
2. Keep the power-on button pressed for longer than 1 second. The UPS is powered
on, the fans are activated and the LCD is turned on. The UPS performs a self-test
and shows the default UPS status screen.
3. Keep the power-on button pressed for longer than 1 second. The alarm buzzer
sounds for 1 second and the UPS starts up.
4. After a few seconds, the UPS transfers to battery-mode. When the UPS is
supplied with power from the mains, the UPS transfers to online-mode without
interruption in the output of the UPS.
UPS Shutdown
To shut down the UPS with mains supply:
1. If the UPS is working on bypass-mode, go to step 3.
2. If the UPS is on online-mode, keep the power-on button pressed for more than 3
seconds. The alarm buzzer will sound and the UPS will transfer to bypass-mode.
Note that the bypass is still energized.
3. Disconnect the mains power supply. The display will shut down and the output
voltage will be removed from the UPS output terminal.
4. In case bypass has been disabled through the Settings menu, keep the power-
on button pressed for longer than 3 seconds to shut down the UPS. The unit will
transfer from online to stand-by mode. Disconnect the input power cable and the
display will shut down.
To shut down the UPS without mains supply:
1. To power off the UPS, keep the power on/off button pressed for more than 3
seconds. The alarm buzzer will sound for 3 seconds and the output power will be
immediately cut-off.
2. The display will shut down and the output voltage will be removed from the UPS
output terminal.

Quick guide | PowerValue 11 RT 6-10 kVA 17
1en
Troubleshooting
Alarm and events indicate warnings and notify of errors or potential failures in the
system. The output of the UPS is not necessarily affected in case of an alarm but
taking the correct actions may prevent loss of power to the load. If the UPS system
does not operate correctly, attempt to solve the problem using the table below.
Alarm or Event Possible cause Remedy
Utility Abnormal
Alarm Code: 02
The input mains is out of the UPS
tolerance range
Check input mains condition
Site Wiring Fault
Alarm Code: 04
Site Fault detection is supported on
all-models when a Grounding Neutral
connection is present. Alarm will
trigger when the difference between
ground and neutral voltage is >15V.
Site Fault detection should be
enabled by default. It can be enabled
/ disabled from the LCD settings
menu.
Reconnect all input wires
Battery Disconnect
Alarm Code:11
Battery voltage is lower than the
batteries disconnected level defined
for this UPS. There could be a blown
fuse, intermittent battery connection
or disconnected battery cable.
Verify that all batteries are properly
connected.
If the condition persists, contact your
service representative.
Battery low
Alarm Code:12
The UPS is in battery-mode and the
battery autonomy is running low.
This warning is approximate and the
actual time to shut down may vary.
Depending on the UPS load and the
number of external battery modules
(EXBAT), the “Battery Low” warning
may occur before the batteries reach
25% capacity
Service Battery
Alarm Code:13
A battery string failure has been
detected and the battery charger has
been disabled until its replacement
Contact your service representative
Charger Fail
Alarm Code:15
Indicates a charger failure The UPS charger is turned off until
the next startup. Contact your
service representative
Battery Over Voltage
Alarm Code:16
Indicates that the battery voltage is
too high
The UPS will turn off the charger until
the battery voltage is normal
BUS Over Voltage
Alarm Code:21
Indicates an over voltage in the BUS
of the UPS.
The UPS transfers to Bypass-mode
if supporting the load
BUS Under Voltage
Alarm Code:22
Indicates an under voltage in the
BUS of the UPS.
The UPS transfers to Bypass-mode
if supporting the load
BUS Unbalance
Alarm Code:23
Indicates that the positive BUS
voltage and negative BUS voltage
are not symmetric
The UPS transfers to Bypass-mode
if supporting the load
