ABB PowerValue 11 RT G2 User manual

— PowerValue 11 RT G2 1-3 kVA UL
—
USER MANUAL
PowerValue 11 RT G2
1-3 kVA UL

2ABB UPS PRODUCTS AND SOLUTIONS
—
About this manual
File name : 4NWP107193R0001_ABB_OPM_PVA11_1-3kVA-RT_G2_UL_EN_REV-A
UPS model : PowerValue 11 RT G2 1-3 kVA UL
Date of issue : 30.09.2020
Issued by : Product Marketing
Checked by : R&D
After Sales
Article number : 4NWP107193R0001
Document number : 4NWD005568
Revision : A
The following symbols are used in this manual,
the list below explains each symbol.
—
Document information
—
Safety symbols and warnings
This symbol in conjunction with the signal word “DANGER” indicates an imminent electrical
hazard. Failure to observe the related safety note may cause injury, death or equipment damage.
This symbol in conjunction with the signal word “WARNING” indicates a potentially dangerous
situation. Failure to observe may cause injury, death or equipment damage.
This symbol in conjunction with the signal word “NOTE” indicates operator tips or particularly
useful or important information for the use of the product. This symbol and wording does not
indicate a dangerous situation.
This symbol indicates that reading the instruction manual/booklet before starting work or before
operating equipment or machinery is compulsory.
Recycle.
Do not dispose of with ordinary trash.

3
—
Contents
1 Important safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
1.1 Operator precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
1.2 Environmental considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
1.3 Declaration of safety conformity and UL marking . . . . . . . . . . . . . . . . . . . . . . . . . .6
1.4 Inquiries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
1.5 Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
1.6 Operating principle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
2.1 UPS disposal and recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
2.1.1 For professional users in the European Union . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.1.2 For disposal in countries outside of the European Union . . . . . . . . . . . . . . . . . . . . 9
3 Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
3.1 Delivery, transportation, positioning and storage . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.1.1 Receipt of the UPS and visual inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
3.1.2 Unpacking list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.1.3 Operation of UPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
3.1.4 Storage of UPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
3.2 Site planning and positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.2.1 Planning before the installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.2.2 Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.2.3 Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
3.2.4 Rack mount installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.2.5 Stand-alone / tower installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
3.3 General characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.3.1 UPS front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
3.3.2 UPS rear panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
3.4 Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
3.4.1 UPS input connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
3.4.2 UPS output connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
4 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.1 Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.1.1 Selection keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.1.2 LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
4.2 Operating mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.3 UPS start-up and shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.3.1 UPS start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
4.3.2 UPS shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
4.4 LCD display wordings index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.5 LCD Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
4.6 LCD setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.7 LCD measurement functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
5 Battery replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
6 Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
6.1 RS-232 port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.2 USB port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

4ABB UPS PRODUCTS AND SOLUTIONS
6.3 Emergency power off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6.4 Network management card (optional). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
6.4.1 Installing a serial network management card (optional). . . . . . . . . . . . . . . . . . . .31
6.4.2 Monitoring software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
7 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.1 Fault identification and rectification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.2 Accessing alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

51 IMPORTANT SAFETY INSTRUCTIONS
—
1 Important safety instructions
Always follow the precautions and instructions
described in this manual. Any deviations from the
instructions may result in electric shock or cause
accidental load loss.
ABB DOES NOT TAKE ANY RESPONSIBILITY FOR
DAMAGES CAUSED THROUGH INCORRECT USE
OF THE UPS SYSTEM.
To operate the UPS with optimal efficiency, your
installation site should meet the environmental
parameters outlined in this user manual.
Excessive amounts of dust or moisture in the
operating environment may cause damage or
lead to malfunction. The UPS should always be
protected from the weather and sunshine.
The operating environment must meet the
weight, airflow, size and clearance requirements
specified in the technical datasheet.
—
1.1 Operator precautions
—
1.2 Environmental considerations
DANGER
DO NOT REMOVE ANY SCREWS FROM
THE UPS SYSTEM OR FROM THE BATTERY
CABINET: DANGER OF ELECTRICAL SHOCK!
DANGER
HIGH FAULT CURRENTS (LEAKAGE
CURRENTS). BEFORE CONNECTING THE
MAINS ENSURE THAT THE UPS IS EARTHED!
DANGER
DISPLAY A WARNING LABEL ON ALL
PRIMARY POWER ISOLATORS INSTALLED
AWAY FROM THE UPS AREA TO WARN
ELECTRICAL MAINTENANCE PERSONNEL
THAT THE CIRCUIT FEEDS A UPS!
MAKE SURE THAT WARNING LABEL
CONTAINS THE FOLLOWING TEXT OR
EQUIVALENT: “ISOLATE THE UPS
(UNINTERRUPTIBLE POWER SUPPLY)
BEFORE WORKING ON THIS CIRCUIT!”
Under no circumstances should the UPS be
installed in an airtight room, in the presence of
flammable gases, or in an environment exceeding
the environmental requirements specified below.
An ambient temperature of +20°C to +25°C is
recommended to achieve a long life of the UPS
and batteries. The cooling air entering the UPS
must not exceed +40 °C and the humidity should
be below 95 percent (non-condensing).
READ THIS IMPORTANT SAFETY
INSTRUCTION CHAPTER BEFORE
READING THE OPERATING MANUAL.
SAVE THESE INSTRUCTIONS - This manual
contains important instructions that should
be followed during installation and
maintenance of the UPS and batteries

6ABB UPS PRODUCTS AND SOLUTIONS
The PowerValue 11 RT G2 1-3 kVA is designed,
manufactured and commercialized in accordance
with the EN ISO 9001 standard relating to quality
management systems.
These products conform with the
following directives:
• UL 1778: 2017 5th & CSA C22.2 No. 107.3-14
• FCC part 15, Class A
• 2011/65/EU Restriction of the use of certain
hazardous substances (RoHS) directive
Inquiries regarding the UPS should be
addressed to the local ABB office or agent
authorized by ABB. Note the type code and
the serial number of the equipment before
contacting ABB or authorized agent. The
serial number is shown on the nameplate
of the product. For further information on
troubleshooting, see Chapter 6.
—
1.3 Declaration of safety conformity and UL marking
—
1.4 Inquiries
These products also meet the following
product standards:
—
Table 1: Standards
Product Standards
ESD IEC 61000-4-2 Level 3
Low Frequency Signals IEC/EN 61000-2-2
Disturbing Voltage:10V
RS IEC61000-4-3 Level 3
EFT IEC 61000-4-4 Level 4
Surge IEC 61000-4-5 Level 4
CS IEC 61000-4-6 Level 3
Power Frequency Magnetic
Field Immunity IEC 61000-4-8 Level 4
Conduction FCC part 15, Class A
Radiation FCC part 15 , Class A
Performance classification VFI-SS-III
Safety UL 1778: 2017 5th
Transportation IEC 60068-2-31
IEC 60068-2-64
IEC 60068-2-27
WARNING
THIS EQUIPMENT HAS BEEN TESTED AND FOUND
TO COMPLY WITH THE LIMITS FOR A CLASS A
DIGITAL DEVICE, PURSUANT TO PART 15 OF THE
FCC RULES. THESE LIMITS ARE DESIGNED TO
PROVIDE REASONABLE PROTECTION AGAINST
HARMFUL INTERFERENCE WHEN THE
EQUIPMENT IS OPERATED IN A COMMERCIAL
ENVIRONMENT. THIS EQUIPMENT GENERATES,
USES, AND CAN RADIATE RADIO FREQUENCY
ENERGY AND, IF NOT INSTALLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL,
MAY CAUSE HARMFUL INTERFERENCE TO RADIO
COMMUNICATIONS. OPERATION OF THIS
EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY
TO CAUSE HARMFUL INTERFERENCE IN WHICH
CASE THE USER WILL BE REQUIRED TO CORRECT
THE INTERFERENCE AT HIS OWN EXPENSE.

7

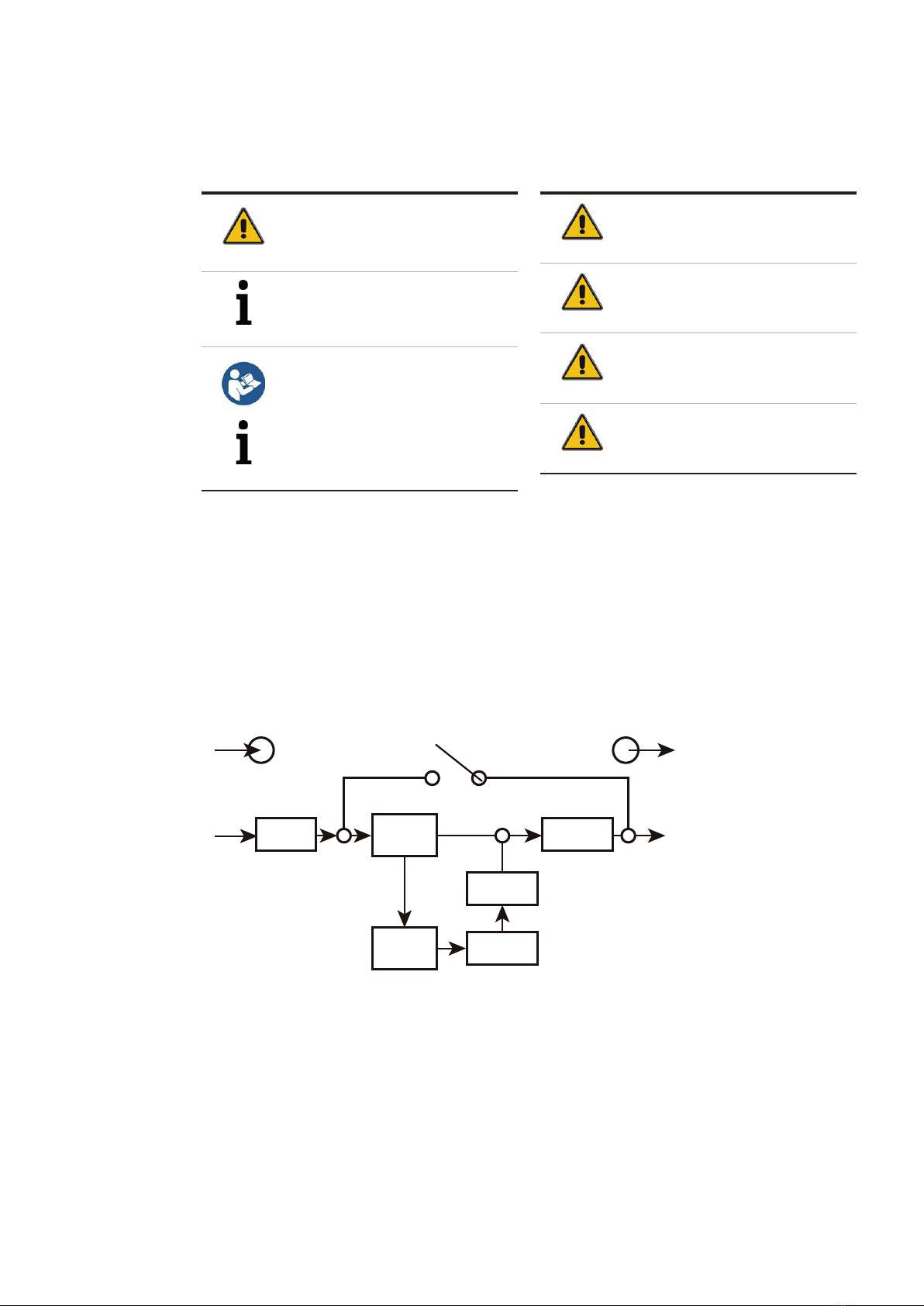

The operating principle of the UPS is
shown as below
The UPS is composed a mains input,
EMI/RFI filters, a rectifier/PFC,
an inverter, a battery charger,
a DC-to-DC converter, a battery,
a dynamic bypass and UPS output.
WARNING
DO NOT DISCONNECT THE MAINS CABLE
FROM THE UPS OR THE BUILDING WIRING
SOCKET DURING OPERATION AS THIS
REMOVES THE GROUND FROM THE
AND ALL CONNECTED LOADS.
NOTE
PRESS THE OFF BUTTON TO FULLY
DISCONNECT THE UPS. ENSURE THE UPS IS
ON BYPASS OR ON STANDBY MODE BEFORE
DISCONNECTING IT FROM THE MAINS.
NOTE
TO REDUCE THE RISK OF FIRE, CONNECT
THE UPS TO A CIRCUIT PROVIDED WITH
BRANCH CIRCUIT OVERCURRENT
PROTECTION WITH AN AMPERE RATING IN
ACCORDANCE WITH THE IEC/EN 60934
STANDARD OR YOUR LOCAL ELECTRICAL
CODE.
SEE TECHNICAL SPECIFICATIONS FOR
RECOMMENDATIONS.
WARNING
INDISCRIMINATE OPERATION OF
SWITCHES MAY CAUSE OUTPUT LOSS
OR DAMAGE TO EQUIPMENT.
WARNING
NEVER DISPOSE OF BATTERIES IN A FIRE
AS THEY MAY EXPLODE.
WARNING
DO NOT OPEN OR DAMAGE
THE BATTERIES.
WARNING
RELEASED ELECTROLYTE IS HARMFUL
TO THE SKIN AND EYES.
—
1.5 Operation
—
1.6 Operating principle
1 IMPORTANT SAFETY INSTRUCTIONS
Input Output
EMI/RFI
Filters
Rectifier
Battery
Charger
Dynamic
Bypass
Inverter
/PFC
Battery
DC-to-DC
Converter

8ABB UPS PRODUCTS AND SOLUTIONS
The PowerValue 11 RT G2 1-3 kVA UPS requires
only minimal maintenance.
Charge the UPS regularly to maximize the
expected life of the battery. When connected to
mains power, the UPS charges the batteries and
prevents the batteries from overcharging and
over-discharging.
• Replace the batteries when the battery service
life has been exceeded (around three to five
years at 25°C ambient temperature). Contact
your local ABB or an agent authorized by ABB
for replacements.
• Charge the UPS once every four to six months
if it is not used regularly.
• In high-temperature regions, charge and
discharge the battery every two months.
The standard charging time should be at
least 12 hours.
• Replace the battery when the discharge time
is less than 50 percent of specified after fully
charging. Check the battery connection or
contact your local dealer to order a new battery.
A HB Flame class battery is not for use in a computer room
as defined in the standard for the Protection of Electronic
Computer/Data Processing Equipment ANSI/NFPA 75
DANGER
COMPONENTS INSIDE THE UPS ARE
CONNECTED TO THE BATTERY EVEN
WHEN THE UPS IS DISCONNECTED FROM
THE MAINS POWER SUPPLY.
DANGER
DISCONNECT THE BATTERIES BEFORE
CARRYING OUT ANY KIND OF SERVICE
AND/OR MAINTENANCE. VERIFY THAT NO
CURRENT IS PRESENT, AND NO
HAZARDOUS VOLTAGE EXISTS IN THE
CAPACITOR OR BUS CAPACITOR
TERMINALS.
DO NOT DISCONNECT BATTERY
CONNECTORS UNDER LOAD
DANGER
THE BATTERY CIRCUIT IS NOT ISOLATED
FROM THE INPUT VOLTAGE. HAZARDOUS
VOLTAGES MAY OCCUR BETWEEN THE
BATTERY TERMINALS AND THE GROUND.
VERIFY THAT NO VOLTAGE IS PRESENT
BEFORE SERVICING.
DANGER
A BATTERY CAN PRESENT A RISK OF
ELECTRICAL SHOCK AND HIGH SHORT
CIRCUIT CURRENT. THE FOLLOWING
PRECAUTIONS SHOULD BE OBSERVED
WHEN WORKING ON BATTERIES:
• REMOVE WATCHES, RINGS OR OTHER
METAL OBJECTS
• MAKE USE OF PROPER PPE (PERSONAL
PROTECTION EQUIPMENT) AS PER
LOCAL POLICIES AND RULES
- WEAR FLAME/ARC RESISTANT
WHOLE BODY CLOTHING
- WEAR SUITABLE VOLTAGE RATED
GLOVES
- USE SAFETY DIELECTRIC FOOTWEAR
- WEAR ARC FLASH FACE SHIELD
- USE VOLTAGE RATED TOOLS
• DO NOT LAY TOOLS OR METAL PARTS
ON TOP OF BATTERIES
• DISCONNECT THE CHARGING SOURCE
PRIOR TO CONNECTING OR
DISCONNECTING BATTERY TERMINALS.
WARNING
REPLACE BATTERIES WITH THE SAME
NUMBER AND SAME TYPE OF BATTERIES.
SERVICING OF BATTERIES SHOULD BE
PERFORMED OR SUPERVISED BY
PERSONNEL KNOWLEDGEABLE ABOUT
BATTERIES AND THE REQUIRED
PRECAUTIONS.
CAUTION: DO NOT DISPOSE OF BATTERIES
IN A FIRE. THE BATTERIES MAY EXPLODE.
CAUTION: DO NOT OPEN OR MUTILATE
BATTERIES. RELEASED ELECTROLYTE IS
HARMFUL TO THE SKIN AND EYES. IT MAY
BE TOXIC.
WARNING
REPLACE FUSES ONLY WITH FUSES OF
THE SAME TYPE AND OF THE SAME
AMPERAGE TO AVOID FIRE HAZARDS.
—
2 Maintenance

9
—
2.1 UPS disposal and recycling
2.1.1 For professional users in the European Union
THE CROSSED –OUT WHEELED BIN
SYMBOL ON THE PRODUCT(S) AND / OR
ACCOMPANYING DOCUMENTS MEANS
THAT WASTE ELECTRICAL AND
ELECTRONIC EQUIPMENT (WEEE)
SHOULD NOT BE MIXED WITH GENERAL
HOUSEHOLD WASTE.
IF YOU WISH TO DISCARD ELECTRICAL
AND ELECTRONIC EQUIPMENT (EEE),
PLEASE CONTACT YOUR DEALER OR
SUPPLIER FOR FURTHER INFORMATION.
DISPOSING OF THIS PRODUCT
CORRECTLY WILL HELP SAVE VALUABLE
RESOURCES AND PREVENT ANY
POTENTIAL NEGATIVE EFFECTS ON
HUMAN HEALTH AND THE ENVIRONMENT,
WHICH COULD OTHERWISE ARISE FROM
INAPPROPRIATE WASTE HANDLING.
2.1.2 For disposal in countries outside of the
European Union
THE CROSSED –OUT WHEELED BIN
SYMBOL IS ONLY VALID IN THE EUROPEAN
UNION (EU) AND MEANS THAT WASTE
ELECTRICAL AND ELECTRONIC EQUIPMENT
(WEEE) SHOULD NOT BE MIXED WITH
GENERAL HOUSEHOLD WASTE.
IF YOU WISH TO DISCARD THIS PRODUCT
PLEASE CONTACT YOUR LOCAL
AUTHORITIES OR DEALER AND ASK FOR
THE CORRECT METHOD OF DISPOSAL.
DISPOSING OF THIS PRODUCT
CORRECTLY WILL HELP SAVE VALUABLE
RESOURCES AND PREVENT ANY
POTENTIAL NEGATIVE EFFECTS ON
HUMAN HEALTH AND THE ENVIRONMENT,
WHICH COULD OTHERWISE ARISE FROM
INAPPROPRIATE WASTE HANDLING.
2 MAINTENANCE

10 ABB UPS PRODUCTS AND SOLUTIONS
—
3 Installation
3.1.1 Receipt of the UPS and visual inspection
When receiving the UPS, carefully examine the
packing container and the UPS for any signs of
physical damage. In case of damage, notify the
carrier immediately.
The UPS packing container protects it
from mechanical and environmental damage.
To increase protection, the UPS is wrapped in a
plastic sheet. Keep the packaging for later re-use.
3.1.2 Unpacking list
After examining the package, open the box
and check that the following items are included:
• 1 x PowerValue 11 RT G2 UPS
• 1 X user manual
• 1 X USB with complete documentation and
software
• 2 x UPS stands (support)
• 4 x M4 round screw & 4 x M4 Hex screw
(UPS stands)
• 1 x USB cable
• 1 x monitoring software CD
• 1x input power cord(5-15P+IEC C13 for 1K,1.5K;
5-20P+IEC C19 for 2K)
Rack-mounting accessories (full rack-mounting
kit can be purchased separately):
• 2 x Rack mount ear
• 8 x M4 screw (Rack mount ears)
Examine the UPS for any signs of damage and
ensure that the received UPS corresponds to the
material indicated in the delivery note. Notify
your carrier or supplier immediately in case of
any damage.
For Pluggable Equipment - The socket-outlet shall
be installed near the equipment and shall be
easily accessible.
3.1.3 Operation of the UPS
The Units are considered acceptable for use in a
maximum ambient temperature of 40°C (104°F).
The UPS system contains no user-serviceable
parts. If the battery service life (3~5 years at 25°C
ambient temperature) has been exceeded,
the batteries must be replaced. In this case,
please contact your dealer.
Be sure to deliver the spent battery to a
recycling facility or ship it to your dealer in the
replacement battery packing material.
3.1.4 Storage of the UPS
Before storing, charge the UPS for five hours.
Store the UPS covered and upright in a cool,
dry location. During storage, recharge the
battery in accordance with the following table:
—
3.1 Delivery, transportation, positioning and storage
Storage Temperature R echarge Frequency Charging Duration
-25°C - 40°C Every 3 months 1-2 hours
40°C - 45°C Every 2 months 1-2 hours

11
3.2.1 Planning before the installation
To ensure a long service life, install the unit
in a position where any danger to the UPS
is minimized:
• Install the UPS indoors.
• Leave 50 cm of space on each side of the
cabinet to allow cooling airflow and ensure
that the circulation of air to the ventilation
slits is not obstructed.
• Avoid excessively high temperatures and
excessive moisture.
• Make sure that the surface is solid and flat.
3.2.2 Preparation
For safety consideration, the UPS is shipped out
from the factory without connecting battery
wires. Before installing the UPS, please follow the
steps below to re-connect the battery wires first.
Step 1. Remove the front panel. (figure 3.2.1-1)
Step 2. Re-connect the battery wires.
(figure 3.2.1-2)
Step 3. Put the front panel back on the unit.
(figure 3.2.1-3)
3.2.3 Positioning
The PowerValue 11 RT G2 can be mounted in a rack
or installed in a stand-alone configuration.
WARNING
WATER CONDENSATION MAY OCCUR IF
THE UPS IS UNPACKED IN A VERY LOW
TEMPERATURE. TO AVOID HAZARDS AND
RISK OF ELECTRIC SHOCK, WAIT UNTIL
THE UPS IS FULLY DRY BOTH INSIDE AND
OUTSIDE BEFORE INSTALLING/USING
THE UPS.
—
3.2 Site planning and positioning
—

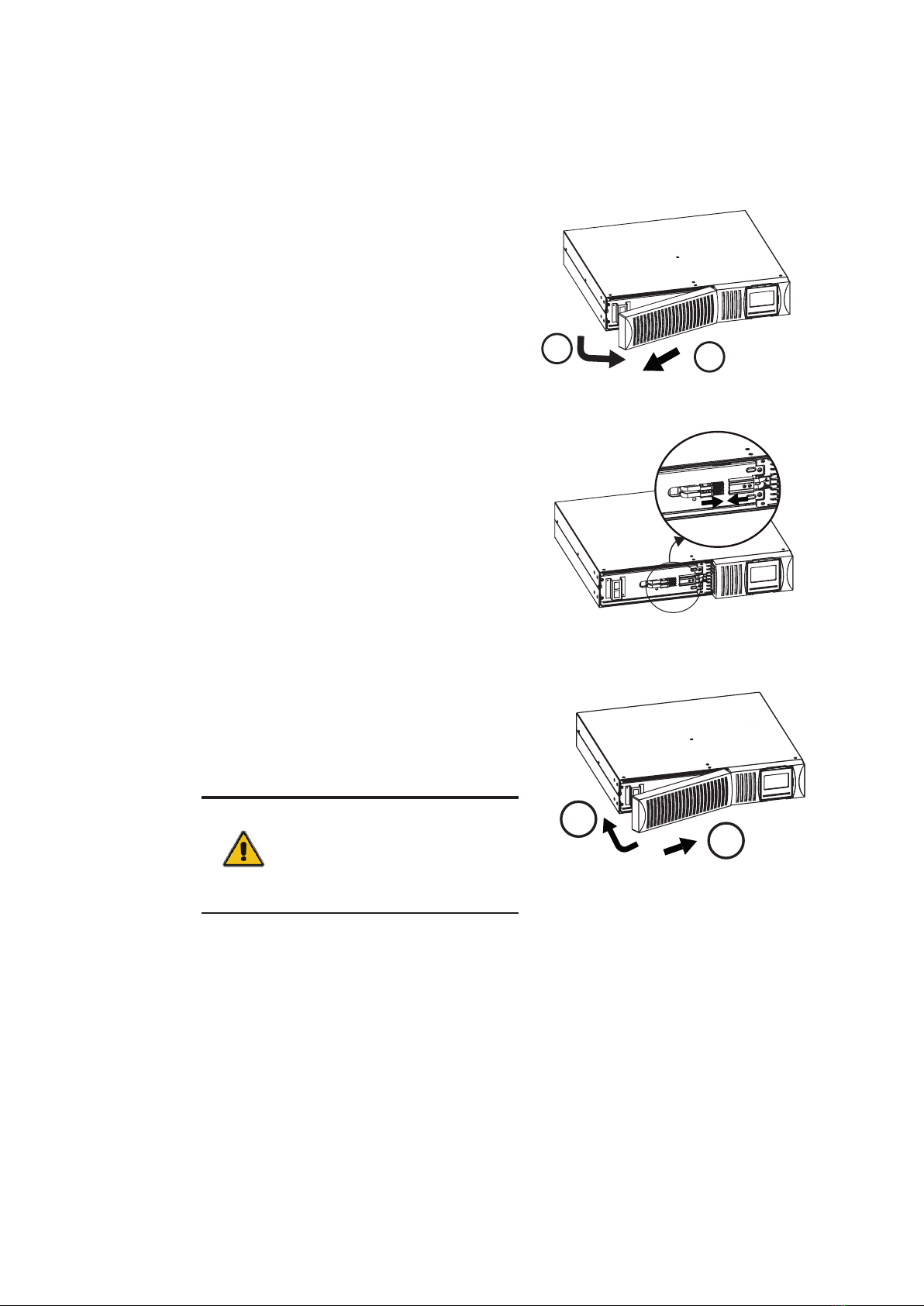

3.2.1-1
—
3.2.1-3
—
3.2.1-2
3 INSTALL ATION
—
3.2.1-1:
Step 1
—
3.2.1-2:
Step 2
—
3.2.1-3:
Step 3
2
1
21

12 ABB UPS PRODUCTS AND SOLUTIONS
3.2.4 Rack mount installation
3.2.4.1 UPS
Note that you need a rack-mounting kit
(purchased separately) for this operation. This
procedure is suitable for 19-inch rack cabinet
installation with a minimum depth of 800 mm.
Identify the final position and keep 2U spacing
for this installation.
1. Install the ear bracket onto the unit using the
M4 flathead screws (figure 3.2.4.1-1).
2. Slide the unit into the rail kit and make
sure the rack-mounting screw is tightened
(figure 3.2.4.1-2, 3.2.4.1-3).
3. After installing the UPS into the rack, proceed
with the connection of the load to the UPS.
Make sure the load equipment is turned off
before plugging it into the output receptacles.
3.2.4.2 External battery modules
Identify the final position and keep 2U spacing for
this installation; it is recommended that this
spacing is provided below the UPS.
1. Install the ear bracket onto the unit with
the flathead M4 screw. (figure 3.2.4.1-1).
2. Slide the unit into the rail kit and make sure
the rack-mounting screw is tightened
(figure 3.2.4.1-2, 3.2.4.1-3).
3. Turn off UPS, remove Power plug from the mains.
—
3.2.4.2-3
—
3.2.4.2-4
—

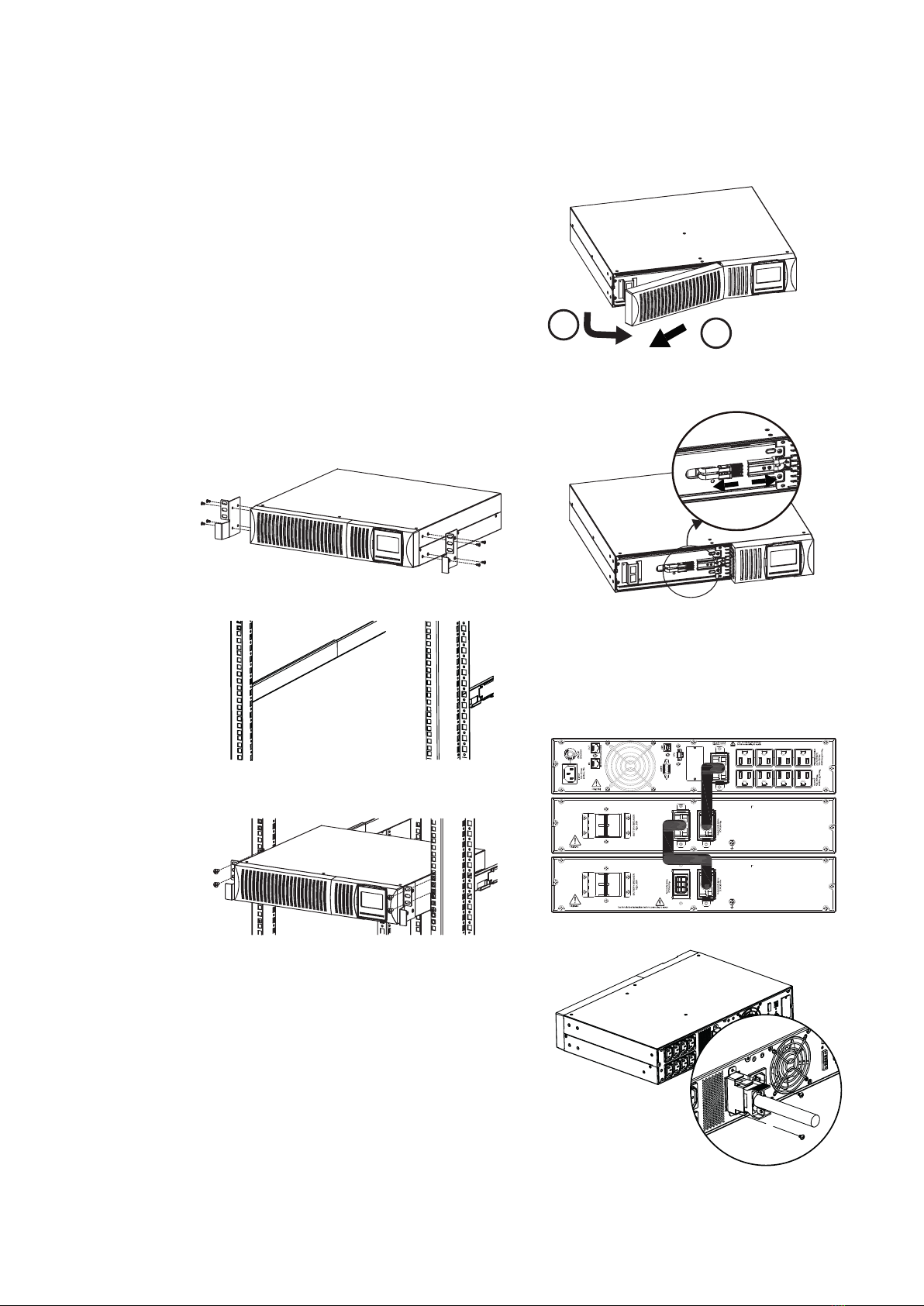

3.2.4.1-1
—
3.2.4.1-3
—
3.2.4.1-2
—
3.2.4.1-1:
Ear bracket
—
3.2.4.1-2:
Rack rails
—
3.2.4.1-3:
Rack-mount installation
—
3.2.4.2-1:
Front panel removal
—
3.2.4.2-2:
Battery plug
disconnection
—
3.2.4.2-3:
Battery module
connection
—
3.2.4.2-4:
Battery module
connection
—
3.2.4.2-1
—
3.2.4.2-2
2
1
4. Turn off the circuit breaker on external
battery bank.
5. Remove front panel, disconnect internal
battery connector (figure 3.2.4.2-1, 3.2.4.2-1).
6. Connect the EBM to the UPS with the battery
power cable (figure 3.2.4.2-3).
7. Install the fixing plate to fix the battery cable
(figure 3.2.4.2-4)

FOOT EXTEND
13
—
3.2.4.2-5:
Battery plug connection
—
3.2.4.2-6:
Front panel insertion
—
3.2.5.1-1:
Stabilizer bracket for
UPS
—
3.2.5.2-1:
Stabilizer bracket for
external batter module
3.2.5.2 External battery modules
1. Set up the extension plate as below and install
it on the UPS stabilizer bracket.
2. Install the UPS and EBM individually into the
stabilizer bracket.
3. Connect to the UPS with the battery power
cable (refer to rack position installation).
NOTE
IT IS RECOMMENDED THAT THIS UNIT
BE INSTALLED TO THE RIGHT-HAND
SIDE OF THE UPS. IF INSTALLING AN
ADDITIONAL UNIT, PLACE IT NEXT TO
THE PREVIOUS UNIT.
NOTE
PLEASE INSTALL THE 8 SCREWS TO
ENSURE THAT THE UPS AND EXTERNAL
BATTERY MODULE ARE CORRECTLY
PLACED IN A STAND-ALONE/TOWER
POSITION.
—
3.2.5.2-1
3 INSTALL ATION
NOTE
PLEASE INSTALL THE 4 SCREWS TO
ENSURE THAT THE UNIT IS CORRECTLY
PLACED IN A STAND-ALONE/TOWER
POSITION.
NOTE
UP TO SIX EXTERNAL BATTERY
ENCLOSURES CAN BE CONNECTED TO
THE UPS IN THE SAME WAY, AS
SHOWN ABOVE.
—
3.2.5.1-1
3.2.5 Stand-alone / tower installation
3.2.5.1 UPS
1. Set up the stabilizer bracket, then put the unit
into the stabilizer bracket. (figure 3.2.5.1-1).
FOOTSTAND
SCREW M4 x 4
8. Connect internal battery connector, and put
the front panel back to the unit.
—
3.2.4.2-5
—
3.2.4.2-6
21
9. Turn on the circuit breaker on external
battery bank.

ON / MUTE SELECT OFF / ENTER
NETWORK/FAX/MODEM
>27kg(60Ibs)
NETWORK/FAX/MODEM
>21kg(47Ibs)
NETWORK/FAX/MODEM
>15kg(33Ibs)
NETWORK/FAX/MODEM
>10kg(22Ibs)
PROGRAMMABLE
OUTLETS(P1)
100~127Vac
50/60Hz,20A Max.
OUTPUT
100~127Vac
50/60Hz,20A Max.
OUTPUT
100~127Vac
50/60Hz,24A Max.
PROGRAMMABLE
OUTLETS(P1)
100~127Vac
50/60Hz,16A Max.
OUTPUT
100~127Vac
50/60Hz,16A Max.
INPUT
100~127Vac
50/60Hz,16A
PROGRAMMABLE
OUTLETS(P1)
100~127Vac
50/60Hz,9.1A Max.
OUTPUT
100~127Vac
50/60Hz,9.1A Max.
PROGRAMMABLE
OUTLETS(P1)
100~127Vac
50/60Hz,9.1A Max.
OUTPUT
100~127Vac
50/60Hz,9.1A Max.
INPUT
100~127Vac
50/60Hz,12A
INPUT
100~127Vac
50/60Hz,24A
INPUT
100~127Vac
50/60Hz,12A
RS232 USB
RS232 USB
IN OUT
RS232 USB
INTELLIGENT SLOT
EPO
EPO
EPO
CIRCUIT
BREAKER
RS232 USB
EPO
CIRCUIT
BREAKER
CIRCUIT
BREAKER
IN OUT IN OUT
IN OUT
CIRCUIT
BREAKER
INTELLIGENT SLOT
INTELLIGENT SLOT
INTELLIGENT SLOT
EXT. BATTERY
36V/50A
EXT. BATTERY
48V/50A
EXT. BATTERY
72V/50A
See installation instructions
before connecting to supply
See installation instructions
before connecting to supply
See installation instructions
before connecting to supply
See installation instructions
before connecting to supply
EXT. BATTERY
72V/50A
75 8 9
3 6
10 4 1
2
NETWORK/FAX/MODEM
>27kg(60Ibs)
NETWORK/FAX/MODEM
>21kg(47Ibs)
NETWORK/FAX/MODEM
>15kg(33Ibs)
NETWORK/FAX/MODEM
>10kg(22Ibs)
PROGRAMMABLE
OUTLETS(P1)
100~127Vac
50/60Hz,20A Max.
OUTPUT
100~127Vac
50/60Hz,20A Max.
OUTPUT
100~127Vac
50/60Hz,24A Max.
PROGRAMMABLE
OUTLETS(P1)
100~127Vac
50/60Hz,16A Max.
OUTPUT
100~127Vac
50/60Hz,16A Max.
INPUT
100~127Vac
50/60Hz,16A
PROGRAMMABLE
OUTLETS(P1)
100~127Vac
50/60Hz,9.1A Max.
OUTPUT
100~127Vac
50/60Hz,9.1A Max.
PROGRAMMABLE
OUTLETS(P1)
100~127Vac
50/60Hz,9.1A Max.
OUTPUT
100~127Vac
50/60Hz,9.1A Max.
INPUT
100~127Vac
50/60Hz,12A
INPUT
100~127Vac
50/60Hz,24A
INPUT
100~127Vac
50/60Hz,12A
RS232 USB
RS232 USB
IN OUT
RS232 USB
INTELLIGENT SLOT
EPO
EPO
EPO
CIRCUIT
BREAKER
RS232 USB
EPO
CIRCUIT
BREAKER
CIRCUIT
BREAKER
IN OUT
IN OUT IN OUT
CIRCUIT
BREAKER
INTELLIGENT SLOT
INTELLIGENT SLOT INTELLIGENT SLOT
EXT. BATTERY
36V/50A
EXT. BATTERY
48V/50A
EXT. BATTERY
72V/50A
See installation instructions
before connecting to supply
See installation instructions
before connecting to supply
See installation instructions
before connecting to supply
See installation instructions
before connecting to supply
EXT. BATTERY
72V/50A
75 8 9
3 6
10 4 1
2
NETWORK/FAX/MODEM
>27kg(60Ibs)
NETWORK/FAX/MODEM
>21kg(47Ibs)
NETWORK/FAX/MODEM
>15kg(33Ibs)
NETWORK/FAX/MODEM
>10kg(22Ibs)
PROGRAMMABLE
OUTLETS(P1)
100~127Vac
50/60Hz,20A Max.
OUTPUT
100~127Vac
50/60Hz,20A Max.
OUTPUT
100~127Vac
50/60Hz,24A Max.
PROGRAMMABLE
OUTLETS(P1)
100~127Vac
50/60Hz,16A Max.
OUTPUT
100~127Vac
50/60Hz,16A Max.
INPUT
100~127Vac
50/60Hz,16A
PROGRAMMABLE
OUTLETS(P1)
100~127Vac
50/60Hz,9.1A Max.
OUTPUT
100~127Vac
50/60Hz,9.1A Max.
PROGRAMMABLE
OUTLETS(P1)
100~127Vac
50/60Hz,9.1A Max.
OUTPUT
100~127Vac
50/60Hz,9.1A Max.
INPUT
100~127Vac
50/60Hz,12A
INPUT
100~127Vac
50/60Hz,24A
INPUT
100~127Vac
50/60Hz,12A
RS232 USB
RS232 USB
IN OUT
RS232 USB
INTELLIGENT SLOT
EPO
EPO
EPO
CIRCUIT
BREAKER
RS232 USB
EPO
CIRCUIT
BREAKER
CIRCUIT
BREAKER
IN OUT IN OUT IN OUT
CIRCUIT
BREAKER
INTELLIGENT SLOT
INTELLIGENT SLOT INTELLIGENT SLOT
EXT. BATTERY
36V/50A
EXT. BATTERY
48V/50A
EXT. BATTERY
72V/50A
See installation instructions
before connecting to supply
See installation instructions
before connecting to supply
See installation instructions
before connecting to supply
See installation instructions
before connecting to supply
EXT. BATTERY
72V/50A
75 9
3 6 8
10 104 1
2
NETWORK/FAX/MODEM
>27kg(60Ibs)
NETWORK/FAX/MODEM
>21kg(47Ibs)
NETWORK/FAX/MODEM
>15kg(33Ibs)
NETWORK/FAX/MODEM
>10kg(22Ibs)
PROGRAMMABLE
OUTLETS(P1)
100~127Vac
50/60Hz,20A Max.
OUTPUT
100~127Vac
50/60Hz,20A Max.
OUTPUT
100~127Vac
50/60Hz,24A Max.
PROGRAMMABLE
OUTLETS(P1)
100~127Vac
50/60Hz,16A Max.
OUTPUT
100~127Vac
50/60Hz,16A Max.
INPUT
100~127Vac
50/60Hz,16A
PROGRAMMABLE
OUTLETS(P1)
100~127Vac
50/60Hz,9.1A Max.
OUTPUT
100~127Vac
50/60Hz,9.1A Max.
PROGRAMMABLE
OUTLETS(P1)
100~127Vac
50/60Hz,9.1A Max.
OUTPUT
100~127Vac
50/60Hz,9.1A Max.
INPUT
100~127Vac
50/60Hz,12A
INPUT
100~127Vac
50/60Hz,24A
INPUT
100~127Vac
50/60Hz,12A
RS232 USB
RS232 USB
IN OUT
RS232 USB
INTELLIGENT SLOT
EPO
EPO
EPO
CIRCUIT
BREAKER
RS232 USB
EPO
CIRCUIT
BREAKER
CIRCUIT
BREAKER
IN OUT
IN OUT
IN OUT
CIRCUIT
BREAKER
INTELLIGENT SLOT
INTELLIGENT SLOT
INTELLIGENT SLOT
EXT. BATTERY
36V/50A
EXT. BATTERY
48V/50A
EXT. BATTERY
72V/50A
See installation instructions
before connecting to supply
See installation instructions
before connecting to supply
See installation instructions
before connecting to supply
See installation instructions
before connecting to supply
EXT. BATTERY
72V/50A
75 8 9
3 6
10 4 1
2
14 ABB UPS PRODUCTS AND SOLUTIONS
—
3.3.1-1:
UPS front panel
—
3.3.1-2:
PowerValue 11 RT
G2 1 kVA rear view
—
3.3.1-3:
PowerValue 11 RT
G2 1.5 kVA rear view
—
3.3.1-4:
PowerValue 11 RT
G2 2 kVA rear view
—
3.3.1-5:
PowerValue 11 RT
G2 3 kVA rear view

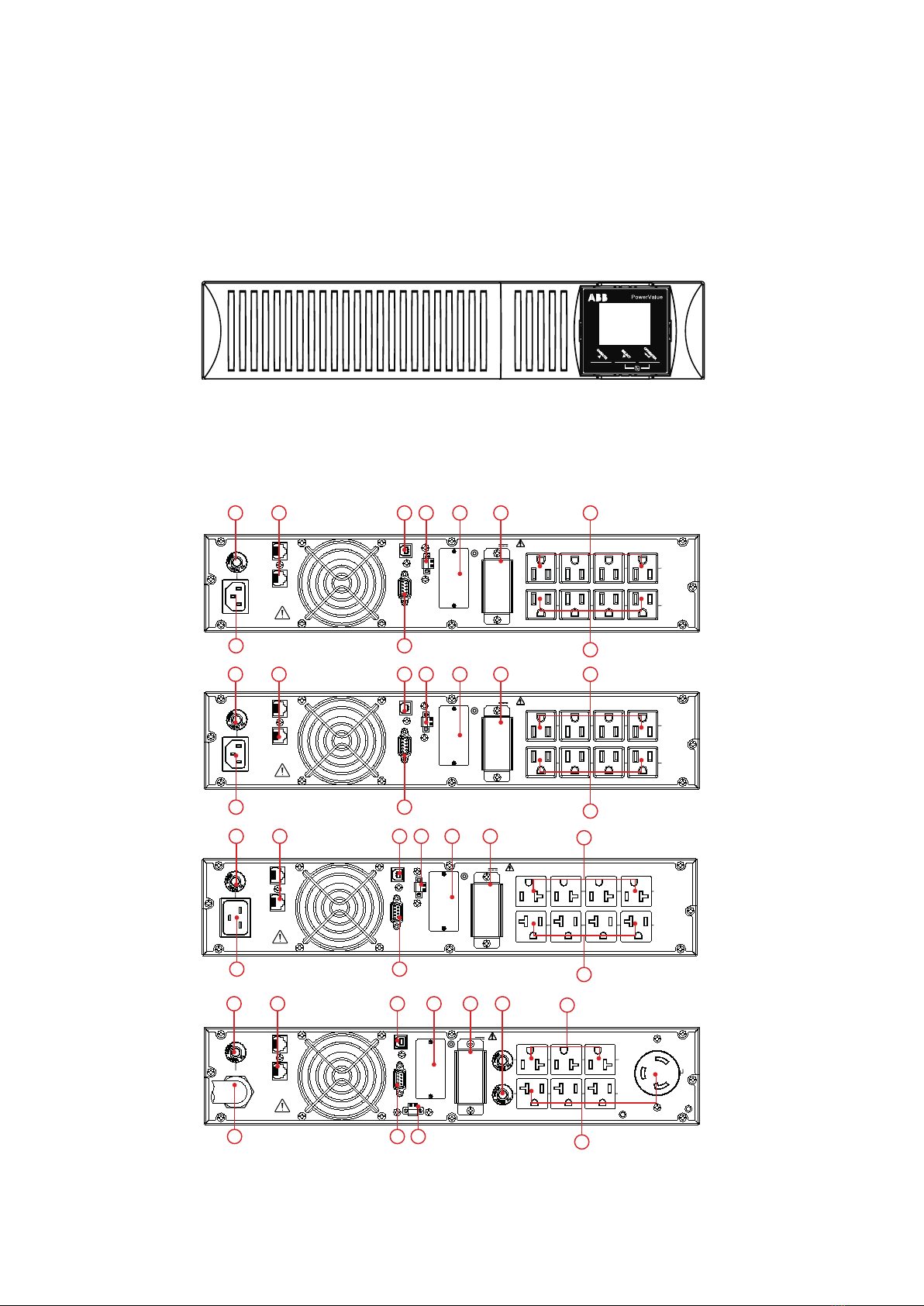

3.3.1 UPS front panel
Figure 3.3.1-1 shows the front panel of the UPS.
—
3.3 General characteristics
—
3.3.1-1
—
3.3.1-2
—
3.3.1-3
—
3.3.1-4
—
3.3.1-5
3.3.1-1 UPS rear panel
Table 2 and Figures 3.3.1-2~ Figures 3.3.1-5 show the connectors and ports in
the UPS.

15
3.4.2 UPS output connection
The output sockets and types of the UPS are
shown below.
There are two kinds of outputs: programmable
outlets and general outlets. Please connect non-
critical devices to the programmable outlets and
critical devices to the general outlets. During
power failure, you may extend the backup time to
critical devices by setting a shorter backup time
for non-critical devices.
—
3.4 Connection
—
Table 2: UPS rear panel connectors and ports
1Programmable outlets: connect to non-critical loads
2Output receptacles: connect to mission-critical loads
3AC input
4Network/Fax/Modem surge protection
5USB communication port
6RS-232 communication port
7SNMP intelligent slot
8Emergency power off function connector (EPO)
9External battery connection
10 Circuit breaker
3 INSTALL ATION
3.4.1 UPS input connection
Plug the UPS into a proper socket (grounded
and shockproof) and pay attention to the socket
capacity. Avoid using extension cords. The UPS
system has an input breaker on the standard
cabinet.
• For PowerValue 11 RT G2 1/1.5/2 kVA models:
The power cord is supplied in the UPS package.
• For PowerValue 11 RT G2 3 kVA models: The
power cord is attached to the UPS.
• The input plug is a NEMA 5-15P for 1K and 1.5K
models, NEMA 5-20P for the 2K model,
and NEMA L5-30P for the 3K model.
NOTE
To reduce the risk of fire, connect only to
a circuit provided with (@) A maximum
branch circuit overcurrent protection in
accordance with the National Electrical
Code, ANSI/NFPA 70, and the Canadian
Electrical Code, Part I, C22.1"
Model (@)
PowerValue 11 RT G2 1 kVA 20A
PowerValue 11 RT G2 1.5 kVA 20A
PowerValue 11 RT G2 2 kVA 20A
PowerValue 11 RT G2 3 kVA 40A
Model No. Output Socket – NEMA(pcs)
PowerValue 11 RT G2 1 kVA 8*NEMA 5-15R
PowerValue 11 RT G2 1.5 kVA 8*NEMA 5-15R
PowerValue 11 RT G2 2 kVA 8*NEMA 5-20R
PowerValue 11 RT G2 3 kVA 6*NEMA 5-20R + 1*NEMA
L5-30R

Selection
keys
LCD
16 ABB UPS PRODUCTS AND SOLUTIONS
—
4 Operation
The user-friendly control panel has two parts:
• Selection keys
• Power management LCD (PMD)
—
4.1 Control panel
This chapter describes how the UPS is operated through the
LCD.
The user can:
• Operate the LCD
• Start up and shut down the UPS (excluding the
commissioning start up)
• Operate additional SNMP adapters and their software
—
4.1-1:
Control panel
4.1.1 Selection keys
—
Table 3: UPS selection keys
Button Function Illustration
ON/Mute
Button
• Turn on the UPS: Press and the hold ON/Mute button for at least 2 seconds to turn on the UPS.
• Mute the alarm: After the UPS is turned on in battery mode, press and hold this button for at least 3 seconds to
disable or enable the alarm system. But this is not applied to those situations when warnings or errors occur.
• Up key: Press this button to display the previous selection in the UPS setting mode.
• Switch to UPS self-test mode: Press the ON/Mute buttons for 3 seconds to enter UPS self-testing while in AC mode,
ECO mode, or converter mode.
OFF/Enter
Button
• Turn off the UPS: Press and hold this button for at least 2 seconds to turn off the UPS. The UPS will be in standby
mode under power normal or transfer to Bypass mode if the Bypass enables the setting by pressing this button.
• Confirm selection key: Press this button to confirm the selection in the UPS setting mode.
Select
Button
• Switch LCD message: Press this button to change the LCD message for input voltage, input frequency, battery
voltage, battery current, battery capacity, output voltage, output frequency, load current and load percent.
• Setting mode: Press and hold this button for 3 seconds to enter UPS setting mode when in Standby and Bypass mode.
• Down key: Press this button to display the next selection in the UPS setting mode.
ON/Mute +
Select Button
• Switch to bypass mode: When the main power is normal, press the ON/Mute and Select buttons simultaneously for
3 seconds. Then the UPS will enter bypass mode. This action will be ineffective when the input voltage is out of
acceptable range.
• Exit setting mode or return to the upper menu: When working in setting mode, press the ON/Mute and Select
buttons simultaneously for 0.2 seconds to return to the upper menu. If this is already in top menu, press these two
buttons at the same time to exit the setting mode.
OFF/Enter +
Select Button
• Rack or Tower display switch: Press the Select and OFF/Enter buttons simultaneously for 3 seconds.
The display changes from/to Rack to/from Tower.
—
4.1-1

17
—
4.1.2-1:
The default LCD
4.1.2 LCD
The LCD shows an overview of the UPS status:
- Input
- Output
- Battery
- Load parameters
- Working mode
- Frequency
- Bypass presence.
The LCD backlight automatically dims after two
minutes of inactivity (except in cases of a UPS
fault). Press any button to wake up the screen.
A buzzer indicates the UPS status. Table 4 lists
the buzzer status meanings
—
Table 4: Definition of alarms
UPS condition Buzzer status
Active fault Continuous
Battery UPS on battery: Beeps every 5 seconds
Low battery: Buzzer beeps every 2 seconds
Bypass Beeps every ten seconds
Overload Beeps every second
When powering on, the LCD shows the UPS
status. The UPS will also return to this default
screen when no buttons have been pressed for
15 minutes.
The status screen shows the following information:
• Status summary, including operating mode and
load information.
• Alarm status, if present (including fault and
warning information).
• Battery and charger status (including battery
voltage, charge level and charger status)
• Current runtime information.
Operation status
Input/Output information
Battery
status
Load/equipment
status
For more information on how to use the LCD,
see Chapter 4.6 and 4.7.
—
4.1.2-1
4 OPERATION

18 ABB UPS PRODUCTS AND SOLUTIONS
—
Table 5: Symbols in operating mode
Status LCD Screen Description
Online mode
When the input voltage is within acceptable range, the UPS will
provide pure and stable AC power to the output. The UPS will also
charge the battery in online mode.
ECO mode
Energy saving mode:
When the input voltage is within voltage regulation range, the UPS
will bypass voltage to output for energy saving. The UPS will also
charge the battery in ECO mode.
Frequency
Converter mode
When the input frequency is within 40 Hz to 70 Hz, the UPS can be
set at a constant output frequency, 50 Hz or 60 Hz. The UPS will still
charge battery under this mode.
Battery mode
When the input voltage is beyond the acceptable range or power
failure, the UPS will backup power from the battery and alarm
sounds every 5 seconds.
Bypass mode
When the input voltage is within acceptable range but the UPS is
overloaded, the UPS will enter bypass mode or bypass mode can be
set by the front panel. The alarm sounds every 10 seconds.
Standby mode The UPS is powered off and there is no output supply power, but it
can still charge the batteries.
Fault mode When a fault has occurred, the ERROR icon and the fault code will be
displayed.
The following table describes the UPS status information:
—
4.2 Operating mode

19
4.3.2 UPS shutdown
To shut down the UPS with the mains supply:
1. If the UPS is working in bypass mode,
go to step 3.
2. If the UPS is in online mode, keep the OFF/
Enter Button pressed for more than 3 seconds.
The alarm buzzer will sound and the UPS
will transfer to standby mode.
DANGER
THE OUTPUT IS STILL ENERGIZED.
3. Disconnect the mains power supply. The
display will shut down and the output voltage
will be removed from the UPS output sockets.
4. If the bypass has been disabled via the
Settings menu, keep the OFF/Enter button
pressed for longer than 3 seconds to shut
down the UPS. The unit will transfer from
online to standby mode. Disconnect the input
power cable and the display will shut down.
To shut down the UPS without the mains supply:
1. To power off the UPS, keep the OFF/Enter
button pressed for more than 3 seconds.
The alarm buzzer will sound for 3 seconds and
the output power will be immediately cut off.
2. The display will shut down and the output
voltage will be removed from the UPS
output Sockets.
WARNING
SWITCH OFF THE CONNECTED LOADS
BEFORE TURNING ON THE UPS. SWITCH
ON THE LOADS ONE BY ONE AFTER THE
UPS IS TURNED ON.
SWITCH OFF ALL OF THE CONNECTED
LOADS BEFORE TURNING OFF THE UPS.
NOTE
THE FIRST TIME THE UPS IS STARTED UP,
IT MUST BE CONNECTED TO THE UTILITY.
4.3.1 UPS start-up
To start up the UPS with the mains supply:
1. Check that all the cables are securely and
correctly connected.
2. Keep the power button pressed for longer than
1 second. The fans will activate and the UPS
will load for a few seconds.
3. The UPS will perform a self-test and the LCD
will show the default UPS status screen.
NOTE
BYPASS MODE IS ENABLED BY DEFAULT
AND CAN BE CONFIGURED THROUGH
THE USER’S SETTINGS (FOR MORE
INFORMATION, SEE TABLE 7).
To start up the UPS without the mains supply
(cold start):
4. Check that all the cables are securely and
correctly connected.
5. Keep the power button pressed for longer than
1 second. The UPS will power on, the fans will
activate and the LCD will turn on. The UPS will
perform a self-test and show the default UPS
status screen.
6. Keep the power button pressed for longer
than 2 seconds. The alarm buzzer will sound
for 1 second and the UPS will start up.
7. After a few seconds, the UPS transfers to
battery mode. When the UPS is supplied with
power from the mains, the UPS transfers to
online mode without interrupting the UPS
power output.
—
4.3 UPS start-up and shutdown
4 OPERATION

20 ABB UPS PRODUCTS AND SOLUTIONS
—
4.4 LCD display wordings index
The following table describes the UPS status information:
—
Table 6: Symbols in operating mode
Abbreviation Display content Meaning
ENA Enable
DIS Disable
ESC Escape
HLS High loss
LLS Low loss
AO Active Open
AC Active Close
EAT Estimated autonomy time
RAT Running autonomy time
ON ON
SD Shut down
BL Battery Low
OL Over Load
OI Over input current
NC Battery No Connect
OC Over Charge
SF Site wiring fault
EP EPO
TP Temperature
CH Charger
BF Battery Fault
BV Bypass Out Range
FU Bypass frequency unstable
BR Battery Replacement
EE EEPROM error
