Important InformatIon
1
Important information
Preface
This manual describes the mechanical and electrical installation of the ABL Wallbox.
The working steps described in this manual must only be carried out by qualified spe-
cialist personnel (mechanical installation) and qualified specialist electrical contractors
(electrical installation), who, on the basis of their specialist training, knowledge and ex-
perience as well as their knowledge of the relevant regulations, can assess and carry
out the working steps described in this installation manual and recognize potential
hazards.
The ABL Wallbox model variants can be identified by the ABL model number on the
product label located on the internal electronic components cover. Always make sure
before installation that your model variant is the one described in this installation man-
ual!
Model variants covered by this manual
3W2205 eMH3 Single with charging cable and 22 kW max. output
3W2207 eMH3 Single with charging socket and 22 kW max. output
3W2209 eMH3 Single with charging socket and shutter, 22 kW max. output
3W2214 eMH3 Twin with charging sockets and 2 x 11 kW or 1 x 22 kW max. output
3W2217 eMH3 Twin with charging sockets and shutter, 2 x 11 kW or 1 x 22 kW
max. output
3W4401 eMH3 Twin with charging sockets and 2 x 22 kW max. output
About this manual
This manual documents the steps and settings required for installing the wallboxes,
taking them into operation as well as for resolving malfunctions during operation. For
quick and easy reference, certain sections of this manual are specially formatted.
• Descriptions listing equally applicable options (as is the case here) are indicated by
bullet points.
• Descriptions that describe performing a function are shown in the form of numerical
lists indicating the order of the individual working steps.
Please make sure you read this manual carefully and ensure in particular that you fol-
low all safety notices given in this manual.
All measurements in this manual are in millimeters.
Please note that all technical details, specifications and design characteristics of the
product may be changed without prior notice.

Important InformatIon
2
Safety notices in this manual
In particular, the warnings and safety measures in this manual that are marked as fol-
lows must be adhered to. The symbols carry the following meanings:
DANGER!
Sections marked with this symbol draw attention to electrical voltages that
represent a danger to life and limb: Actions contrary to these safety notices
may lead to severe injury and death. Actions marked with this symbol must
not be carried out under any circumstances.
CAUTION!
Sections marked with this symbol draw attention to further hazards that
may lead to damage to the wallbox itself or to other electric devices. Ac-
tions marked with this symbol must be carried out with special care.
PLEASE NOTE:
Sections marked with this symbol draw attention to further important in-
formation and special features that are necessary for the reliable operation
of the device. Actions marked with this symbol should be carried out as
required.
Safety notices on the device
Further operational and safety notices are provided on the label on the right side of the
housing and on the electronic components cover inside every wallbox. These symbols
carry the following meanings:
WARNING!
Please ensure that you first read the operating manual, especially before
you open the housing cover of your ABL Wallbox.
WARNING!
Please ensure that you first read the installation manual (this document)
before you open the electronic components cover inside the wallbox.
WARNING!
After opening the housing, dangerous voltages may be present on the in-
side of the wallbox as well as on components you are able to touch.

Important InformatIon
3
General safety information
Please pay attention to the following points:
• Read this manual carefully.
• Heed all warnings.
• Follow all instructions.
• The wallbox must be installed, connected and approved for operation according to
local rules and regulations by a qualified specialist electrical contractor.
• Please ensure that minimum clearances of 50 cm are kept on all sides of the wallbox
during and after installation.
• Only use accessories intended and sold for the wallbox by ABL.
• Do not operate this wallbox in close vicinity to running water or water jets: However,
the ABL Wallbox is sufficiently protected against water splashes and sprays accord-
ing to IP54.
• The ABL Wallbox must not be installed in areas subject to flooding.
• The ABL Wallbox must not be installed in explosive atmosphere areas (EX areas).
• The ABL Wallbox must not be covered with stickers or other objects or materials so
that sufficient air circulation is ensured at all times.
• No liquids, or objects or receptacles containing liquids, must be placed on the hous-
ing.
• Please note that additional overvoltage protection may be required depending on
the connected vehicle and/or by national regulations.
• Please note that, in some countries, a different tripping characteristic for the up-
stream residual current circuit breaker (residual current device, in the following called
RCCB, see also “Glossary & Definitions” on page 28) may be required. In this
case, please contact ABL technical support.
• Please note that operating a radio transmitter in the immediate vicinity (< 20 cm) of
the wallbox may lead to malfunctions and should therefore be avoided.
• This device is not intended to be used by persons with limited physical, sensory or
mental abilities (including children) and/or lacking knowledge, unless they are super-
vised by someone responsible for their safety or have received instructions from
such a person on how to use the device.
• Children must be supervised so that they do not play with the device.
• Please note that the ABL Wallbox may be installed and operated at elevations of
max. 2,000 meters AMSL (above mean sea level).

Important InformatIon
4
General product information
The ABL Wallboxes described here represent the current state of technology and com-
ply with all current technical safety requirements, guidelines and standards. The safety
notices in this manual serve to ensure the proper and safe installation as well as subse-
quent operation of the device. Disregard of or actions contrary to the safety information
and instructions contained in this manual may lead to electric shock, fire, severe injury
and/or death.
The ABL Wallbox must be installed by a qualified specialist electrical contractor, con-
nected according to local regulations and norms and subsequently checked and ap-
proved for operation.
Malfunctions affecting the safety of persons, connected vehicles or the device itself
must be repaired by an authorized specialist electrical contractor only.
Should a malfunction occur with your wallbox, please first read the sections regarding
“Error detection and solutions” on page 17. Should the fault or malfunction recur
and still not be able to be resolved, please contact ABL technical support.
Always contact ABL technical support if:
• the housing has been damaged mechanically,
• the housing cover has been removed or can no longer be closed or locked,
• sufficient protection against splashing water and/or foreign objects is obviously no
longer evident,
• there is functional or visible damage to the charging socket or external charging cable,
• or the wallbox does not function properly or has been otherwise damaged.
DANGER!
Should you detect damage to the housing, charging socket or charg-
ing cable, you must immediately discontinue installation or take the al-
ready installed wallbox out of operation via the upstream miniature circuit
breaker(s) (in the following called MCB(s), see also “Glossary & Defini-
tions” on page 28) in your domestic power supply and the RCCB: No
further use of the wallbox is permitted in this case! Please contact ABL
technical support!
Notes regarding installation
Please observe the following instructions for the installation of your ABL Wallbox:
• The device must always be connected to the protective earth conductor of your
electricity supply. The protective earth connection will be made and checked by the
installing contractor. After installation, only qualified specialist electrical contractors
may make changes.

Important InformatIon
5
• At all times comply with local safety regulations for the country in which you operate
the wallbox.
• For proper operation, the power supply for the wallbox must be protected in the
domestic power supply with a suitable MCB.
• To disconnect the wallbox completely from the electricity grid, the power supply
must be interrupted using the upstream MCB and the internal RCCB.
• Ensure that the rated voltage and rated current of the wallbox comply with the pa-
rameters of your local electricity grid and that the rated output is not exceeded dur-
ing the charging procedure.
• The wallbox should not be installed in areas of high pedestrian traffic. Installation
along thoroughfares and marked escape routes should be especially avoided.
• Never install the wallbox in a confined space. In particular, you must ensure that the
vehicle can be parked at a suitable distance from the wallbox for charging and con-
nected without any strain on the charging cable. The distance between vehicle and
wallbox should be at least 50 cm and no more than 5 m. You may deviate from this
recommendation depending on local conditions.
• You must not under any circumstances make any changes to the housing or the
internal wiring of the wallbox: Any disregard of this instruction represents a safety
risk, fundamentally breaches the guarantee provisions and may void the warranty
with immediate effect.

preparatIons, InstallatIon and takIng Into operatIon
6
Preparations, installation and taking into operation
Introducing the product
The ABL Wallbox is entirely manufactured in Germany and at all times complies with the
regulations and norms for the charging of electric vehicles applicable throughout Eu-
rope according to IEC 61851-1 Mode 3 – please also refer to the section on”Guidelines
& Norms” on page 27. According to their requirements, users may select from
model variants with SINGLE orTWIN charging sockets or SINGLE fixed charging cable,
all designed for domestic and semi-public applications.
We place the highest value on user safety in all our products. This is why the wallbox
features an internal RCCB as well as DC fault current detection: In combination with
the protection devices of the domestic electrical infrastructure and the fault current
protection of the electric vehicle, these measures ensure effective protection against
short circuit, electric shock and other operational hazards.
The wallbox is especially easy to operate during everyday use: LED lights on the front
of the wallbox housing cover allow you to check the current operating status at any
time. Should a malfunction occur, you can identify the cause by its specific LED error
code without having to open the housing. After being taken into operation by a spe-
cialist contractor, the ABL Wallbox is ready for charging at any time. For some model
variants, each charging process must be separately authorized via the integrated RFID
module, provided this function was activated during installation.
Unpacking and components included
The ABL Wallbox package includes a range of accessory components needed for in-
stallation and proper operation. Therefore, please check immediately after unpacking
(together with the customer, if required) whether the following components are in-
cluded:
Component Quantity Description
Wallbox 1 Charging station, consisting of plastic housing with lock-
able housing cover and separate mounting plate
Quick start guide 1 Quick start guide including safety notices in printed form
Installation kit 1
S
et of fixings for wall mounting, consisting of 2 x 4
screws as well as matching wall plugs, triangular key,
strain relief including screws (2 pcs), sealing grommets
for openings at the back of the housing (3 pcs)
Should one or more components be missing after unpacking, please contact your local
ABL partner immediately.

preparatIons, InstallatIon and takIng Into operatIon
7
Identifying your model variant
The ABL Wallbox is available in a range of model variants that are mechanically and
electrically tailored to different usage patterns. When you open the housing cover for
installation, you will find behind it on the lower part of the electronic components cover
a product information label, which will carry the ABL model number. For identification,
the model code (3WXXXX) as well as the power supply ratings (voltage, frequency,
current) indicated below it are especially relevant.
Using the ABL model number, please always en-
sure before installation that your wallbox model
variant is the one whose installation is described
in this document. You can find a list of the wall-
box model variants described in this manual in
the table below.
The following wallboxes are described in this manual:
MODEL NUMBER GRID CONNECTION MODEL VARIANT
3W2205
230 / 400 V
50 Hz 32 A
Single charging station with fixed charging cable
according to IEC 62196-2 Type 2; integrated,
factory deactivated RFID module for access
control; internal Type A RCCB; internal DC fault
current detection; charging output up to 22 kW
3W2207
230 / 400 V
50 Hz 32 A
Single charging station with integrated charg-
ing socket according to IEC 62196-2 Type 2
with locking mechanism for separately avail-
able charging cable (Type 2 to Type 2 or Type
2 to Type 1); integrated, factory deactivated
RFID module for access control; internal Type A
RCCB; internal DC fault current detection; charg-
ing output 22 kW
3W2209
230 / 400 V
50 Hz 32 A
Single charging station with integrated charg-
ing socket according to IEC 62196-2 Type 2 with
shutter and locking mechanism for separately
available charging cable (Type 2 to Type 2 or
Type 2 to Type 1); integrated, factory deactivated
RFID module for access control; internal Type A
RCCB; internal DC fault current detection; charg-
ing output up to 22 kW
3W440100001
2016-08-17
3W4401
~230/400V 50Hz 2 x 32A
IP54
IEC 61851-1
IEC 61439-7 ACSEV
MADE IN GERMANY
ABL SURSUM Bayrische Elektrozubehör GmbH & Co. KG
3W440100001

preparatIons, InstallatIon and takIng Into operatIon
8
MODEL NUMBER GRID CONNECTION MODEL VARIANT
3W2214
230 / 400 V
50 Hz 32 A
Twin charging station with two integrated charg-
ing sockets according to IEC 62196-2 Type 2
with locking mechanisms for separately avail-
able charging cables (Type 2 to Type 2 or Type
2 to Type 1); integrated, factory deactivated
RFID module for access control; internal Type A
RCCB; internal DC fault current detection; inter-
nal load management for charging outputs of up
to 2 x 11 kW or 1 x 22 kW
3W2217
230 / 400 V
50 Hz 32 A
Twin charging station with two integrated charg-
ing sockets according to IEC 62196-2 Type
2 with shutters and locking mechanisms for
separately available charging cables (Type 2 to
Type 2 or Type 2 to Type 1); integrated, factory
deactivated RFID module for access control;
internal Type A RCCB; internal DC fault current
detection; internal load management for charg-
ing outputs of up to 2 x 11 kW or 1 x 22 kW
3W4401
230 / 400 V
50 Hz 2 x 32 A
Twin charging station with two integrated charg-
ing sockets according to IEC 62196-2 Type 2
with locking mechanisms for separately avail-
able charging cables (Type 2 to Type 2 or Type
2 to Type 1); integrated, factory deactivated
RFID module for access control; internal Type A
RCCB; internal DC fault current detection; charg-
ing output of up to 2 x 22 kW
WARNING!
The information and technical specifications contained in this manual re-
late exclusively to the above-mentioned model variants and must not be
transferred to other wallbox models.
Should your wallbox variant not be
described in this manual, please contact ABL technical support. Do not
under any circumstances install the wallbox in this case, as this could
lead to damage to the wallbox, to injury and/or death.
General requirements of the installation site
Your ABL Wallbox is an electrical device and is therefore subject to particular require-
ments for indoor and outdoor installation. In selecting the installation site, you must
consider the following points:
• Consider all local regulations for electrical installations, fire protection and accident
prevention.
• The wallbox must be installed where it is freely accessible to all authorized users.

preparatIons, InstallatIon and takIng Into operatIon
9
• A parking spot must also be planned for in front of the wallbox so that the vehicle
can at all times be reached with the integrated or with an external charging cable.

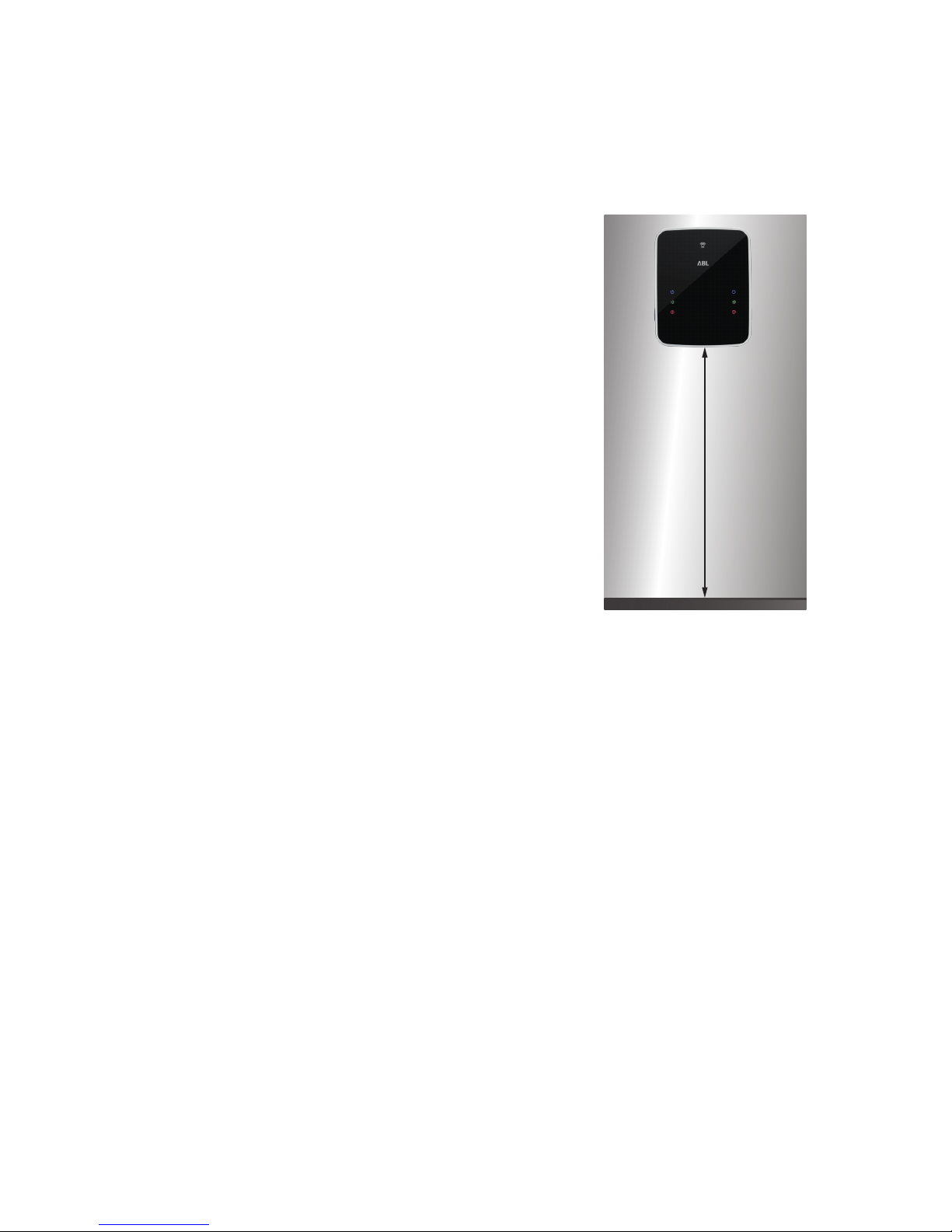

• The recommended installation height is 120 to 140 cm
from the floor to the lower edge of the housing. This
recommendation may be adjusted upwards or down-
wards depending on local conditions.
• Sufficient air circulation must be ensured at the installa-
tion site so that the wallbox is cooled during operation:
Always observe the allowed operating temperatures
(see “Technical specifications” on page 23).
• The mounting area must have an even surface that pro-
vides sufficient stability for installing the wallbox.
• The required mounting area for the ABL Wallbox is at
least 512 x 429 mm (H x W). All of the mounting plate
of the wallbox must be in contact with the mounting
surface.
• To ensure the safe operation of the wallbox, minimum
clearances of 50 cm must be kept on all sides of the
housing.
• In general, the ABL Wallbox is engineered for operation in high ambient tempera-
tures. However, it must be ensured that the maximum operating temperature is not
exceeded through external influences such as direct sunlight or similar.
• The wallbox meets the requirements for outdoor installation. Outdoors, the wallbox
should only be installed in covered locations that provide sufficient protection from
weather-related pollution.
Requirements for the power supply
The following standards must always be considered for the electrical installation of the
ABL Wallbox:
• All regulatory requirements for low voltage installations according to IEC 60364-1
and IEC 60364-5-52 apply.
• ABL Wallboxes are designed for connection to and operation on rated voltages of
230 V (phase-neutral) or 400 V (phase-phase) at 50 Hz.
• The installation site must offer a sufficiently dimensioned power supply according to
HD 60364-7-722:2012 (see also “Guidelines & Norms” on page 27): This power
supply must be reserved exclusively for the wallbox and must not be used to supply
other electrical devices.
• If necessary, a separate power supply must be installed that is intended exclusively
for connecting the wallbox and complies with the general requirements for cabling
and building infrastructure.
120 to
140 cm

preparatIons, InstallatIon and takIng Into operatIon
10
• Depending on the desired rated power, the installation of the wallbox may need to be
registered with and/or approved by the local electricity grid operator. Please consult the
local regulations of your electricity grid operator.
• Cable dimensions must be adjusted according to the desired rated power and other
aspects (such as cable length, material, cabling method etc.). The terminal blocks in
the wallbox are designed for cable dimensions of up to 16 mm2.
• The power supply cables may be installed above or below the wall surface: The
mounting plate provides alternative cable inlets at the top and at the rear.
• The power supply for the wallbox must always be protected by anMCB: Please
always observe the applicable national regulations regarding the selection of the
MCB.
• The wallbox does not have a dedicated ON/OFF switch: If you want to take the
wallbox out of operation, you must always switch the upstream domestic MCB and
the internal RCCB(s) to the 0(OFF) position. In addition, you have the option of de-
activating the charging function of the eMH3 via the integrated RFID module: The
necessary procedure is described in section “Deactivating and reactivating of the
charging function via RFID” on page 14 of the user manual for the ABL Wallbox.
• Please always ensure that the installation requirements listed in this manual are
complied with. Disregard or actions to the contrary may lead to severe injury by elec-
tric shock or even death. In addition, in case of contravention of the notices given,
the proper operation of the wallbox cannot be guaranteed.
Mechanical and electrical installation
After determining the mounting site for the wallbox, you can begin with the installa-
tion. For installation you will need the following components:
• Power drill or cordless drill (not included)
• Drill bit Ø 10 mm, appropriate for the wall substrate (not included)
• Screwdriver with flat head (2.5 mm blade width), Phillips head (PH1) and torx head
(TX40, TX25, TX20, TX10) bits
• Mounting plate (included)
• Pliers or cutter for breaking or cutting out the cable inlet in the mounting plate (not
included)
• Four 8 x 60 wafer head (TX40 bit) screws for fixing the mounting plate (included)
• Four 6 x 25 (TX25 bit) screws for fixing the wallbox housing to the mounting plate
(included)
• If required: Wall plugs suitable for the mounting substrate (included: 10 x 50 nylon
wall plugs)
• Spirit level if required (not included)

preparatIons, InstallatIon and takIng Into operatIon
11
DANGER!
Always observe the 5 golden rules of electrical installation:
1. Cut off all voltage sources
2. Secure all cut-off devices
3. Verify absence of voltage
4. Ground and short-circuit
5. Cover or bar access to adjacent components under voltage
Always deactivate the MCB allocated to the wallbox in the domestic power
supply and the internal RCCB(s) before you begin installation. Also ensure
that the MCB(s) and RCCB cannot be reactivated during installation. Other-
wise, there is a risk of severe injury through electric shock or even death!
Proceed as follows to drill the holes using the mounting plate:
1. Ensure that a sufficiently dimensioned power supply is available at the desired instal-
lation site. Otherwise, a power supply must be installed especially.

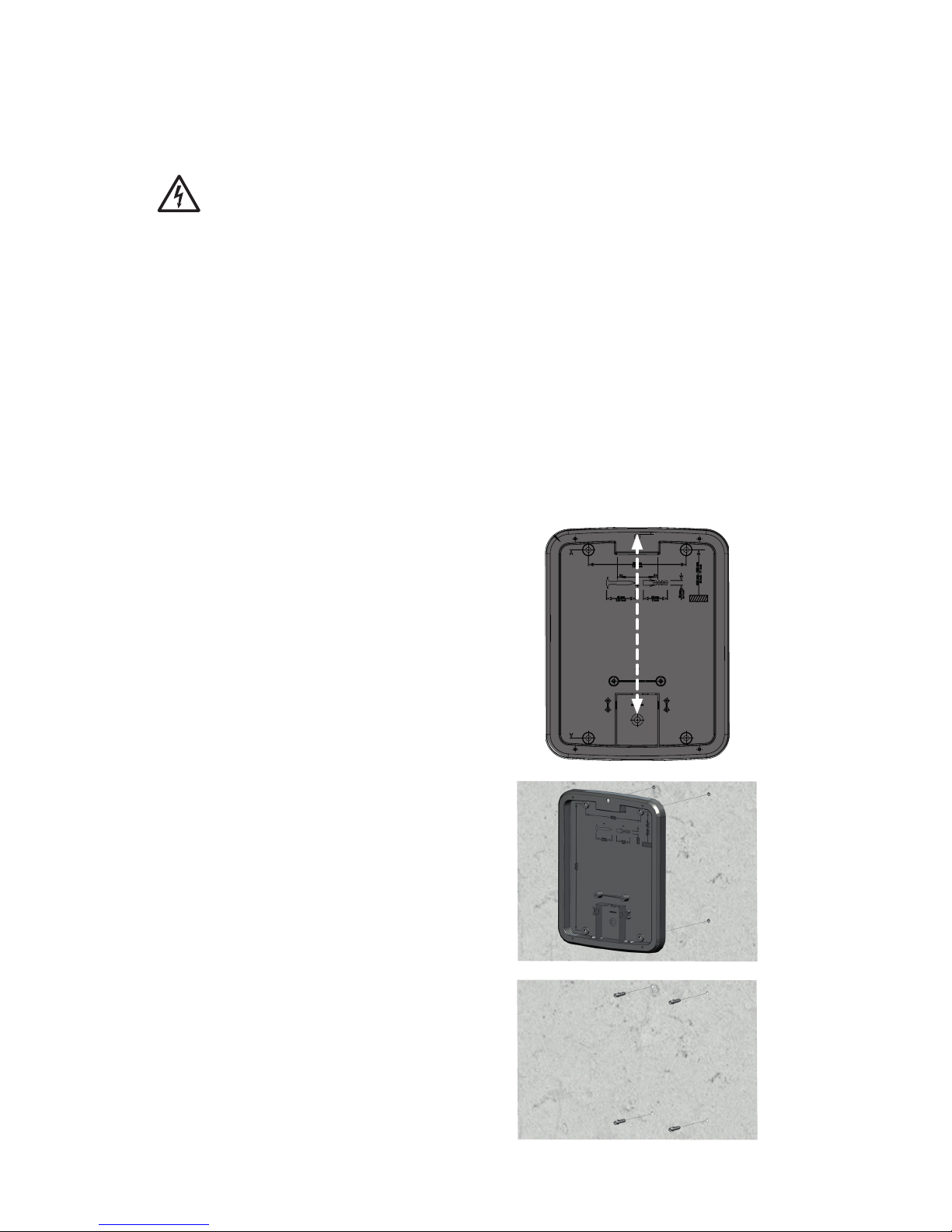

2. The mounting plate has pre-molded
cable inlets for the power supply on
its upper edge as well in the middle
of its surface. According to the power
supply at the installation site (and as
required), please remove one of the
plastic tongues intended for the pow-
er supply cable with a suitable pair of
pliers, a cutter or drill.
83
3. Place the mounting plate on the cho-
sen mounting surface: Use a spirit
level if required. Mark the drill holes.
4. Drill the mounting holes as marked (Ø
10 mm). Insert the supplied wall plugs
for the mounting screws if required.

preparatIons, InstallatIon and takIng Into operatIon
12
5. Fix the mounting plate in position with
a screwdriver (TX40 bit) and the wafer
head screws (8 x 60) included.
PLEASE NOTE: In case the power
supply enters from the rear, you must
first thread the cable through the
opening in the connection area in the
lower third of the mounting plate be-
fore screwing the plate into position.
6. For the cable to enter from the top, you
must install the power supply such that
it is inserted into the connection area
from above and can be fixed using its
allocated strain relief.
PLEASE NOTE: The strain relief is not
required if the power supply enters
from the rear.
83

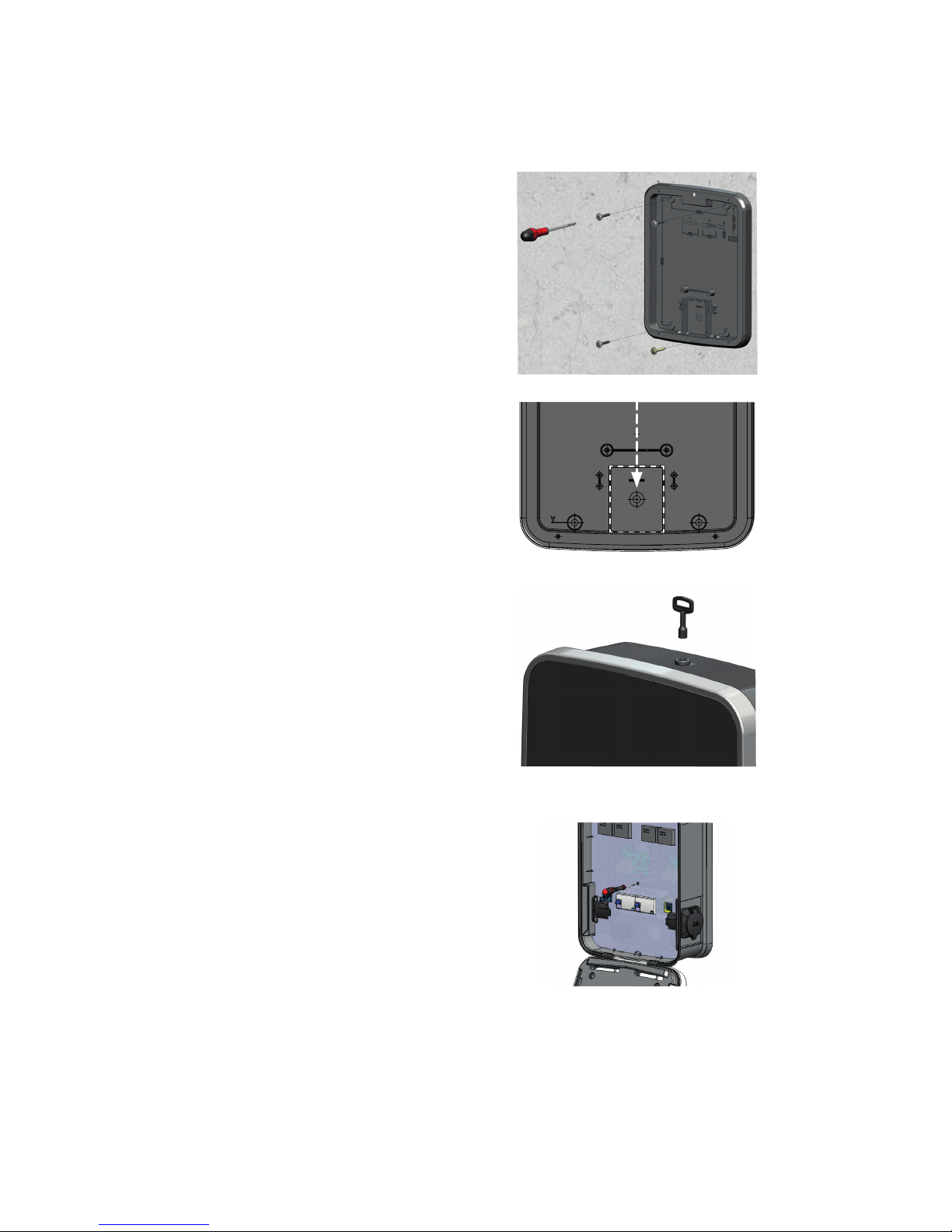

7. Now open the housing cover of
the wallbox using the triangular
key supplied and flip it towards the
front.
PLEASE NOTE: Take special care with
this and protect the housing cover
against scratching and other external
damage. If possible, only remove the
protective film from the housing cover
just before completing installation.
8. Use the screwdriver to loosen the
TX20 screw holding the internal elec-
tronic components cover in place and
remove it. Keep the screw in a safe
place.

preparatIons, InstallatIon and takIng Into operatIon
13

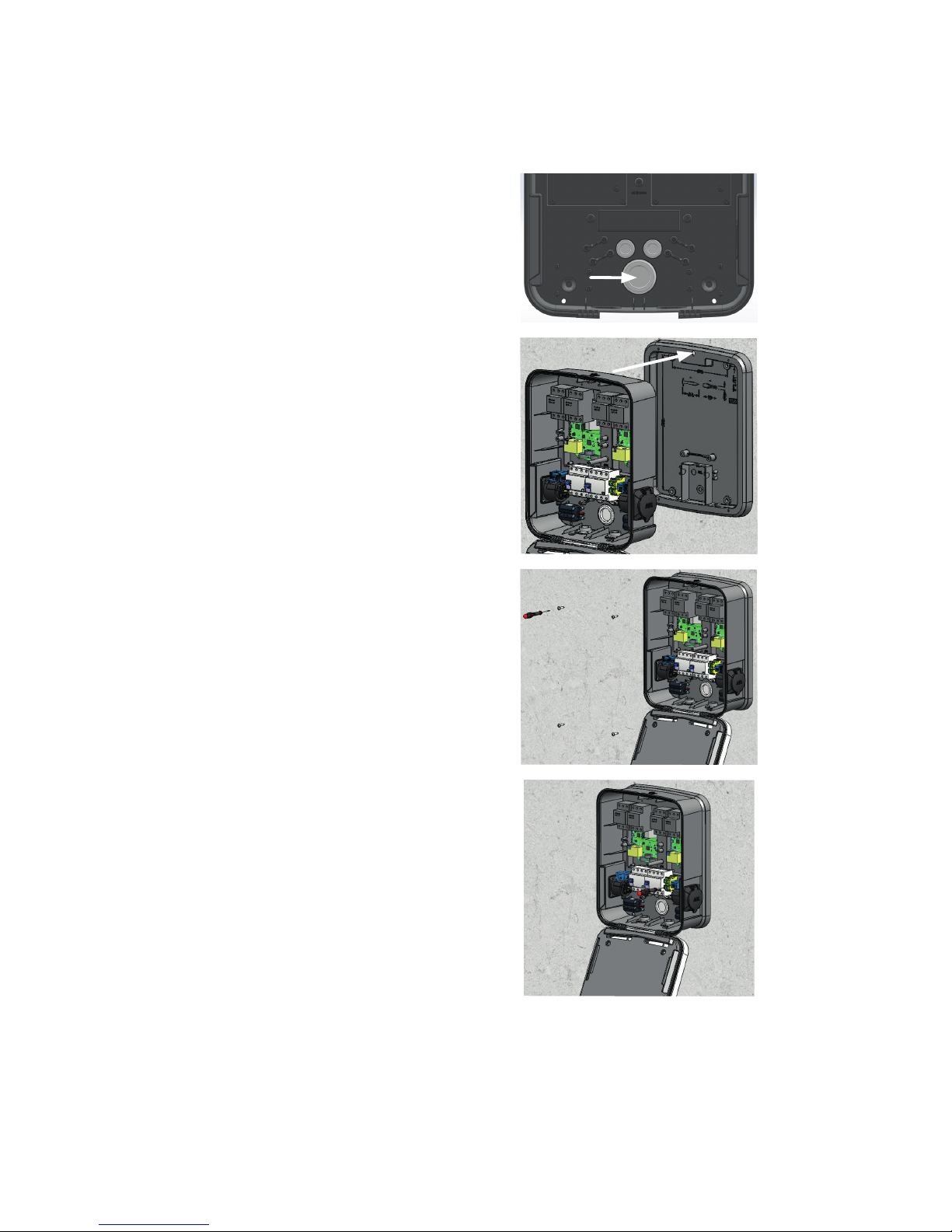

9. The wallbox includes three custom
sealing membranes for the openings
in the lower part of the wallbox: Insert
these and cut a slit into the large seal-
ing membrane: Now insert the supply
cable through this opening.
10. Hang the wallbox onto the mounting
plate by inserting the screw in the
centre of the upper part at the rear
into the respective opening in the
mounting plate: this already protects
the wallbox from falling.
11. Now fix the wallbox to the mounting
plate using the screwdriver (TX25 bit)
and the four 6 x 25 screws included.
The wallbox is now securely fastened
to the mounting plate.
12. If using a power supply with flexible
wires, ensure that the stripped ends
are fitted with wire end ferrules. Loos-
en the lower screws in the terminal
blocks, insert the wires into their re-
spective terminals and tighten with
a torque of 2.5 to 3 Nm. The wiring

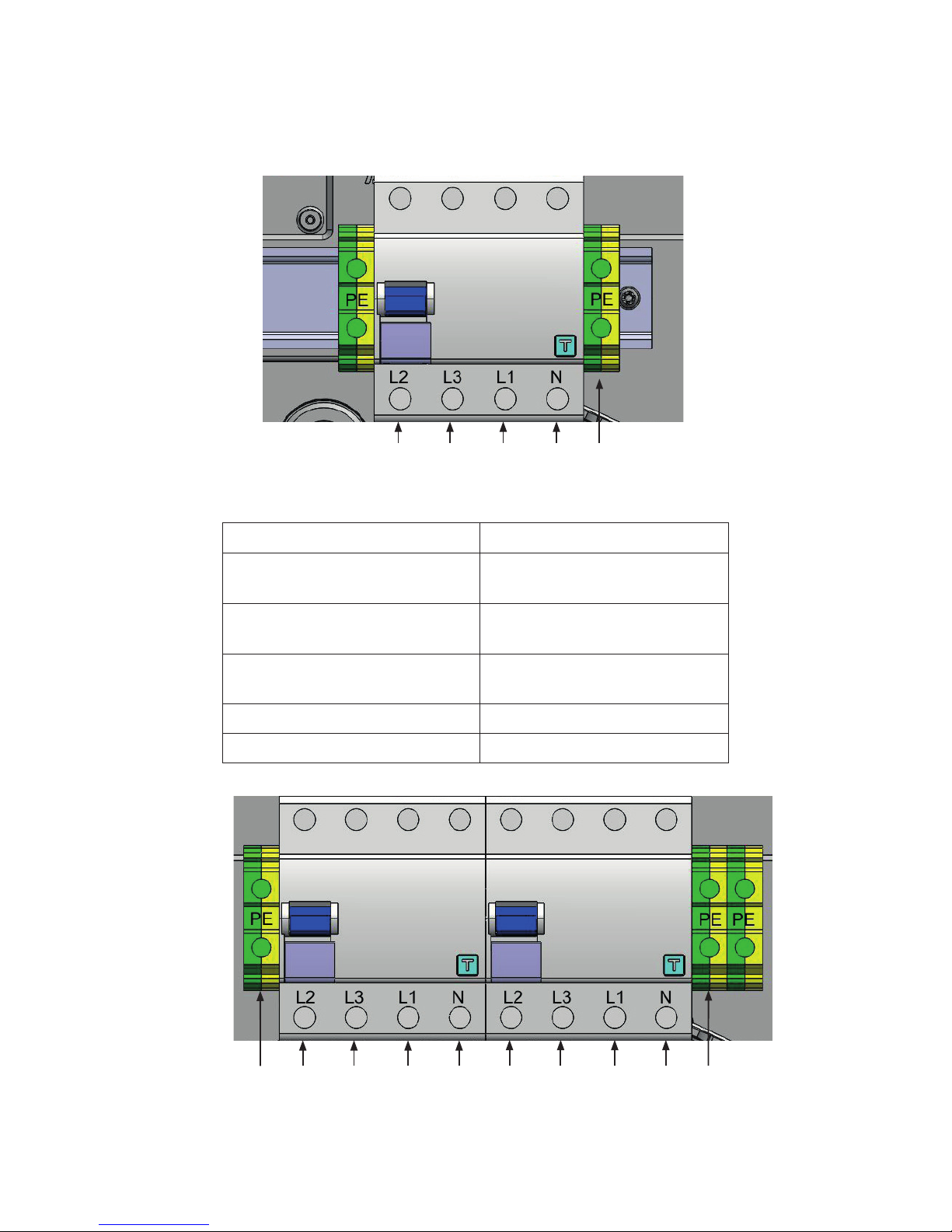

sequence is shown in the following
diagram and table.

preparatIons, InstallatIon and takIng Into operatIon
14
The power supply for the Single model variants 3W2205, 3W2207 and 3W2209 as
well as the Twin model variants 3W2214 and 3W2217 is connected as follows:
DESIGNATION CONNECTION CODING
Current-carrying conductor
phase 1 L1
Current-carrying conductor
phase 2 L2
Current-carrying conductor
phase 3 L3
Neutral N
Protective earth PE
The two power supply cables for the Twin model variant 3W4401 are connected as
follows:
L2 L3 L1 N PE
PE L2 L3 L1 N L2 L3 L1 N PE
Left hand side charge point/RFID Right hand side charge point

preparatIons, InstallatIon and takIng Into operatIon
15
POWER SUPPLY DESIGNATION CONNECTION CODING
for 1 and 2
respectively
Current-carrying conductor phase 1 L1
Current-carrying conductor phase 2 L2
Current-carrying conductor phase 3 L3
Neutral N
Protective earth PE
PLEASE NOTE:
If desired, all eMH3 model variants can also be connected and operated
on a single phase at terminal L1: However, in this case the rated output
for the wallbox will not be achieved.
PLEASE NOTE:
The ABL Wallbox is preset for a charging current of 32 A per sup-
ply cable by the factory. Should your domestic power supply provide
a lower or higher charging current, the preset current for the wall-
box must be adjusted accordingly before you replace the electronic
components cover and then take the wallbox into operation. Please
contact a qualified specialist repairer.
Please note that the rated current indicated on the product label and con-
figured in the firmware must under no circumstances be exceeded.

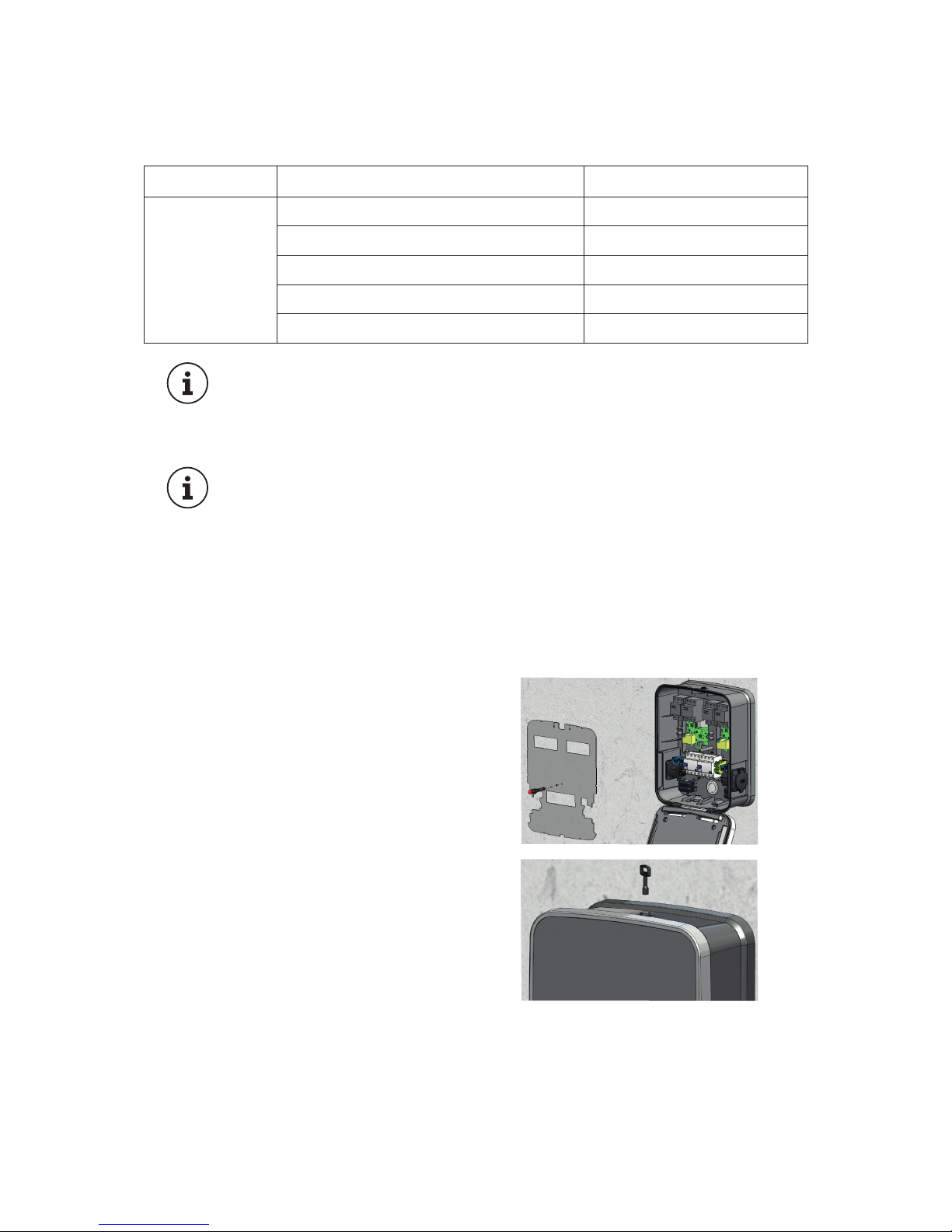

13. Replace the electronic components
cover inside the housing and fix it with
its torx screw (TX20 bit).
14. Flip the housing cover upwards so
that it clicks into the housing and lock
it with the triangular key supplied.
Activating the RFID function
TheeMH3 Wallbox has an integrated RFID Module, which is factory pre-set to 'deac-
tivated'. Should you wish to operate the wallbox with user identification to restrict or

preparatIons, InstallatIon and takIng Into operatIon
16
allow access to the charging procedure for a defined user group, you must first acti-
vate the RFID module via a software tool. This process can be activated during initial
installation or any time after that by a qualified specialist.
The software required for activating the module can be downloaded from the ABL
website by following this link:
www.abl.de/produkte/emobility/wallbox-emh3.php
The working steps for activating the RFID module are described in a separate set of
instructions included in the software download.
WARNING!
The activation of the RDIF module must under all circumstances be per-
formed by a qualified specialist on the basis of the working steps de-
scribed in the instructions. Otherwise, faultless operation cannot be guar-
anteed.
Taking the wallbox into operation
After mechanical and electrical installation, you must check the correct functioning of
the ABL Wallbox for operation and resolve any malfunctions or installation errors that
may have occurred.
Proceed as follows to take the ABL Wallbox into operation:
1. Switch on the upstream MCB.
2. In addition, switch on the internal RCCB(s) (connection of the wallbox to the elec-
tricity grid is established).
When the wallbox is reconnected to the electricity grid, it will initiate the start-up pro-
cedure: This includes an internal test of the electronics to ensure correct functioning.

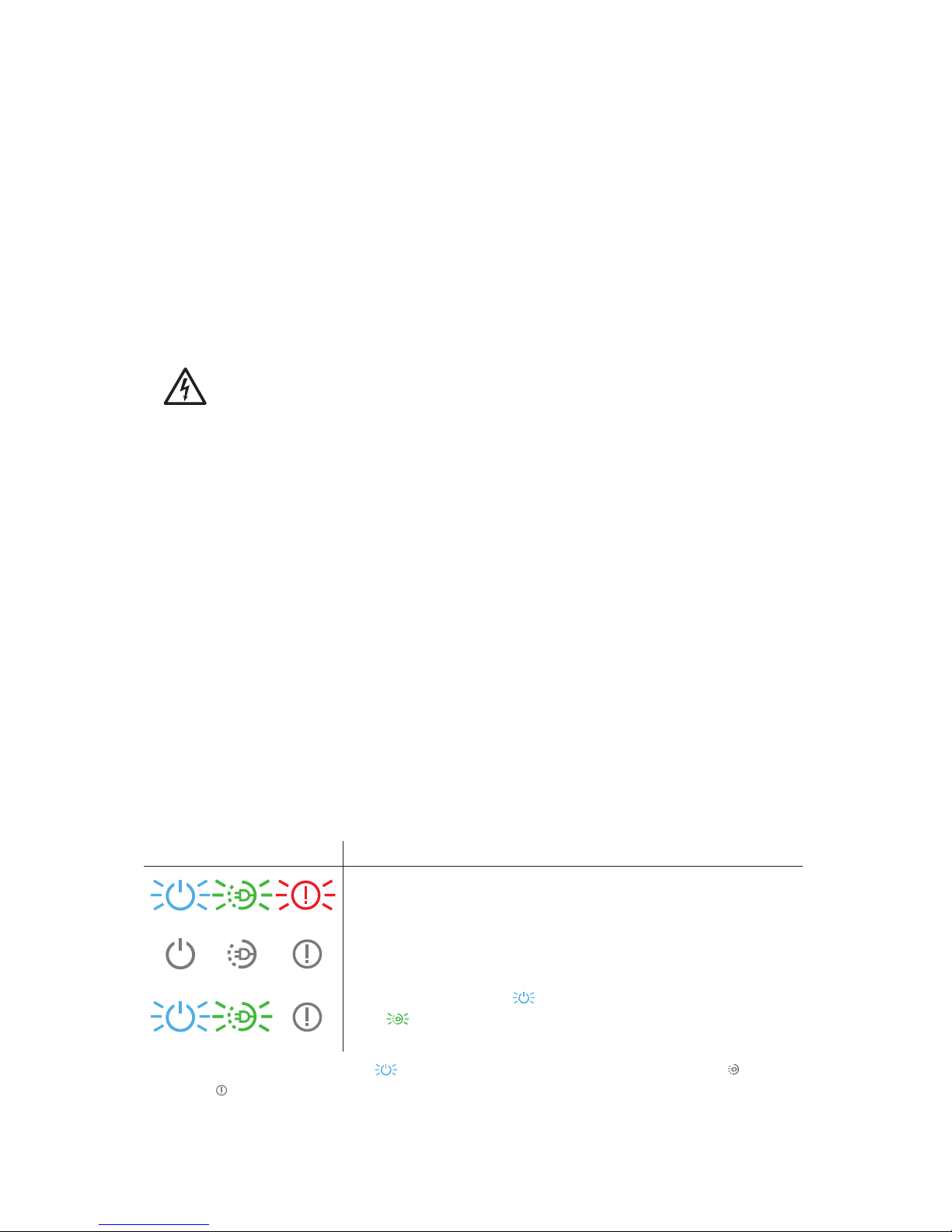

The internal test routine is indicated by the LEDs on the front of the ABL Wallbox as
follows.
LED DISPLAY DESCRIPTION
All three LEDs flash once …
... and then go out.
Then, th e blue LED (ancillary version) and the green
LED (main version) flash to indicate the current version
of the firmware (only relevant for error detection).
On completion the blue LED flashes every 5 seconds, the green LED and the
red LED go out. The vehicle can now be connected for charging. The charging pro-
cedure itself is described in the operating manual included.
