ADF Web HD67835-B2-Y User manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CANopen
Document code: MN67835_ENG Revision 1 000 Pagina 1 di 48
User Manual
Revision 1 000
English
DALI / CANopen - Converter
(Order Code: HD67835-B2-Y, HD67835-B2-N)
for Website information:
www adfweb com?Product=HD67835
for Price information:
www adfweb com?Price=HD67835-B2
Benefits and Main Features:
Very easy to configure
Electrical isolation
Temperature range: -40°C/85°C (-40°F/185°F)
For others DALI products, see also the following links:
Converter DALI to
www adfweb com?Product=HD67822 (KNX)
www adfweb com?Product=HD67831 (Serial)
www adfweb com?Product=HD67832 (BACnet/I Master)
www adfweb com?Product=HD67833 (BACnet/I Slave)
www adfweb com?Product=HD67834 (CAN)
www adfweb com?Product=HD67836 (DeviceNet Master)
www adfweb com?Product=HD67837 (DeviceNet Slave)
www adfweb com?Product=HD67838 (DMX)
www adfweb com?Product=HD67839 (Ethernet)
www adfweb com?Product=HD67840 (EtherNet/I )
www adfweb com?Product=HD67842 (Modbus Master)
www adfweb com?Product=HD67843 (Modbus Slave)
www adfweb com?Product=HD67844 (Modbus TC Master)
www adfweb com?Product=HD67845 (Modbus TC Slave)
www adfweb com?Product=HD67848 ( ROFINET)
www adfweb com?Product=HD67849 (SNM Manager)
www adfweb com?Product=HD67850 (SNM Agent)
Do you have an your customer protocol?
www adfweb com?Product=HD67003
Do you need to choose a device? do you want help?
www adfweb com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CANopen
Document code: MN67835_ENG Revision 1 000 Pagina 2 di 48
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
POWER SUPPLY 7
FUNCTION MODES 8
LEDS 9
DALI 10
CANOPEN 11
ETHERNET 12
USE OF COMPOSITOR SW67835 13
NEW PROJECT / OPEN PROJECT 14
SOFTWARE OPTIONS 15
SET COMMUNICATION 17
DALI ACCESS 19
SET SDO SERVER 20
SET SDO CLIENT 21
SET PDO ACCESS 23
EDS FILE 25
UPDATE DEVICE 26
USE OF DALI CONSOLE SOFTWARE 28
STRUCTURE OF THE SOFTWARE 29
SETUP 30
NETWORK SETTING 32
DALI MAP 37
MECHANICAL DIMENSIONS 45
ORDERING INFORMATIONS 46
ACCESSORIES 46
DISCLAIMER 47
OTHER REGULATIONS AND STANDARDS 47
WARRANTIES AND TECHNICAL SUPPORT 48
RETURN POLICY 48
U DATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document
With this “Document Code” go to web page www adfweb com/download/
and search for the corresponding code on the page Click on the proper
“Document Code” and download the updates
REVISION LIST:
WARNING:
ADFweb com reserves the right to change information in this manual about
our product without warning
ADFweb com is not responsible for any error this manual may contain
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners
Revision Date Author Chapter Description
1 000 15/06/2017 Ff All First Release

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CANopen
Document code: MN67835_ENG Revision 1 000 Pagina 3 di 48
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual When using the device, legal and
safety regulation are required for each individual application The same applies also when using accessories
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i e
independent limit switches, mechanical interlocks, etc )
Q UALIFIED ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job
R ESIDUAL R ISKS
The device is state-of-the-art and is safe The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage
CE CONFORMITY
The declaration is made by our company You can send an email to support@adfweb com or give us a call if you need it

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CANopen
Document code: MN67835_ENG Revision 1 000 Pagina 4 di 48

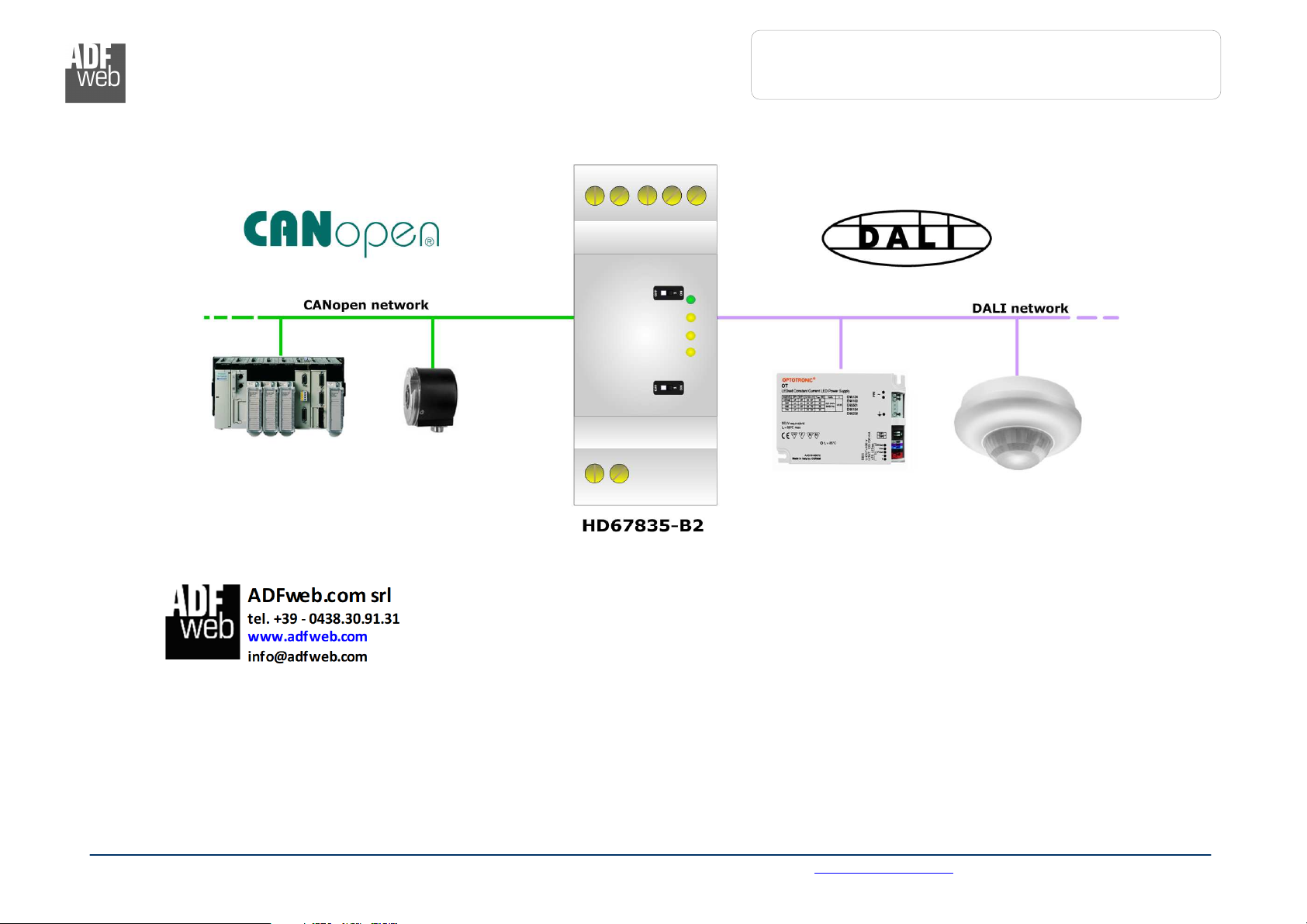

EXAM LE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CANopen
Document code: MN67835_ENG Revision 1 000 Pagina 5 di 48

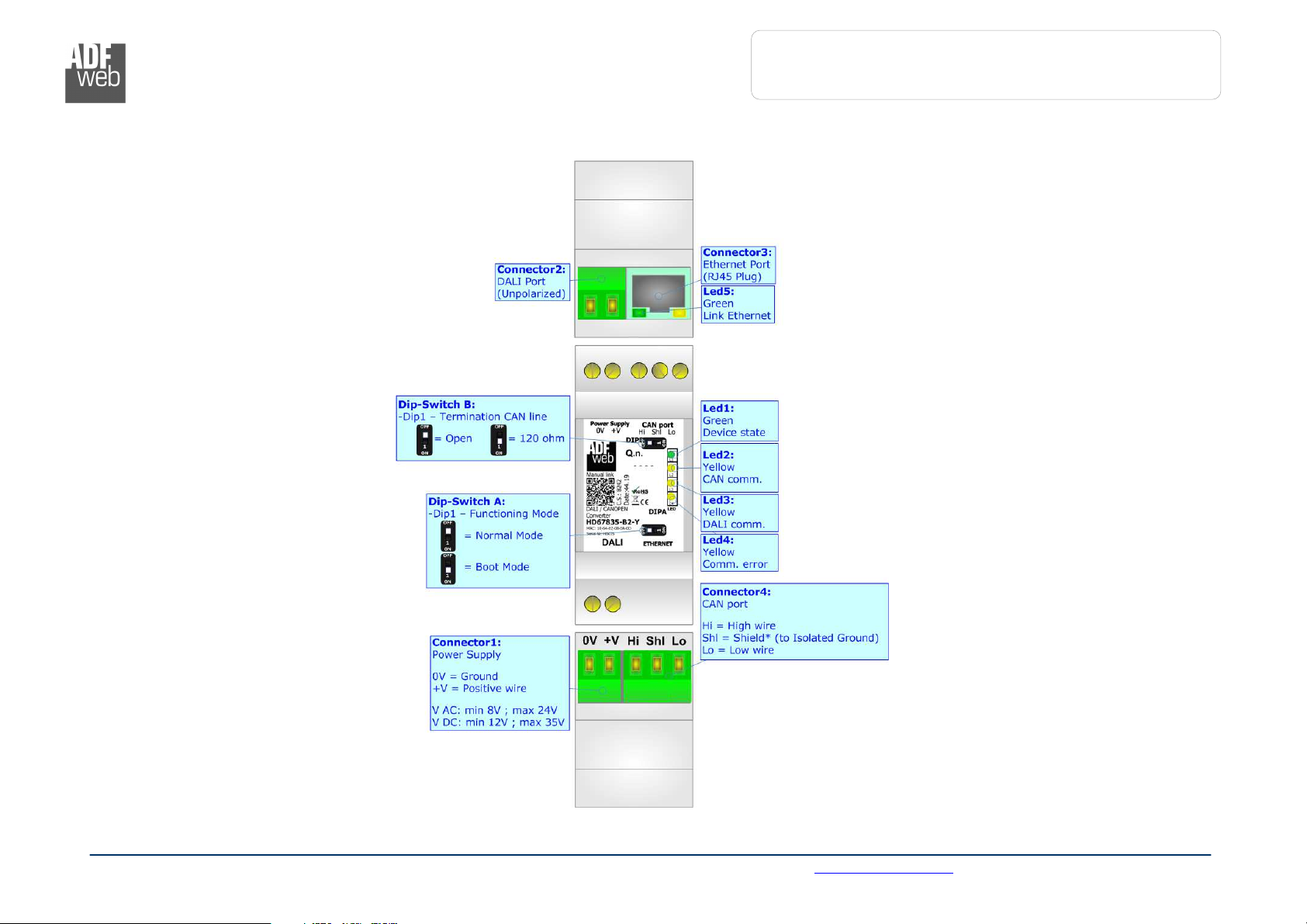

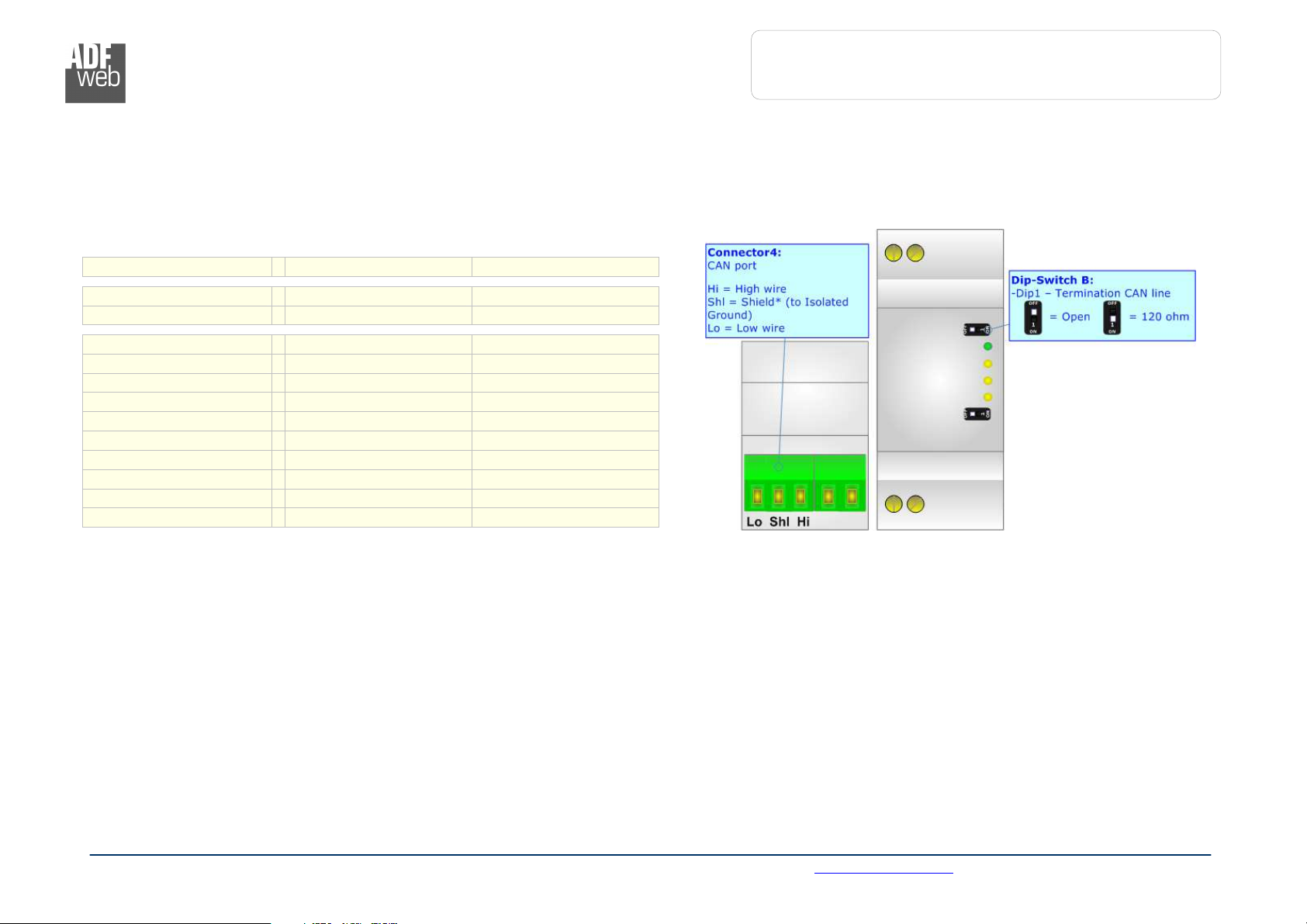

CONNECTION SCHEME:
Figure 1: Connection scheme for HD67835-B2

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CANopen
Document code: MN67835_ENG Revision 1 000 Pagina 6 di 48
CHARACTERISTICS:
The HD67835 is a DALI / CANopen - Converter
It has the following characteristics:
Up to 64 devices on DALI bus;
Configurator for DALI network/devices;
Isolation between DALI – CANopen, Power Supply – CANopen Additional isolation Power Supply – DALI for HD67835-B2-N version;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F]
CONFIGURATION:
You need “DALI Console” software on your PC in order to perform the following:
Configure the DALI network;
Setup the DALI devices (groups, scenes, IDs, …);
Test DALI communication
You need Compositor SW67835 software on your PC in order to perform the following:
Define the parameter of CANopen line;
Define the parameter of DALI line;
Update the device

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CANopen
Document code: MN67835_ENG Revision 1 000 Pagina 7 di 48

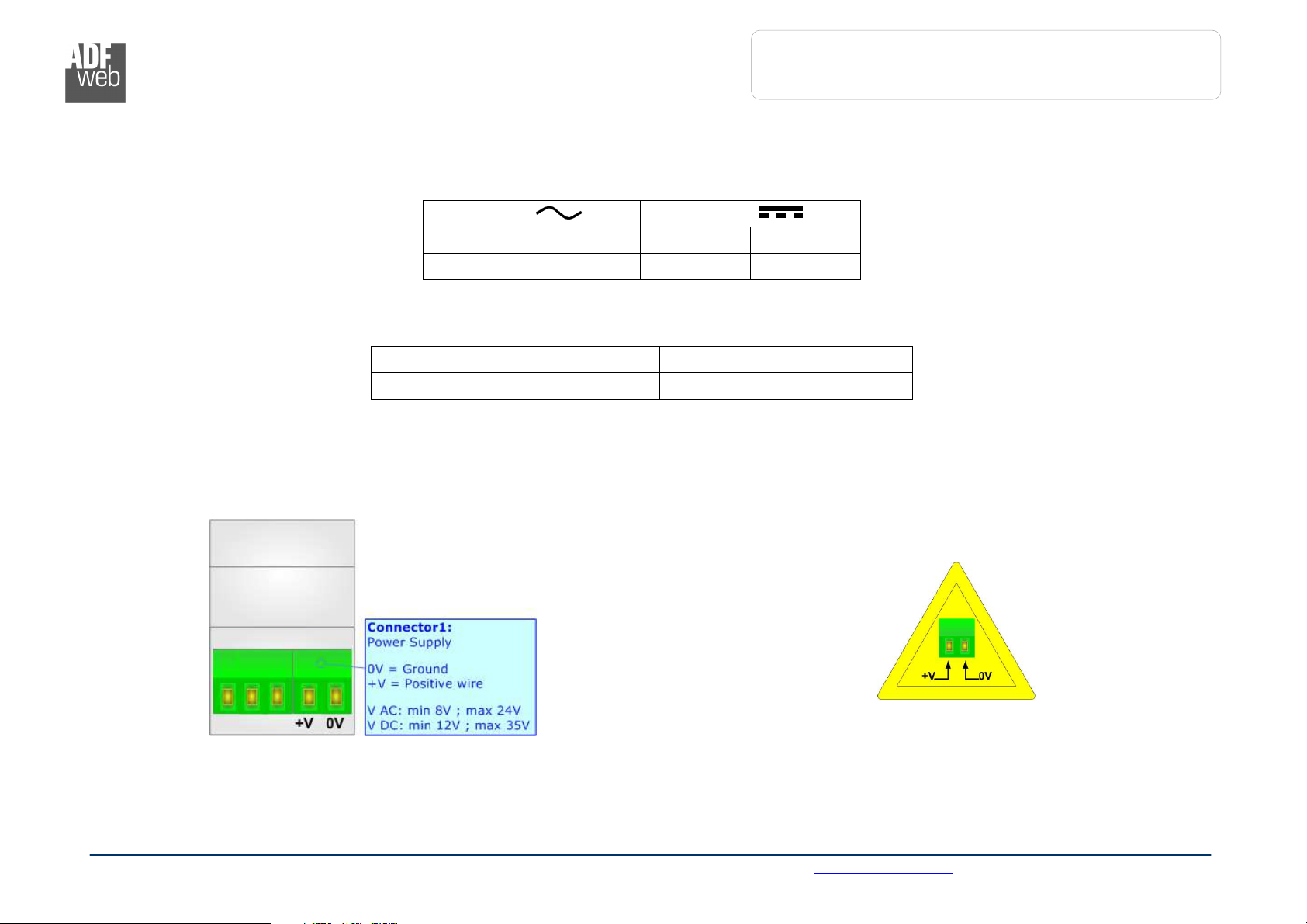

OWER SU LY:
The devices can be powered at 8…24V AC and 12…35V DC For more details see the two tables below
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67835-B2 3 5
HD67835-B2
Caution: Not reverse the polarity power

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CANopen
Document code: MN67835_ENG Revision 1 000 Pagina 8 di 48
FUNCTION MODES:
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CANopen
Document code: MN67835_ENG Revision 1 000 Pagina 9 di 48
LEDS:
The device has got five LEDs that are used to give information of the functioning status
The various meanings of the LEDs are described in the table below
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: CAN communication
(yellow) Blinks when CANopen communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: DALI communication
(yellow) Blinks when DALI communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Comm error (yellow) Turns ON when DALI devices defined are not present Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Ethernet Link (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CANopen
Document code: MN67835_ENG Revision 1 000 Pagina 10 di 48
DALI:
DALI stands for “Digital Addressable Lighting Interface” and it is an interface protocol for digital
communication between electronic lighting equipment (electronic ballasts, transformers, etc )
With the right choice of individual DALI components an extremely wide range of requirements can be met,
from operating the lighting system from a simple light switch to lighting management systems for entire
office complexes with thousands of light sources Using ADFweb com’s DALI converters, any light source,
including incandescent lamps, fluorescent lamps, high-intensity discharge lamps and even LEDs, can be
controlled irrespective of whether they are installed in an office, a restaurant or a street light
Characteristics Description
Medium Shielded Twisted Pair
Topology Linear, Star or mixed
Device power consumption Max 250 mA
DALI voltage 9 5 V – 22 5 V (typical 16 V)
Maximum cable length 300 m (1 5 mm2 wire)
Maximum number of DALI
devices 64
Baud rate 1200 bps
Maximum number of DALI
groups 16
Maximum number of DALI
scenes 16

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CANopen
Document code: MN67835_ENG Revision 1 000 Pagina 11 di 48
CANO EN:
For terminating the CANopen line with a 120Ω resistor it is necessary to put Dip1 of ‘Dip-Switch B’ at ON position
Cable characteristics:
DC parameter: Impedance 70 Ohm/m
AC parameters: Impedance 120 Ohm/m
Delay 5 ns/m
Length Baud Rate [bps] Length MAX [m]
10 K 5000
20 K 2500
50 K 1000
100 K 650
125 K 500
250 K 250
500 K 100
800 K 50
1000 K 25

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CANopen
Document code: MN67835_ENG Revision 1 000 Pagina 12 di 48
ETHERNET:
The Ethernet port is used for programming DALI network and for programming the converter

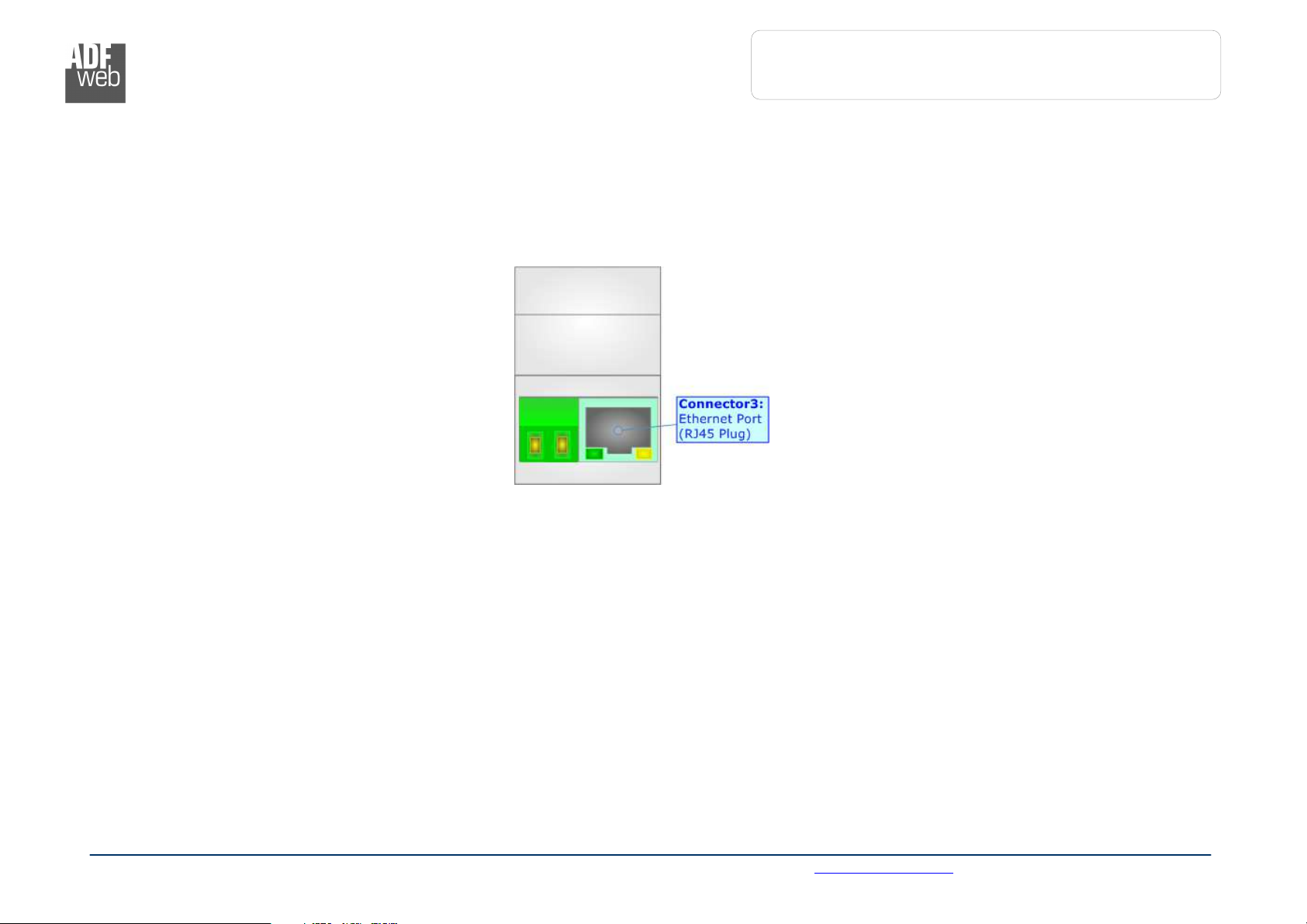

The Ethernet connection must be made using Connector2 of HD67835-B2 with at least a Category 5E cable The maximum length of the
cable should not exceed 100m The cable has to conform to the T568 norms relative to connections in cat 5 up to 100 Mbps To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a cross cable

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CANopen
Document code: MN67835_ENG Revision 1 000 Pagina 13 di 48
USE OF COM OSITOR SW67835:
To configure the Converter, use the available software that runs with Windows called SW67835 It is downloadable on the site
www adfweb com and its operation is described in this document (This manual is referenced to the last version of the software present on
our web site) The software works with MSWindows (XP, Vista, Seven, 8, 10; 32/64bit)
When launching the SW67835, the window below appears (Fig 2)
Note:
It is necessary to have installed Net Framework 4
Figure 2: Main window for SW67835

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CANopen
Document code: MN67835_ENG Revision 1 000 Pagina 14 di 48
NEW CONFIGURATION / O EN CONFIGURATION:

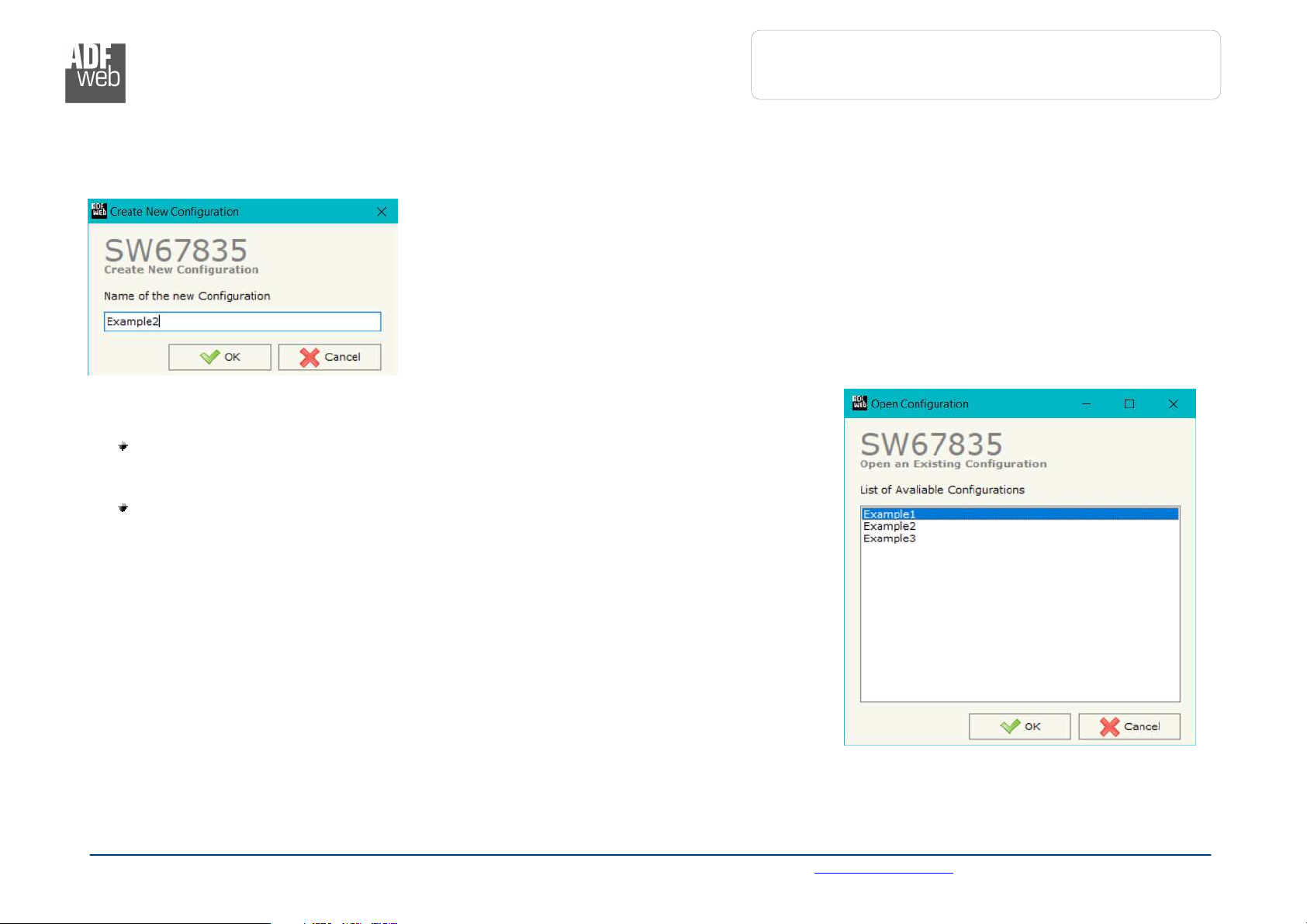

The “New Configuration” button creates the folder which contains the entire device’s configuration
A device’s configuration can also be imported or exported:
To clone the configurations of a Programmable “DALI / CANopen - Converter” in order
to configure another device in the same manner, it is necessary to maintain the folder
and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the button
“Open Configuration”

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CANopen
Document code: MN67835_ENG Revision 1 000 Pagina 15 di 48
SOFTWARE O TIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor
In the section “Language” it is possible to change the language of the
software
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb com website
Checking the option “Check Software Update at Start of rogram”, the
SW67835 check automatically if there are updatings when it is launched

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CANopen
Document code: MN67835_ENG Revision 1 000 Pagina 16 di 48

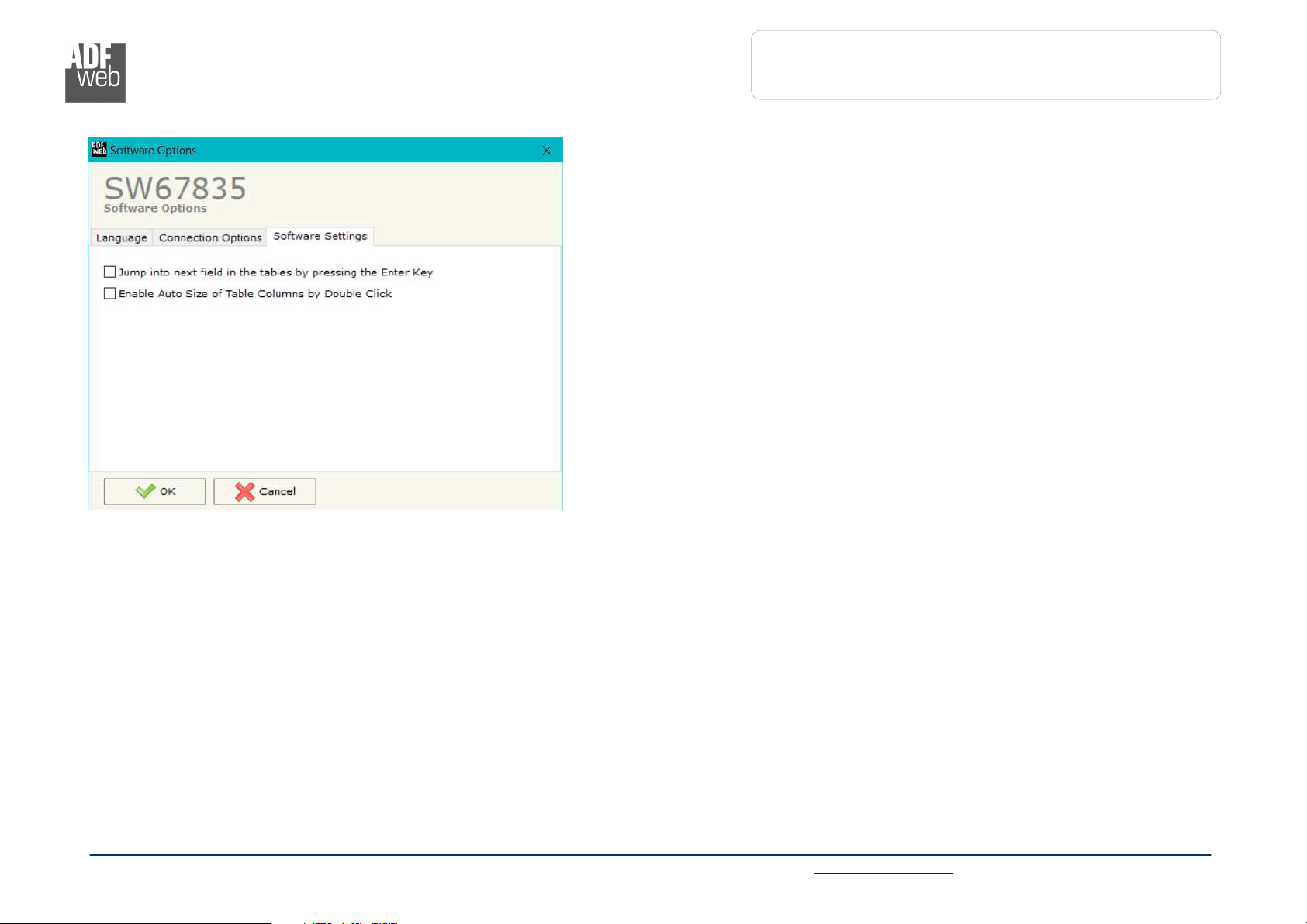

In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CANopen
Document code: MN67835_ENG Revision 1 000 Pagina 17 di 48
SET COMMUNICATION:
This section define the fundamental communication parameters of CANopen and DALI buses
By Pressing the “Set Communication” button from the main window for SW67835 (Fig 2) the
window “Set Communication” appears (Fig 3)
The means of the fields for the “CANopen” section are:
In the field “Device ID” the ID of the CANopen side is defined;
In the field “Baud Rate” the data rate of the CANopen line is defined;
In the field “Set Operational State at Start-Up” the state of the CANopen is defined I e If it
is checked the board starts in Operational State, else it starts in Pre-Operational;
In the field “Network Start at Start-Up” the state of the CANopen network is defined I e If it
is checked the board sends a command to set the Operational State of all the devices present in
the network, after the time defined in the “Delay” field;
In the field “Delay (s)” the delay before sending the “Start” command for the CANopen is
defined;
In the field “SDO Client TimeOut (1/10 ms)” the maximum time that the device attends for
the answer from the Slave interrogated is defined
The means of the fields for the “DALI” section are:
In the field “DALI Console ort” the UDP port used for Ethernet communication is defined;
If the option “Disable DALI Scan” is checked, the automatic scanning of DALI side is disabled
The DALI side is scanned only on Ethernet command;
If the option “Enable DALI 2” is checked, DALI 2 functions are enabled (normally used with
DALI sensors, actuators, exc )
Figure
3
:
“Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CANopen
Document code: MN67835_ENG Revision 1 000 Pagina 18 di 48
The means of the fields for the “Ethernet” section are:
In the field “I ADDRESS” the IP address of the converter is defined;
In the field “SUBNET Mask” the SubNet Mask is defined;
In the field “GATEWAY” the default gateway of the Ethernet network is defined This feature can be enabled or disabled pressing the
Check Box field This feature is used for going out of the net

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CANopen
Document code: MN67835_ENG Revision 1 000 Pagina 19 di 48
DALI ACCESS:
By pressing the “DALI Access” button from the main window for SW67835 (Fig 2) the window “Select the DALI Device Present in the
Network” appears (Fig 4)
This section is used to define the DALI devices connected to the converter It is enough to check/uncheck the connected/unconnected DALI
devices
Figure
4
:
“DALI Access” win
dow

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
DALI
/ CANopen
Document code: MN67835_ENG Revision 1 000 Pagina 20 di 48
SET SDO SERVER:
By pressing the “Set SDO Server” button from the main
window for SW67835 (Fig 2) the window “Set SDO Server
Access” appears (Fig 5)
This window is made to create the SDO in read or write in
the CANopen side, and to indicate which byte of the DALI
internal memory array are associated to these SDOs
It is divided in two parts, the “SDO in read” and the “SDO in
Write”
The first part is used to read, using the SDO, the data
arrived from DALI side The second is used to write, using
SDO, the data to send to DALI side
The data of the columns have the following meanings:
In the field “Index” the address of the SDO is
defined;
In the field “SubIndex” the second address of the
SDO is defined;
If the field “N Byte” the dimension of the SDO is
defined (it can be 1, 2 or 4);
In the field “Address Byte1” insert the address of the DALI internal memory array where reading/writing first byte of the SDO;
In the field “Address Byte2” insert the address of the DALI internal memory array where reading/writing second byte of the SDO
(only if N Byte is 2 or 4);
In the field “Address Byte3” insert the address of the DALI internal memory array where reading/writing third byte of the SDO (only
if N Byte is 4);
In the field “Address Byte4” insert the address of the DALI internal memory array where reading/writing fourth byte of the SDO
(only if N Byte is 4);
In the field “Mnemonic” the description for the SDO is defined
Note:
The data into the DALI internal memory array is mapped following the description on page 37

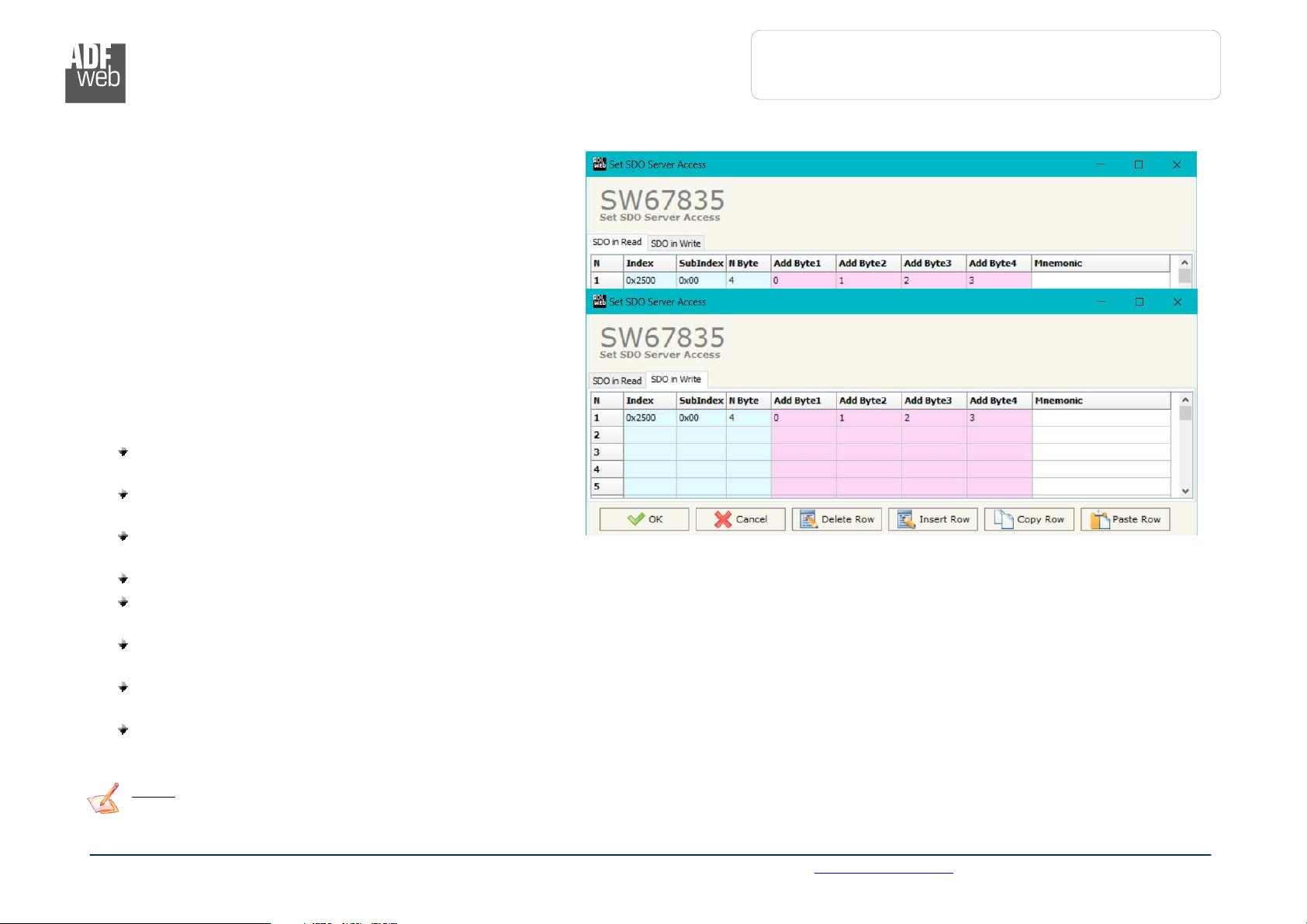

Figure 5: “Set SDO Server Access” window
