aFe Power Scorcher User manual

Getting Started

PAGE 2
Before You Begin
What’s in the box:
USB cable
for easy internet updates
USB cable
f
or eas
y
internet update
s
Button Functions
OK
Up, Increase
Right
Next
Forward
Left
Back
Exit
Down, Decrease
Contents
Before You Begin.........................2
Dear Auto Enthusiast ..................3
Getting Started - Step 1 ..............4
Getting Started - Step 2 ..............5
Getting Started - Step 3 ..............6
Tunes ...........................................8
Advanced Options.......................10
Jeep®Features .............................12
Jeep Power Levels.......................14
Returning to Stock ......................16
Engine Diagnostic Tool ................17
Information and Settings ............18
Data Acquisition..........................19
Scorcher Features.......................20
Scorcher Mileage Features.........21
Storage and Maintenance...........22
Trouble Shooting .........................23
Questions and Answers ..............26
Limited Warranty.........................28
Service.........................................29
Satisfaction Guarantee................30
Btt F
Scorcher
with attached OBD-II cable (not shown)
Copyright 2011 advanced FLOW engineering, Inc. Jeep is a registered
trademark of Chrysler LLC. aFe Power, Inc. is not affiliated with Chrysler LLC.

PAGE 3
PAGE3
Dear Auto Enthusiast
Thank you for purchasing one of our Scorcher programmers Powered by Superchips.
We specialize in delivering real world performance to your ride. The Scorcher
programmer is easy to use, flexible and easy to update when you want to. This “Getting
Started Guide” will walk you through programming your vehicle and using the many
exciting features a Scorcher programmer offers. Better yet, personalize your aFe Power
experience with downloadable updates, upgrades and features at www.afepower.com.
Our programmers are small for your convenience, but they pack a huge punch.
Scorcher technology delivers features you expect and each Scorcher programmer
includes specific tunes that tie directly to other aFe Power products (intakes, exhaust,
throttle body spacers, etc.)
Thank you for supporting aFe Power. For more information, visit www.afepower.com.
Now get programming – it’s time you drove with real aFe Power performance, power,
control and economy.
Get Tuned – The aFe Power Team
Note: aFe Power tuning devices for diesel engines are not currently compliant with CARB emissions certification procedures but are in a “pending” status and will
be completed as requirements are met. Therefore, they are presently not legal for sale or use in California on pollution controlled diesel-fueled vehicles.
Misuse of this product could lead to injury
or death. Obey all traffic laws. Read and
comply with all instructions in the included
User Guide.

PAGE 4
Getting Started - Step 1
Update Your Programmer
Regularly use the aFe internet update software to check
for updates. The software can be downloaded at
www.afepower.com. With the click of a mouse, your program-
mer is up-to-date with the latest software and calibrations.
Included in the update are the vehicle manufacturer’s most
recent calibration as well as feature and safety updates.
Follow these steps:
You will need to be connected to the internet and running Windows XP/2000,
Vista or Windows 7.
1. Download Easy Update software at www.afepower.com.
2. Run the setup program.
3. Once installed, run the Easy Update software.
4. If necessary, create a new registration account or login into your existing account.
5. Update your programmer.
Try this if you have trouble updating your programmer:
• Use your computer’s rear USB ports for optimal power
• Close extra programs to maximize resources
• Avoid wireless connections to minimize interruptions
• Avoid running laptops on battery during updates
• Disable screen savers to avoid interruptions
Helpful Hint
Use the internet Easy
Update software to
enable advanced
features such as data
acquisition software.
Helpful Hint

PAGE 5
Getting Started - Step 2

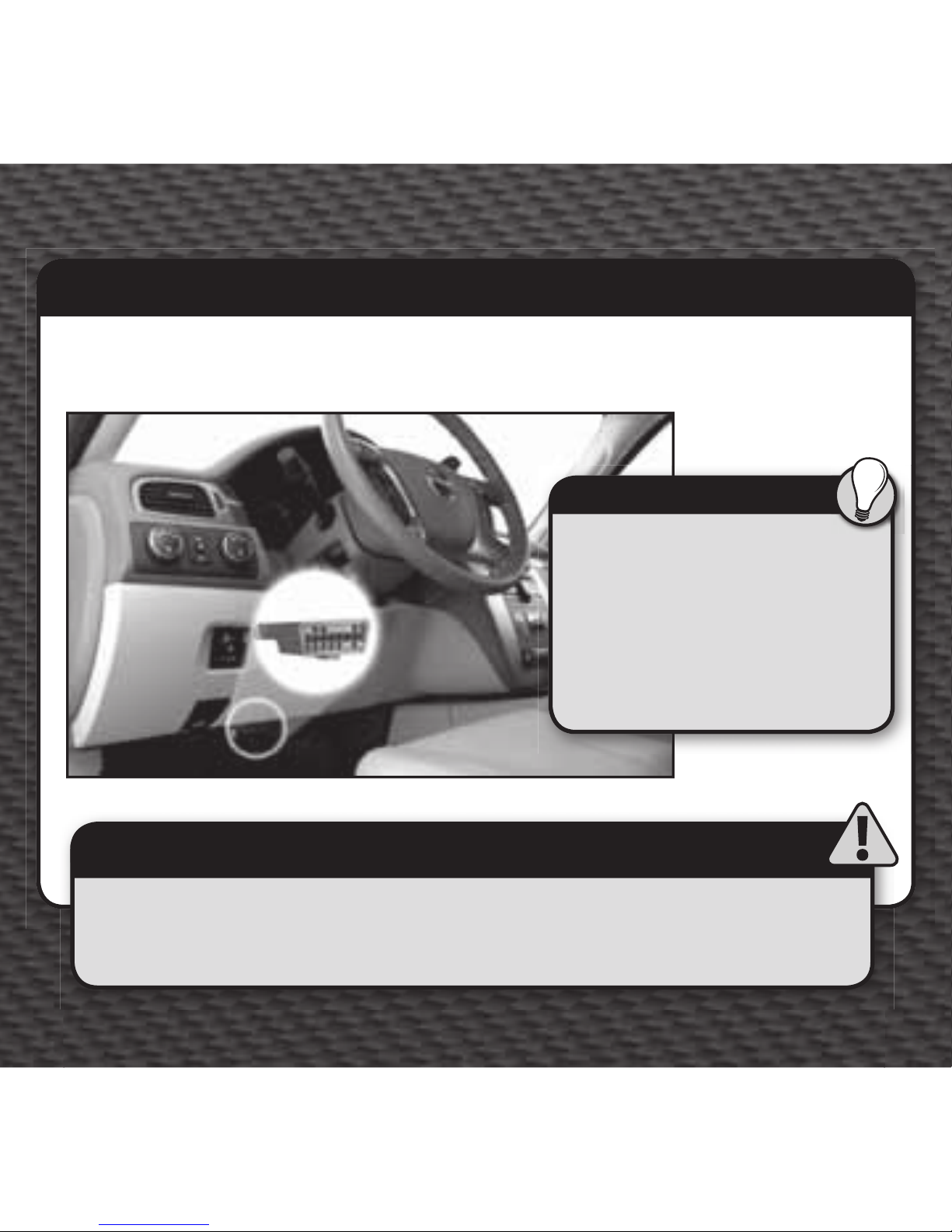

Plug Your Programmer into the Vehicle’s OBD-II Port
Locate your vehicle’s OBD-II port, then insert the Programmer’s OBD-II cable.
Your OBD-II Vehicle Port is usually located under the drivers side dash as shown here.
Do not remove the programming
cable during any programming sequence.
If you do, the vehicle may not start. A
Scorcher programmer is designed to
automatically go into Vehicle Recovery
Mode and if this occurs, it will return
your vehicle to factory stock. Contact
Tech Support for assistance
at 951.493.7155.
Helpful Hint
During quality control testing, engineers have noted diagnostic ports with worn or loose
connections creating the potential for power to be lost to the programmer. If this happens, the
programmer will go into recovery mode and return your vehicle to factory stock. Contact Tech
Support for assistance at 951.493.7155.
When programming your vehicle, use care not to bump, move or wiggle
the cable when it is plugged into the diagnostic port.

PAGE 6
Getting Started - Step 3
Select Tune Vehicle
Press OK
Select Quick Tune or Advanced Tune
Press OK
“Quick Tune” changes the power level of your
vehicle and uses the most popular features
and settings.
“Advanced Tune”changes the power level of your
vehicle and allows you to select settings for advanced
features and settings.
Helpful Hint
Switch ignition between OFF and RUN
(ON) as requested – Do not start engine
Note: Not all features are
available on every make,
model and engine. Contact
Tech Support if you have
any questions.
Helpful Hint

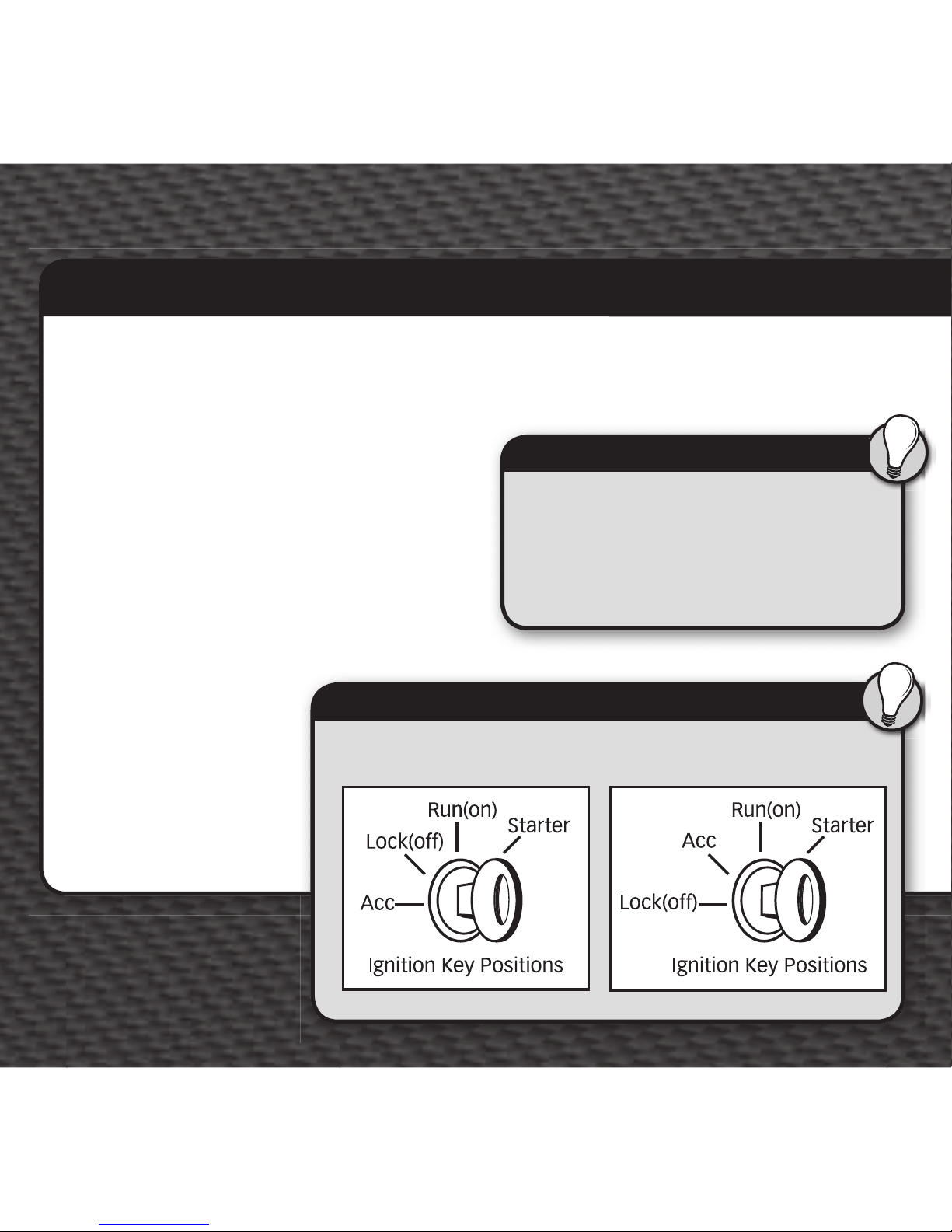

Ignition switch positions
Most 1996-2003 Most 2003-2009
Program Your Vehicle
Your programmer will automatically power on when it’s plugged into an OBD-II port.

PAGE 7

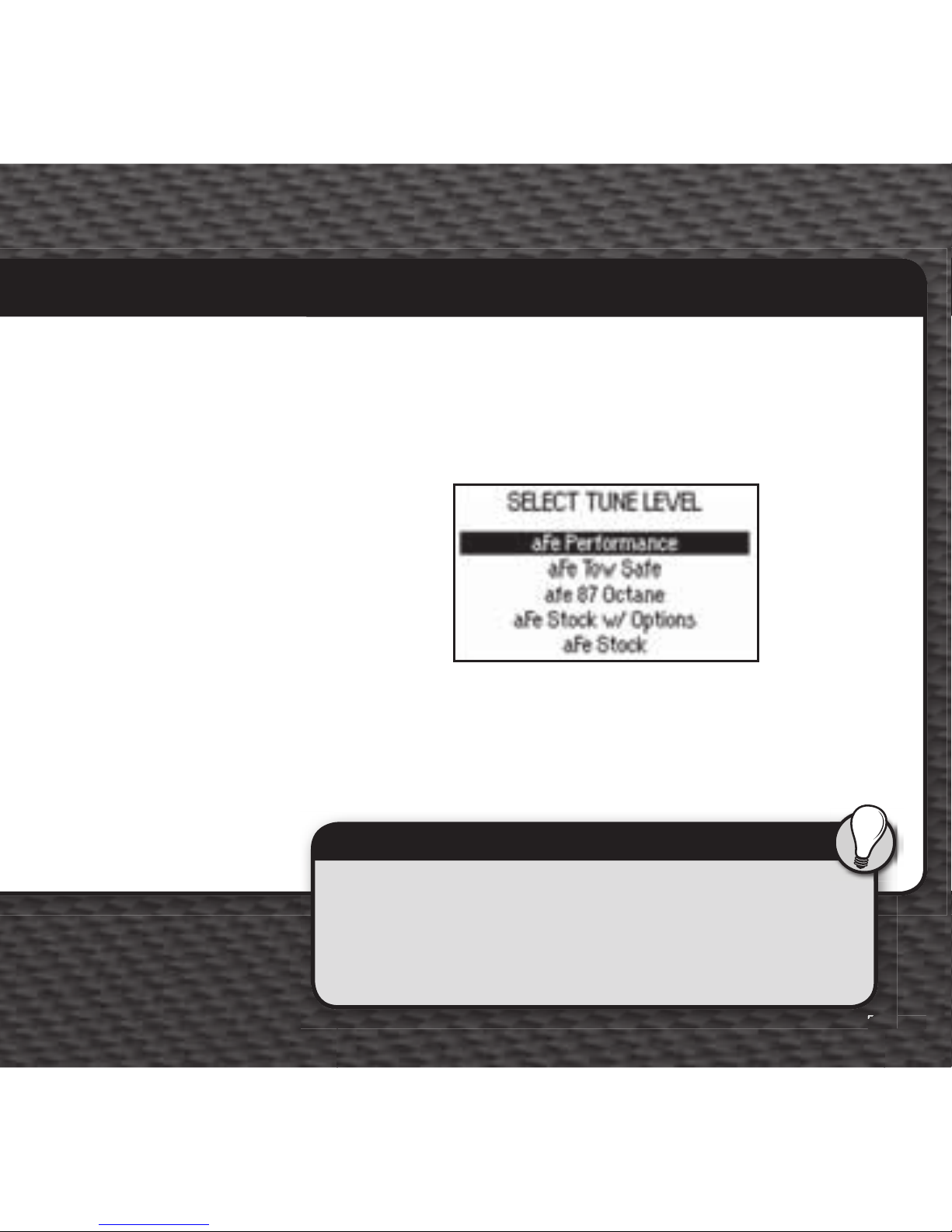

Select Tune Level - Follow on screen prompts for power level requirements.
These may vary by product and could include all or some of the following:
aFe Performance
aFe Heavy Load Tow
aFe Light load Tow
aFe Transmission Only
aFe 87 Octane
aFe Stock w/Options
aFe Factory Stock
Switch ignition between OFF and RUN (ON) as requested - Do not start engine
Once you have completed all the on-screen prompts and made your selections,
the programmer will update your vehicle and you are ready to drive.
P
PA
PAG
Try these first if your vehicle or programmer has trouble programming.
If problems persist, call Tech Support (951.493.7155).
• Turn off radios, amplifiers, CD/DVD players, etc.
• Unplug all accessories: cell phone chargers, laptops, GPS, etc.
• Turn off auto-headlights, auto-wipers, A/C – heater fan/controls
• Do not open vehicle doors, adjust power seats or use power windows
Helpful Hint

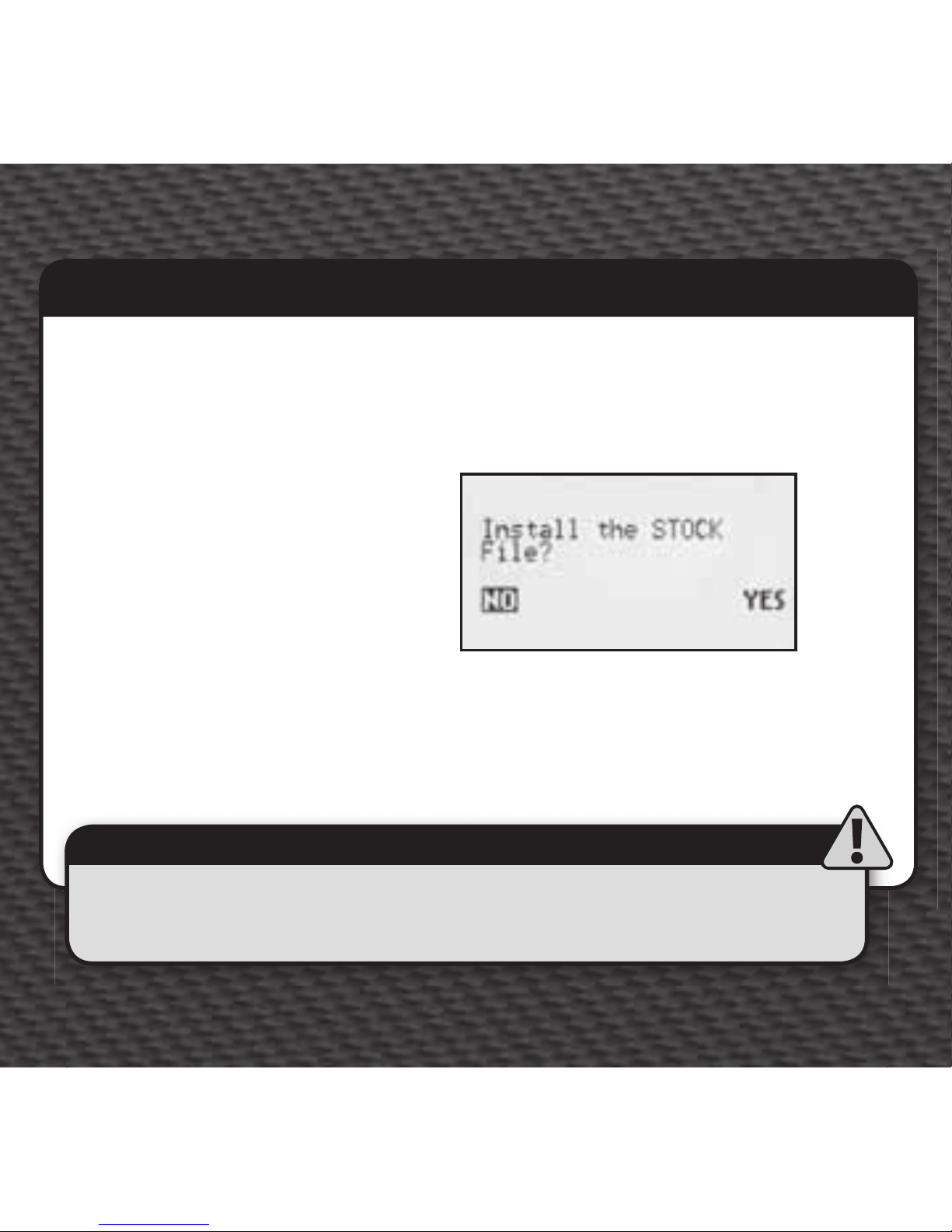

The Stock File is now saved (first time only) - Press OK

PAGE 8
Tunes
Track Performance
aFe Performance
Maximum engine and transmission performance gains.
i Towing not recommended.
i Octane requirements vary for gas vehicles.
Follow recommended guidelines.
Tow Power
aFe Heavy Load Tow
Optimizes engine and transmission performance for heavy towing applications.
i Tow rated up to OEM max towing recommendation.
i Octane requirements vary for gas vehicles. Follow recommended guidelines.
aFe Light Load Tow
Optimizes engine and transmission performance for mid-weight range towing applications.
i Tow rated up to aFe Power recommended tow limits. See limits for your vehicle
displayed by the programmer during programming process.
i Octane requirements vary for gas vehicles. Follow recommended guidelines.
Your Scorcher programmer
is designed to automatically
show the power levels and
features available once it has
identified your vehicle.
Helpful Hint

PAGE 9
Economy
aFe Mileage SAVE Feature
Optimizes engine and transmission performance for fuel economy.
i Towing not recommended.
i Uses 87 Octane calibrations for gas vehicles where applicable.
aFe 87 Octane
Optimizes settings allowing 91 Octane required or recommended vehicles to safely
use 87 Octane gasoline.
i Towing not recommended.
Other Calibration Options:
aFe Stock w/Options
Uses factory stock calibration plus user chosen options and settings.
i Engine and transmission calibrations are not installed.
i Only selected user options will be installed.
aFe Factory Stock
Returns vehicle to factory stock. Removes all Scorcher tuning from your vehicle.
i Recommended for trips to service centers for maintenance.
aFe Transmission Only
i Optimizes transmission performance for towing applications. Select applications only.

PAGE 10
Advanced Options
Most options are optimized using the Quick Tune tuning option. Use Advanced
Tune to independently set options. Options vary by vehicle.
aFe Speed Limiter
Adjusts top speed limiter by increments or fixed values.
i• Vehicle must have appropriate speed rated tires.
iDo not exceed proper operating conditions.
iObey all traffic laws.
iFor use only on a controlled track. Never exceed
legal limits on public roadways.
aFe Rev Limiter
Adjusts engine rev limiter by increments or
fixed values.
iVehicle must have appropriate speed rated tires.
iDo not exceed proper operating conditions.
aFe Tire Height
Corrects speedometer, odometer and automatic transmission shift points
(where supported) for wheel and tire changes.
i2007 – 2010 Wrangler JK can calibrate tire sizes from 22.5 – 42.0
in 0.25 inch increments.
Your Scorcher programmer
is designed to automatically
show you the advanced options
available once it has identified
your vehicle.
Helpful Hint

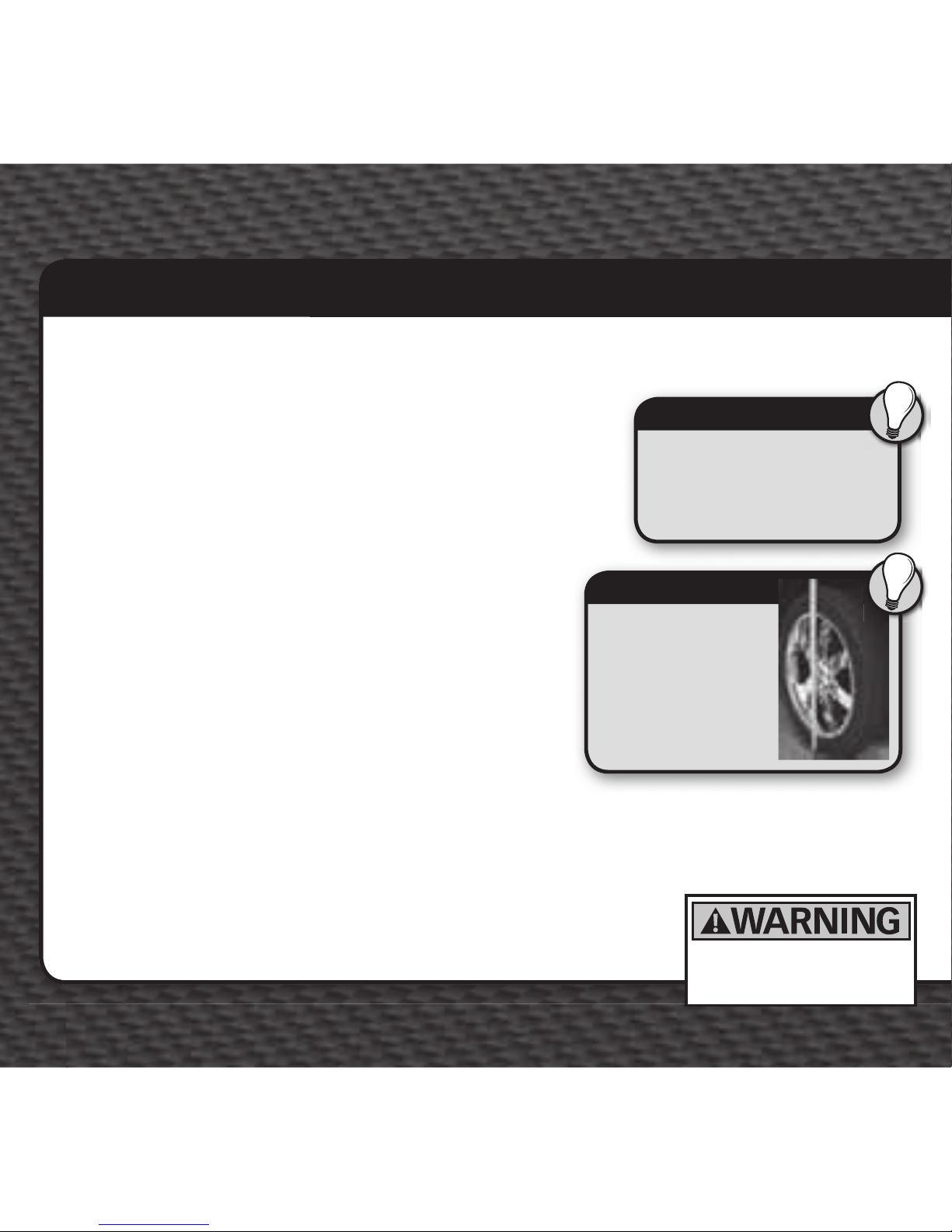

Helpful Hint
Measure from the
ground to the top of
your tire. Place a ruler or
flat level item on the top
of your tire to measure
accurately. Measure
in ¼ inch increments
rounding up.
Increasing the height of your vehicle
raises the center of gravity and can affect
stability and control. Use caution on turns
and when making steering corrections.

PAGE 11
Axle (Gear) Ratio
Corrects the speedometer, odometer and automatic transmission shift points
(where supported) for rear end gear changes.
iConfirm aftermarket parts are installed before adjusting this option.
i2007 – 2010 Wrangler JK gear ranges are 2.00 – 10.00 in 0.01 increments.
Automatic Transmission Shift Points
Adjust transmission points for optimized drivability and operation. Varies by vehicle.
Automatic Transmission Shift Pressure
Adjust transmission pressure in PSI to allow for a more aggressive shift. Varies by vehicle.
Cooling Fan
Adjusts fan turn ON temperature. Varies by vehicle.

PAGE 12
Jeep®Features
Most Jeep options are optimized using the quick tuning option. Use Advanced Features to
independently set options. Scorcher will automatically show you the advanced features
available for your Jeep.
Transfer Case (gear)
Corrects speedometer, odometer and automatic shift points (where supported) for transfer
case gear changes.
i Confirm aftermarket parts are installed before adjusting this option.
i 2007 – 2010 Wrangler JK Transfer Case selections are limited to No T-Type,
NV-241 and NV-231.
Axle Lock
Locks an axle in 4WD-HI on the Wrangler JK. The axle locking feature works on the front
and rear axles, but cannot lock both axles at the same time.
i Axle Lock is a stand-alone feature meaning no programming is required.
i If you exceed 30 MPH for 15 seconds or longer, the Axle Locking feature will
automatically disengage to avoid damage to the axles.

PAGE 13
Real Time Idle Up
Allows you to raise the idle of your Jeep for ‘powered take offs’ or running accessories such
as air compressors or welders. The idle up is a real-time feature meaning no programming
required. Just plug Scorcher into the OBD-II port and control the idle in real-time. The range
you may increase the idle is 800 – 1600 RPMs.
i Real Time Idle Up is a real-time feature meaning no programming is required.
When you restart the engine, the ECU will return to the default idle RPM setting.
Tire Pressure Monitoring System Adjustment
Recalibrates the system thresholds to better suit different terrain uses without triggering
the dash light.
i Tire Pressure Monitoring System Adjustment is a stand-alone feature meaning no
programming is required.
i Lowering a vehicle’s tire pressure below that specified by the vehicle/tire manufacturer
may create unsafe handling characteristics. aFe Power assumes no responsibility for a
vehicle’s handling characteristics or the safety of the vehicle’s occupants.

PAGE 14
Jeep Power Levels
There are several available tunes in the Scorcher for Jeep vehicles. Scorcher automatically
shows you the tunes available for your Jeep.
93 Performance
Requires the use of 93 Octane gas and is used for maximum horsepower, torque and drivability
for on-road and off-road uses. The tune is calibrated for 2WD, 4WD-HI and 4WD-LO uses.
i This tune is currently only available for JK models.
91 Performance
Requires the use of 91 Octane gas or better and is used for premium horsepower, torque
and drivability for on-road and off-road uses. The tune is calibrated for 2WD, 4WD-HI and
4WD-LO uses.
i This tune is available for all Jeeps covered by aFe Power.
87 Performance
Requires the use of 87 Octane gas and is used for extra horsepower, torque and drivability
for on-road and off-road uses. The tune is calibrated for 2WD, 4WD-HI and 4WD-LO uses.
i This tune is available for all Jeeps covered by aFe Power.

PAGE 15
Towing Tune
Requires the use of 91 Octane gas or better and is used for an optimized towing experience
for up to the OEM recommended towing limits.
i This tune is safe to use in 4WD-HI or 4WD-LO and is available for all Jeeps covered
by aFe Power.
Crawling Tune
Is an aFe Power exclusive tune offering low throttle response and high low-end torque
tune designed for precision low-speed maneuvers.
i This tune is currently only available for JK models.
Your Jeep Scorcher Programmer WILL work with the following:
• Short or normal tube headers.
• Snorkels.
• An engine that has been changed to a 5.7L HEMI,
as long as the factory HEMI ECU is installed.
• Aftermarket cat-back exhaust and cold air intake kits.
Approved For Jeep
For optimum Jeep performance, aFe Power
does NOT recommend the following:
• Long tube headers.
• Over-bored or stroked engines.
Not Recommended

PAGE 16
Returning to Stock
The service center might reprogram your vehicle with an updated program without your knowledge. If
you did not use an aFe Power programmer to return your vehicle to factory stock and your vehicle is
reprogrammed by the service center, the programmer will no longer be able to program your vehicle.
Before taking your vehicle to a service center, return the vehicle to factory stock.
The first time you program your vehicle, your factory stock tune is saved into the
programmer. Once your vehicle has been programmed, you may return it to the
factory stock settings at any point.
Select Tune Vehicle
Press OK
Select Quick Tune
Press OK
Select Factory Stock
Press OK
Follow on-screen prompts.
Switch Ignition OFF/RUN (On) as requested
(Do not start engine)

PAGE 17
Engine Diagnostic Tool
If a DTC persists, this could indicate a vehicle
malfunction or problem condition. Be sure to return
the vehicle to stock prior to taking it in for service
to address the issue.
Helpful Hint

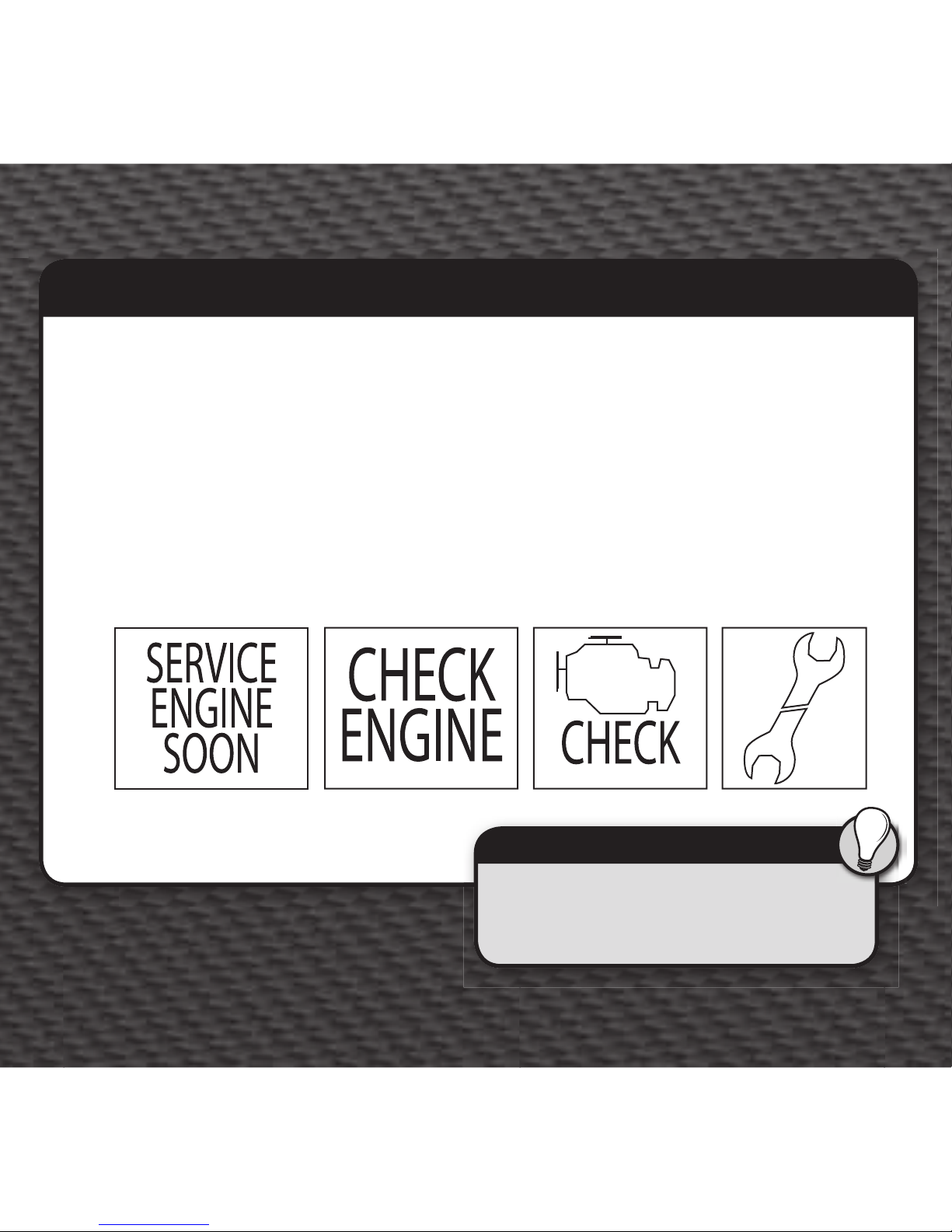

Use the Engine Diagnostic Tool to check trouble codes. A Diagnostic Trouble Code (DTC)
arises when a vehicle’s computer detects a sensor failure or a parameter outside a
specific range. Most vehicles will illuminate the check engine light. A Scorcher
programmer will read, identify and let you clear DTCs if desired.
1. Read DTC: Plug your programmer into the OBD-II on your vehicle. Use the
diagnostic tool to read the DTC from the vehicle’s computer. If a code is
present, it will be displayed with a full text description.
2. Clear DTC: If your vehicle displays a DTC, a Scorcher programmer can clear
the code, turning off your check engine light.

PAGE 18
Information and Settings
You can change the display setting by simply connecting the programmer to your
computer. For Programmer and/or Vehicle information, the Scorcher software needs
to be installed.
Programmer Information
Displays serial number of the programmer, firmware version and vehicle database
versions (car database, gas truck database, diesel database, etc.) Firmware and
databases are updated through the Scorcher Internet Easy Update application.
Vehicle information
Displays VIN of the programmed vehicle, programmer status and the Scorcher
file number associated with the programmed vehicle.
Display Settings
Adjusts display settings for use in direct sunlight, nighttime or low lighting.
Set Contrast
Adjusts the darkness of text and graphics.
Set Backlight
Enables or disables your screen backlight.
Scroll Speed
Adjusts how fast an option is highlighted.
Stay current for the best performance of
your vehicle and programmer. Get the
latest updates using the Scorcher Easy
Update software.
Helpful Hint

PAGE 19
Data Acquisition
Plug your programmer into the vehicles OBD-II port for unsurpassed data acquisition.
There is support for performance logging of vehicle speeds and distances. You can compare
the stock vs. programmed performance of your vehicle. Also, with our advanced features,
you can monitor and record individual live sensor values or computer data. Features available
for your vehicle will automatically be shown once Scorcher has identified your vehicle.
DAQ 1: Data Logging
• Timed runs (60 foot – ¼ mile)
• 0 – 60 MPH times
• Best speed & time history
DAQ 2: Display & Store PID Data
• Air and fuel data
• Mass air flow rates and temperature
• Ignition timing
• Injector fuel rates
• Direct sensor information
• Diagnose faulty sensors
• Monitor fluid temperatures
• View live powertrain data
• View engine and transmission sensor data
Your programmer is for in-cabin use. Be sure to store in a secure location while using data
acquisition software such as a universal cell phone holder.
Use the aFe Power Easy Update software to enable
Data Acquisition in your programmer.
Helpful Hint

PAGE 20
Scorcher Features
Here are the many exciting features of aFe Power products.
Towing Power
Optimizes for handling heavy loads.
Track Speed
Optimizes for maximum performance.
Fuel Economy
Improves fuel economy.
Off-Road Control
Optimizes the powertrain for maximum
control.
Speedometer Calibration
Corrects speedometer, odometer and
automatic transmission shift points (where
supported) for wheel, tire and rear end gear
changes.
Internet Update
Programmer is updateable over the
internet providing the latest OEM released
performance, economy and even safety
features.
Engine Diagnostics
Reads and clears diagnostic trouble codes
that turn on your check engine light.
