AGCO Glencoe DR8700 User manual

Glencoe®
MODEL DR8700 FOLD
SERIES DISC RIPPER
OPERATOR’S
MANUAL
Form No. 79019157
February, 2002

MODEL DR8700 FOLD
SERIES DISC RIPPER
OPERATOR’S MANUAL
PURCHASED FROM: DATE / /
ADDRESS:
PHONE NO.: SERIAL NO.:

TABLE OF CONTENTS
SECTION DESCRIPTION PAGE
1 INTRODUCTION
2 STANDARD SPECIFICATIONS
3 ASSEMBLY PROCEDURES
3-1 FRAME ASSEMBLY ..................................3-3
3-2 GAUGE WHEEL ASSEMBLY ............................3-5
3-3 DISC GANG INSTALLATION ............................3-7
3-4 SPRING SHANK INSTALLATION ........................3-11
3-5 WING SUPPORT INSTALLATION........................3-13
3-6 HITCH INSTALLATION ...............................3-13
3-7 HYDRAULIC INSTALLATION ...........................3-15
3-8 PURGING THE HYDRAULIC SYSTEM ....................3-16
3-9 ELECTRICAL INSTALLATION ..........................3-17
3-10 LUBRICATION ......................................3-17
4 OPERATION AND MAINTENANCE
4-1 TRACTOR PREPARATION .............................4-2
4-2 WEATHERPROOFER PREPARATION .....................4-2
4-3 ATTACHING TO THE TRACTOR .........................4-2
4-4 FIELD OPERATION ...................................4-3
4-5 WHEEL BEARING MAINTENANCE .......................4-4
4-6 LUBRICATION.......................................4-4
4-7 HYDRAULIC MAINTENANCE............................4-6
4-8 STORAGE..........................................4-6
5 TROUBLESHOOTING GUIDE
i

SAFETY PRECAUTIONS
THIS IS THE SAFETY ALERT SYMBOL. IT IS USED TO ALERT YOU
TO POTENTIAL INJURY HAZARDS. OBEY ALL SAFETY MESSAGES
THAT FOLLOW THIS SYMBOL TO AVOID POSSIBLE INJURY OR
DEATH.
DANGER DANGER INDICATES AN IMMINENTLY HAZARDOUS SITUA-
TION WHICH, IF NOT AVOIDED, WILL RESULT IN DEATH OR
SERIOUS INJURY.
WARNING WARNING INDICATES A POTENTIALLY HAZARDOUS SITUA-
TION WHICH, IF NOT AVOIDED, COULD RESULT IN DEATH OR
SERIOUS INJURY.
CAUTION CAUTION INDICATES A POTENTIALLY HAZARDOUS SITUA-
TION WHICH, IF NOT AVOIDED, MAY RESULT IN MINOR OR
MODERATE INJURY.
CAUTION CAUTION USED WITHOUT THE SAFETY ALERT SYMBOL INDI-
CATES A POTENTIALLY HAZARDOUS SITUATION WHICH, IF
NOT AVOIDED, MAY RESULT IN PROPERTY DAMAGE.
ii

1INTRODUCTION
The DR8700 Series Disc Ripper is a quality product designed to give years of trouble free performance.
By following each section of this manual, your system will perform as designed for you and your operation.
SECTION 1 gives basic instructions on the use of this manual.
SECTION 2 gives product specifications. These specifications supply lengths and measures for your
equipment. A Standard Bolt Torque Table is provided to give guidelines for bolt torques
to be used when servicing this product.
SECTION 3 contains assembly instructions for your DR8700 Series Disc Ripper. When these proce-
dures are correctly followed, your equipment should provide you years of trouble-free
operation and service.
SECTION 4 instructs how to operate your equipment before using it, and describes adjustments
needed. It also gives practical advice for the care and maintenance of your equipment.
Drawings in this section locate adjustment points on the equipment.
SECTION 5 is a troubleshooting guide to aid in diagnosing and solving problems with the equip-
ment.
PARTS LIST is a separate manual showing the various assemblies, subassemblies, and systems.
Refer to that manual when ordering replacement parts. Order parts from your dealer.
WARRANTY The Warranty Registration form must be completed by the dealer and signed by both
the dealer and the customer prior to delivery.
NOTE: IMPROPER ASSEMBLY, MODIFICATION, OR MAINTENANCE OF YOUR
MACHINE CAN VOID YOUR WARRANTY.
1-1

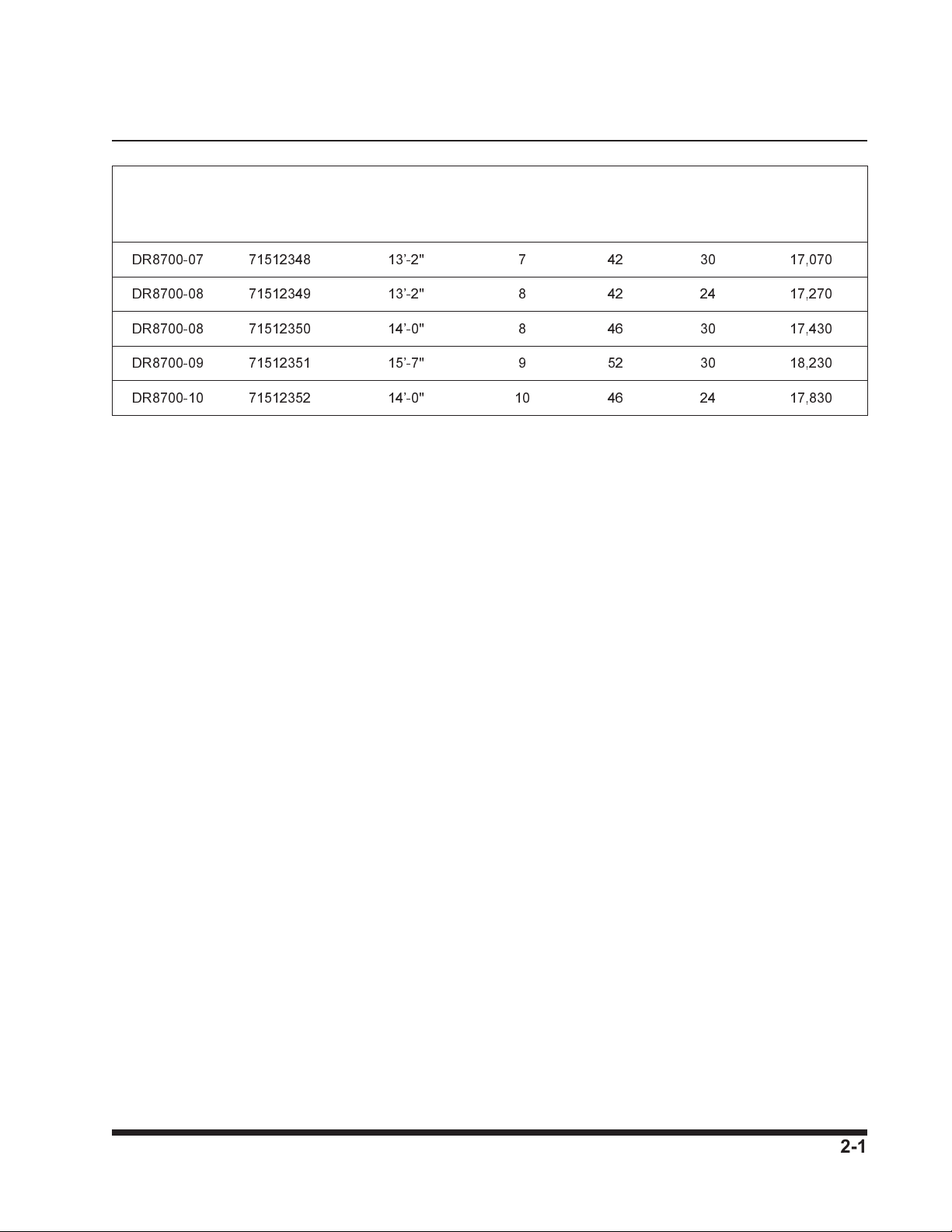

2STANDARD SPECIFICATIONS
MODEL
NO. CATALOG NO. TRANSPORT WIDTH
(ft.-in.)
NO. OF
SHANKS NO. OF DISCS SHANK SPACING
(in.)
WEIGHT
(APPROX.)
(lbs.)
DR8700-07 71512348 13-2" 7 42 30 17,070
DR8700-08 71512349 13-2" 8 42 24 17,270
DR8700-08 71512350 14-0" 8 46 30 17,430
DR8700-09 71512351 15-7" 9 52 30 18,230
DR8700-10 71512352 14-0" 10 46 24 17,830
2-1

2-2

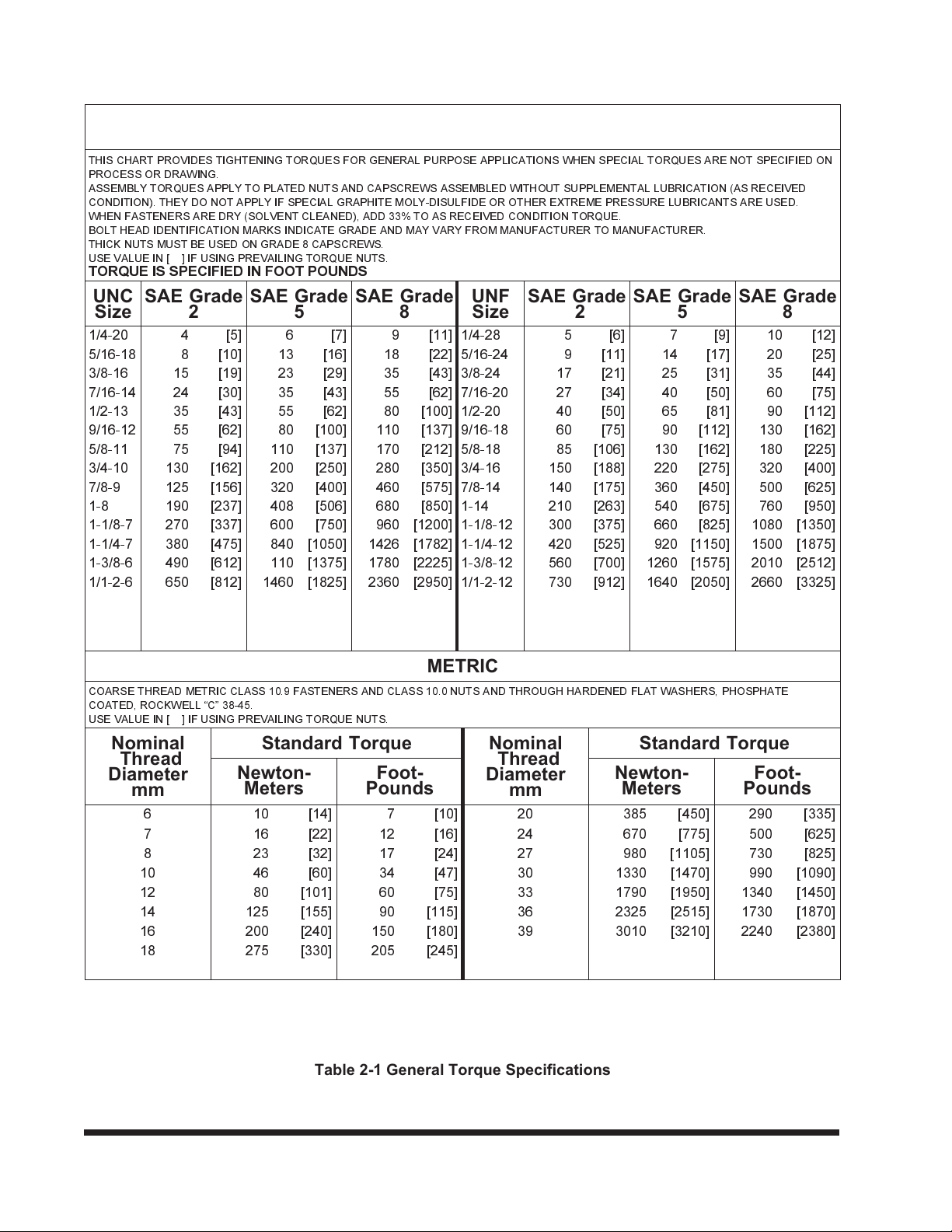

GENERAL TORQUE SPECIFICATIONS (REV. 4/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR GENERAL PURPOSE APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED ON
PROCESS OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED NUTS AND CAPSCREWS ASSEMBLED WITHOUT SUPPLEMENTAL LUBRICATION (AS RECEIVED
CONDITION). THEY DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EXTREME PRESSURE LUBRICANTS ARE USED.
WHEN FASTENERS ARE DRY (SOLVENT CLEANED), ADD 33% TO AS RECEIVED CONDITION TORQUE.
BOLT HEAD IDENTIFICATION MARKS INDICATE GRADE AND MAY VARY FROM MANUFACTURER TO MANUFACTURER.
THICK NUTS MUST BE USED ON GRADE 8 CAPSCREWS.
USE VALUE IN [ ] IF USING PREVAILING TORQUE NUTS.
TORQUE IS SPECIFIED IN FOOT POUNDS
UNC
Size SAE Grade 2SAE Grade 5SAE Grade 8UNF Size SAE Grade 2SAE Grade 5SAE Grade 8
1/4-20 4 [5] 6 [7] 9 [11] 1/4-28 5 [6] 7 [9] 10 [12]
5/16-18 8 [10] 13 [16] 18 [22] 5/16-24 9 [11] 14 [17] 20 [25]
3/8-16 15 [19] 23 [29] 35 [43] 3/8-24 17 [21] 25 [31] 35 [44]
7/16-14 24 [30] 35 [43] 55 [62] 7/16-20 27 [34] 40 [50] 60 [75]
1/2-13 35 [43] 55 [62] 80 [100] 1/2-20 40 [50] 65 [81] 90 [112]
9/16-12 55 [62] 80 [100] 110 [137] 9/16-18 60 [75] 90 [112] 130 [162]
5/8-11 75 [94] 110 [137] 170 [212] 5/8-18 85 [106] 130 [162] 180 [225]
3/4-10 130 [162] 200 [250] 280 [350] 3/4-16 150 [188] 220 [275] 320 [400]
7/8-9 125 [156] 320 [400] 460 [575] 7/8-14 140 [175] 360 [450] 500 [625]
1-8 190 [237] 408 [506] 680 [850] 1-14 210 [263] 540 [675] 760 [950]
1-1/8-7 270 [337] 600 [750] 960 [1200] 1-1/8-12 300 [375] 660 [825] 1080 [1350]
1-1/4-7 380 [475] 840 [1050] 1426 [1782] 1-1/4-12 420 [525] 920 [1150] 1500 [1875]
1-3/8-6 490 [612] 110 [1375] 1780 [2225] 1-3/8-12 560 [700] 1260 [1575] 2010 [2512]
1/1-2-6 650 [812] 1460 [1825] 2360 [2950] 1/1-2-12 730 [912] 1640 [2050] 2660 [3325]
METRIC
COARSE THREAD METRIC CLASS 10.9 FASTENERS AND CLASS 10.0 NUTS AND THROUGH HARDENED FLAT WASHERS, PHOSPHATE
COATED, ROCKWELL C 38-45.
USE VALUE IN [ ] IF USING PREVAILING TORQUE NUTS.
Nominal
Thread
Diameter
mm
Standard Torque Nominal
Thread
Diameter
mm
Standard Torque
Newton-
Meters Foot- Pounds Newton- Meters Foot- Pounds
6 10 [14] 7 [10] 20 385 [450] 290 [335]
7 16 [22] 12 [16] 24 670 [775] 500 [625]
8 23 [32] 17 [24] 27 980 [1105] 730 [825]
10 46 [60] 34 [47] 30 1330 [1470] 990 [1090]
12 80 [101] 60 [75] 33 1790 [1950] 1340 [1450]
14 125 [155] 90 [115] 36 2325 [2515] 1730 [1870]
16 200 [240] 150 [180] 39 3010 [3210] 2240 [2380]
18 275 [330] 205 [245]
Table 2-1 General Torque Specifications

2-3

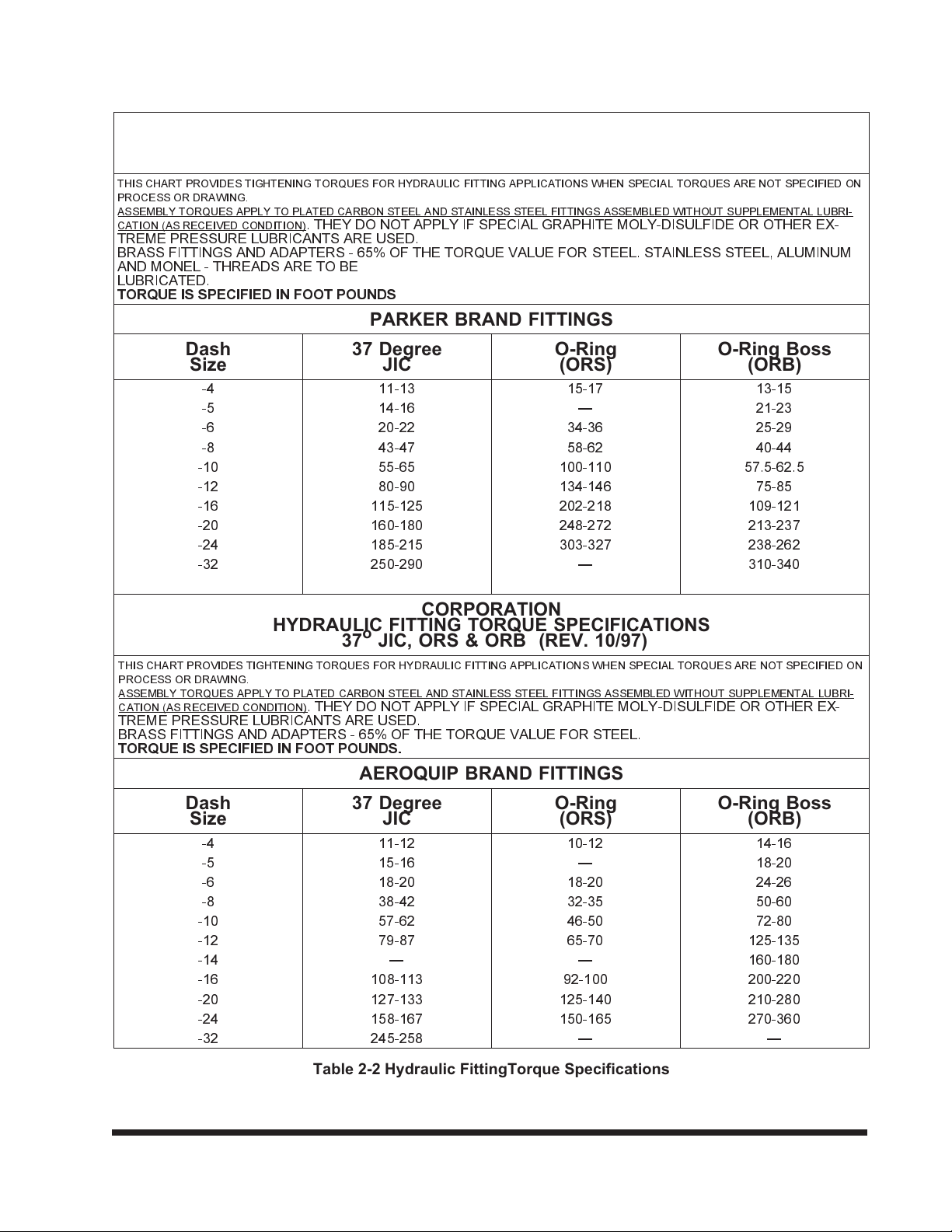

HYDRAULIC FITTING TORQUE SPECIFICATIONS
37oJIC, ORS, & ORB (REV. 10/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR HYDRAULIC FITTING APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED ON
PROCESS OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED CARBON STEEL AND STAINLESS STEEL FITTINGS ASSEMBLED WITHOUT SUPPLEMENTAL LUBRI-
CATION (AS RECEIVED CONDITION) . THEY DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EX-
TREME PRESSURE LUBRICANTS ARE USED.
BRASS FITTINGS AND ADAPTERS - 65% OF THE TORQUE VALUE FOR STEEL. STAINLESS STEEL, ALUMINUM
AND MONEL - THREADS ARE TO BE
LUBRICATED.
TORQUE IS SPECIFIED IN FOOT POUNDS
PARKER BRAND FITTINGS
Dash
Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 11-13 15-17 13-15
-5 14-16  21-23
-6 20-22 34-36 25-29
-8 43-47 58-62 40-44
-10 55-65 100-110 57.5-62.5
-12 80-90 134-146 75-85
-16 115-125 202-218 109-121
-20 160-180 248-272 213-237
-24 185-215 303-327 238-262
-32 250-290  310-340
CORPORATION
HYDRAULIC FITTING TORQUE SPECIFICATIONS
37oJIC, ORS & ORB (REV. 10/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR HYDRAULIC FITTING APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED ON
PROCESS OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED CARBON STEEL AND STAINLESS STEEL FITTINGS ASSEMBLED WITHOUT SUPPLEMENTAL LUBRI-
CATION (AS RECEIVED CONDITION) . THEY DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EX-
TREME PRESSURE LUBRICANTS ARE USED.
BRASS FITTINGS AND ADAPTERS - 65% OF THE TORQUE VALUE FOR STEEL.
TORQUE IS SPECIFIED IN FOOT POUNDS.
AEROQUIP BRAND FITTINGS
Dash
Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 11-12 10-12 14-16
-5 15-16  18-20
-6 18-20 18-20 24-26
-8 38-42 32-35 50-60
-10 57-62 46-50 72-80
-12 79-87 65-70 125-135
-14   160-180
-16 108-113 92-100 200-220
-20 127-133 125-140 210-280
-24 158-167 150-165 270-360
-32 245-258  
Table 2-2 Hydraulic FittingTorque Specifications

NOTES:
2-4

2-5

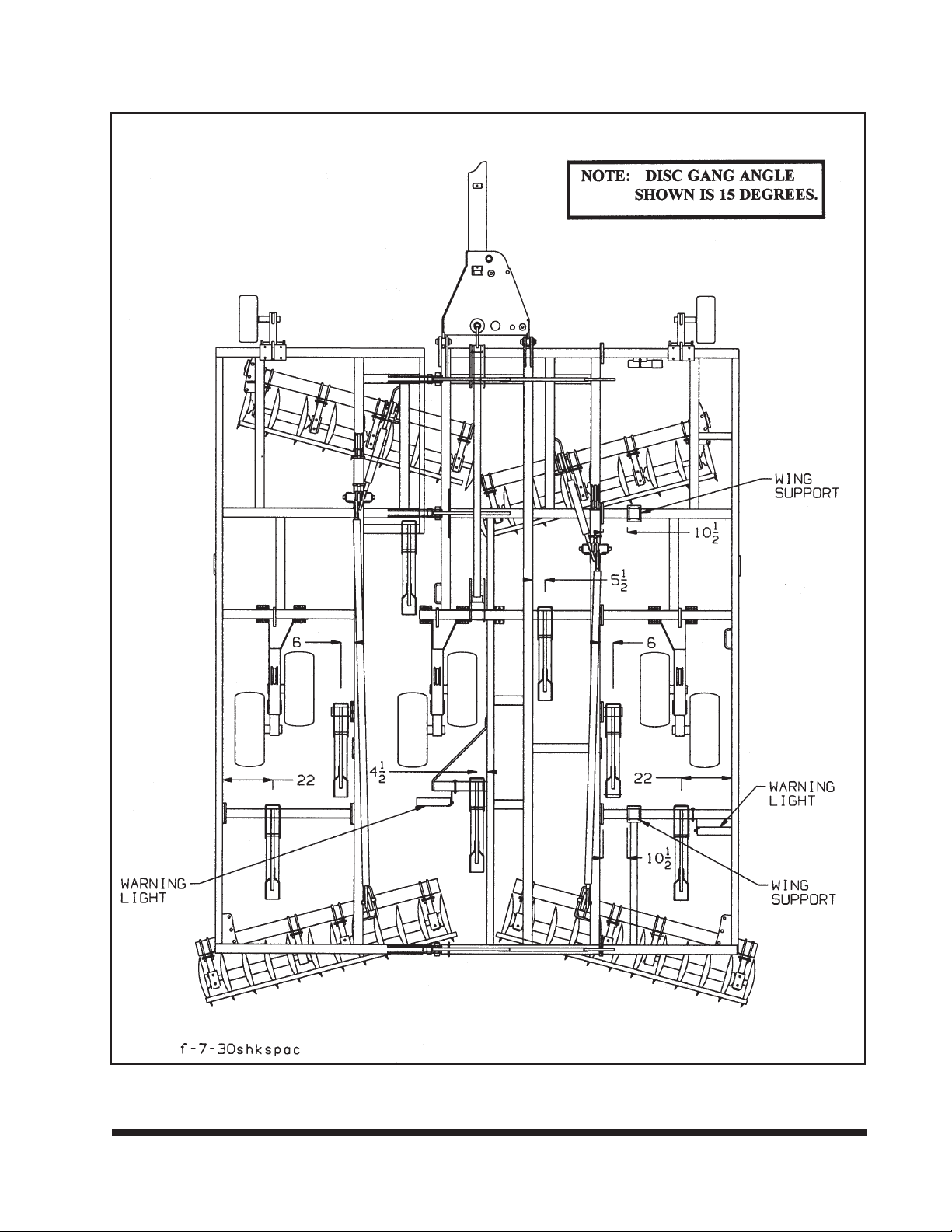

Figure 2-1 - Tandem Axle, Fold, 7 Shank - 30” Spacing

2-6
Figure 2-2 - Tandem Axle, Fold, 8 Shank - 24” Spacing

2-7

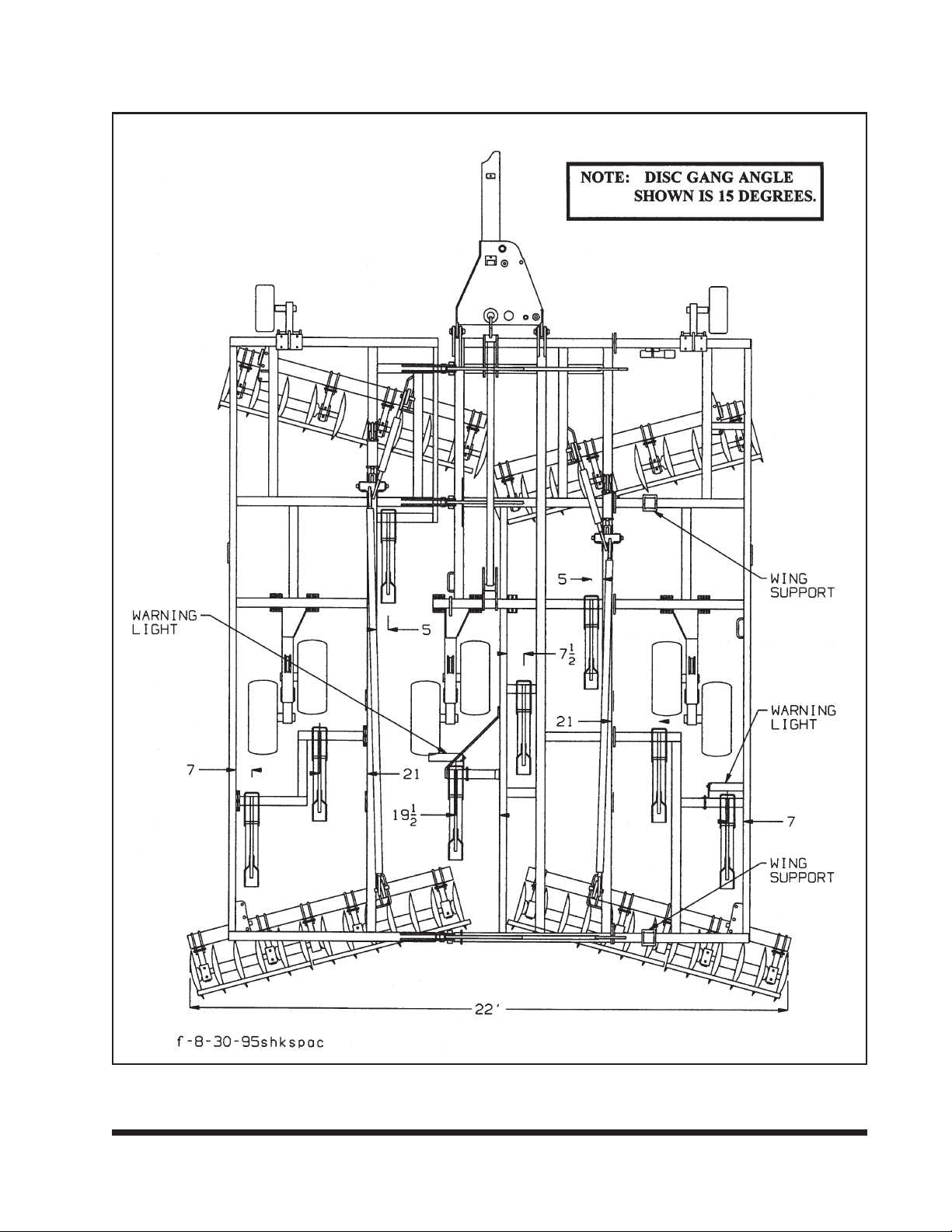

Figure 2-3 - Tandem Axle, Fold, 8 Shank - 30” Spacing

2-8

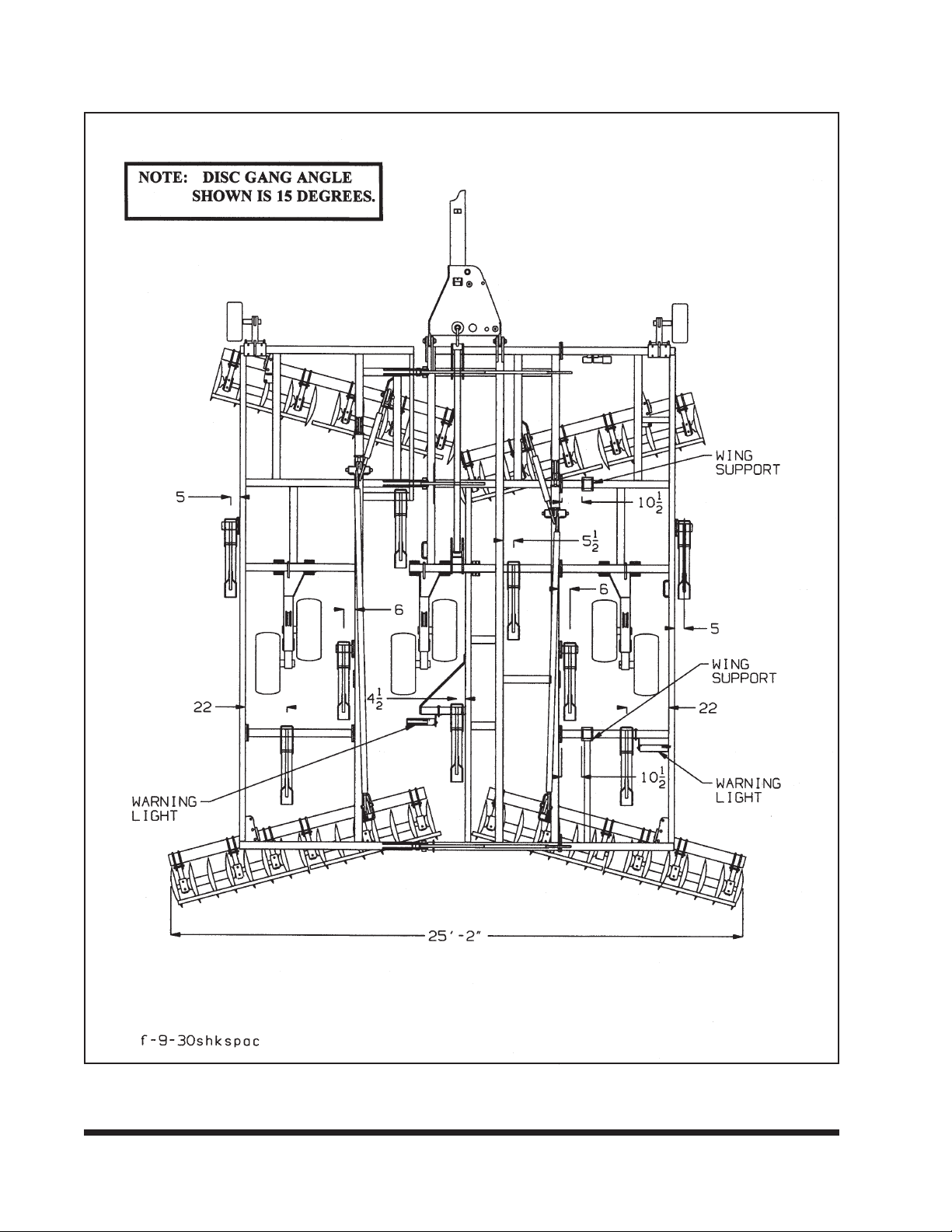

Figure 2-4 - Tandem Axle, Fold, 9 Shank - 30” Spacing

2-9

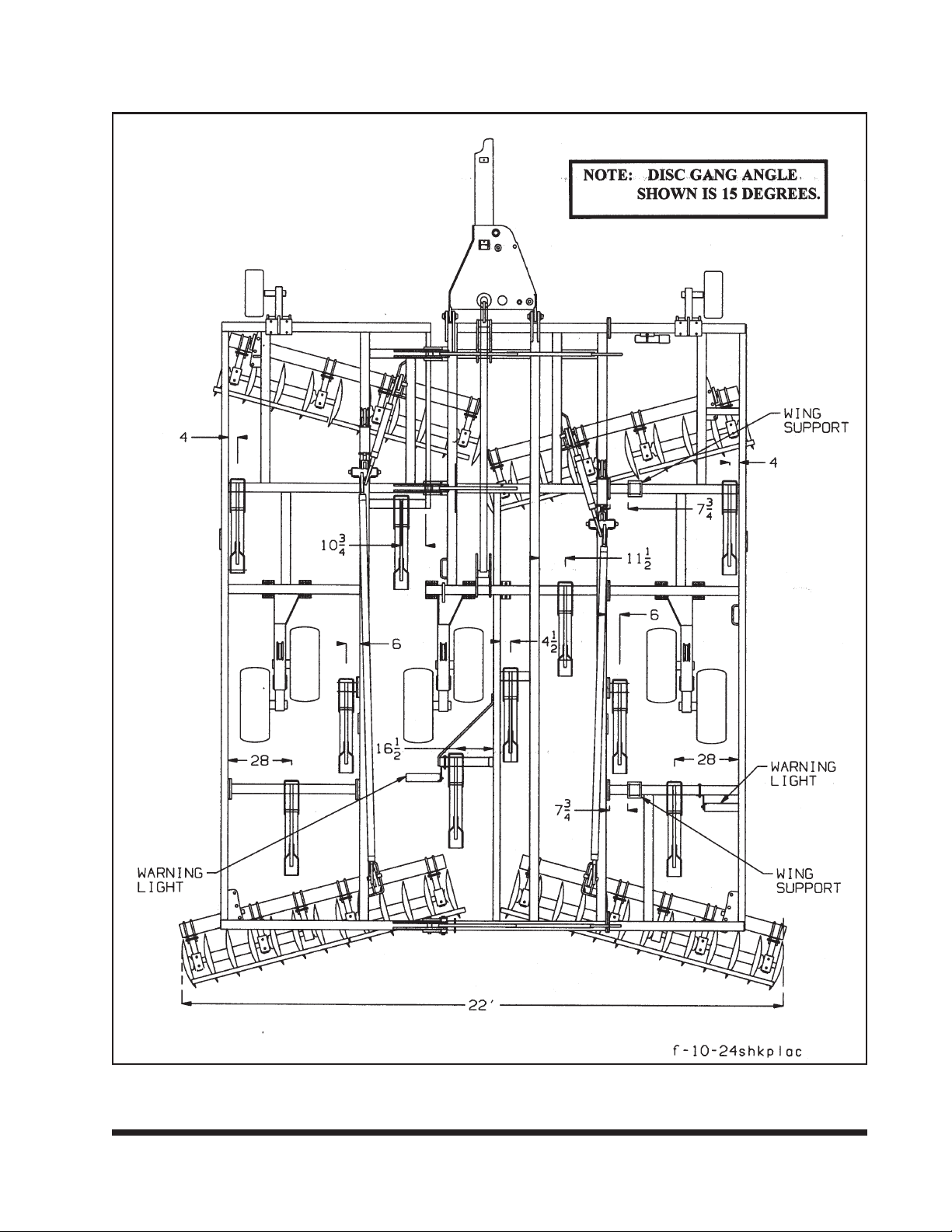

Figure 2-5 - Tandem Axle, Fold, 10 Shank - 24” Spacing

3ASSEMBLY PROCEDURES
It is very important that your new DR8700 Fold
Series Disc Ripper be properly assembled, ad-
justed, and lubricated before use. Illustrations to
assist with the assembly process are provided in
Section 2, “Standard Specifications”. Illustra-
tions are provided in this section to show proper
shank, disc gang, and mounting bracket spacings.
Remove paint from grease fittings and replace any
that are damaged or missing. Be sure to replace
bolts, clips, etc. in the same place from where they
were removed.
To insure assemblies are aligned, insert all
bolts and leave the nuts loose until completion
of final assembly. Use lockwashers or flat wash-
ers where called for. Spread all cotter pins.
After completion of final assembly, tighten all
nuts evenly to prevent misalignment, distortion, or
binding. Tighten all bolts and nuts to the recom-
mended torques shown in Table 2-1, “Standard
Bolt Torques.”
DANGER
DISC BLADES ARE EXTREMELY
SHARP. EXERCISE EXTREME CARE
WHEN WORKING ON OR NEAR DISC
BLADES. DO NOT ALLOW DISCS TO
ROLL OVER OR FALL ONTO ANY
BODILY PART. DO NOT ALLOW
WRENCHES TO SLIP WHEN WORK-
ING NEAR DISC BLADES. NEVER
PUSH WRENCHES TOWARD DISC
BLADES. DO NOT CLIMB OVER MA-
CHINE ABOVE DISC BLADES. FAIL-
URE TO STAY CLEAR OF DISC
BLADE EDGES CAN CAUSE SERIOUS
PERSONAL INJURY OR DEATH.
WARNING
DO NOT ATTEMPT TO LIFT HEAVY
PARTS (SUCH AS THE FRAME, DISC
GANGS, ROCK SHAFT, AND PULL
HITCH) MANUALLY. USE A HOIST OR
A FORK LIFT TO MOVE THESE
PARTS INTO POSITION.
DANGER
TO PREVENT ACCIDENTAL LOWER-
ING:
1. ALL HYDRAULICALLY ELEVATED
EQUIPMENT MUST BE LOCKED OUT
USING THE CYLINDER LOCKOUTS:
2. LOWER EQUIPMENT TO THE
GROUND WHILE SERVICING OR
WHEN IT IS IDLE.
FAILURE TO TAKE MEASURES TO
PREVENT ACCIDENTAL LOWERING
MAY RESULT IN SERIOUS PER-
SONAL INJURY OR DEATH.
CAUTION
BE SURE DEPTH STOPS ARE EQUAL
LENGTHS ON ALL CYLINDERS. US-
ING UNEQUAL DEPTH STOP
LENGTHS CAN CAUSE PERMANENT
EQUIPMENT DAMAGE.
CAUTION
BE SURE TO BLEED THE HYDRAU-
LIC SYSTEM OF ALL AIR IN LINES
AFTER INSTALLATION. FAILURE TO
BLEED THE SYSTEM OF ALL AIR
CAN RESULT IN IMPROPER MA-
CHINE OPERATION.
3-1

3-2

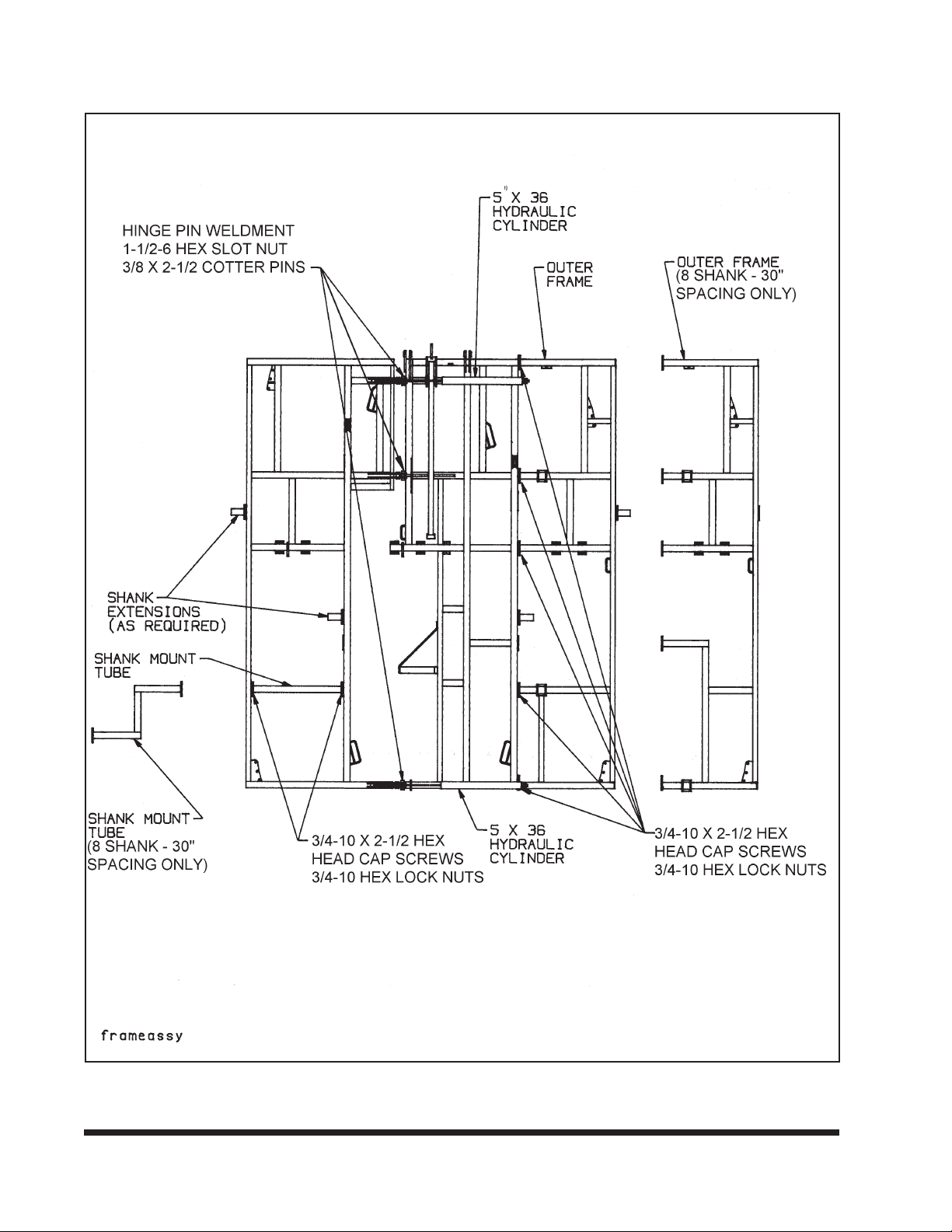

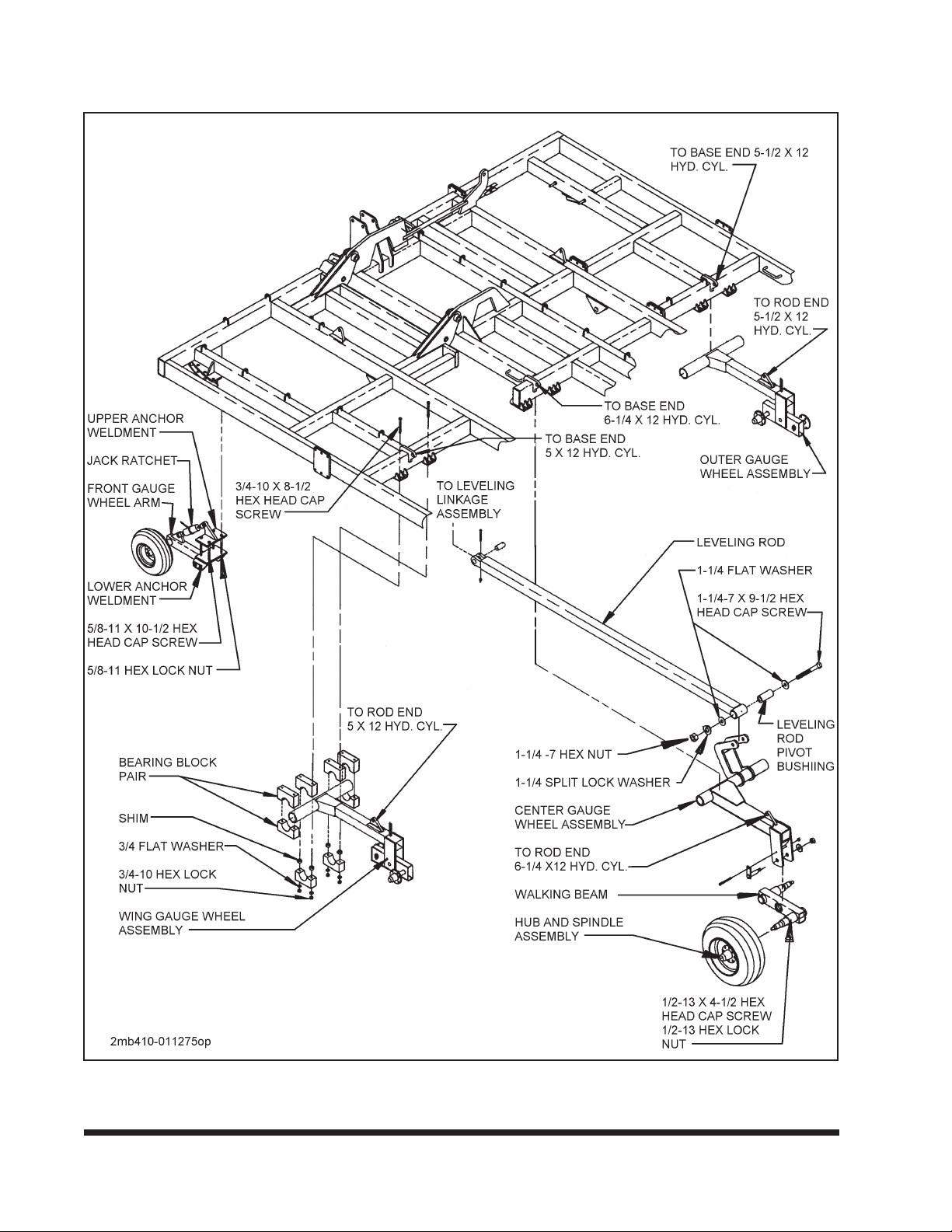

Figure 3-1 Frame Assembly

3-1 FRAME ASSEMBLY
WARNING
TO PREVENT SERIOUS INJURY OR
DEATH, READ ALL SAFETY PRECAU-
TIONS AT THE FRONT OF THIS SEC-
TION BEFORE ATTEMPTING ANY OF
THE FOLLOWING PROCEDURES.
IMPORTANT
SEE FIGURE 3-1 FOR PART NAMES.
3-1.1 Place the frame halves on the floor and
bolt together at five places, using 3/4-10 X
2-1/2 hex head cap screws and hex lock
nuts.
3-1.2 Place wing in position with frame and
install hinge pins, 1-1/2-6 hex slot nuts, and
3/8 X 2-1/2 cotter pins supplied with the
wing.
3-1.3 Install the correct extensions and shank
mounting tubes as required for the size unit,
using 3/4-10 X 2-1/2 hex head cap screws
and hex lock nuts provided. See Shank
Placement Figures 2-1 - 2-5 for correct lo-
cation.
3-1.4 Install the two5X36fold cylinders. In-
stall the base end to the frame (use the pins
supplied with the cylinder) and the rod end
(clevis) to the wing fold brackets (use 1-1/4 x
7-1/8 cylinder end pins, 1/4 x 2-1/2 cotter
pins, and 1-1/4 flat washers supplied with
fold bracket).
3-1.5 Lift frame and wing assembly and set
on stands 36" to 40" high.
3-3

3-4
Figure 3-2 Gauge Wheel Assembly

3-2 GAUGE WHEEL ASSEMBLY
WARNING
DO NOT ATTEMPT TO LIFT THE
ROCKSHAFT MANUALLY. USE A
HOIST OR A FORK LIFT TO MOVE
ROCKSHAFT INTO POSITION.
WARNING
TO PREVENT SERIOUS INJURY OR
DEATH, READ ALL SAFETY PRECAU-
TIONS AT THE FRONT OF THIS SEC-
TION BEFORE ATTEMPTING ANY OF
THE FOLLOWING PROCEDURES.
IMPORTANT
SEE FIGURE 3-2 FOR PART NAMES.
3-2.1 Install center gauge wheel assembly to
frame using five bearing block pairs and
3/4-10 x 8-1/2 hex head cap screws, hex
lock nuts, flat washers, and shims provided.
Use only enough shims to allow rockshaft to
turn freely.
3-2.2 Assemble leveling rod to center gauge
wheel with 1-1/4-7 x 9-1/2 hex head cap
screw, flat washer, leveling rod pivot bush-
ing, split lock washer, and hex nut.
3-2.3 Install outer frame gauge wheel assem-
bly using four bearing block pairs and 3/4-10
x 8-1/2 hex head cap screws, hex lock nuts,
flat washers, and shims provided. Use only
enough shims to allow rockshaft to turn
freely.
3-2.4 Install wing gauge wheel assembly us-
ing four bearing block pairs and 3/4-10 x
8-1/2 hex head cap screws, hex lock nuts,
flat washers, and shims provided. Use only
enough shims to allow rockshaft to turn
freely.
3-2.5 Install hub and spindle assemblies into
walking beams and secure with 1/2-13 x
4-1/2 hex head cap screws and hex lock
nuts provided with spindle.
3-2.6 Install tires and wheels on the hubs
(12.5L X 15 20 ply tires required).
IMPORTANT
INFLATE TIRE PRESSURE TO 80 P.S.I. PER
TIRE PER MANUFACTURER’S RECOMMENDA-
TION.
3-2.7 Install the 6-1/4 X 12 lift cylinder (mas-
ter) on the frame gauge wheels. Attach the
base end of the cylinder to the frame and the
rod end to the gauge wheel arm with the
ports up .
3-2.8 Install the 5-1/2 X 12 lift cylinder (slave)
on the outer frame gauge wheel. Attach the
base end of the cylinder to the frame and the
rod end to the gauge wheel arm with the
ports up.
3-2.9 Install the5X12lift cylinder (slave) on
the wing gauge wheel. Attach the base end
of the cylinder to the frame and the rod end
to the gauge wheel arm with the ports up.
3-2.10 For front gauge wheel assembly, install
upper and lower anchor weldments to frame
using four 5/8-11 x 10-1/2 hex head cap
screws and hex lock nuts. Attach jack ratchet
to upper anchor weldment and front gauge
wheel arm. Attach front gauge wheel to
lower anchor weldment using pivot pin,
1/2-13 x 2 hex head cap screw, and hex lock
nut. Install hub and spindle assemblies into
front gauge wheel arm using 3/8-16 x 3 hex
head cap screw and hex lock nut. See
Shank Placement Figures 2-1 - 2-5 for
correct location.
3-5
