AGCO Cumberland Flex-Flo 220 User manual

PNEG-2339
Flex-Flo Unloader Kit
Model 220, 300, 300P, 350, 500 and HR
Installation Manual
PNEG-2339
Version: 2.0
Date: 05-11-21

2PNEG-2339 Flex-Flo Unloader Kit
All information, illustrations, photos, and specifications in this manual are based on the latest
information available at the time of publication. The right is reserved to make changes at any
time without notice.

Table of Contents
PNEG-2339 Flex-Flo Unloader Kit 3
Contents
Chapter 1 Safety .....................................................................................................................................................4
Safety Guidelines ...................................................................................................................................4
Cautionary Symbols Definitions .............................................................................................................5
Safety Cautions ......................................................................................................................................6
Safety Sign-Off Sheet ............................................................................................................................8
Chapter 2 Decals ....................................................................................................................................................9
Chapter 3 Installation ..........................................................................................................................................10
Installing the Boot and Transfer Plate ..................................................................................................10
Installing the Slide Gate .......................................................................................................................12
Installing the New Boot and Transfer Plate ..........................................................................................13
Installing the Slide Gate with New Boot ...............................................................................................14
Installing the Clear Access Door Assembly .........................................................................................17
Adjusting the Restrictor Tube ...............................................................................................................18
Straight-Through Tandem Installation ..................................................................................................19
Chapter 4 Parts List .............................................................................................................................................20
Model 220, 300, 300P, 350 and HR S.O. Unloader with Anchor and Bearing Assembly ....................20
Model 220, 300, 300P, 350 and HR T.O. Unloader with Anchor and Bearing Assembly ....................21
Model 220, 300, 300P, 350 and HR S.O. Unloader with Boot, Anchor and Bearing Assembly ...........22
Model 220, 300, 300P, 350 and HR T.O. Unloader with Boot, Anchor and Bearing Assembly ...........23
Chapter 5 Warranty ..............................................................................................................................................25

4PNEG-2339 Flex-Flo Unloader Kit
1. Safety
Safety Guidelines
Safety guidelines are general-to-specific safety rules that must be followed at all times. This manual is
written to help you understand safe operating procedures and problems that can be encountered
by the operator and other personnel when using this equipment. Read and save these instructions.
As owner or operator, you are responsible for understanding the requirements, hazards, and precautions
that exist and to inform others as required. Unqualified persons must stay out of the work area at all times.
Alterations must not be made to the equipment. Alterations can produce dangerous situations resulting in
SERIOUS INJURY or DEATH.
This equipment must be installed in accordance with the current installation codes and applicable
regulations,whichmustbecarefully followed inall cases. Authoritieshavingjurisdiction mustbe consulted
before installations are made.
When necessary, you must consider the installation location relative to electrical, fuel and water utilities.
Personnel operating or working around equipment must read this manual. This manual must be
delivered with equipment to its owner. Failure to read this manual and its safety instructions is a misuse
of the equipment.
ST-0001-4

1. Safety
PNEG-2339 Flex-Flo Unloader Kit 5
Cautionary Symbols Definitions
Cautionary symbols appear in this manual and on product decals. The symbols alert the user of potential
safety hazards, prohibited activities and mandatory actions. To help you recognize this information, we
use the symbols that are defined below.
DANGER
WARNING
CAUTION
NOTICE
This symbol indicates an imminently hazardous situation
which, if not avoided, will result in serious injury or death.
This symbol indicates a potentially hazardous situation
which, if not avoided, can result in serious injury or death.
This symbol indicates a potentially hazardous situation which,
if not avoided, can result in minor or moderate injury.
This symbol is used to address practices not related to
personal injury.
This symbol indicates a general hazard.
This symbol indicates a prohibited activity.
This symbol indicates a mandatory action.
ST-0005-2

1. Safety
6PNEG-2339 Flex-Flo Unloader Kit
Safety Cautions
Use Personal Protective Equipment
Eye
Protection
Hearing
Protection
Hand
Protection
Head
Protection
Respiratory
Protection Foot
Protection
Fall
Protection
• Use appropriate personal protective equipment:
• Wear clothing appropriate to the job.
• Remove all jewelry.
• Tie long hair up and back.
ST-0004-1
Follow Safety Instructions
• Carefully read all safety messages in this manual and
safety signs on your machine. Keep signs in good condition.
Replace missing or damaged safety signs. Be sure new
equipment components and repair parts include the current
safety signs. Replacement safety signs are available from
the manufacturer.
• Learn how to operate the machine and how to use controls
properly. Do not let anyone operate without instruction.
• If you do not understand any part of this manual or need
assistance, contact your dealer.
ST-0002-1
Operate Motor Properly
• All electrical connections must be made in accordance with
applicable local codes (National Electrical Code for the US,
Canadian Electric Code, or EN60204 along with applicable
European Directives for Europe). Make sure equipment and
bins are properly grounded.
• Lock-out power before resetting motor overloads.
• Do not repetitively stop and start the drive in order to free a
plugged condition. Jogging the drive in this manner can damage
the equipment and drive components.
ST-0009-3

1. Safety
PNEG-2339 Flex-Flo Unloader Kit 7
Maintain Equipment and Work Area
• Understand service procedures before doing work. Keep area
clean and dry.
• Never service equipment while it is operating. Keep hands, feet,
and clothing away from moving parts.
• Keep your equipment in proper working condition. Replace worn
or broken parts immediately.
ST-0003-1
Lifting Hazard
• Single person lift can cause injury.
• Use a mechanical lifting device to lift or move the equipment
during installation.
ST-0021-2
Rotating Auger Hazard
• Keep clear of rotating augers and moving
parts.
• Do not remove or modify guards or
covers.
• Lock-out power source before making
adjustments, cleaning, or maintaining
equipment.
• Failure to follow these precautions will
result in serious injury or death.
ST-0037-1

1. Safety
8PNEG-2339 Flex-Flo Unloader Kit
Safety Sign-Off Sheet
Below is a sign-off sheet thatcan be used to verify that all personnel have read and understood the safety
instructions. This sign-off sheet is provided for your convenience and personal record keeping.
Date Employee Name Supervisor Name
ST-0007

PNEG-2339 Flex-Flo Unloader Kit 9
2. Decals
The safety decals on your equipment are safety indicators which must be carefully read and understood
by all personnel involved in the installation, operation, service and maintenance of the equipment.
To replace a damaged or missing decal, contact us to receive a free replacement.
Contact:
GSI Group
1004 E. Illinois St.
Assumption, IL. 62510
Phone: [phone]
Ref # Location Decal # Decals Description
ALocated on the Flex-Flo control
unit electrical box DC-1238 Decal,
Flex-Flo
Control 220V
BLocated on the Flex-Flo
control unit DC-884 Warning,
Rotating
Auger
A
B
B
B
FLX - 5350
ELECTRICAL BOX ASSEMBLY
COIL RATING: 208-240 VAC, 50/60 HZ.
CONTACT RATING: 1 1/2 HP @ 240 VAC MAX.,
10 FLA, 1 PHASE
DC-1238
High Voltage.
Will cause injury or death.
Lockout power before servicing.
DANGER
WARNING
ROTATING AUGER can crush and dismember.
Keep hands out of feed opening.
Lockout power and secure auger
before servicing.

10 PNEG-2339 Flex-Flo Unloader Kit
3. Installation

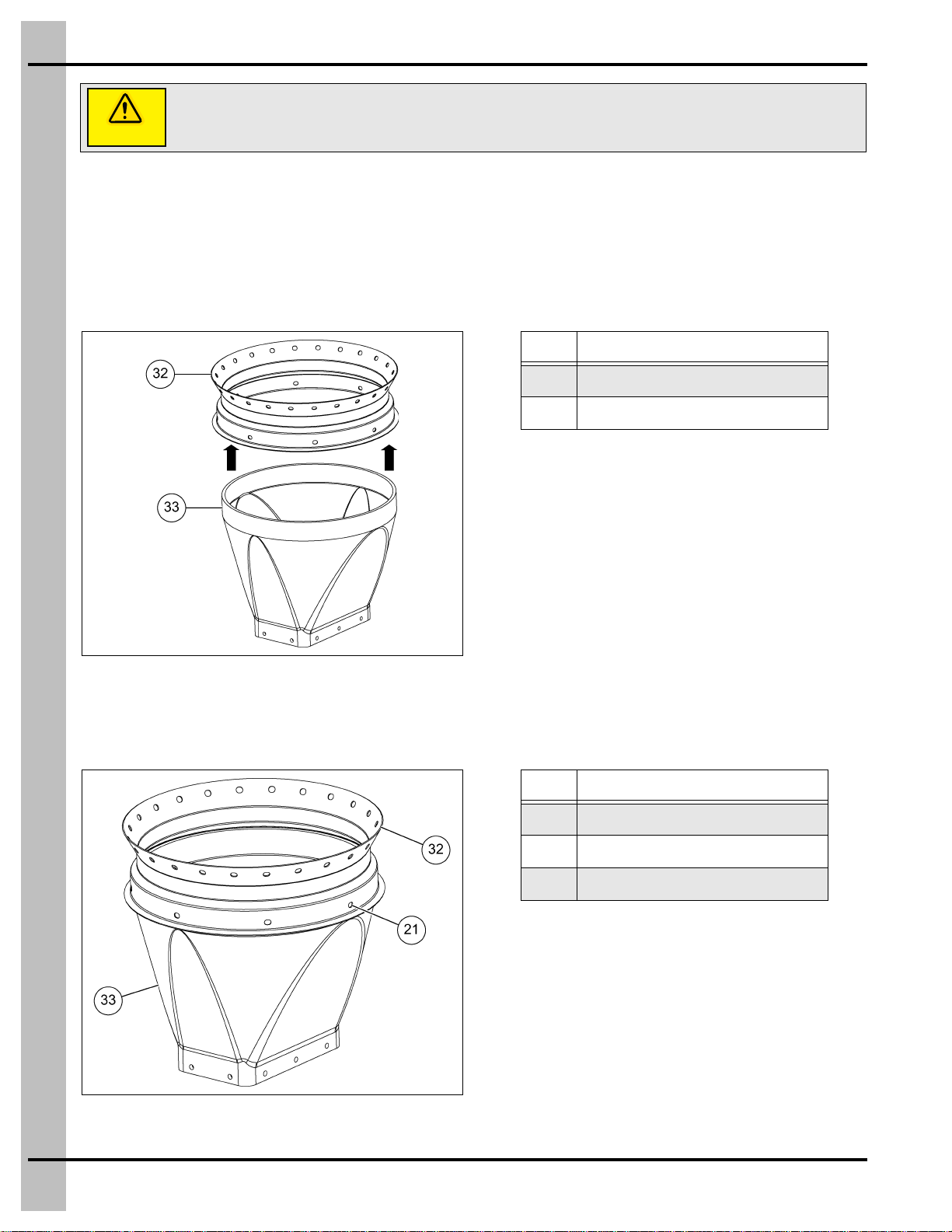

Installing the Boot and Transfer Plate
NOTE: Installation of the boot is the same whether the tank has the standard collar or the Sure-Flo Feed
Flow Control.
1. Slide the boot (33) as far as possible into the tank collar (32) or the Sure-Flo Feed Flow Control
opening. (See Figure 3A.)
Figure 3A Inserting the Boot into the Collar
2. Align the boot (33) with the Flex-Flo system that will be installed. (See Figure 3B.)
3. Using the holes in the tank collar (32) as a guide, drill eight 11/32" holes (21) into the boot (33) rim.
Figure 3B Drilling Holes in the Boot
Improper installation methods of the hardware may cause permanent damage and
possible breakage of the boot.
CAUTION
Ref # Description
32 Tank Collar
33 Boot
Ref # Description
21 11/32" Field Drill Hole
32 Tank Collar
33 Boot

3. Installation
PNEG-2339 Flex-Flo Unloader Kit 11
4. Install the boot (33) to the tank collar (32) using 5/16" x 1" truss head screws (4), 5/16" nylon washers
(6) and 5/16" nylon nuts (8). (See Figure 3C.)
NOTE: Install 5/16" x 1" screws (4) from the inside of the tank collar (32). Snug tighten the hardware.
Figure 3C Installing the Boot to the Tank Collar
5. Install the transfer plate (12) and unloader braces (13) to the boot (33) using 5/16" x 1" truss head
screws (4), 5/16" nylon washers (6) and 5/16" nylon nuts (8). (See Figure 3D.)
NOTE: Install 5/16" x 1" screws (4) from the inside of the boot (33). Snug tighten the hardware.
Figure 3D Installing the Transfer Plate and Unloader
Braces to the Boot
Ref # Part # Description
4S-4336 5/16"-18 x 1" Truss Head
Machine Screw
6 S-4338 5/16" Nylon Washer
8S-4337 5/16"-18 Nylon Insert Nut
32 Tank Collar
33 Boot
Ref # Part # Description
4S-4336 5/16"-18 x 1" Truss Head
Machine Screw
6 S-4338 5/16" Nylon Washer
8S-4337 5/16"-18 Nylon Insert Nut
12 BLK-10496 Transfer Plate
13 FLX-4819 Unloader Brace
33 Boot

3. Installation
12 PNEG-2339 Flex-Flo Unloader Kit

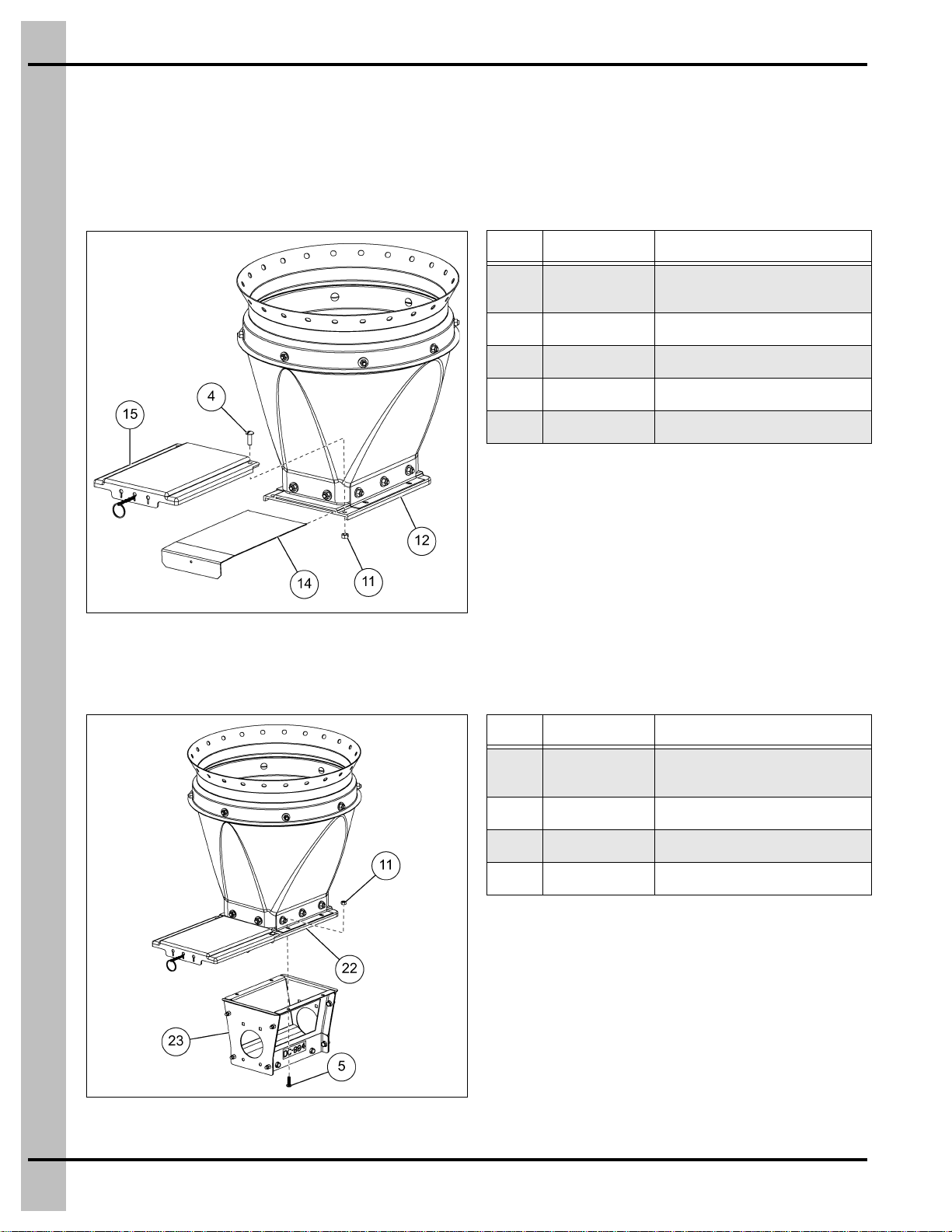

Installing the Slide Gate
1. Insert the slide (14) into the transfer plate (12). Install the slide shield (15) to the transfer plate (12)
using two 5/16" x 1" truss head screws (4) and 5/16" hex nuts (11). (See Figure 3E.)
NOTE: Make sure the slide (14) is in operating position. Pass the free end of the chain through the
slide shield (15) and secure it to the slide (14) with a cotter pin.
Figure 3E Installing the Slide and the Slide Shield
2. Install the unloader (23) to the transfer plate assembly (22) using 5/16" x 1" MS screws (5) and
5/16" hex nuts (11). (See Figure 3F.)
Figure 3F Installing the Unloader Assembly
Ref # Part # Description
4S-4336 5/16"-18 x 1" Truss Head
Machine Screw
11 S-396 Hex Nut 5/16"-18 YDP Grade 2
12 BLK-10496 Transfer Plate
14 FLX-4782 Slide Gate
15 BLK-10497 Slide Gate Shield
Ref # Part # Description
5S-8328 Screw, MS 5/16"-18 x 1" RHS ZN
Grade 2
11 S-396 Hex Nut 5/16"-18 YDP Grade 2
22 Transfer Plate Assembly
23 Unloader Assembly

3. Installation
PNEG-2339 Flex-Flo Unloader Kit 13
Installing the New Boot and Transfer Plate
NOTE: Installation of the boot is the same whether the tank has the standard collar or the Sure-Flo Feed
Flow Control.
1. Slide the boot (27) as far as possible into the tank collar (32) or the Sure-Flo Feed Flow Control
opening. (See Figure 3G.)
Figure 3G Inserting the New Boot into the Collar
2. Align the boot (27) with the Flex-Flo system that will be installed. (See Figure 3H.)
3. Using the holes in the tank collar (32) as a guide, drill eight 11/32" holes (21) into the boot (27) rim.
Figure 3H Drilling Holes in the New Boot
Ref # Description
27 New Boot
32 Tank Collar
Ref # Description
21 11/32" Field Drill Hole
27 New Boot
32 Tank Collar

3. Installation
14 PNEG-2339 Flex-Flo Unloader Kit
4. Install the boot (27) to the tank collar (32) using 5/16" x 1" truss head screws (4), 5/16" nylon washers
(6) and 5/16" nylon nuts (8). (See Figure 3I.)
NOTE: Install 5/16" x 1" screws (4) from the inside of the tank collar (32). Snug tighten the hardware.
Figure 3I Installing the New Boot to the Collar
Installing the Slide Gate with New Boot
1. For the new boot (27): The rain cover (28) in the transfer plate (22) is factory assembled on the
opposite side of the slide gate (14) opening. (See detail A on Figure 3J.) Remove the rain cover (28)
and assemble on the slide gate (14) opening side while installing the unloader with the boot (27).
(See detail B on Figure 3J.)
Figure 3J Adjusting the Position of the Rain Cover
Ref # Part # Description
4S-4336 5/16"-18 x 1" Truss Head
Machine Screw
6 S-4338 5/16" Nylon Washer
8S-4337 5/16"-18 Nylon Insert Nut
27 New Boot
32 Tank Collar
Ref # Description Ref # Description
14 Slide Gate 22 Transfer Plate Assembly
20 Flange Exhaust Gasket 28 Rain Cover

3. Installation
PNEG-2339 Flex-Flo Unloader Kit 15
2. While passing the chain for the slide gate (14), use the middle hole in the rain cover (28) for a single
slide gate (29). For double slide gates (30), use the outer two holes and pass one chain through each
one of these outer holes. (See Figure 3K.)
Figure 3K Identifying the Holes for Slide Gate Chains
3. Insert the slide gate (14) into the transfer plate assembly (22). (See Figure 3L.)
Figure 3L Inserting the Slide Gate
Ref # Description
20 Flange Exhaust Gasket
22 Transfer Plate Assembly
28 Rain Cover
29 Single Slide Gate
30 Double Slide Gate
Ref # Description
14 Slide Gate
20 Flange Exhaust Gasket
22 Transfer Plate Assembly

3. Installation
16 PNEG-2339 Flex-Flo Unloader Kit
4. Position the rain cover (28) over the slide gate (14) opening side and align with the first set of holes
on the transfer plate assembly (22). (See Figure 3M.)
5. Install the transfer plate assembly (22) and the unloader (31) along with the rain cover (28) to the
boot (27) using 5/16" x 1-1/2" flange bolts (2) and 5/16" nylock nuts (9). (See Figure 3M.)
NOTE: Make sure to place one gasket (20) above and another gasket (20) below the transfer plate
assembly (22). (See Figure 3M.)
NOTE: After installing, make sure the slide gate (14) is in operating position. Pass thefree end of the
chain through the rain cover (28) and secure it to the slide gate (14) with a cotter pin.
Figure 3M Installing the Transfer Plate Assembly and Unloader to the New Boot
Ref # Description Ref # Description
25/16"-18 x 1-1/2" Flange Bolt (S-10185) 27 New Boot
95/16"-18 Nylock Nut (S-7382) 28 Rain Cover
14 Slide Gate 31 Unloader
20 Flange Exhaust Gasket (FLX-5541) 32 Tank Collar
22 Transfer Plate Assembly
NOTE: If the barn is closer to the unloader, make
sure to clamp a 1' straight pipe to the unloader outlet
and then followed by the elbow. This is recommended
assembly for all sizes.

3. Installation
PNEG-2339 Flex-Flo Unloader Kit 17
Installing the Clear Access Door Assembly
1. Align the access door (16) with the door opening in the unloader assembly (23). (See Figure 3N.)
2. Place the two door clamps (17) to the inside of the unloader assembly (23) and secure the door
clamps (17) to the access door (16) using 5/16"-18 x 1-1/2" studs (1). (See Figure 3N.)
NOTE: Install 5/16"-18 x 1-1/2" studs (1) with bolt head on the inside of the unloader assembly (23).
Figure 3N Installing the Access Door Clamps
3. Secure the access door (16) to the unloader assembly (23) by installing a 5/16" washer (7)
and 5/16" wing nut (10) to each of the 5/16"-18 x 1-1/2" studs (1) in the door clap assembly (19).
(See Figure 3O.)
Figure 3O Securing the Access Door to the
Unloader Assembly
Ref # Part # Description Ref # Part # Description
1S-10807 5/16"-18 x 1-1/2" Clinch Stud SS 17 FLX-5561A Clear Access Door Clamp
16 FLX-5509A Clear Access Door 23 Unloader Assembly
Ref # Part # Description
7S-3558 5/16" EPDM Steel Washer
10 S-20419 5/16" Wing Nut
16 FLX-5509A Clear Access Door
19 FLX-5561 Unloader Clear Access Door
Clamp Assembly
23 Unloader Assembly

3. Installation
18 PNEG-2339 Flex-Flo Unloader Kit
Feed Tank Collar
The standard bulk feed tank is supplied with a 16'' (40.64 cm) hopper opening. If needed, 22'' (55.88 cm)
hopper openings are also available. Consult the dealer for specific ordering instructions.
Adjusting the Restrictor Tube
IMPORTANT: The restrictor may be adjusted to allow more feed flow. Do Not modify the restrictor until
the system is completely operational and the auger has been polished by running feed
through the system.
1. Remove the 1/4" x 5/8" bolt (3) and auger lock (24). After that, remove the restrictor tube (25) from
the spindle (26).
2. Measure 1" (2.5 cm) from the unloader assembly (23) wall and cut the restrictor tube (25).
3. Install the restrictor tube (25) back to the spindle (26) with 1/4" x 5/8" bolt (3) and auger lock (24).
4. Test the feed flow through the unloader assembly (23). (See Figure 3P.)
5. If the desired feed flow rate is not attained, repeat the Step 1-3 until the desired rate is reached.
Figure 3P Adjusting the Restrictor Tube
Ref # Description
31/4"-20 x 5/8" BHSCS Bolt (S-4309)
23 Unloader Assembly
24 Auger Lock
25 Restrictor Tube
26 Spindle

3. Installation
PNEG-2339 Flex-Flo Unloader Kit 19
Straight-Through Tandem Installation
The straight-through tandem system should be installed the same as a single tank system with the
following exceptions:
1. Mount the boots on both tanks and the single or twin-out unloader as instructed.
2. Install the baffle plates as shown in Figure 3Q.
3. Use either 1 or 2 baffles per auger line depending on the system or desired flow rate.
Figure 3Q
Ref # Part # Description
18
FLX-4786 Restrictor Baffle (Model 300) - Single
FLX-5483 Restrictor Baffle (Model 300) - Twin
FLX-5485 Restrictor Baffle (Model 350) - Twin
FLX-4750 Unloader Baffle Kit (Model 350) - Single
FLX-5670 Single Unloader Baffle Spacer

20 PNEG-2339 Flex-Flo Unloader Kit
4. Parts List
Model 220, 300, 300P, 350 and HR S.O. Unloader with Anchor
and Bearing Assembly
*Use loctite to secure the nut on the bolt.
Ref # Models Part # Description Qty
Galvanized Stainless Steel
1All FLX-5454 FLX-5454-SS Unloader Body Single 1
2 All FLX-5495 FLX-5495 Gasket, Tube Anchor Flange 2
3All 404238 404238 Ball Iron 3" Hollow 1-1/2# 1
4All S-8135 -Bolt, Flange 5/16"-18 x 1-1/4" ZN Grade 5 4
-S-7683 Bolt, HHTB 5/16"-18 x 1-1/4" SS Waxed Coating 4
5All S-3550 -Bolt, Carriage 5/16"-18 x 1" ZN Clear Grade 5 4
-S-7020 Bolt, Carriage 5/16"-18 x 1" SS 4
6All S-7382 -Nut, Nylock 5/16"-18 ZN Grade 5 8
-S-8452* Nut, Flange 5/16"-18 SS Waxed 8
7220 S-4490 S-10824 Clamp, 2-1/4" Tube 1 300 and 300P S-9186 S-10826 Clamp, 3-1/4" Tube 1
350 and HR S-4443 S-10828 Clamp, 4" Tube 1
8All FLX-2217 FLX-2217-SS Flex Seal Ring 1
9All FLX-3422 FLX-3422 Seal, Neoprene 1
10 300 and HR FLX-4786 FLX-4786-SS Restrictor Baffle 2 300P FLX-4786 FLX-4786-SS Restrictor Baffle 1
350 FLX-4750 FLX-4750-SS Single Unloader Baffle Kit 1
11 220 FLX-5491A FLX-5491A Tube Anchor, Unloader (Plastic), with Compression Limiters 1 300 and 300P FLX-5492A FLX-5492A Tube Anchor, Unloader (Plastic), with Compression Limiters 1
350 and HR FLX-5493A FLX-5493A Tube Anchor, Unloader (Plastic), with Compression Limiters 1
12
220 FLX-5457 FLX-5457-SS Anchor and Bearing Assembly 1
300 FLX-5458 FLX-5458-SS Anchor and Bearing Assembly 1
300P FLX-5459 FLX-5459-SS Anchor and Bearing Assembly 1
350 FLX-5460 FLX-5460-SS Anchor and Bearing Assembly 1
HR FLX-5461 FLX-5461-SS Anchor and Bearing Assembly 1
13 All BLK-11137A BLK-11137A-SS Transfer and Slide Gate Kit 1
FLX-4234P FLX-4234P-SS Double Transfer Plate Assembly, Package for Assembly 1
N/S All FLX-4739 FLX-4739 Tube, 1/4" OZ of Anti-Seize 1
N/S All FLX-4456 FLX-4456-SS Unloader Hardware Package 1
